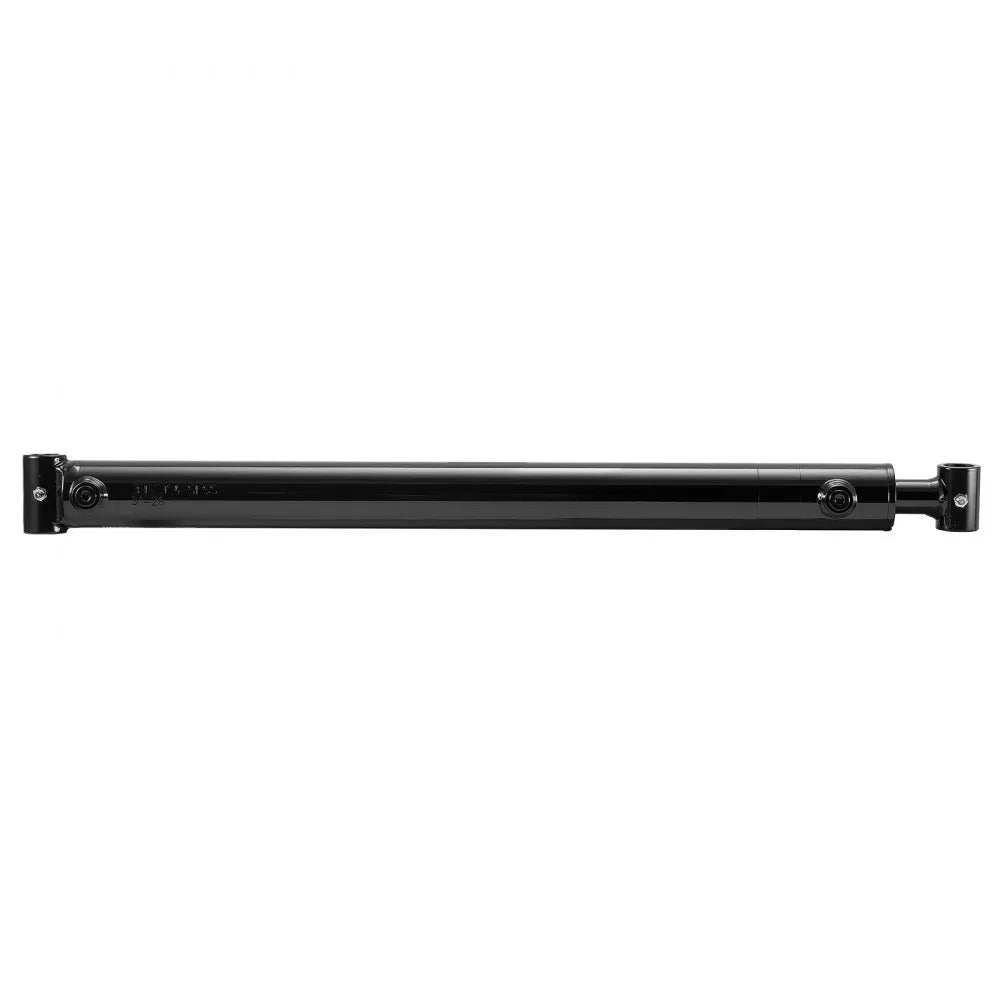

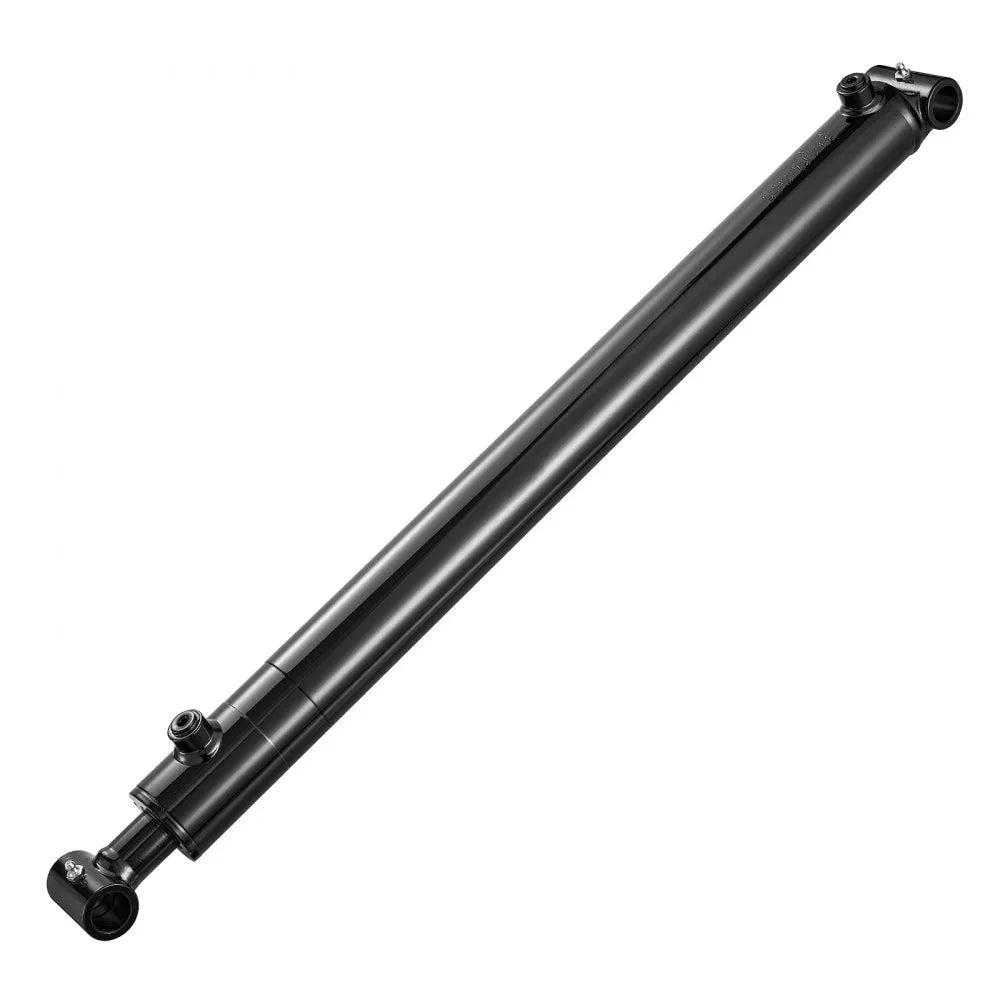

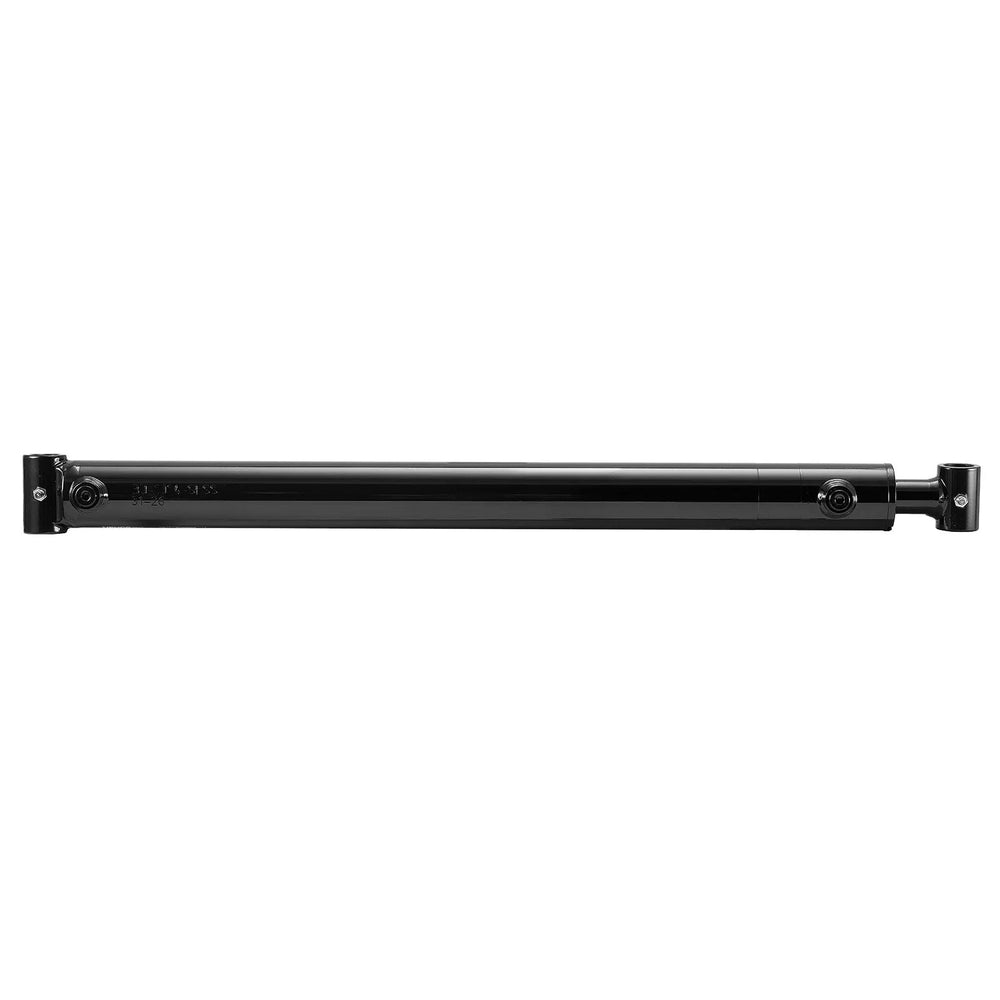

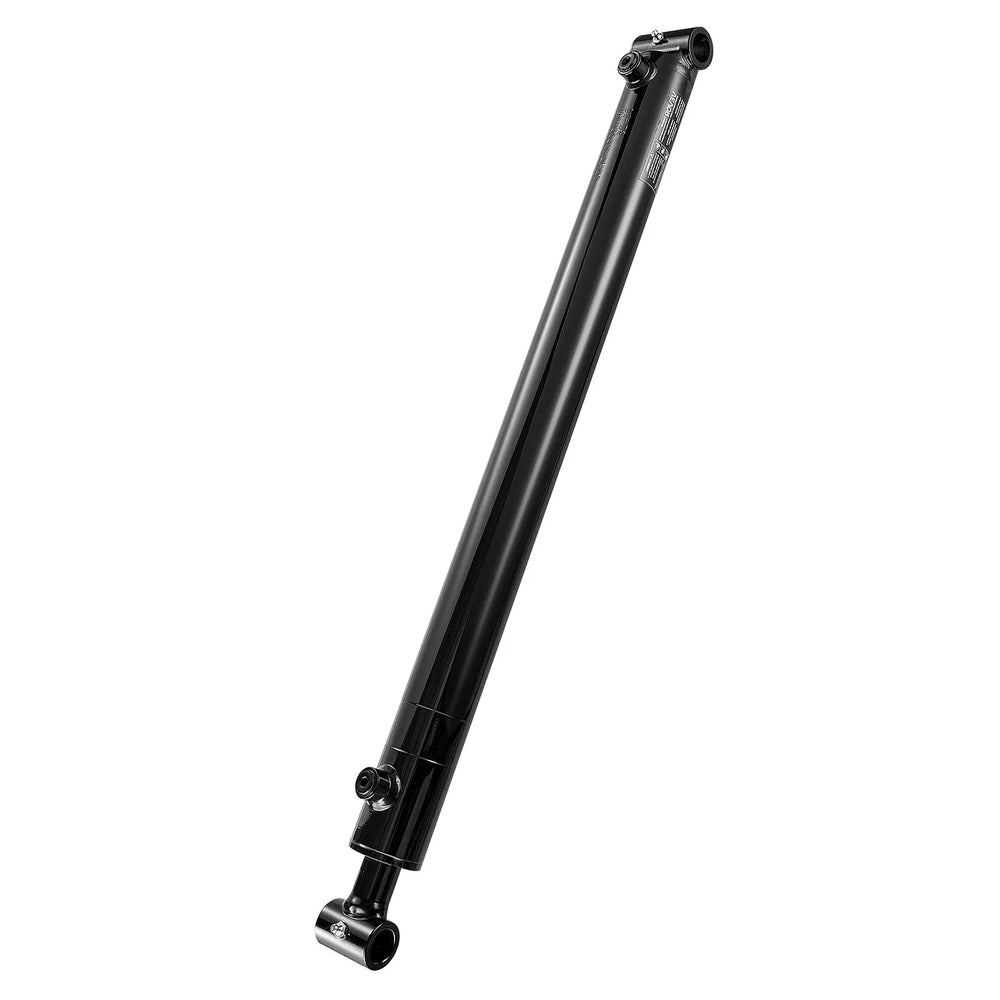

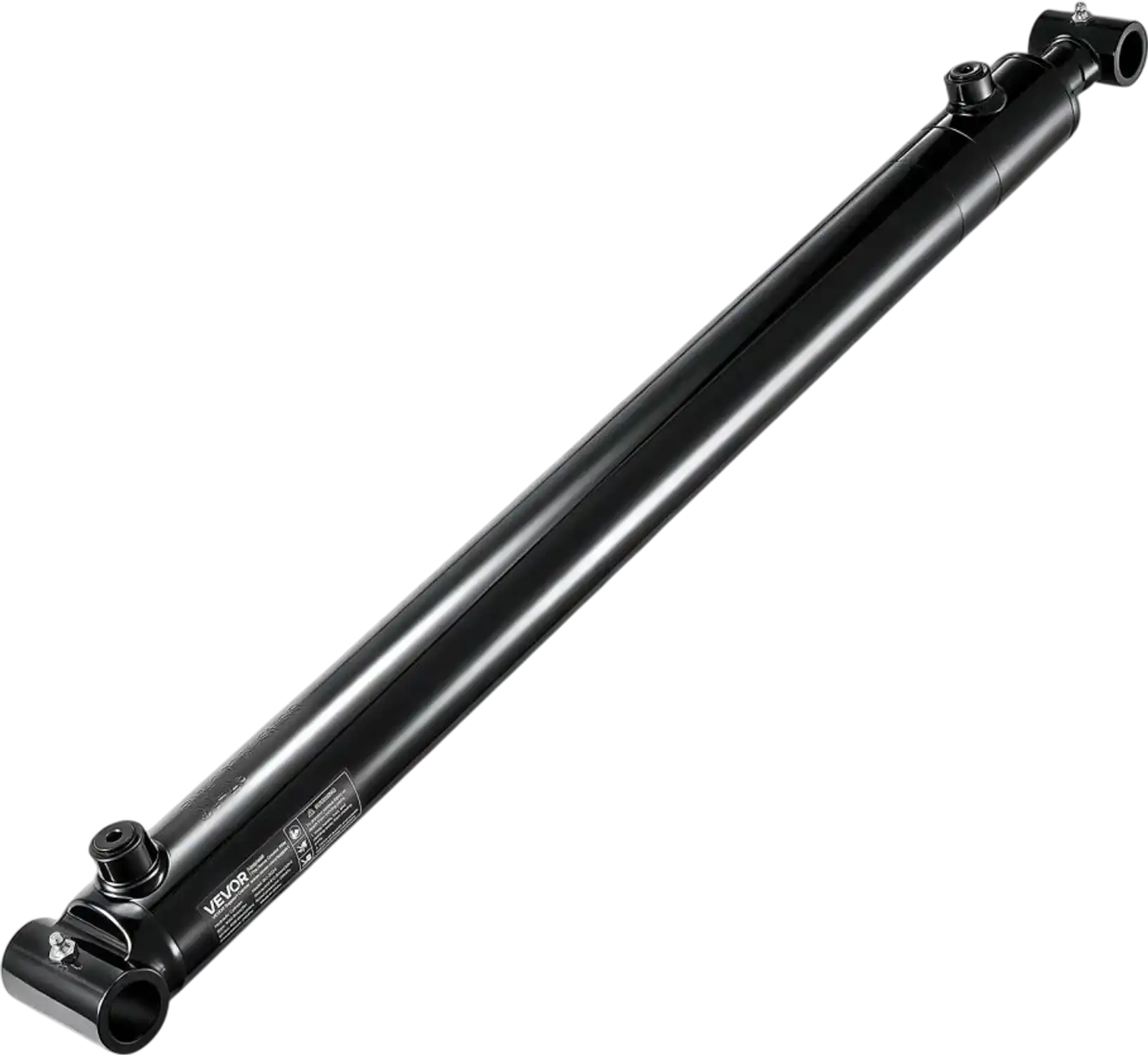

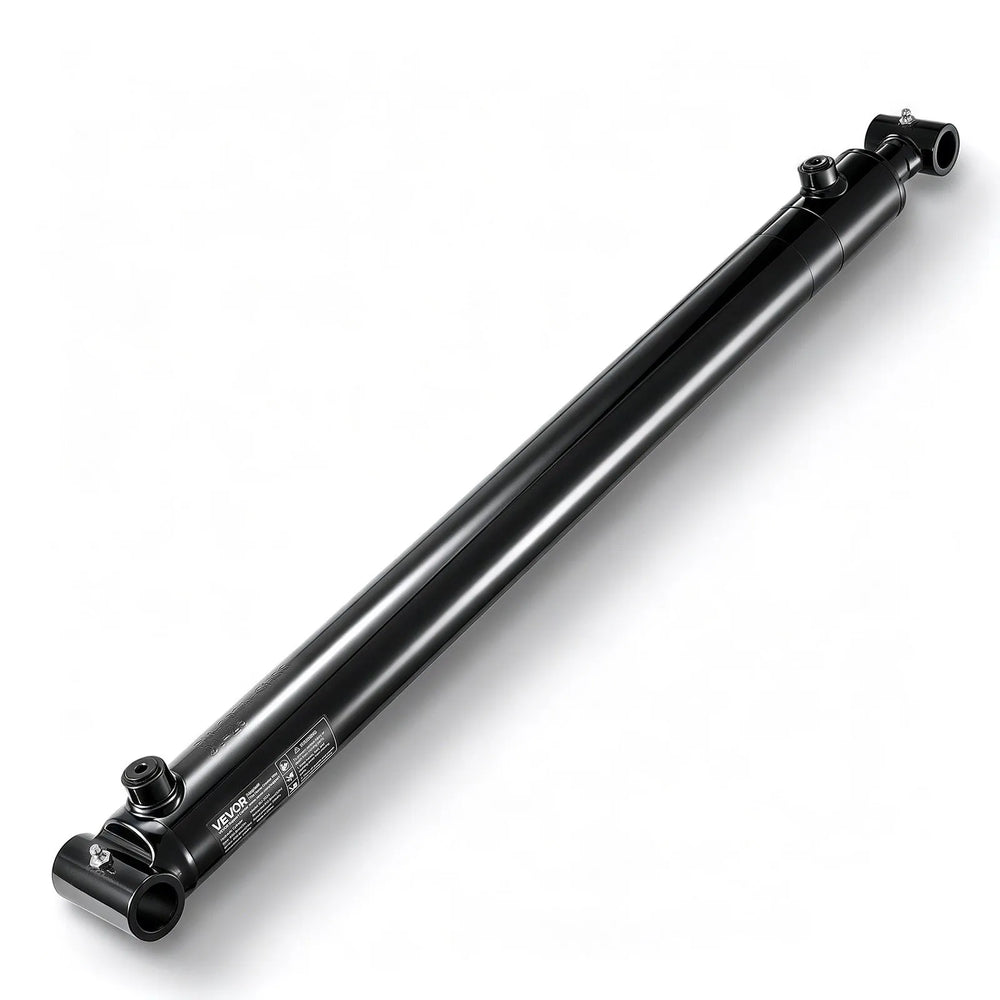

Vevor Hydraulic Cylinder Double Acting 2" Bore x 24" Stroke 3500 PSI Welded Cross Tube New
Product Overview

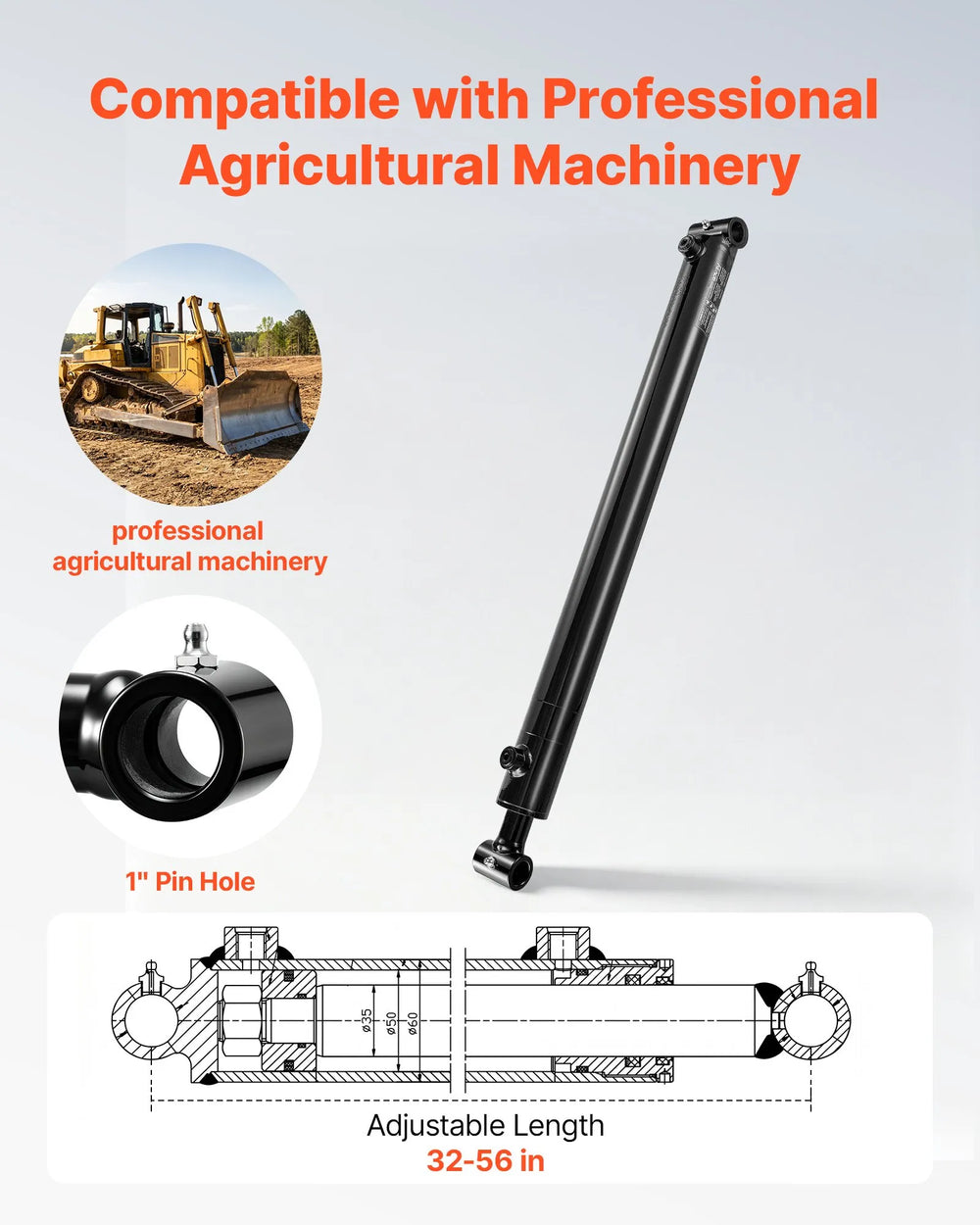

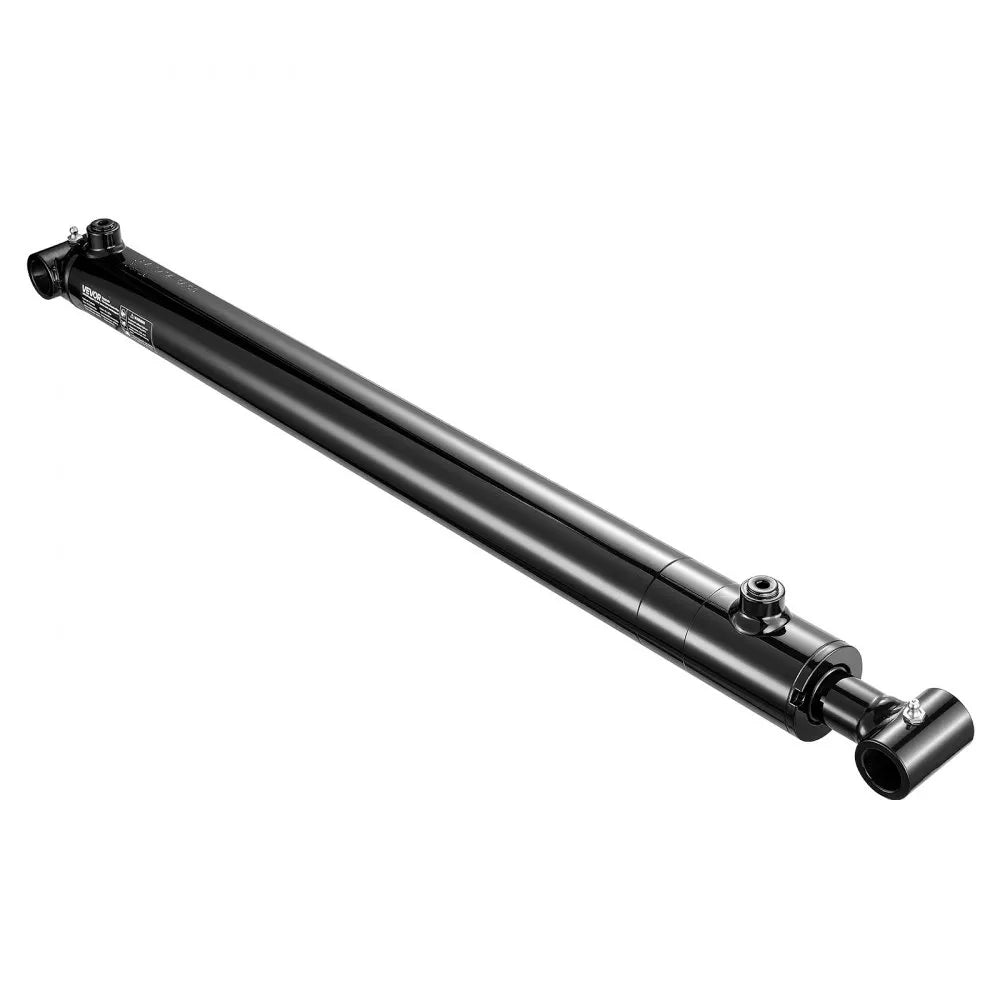

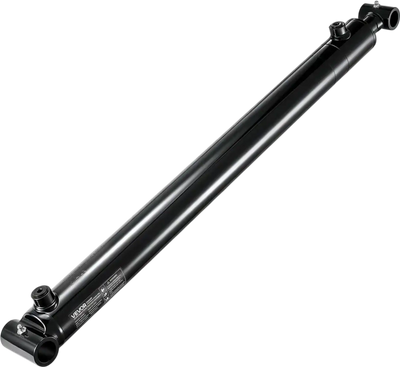

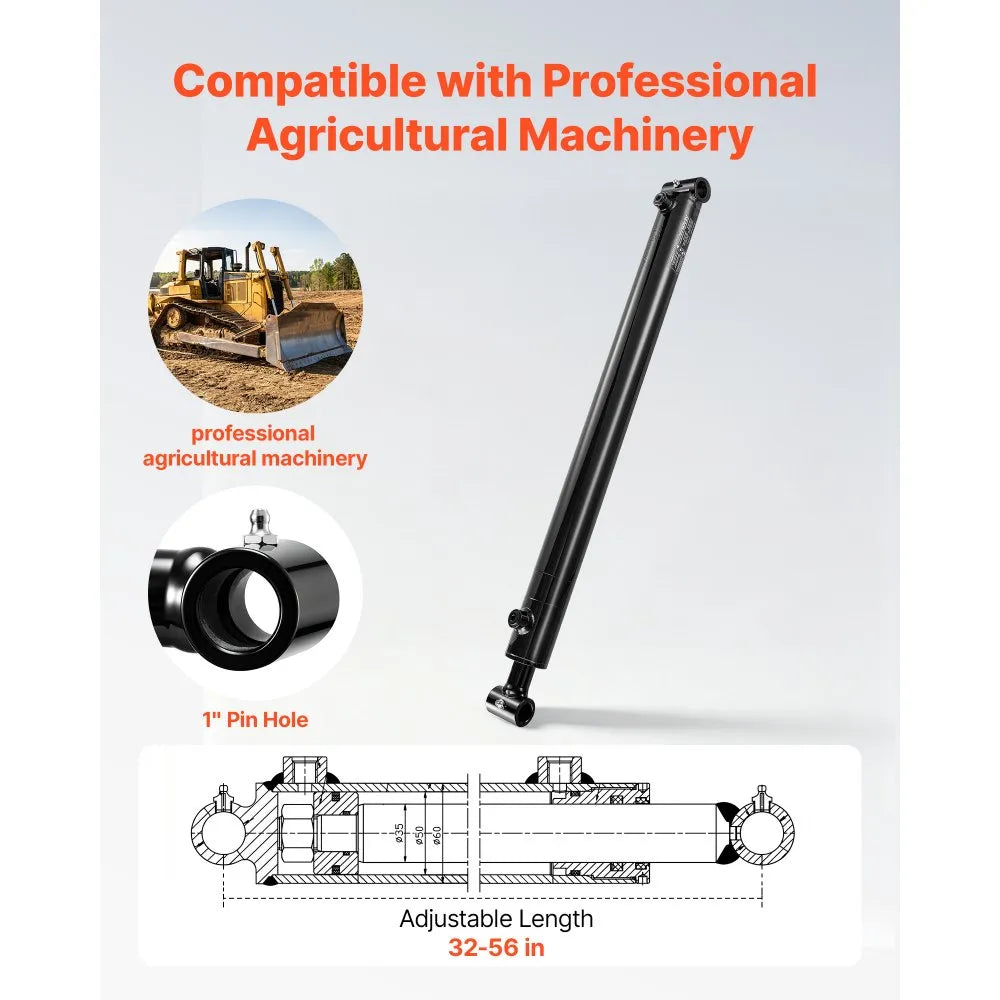

The Vevor double acting hydraulic cylinder is designed to provide smooth, controlled push-pull motion for agricultural machinery and tractors. It features a 2" bore, 24" stroke, and heavy-duty welded cross tube construction for dependable performance under demanding workloads. With a rated pressure of 2900 PSI and a maximum pressure of 3500 PSI, it delivers strong hydraulic force for efficient operation. The chrome-plated piston rod and high-performance sealing system help resist wear, reduce leakage, and support long service life.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorize Vevor Dealer
Features
- Key Specifications: Bore: 2 in (50.8 mm), Stroke: 24 in (610 mm), Retracted Length: 32 in (813 mm), Extended Length: 56 in (1423 mm), Port Size: SAE #6, Pin Hole Diameter: 1 in

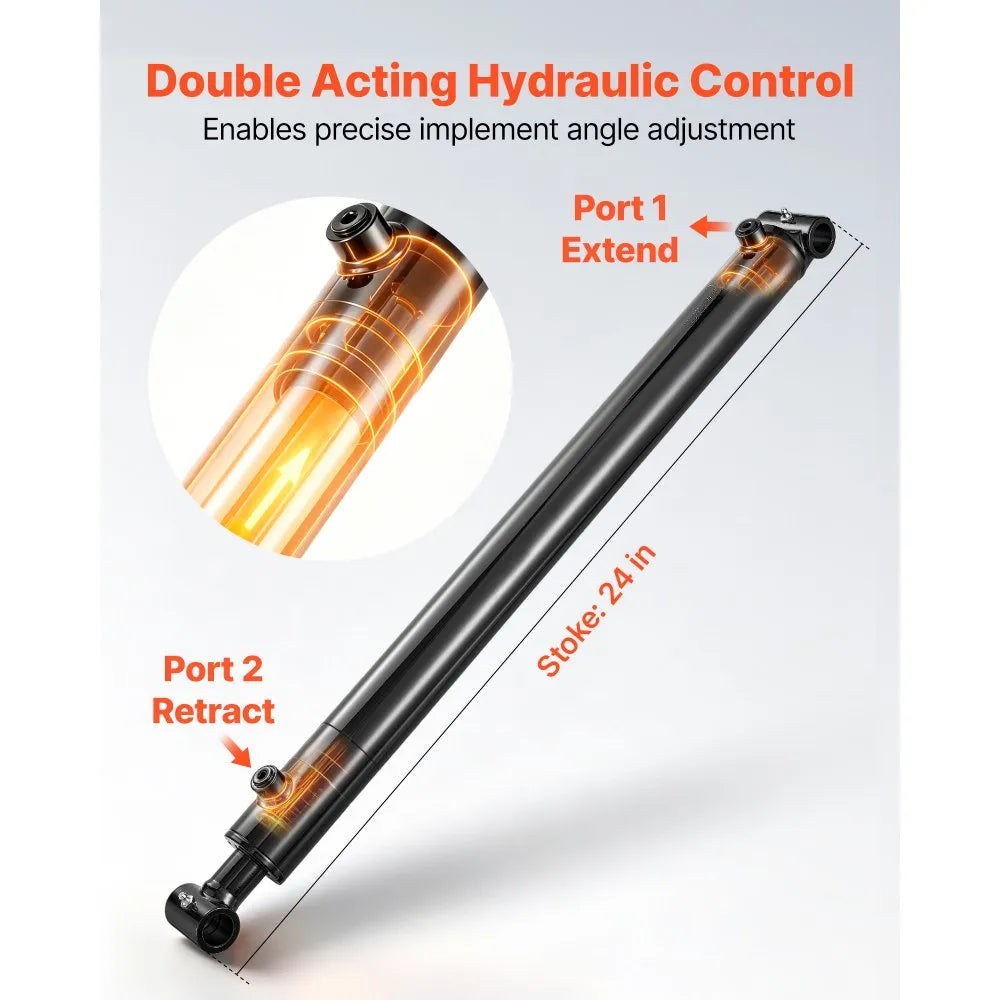

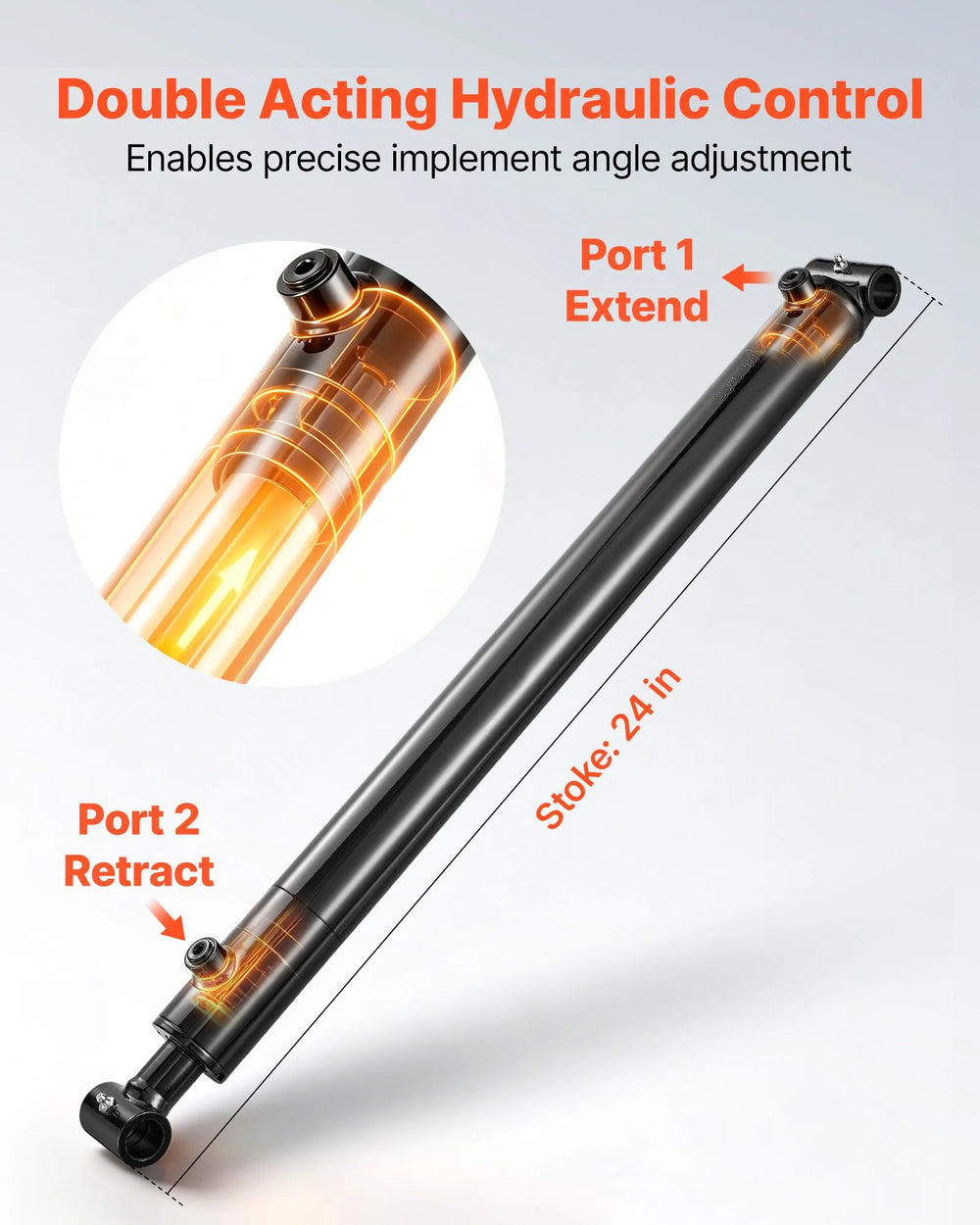

- Efficient Hydraulic Control: Driven by hydraulic pressure on both sides of the piston, this double-acting hydraulic cylinder delivers stable, controlled push-and-pull motion for smoother agricultural machinery operation

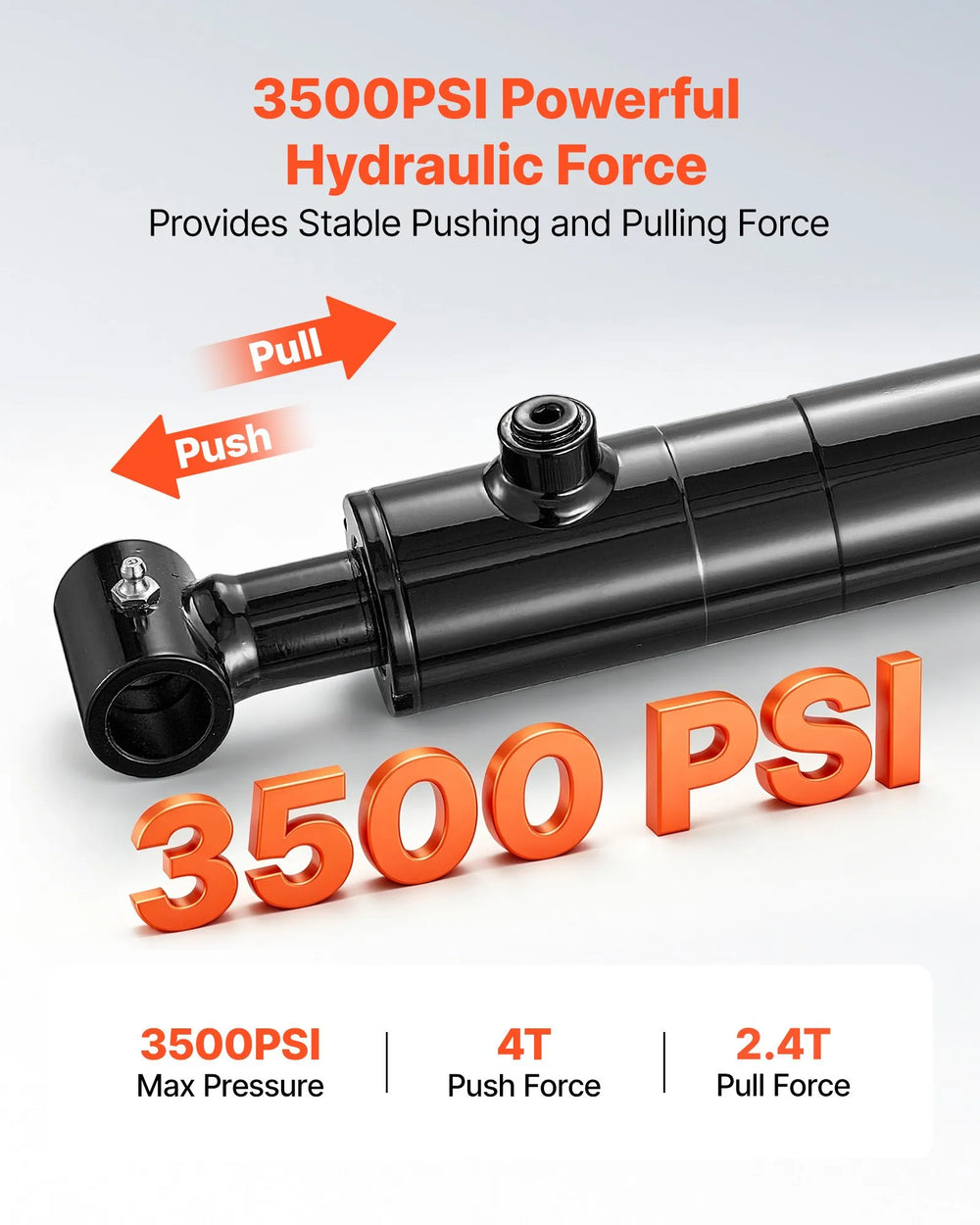

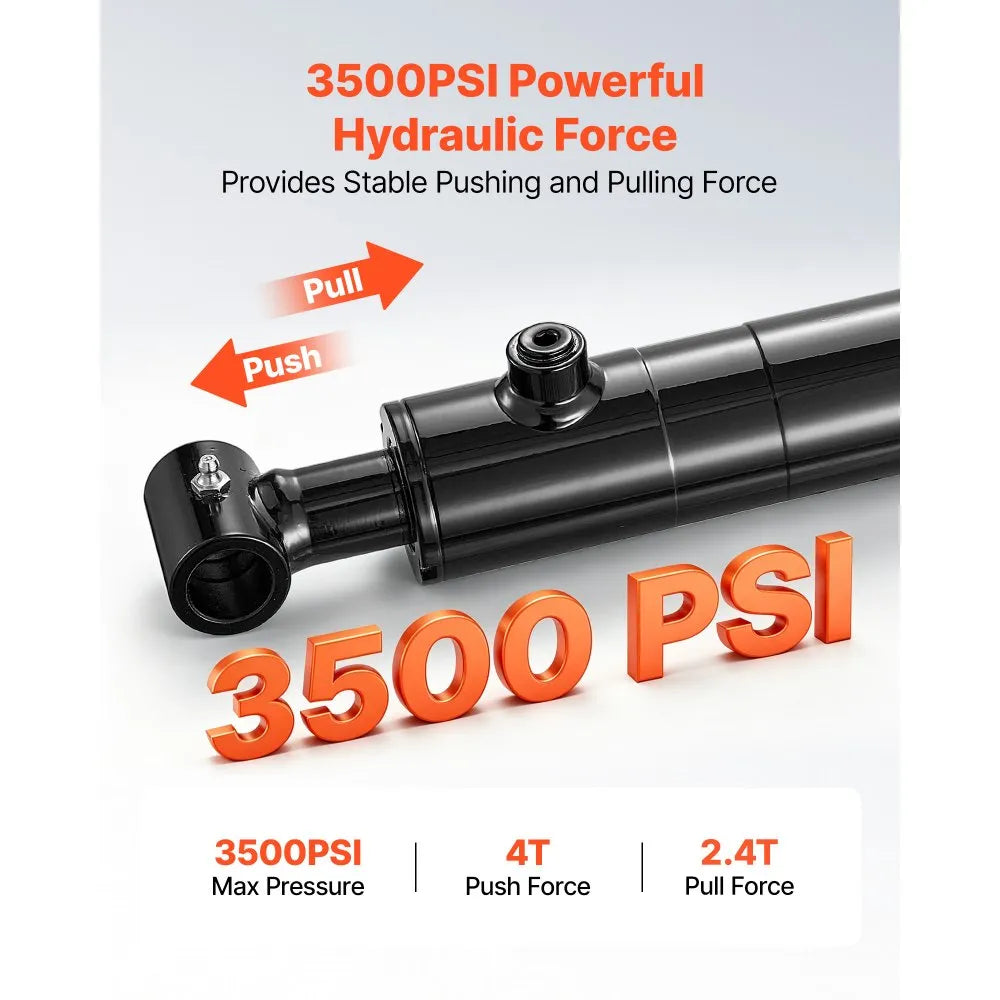

- High-Pressure Hydraulic Power: Built for demanding workloads, this hydraulic cylinder supports 2900 PSI rated pressure and up to 3500 PSI max pressure, delivering steady hydraulic force to improve equipment operating efficiency
- Powerful Hydraulic Force: This cross tube hydraulic cylinder supports up to 8928 lbs (4 Ton) column load capacity while delivering 4 Ton push force and 2.4 Ton pull force (at 20 MPa), providing reliable power for pushing and pulling applications

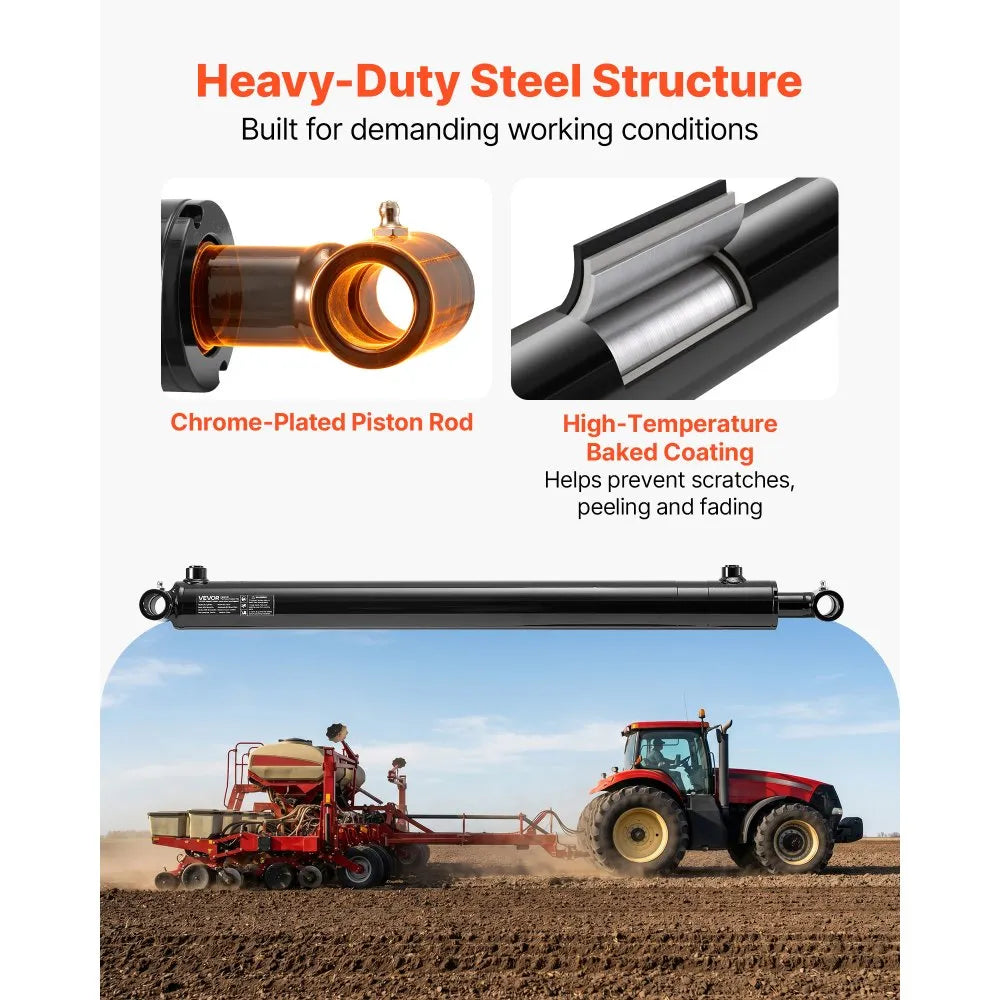

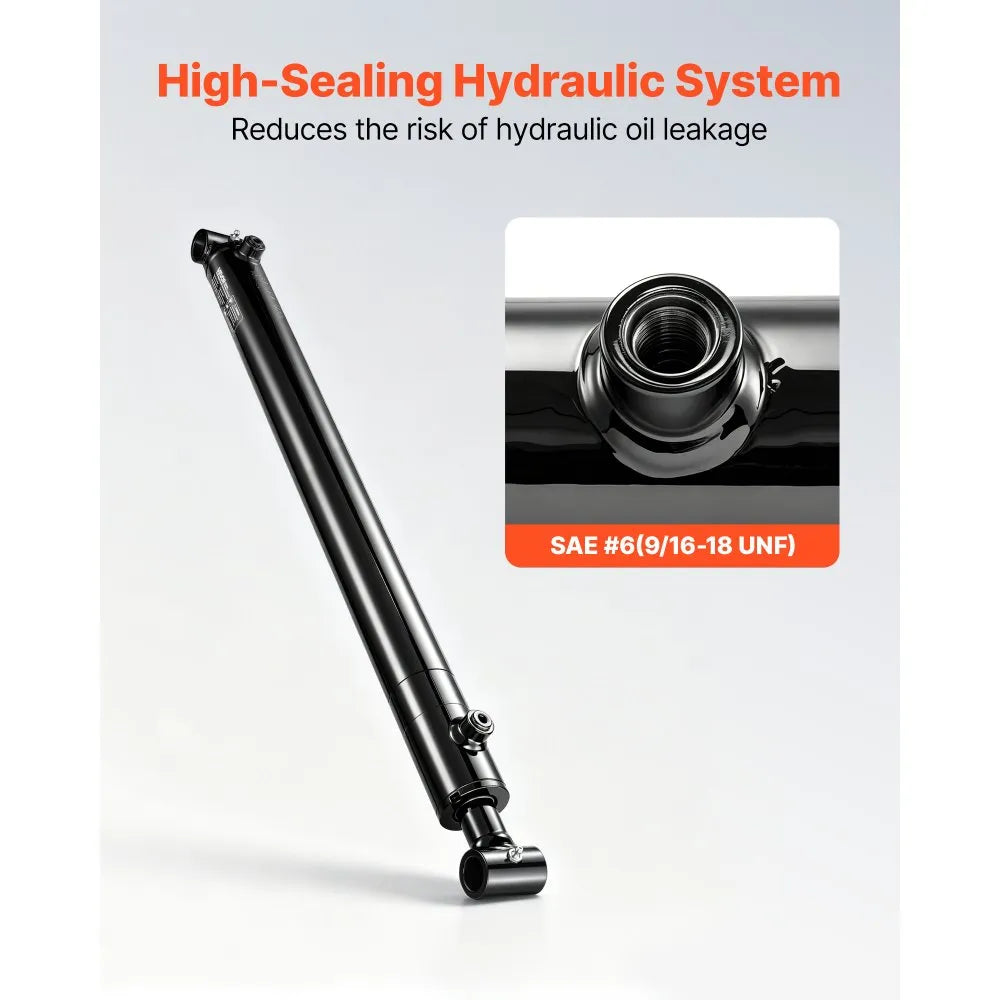

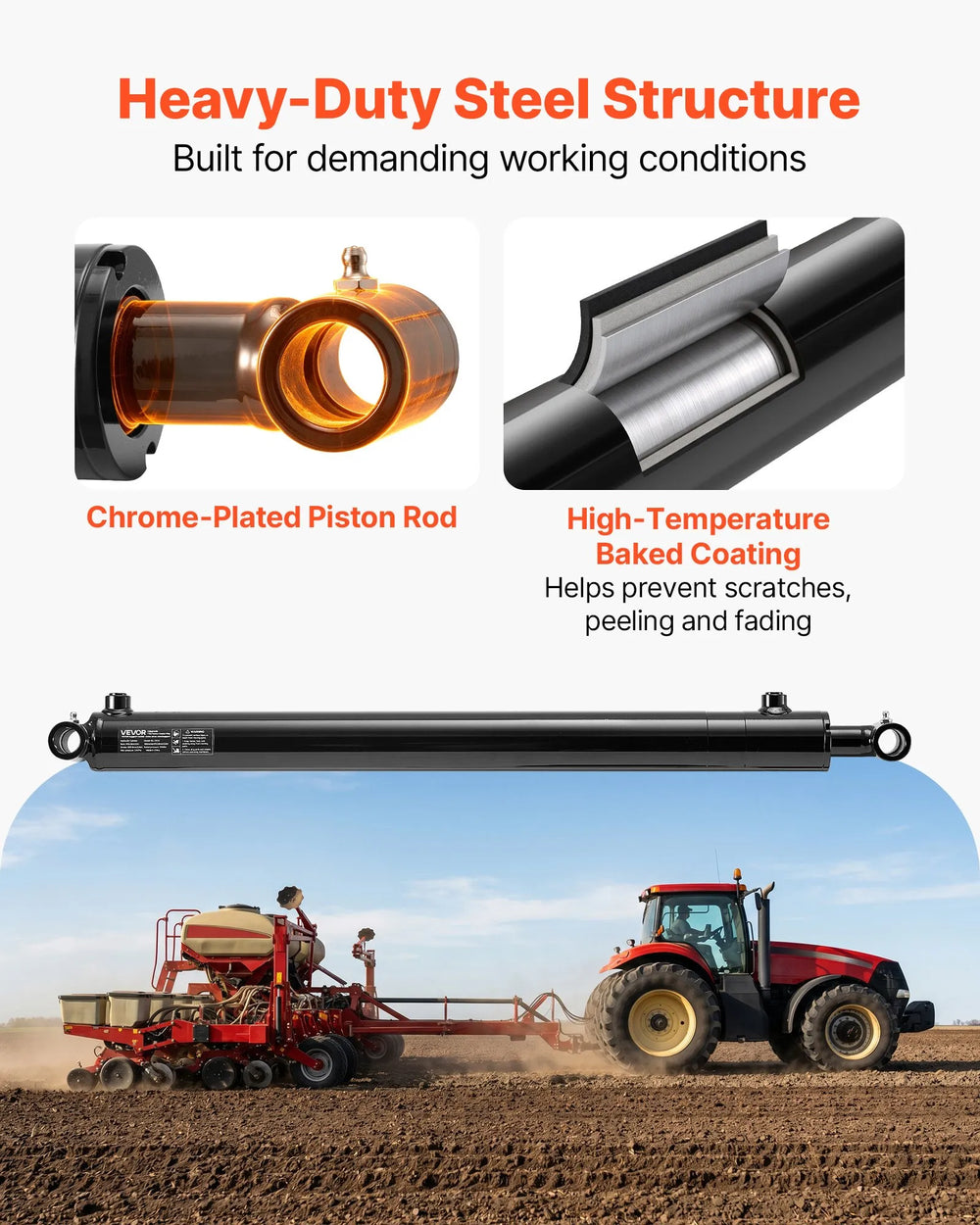

- Heavy-Duty Steel Construction: Built with a high-seal hydraulic structure, chrome-plated piston rod, and high-temperature baked coating to reduce leakage, resist wear and corrosion, and ensure stable performance in demanding work conditions

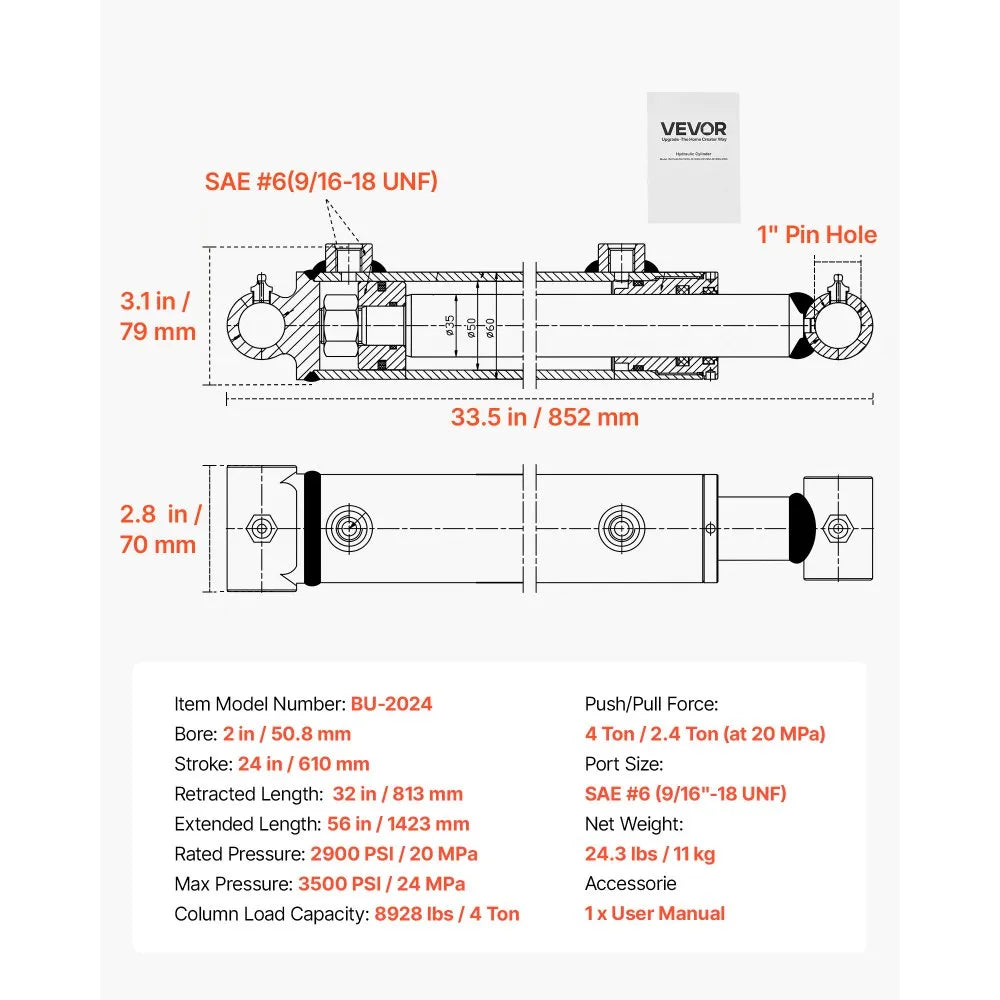

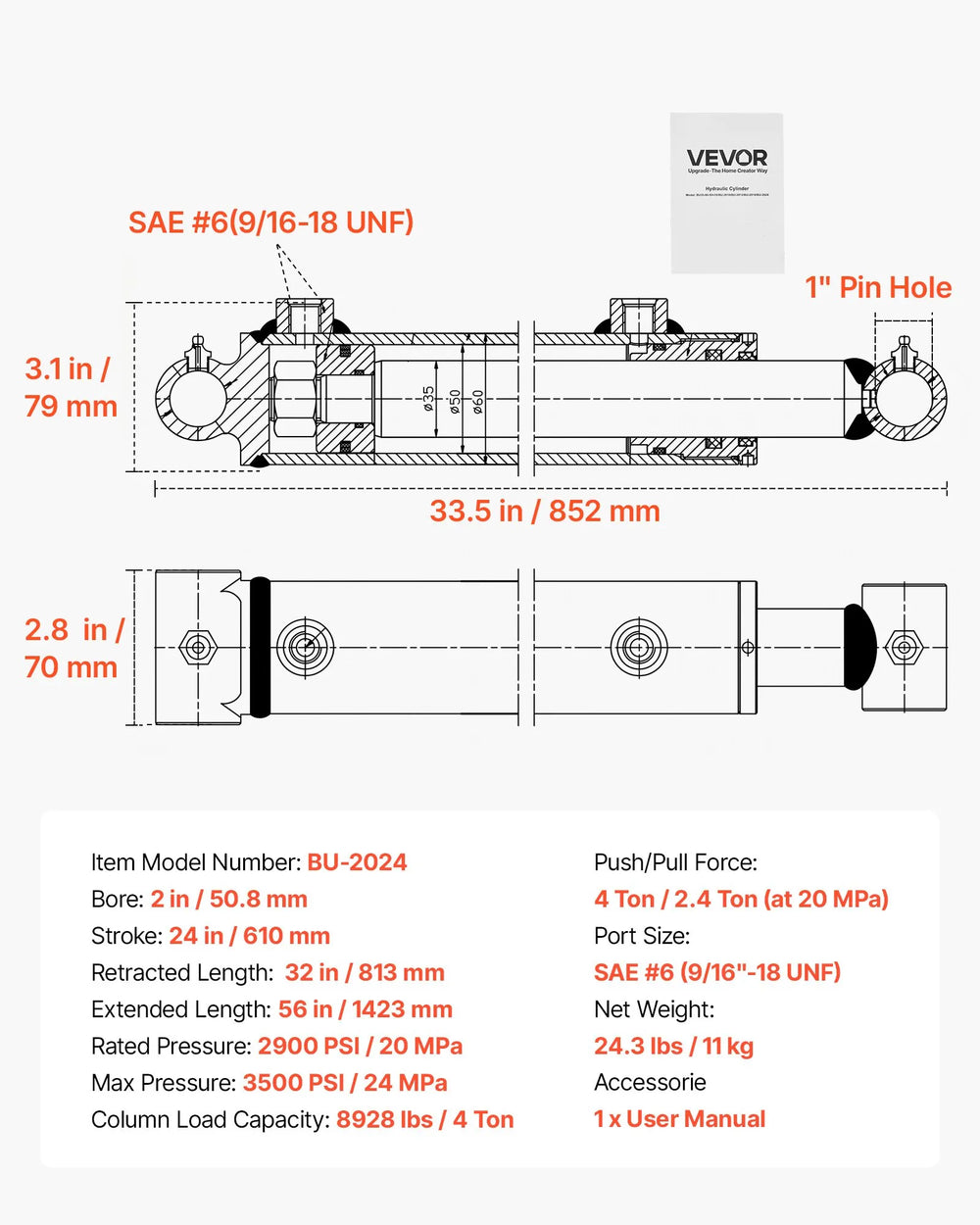

Specifications
| Item Model Number | BU-2024 |
| Bore | 2 in / 50.8 mm |
| Stroke | 24 in / 610 mm |
| Retracted Length | 32 in / 813 mm |
| Extended Length | 56 in / 1423 mm |
| Rated Pressure | 2900 PSI / 20 MPa |
| Max Pressure | 3500 PSI / 24 MPa |
| Column Load Capacity | 8928 lbs / 4 Ton |
| Push/Pull Force | 4 Ton / 2.4 Ton (at 20 MPa) |

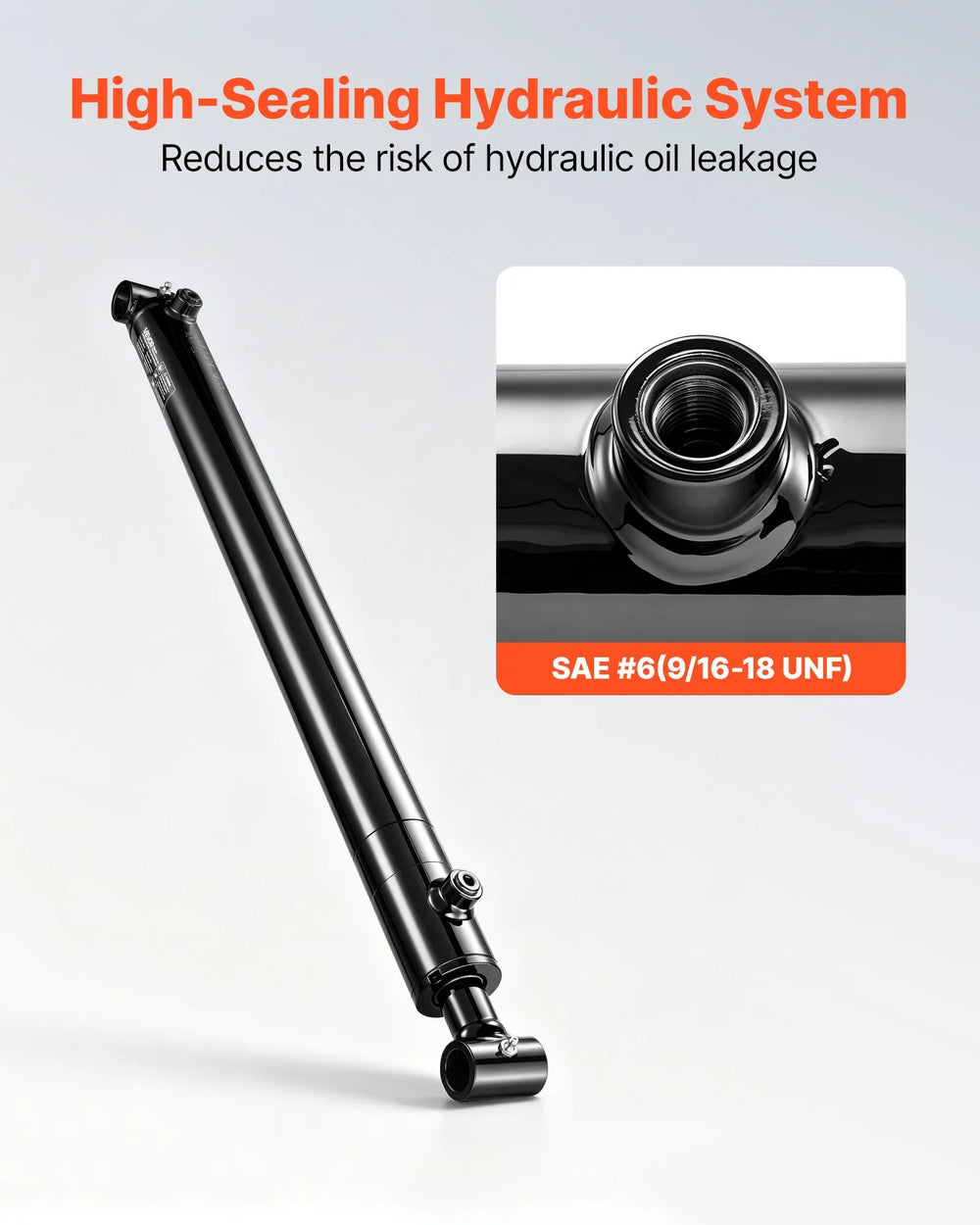

| Port Size | SAE #6 (9/16"-18 UNF) |
| Pin Hole Diameter | 1 in |
| Net Weight | 24.3 lbs / 11 kg |
Warranty
This item comes with a 1 year factory warranty.
