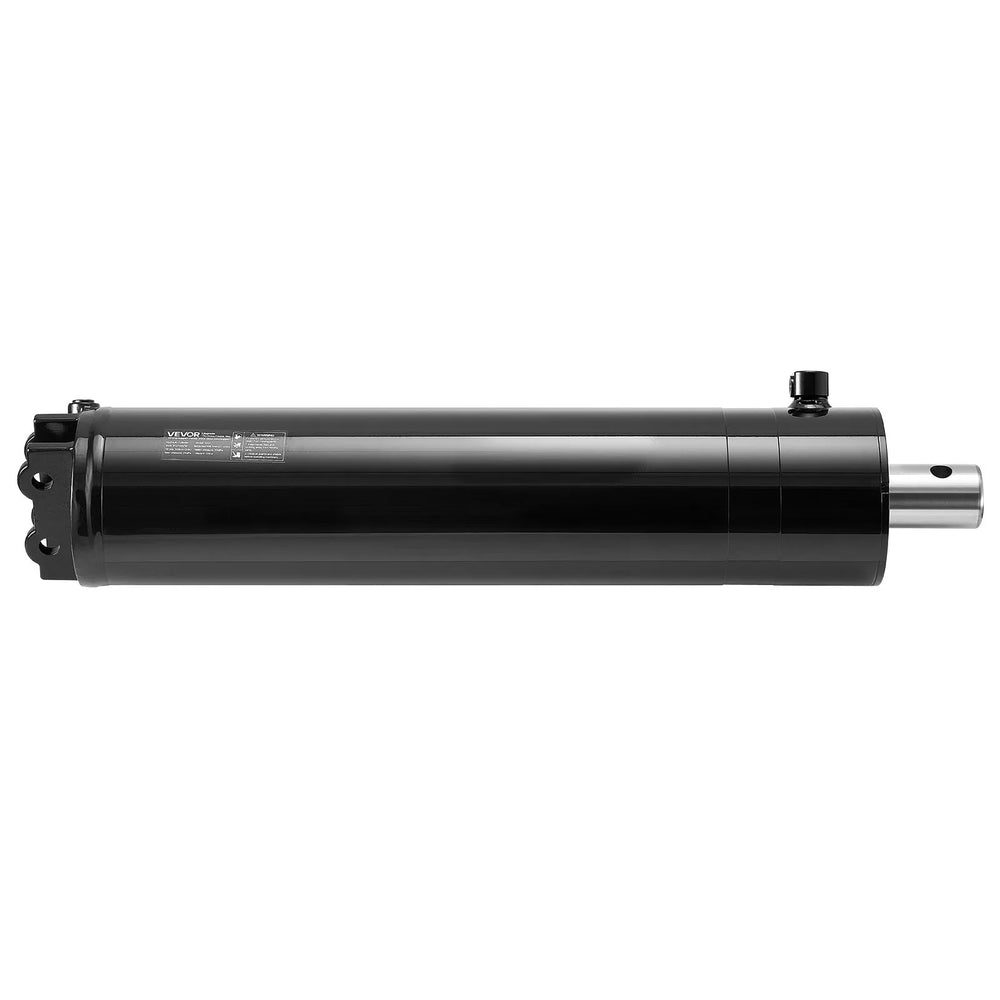

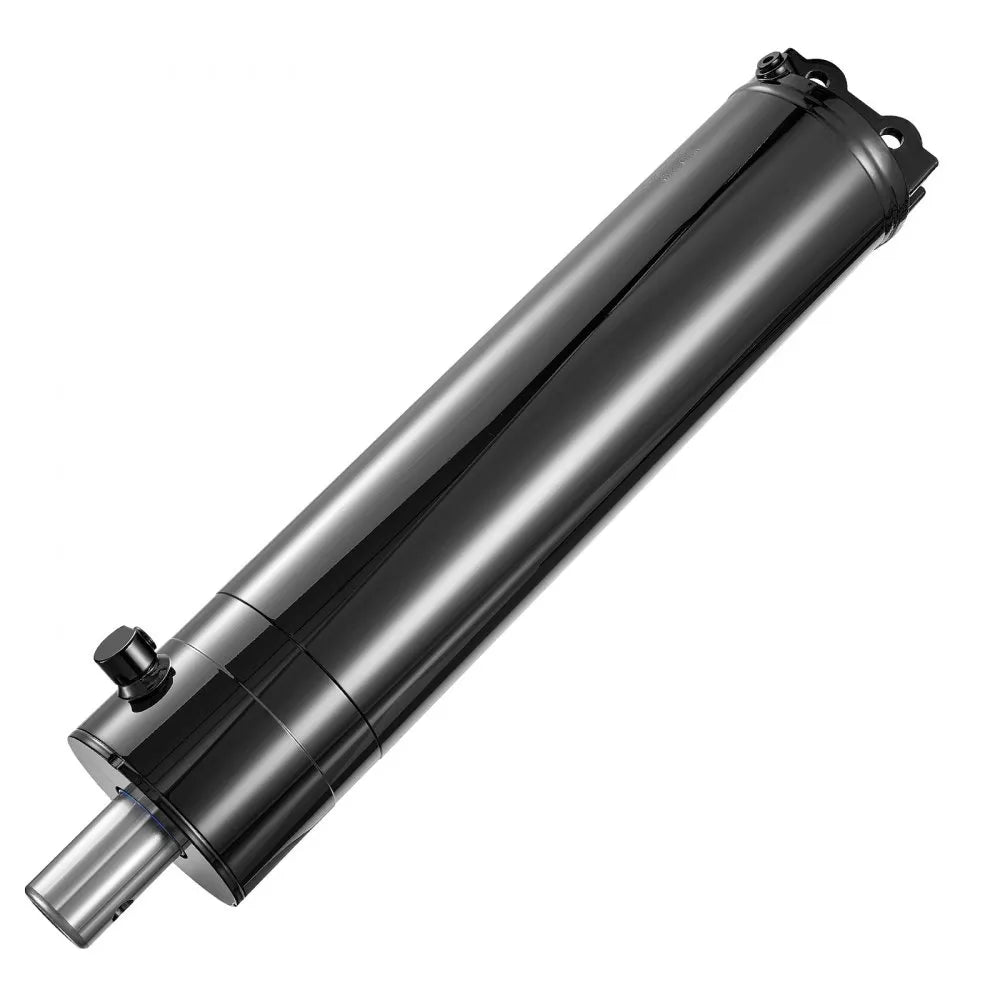

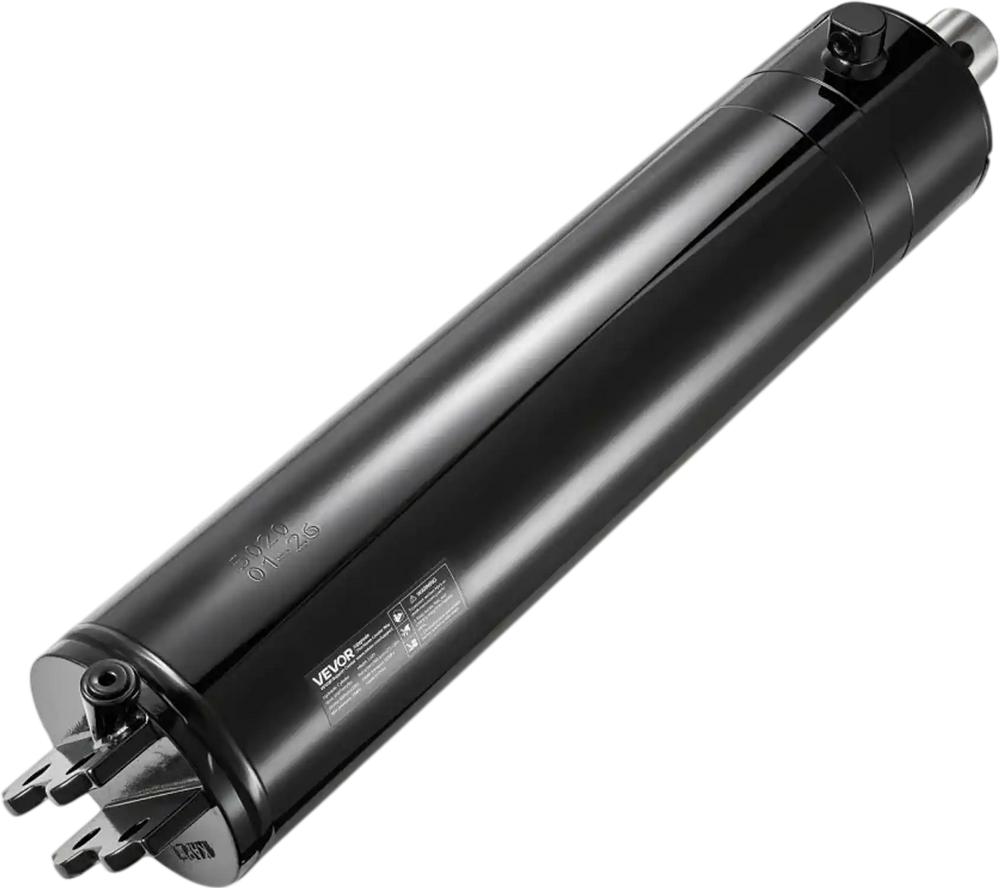

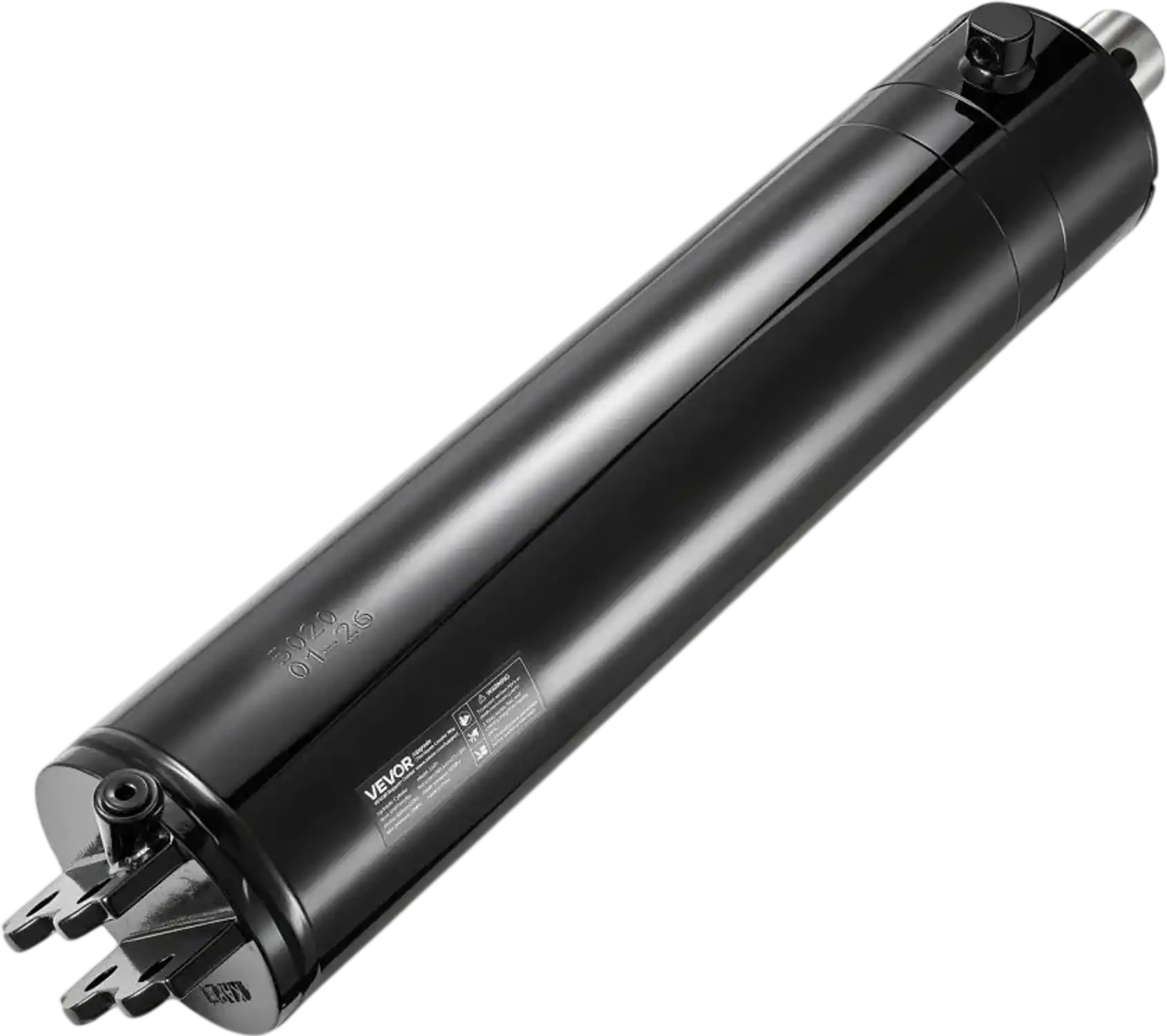

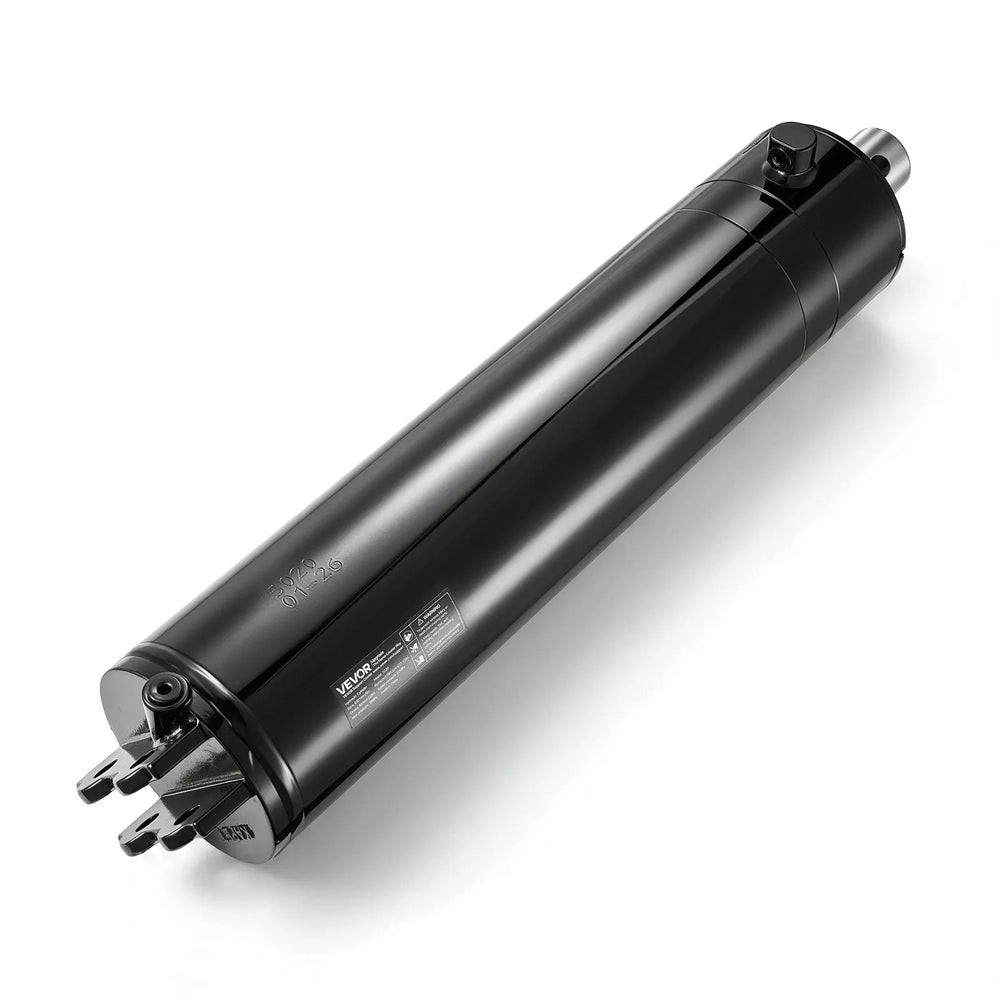

Vevor Hydraulic Cylinder Double Acting 5" Bore x 20" Stroke 4500 PSI Welded Cross Tube New
Product Overview
This double-acting hydraulic cylinder is built to provide smooth, controlled push-and-pull motion for agricultural and industrial equipment. It features a heavy-duty welded cross tube design with a chrome-plated piston rod and high-performance sealing system for durability and reduced leakage. Rated for 2900 PSI with a maximum pressure of 4500 PSI, it delivers strong and consistent hydraulic force under demanding workloads. The cylinder is suited for tractors, land leveling equipment, and other agricultural machinery.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorize Vevor Dealer
Features

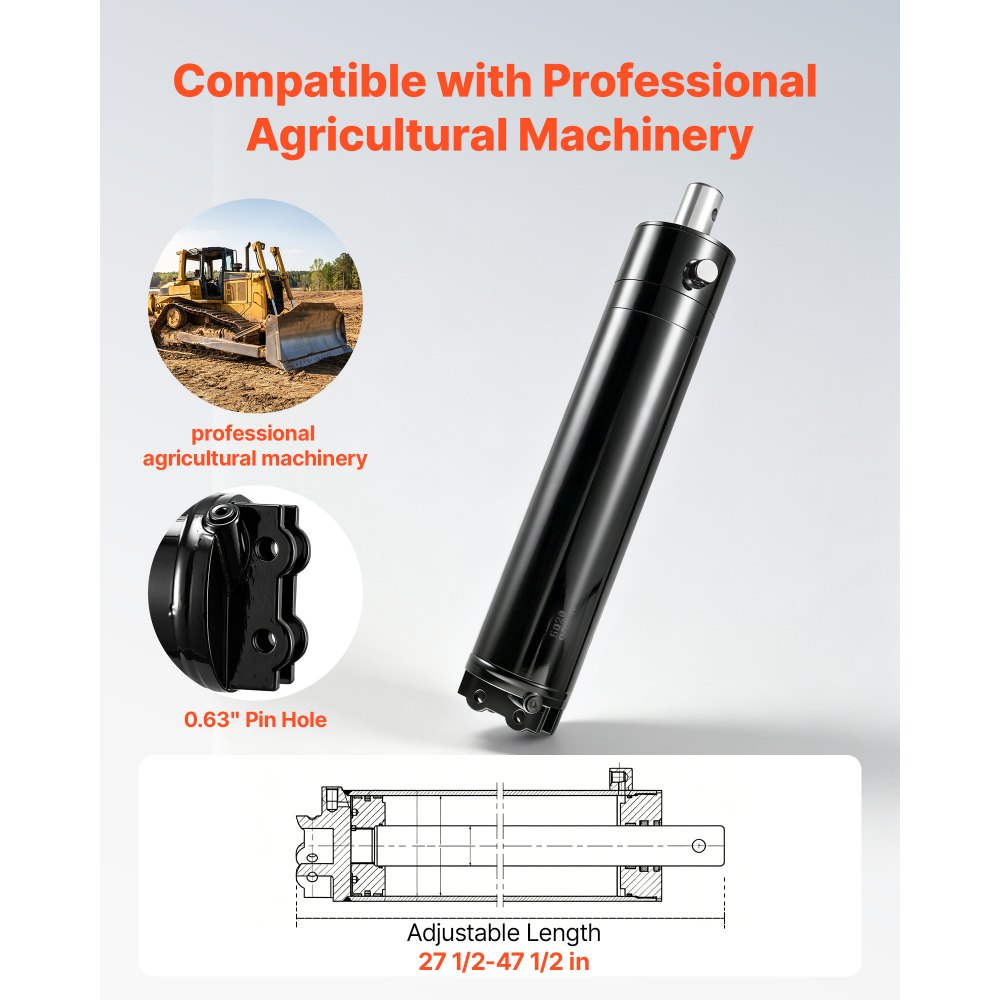

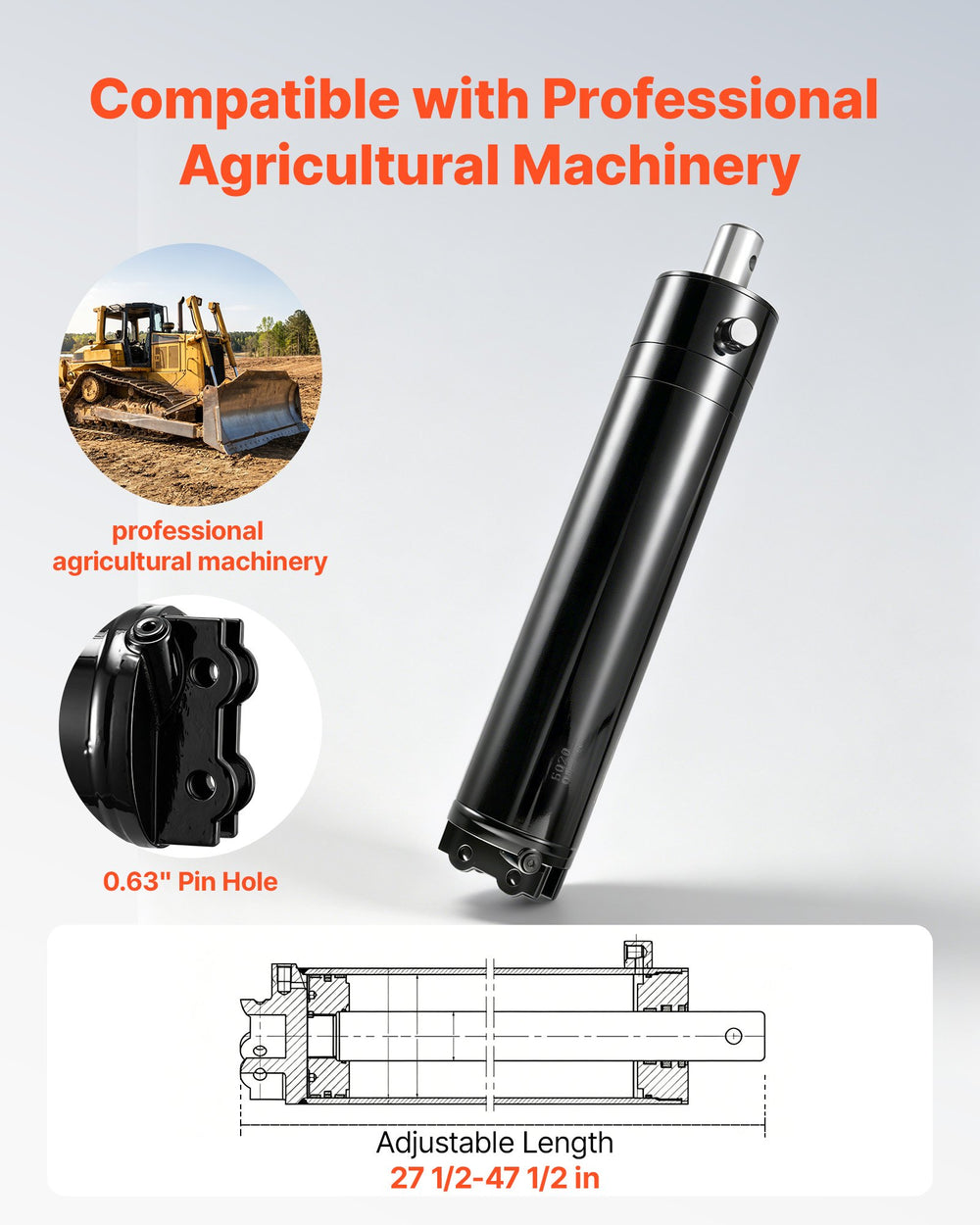

- Key Specifications: Bore: 5 in (127 mm), Stroke: 20 in (508 mm), Retracted Length: 27.5 in (698.5 mm), Extended Length: 47.5 in (1206.5 mm), Port Size: SAE #6, Pin Hole Diameter: 0.63 in

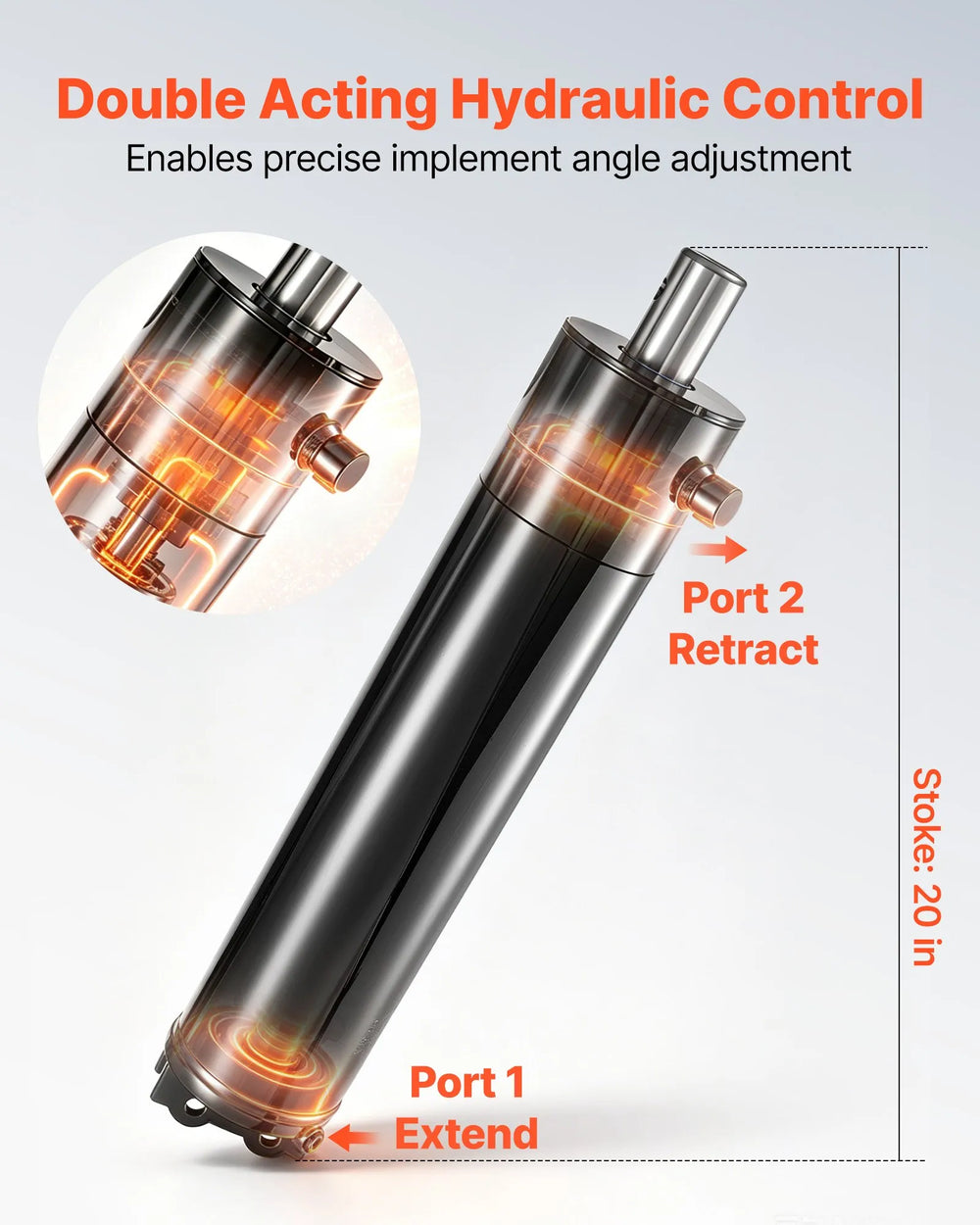

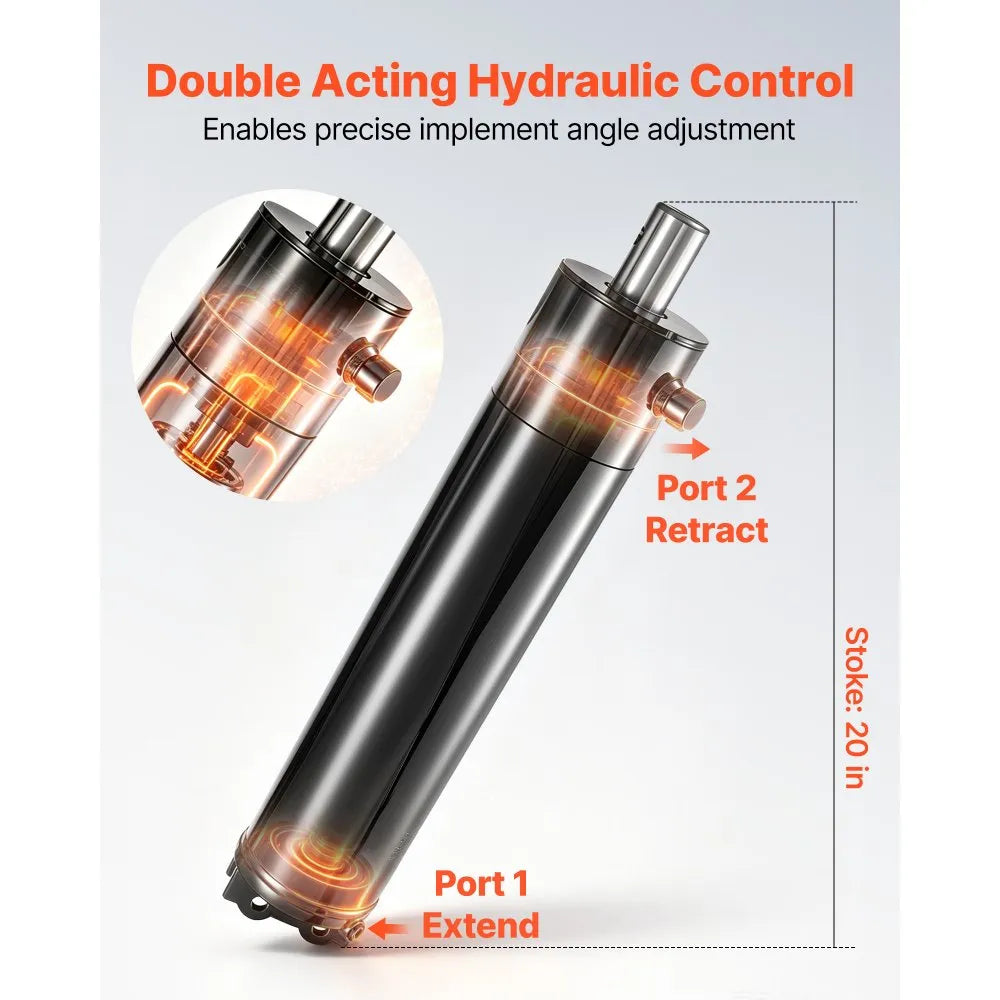

- Efficient Hydraulic Control: Driven by hydraulic pressure on both sides of the piston, this double-acting hydraulic cylinder delivers stable, controlled push-and-pull motion for smoother agricultural machinery operation

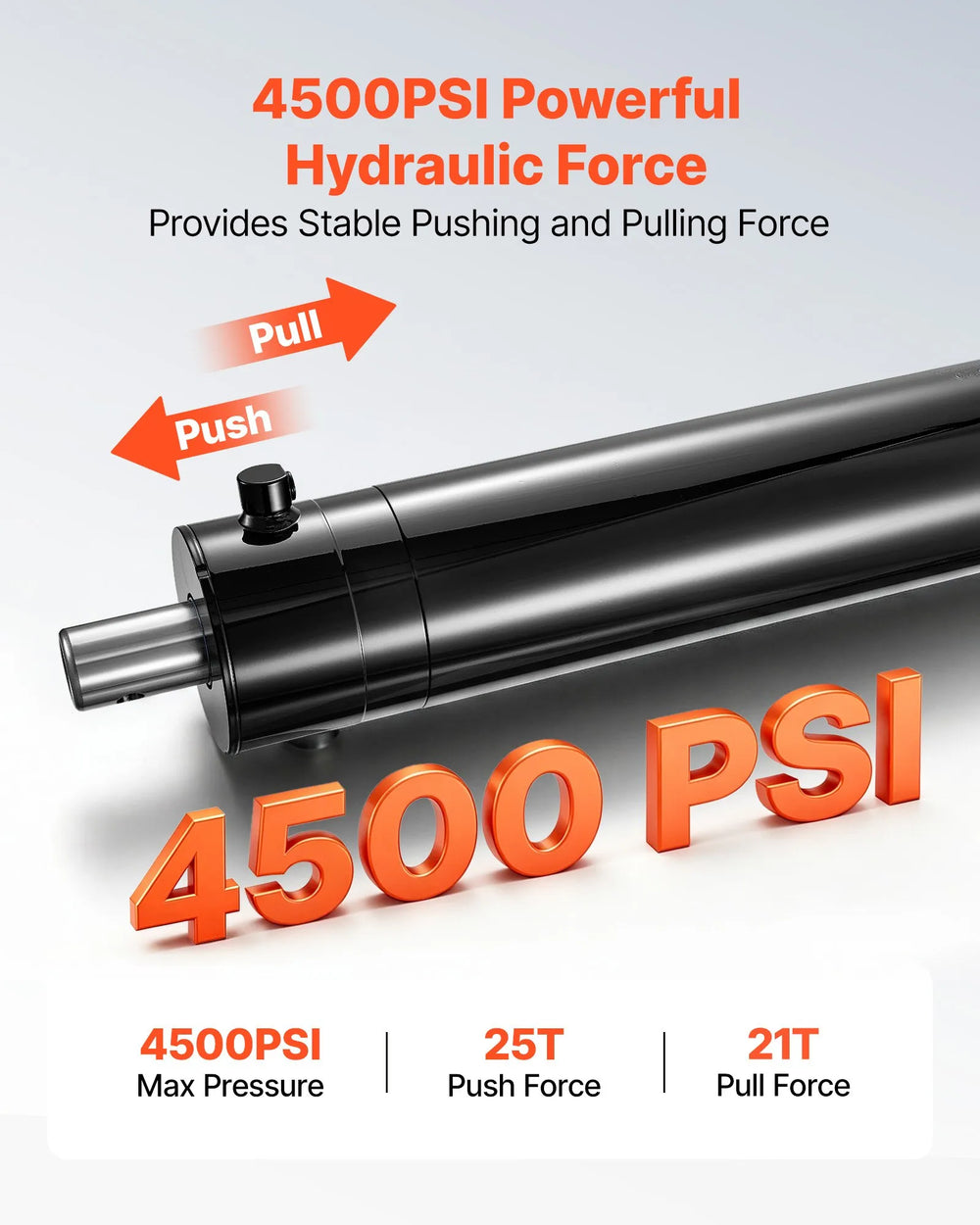

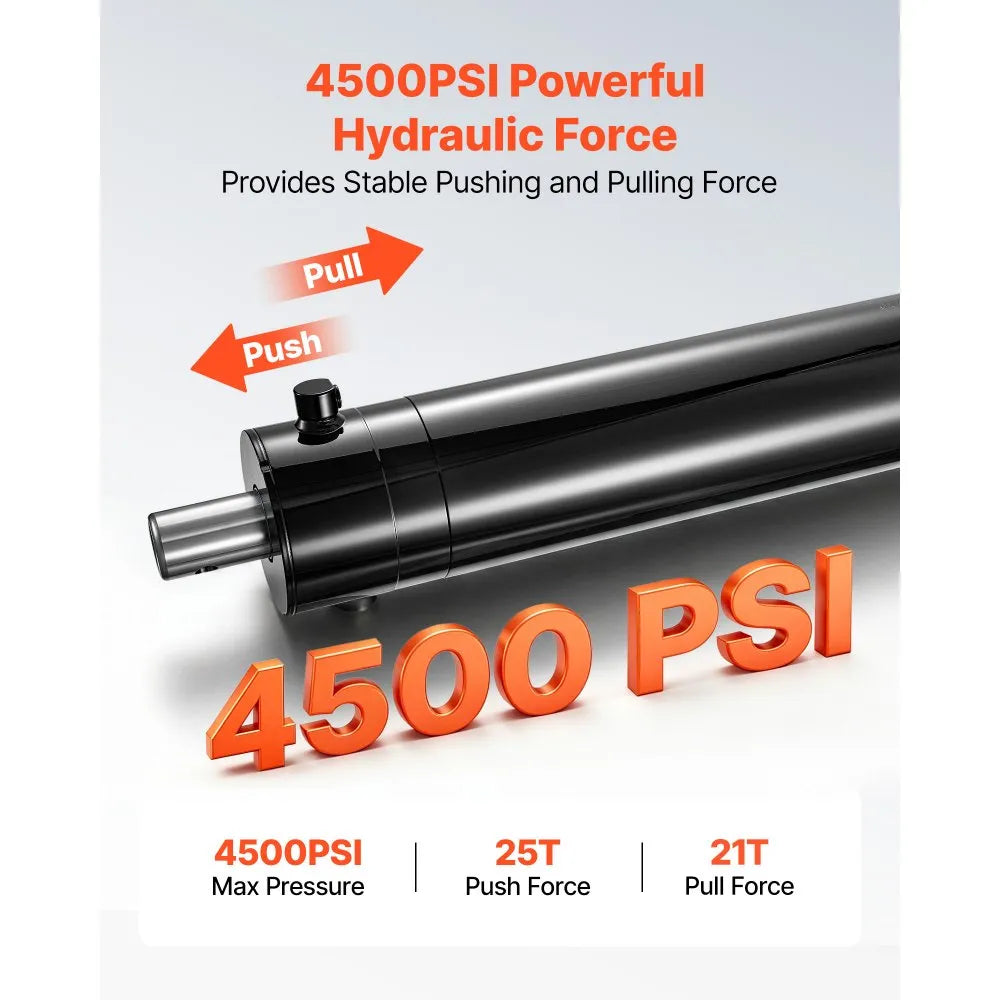

- High-Pressure Hydraulic Power: Built for demanding workloads, this hydraulic cylinder supports 2900 PSI rated pressure and up to 4500 PSI max pressure, delivering steady hydraulic force to improve equipment operating efficiency
- Powerful Hydraulic Force: This cross tube hydraulic cylinder supports up to 28219 lbs (12.8 Ton) column load capacity while delivering 25 Ton push force and 21 Ton pull force (at 20 MPa), providing reliable power for pushing and pulling applications

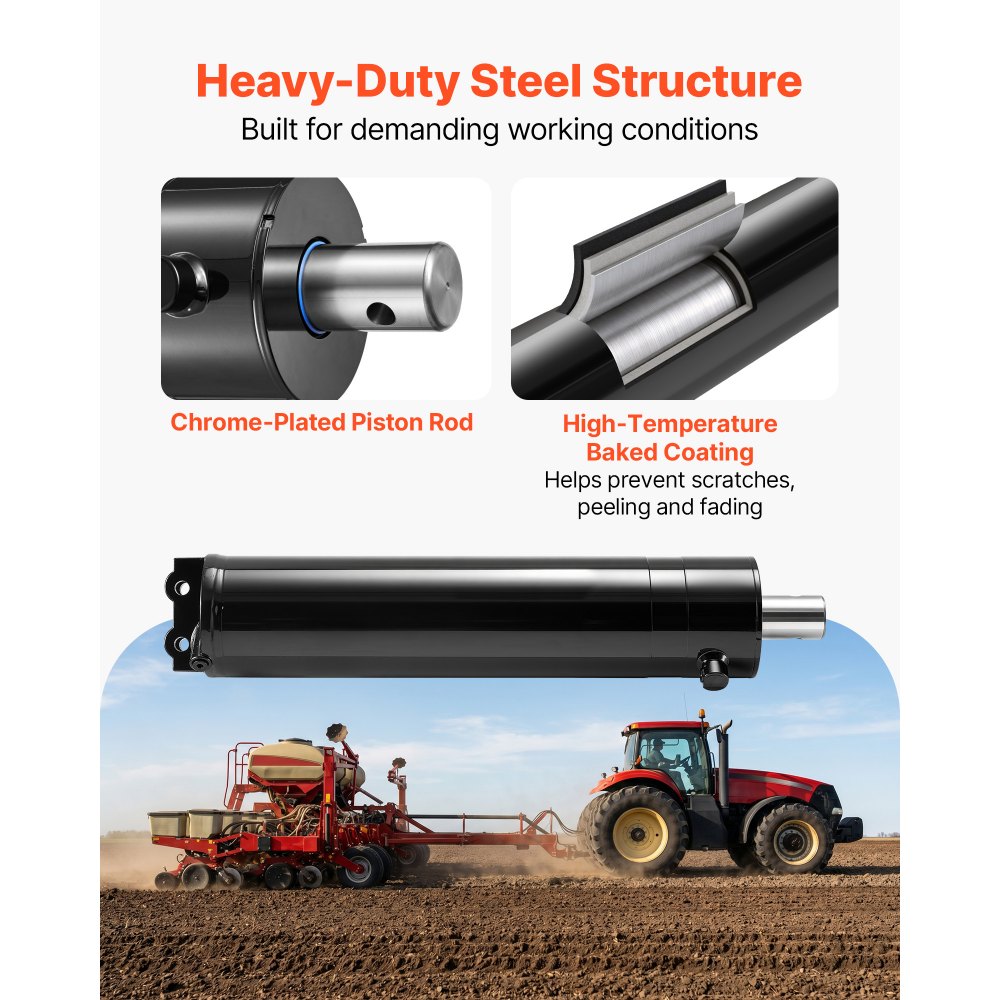

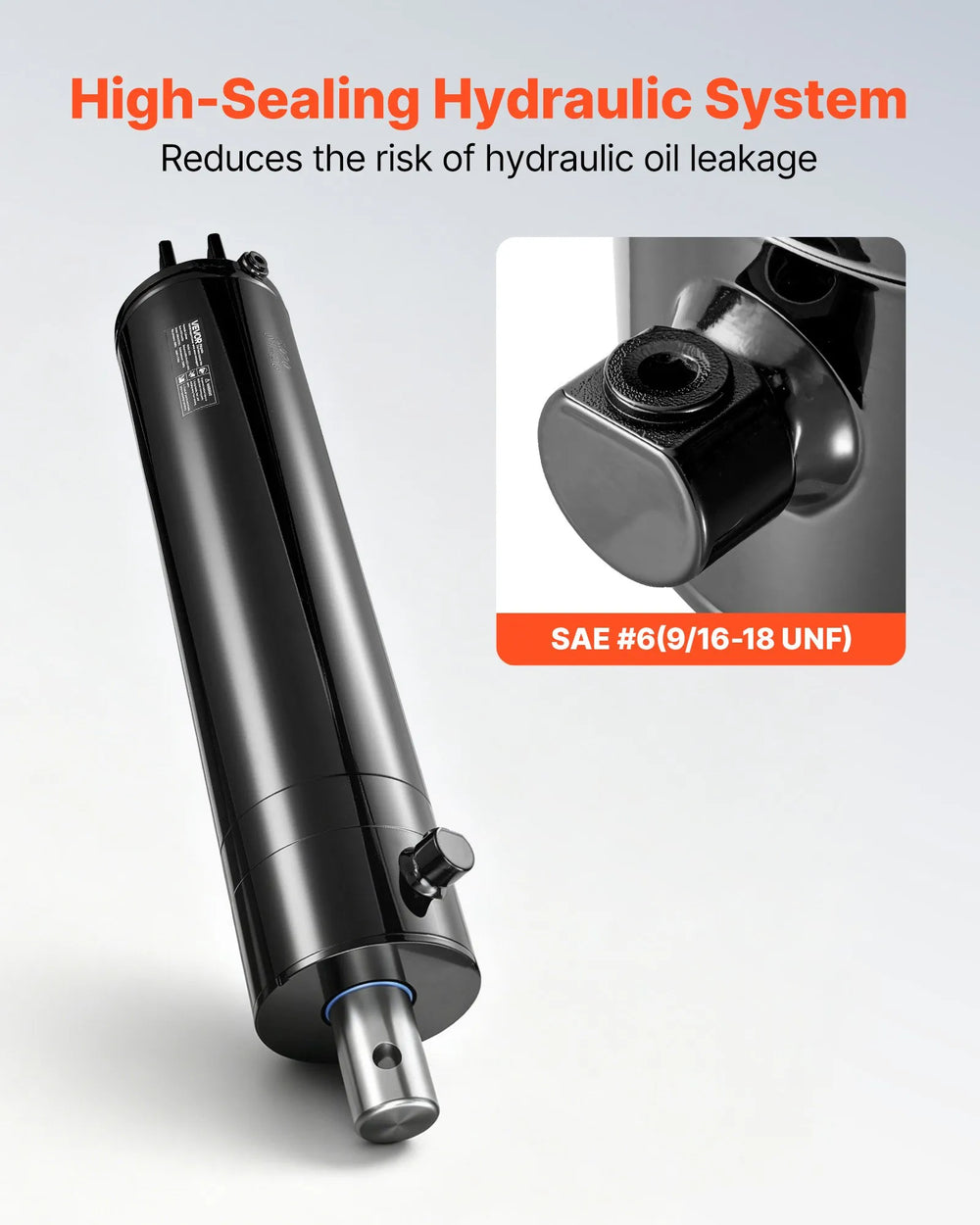

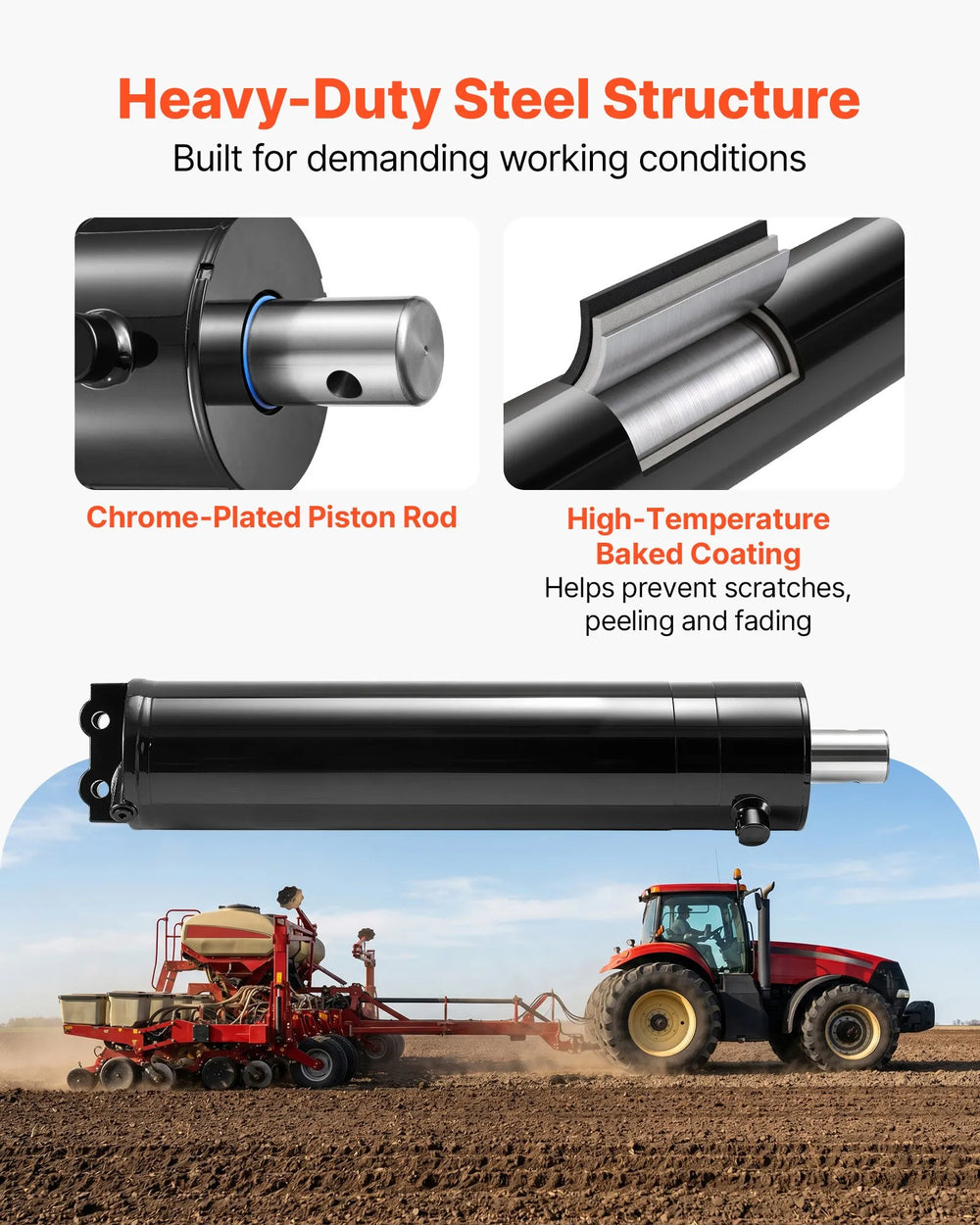

- Heavy-Duty Steel Construction: Built with a high-seal hydraulic structure, chrome-plated piston rod, and high-temperature baked coating to reduce leakage, resist wear and corrosion, and ensure stable performance in demanding work conditions

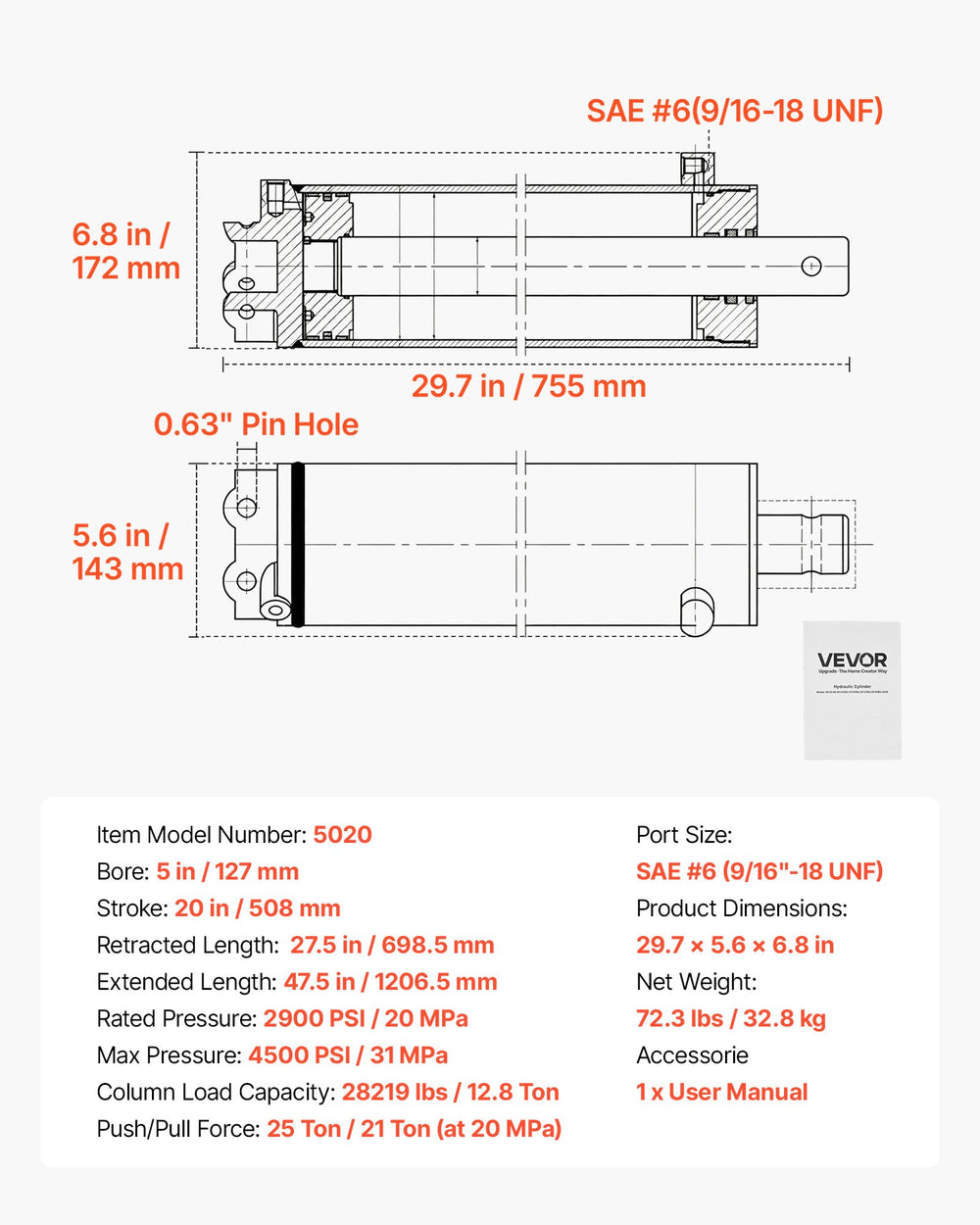

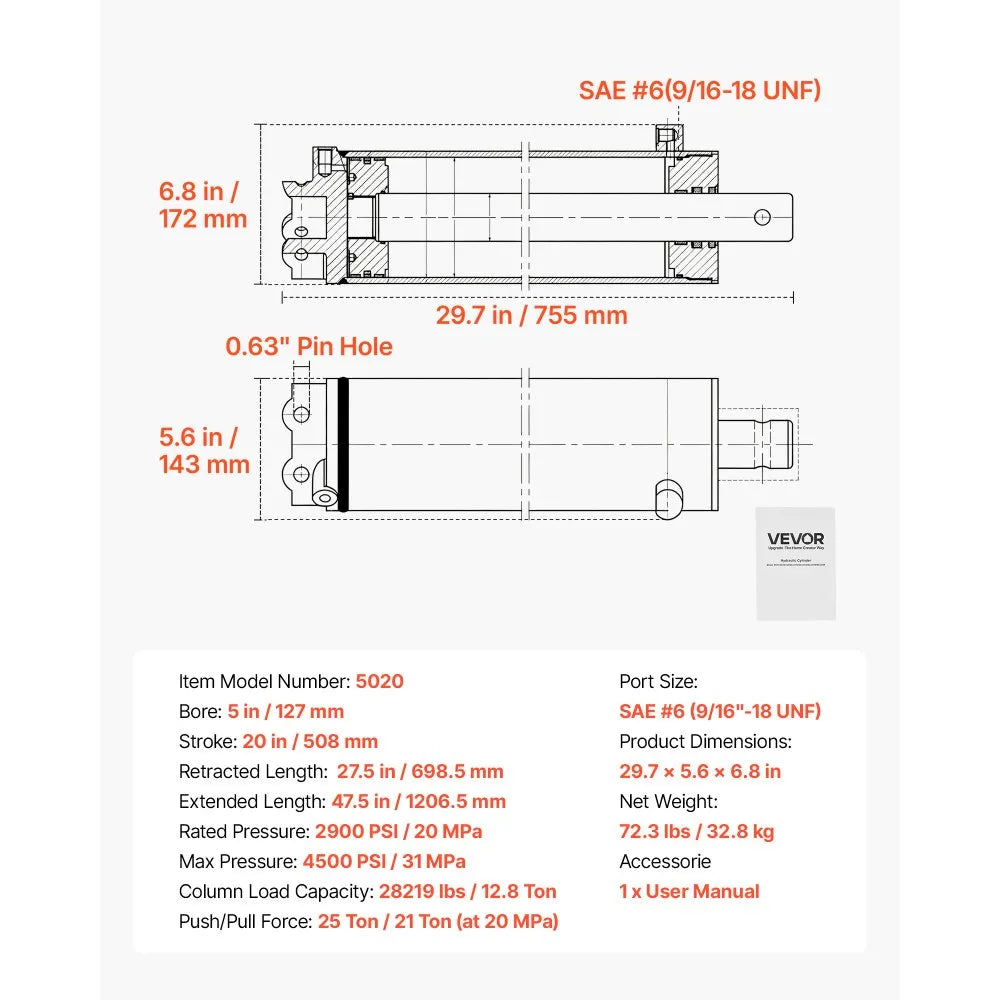

Specifications
| Item Model Number | 5020 |
| Product Type | Double-Acting Hydraulic Cylinder |
| Bore | 5 in / 127 mm |
| Stroke | 20 in / 508 mm |
| Retracted Length | 27.5 in / 698.5 mm |
| Extended Length | 47.5 in / 1206.5 mm |
| Rated Pressure | 2900 PSI / 20 MPa |
| Max Pressure | 4500 PSI / 31 MPa |
| Column Load Capacity | 28219 lbs / 12.8 Ton |
| Push Force | 25 Ton |
| Pull Force | 21 Ton at 20 MPa |
| Port Size | SAE #6 9/16"-18 UNF |
| Pin Hole Diameter | 0.63 in |
| Product Dimensions | 29.7 x 5.6 x 6.8 in |
| Net Weight | 72.3 lbs / 32.8 kg |
Package Contents
Double-acting hydraulic cylinder
Warranty
This item comes with a 1 year factory warranty.
