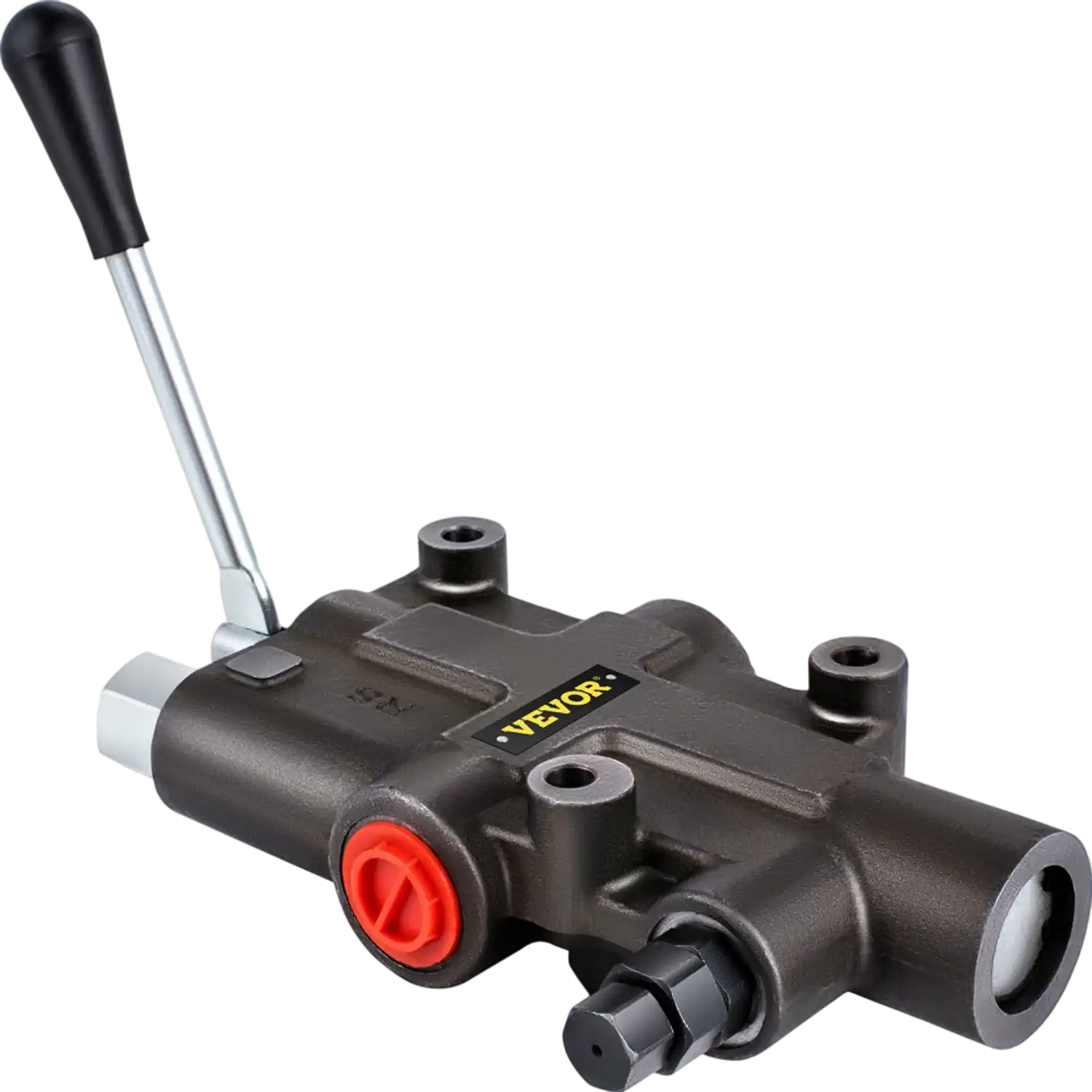

Vevor Hydraulic Directional Control Valve 1-Spool 21 GPM 3600 PSI BSPP Port w/ Joystick New
Product Overview

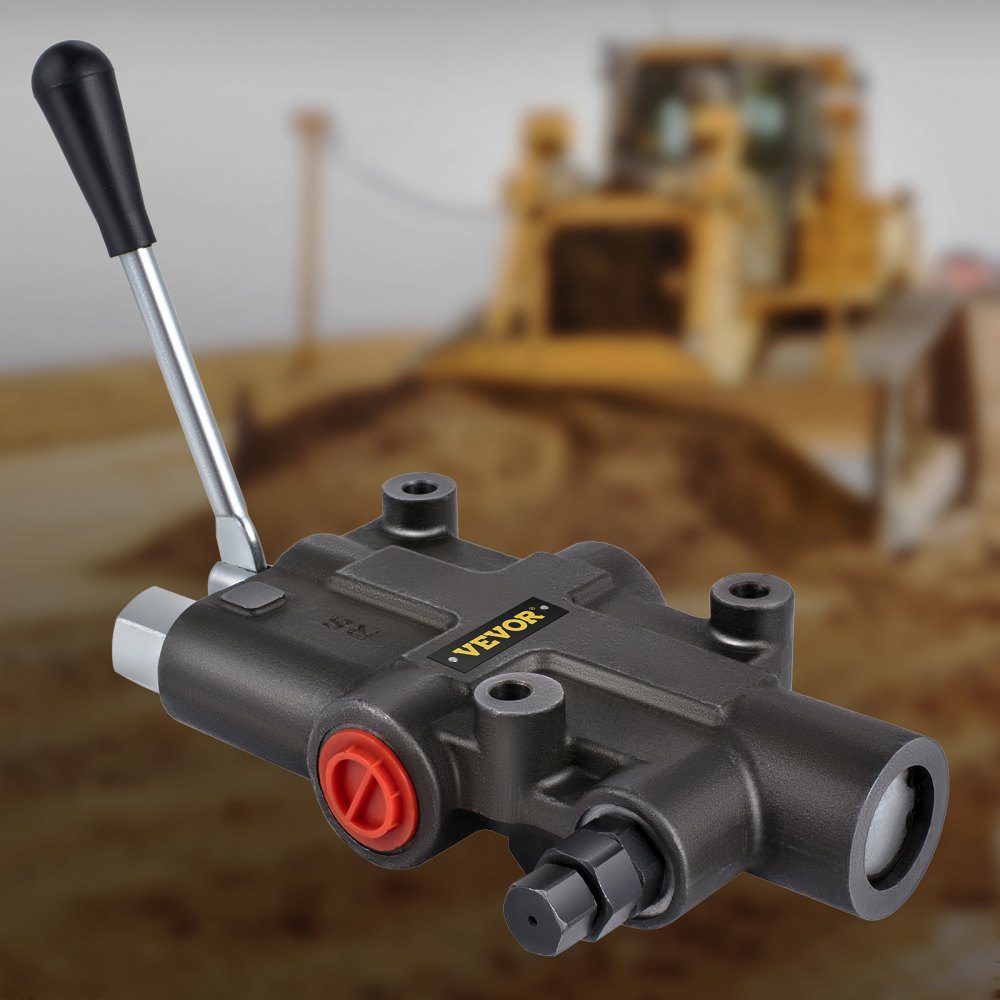

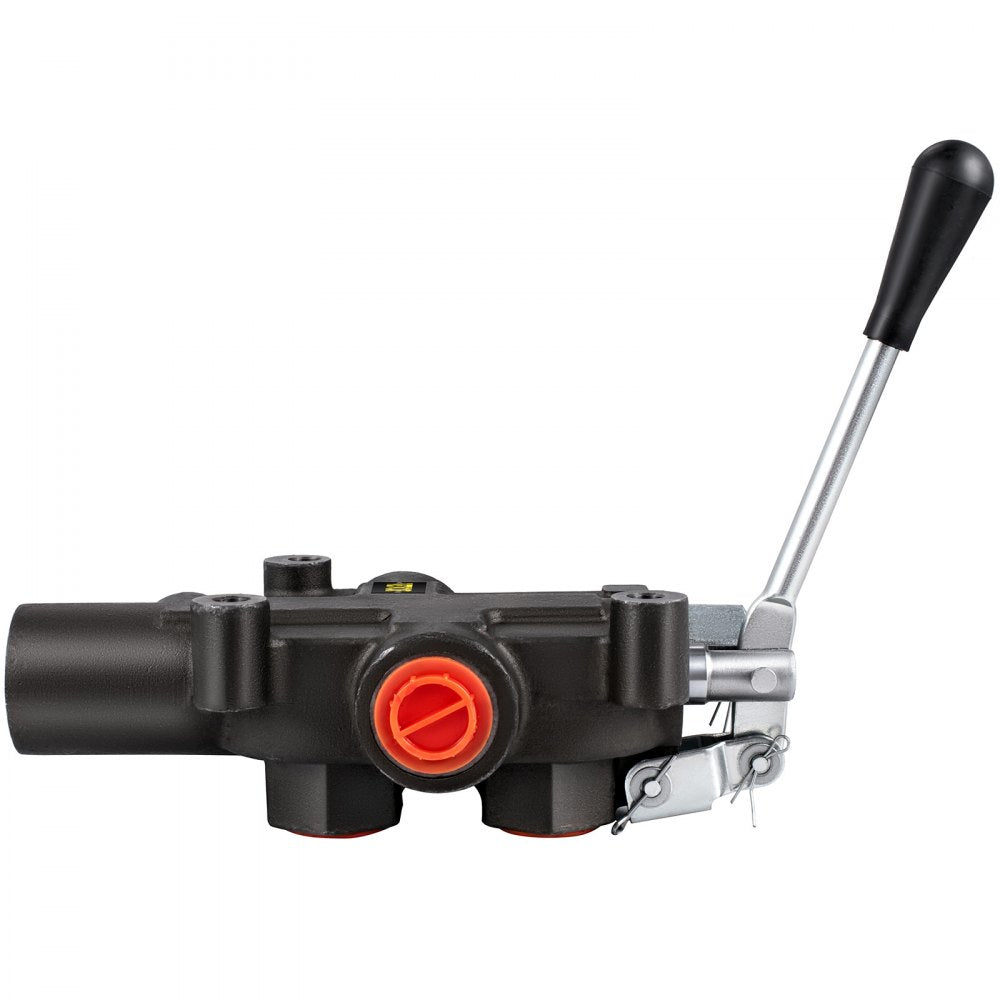

The Vevor hydraulic directional control valve is a compact 1-spool manual valve designed for mobile hydraulic applications. It delivers a 21 GPM flow capacity and supports a maximum operating pressure of 3600 PSI for reliable control in demanding systems. An adjustable relief valve and spring-return handle help provide precise, easy operation. Its aluminum and iron construction offers durable performance in tractors, loaders, excavators, sweepers, and other hydraulic machinery.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

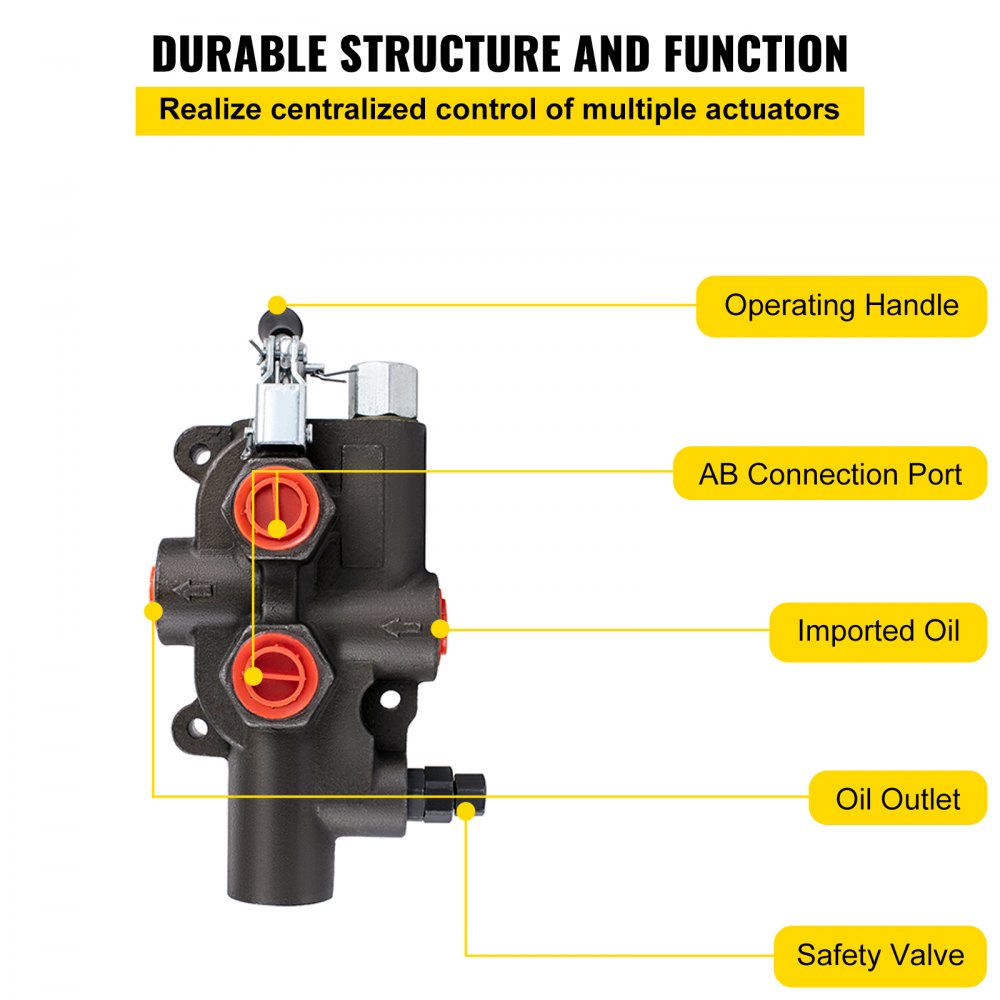

- Hydraulic Spool Valve: Equipped with 1 spool and 1/2" BSPP P port, A port, B port. 3/4" BSPP T port, N port. The maximum pressure of this hydraulic is 3600 PSI, and the maximum flow can reach 21 GPM. The opening and disconnection of hydraulic oil are controlled by connecting the valve to the oil line.

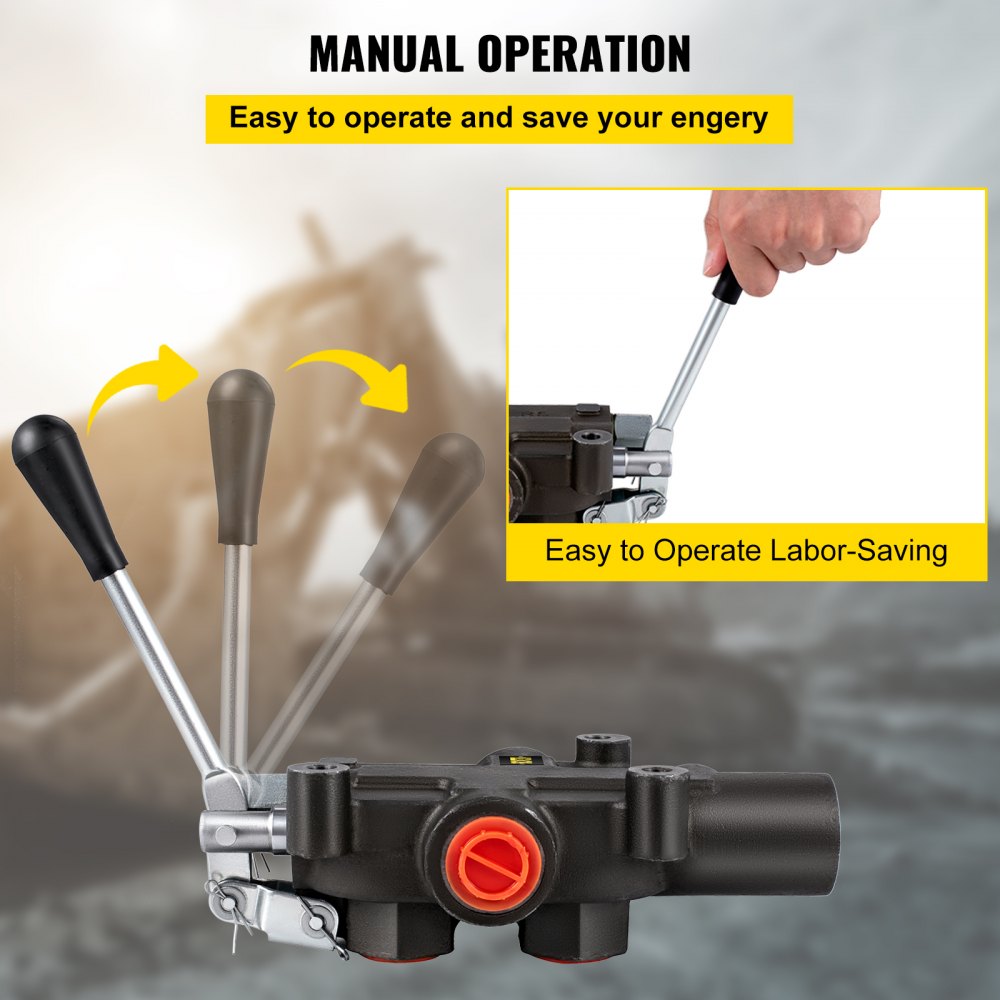

- Automatically Reset: The standard spool is spring-returned and can be reset to the neutral position. In addition, there is a spring at the bottom of the handle that makes the joystick easy to control.

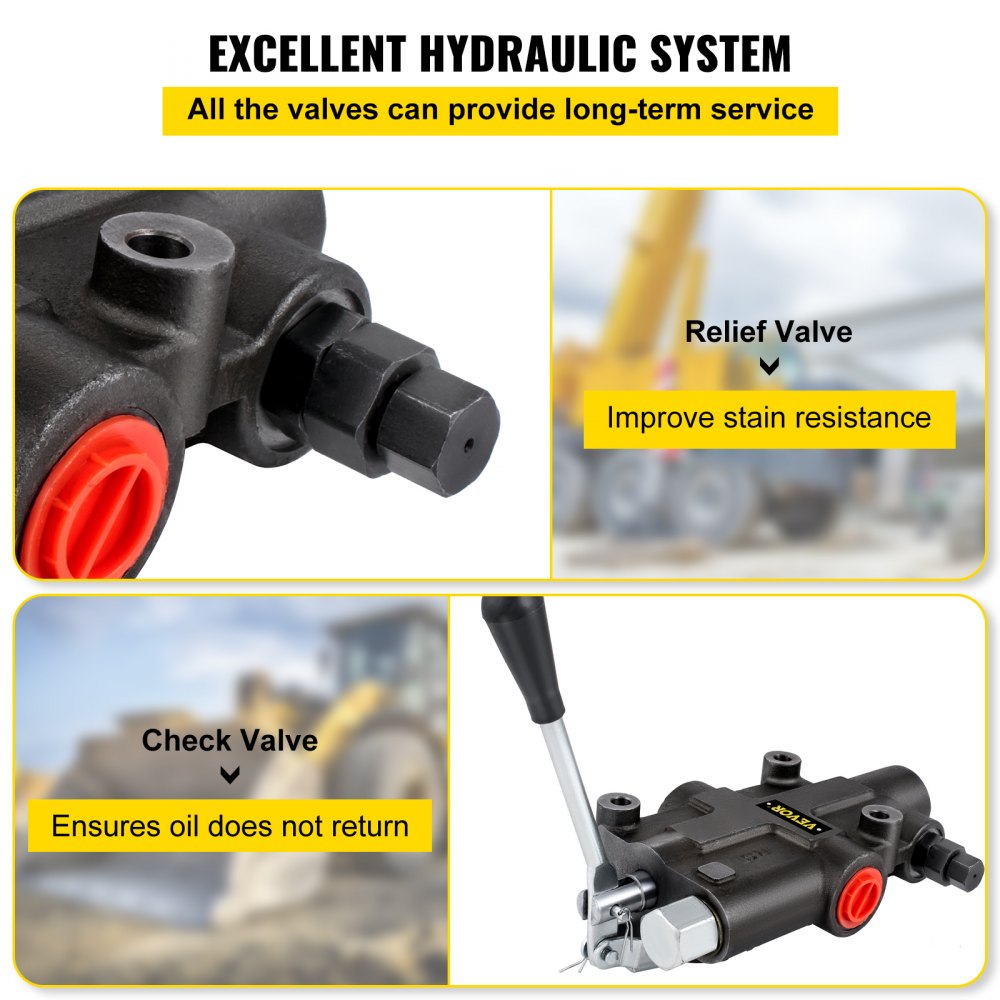

- Great Inner Valve: The check valve in the valve body ensures that the hydraulic oil does not return, and the overflow valve in the valve body can adjust the working pressure of the hydraulic system.

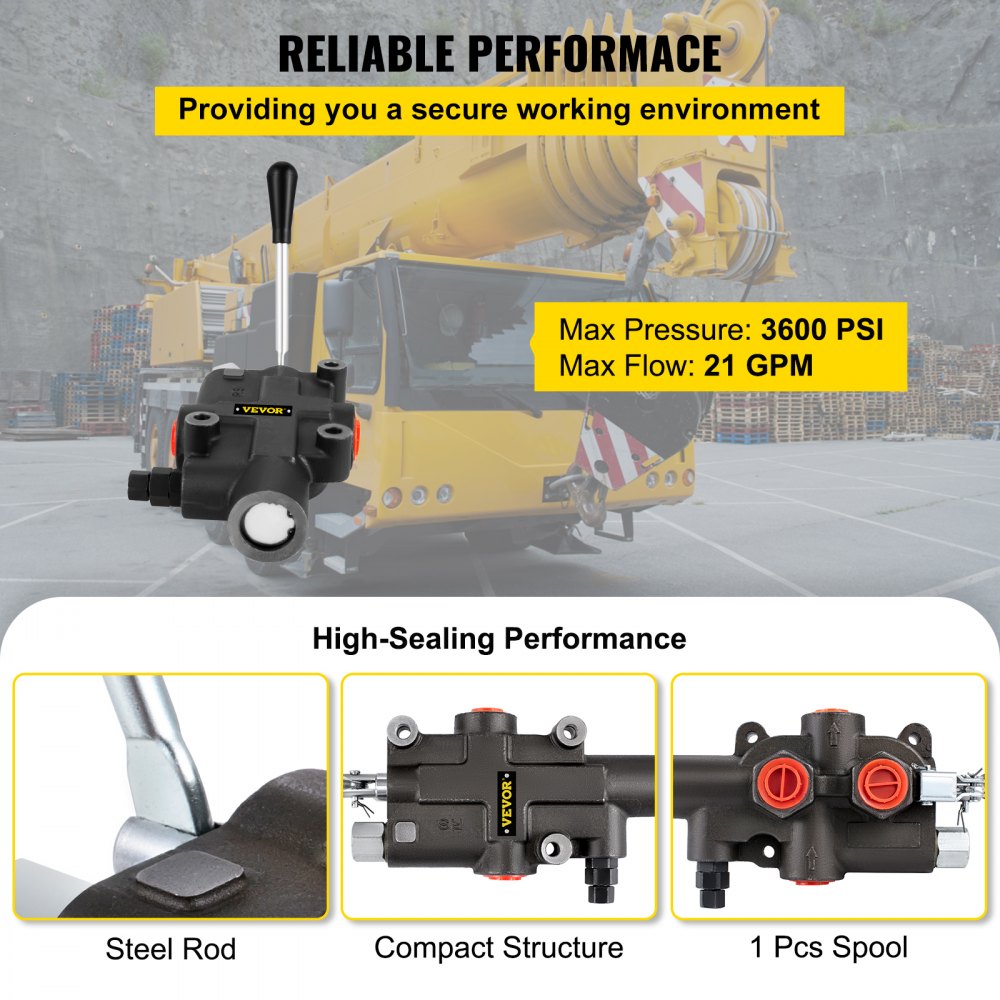

- Compact Structure: 1 spool hydraulic valve is made of aluminum and iron, and the solid structure can provide long-term service. The compact design allows it to install in narrow areas and maximizes its control capabilities.
- Widely Used: It is used in hydraulic systems in agriculture, horticulture, forestry, construction, and industry. The distributor is adapted to different types of machines: agricultural machines, tractors, sprayers, construction machines, loaders, excavators, sweepers, industrial machines, and for other applications hydraulically controlled.
Specifications
| Model | 121GPM3600 |
| Max Operating Pressure | 3600 PSI |
| Flow Rating | 21 GPM |
| Relief Valve | Adjustable |
| Center System | Open |
| Spool Count | 1-Spool |
| Valve Operation | Manual |
| A, B Ports | 1/2" BSPP |
| P Port | 1/2" BSPP |
| T, N Port | 3/4" BSPP |

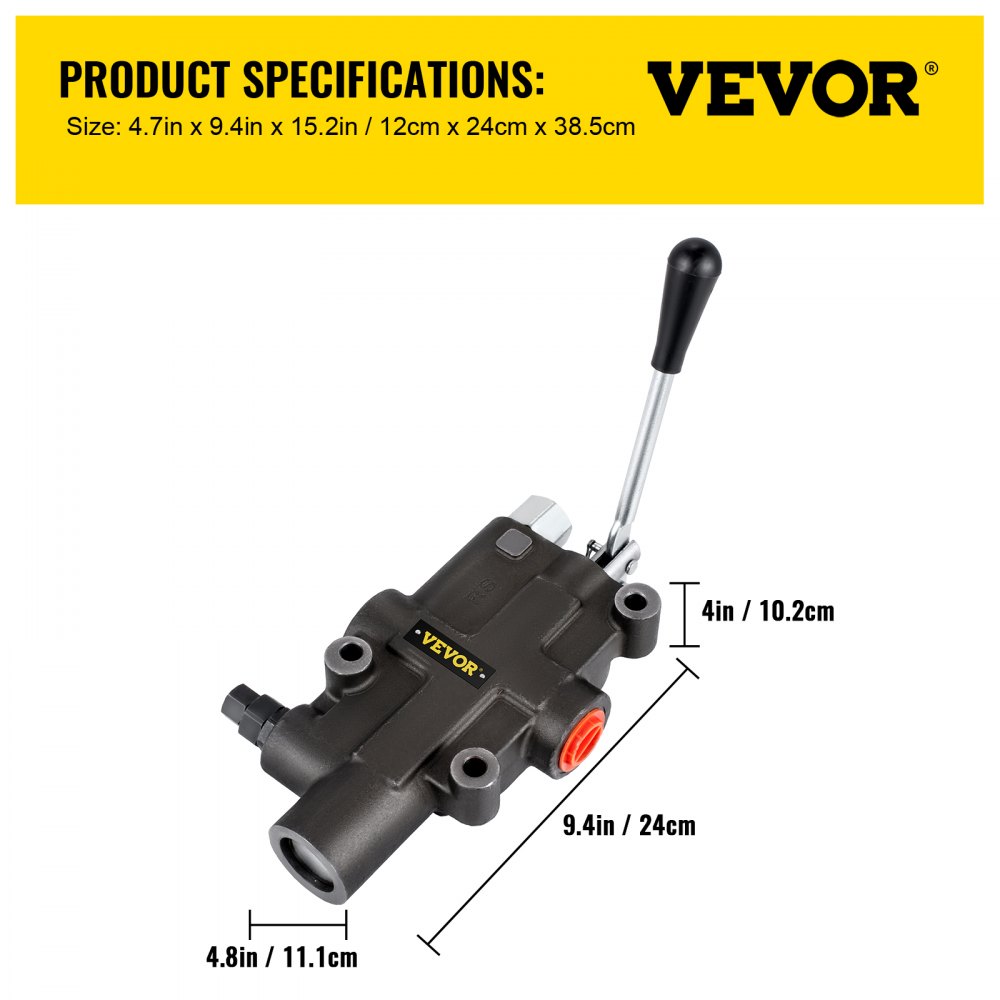

| Dimensions | 9.4" x 4.8" x 4" |
Warranty
This item comes with a 1 year factory warranty.
