Vevor Hydraulic Directional Control Valve 1 Spool 21 GPM 3625 PSI BSPP New
Product Overview

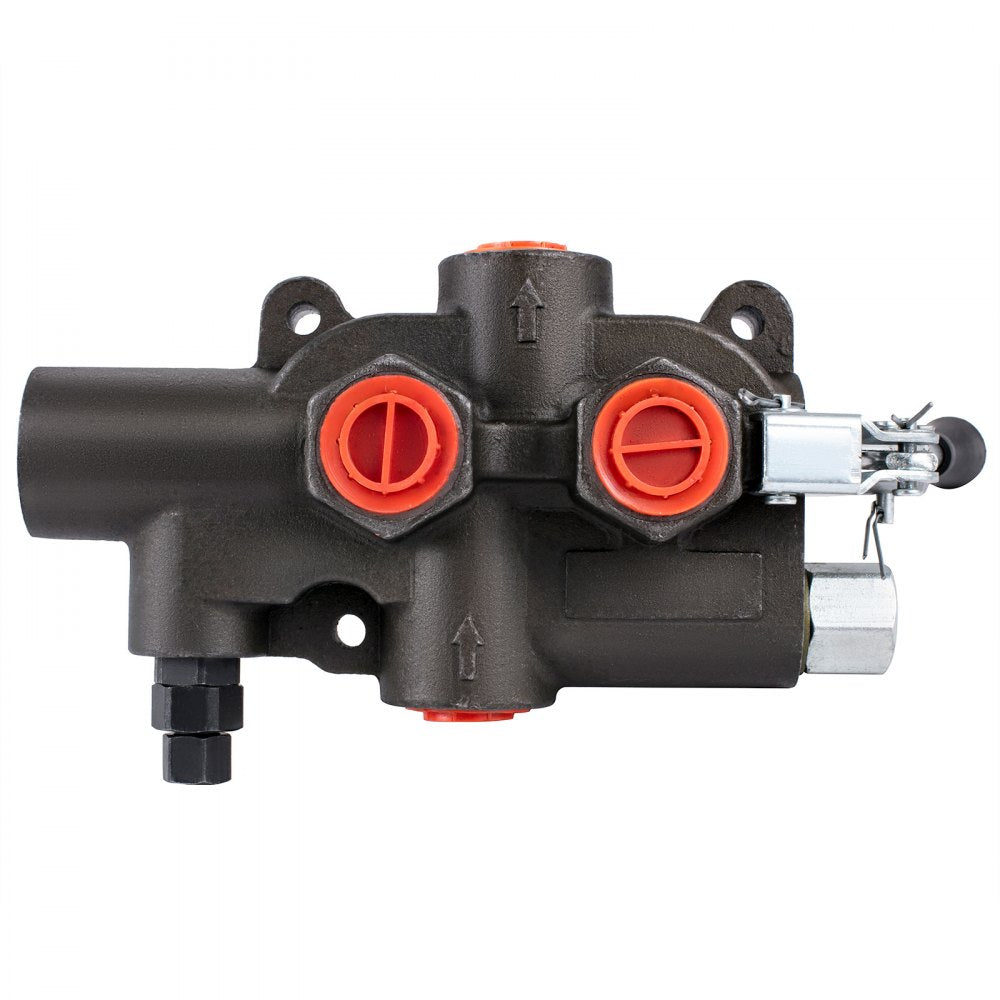

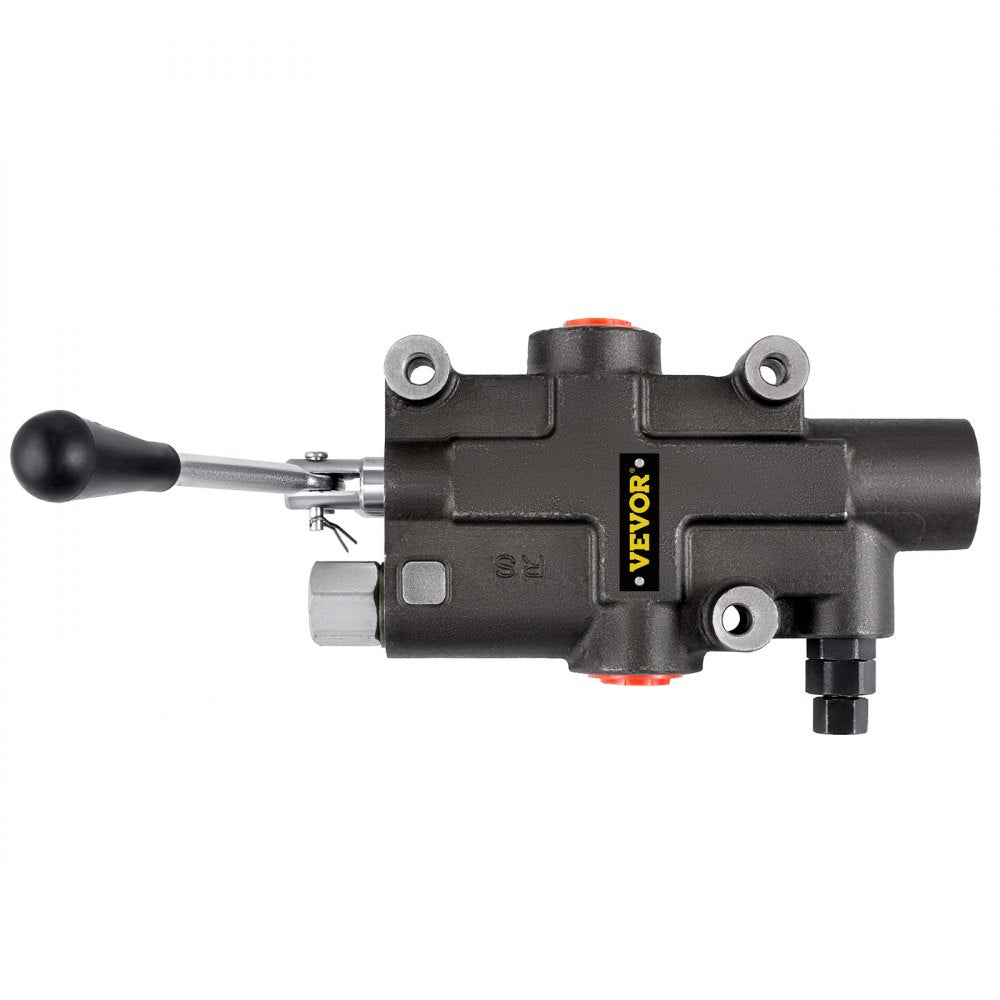

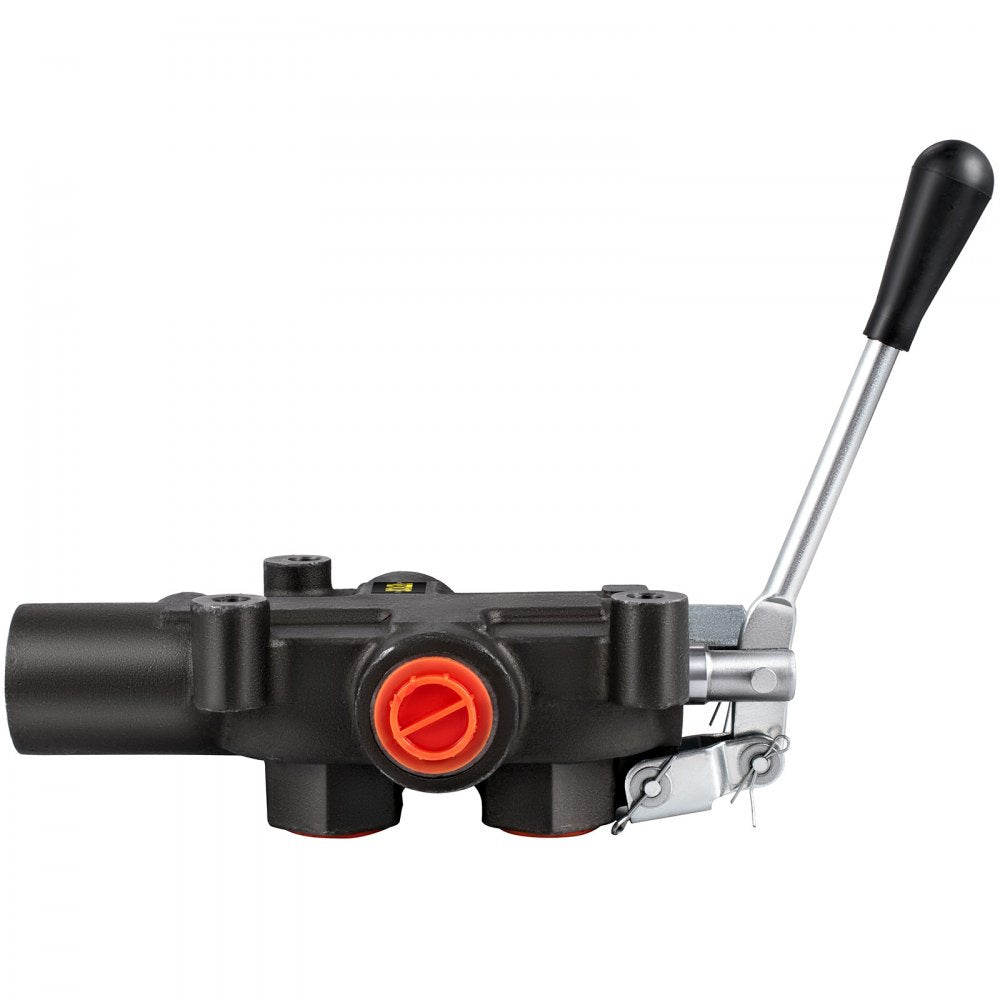

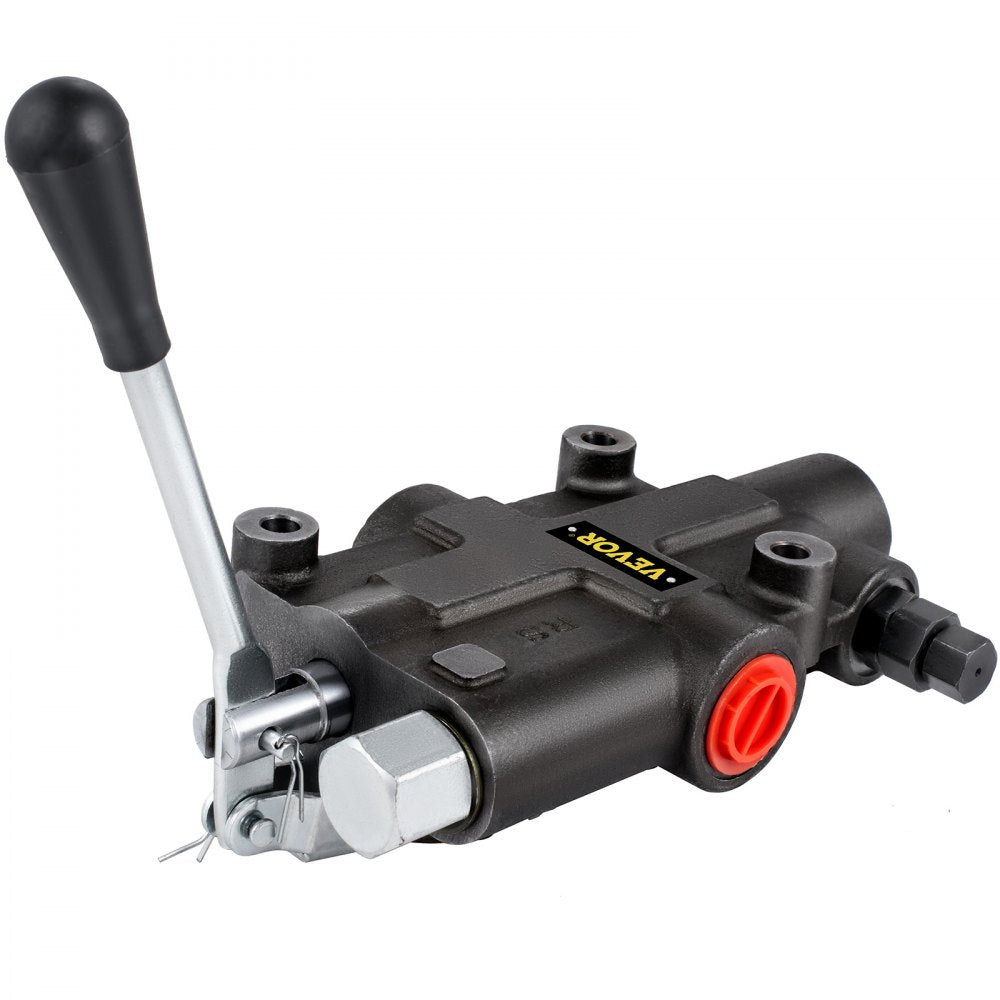

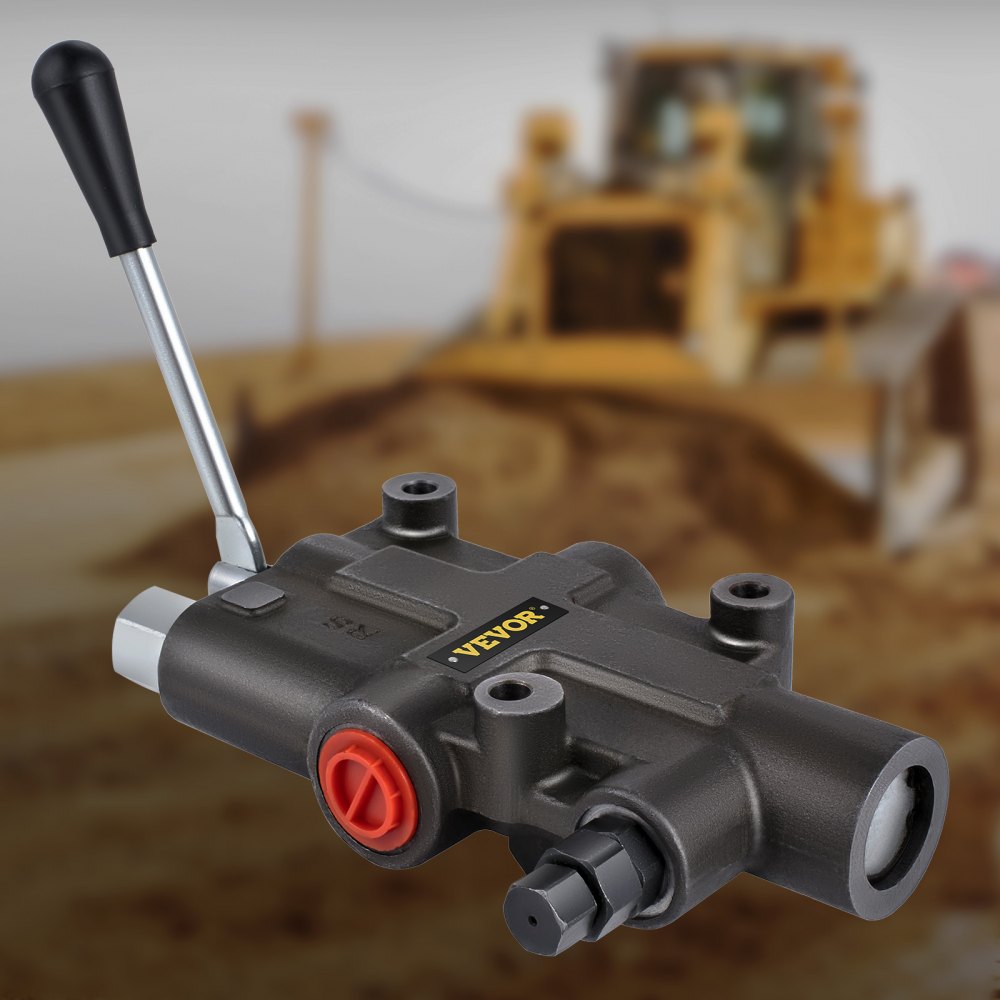

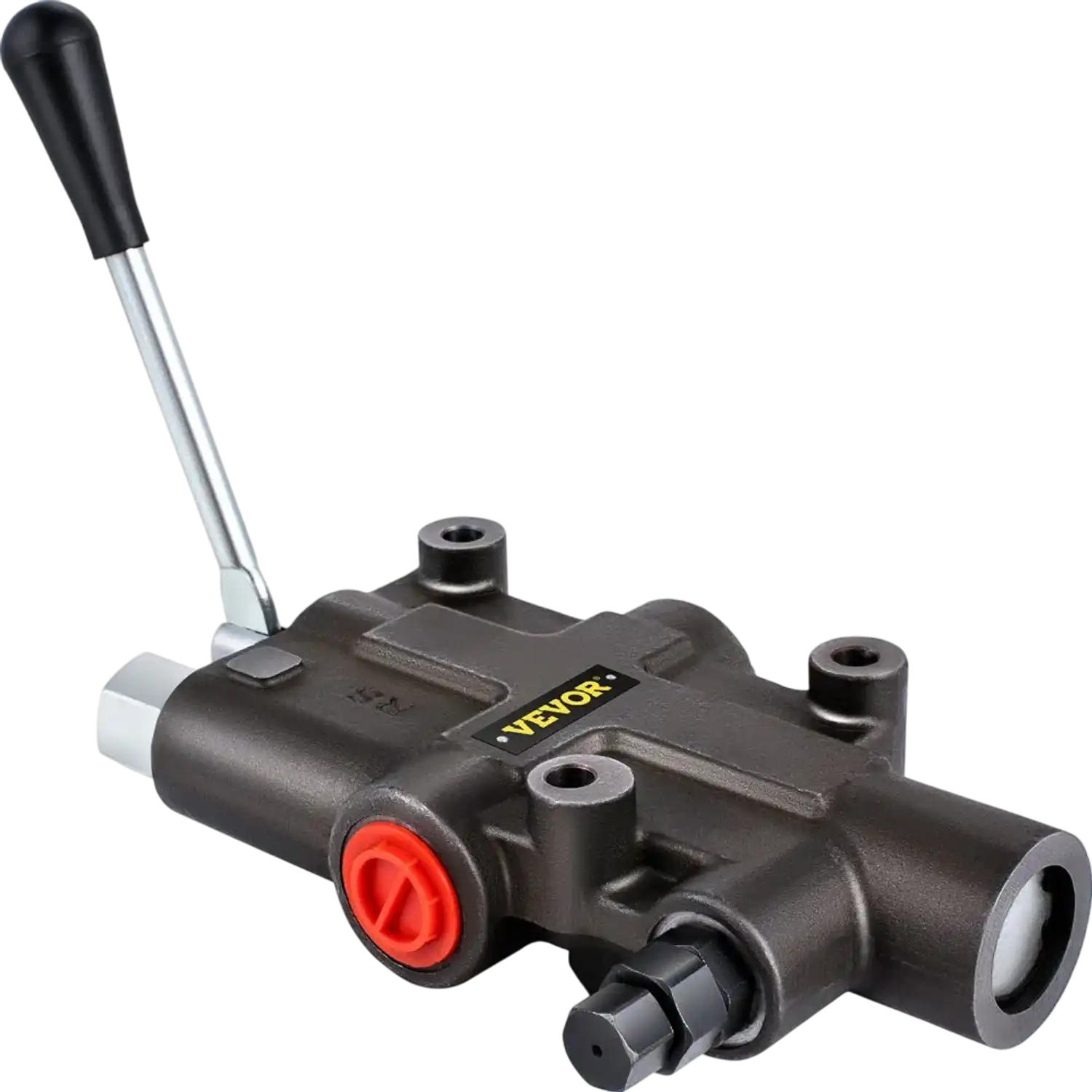

The Vevor hydraulic directional control valve is a compact 1-spool manual valve designed for mobile hydraulic applications. It delivers up to 21 GPM flow and handles a maximum operating pressure of 3625 PSI for reliable control performance. Built from aluminum and iron, it features an adjustable relief valve, open center system, and spring-return spool for straightforward operation. Its compact design makes it suitable for tractors, loaders, agricultural machinery, construction equipment, and other hydraulic systems.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

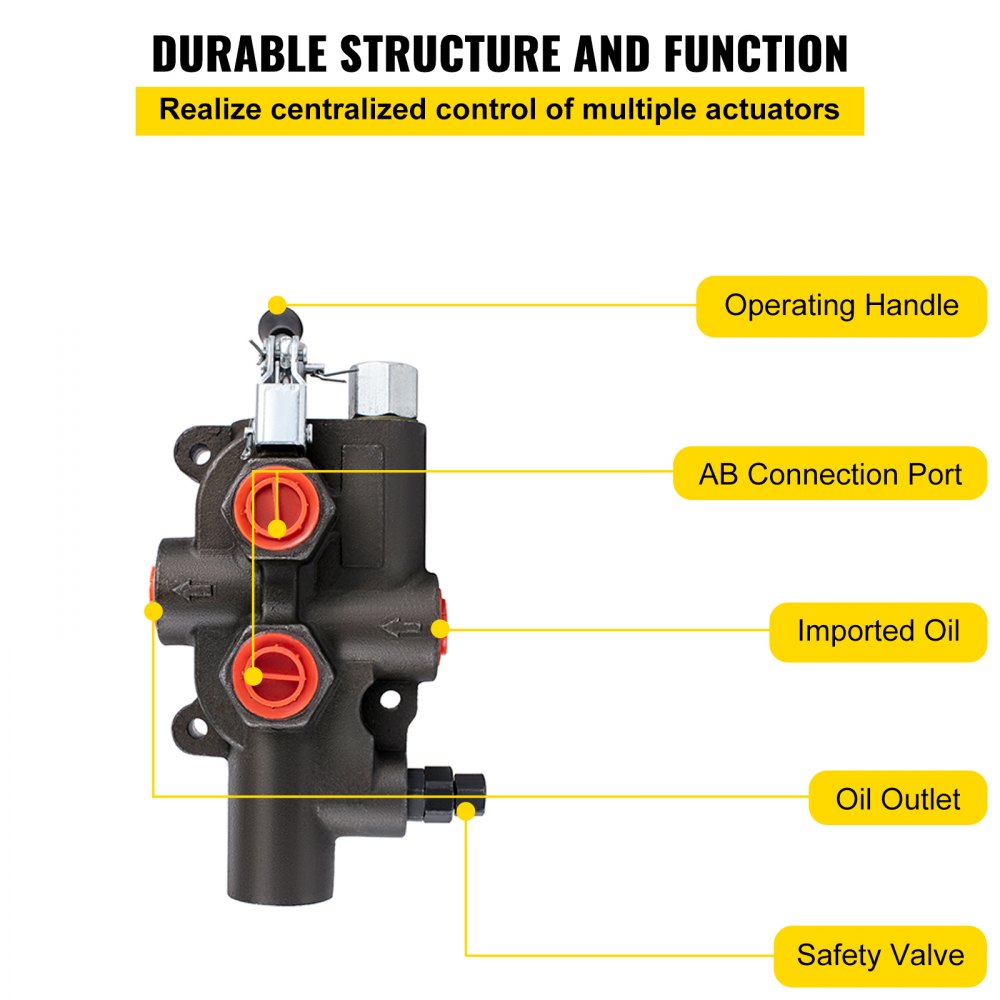

- Hydraulic Spool Valve: Equipped with 1 spool and 1/2" BSPP P port, A port, B port. 3/4" BSPP T port, N port. The maximum pressure of this hydraulic is 3625 PSI, and the maximum flow can reach 21 GPM. The opening and disconnection of hydraulic oil are controlled by connecting the valve to the oil line.

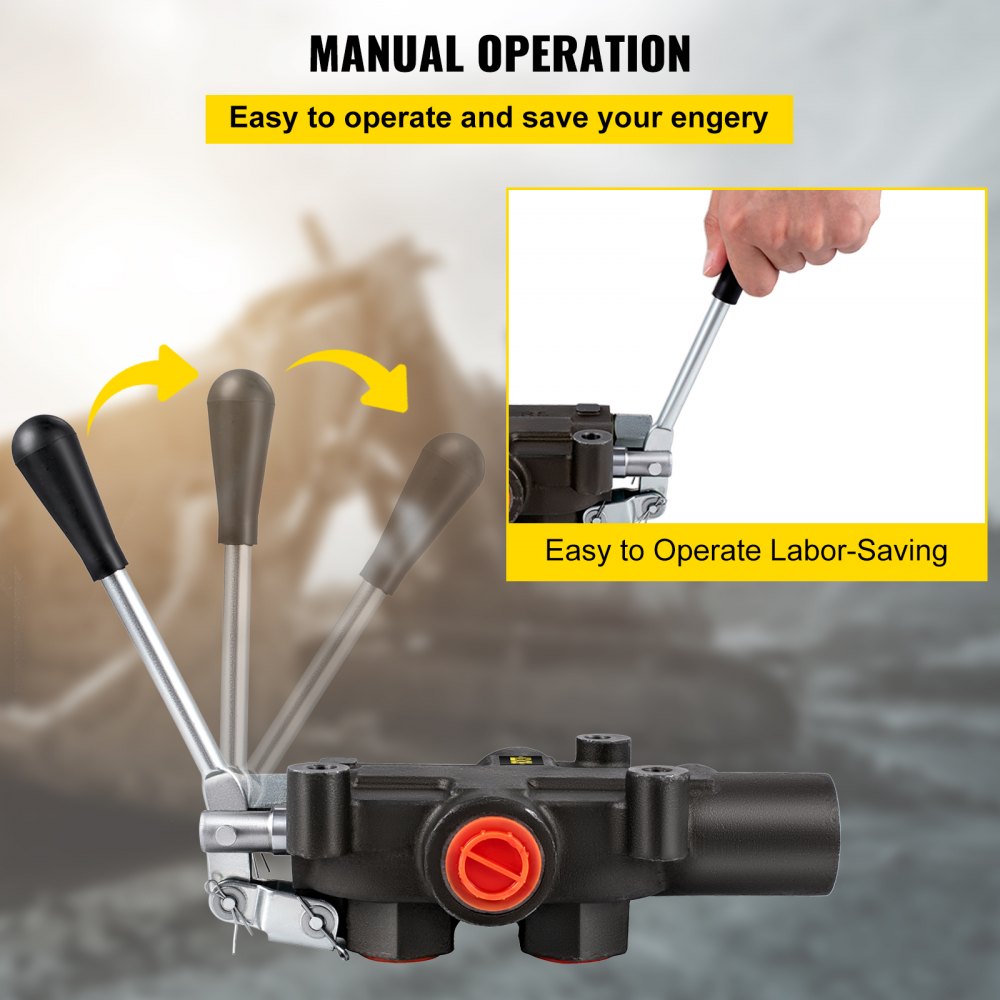

- Automatically Reset: The standard spool is spring-returned and can be reset to the neutral position. In addition, there is a spring at the bottom of the handle that makes the joystick easy to control.

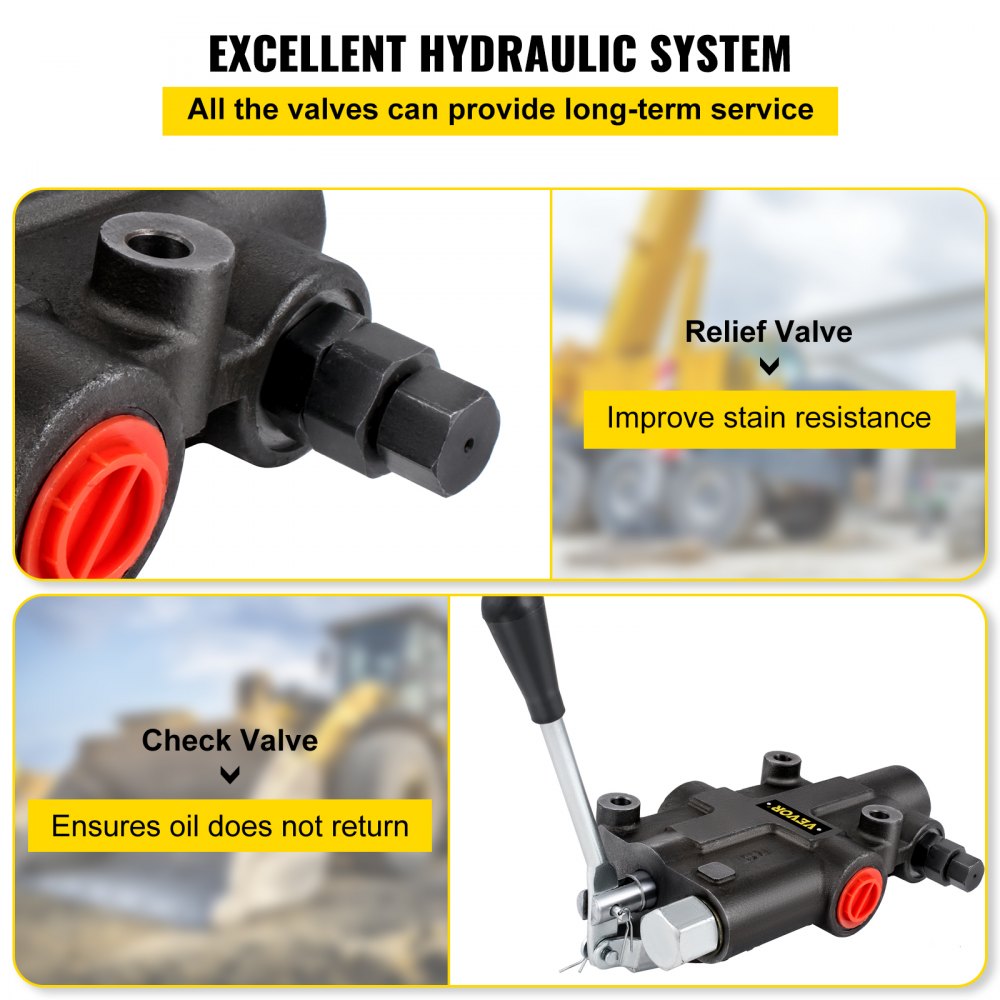

- Great Inner Valve: The check valve in the valve body ensures that the hydraulic oil does not return, and the overflow valve in the valve body can adjust the working pressure of the hydraulic system.

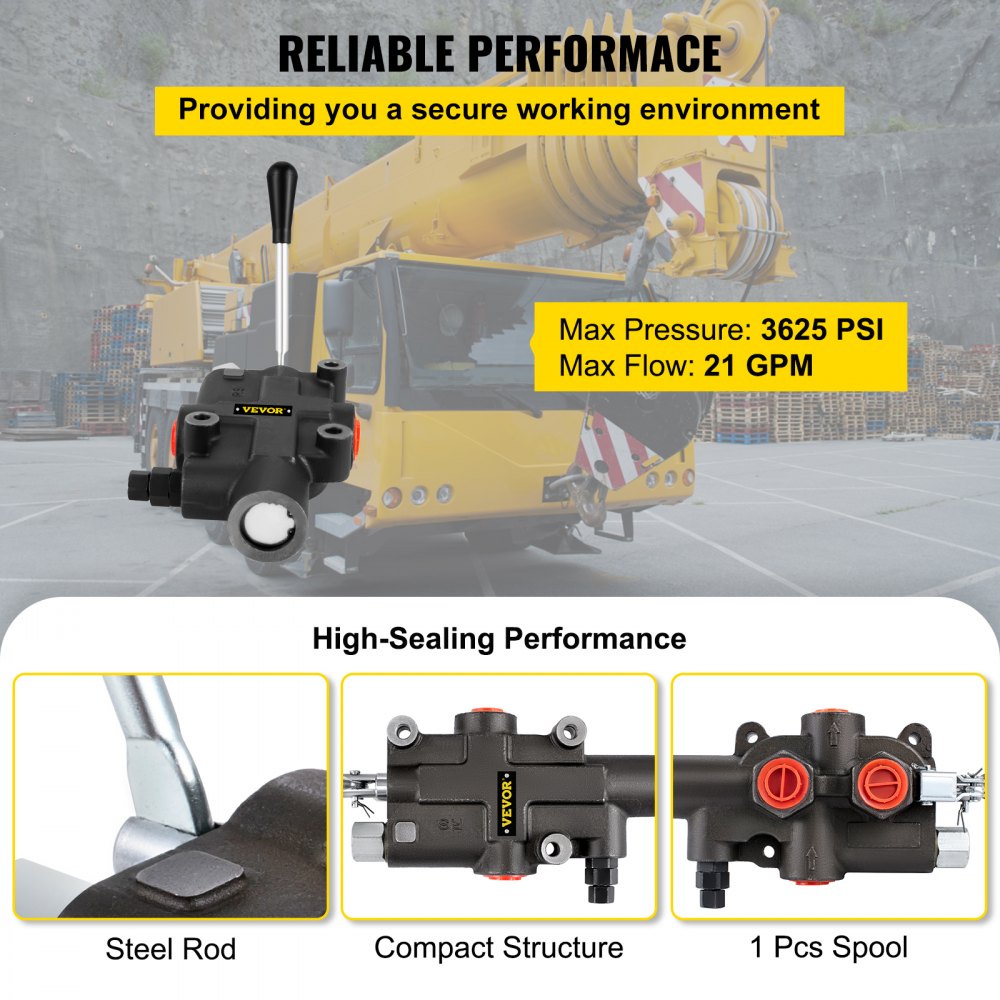

- Compact Structure: 1 spool hydraulic valve is made of aluminum and iron, and the solid structure can provide long-term service. The compact design allows it to install in narrow areas and maximizes its control capabilities.

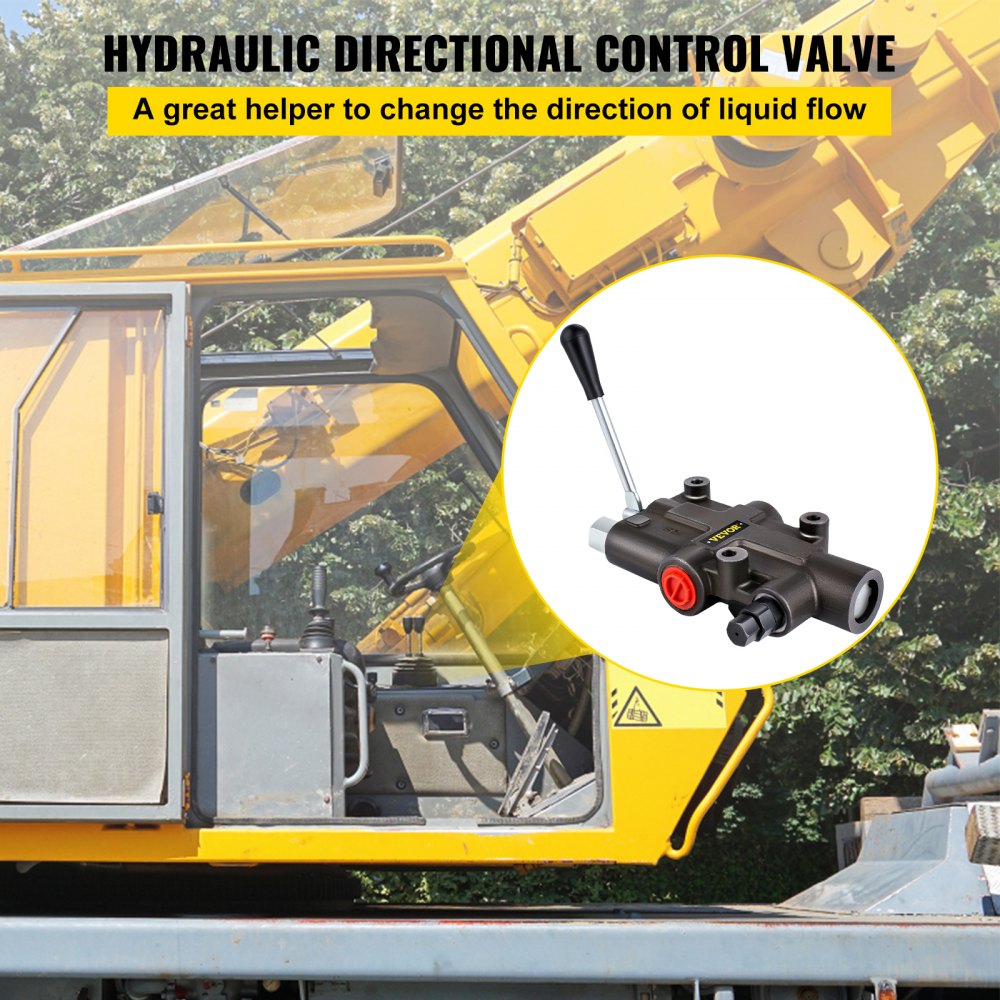

- Widely Used: It is used in hydraulic systems in agriculture, horticulture, forestry, construction, and industry. The distributor is adapted to different types of machines: agricultural machines, tractors, sprayers, construction machines, loaders, excavators, sweepers, industrial machines, and for other applications hydraulically controlled.
Specifications
| Model | 121GPM3625 |
| Product Type | Hydraulic Directional Control Valve |
| Max Operating Pressure | 3625 PSI |
| Flow Rating | 21 GPM |
| Relief Valve | Adjustable |
| Center System | Open |
| Spool Count | 1-Spool |
| Valve Operation | Manual |
| A, B Ports | 1/2" BSPP |
| T, N Port | 3/4" BSPP |
| P Port | 1/2" BSPP |
| Material | Aluminum and Iron |

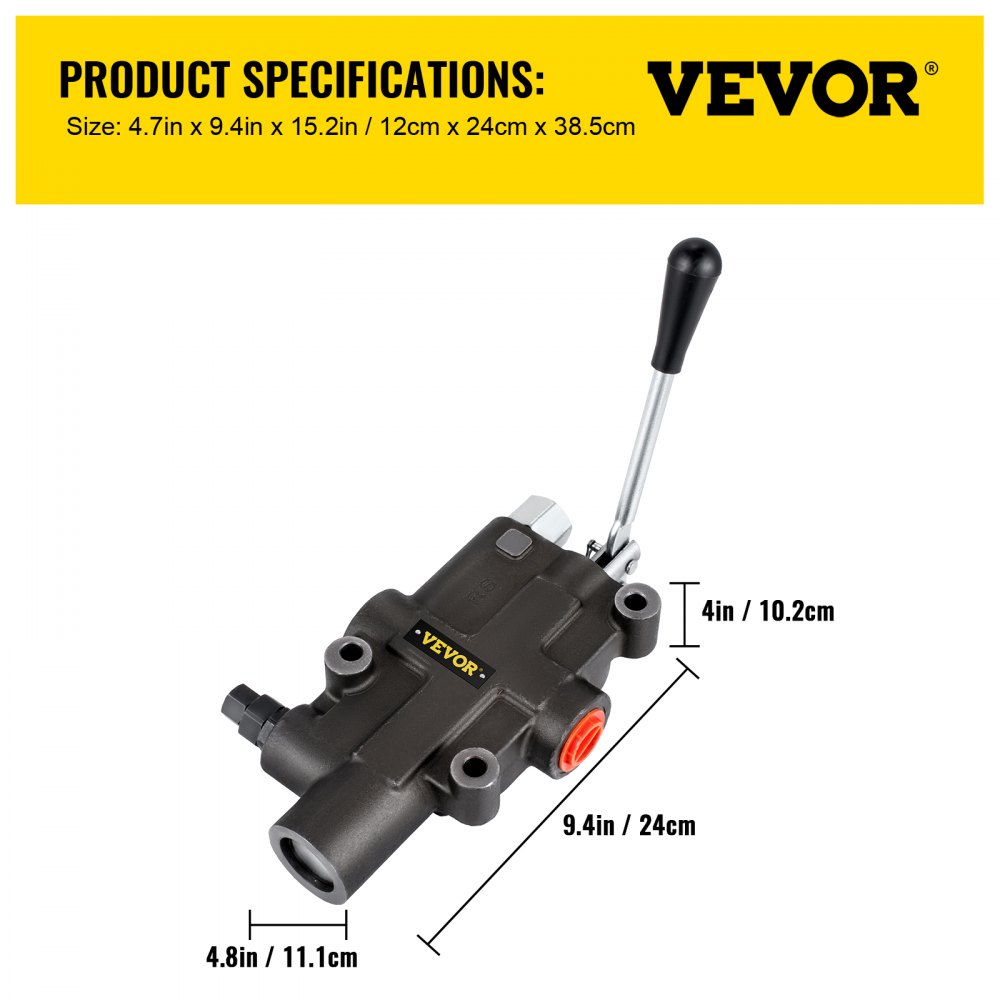

| Dimensions | Not specified |
Package Contents
1 x 1 Spool Hydraulic Directional Control Valve
Warranty
This item comes with a 1 year factory warranty.
