Vevor Hydraulic Directional Control Valve 7-Spool 11 GPM 4500PSI New
Manufacturer: Vevor
SKU: KZFCZGFX2711GMCKUV0
QTY
(888) 999-1522
$ 153.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer

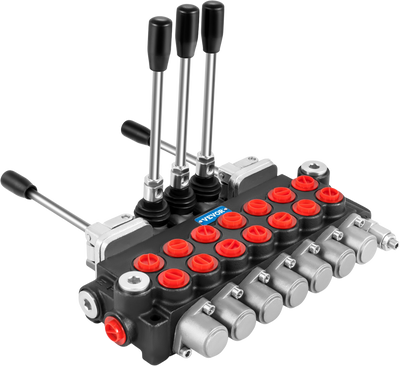

Vevor Hydraulic Directional Control Valve 7-Spool 11 GPM 4500PSI New
Product Overview
This hydraulic spool control valve has been specifically designed for use in mobile hydraulic applications. It is compact and has a flow capacity of 11 GPM at 4500psi. This valve is an alternative to currently available monoblocks. It is equipped with an adjustable relief valve and levers as standard. In addition, the valve comes with a double-acting cylinder spool.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Hydraulic Spool Valve: Equipped with 7 spools and 1/2" BSPP type ring inlet/outlet port. Max pressure of this hydraulic is 4500psi, and maximum flow rate can reach 11 GPM. The opening and disconnection of hydraulic oil are controlled by connecting the valve to the oil line.
- Double-Acting Cylinders: Hydraulic control valve used to operate double-acting cylinders. All standard spools are spring-returned and can be reset to the neutral position. There are springs at the bottom of the handles that make the joysticks easy to control.
- Great Inner Valve: The check valve in the valve body ensures that the hydraulic oil does not return, and the overflow valve in the valve body can adjust the working pressure of the hydraulic system.
- Compact Structure: 7 spool hydraulic valve is made of aluminum and iron, and the solid structure can provide long-term service. The compact design allows it to install in narrow areas and maximizes its control capabilities.
- Widely Used: It is used in hydraulic systems in agriculture, horticulture, forestry, and construction. The distributor can be adapted to different types of machines including tractors, sprayers, construction machines, loaders, excavators, sweepers, industrial machines, and for other applications hydraulically controlled.
Specifications
| Item Model # | 7Spool114500 |
| Max Operating Pressure | 4500psi |
| Flow Rate | 11 GPM |
| Relief Valve | Adjustable |
| Center System | Open |
| Spool Count | 7-Spool |
| Valve Operation | Manual |
| A, B Ports: BSPP 1/2" | P1, P2 Port: BSPP 1/2" |
| T1, T2 Port: BSPP 1/2" | Product Dimensions |
| 15.2" x 9.4" x 4.7" | Weight |
Package Contents
Vevor 7-Spool Hydraulic Directional Control Valve
Warranty
This item comes with a 1 year factory warranty.
