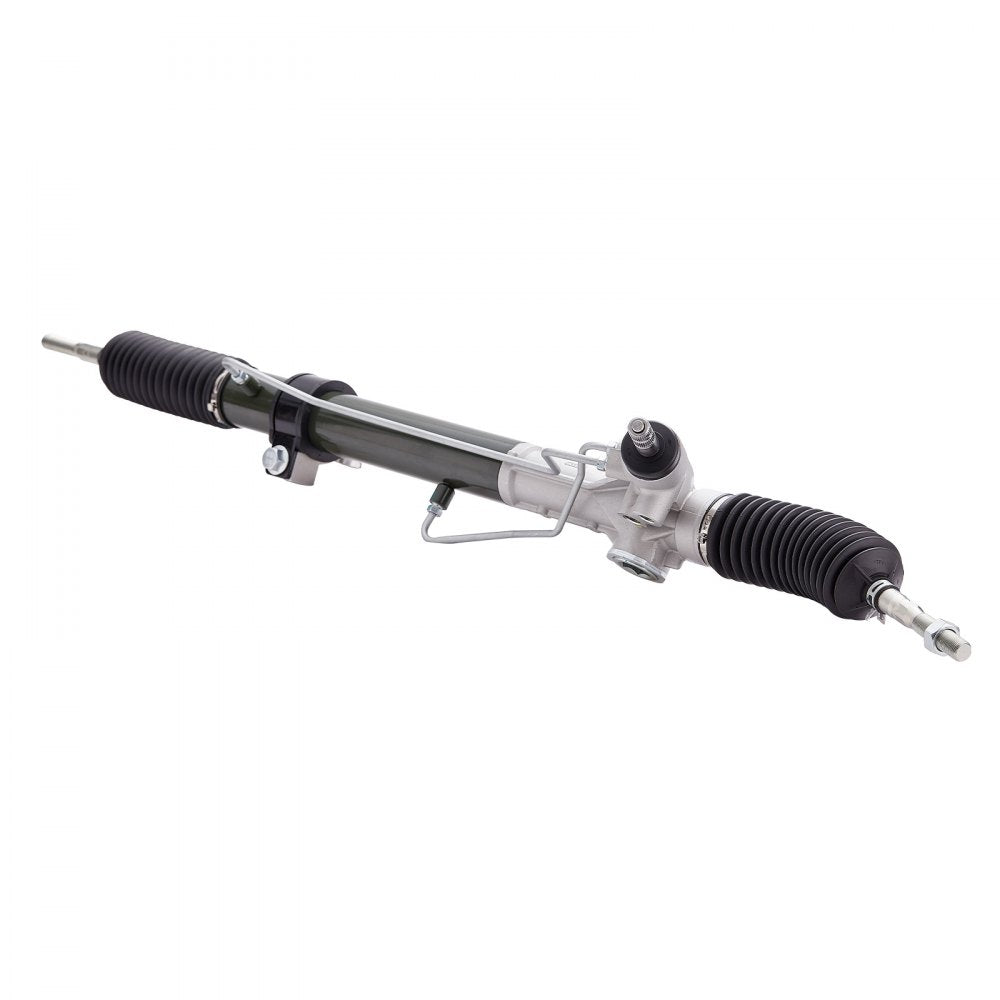

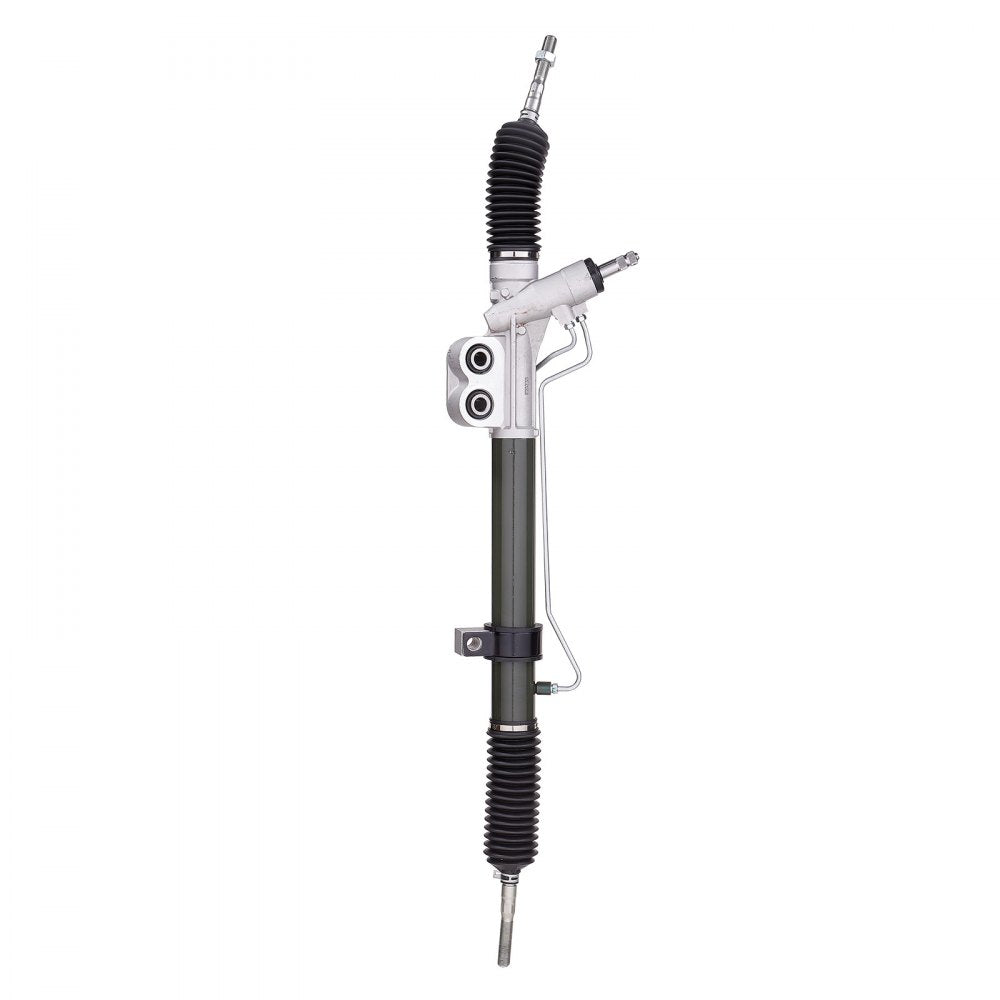

Vevor Hydraulic Power Steering Rack and Pinion Assembly for Nissan Frontier Pathfinder Xterra New
Manufacturer: Vevor
SKU: QCFXJRCPATHFYB0EJ001V0
Compatible with Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 160.99
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Train Horn Kit 4 Trumpet 150dB Air Horn with 12V Compressor and 0.8 Gal Tank New
-
Vevor Universal Forklift Tractor Seat Suspension 3 Level Shock Absorption Micro Switch Seatbelt B...
-
Vevor Strut Spring Compressor Hydraulic Coil Spring Removal Tool New
-
Vevor Seat Suspension Kit Universal Slider Track Dust Cover Lawn Mower New
-
Vevor Hydraulic Hose 3/8" x 100' Coiled 5000 PSI Rubber Hydraulic Oil Hose New
-
Vevor Air Compressor 12V 1.6 Gal Onboard Train Horn Tank System New
-
Vevor Forklift Suspension Seat Foldable with Adjustable Backrest and Headrest Universal Fit New
-
Vevor Automotive Smoke Machine Leak Detector EVAP Vacuum Diagnostic Tester with Built-in Air Pump...
-
Vevor Strut Spring Compressor Heavy Duty MacPherson Coil Spring Tool Set New
-
Vevor Aluminum Engine Cylinder Head Assembly for SBF Ford Mustang 289/302/351W New
-
Vevor Magnetic Induction Heater Kit Portable Hand Held with 10 Coils New
-
Vevor Air Suspension Compressor Kit 12V 100 PSI Single Path System New
-
Vevor Injector Tester Diesel Fuel Nozzle Pressure Gauge Kit New
-
Vevor Magnetic Induction Heater Kit with 4 Coils 1800W 110V New
-
Vevor Tractor Seat Universal Lawn Replacement High Back Black Vinyl New
-
Vevor Jeep Tube Doors 4-Door Off-Road Front & Rear Tubular Half Doors for 2007-2018 Jeep Wrangler...
-
Vevor Hard Top Remover Lift Jeep Hardtop Removal and Storage System New
Vevor Hydraulic Power Steering Rack and Pinion Assembly for Nissan Frontier Pathfinder Xterra New

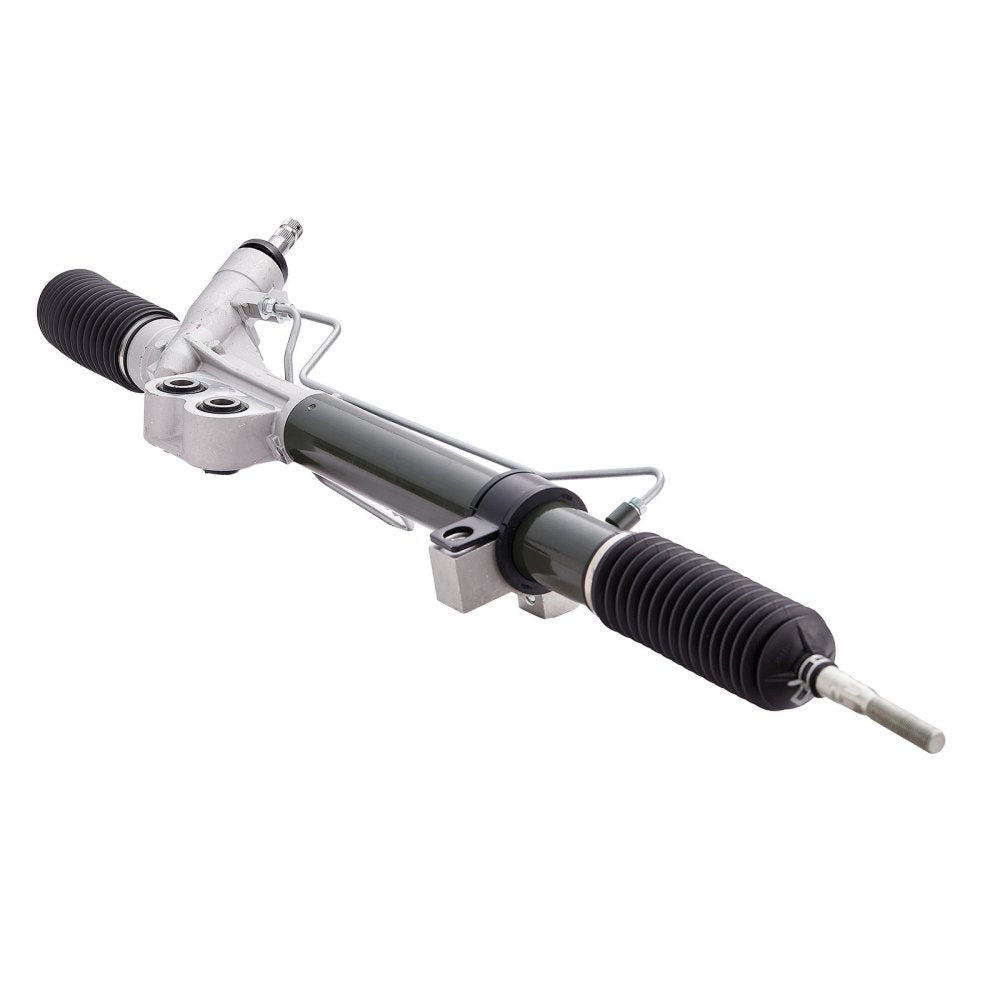

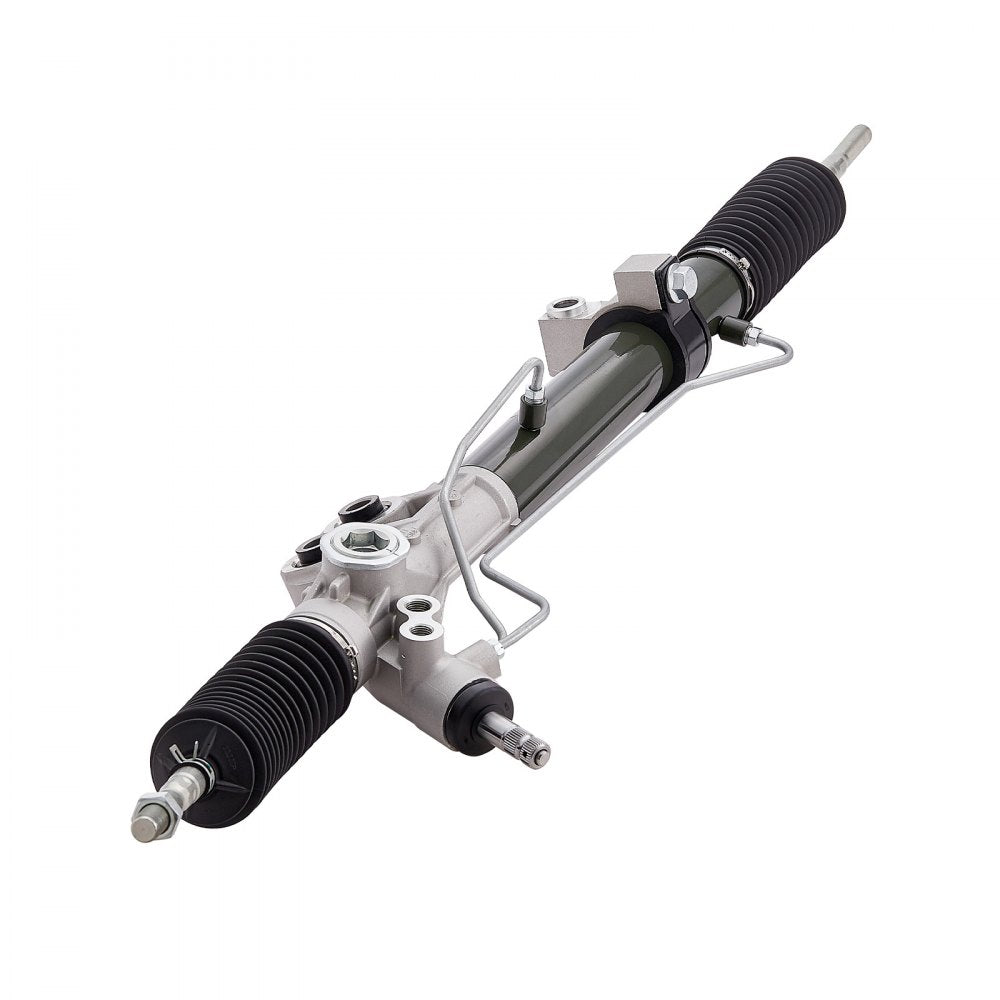

Product Overview
Upgrade your vehicle's steering response with this hydraulic power steering rack and pinion assembly designed for select Nissan models. It is built with durable alloy construction, advanced gear meshing technology, and a fully enclosed dust boot for dependable performance and protection. The assembly is designed as a direct replacement for multiple OE part numbers for easier fitment. It supports smooth, precise steering control and stable handling in demanding driving conditions.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Wide Vehicle Compatibility: Our hydraulic power steering rack and pinion fits: 2005-2020 Nissan Frontier, 2005-2012 Nissan Pathfinder, 2005-2015 Nissan Xterra. Note: For left-hand drive only.
- OE Part Numbers: This steering rack and pinion assembly is a direct replacement for OE part numbers: 49001-ZP00A, 26-3033, 263033, 48521EA000, 48521EA025, 49001EA000, 49001ZP50A, 49001ZG90A.

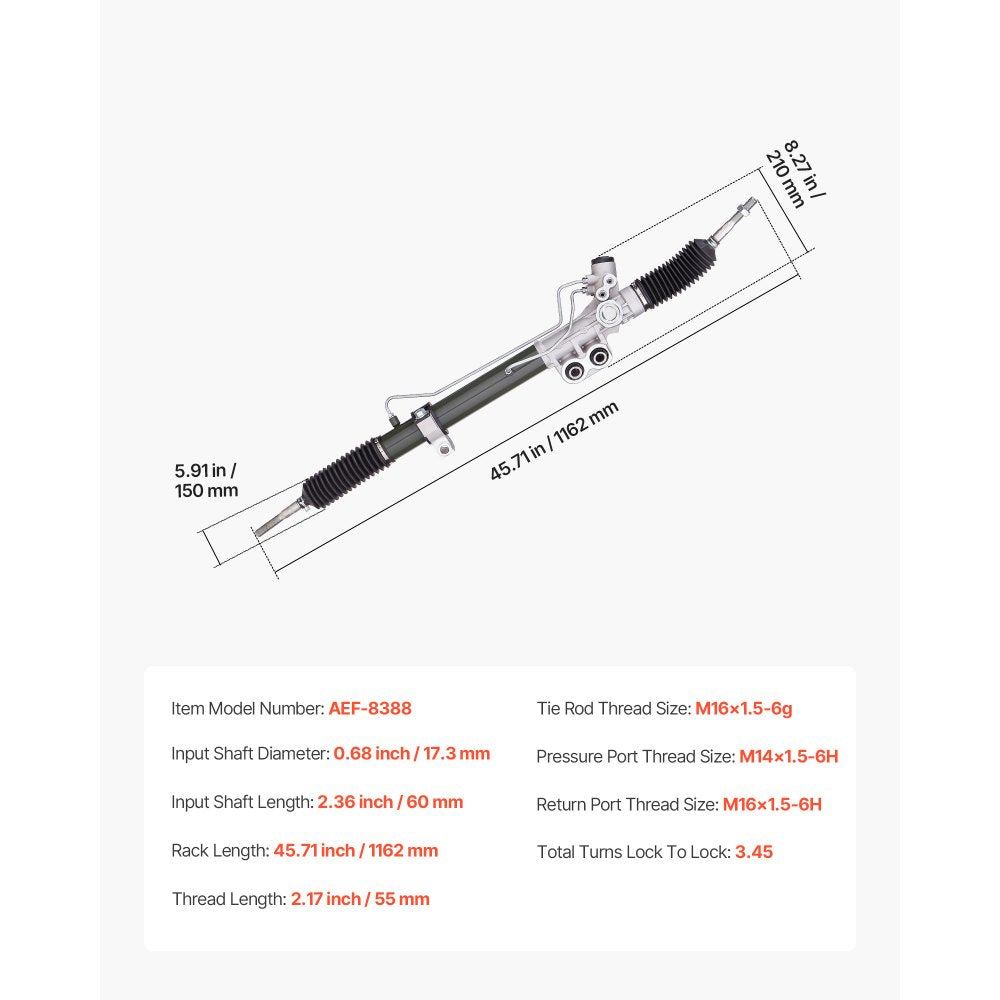

- Specifications: Input shaft diameter: 17.3 mm / 0.68 inch; Input shaft length: 60 mm / 2.36 inch; Rack length: 1162 mm / 45.71 inch; Tie rod thread length: 55 mm / 2.17 inch; Tie rod thread size: M16×1.5-6g; Pressure port thread size: M14×1.5-6H; Return port thread size: M16×1.5-6H; Total turns lock to lock: 3.45.
- Corrosion-Resistant Alloy: Crafted from high-quality aluminum alloy, the steering rack and pinion assembly offers exceptional strength and durability for smooth driving on harsh terrains while preventing the steering system from jamming with a leak-free dust boot design.
- Agile Steering: Optimized gear and rack meshing technology provides enhanced stability and quick, responsive steering, ensuring smooth and precise control for a superior driving experience.
Specifications
| Item Model Number | AEF-8388 |
| Product Type | Hydraulic Power Steering Rack and Pinion Assembly |
| Compatible Vehicles | 2005-2020 Nissan Frontier; 2005-2012 Nissan Pathfinder; 2005-2015 Nissan Xterra |
| Drive Side | Left-hand drive only |
| Input Shaft Diameter | 17.3 mm / 0.68" |
| Input Shaft Length | 60 mm / 2.36" |
| Rack Length | 1162 mm / 45.71" |
| Tie Rod Thread Length | 55 mm / 2.17" |
| Tie Rod Thread Size | M16×1.5-6g |
| Pressure Port Thread Size | M14×1.5-6H |
| Return Port Thread Size | M16×1.5-6H |
| Total Turns Lock to Lock | 3.45 |
| Net Weight | 23.57 lbs / 10.7 kg |
| Dimensions | 45.71 x 5.91 x 8.27" / 1162 x 150 x 210 mm |
| OE Part Numbers | 49001-ZP00A; 26-3033; 263033; 48521EA000; 48521EA025; 49001EA000; 49001ZP50A; 49001ZG90A |

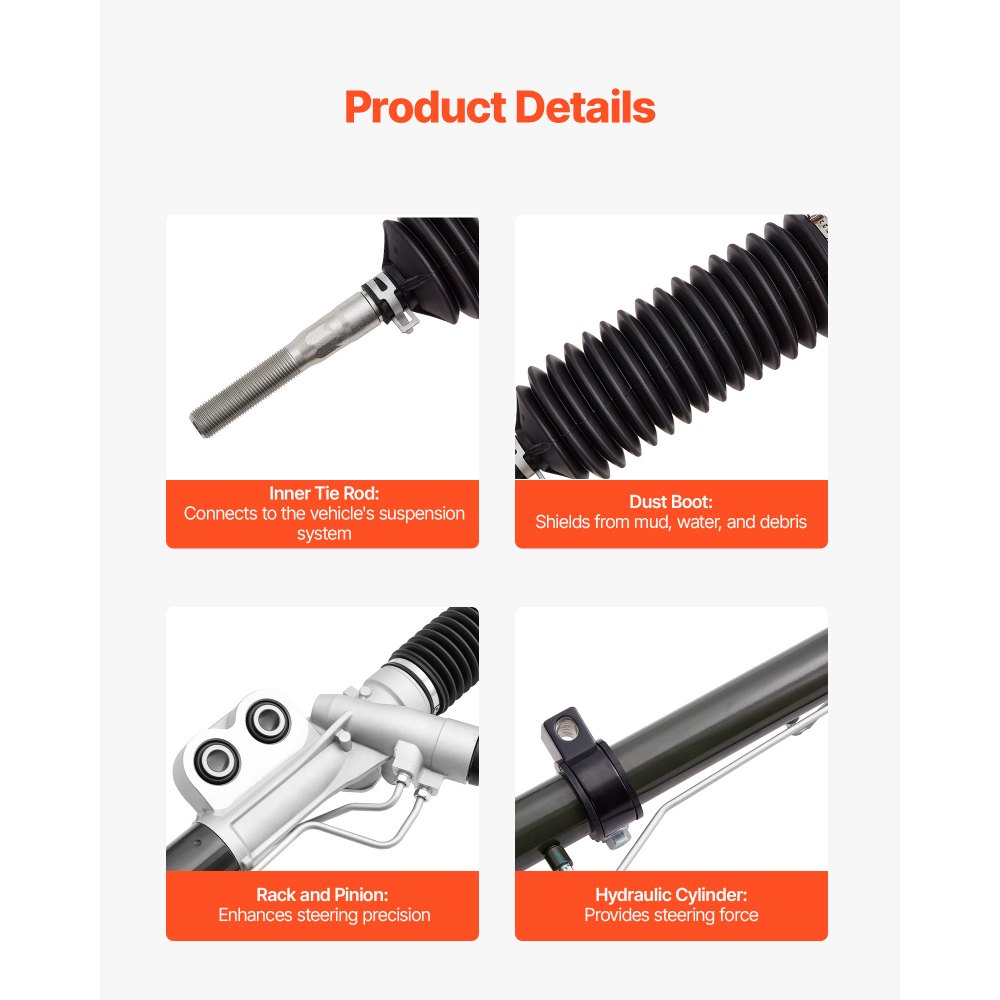

Package Contents
Hydraulic power steering rack and pinion assembly
Inner tie rod
Dust boot
Warranty
This item comes with a 1 year factory warranty.
