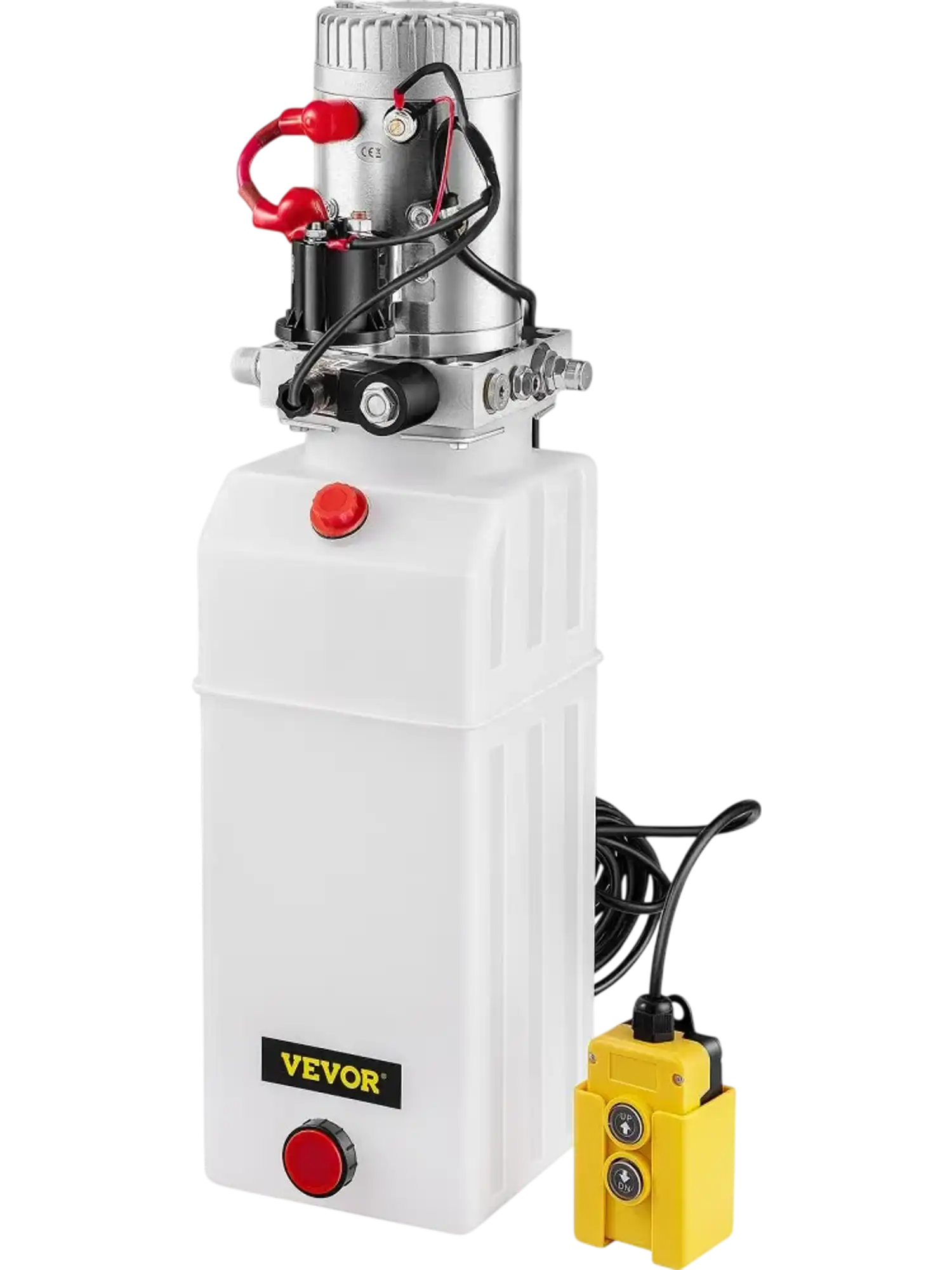

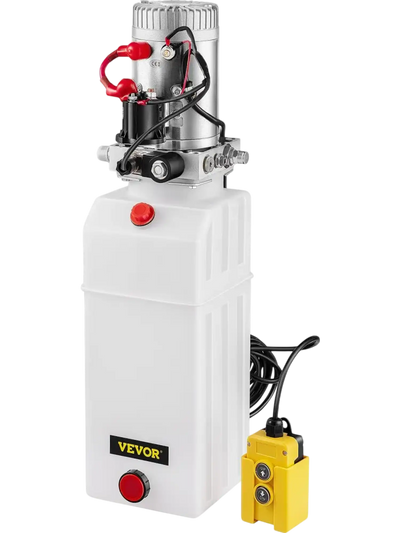

Vevor Hydraulic Power Unit 8 Quart Single-Acting 12V DC Plastic Reservoir Pump New
Product Overview

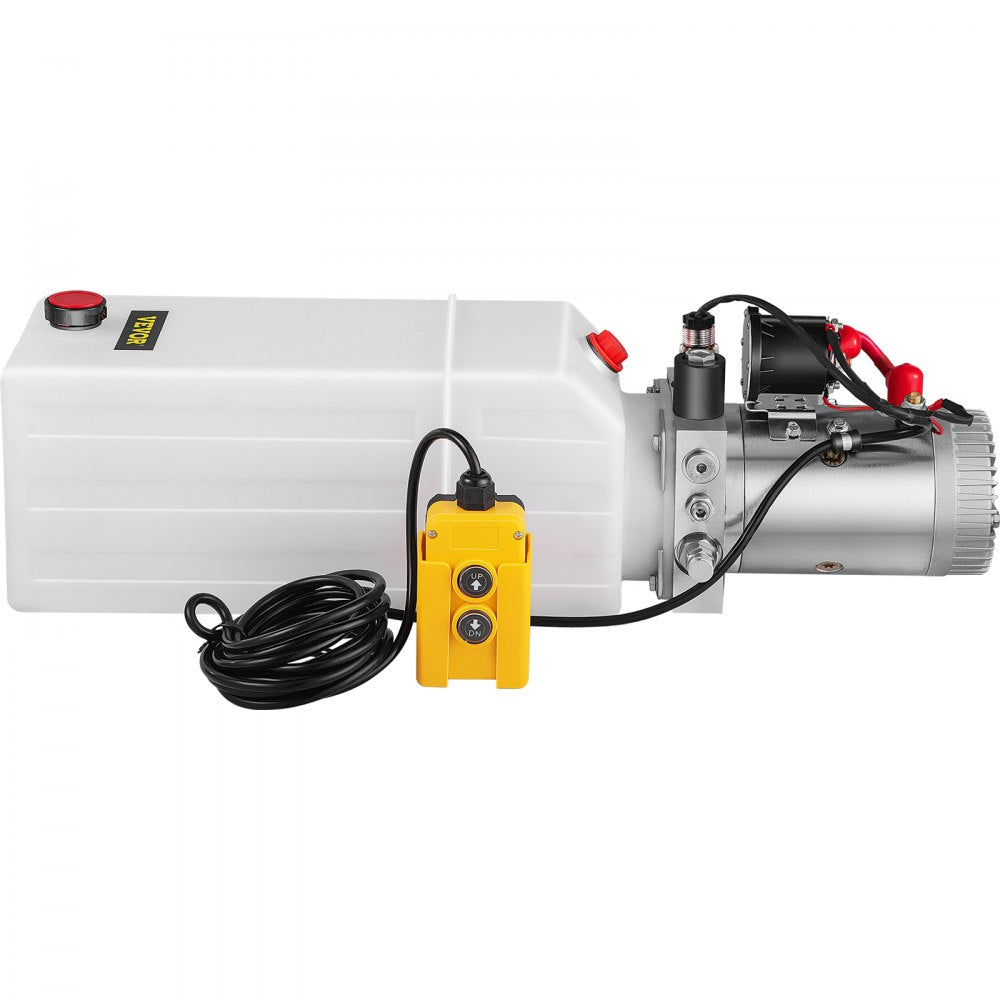

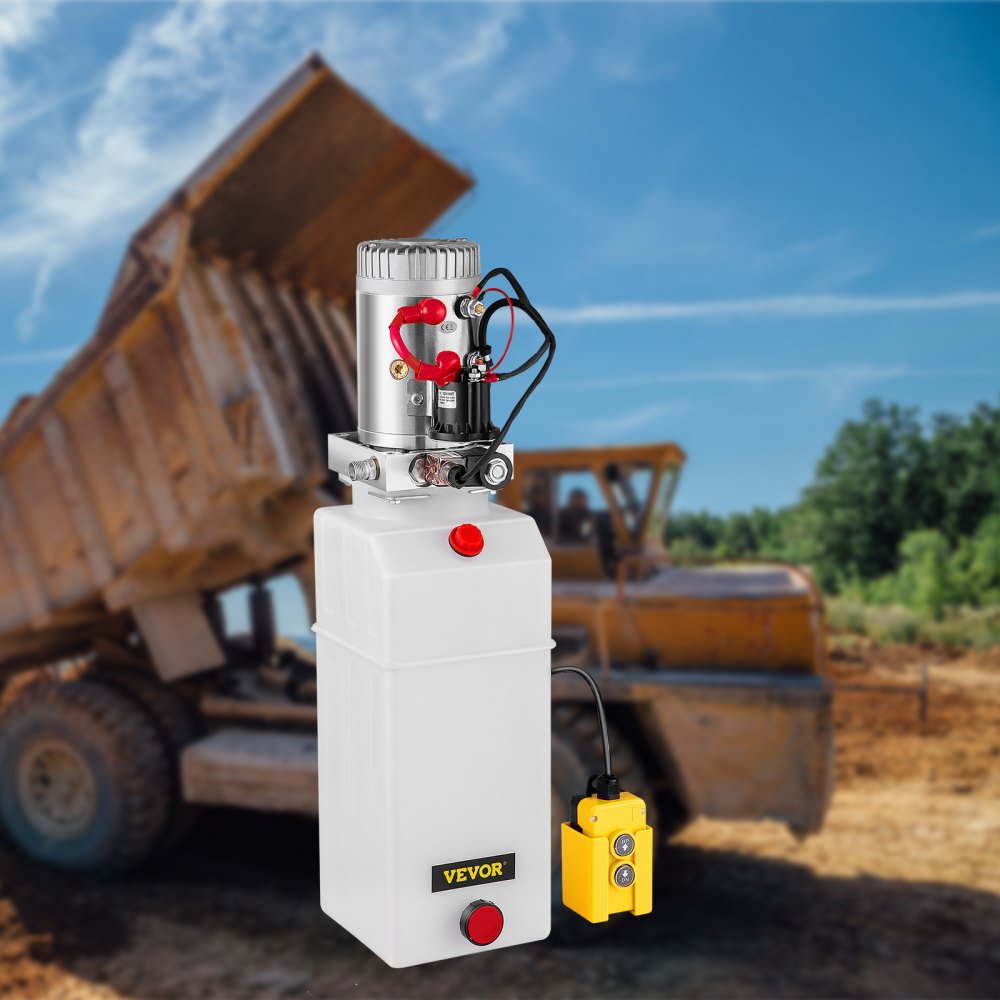

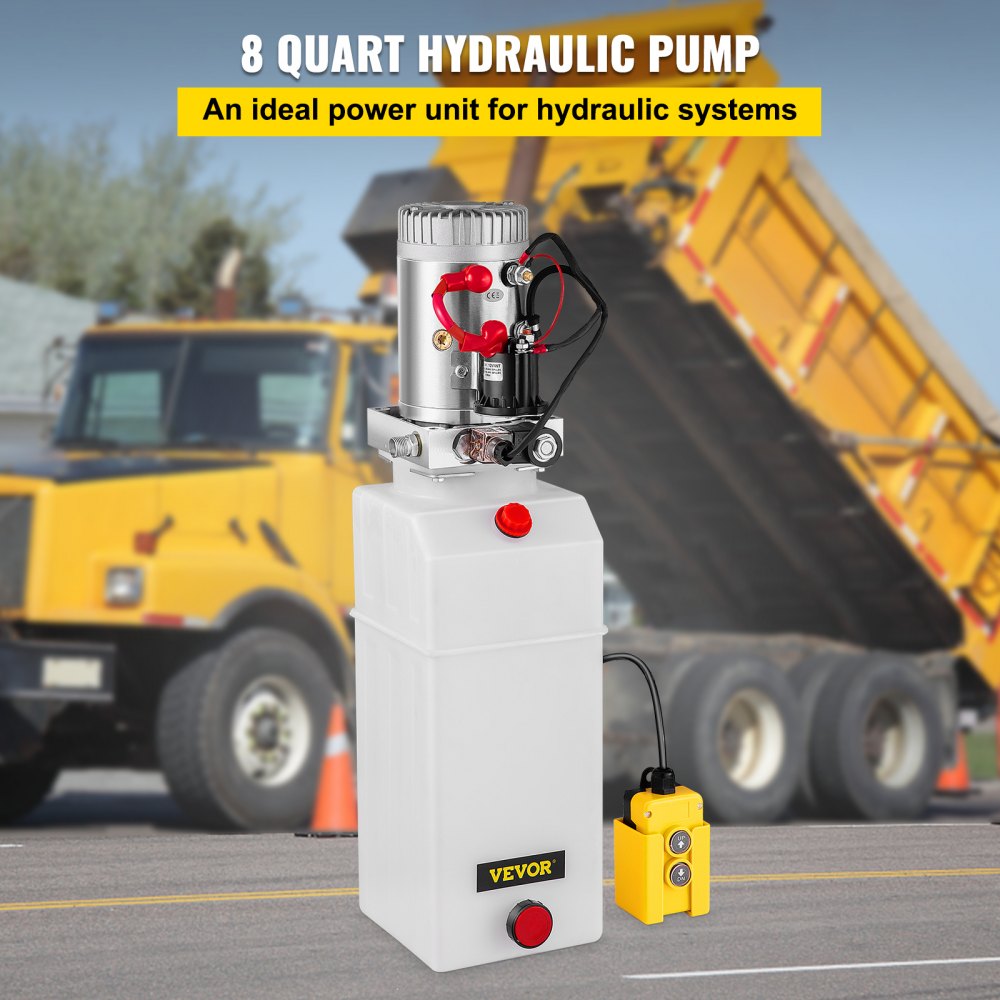

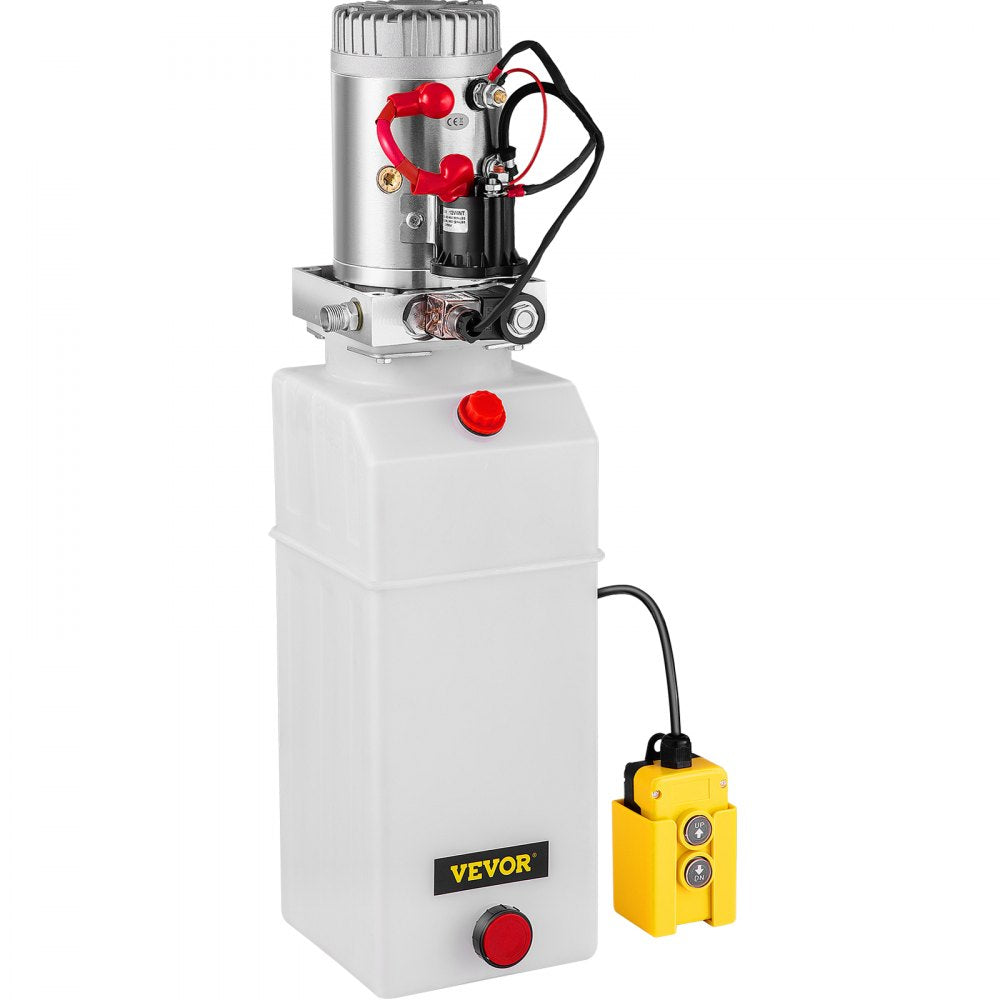

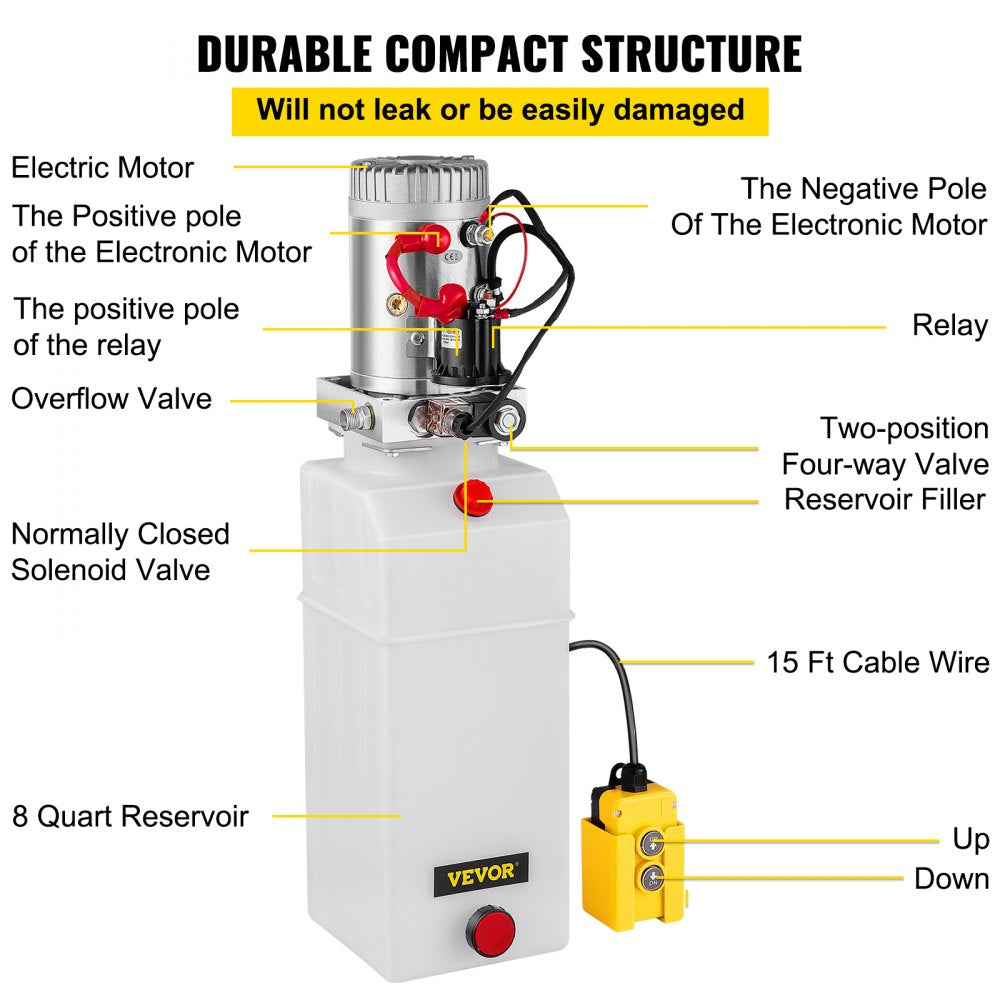

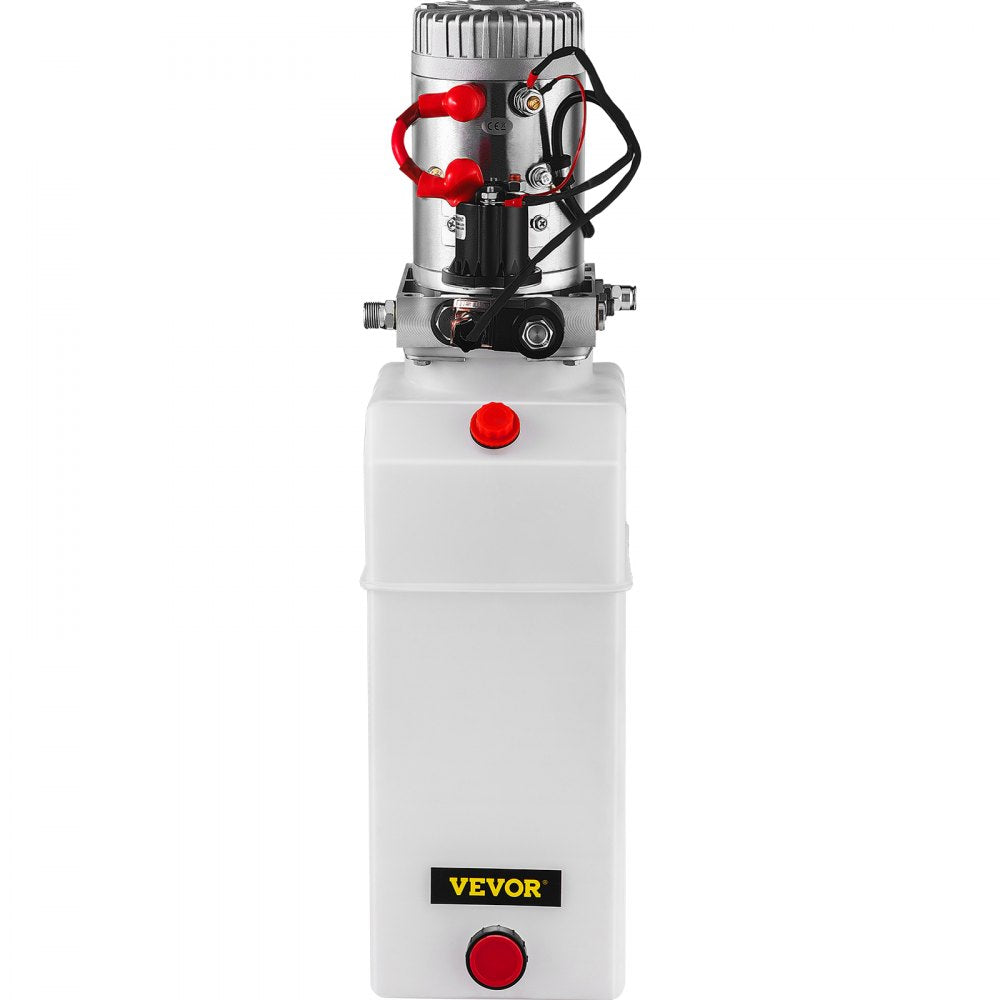

The Vevor hydraulic power unit is a single-acting 12V DC pump designed for power-up and gravity-down operation in remote hydraulic systems. It features an 8-quart translucent plastic reservoir and delivers quick oil output for applications such as dump trailers, lift trucks, and lifting platforms. The unit comes pre-assembled for easier wiring and installation and includes a handheld remote control. Its reinforced plastic construction and built-in overflow valve support dependable performance and safer operation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

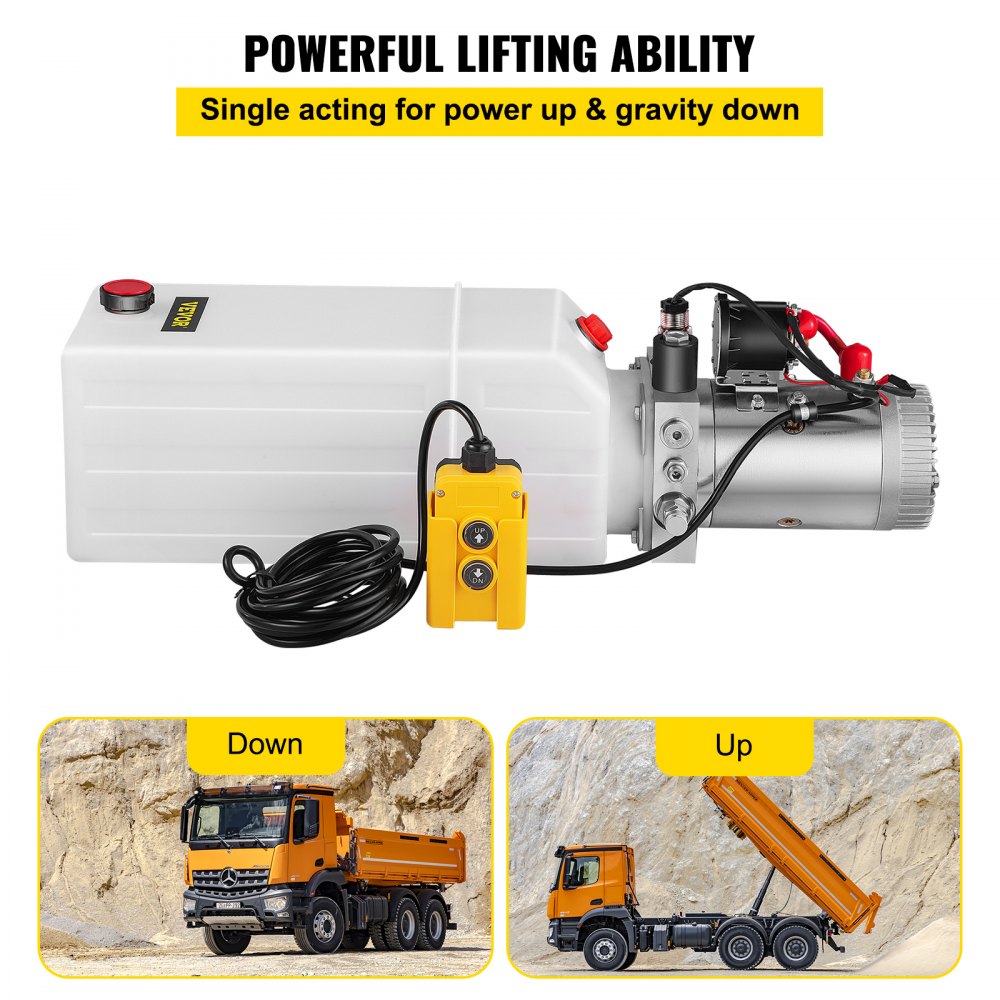

- Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 0.37-5.5kw) and an 8-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a single-acting pump for power up and gravity down.

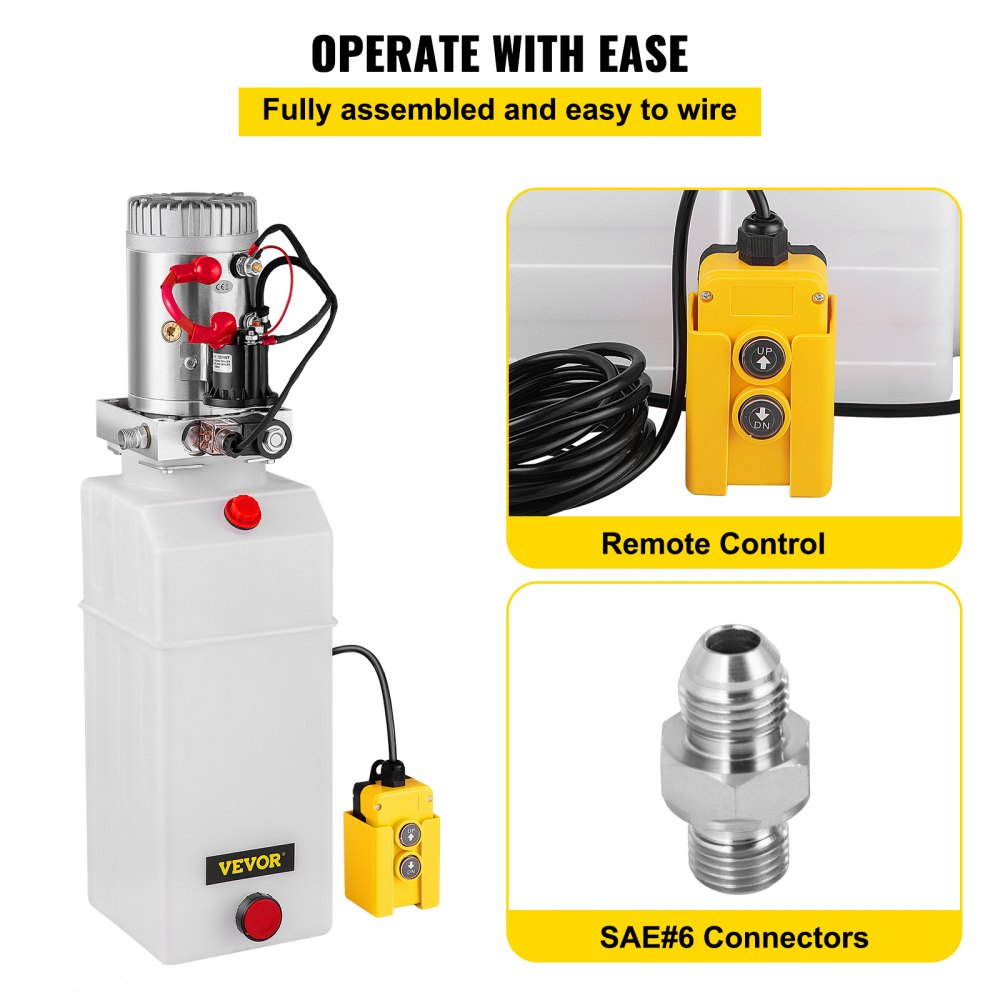

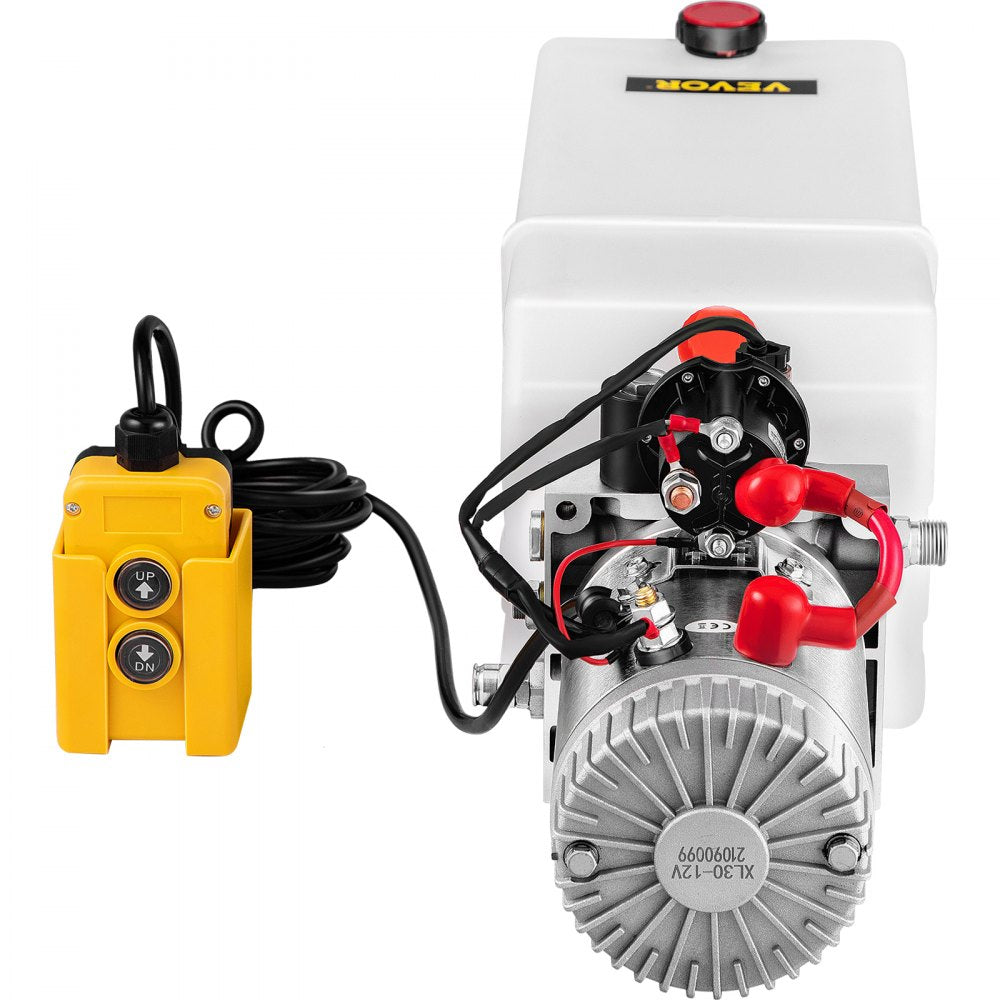

- Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. One additional SAE#6 connector and one 15 ft remote control are included in the package.
- Reliable Quality: The dump trailer pump is made of sturdy plastic; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with an overflow valve, it automatically releases when overpressure, safer and reliable.
- Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.

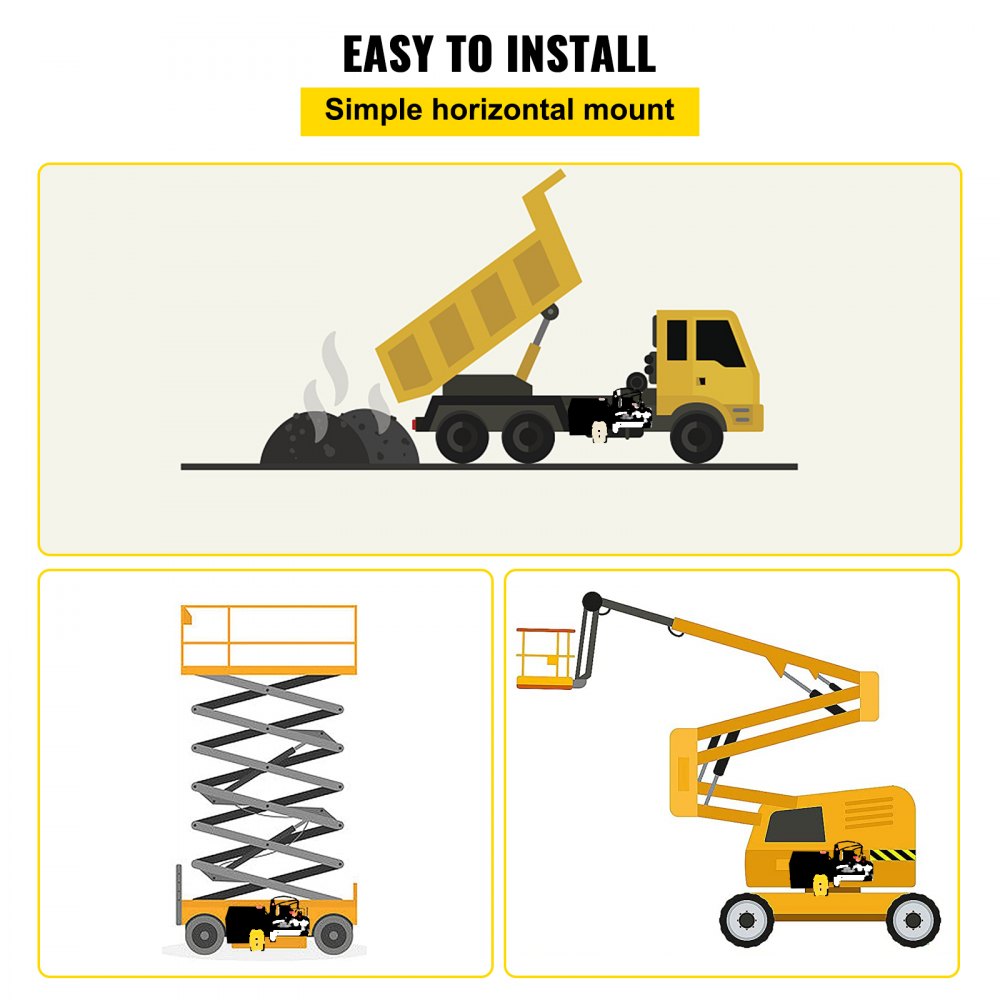

- Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
Specifications
| Model | 8LCZYYBSLDZY00001V0 |
| Product Type | Hydraulic Power Unit |
| Operation Type | Single Acting Power-Up/Gravity Down |
| Motor Voltage | 12V DC |
| Motor Power | 0.37-5.5 kW |
| Displacement of Hydraulic Pump | 0.562-4.350 GPM |
| Flow Rate | 2 GPM |
| Relief Valve Pressure | 22 MPA 3200 PSI max relief setting on A port |
| Max Relief Setting on B Port | 1500 PSI |
| Rated Speed | 2850 R/MIN |
| Reservoir Capacity | 8 L |
| Reservoir Capacity Imperial | 8 qt |
| Reservoir Material | Plastic |
| Reservoir Type | Translucent |
| Port Size | SAE #6 |
| Mount Type | Horizontal mount |
| Remote Cord Length | 15' 4.5 m |
| Connector Included | M18 x 1.5 connector |
| Additional Connector Included | SAE6 9/16" connector |

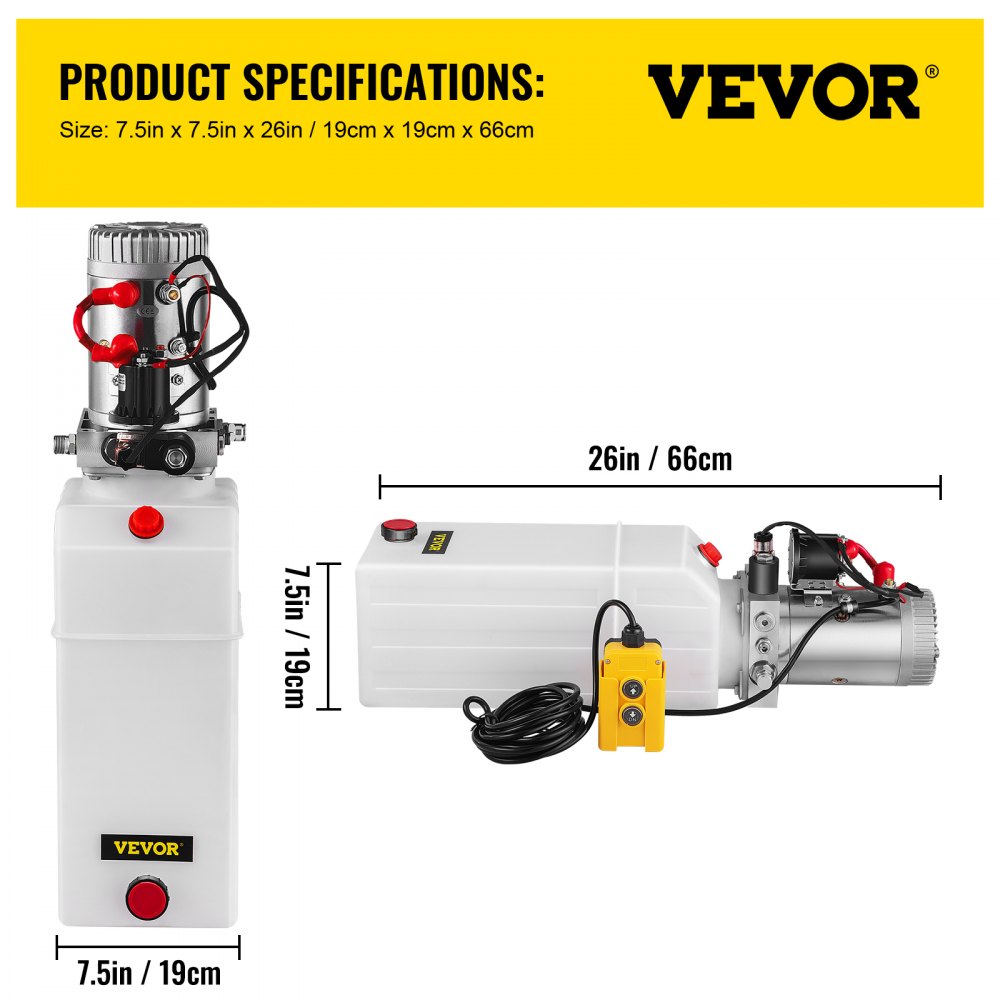

| Dimensions | Not specified |
Package Contents
1 x 8 Quart Single Acting Hydraulic Pump
1 x English Manual
Several related accessories including connectors
Warranty
This item comes with a 1 year factory warranty.
