Vevor Hydraulic Pressure Test Kit 250/400/600 Bar 3 Gauges 9 Couplings 3 Hoses New
Product Overview

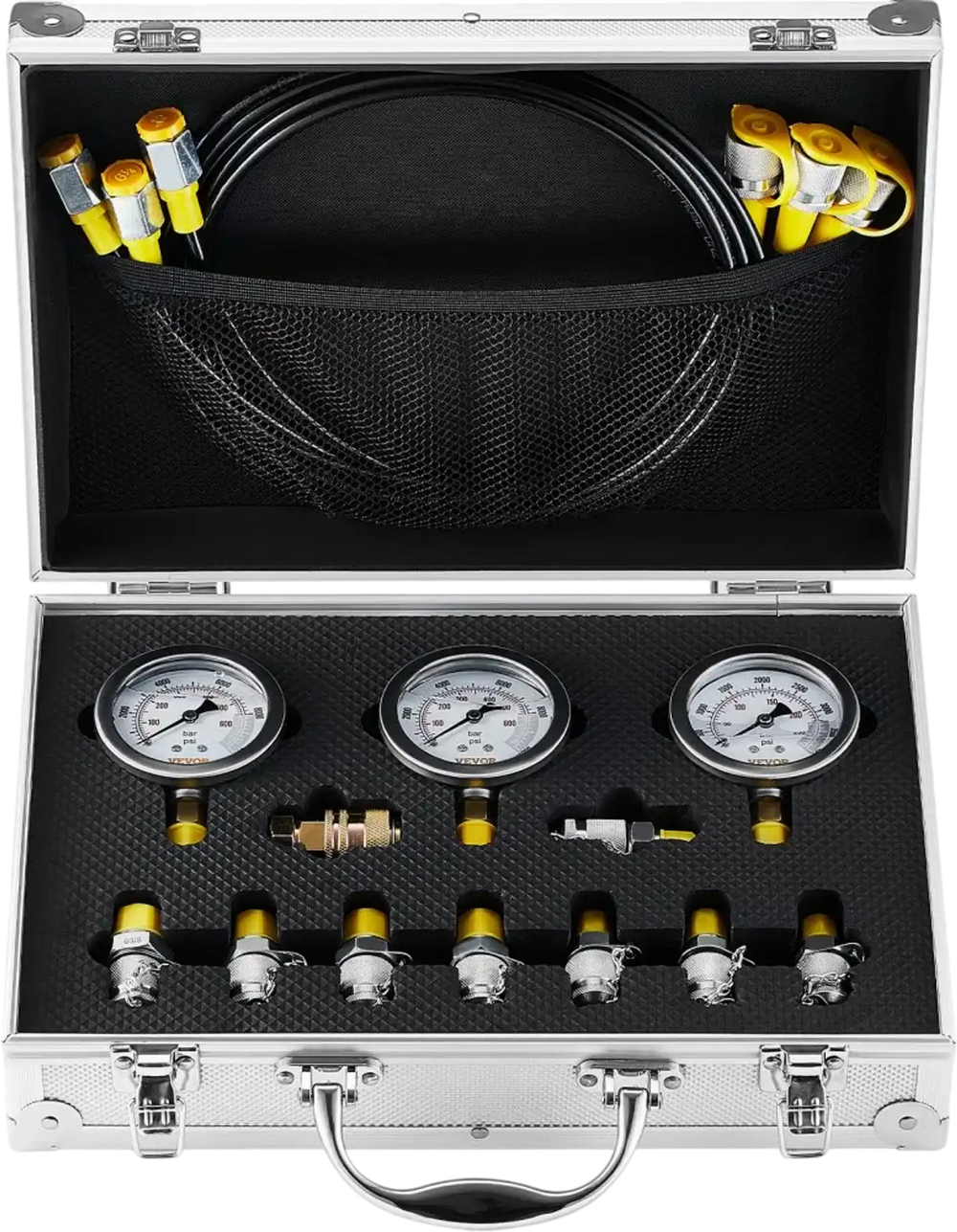

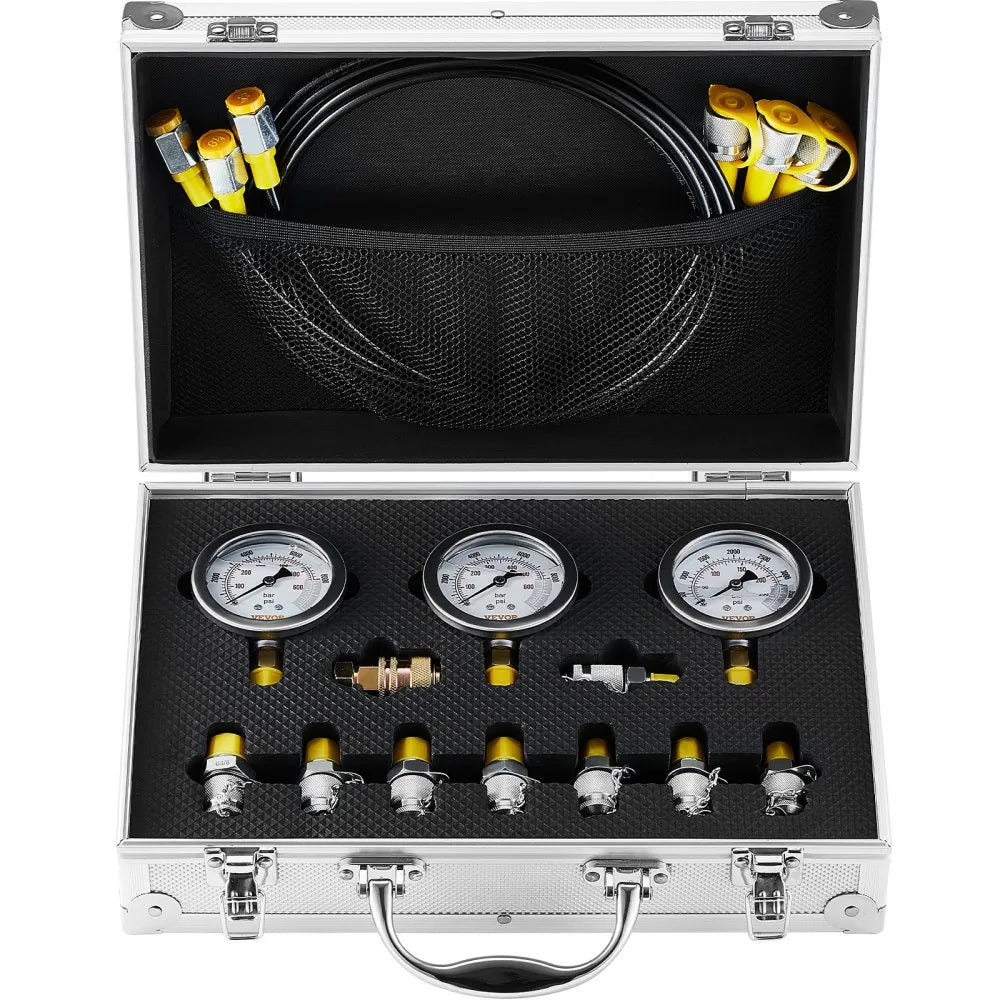

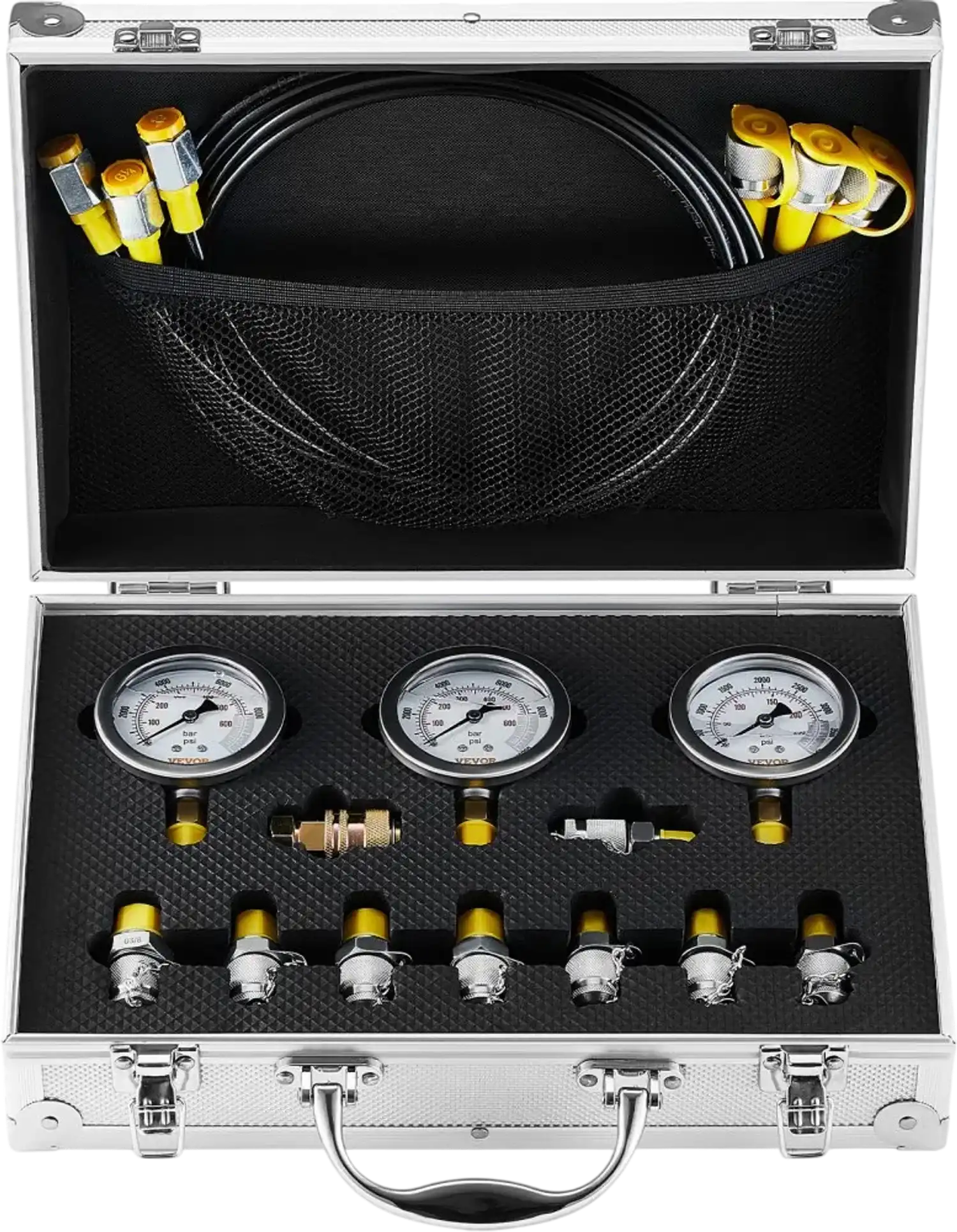

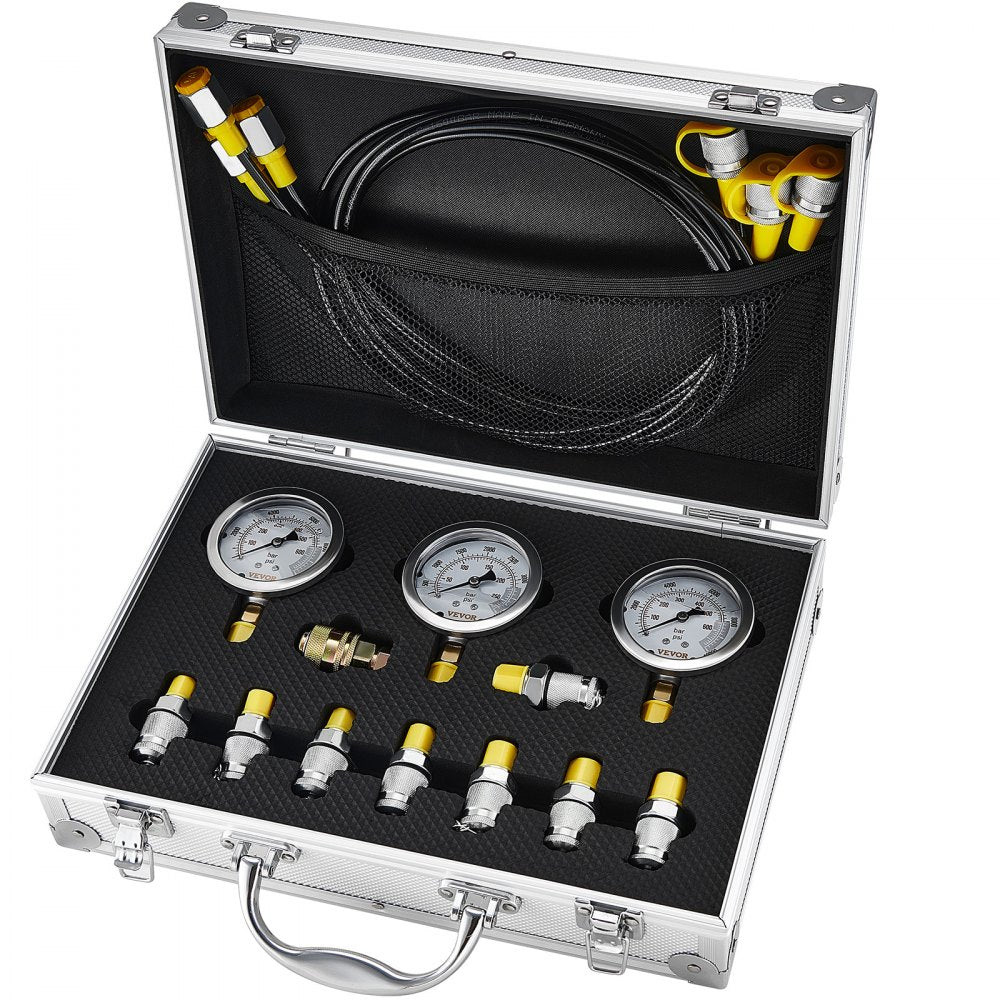

The Vevor hydraulic pressure test kit is designed for measuring pressure in large hydraulic equipment systems such as excavators, tractors, cranes, and construction machinery. It includes three gauges with multiple pressure ranges, nine test couplings, and three hoses to support a wide variety of hydraulic interfaces. The gauges feature dual PSI and bar scales for quick, accurate readings, and the components are built with durable aluminum alloy and 304 stainless steel. A portable carrying case keeps all parts organized for transport and storage. This kit is suited for professional testing across construction, shipping, mining, maintenance, and related industries.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

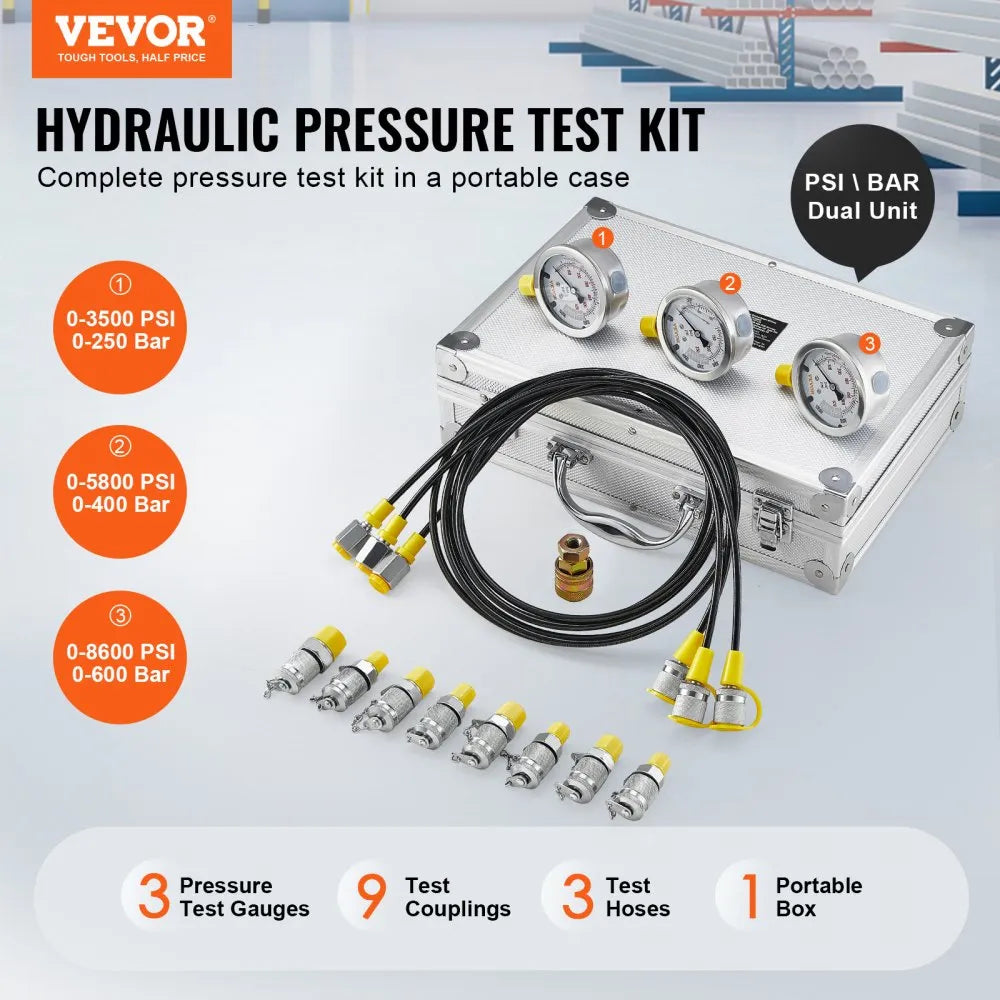

- Hydraulic Pressure Test Kit: This hydraulic test gauge kit equips you with essential tools for measuring pressure values in large hydraulic equipment systems. The 3 test gauges provide 3 pressure range options: 0-3500 PSI / 250 Bar, 0-5800 PSI / 400 Bar, and 0-8600 PSI / 600 Bar, catering to a wide range of hydraulic equipment with varying pressure values and interfaces. Our strict quality control ensures zeroed gauges and dual scale units (PSI or Bar) for quick readings.

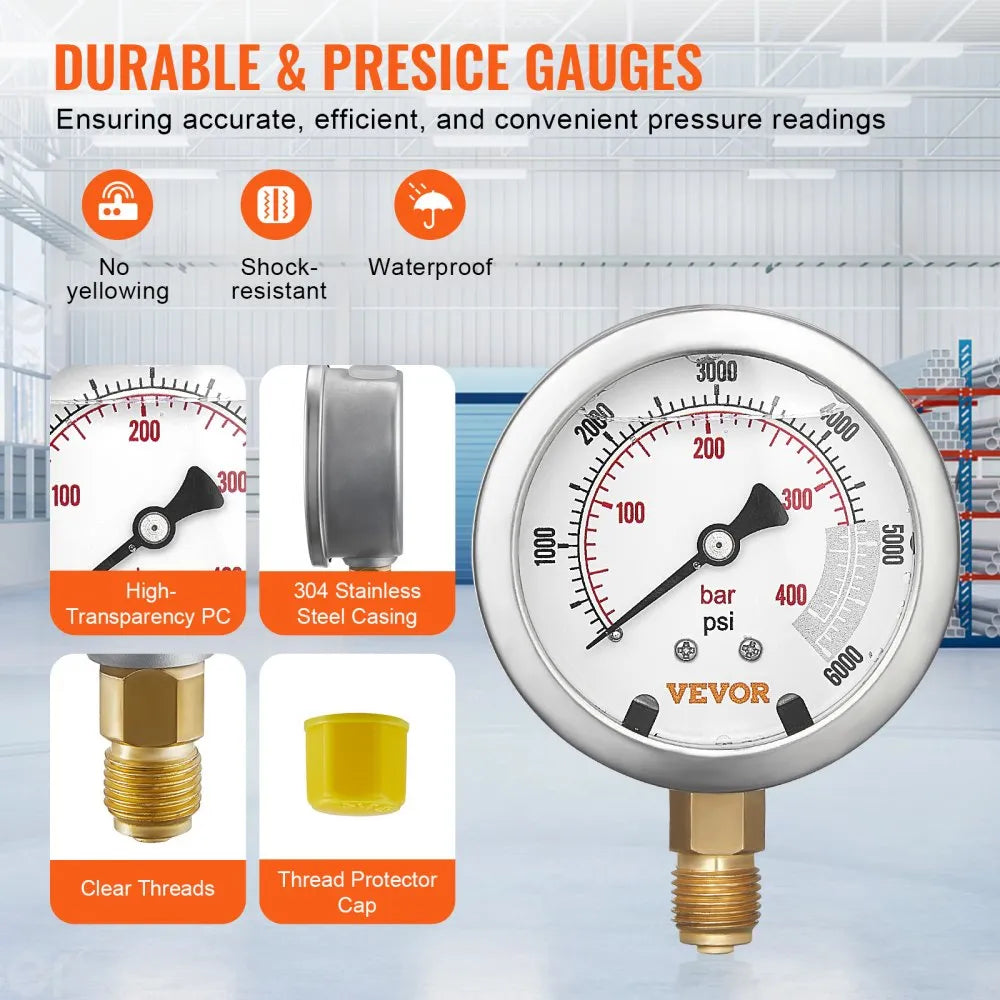

- Durable Pressure Test Gauges: Crafted from robust 304 stainless steel, the pressure test gauges are built to withstand high temperatures and corrosive areas. The dial seal design prevents glycerin leakage, discoloration, and hardening, reducing internal friction and enhancing accuracy. We prioritize your ability to read pressure values accurately.

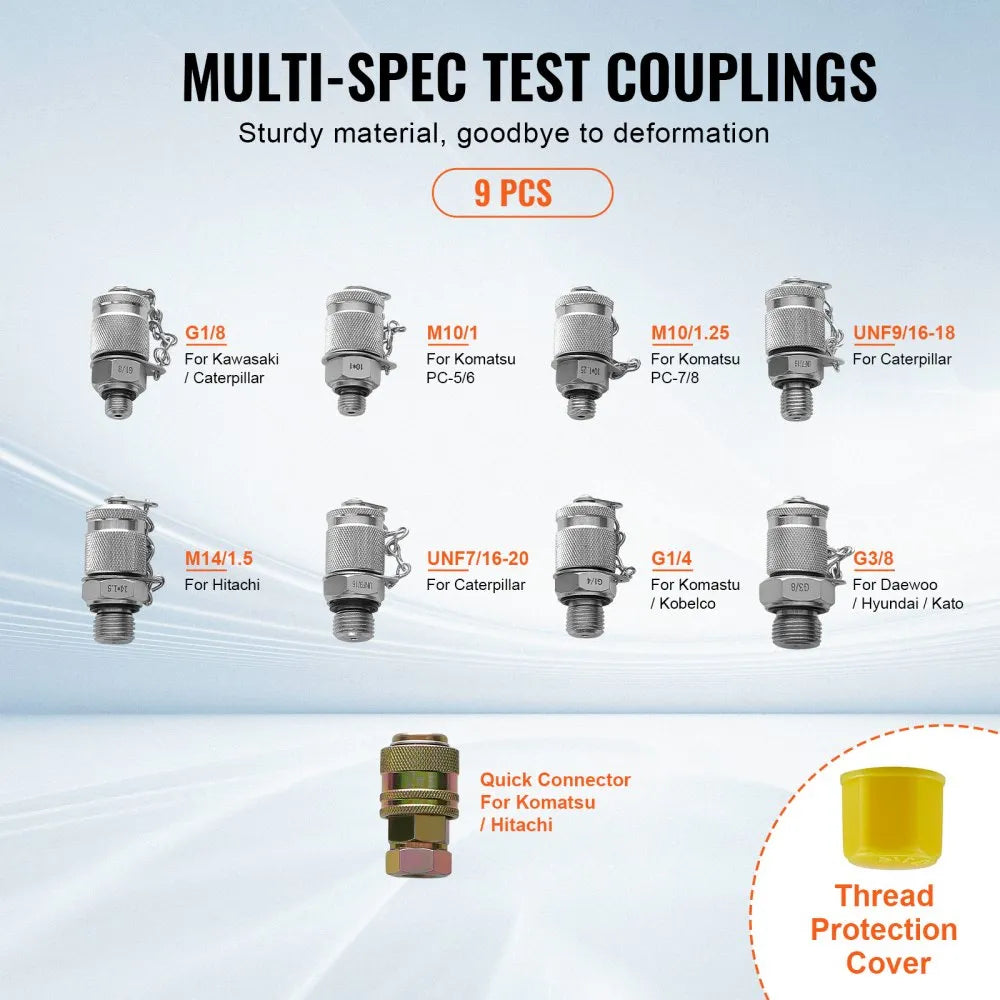

- 9 Test Couplings with Plastic Protection: With 9 test couplings, including G1/8, G1/4, G3/8, M10/1, M10/1.25, M14/1.5, UNF7/16-20, UNF9/16-18, and quick connector. This excavator pressure gauge kit can be used with various excavator models. The thread joints feature a protective plastic film to prevent damage and ensure secure connections.

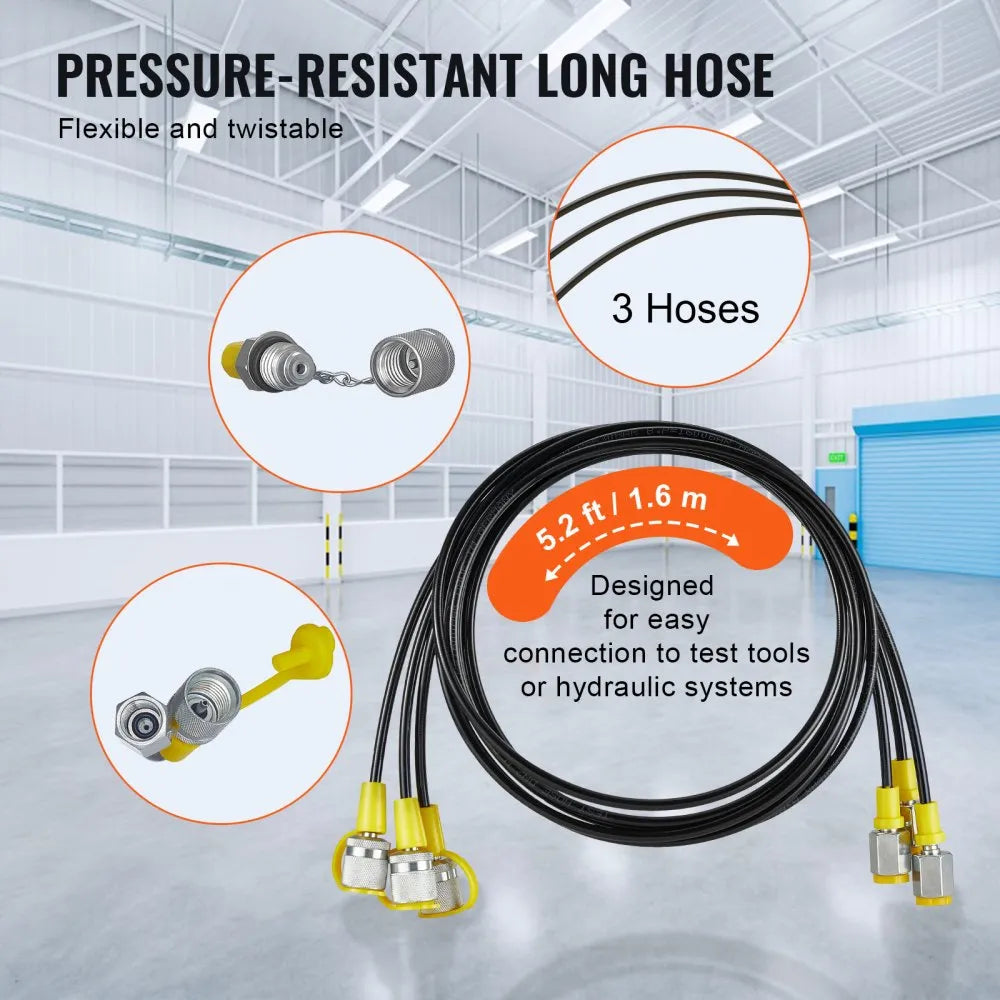

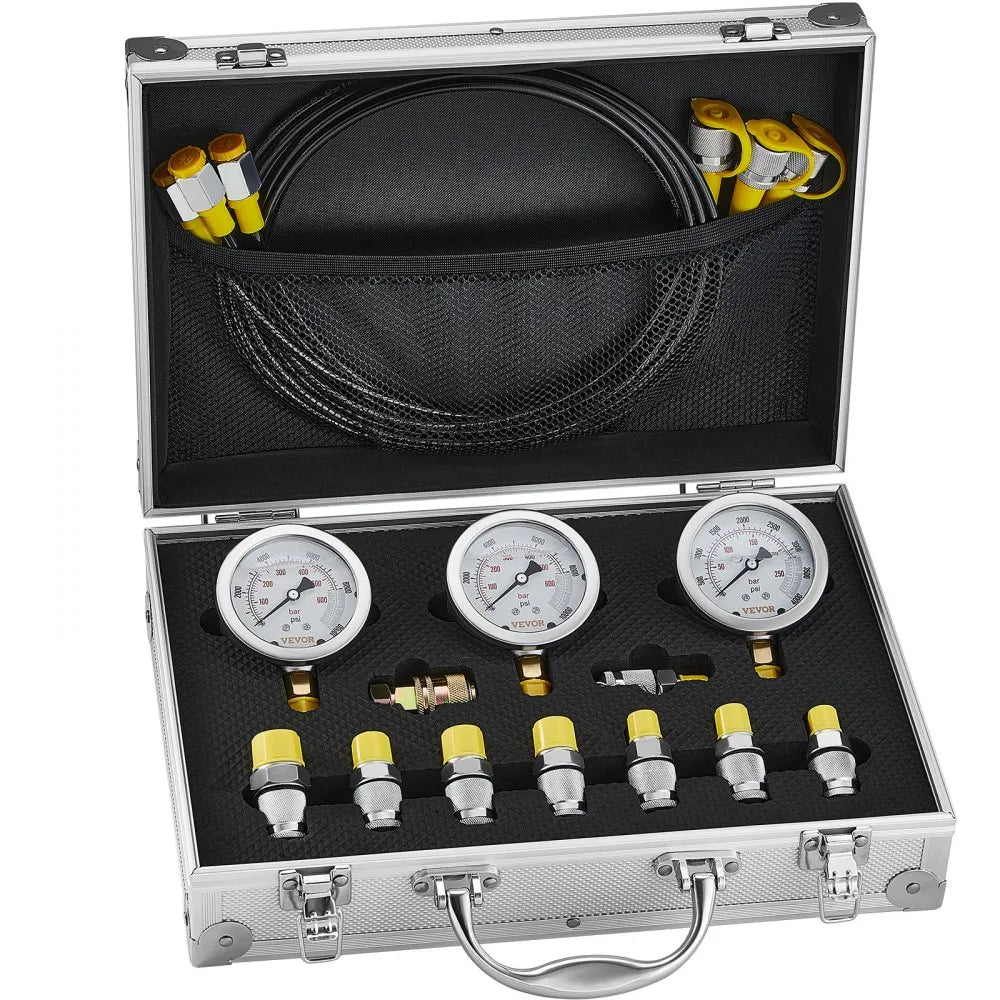

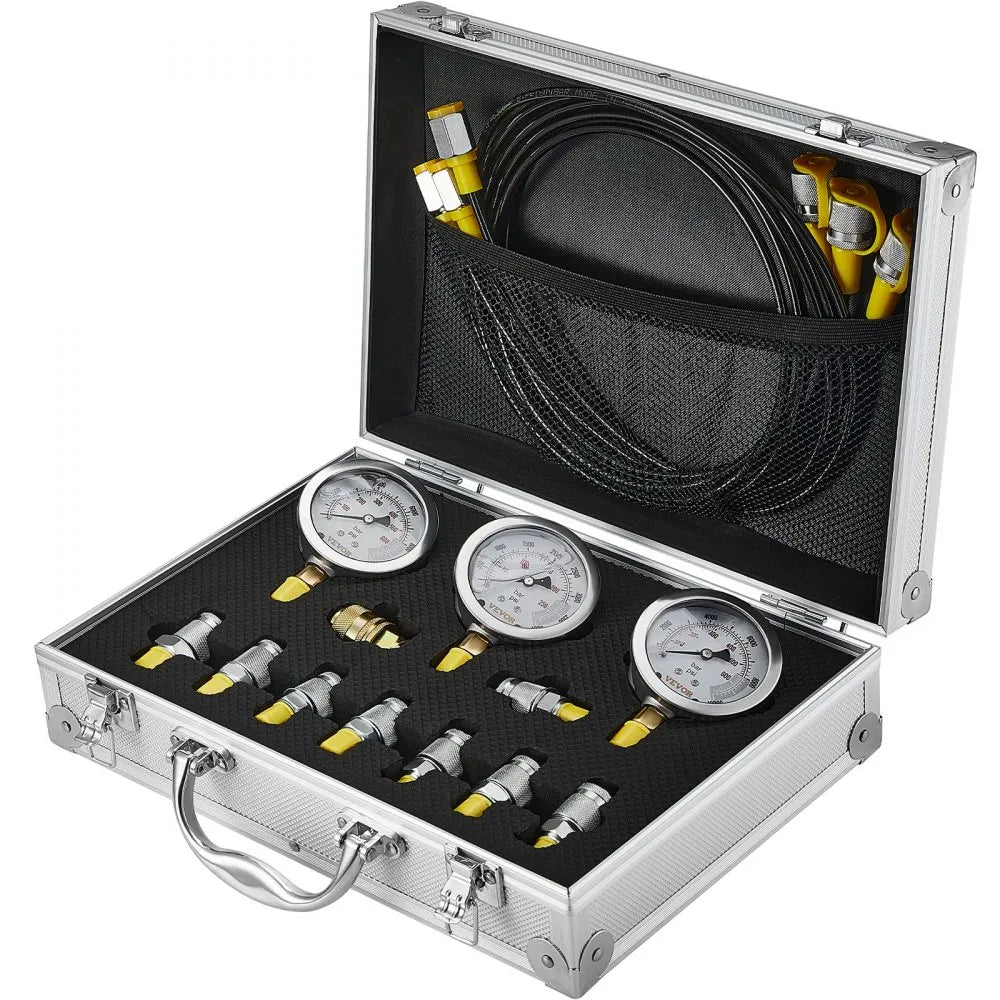

- 3 Hoses and Portable Box: Three 5.2 ft/1.6 m test hoses are included to facilitate the pressure test gauges placement within the machinery for easy reading. All testing components are neatly organized in a robust aluminum alloy and density board carrying case. Its compact design saves storage space and allows for easy transportation. And desiccants are provided to keep the hydraulic pressure test gauge kit dry and prevent rust.

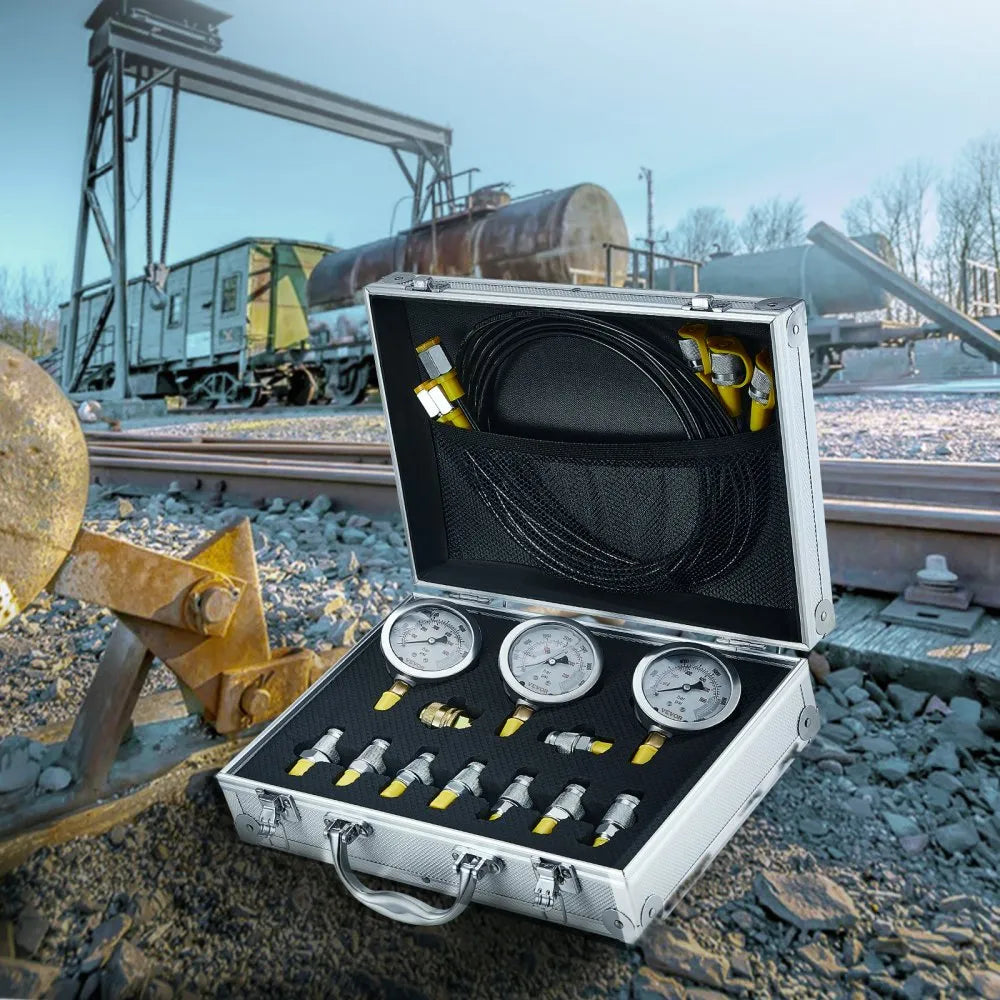

- Wide Industrial Applications: Our hydraulic pressure test kit is ideal for excavators, hydraulic presses, cranes, compressors, and various large hydraulic equipment; this pressure test gauge finds applications in construction, shipping, mining, smelting, maintenance, and more. The hydraulic test gauge kit is the go-to choice for professional testing in diverse industries.

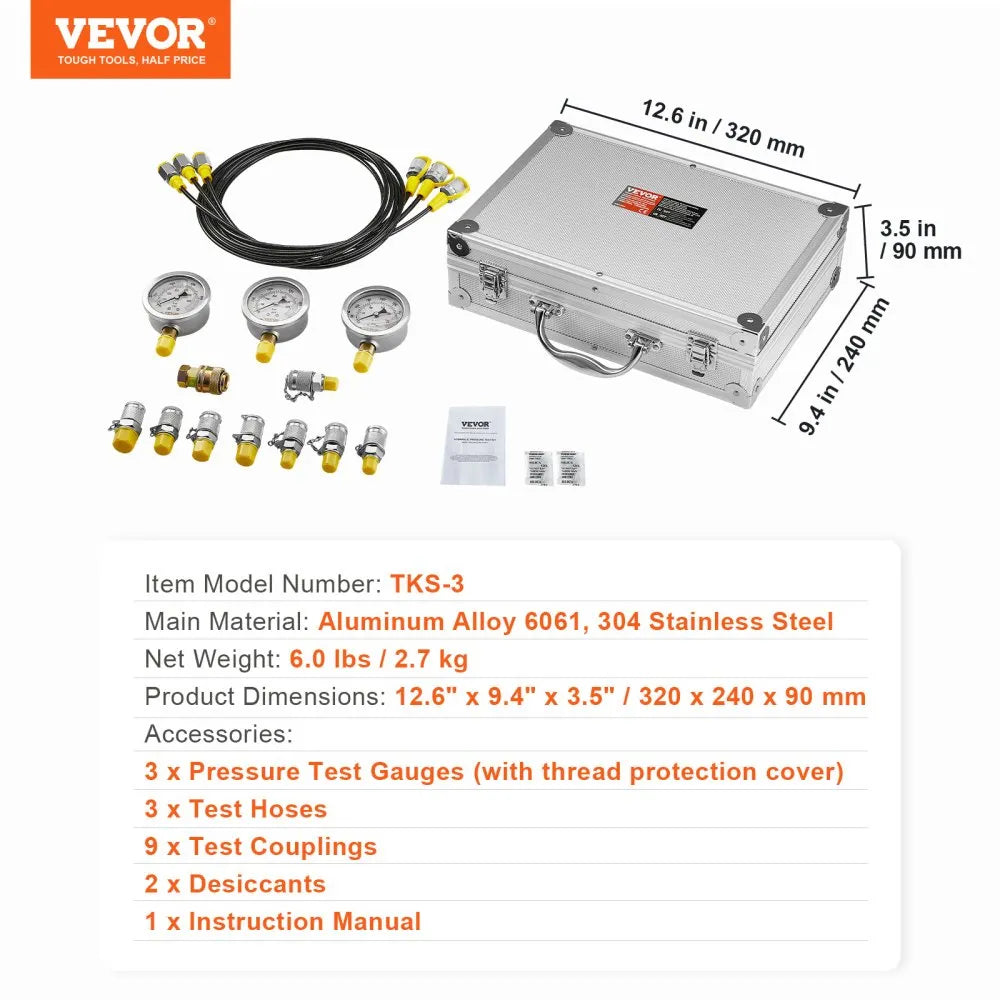

Specifications
| Item Model Number | TKS-3 |
| Pressure Range | 0-3500 PSI / 250 Bar; 0-5800 PSI / 400 Bar; 0-8600 PSI / 600 Bar |
| Number of Test Gauges | 3 |
| Couplings Spec. | G1/8, G1/4, G3/8, M10/1, M10/1.25, M14/1.5, UNF7/16-20, UNF9/16-18, Quick Connector |
| Hose Length | 5.2' / 1.6 m |
| Main Material | Aluminum Alloy 6061, 304 Stainless Steel |
| Net Weight | 4.4 lbs / 2 kg |
| Product Dimensions | 12.6" x 9.4" x 3.5" / 320 x 240 x 90 mm |

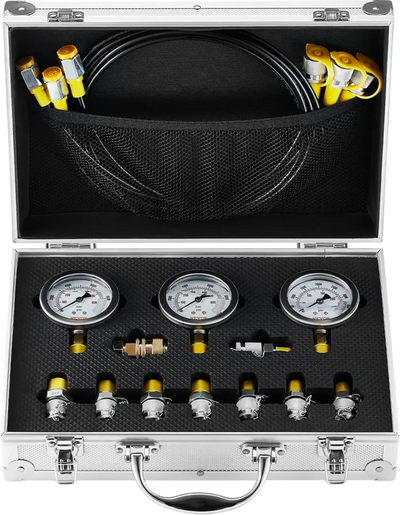

Package Contents
3 x Pressure Test Gauges
3 x Test Hoses
9 x Test Couplings
2 x Desiccants
1 x Instruction Manual
1 x Carrying Case
Warranty
This item comes with a 1 year factory warranty.
