Vevor Hydraulic Pump 12 QT Double Acting 3200 PSI 0.91 GPM Metal Reservoir DC 12V New
Manufacturer: Vevor
SKU: 12VSZYFXJSYXGNVP0001V9
Capacity Options
Operation Mode Options
QTY
(888) 999-1522
$ 259.90
This item ships for free. Freight shipments include liftgate at no additional charge.
Only 2 left in stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Extended Warranty
Factory Warranty
- This item comes with a 1 year warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor Creeper Seat 2-in-1 Rolling Folding Mechanic Stool New
-
Vevor Garage Creeper 40" Foldable Z Mechanic Creeper Stool New
-
Vevor Trailer Jack A-Frame Bolt-On 5,000 lbs 15" Travel New
-
Vevor Floor Jack 2.5 Ton Low Profile Heavy-Duty Steel Racing Jack New
-
Vevor Car Ramp 20,000 lbs 5.5" Plastic Service Ramp New
-
Vevor Toe Jack Hydraulic Machine Lift 2.5 Ton Toe 5 Ton Top New
-
Vevor Electric Hoist 3-in-1 Portable Power Winch Crane 1100 lbs 1500W 22.9' Lift New
-
Vevor Trailer Jack 8000 lbs Weld-On Pipe-Mount Swivel Jack New
-
Vevor Mechanic Stool Rolling Seat with 4" Wheels, 3 Tool Trays and Drawer, 300 lbs Capacity New
-
Vevor Electric Trailer Jack 5000 lbs Power Tongue Jack for RV Trailer Camper Black New
-
Vevor Electric Car Jack 5-Ton 12V Hydraulic with Built-In Tire Inflator Pump New
-
Vevor Trailer Jack Weld-On Swivel 5,000 lbs 15" Travel New
-
Vevor Transmission Fluid Pump 10L ATF Refill System Dispenser New
-
Vevor Fluid Extractor 1.74 Gal 6.5 L Manual Hand-Operated Oil Changer Vacuum Pump New
-
Vevor Automotive Top Creeper Adjustable Height 48" to 76" 400 Lbs Capacity New
-
Vevor Trailer Jack 5000 lb A-Frame 15" Travel Manual Lift New
-
Vevor Hydraulic Motorcycle Lift Table 350 Lbs Capacity Foot-Operated Jack Stand New
-
Vevor Motorcycle Lift Scissor Jack 1100 lbs Wide Deck New
-
Vevor Electric Hoist 3-in-1 Portable Winch Crane 1550 lbs 1500W 25' Lift New
-
Vevor Aluminum Trailer Ramp 84" x 14" Pair With Hook End 6000 lbs Total Capacity New
Vevor Hydraulic Pump 12 QT Double Acting 3200 PSI 0.91 GPM Metal Reservoir DC 12V New
Product Overview

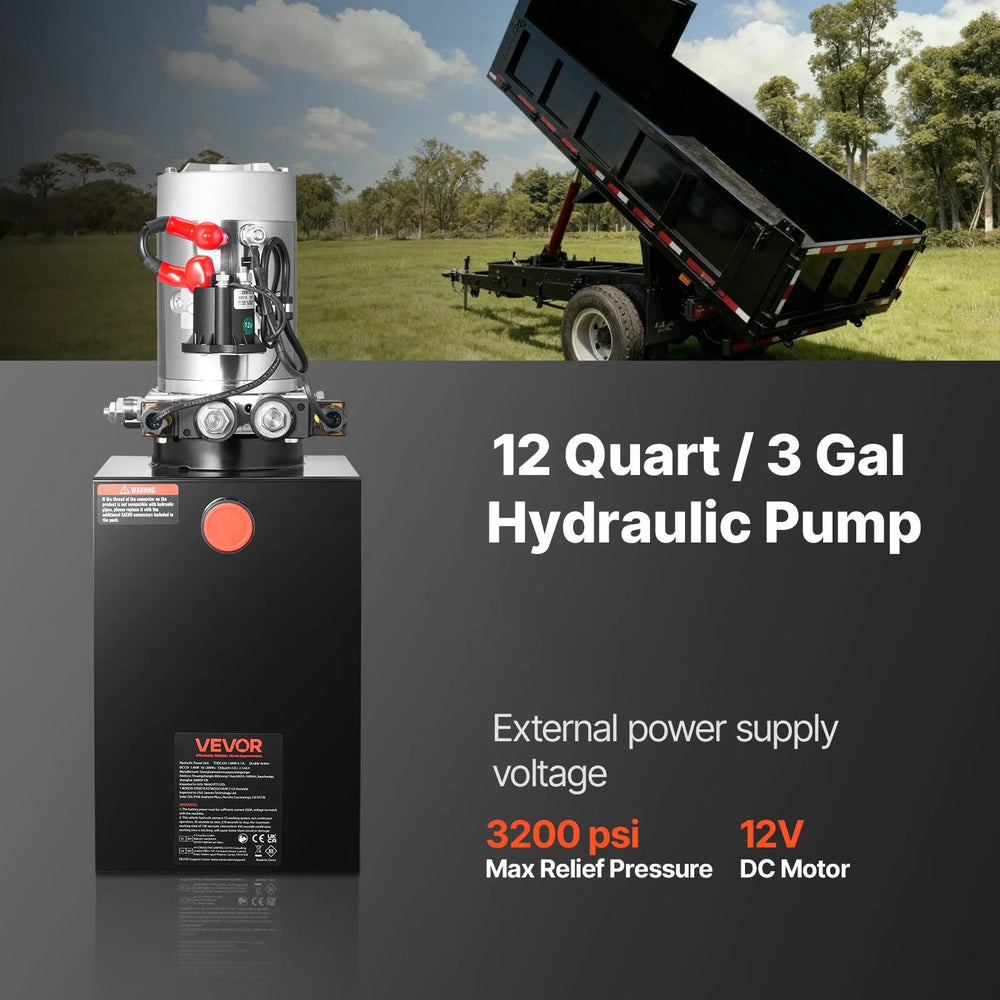

This VEVOR 12 quart hydraulic power unit is a double-acting DC 12V pump designed for dump trailers, car lifting, liftgates, scissor lifts, lift tables, small presses, and more. It features a 1.6 kW motor, 0.91 GPM flow rate, and up to 3200 PSI max relief pressure for steady lifting performance. The pre-assembled design helps simplify installation with standard SAE #6 fittings. Its metal reservoir and sealed construction are built for reliable long-term use with reduced risk of leaks.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

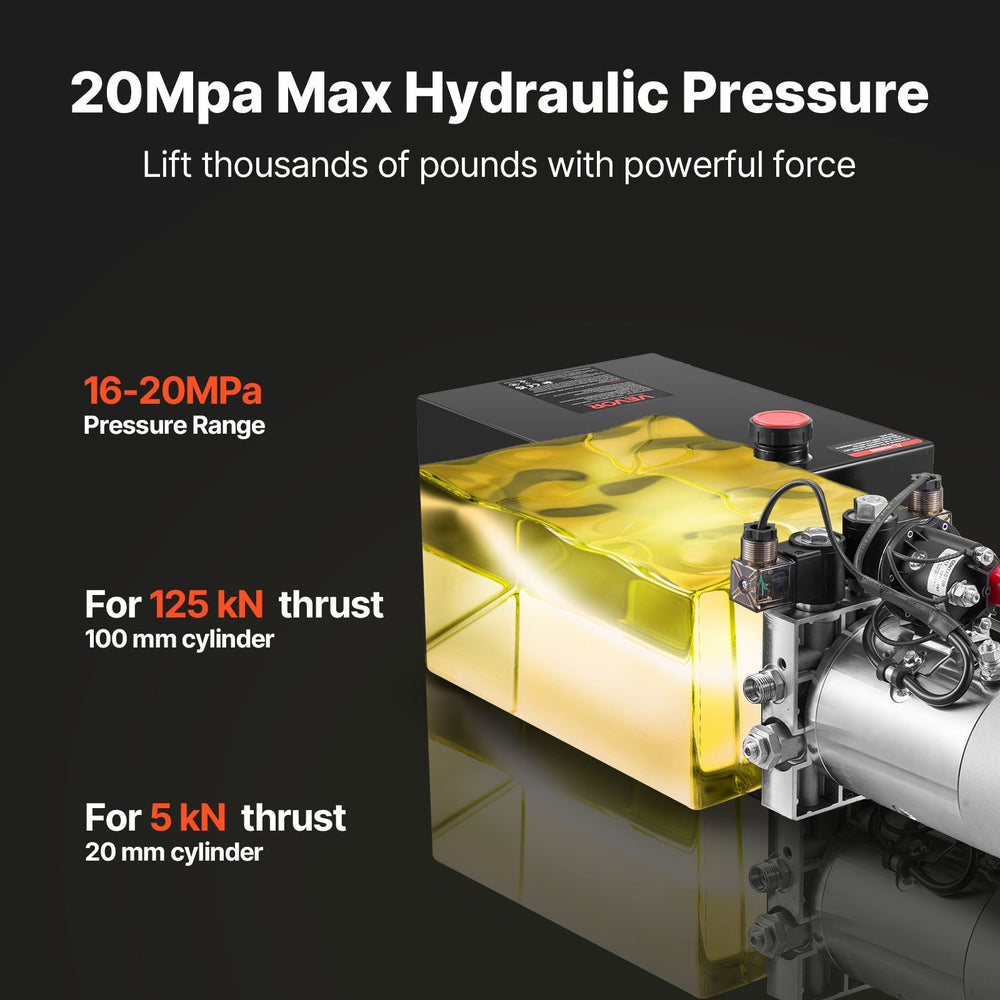

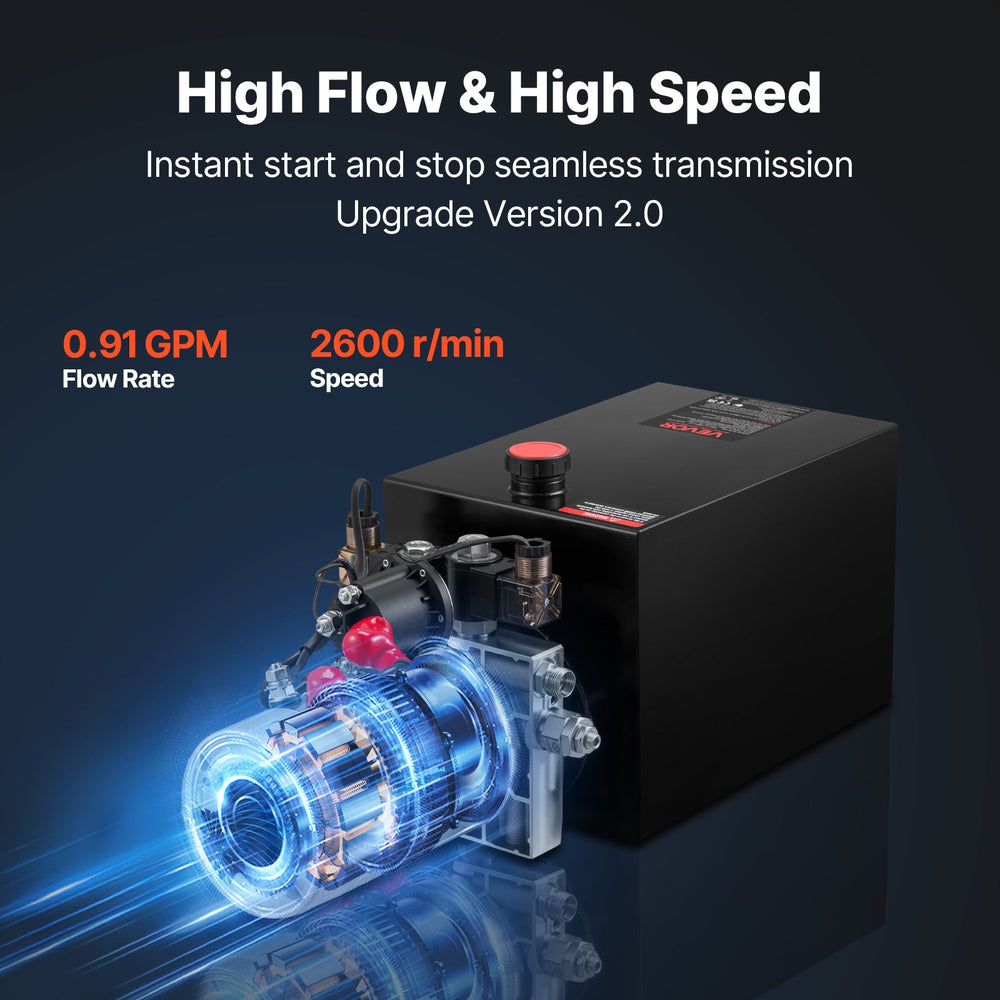

- Power You Can Feel: This DC 12V, 1.6 kW hydraulic power unit moves 0.91 GPM with a 12-quart tank, 16–20 MPa working pressure, and up to 3,200 psi, so heavy-lift gear runs with steady, confident force

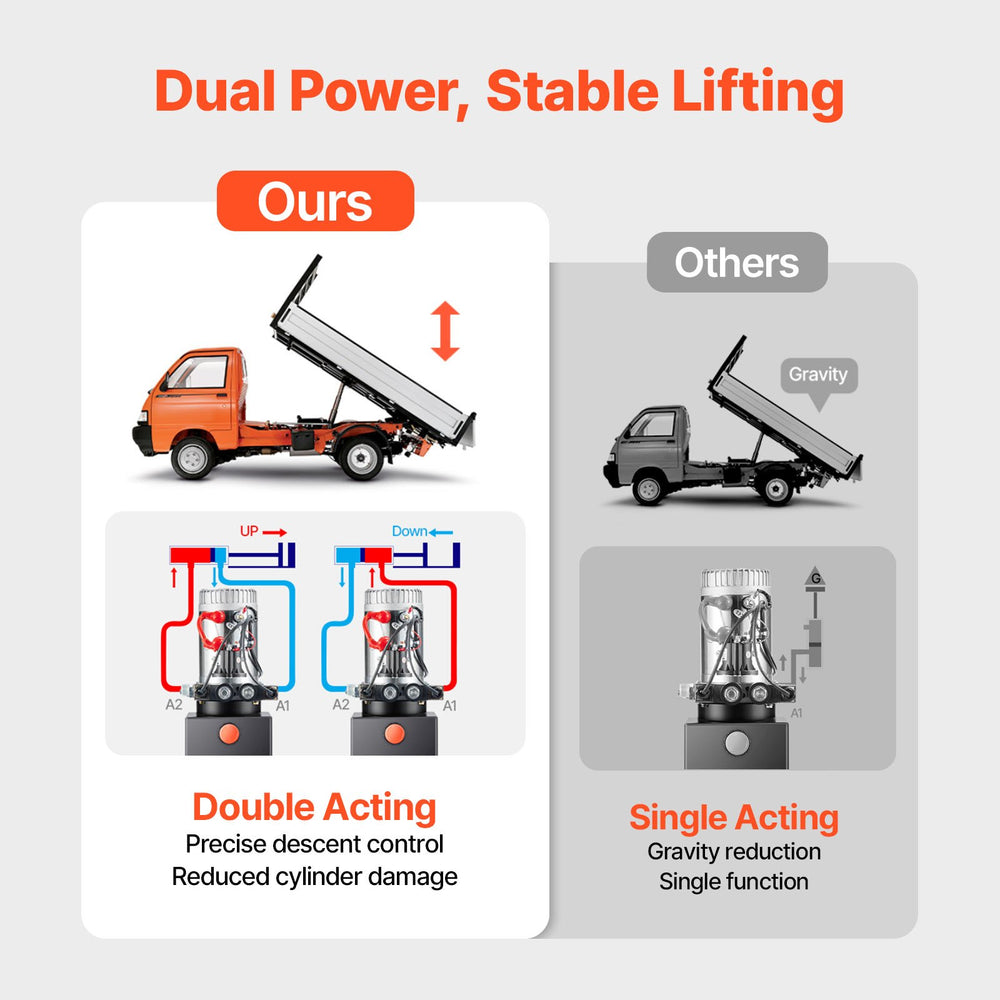

- Double-Acting Precision: This hydraulic pump controls both raise and lower for pinpoint moves while using less hydraulic oil. The built-in relief valve auto-vents over-pressure, so failures drop and security steps up

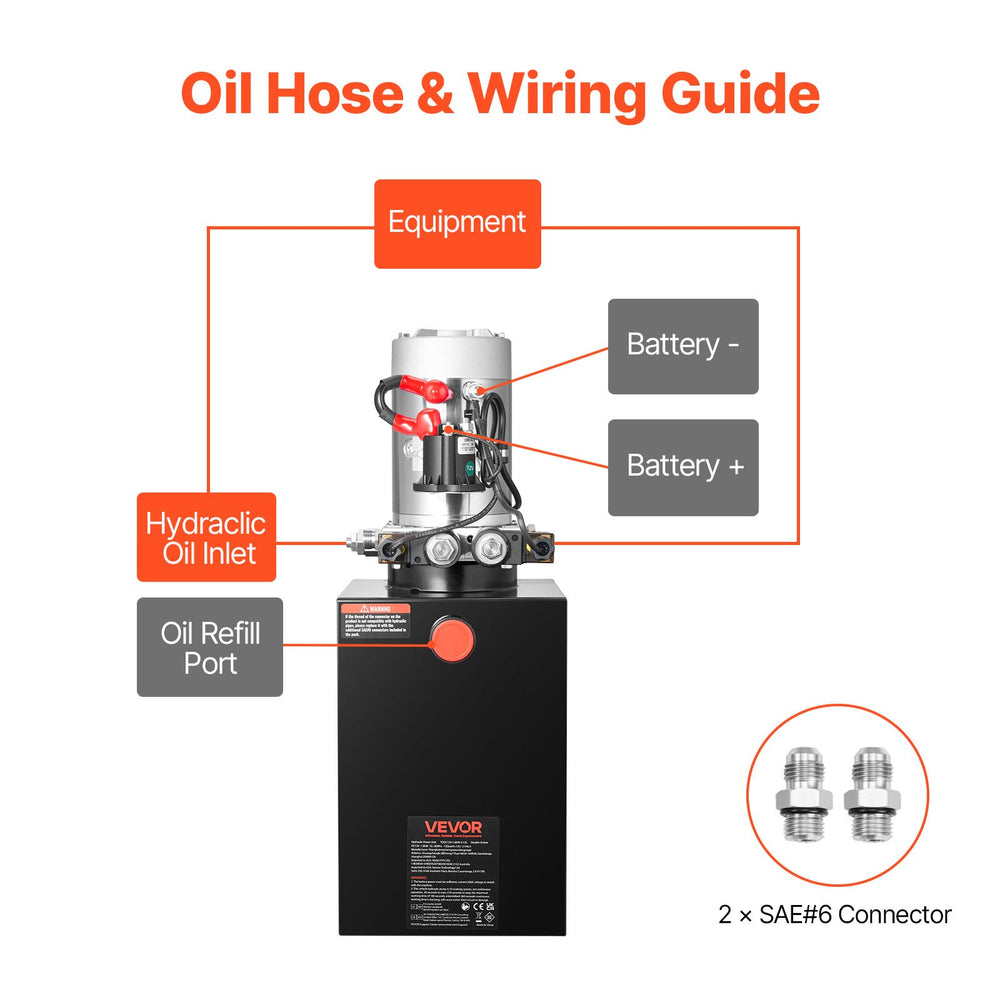

- Easy to Install: This dump trailer pump arrives pre-assembled. You add hydraulic oil, connect power leads and hoses, and go. The SAE #6 fittings help you hook up standard hydraulic lines fast
- Heavy-Duty & Reliable: This dump trailer hydraulic pump seals tight to resist leaks, and the rust-resistant steel tank shrugs off daily bumps, so your hydraulic system stays tough and ready for long-term use
- Built for Many Jobs: This electric hydraulic pump powers dump trailers, liftgates, scissor lifts, lift tables, small presses, and bucket conveyors, so you get versatile power for shop and jobsite

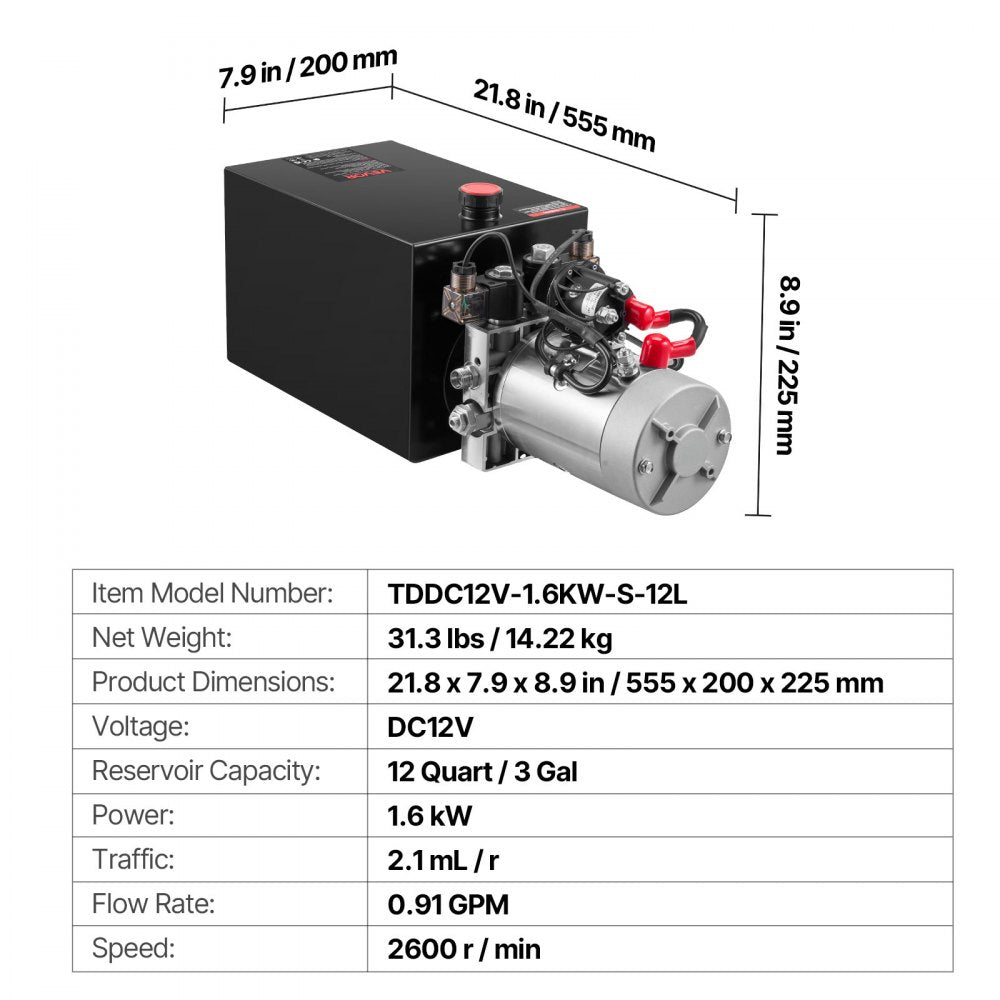

Specifications
| Item Model Number | TDDC12V-1.6KW-S-12L |
| Voltage | DC12V |
| Function | Dual Acting |
| Reservoir Capacity | 12 Quart/3 Gal |
| Power | 1.6 kW |
| Flow Rate | 0.91 GPM (3.4 L/min) |
| Speed | 2600 r/min |
| Traffic | 2.1 mL/r |
| Max Relief Pressure | 3200 PSI |
| Working Pressure | 16–20 MPa |
| Net Weight | 31.3 lbs / 14.22 kg |
| Dimensions | 21.8 x 7.9 x 8.9 in / 555 x 200 x 225 mm |

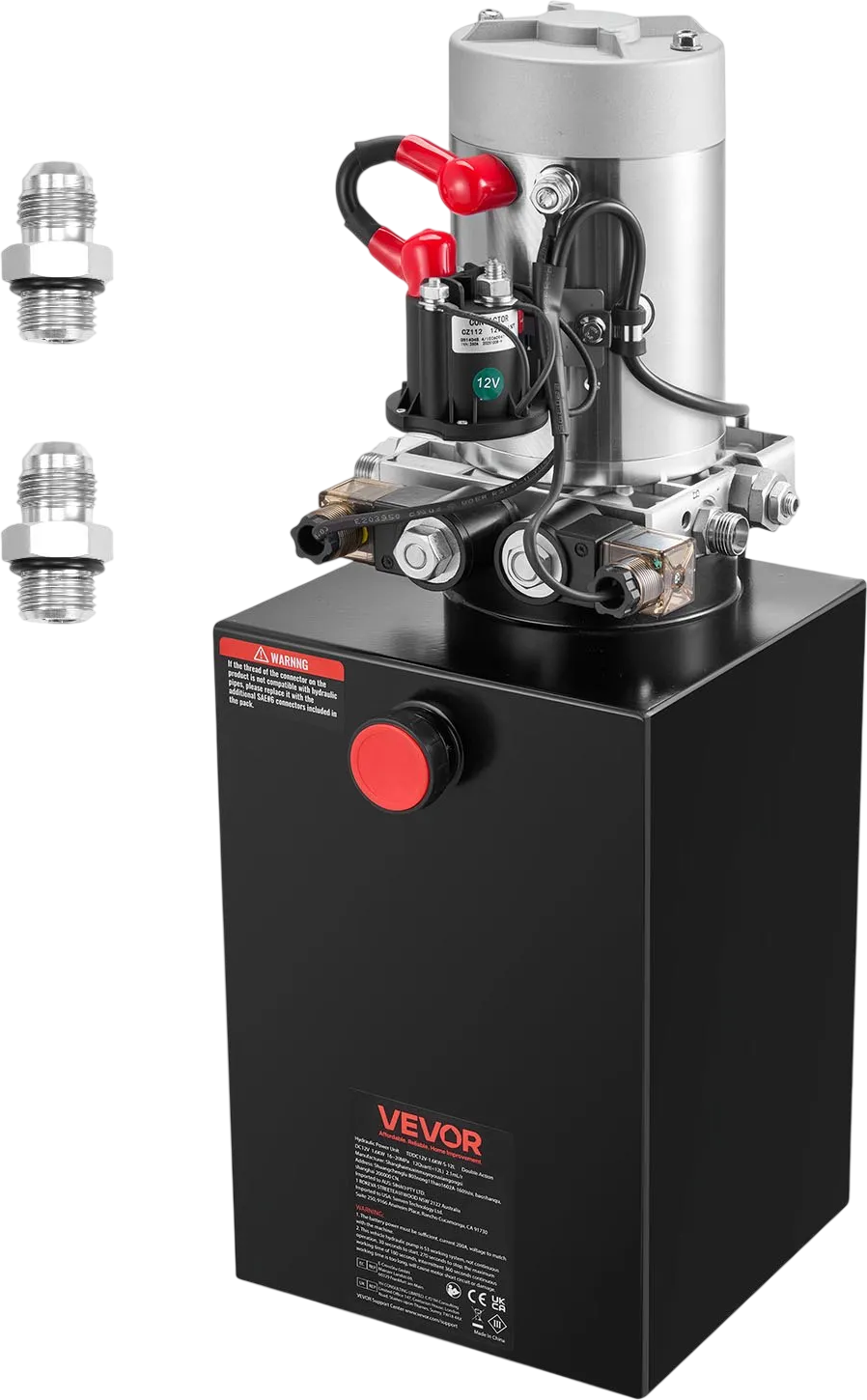

Package Contents
Hydraulic Pump 12 QT
(2) SAE #6 Connector
User Manual
Warranty
This item comes with a 1 year warranty.
