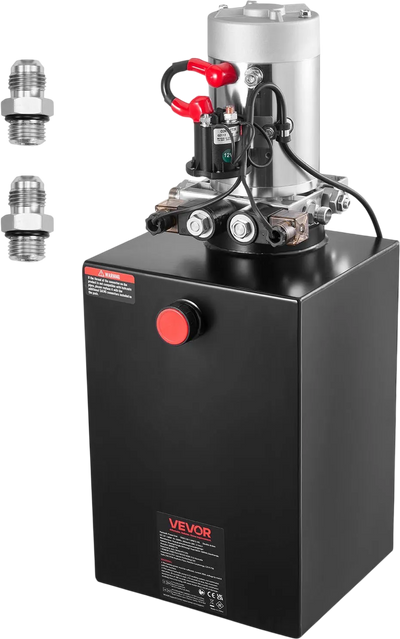

Vevor Hydraulic Pump 20 QT Double Acting 3200 PSI 0.91 GPM Metal Reservoir DC 12V New
Manufacturer: Vevor
SKU: 12VSZYFXJSYXS4T34001V9
Oil Tank Capacity Options
Tank Material Options
Operation Mode Options
QTY
(888) 999-1522
$ 259.90
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor Hydraulic Pump Single Acting Power Unit for Car Lifts 2.2KW 3HP 2750 PSI New
-
Vevor Hydraulic Pump Power Unit 10 Qt. Single Acting 1.7 GPM Flow Rate 220V New
-
Vevor Hydraulic Wood Log Splitter Pump Kit 16 GPM 2-Stage 4000 PSI New
-
Vevor Hydraulic Pump Power Unit 15 Qt. Single Acting 1.7 GPM Flow 220V New
-
Vevor Hydraulic Power Unit 6 qt Single Acting Dump Trailer Pump 3200 PSI 12V White New
-
Vevor Hydraulic Power Unit 12V 4 Quart Single Acting Dump Trailer Pump New
-
Vevor Hydraulic Power Unit 8 Qt Double Acting 12V Dump Trailer Pump New
Vevor Hydraulic Pump 20 QT Double Acting 3200 PSI 0.91 GPM Metal Reservoir DC 12V New
Product Overview
This 12V double-acting hydraulic power unit is designed for dump trailers, liftgates, scissor lifts, lift tables, small presses, and other lifting applications. It features a 1.6 kW motor, 20-quart metal reservoir, and 0.91 GPM flow rate for steady lifting and lowering performance. The unit comes pre-assembled for easier installation and uses SAE #6 fittings for standard hydraulic line connections. A built-in relief valve helps protect the system from over-pressure, while the steel tank is designed for durable daily use.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

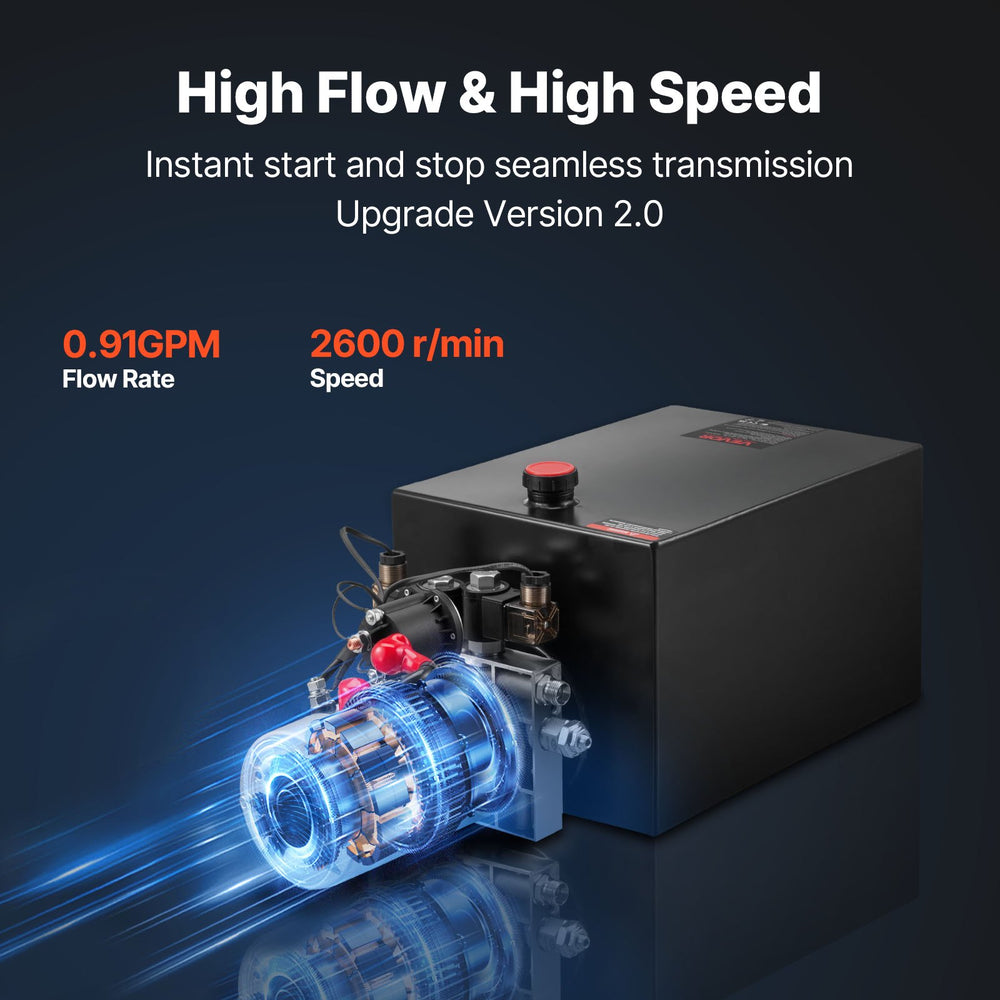

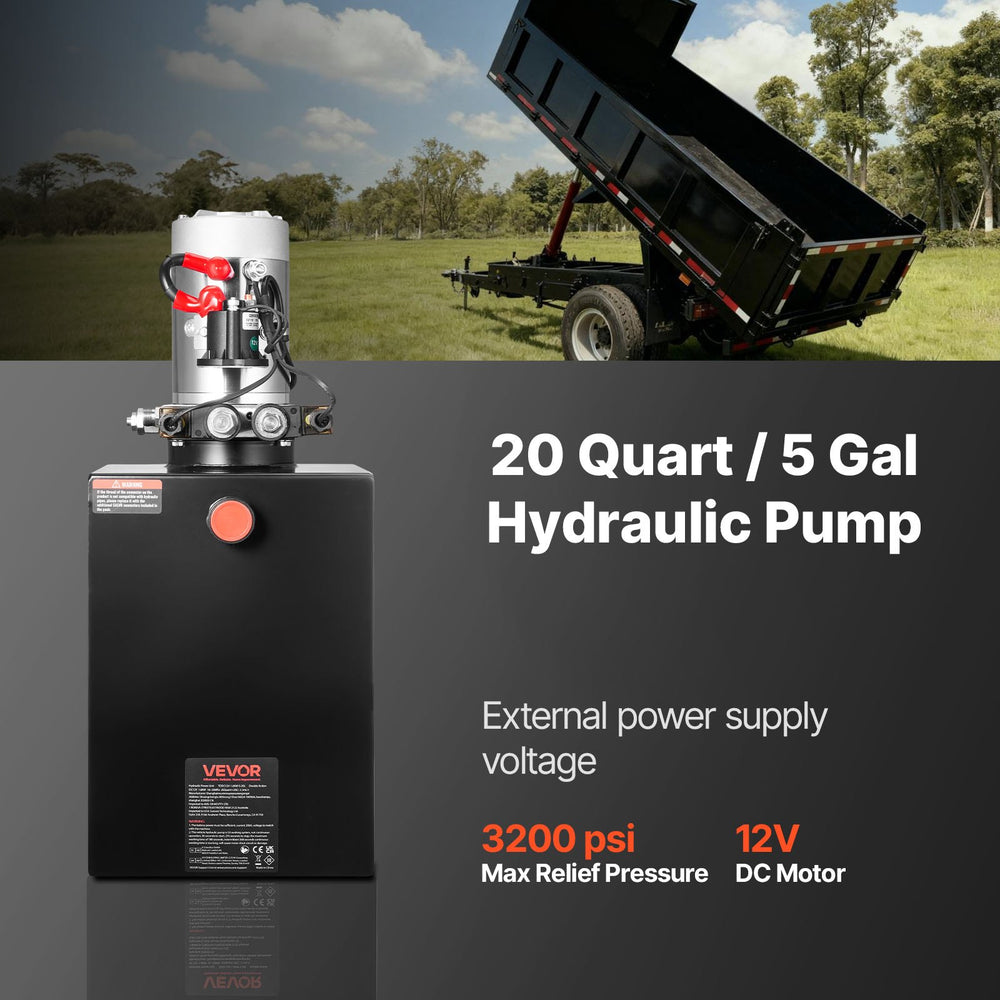

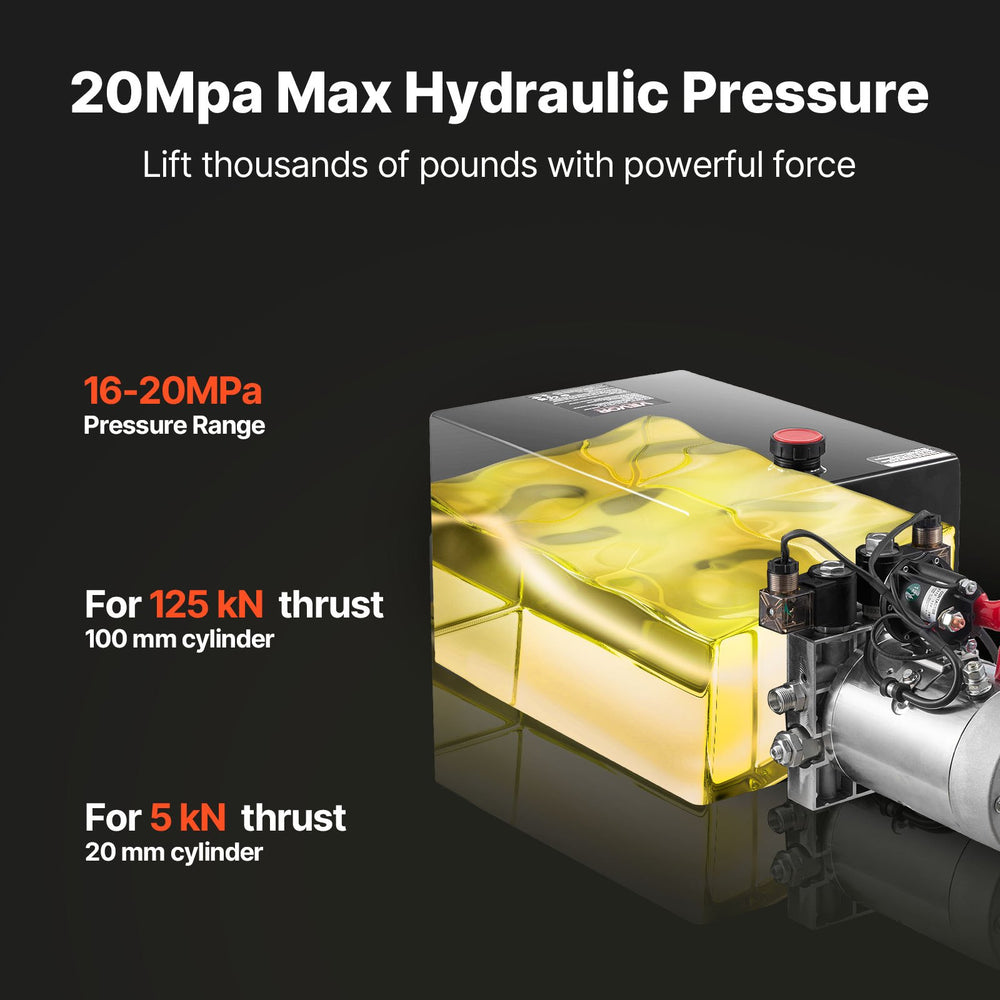

- Power You Can Feel: This DC 12V, 1.6 kW hydraulic power unit moves 0.91 GPM with a 20-quart tank, 16–20 MPa working pressure, and up to 3,200 psi, so heavy-lift gear runs with steady, confident force

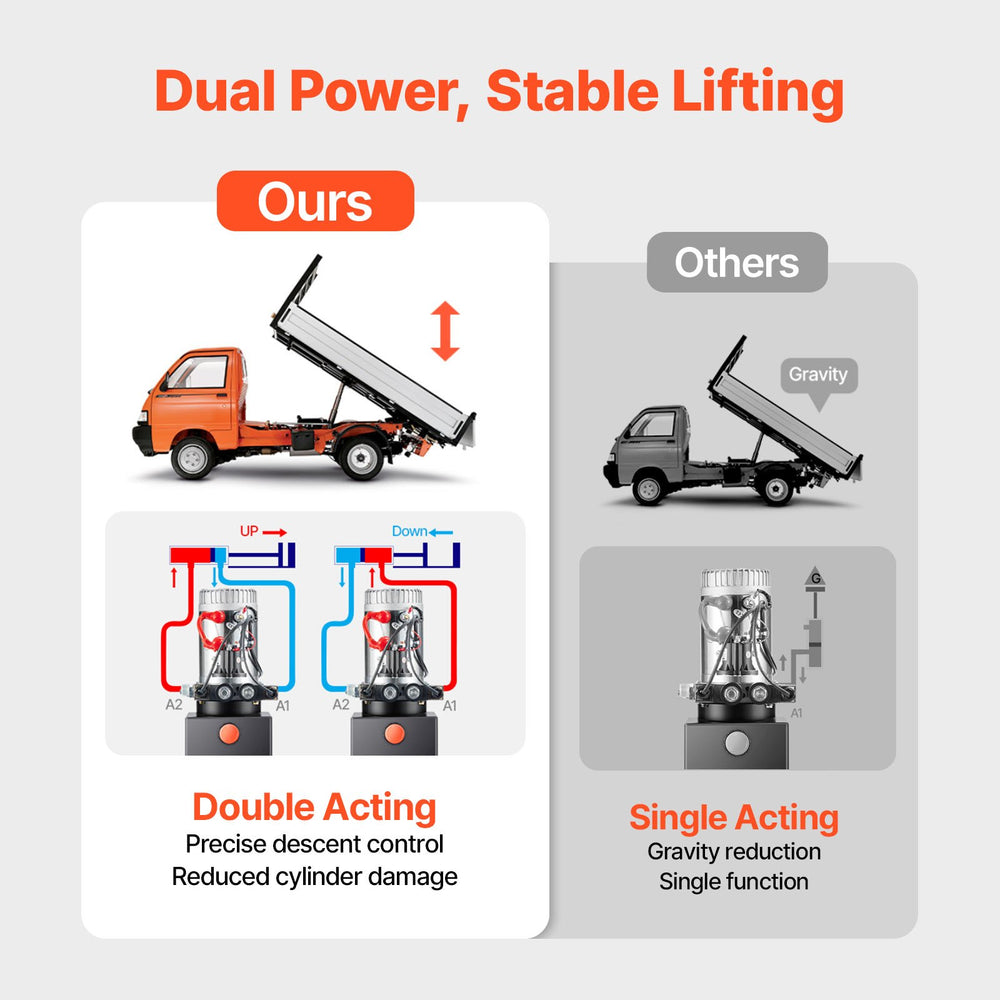

- Double-Acting Precision: This hydraulic pump controls both raise and lower for pinpoint moves while using less hydraulic oil. The built-in relief valve auto-vents over-pressure, so failures drop and security steps up

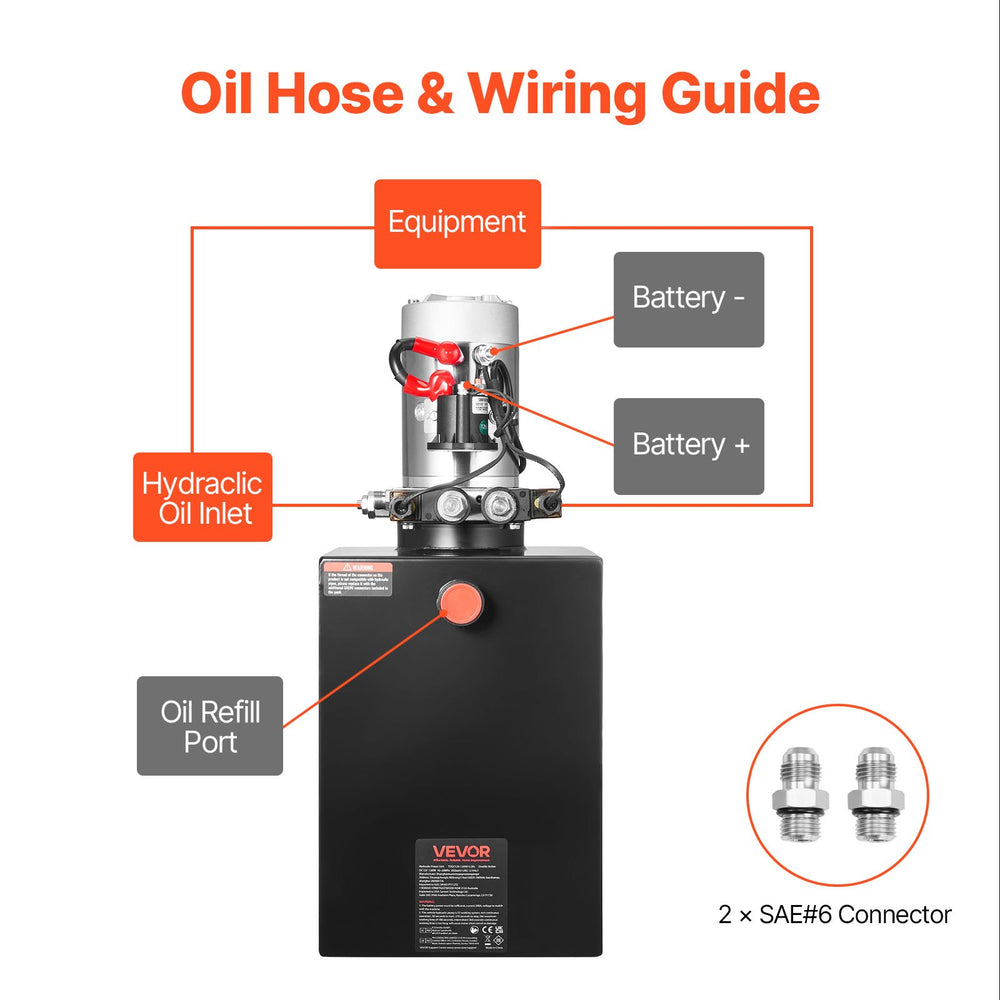

- Easy to Install: This dump trailer pump arrives pre-assembled. You add hydraulic oil, connect power leads and hoses, and go. The SAE #6 fittings help you hook up standard hydraulic lines fast
- Heavy-Duty & Reliable: This dump trailer hydraulic pump seals tight to resist leaks, and the rust-resistant steel tank shrugs off daily bumps, so your hydraulic system stays tough and ready for long-term use
- Built for Many Jobs: This electric hydraulic pump powers dump trailers, liftgates, scissor lifts, lift tables, small presses, and bucket conveyors, so you get versatile power for shop and jobsite

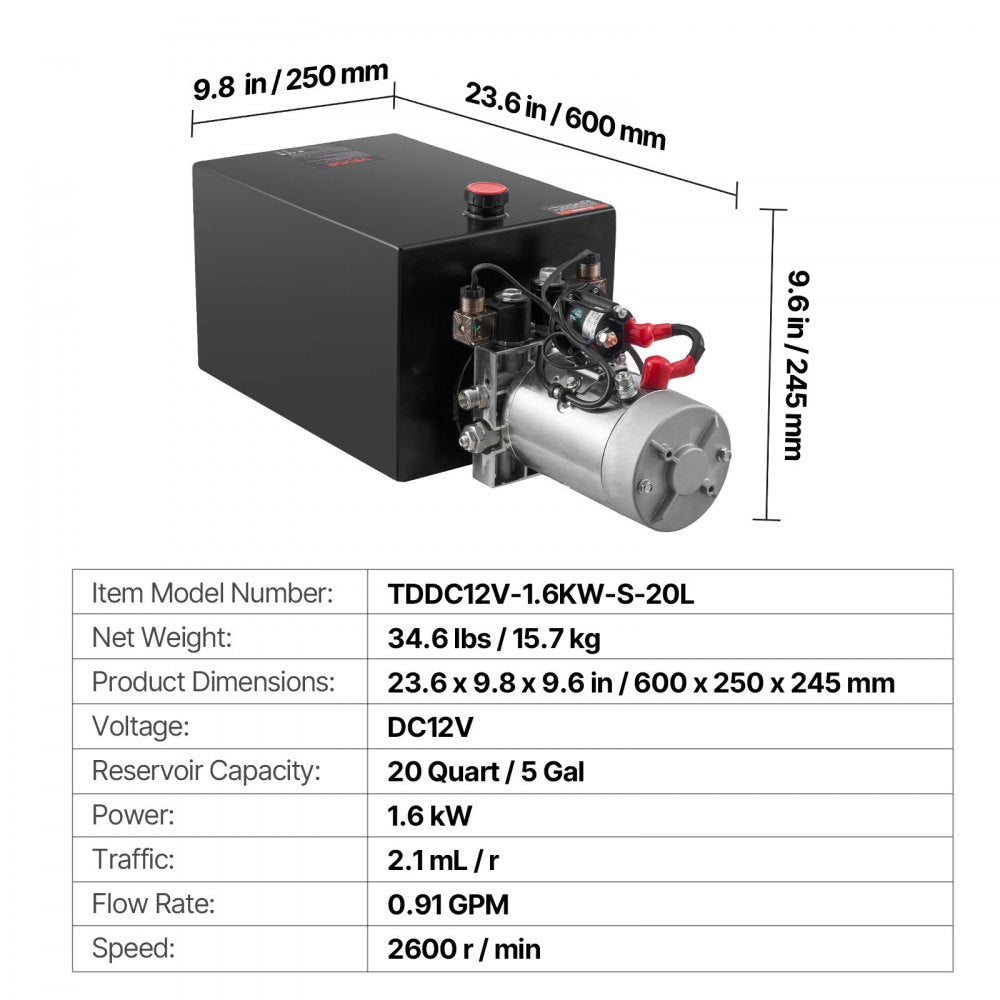

Specifications
| Item Model Number | TDDC12V-1.6KW-S-20L |
| Voltage | DC12V |
| Function | Dual Acting |
| Reservoir Capacity | 20 Quart/5 Gal |
| Power | 1.6 kW |
| Flow Rate | 0.91 GPM (3.4 L/min) |
| Speed | 2600 r/min |
| Traffic | 2.1 mL/r |
| Net Weight | 34.6 lbs / 15.7 kg |
| Product Dimensions | 23.6 x 9.8 x 9.6 in / 600 x 250 x 245 mm |
Package Contents
Hydraulic Pump 20 QT
User Manual
Warranty
This item comes with a 1 year warranty.
