Vevor Hydraulic Pump Double Solenoid Double-Acting 8 Quart Reservoir 12V DC New
Product Overview

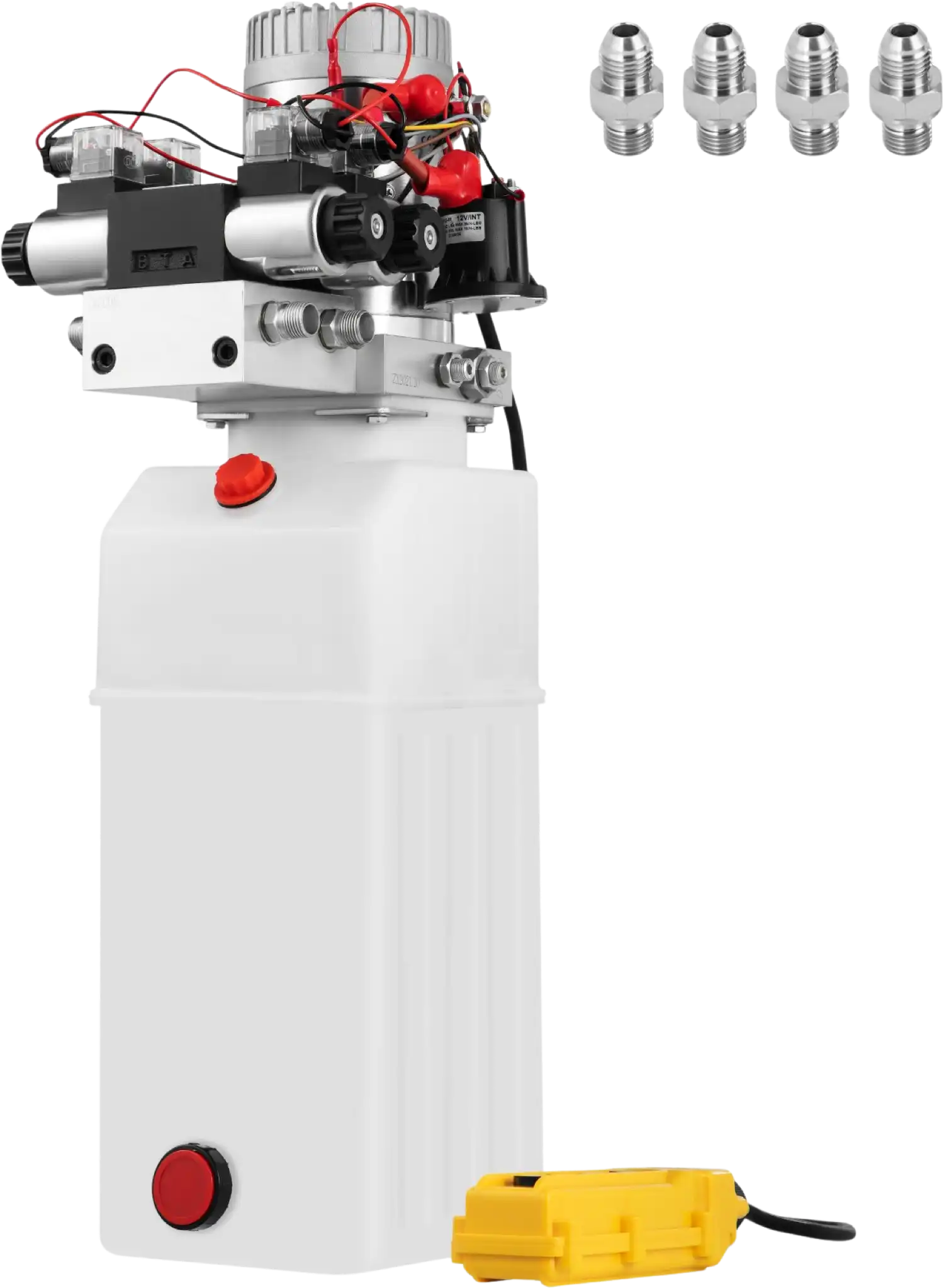

This hydraulic pump is a double-acting power unit for both lifting and lowering. It has an 8-quart sturdy plastic reservoir and is designed with a 12V DC motor that can provide strong power for many things, such as truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc. It comes with a hand-held remote control and 4 SAE#6 connectors for replacement. The whole power unit is easy to wire and easy to operate.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Hydraulic Pump Specifications: 12V, 1.6kW DC motor for quick startup and oil output. 8-quart oil tank with pressure up to 16-20 MPa, max release pressure of 22 MPa (3200 psi), and a flow rate of 0.91 GPM for powerful hydraulic performance
- Dual-Action Power Unit: The hydraulic power unit features a dual-action power unit for stable, reliable lifting, with a built-in security relief valve that automatically releases pressure to reduce failure rates and improve operational security
- 4-Way Solenoid Valve: Controls up to 2 hydraulic cylinders, paired with a 4-direction remote control for precise control in multiple directions, allowing you to work more efficiently and accurately
- Durable Oil Tank: The hydraulic pump for dump trailer features strong sealing to avoid oil leaks. The tank is made of sturdy plastic, designed to withstand impact and daily use without damage, ensuring long-lasting durability
- Versatile Application: This hydraulic pump comes with a battery label sticker and four SAE#6 connectors, allowing easy installation on small to medium hydraulic equipment like small truck tail-lift, dump trailers, and agricultural dump trucks
Specifications
| Voltage | 12V DC |
| Power | 1.6-3kW |
| Reservoir Capacity | 8 Quart |
| Motor | 12VDC electric motor c/w relay |
| Mount | Horizontal Mounting |
| Max PSI | 3200 PSI |
| Max Flow | 5 L/min |
| Port Size | 3/8" BSP |
| Delivery Rate @ 160 Bar | Approx. 5L/min |
| Product Dimensions | 24.8" x 6.1" x 6.5" |
| Weight | 37.9 lbs (17.2 kg) |
Package Contents
Vevor 12V DC Double-Acting Double Solenoid Hydraulic Power Pack 8-Quart
User Manual
Warranty
This item comes with a 1 year factory warranty.
