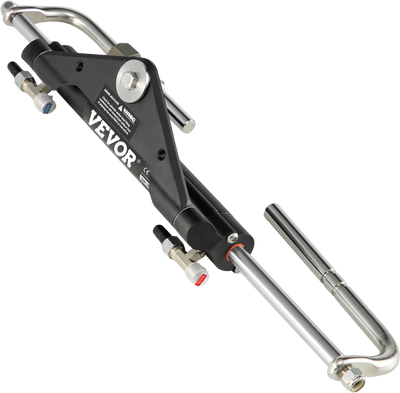

Vevor Hydraulic Steering Cylinder HC4645H Front Mount for 150HP Boats New
Product Overview
The hydraulic steering cylinder is for single-outboard powered boats rated up to 150 HP. It offers excellent resistance to repeated compression set and is designed to better withstand the harsh marine environment. It is ideal for outboard powered boats like center console, offshore fishing, bass boats, and many more.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- HC4645H Front Mount Cylinder: HC4645H steering cylinder is ideal for outboard powered boats like center console, offshore fishing, bass boats, flats boats, and many more. For use with Yamaha applications where it is necessary to mount the steering cylinder underneath the steering arm.
- Advanced Crush Resistance: This hydraulic outboard steering cylinder provides excellent resistance to repeated compression set and is designed to better withstand the harsh marine environment.
- Built-In Two-Way Lock: The hydraulic steering cylinder is equipped with a built-in two-way locking valve which eliminates rebound torque during torsion.
- ORB Fitting: Features Positionable Stainless Steel O-Ring (ORB) Fittings for easy hose routing. Two extra hoses are provided for easy installation and replacement.
- Sturdy Aluminum Alloy: The hydraulic steering cylinder is made from a high-strength aluminum alloy material, which is corrosion-resistant, and high-density to effectively prevent seawater erosion.
Specifications
| Cylinders | HC4645H |
| Applicable | Up to 150 HP |
| Volume | 117CC |
| Tube I.D | 32 mm |
| Rod I.D | 16 mm |
| Output Force | 409.7kgf |
| Strode | 197.3 mm |
| Weight | 4.76 lbs (2.16 kg) |
Package Contents
Vevor Hydraulic Steering Cylinder HC4645H
(2) Hoses
Warranty
This item comes with a 1 year factory warranty.
