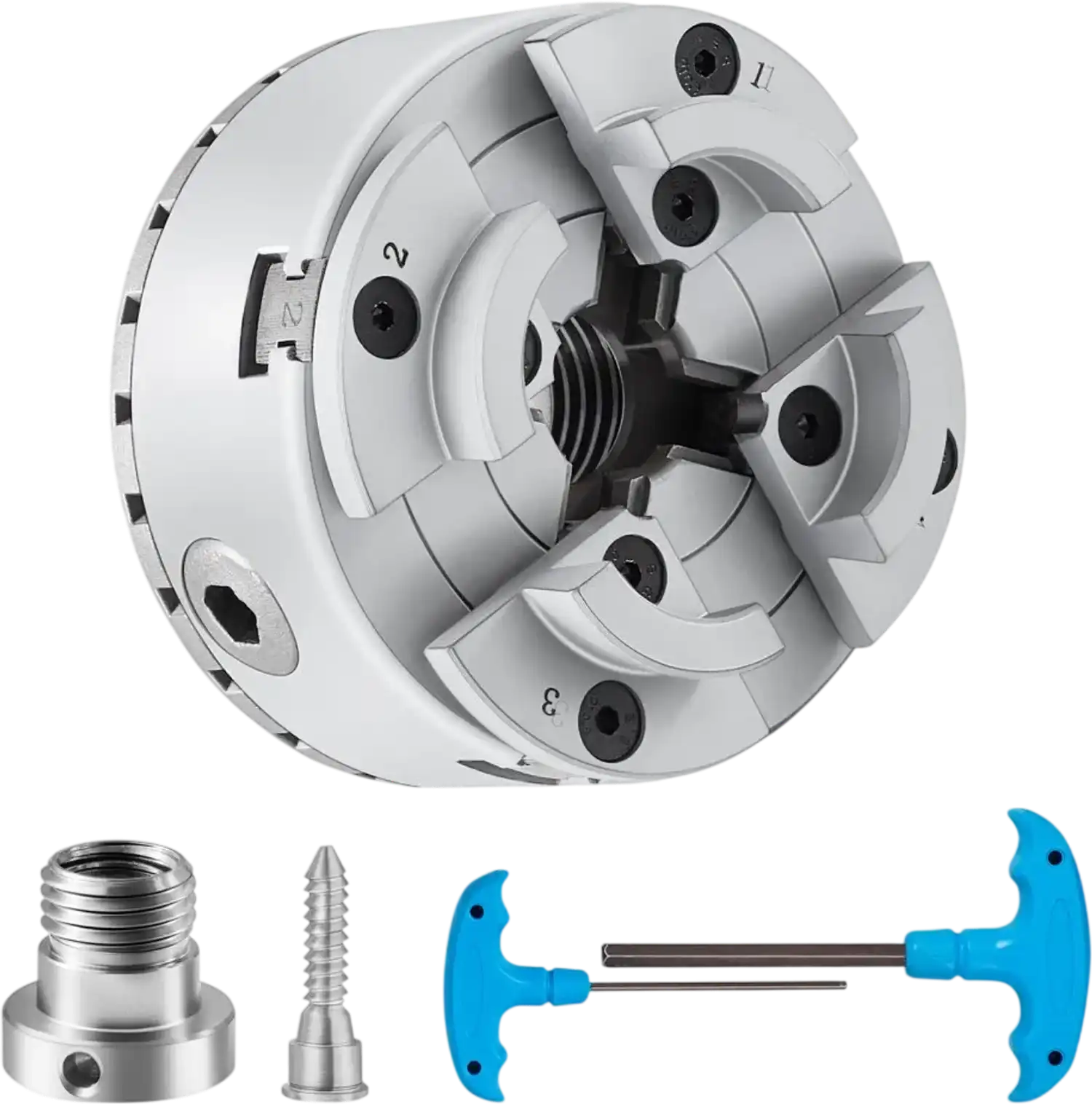

Vevor Lathe Chuck 4-Jaw 2.75" Self-Centering Metal Chuck New
Manufacturer: Vevor
SKU: MGCCKP275YC0517OZV0
Size Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 56.90
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Lathe Chuck 4-Jaw 3.75" Self-Centering with 5 Jaw Sets New
-
Vevor Lathe Chuck 4-Jaw Self-Centering 3.75" New
-
Vevor Wood Lathe Chisel Kit 8-Piece HSS Turning Tools with Wooden Case New
-
Vevor Wood Lathe Chisel Set 8-Piece HSS Steel Turning Tools with Wooden Storage Case New
-
Vevor Wood Lathe Turning Tool Set 6-Piece Carbide Chisel Kit with Wooden Box New
-
Vevor Wood Lathe Chisel Set 12-Piece 3.75" Blade Woodworking & Carving Tools with Wooden Case New
-
Vevor PVC Pipe Reamer Kit 4-Piece 1-1/2" to 4" Socket Saver Tool Set New
-
Vevor Hydraulic Shop Press 6-Ton H-Frame Adjustable Floor Press New
-
Vevor Box and Pan Brake 24" 0-130 Degrees Sheet Metal Bender 5 Adjustable Fingers New
-
Vevor Arbor Press 1 Ton Manual Desktop Cast Iron Press New
-
Vevor Slip Roll Machine 24" Forming Width 16 Gauge Capacity for Sheet Metal New
-
Vevor Lathe Chuck 8" 3-Jaw Self-Centering New
-
Vevor Hydraulic Shop Press 12 Ton H-Frame Adjustable Height Heavy Duty New
-
Vevor Linear Guide Rail Set 86.6" w/ 4 Slide Blocks New
-
Vevor PVC Pipe Reamer Kit Socket Saver for PVC CPVC ABS Fittings New
-
Vevor Linear Guide Rail Set 78.7" SBR16 Bearings Kit New
-
Vevor Pipe Reamer Kit 8-Piece 1/2"-4" Socket Saver Set New
-
Vevor Drill Press 10" Benchtop 5-Speed Cast Iron with Work Light New
-
Vevor PVC Pipe Reamer Kit 5-Piece Socket Saver for 1-1/4" to 4" Pipes New
-
Vevor Box and Pan Brake 48" 0-135° Sheet Metal Bender for 20-Gauge Low Carbon Steel and 14-Gauge ...
Vevor Lathe Chuck 4-Jaw 2.75" Self-Centering Metal Chuck New
Product Overview

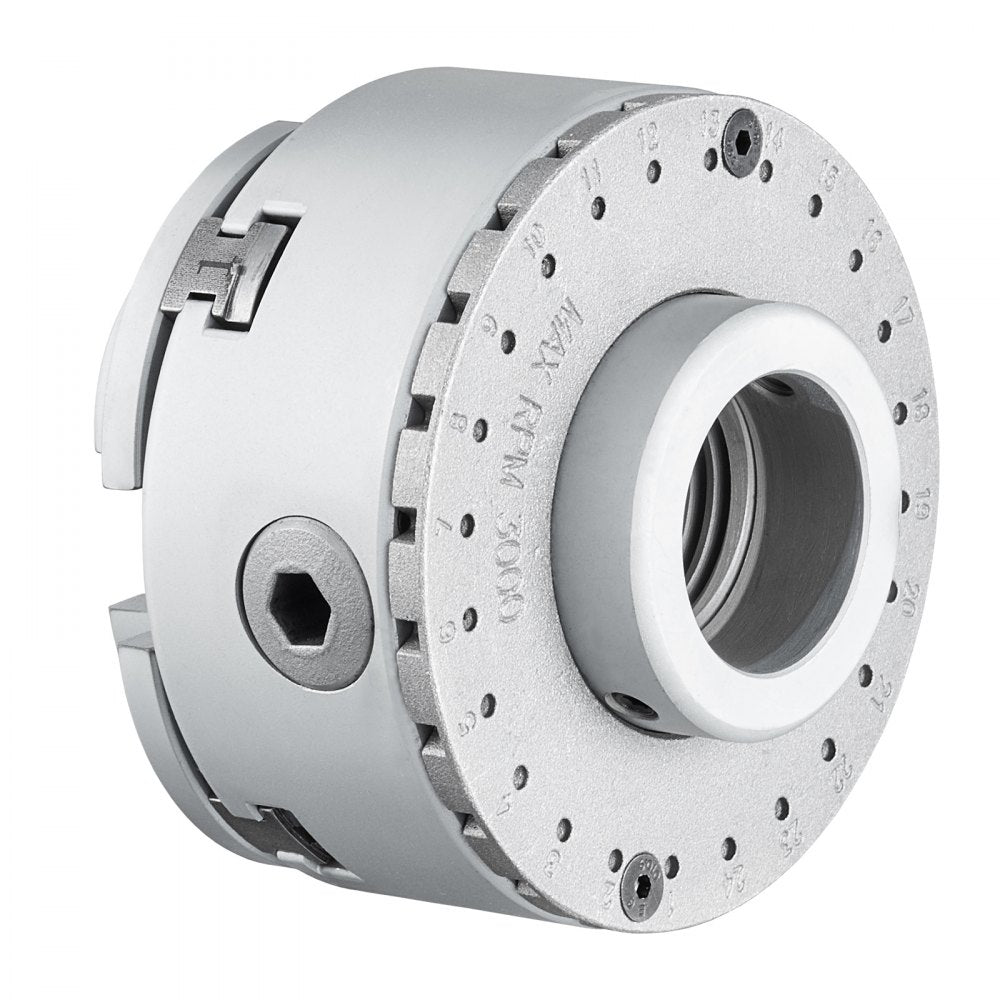

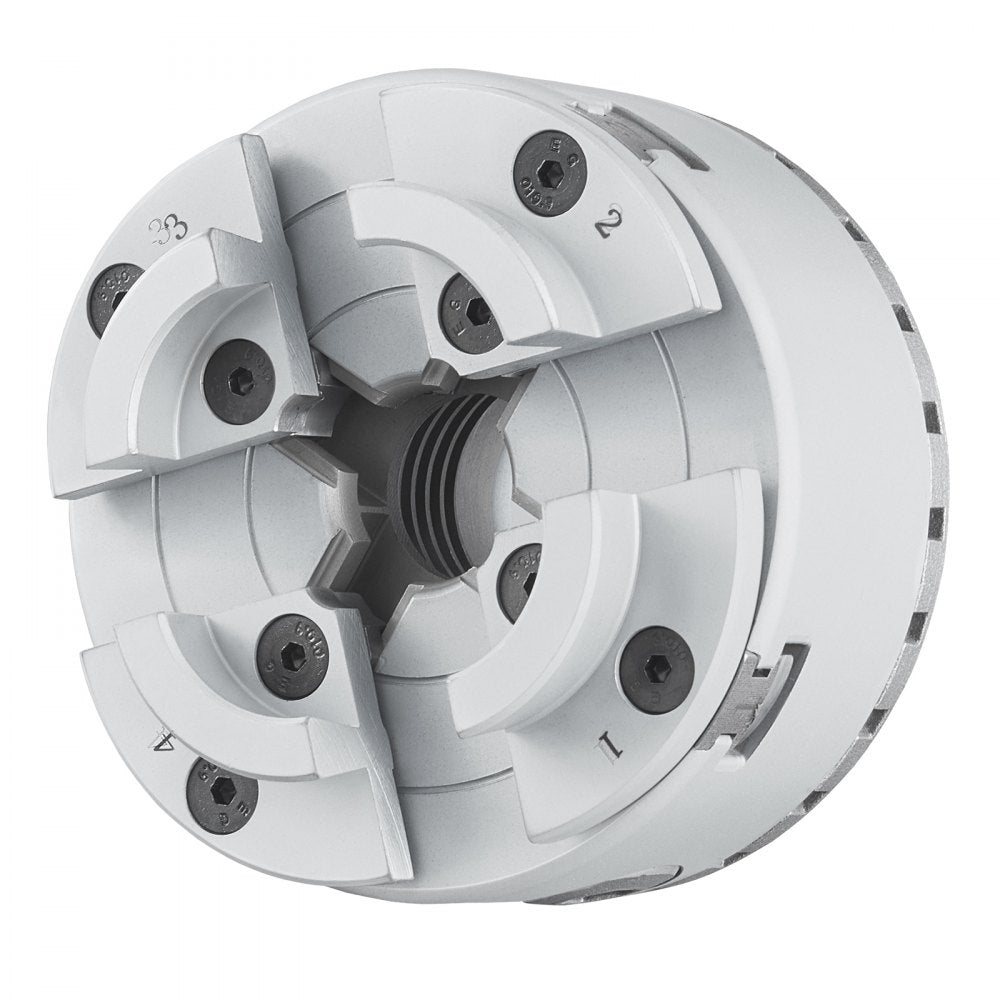

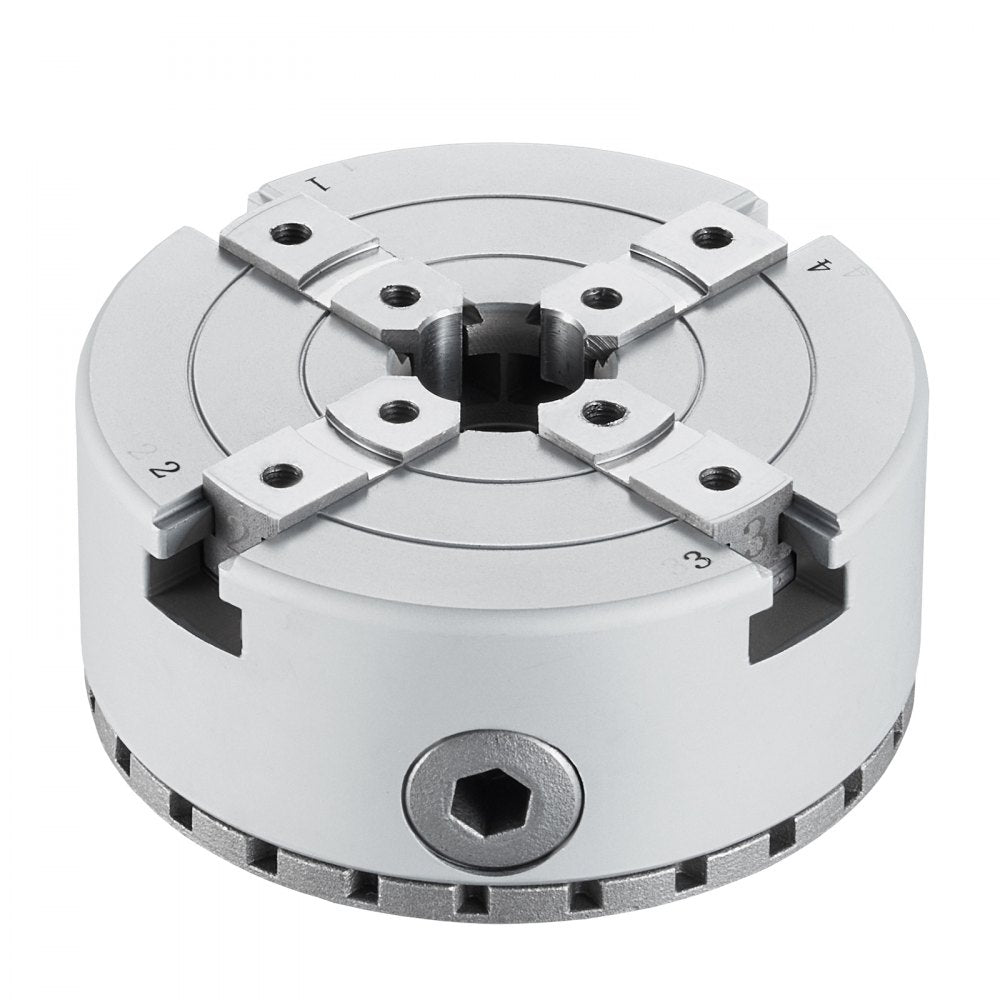

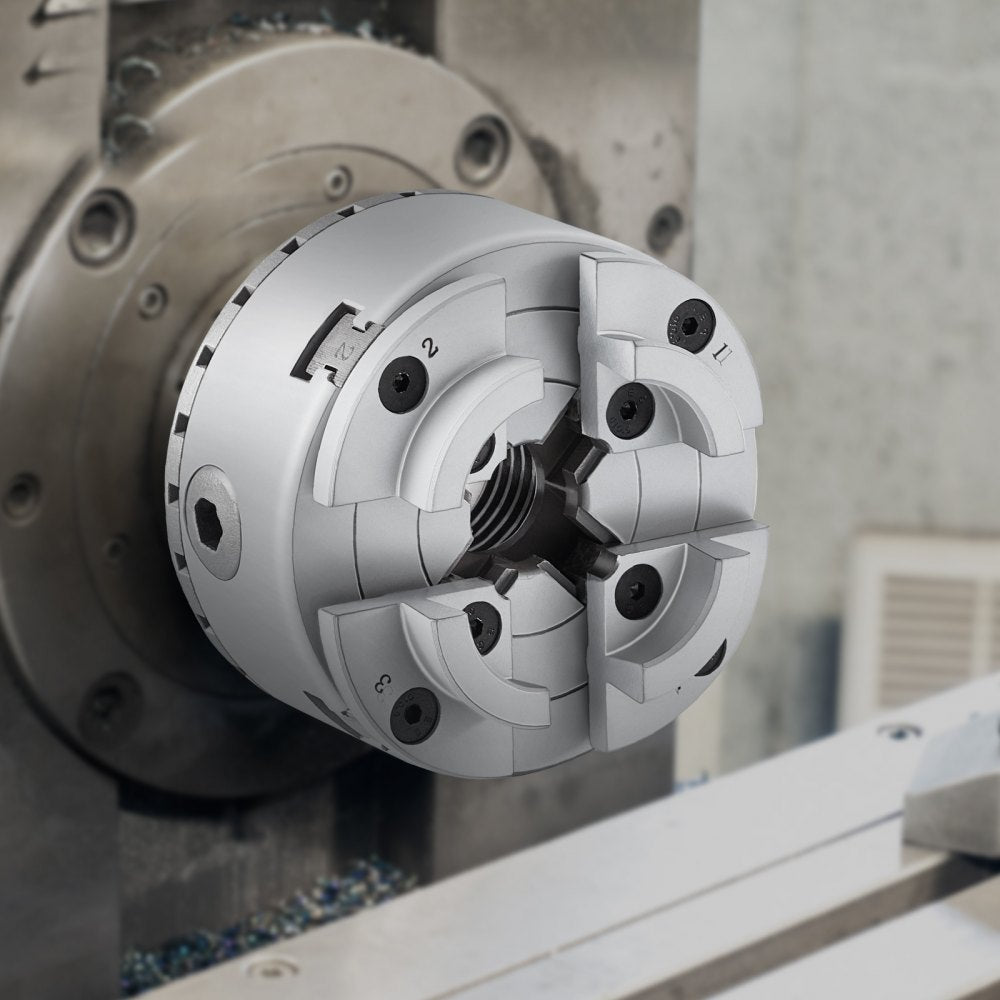

The Vevor 4-jaw lathe chuck is designed to securely hold and rotate workpieces for precise machining tasks. Made from high-strength 45# material with a chrome-plated finish, it is built for durability, hardness, and rust resistance. Its self-centering adjustable jaw design helps provide accurate clamping for a range of workpiece sizes and shapes. The compact structure allows for simple installation, removal, and operation with a T-handle wrench. Suitable for lathe work, grinding machines, milling machines, woodworking, drilling, and other machining applications.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

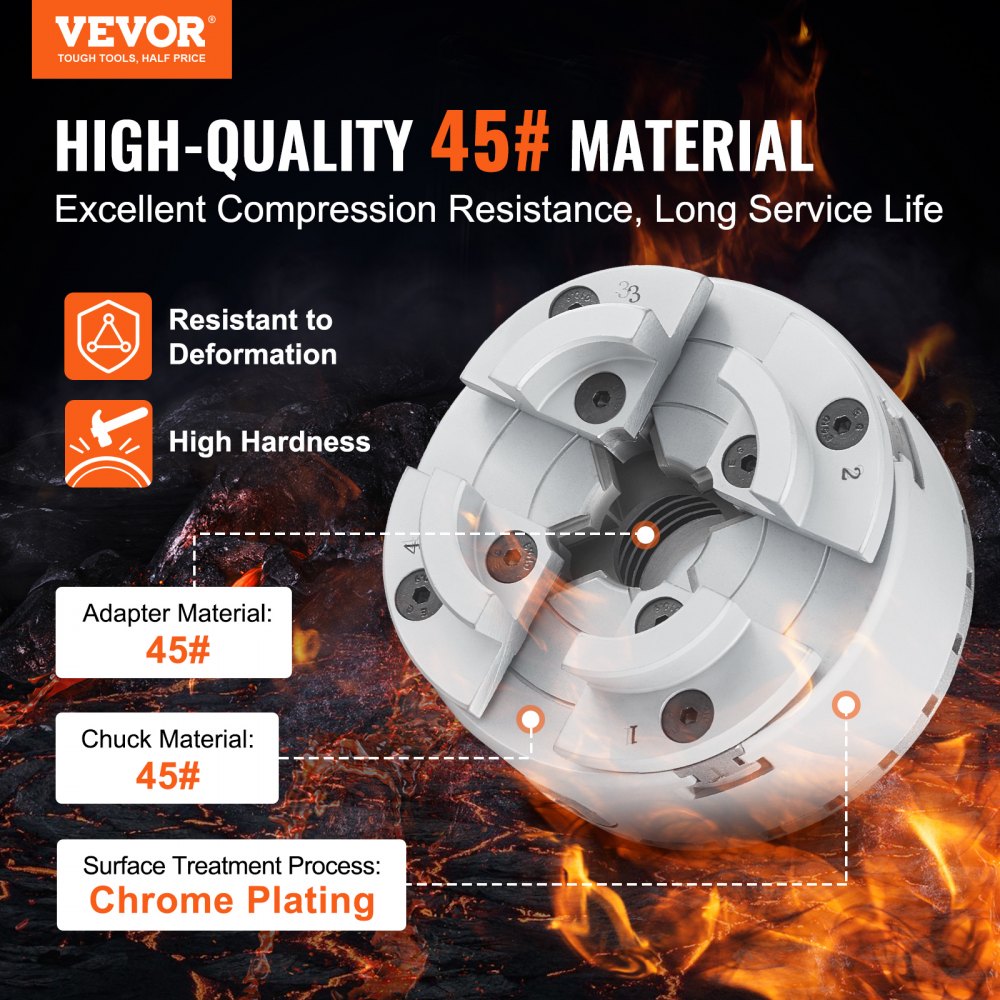

- High-Strength #45 Material: To meet the demanding requirements of production environments, we utilize #45 material that has undergone quenching and hardening techniques. This imparts exceptional hardness and rust-resistant properties, ensuring outstanding performance and reliability for both small and large workpieces held by the chuck.

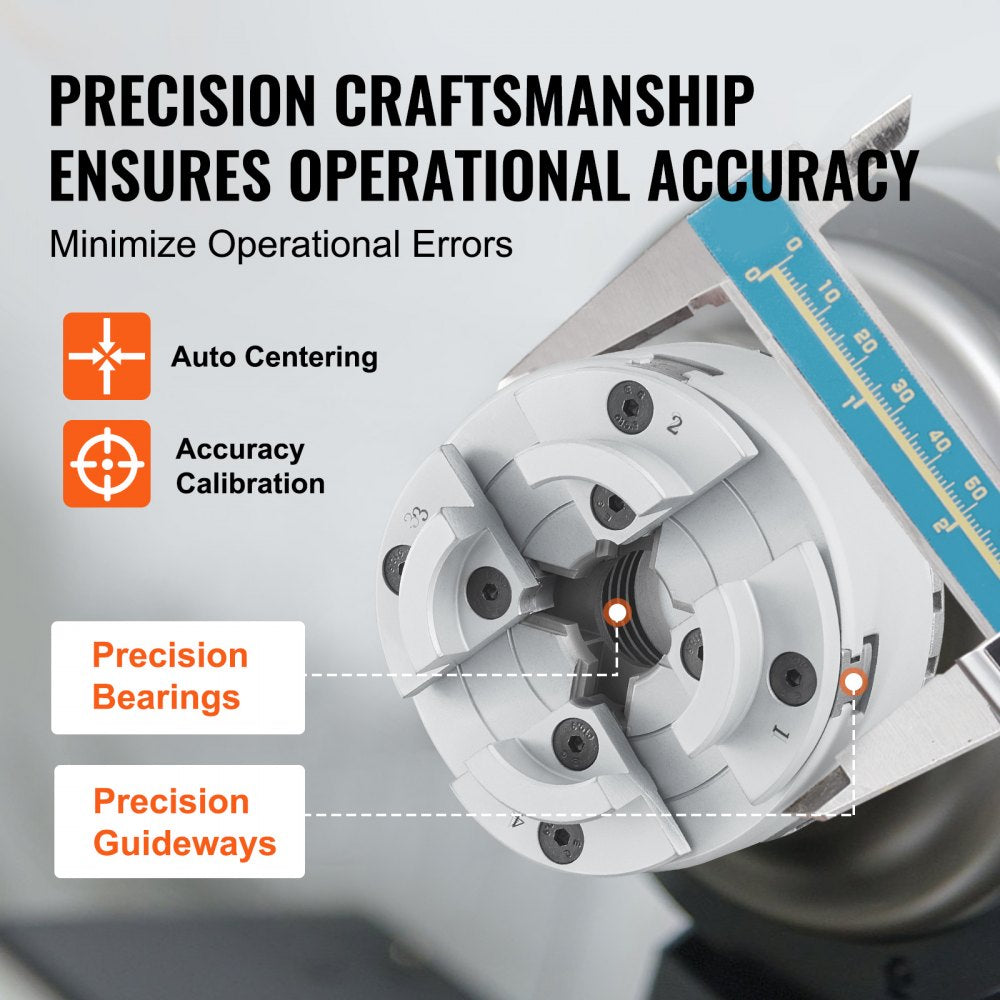

- High Precision: In the manufacturing of our chucks, we employ high-precision machining processes to ensure structural stability and machining accuracy. The lathe components feature a refined bevel gear and three small gears, aiding in precise machining progress. Bearing tolerance is ≤ 0.3 mm / 0.01 inch, guaranteeing excellent machining results.
- Versatile Single Jaw: Our chuck features an adjustable jaw design, providing enhanced flexibility. Operators can easily adjust the clamping range using a T-handle wrench, accommodating workpiece sizes and shapes such as bowls, plates, vases, cups, and more with precise gripping and securing.

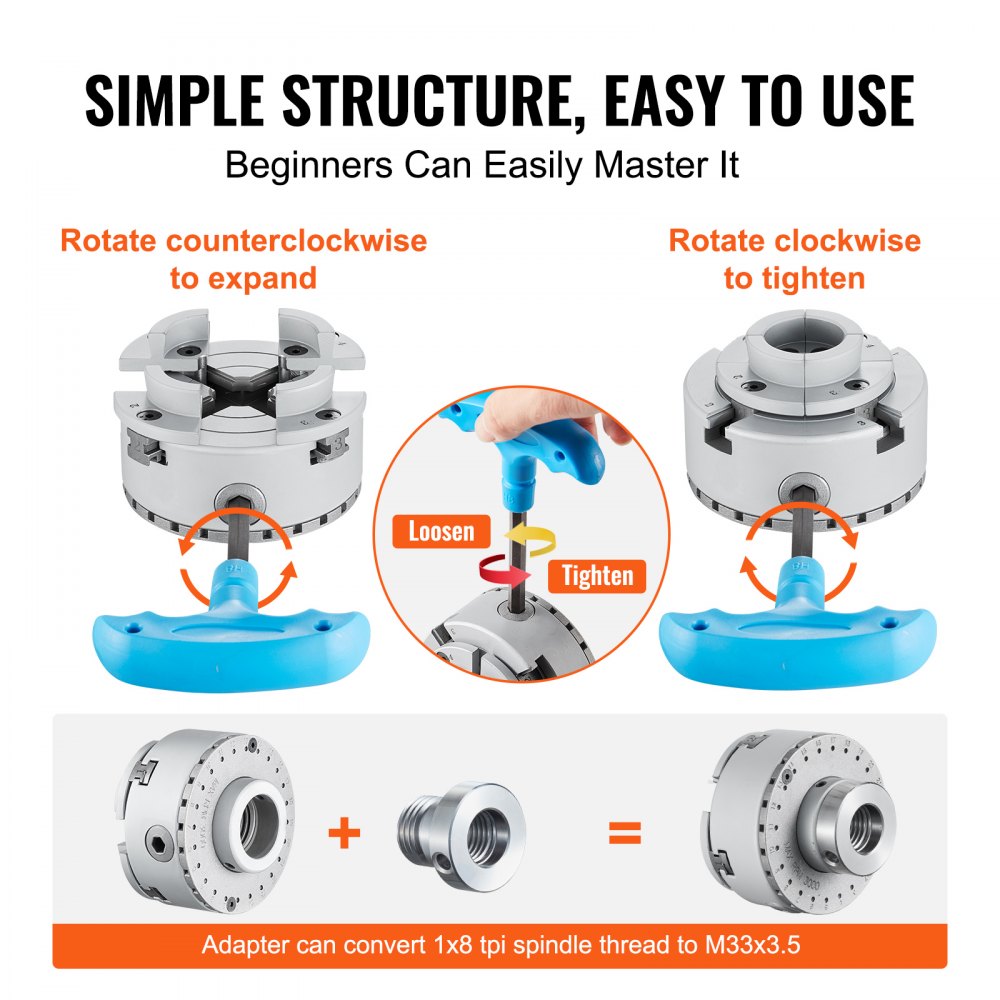

- Simple & User-Friendly: The chuck boasts a streamlined design, striking the optimal balance between functionality and reliability. By eliminating unnecessary complex components and mechanical structures, the chuck's design becomes simple and compact. Installation and removal only require screws and handles, and clamping and spreading are achieved by rotating the T-handle wrench.
- Wide Range of Applications: Whether you're involved in woodworking, drilling, grinding, or other fields, the chuck's broad adaptability meets your requirements. By using our lathe chuck, you can enhance processing efficiency, increase operational flexibility, and achieve accurate and stable machining outcomes. Whether for personal use or industrial production, this lathe chuck delivers outstanding performance and reliability to cater to your needs.

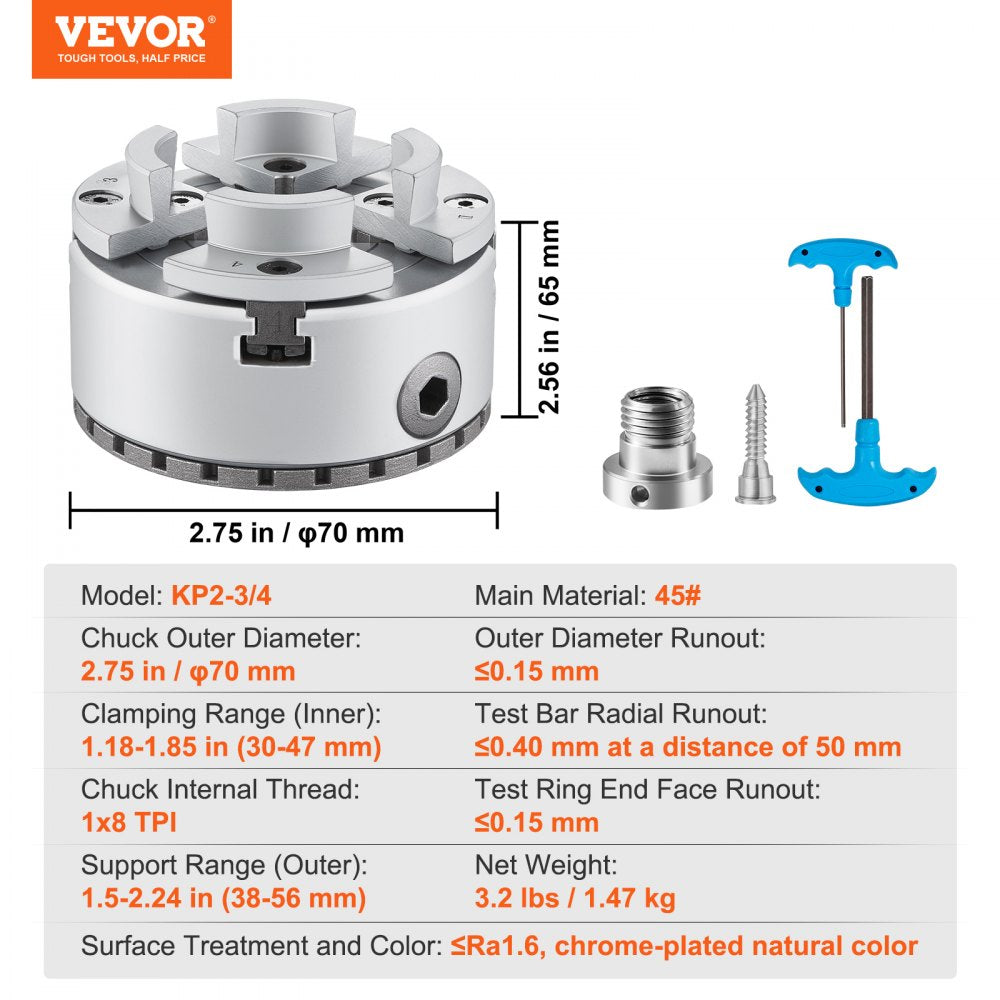

Specifications
| Model | KP2-3/4 |
| Chuck Outer Diameter | 2.75" / 70 mm |

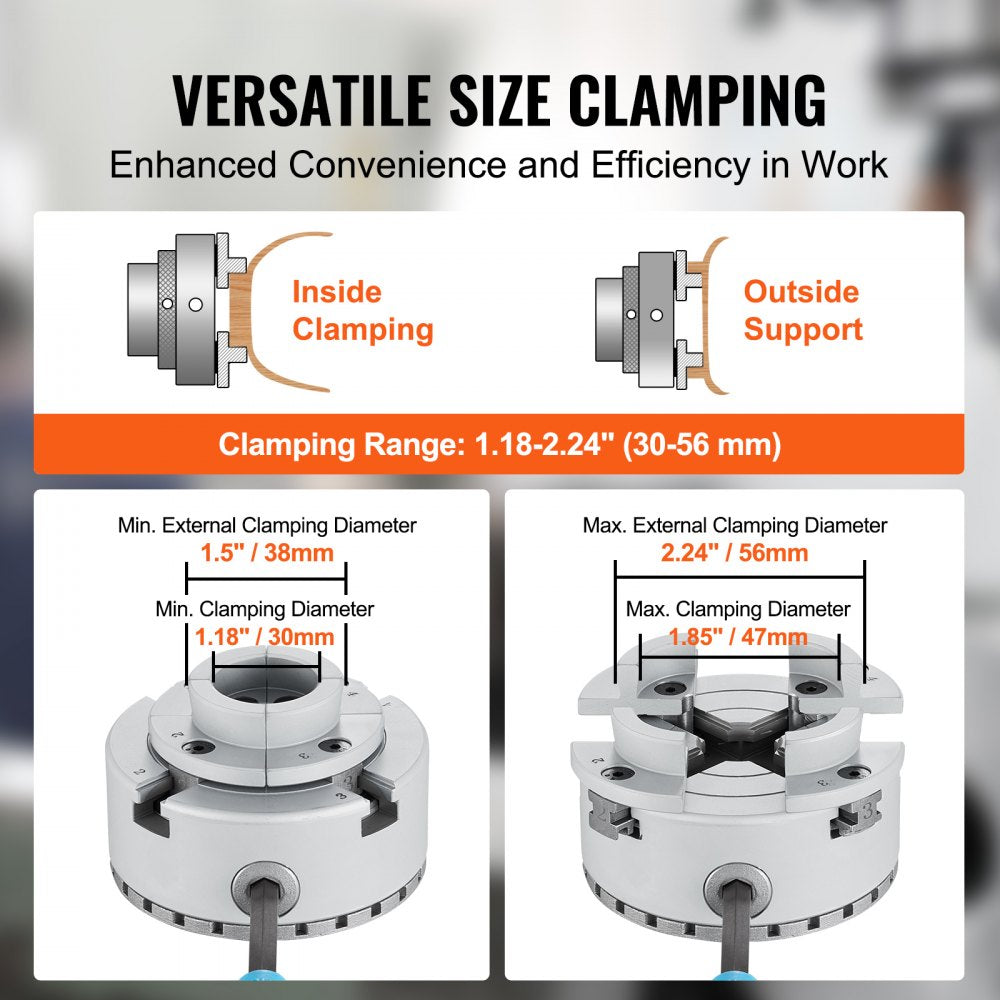

| Clamping Range Inner | 1.18"-1.85" (30-47 mm) |
| Chuck Internal Thread | 1 x 8 TPI |
| Support Range Outer | 1.5"-2.24" (38-56 mm) |
| Outer Diameter Runout | ≤0.15 mm |
| Test Bar Radial Runout | ≤0.40 mm at 50 mm distance |
| Test Ring End Face Runout | ≤0.15 mm |
| Surface Treatment and Color | ≤Ra1.6, chrome-plated natural color |
| Main Material | 45# |
| Net Weight | 3.2 lbs / 1.47 kg |
| Dimensions | 70 x 65 mm |

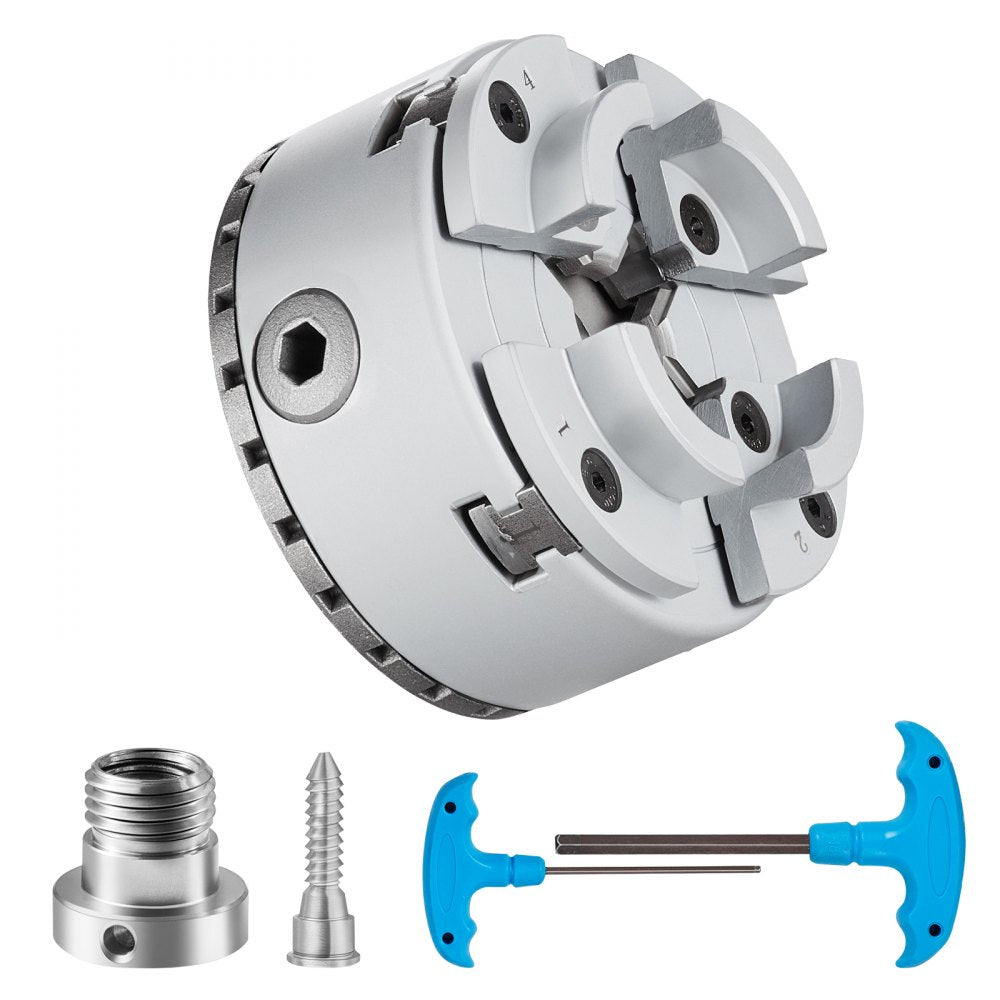

Package Contents
Vevor 4-jaw lathe chuck
Warranty
This item comes with a 1 year factory warranty.
