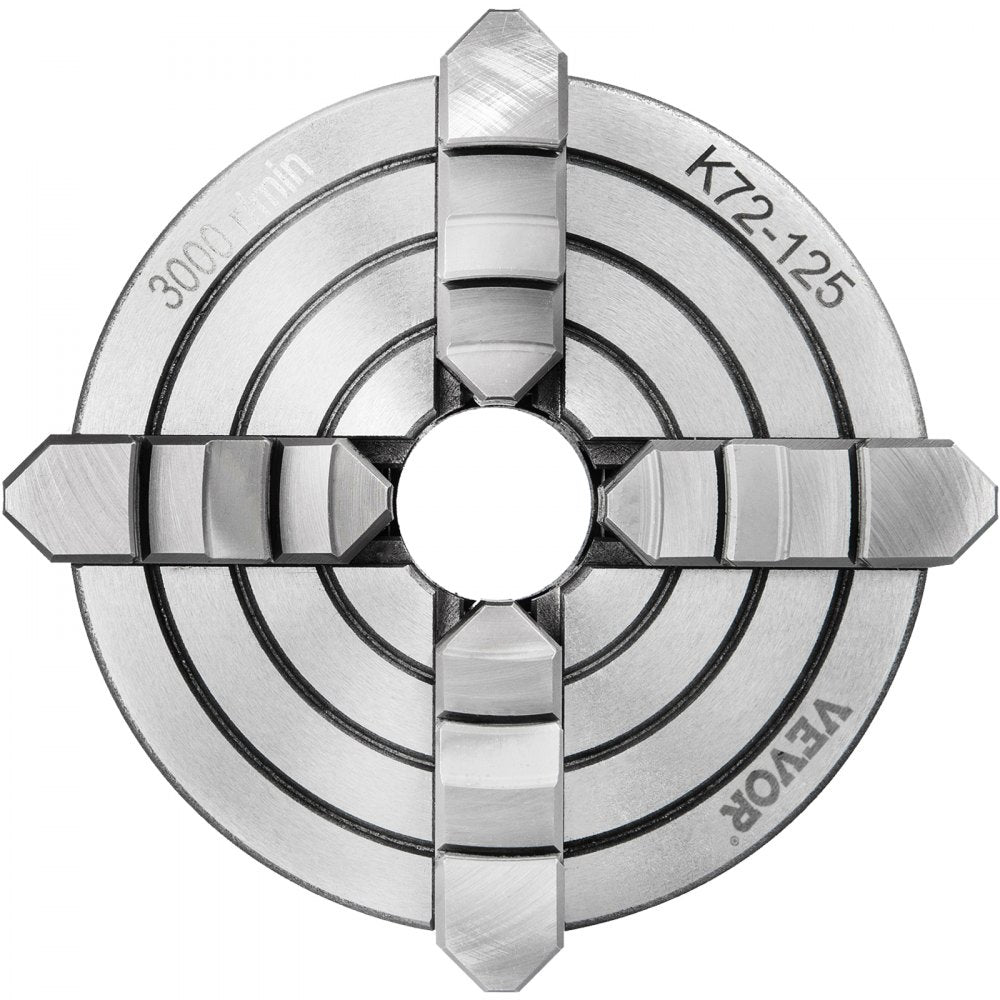

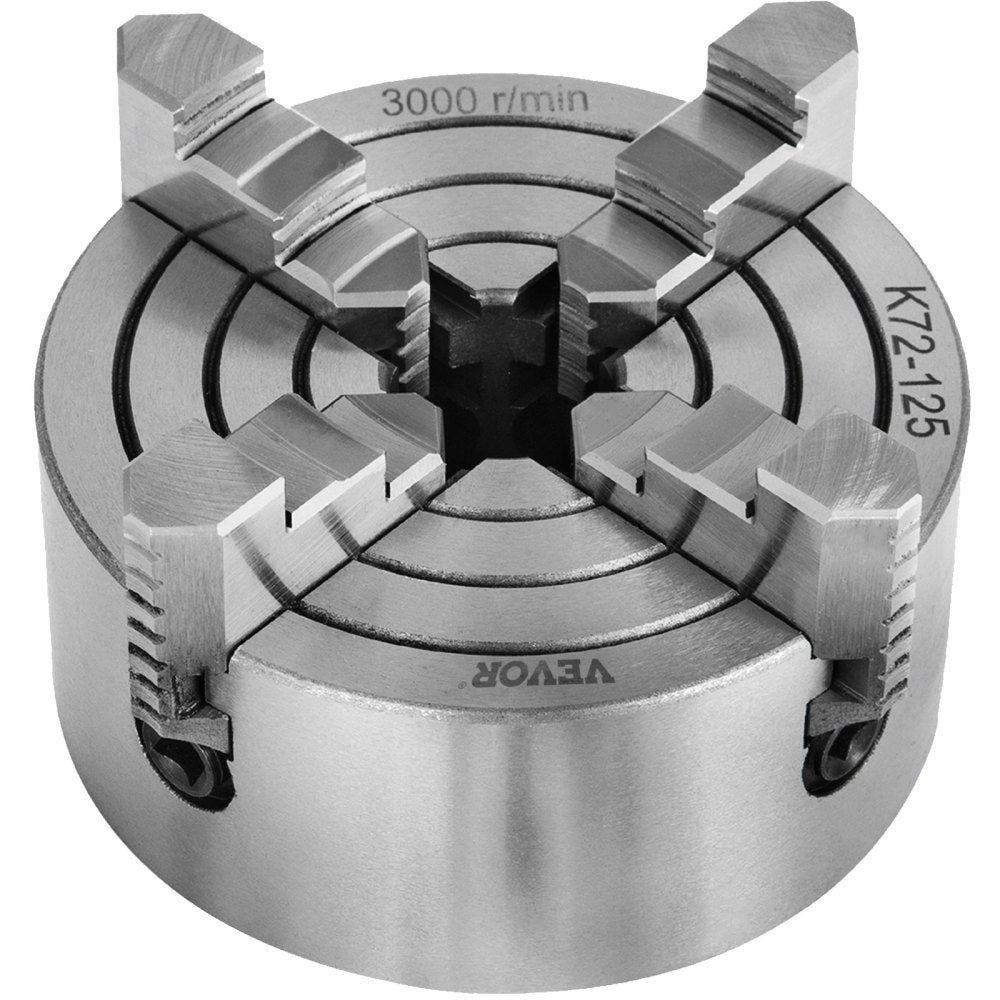

Vevor Lathe Chuck 5" 4-Jaw Independent Cast Iron New
Manufacturer: Vevor
SKU: KPK72-12500000001V0
Chuck Size Options
Jaw Count Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 74.90
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Hydraulic Shop Press 6-Ton H-Frame Adjustable Floor Press New
-
Vevor Milling Working Table 17.7" x 6.7" 2-Axis Cross Slide New
-
Vevor Tilting Milling Table 10" x 7" Adjustable Angle Plate New
-
Vevor Dividing Head K11-100mm 3-Jaw Chuck CNC Router Indexing Head 2.6" Center Height New
-
Vevor Dividing Head BS-0 5-Inch 3 Jaw Chuck for Milling Machine Rotary Table New
-
Vevor Lathe Chuck 8" 3-Jaw Self-Centering New
-
Vevor Lathe Chuck 4-Jaw Self-Centering 3.75" New
-
Vevor Lathe Chuck 4-Jaw 3.75" Self-Centering with 5 Jaw Sets New
-
Vevor Rotary Table 4" Horizontal Vertical Milling Machine Rotary Table with 3.1" 3-Jaw Chuck New
Vevor Lathe Chuck 5" 4-Jaw Independent Cast Iron New
Product Overview

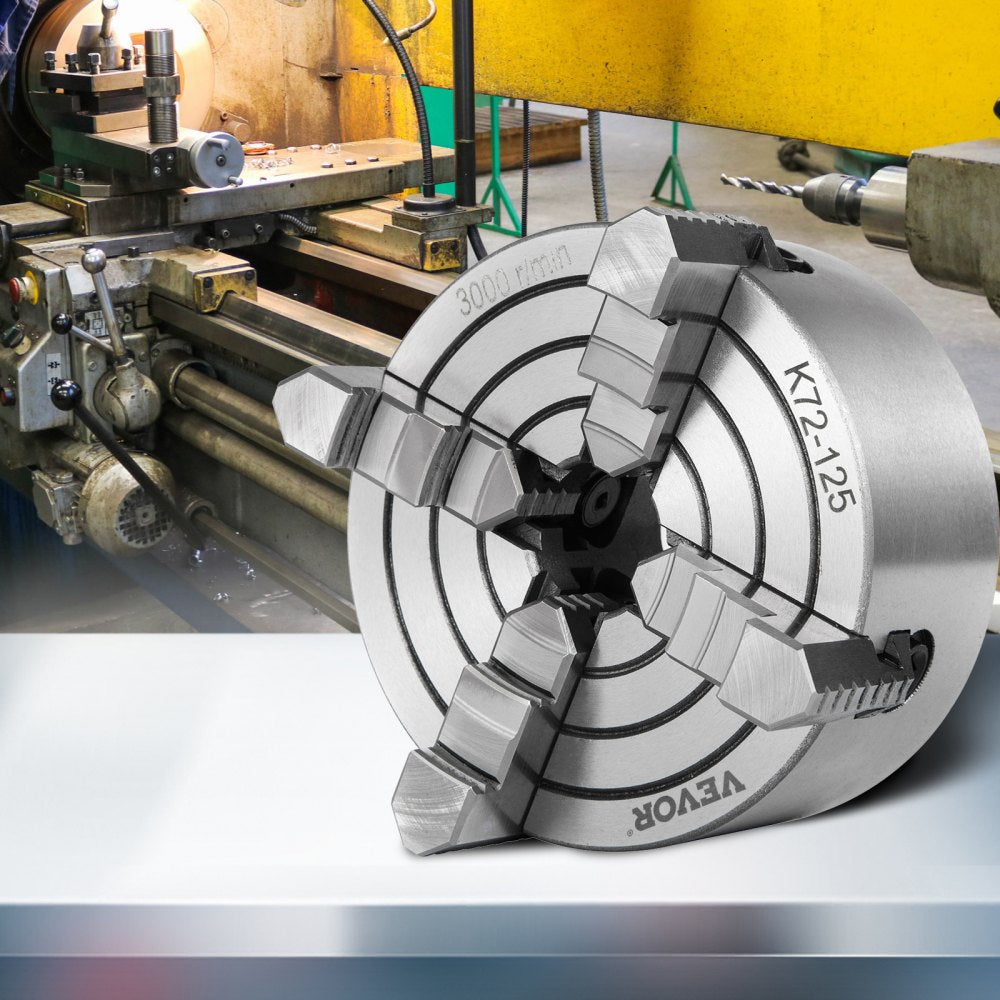

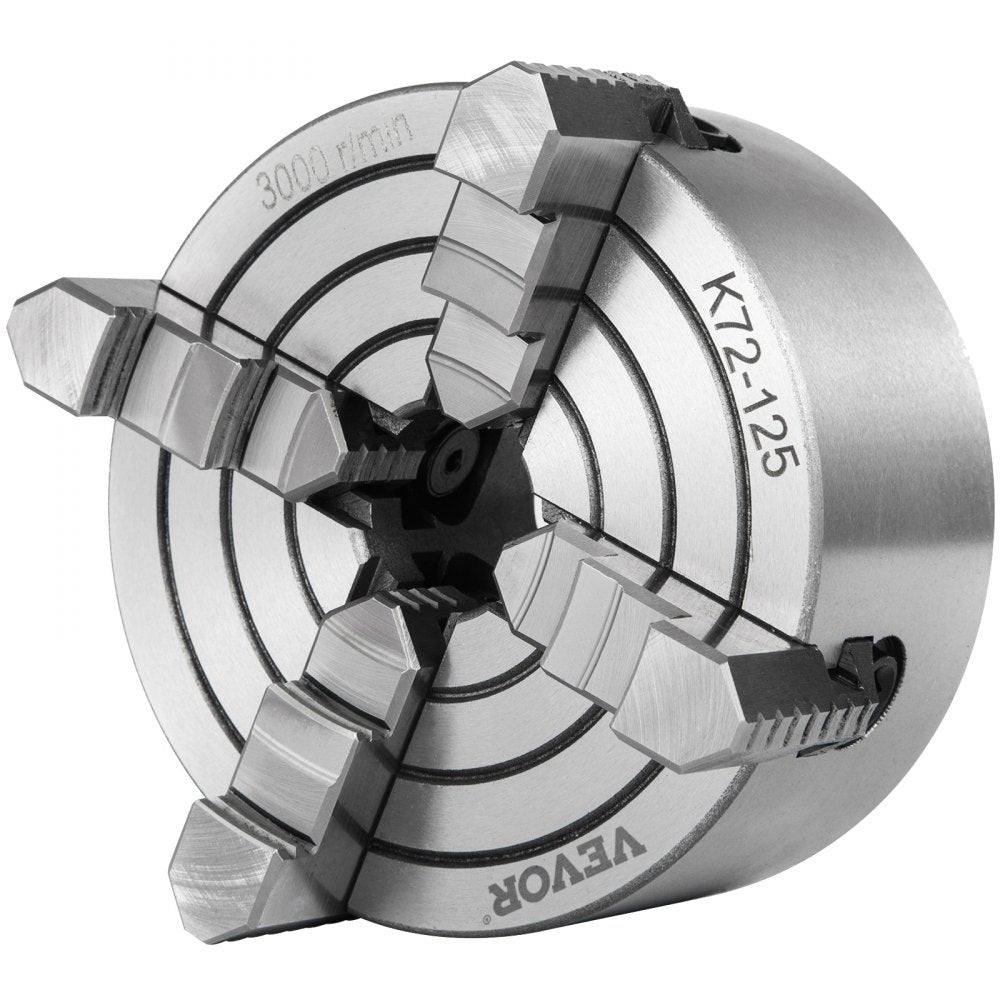

The Vevor 5-inch 4-jaw independent lathe chuck is built for precise and versatile workholding on metal lathes. Its cast iron body and hardened steel jaws provide durability for demanding shop use. The reversible jaw design supports a wide clamping range for different workpiece shapes and sizes. High accuracy and low tolerance help deliver stable, precise machining results. A chuck key and mounting screws are included for convenient setup.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

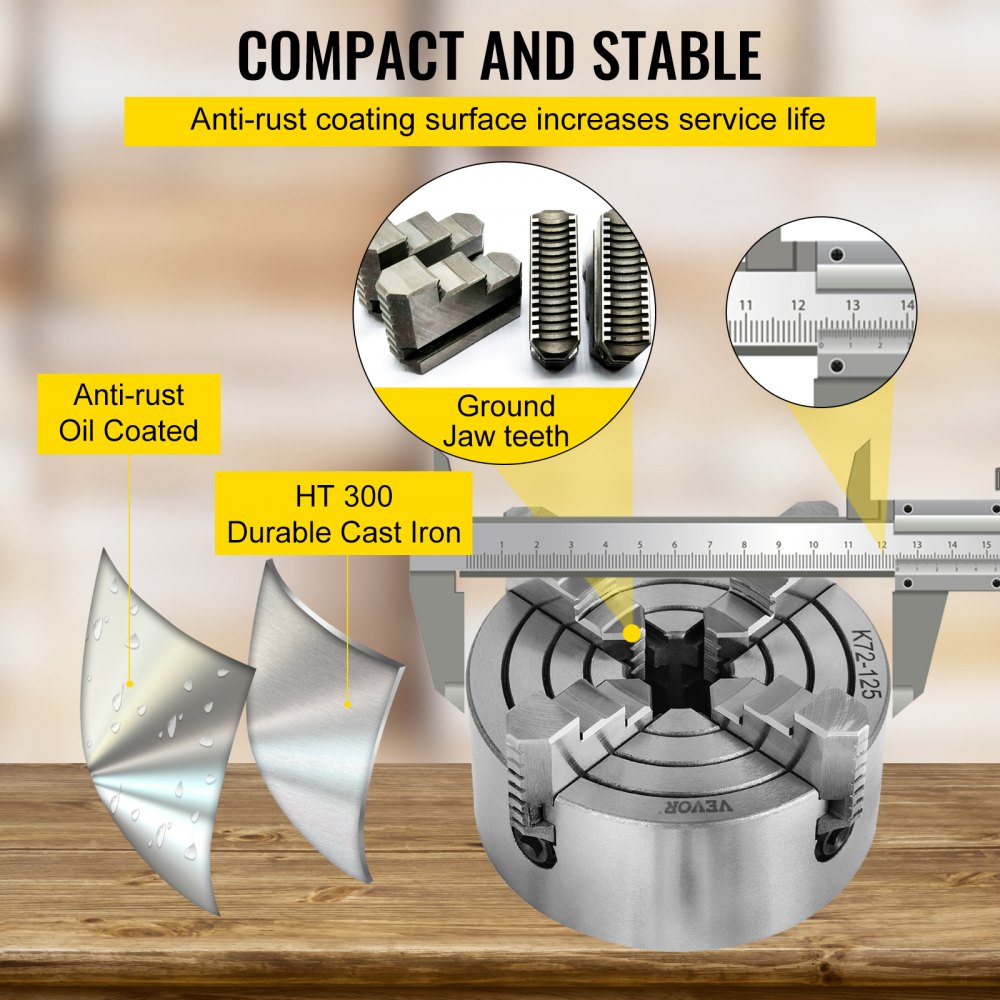

- Premium Material: Diameter: 5 inch / 125 mm. The 4-jaw mini lathe chuck body is made of cast iron that has passed rigorous quality tests. It has high strength and toughness, compression resistance and durability, and long service life.

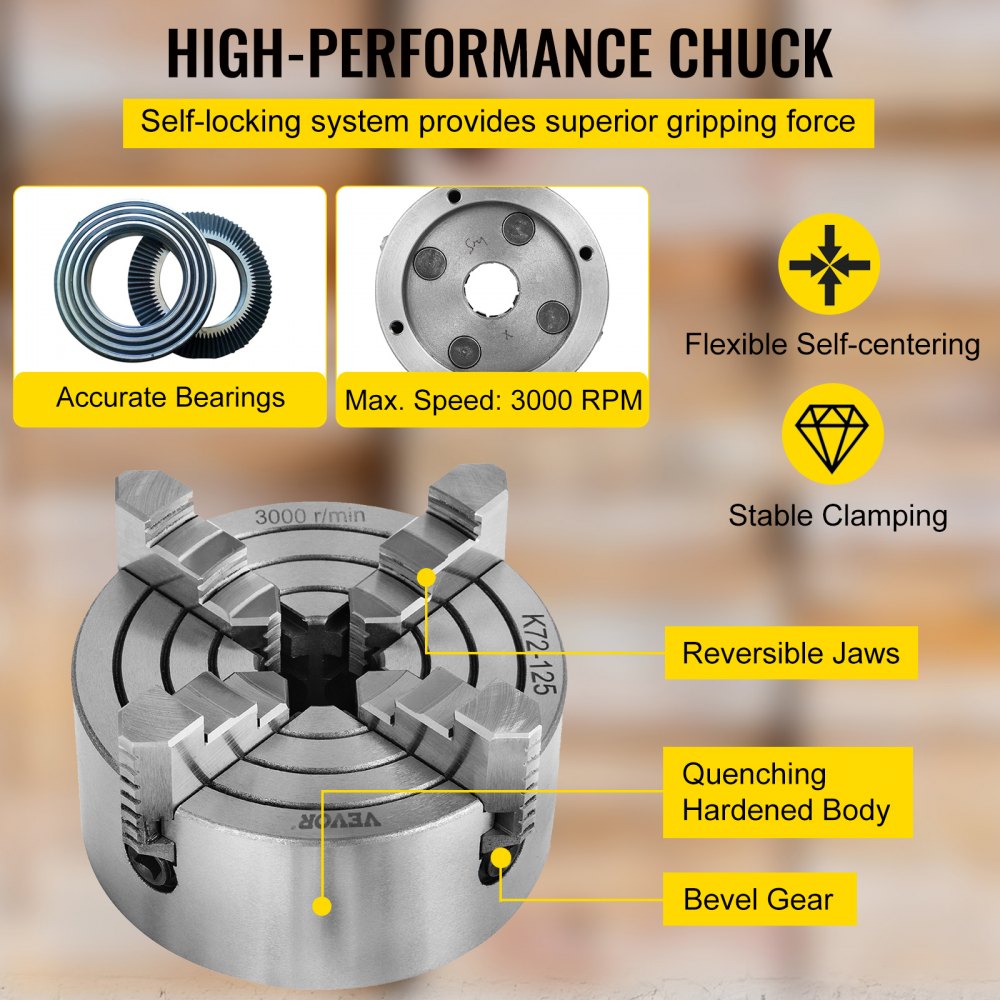

- Reversible Jaw Set: The lathe chuck is equipped with 3 inward stepped jaws that can be stepped inward or outward to hold raw materials of different shapes. The high precision design of the chuck bevel gear guarantees the accuracy of the chuck operation.

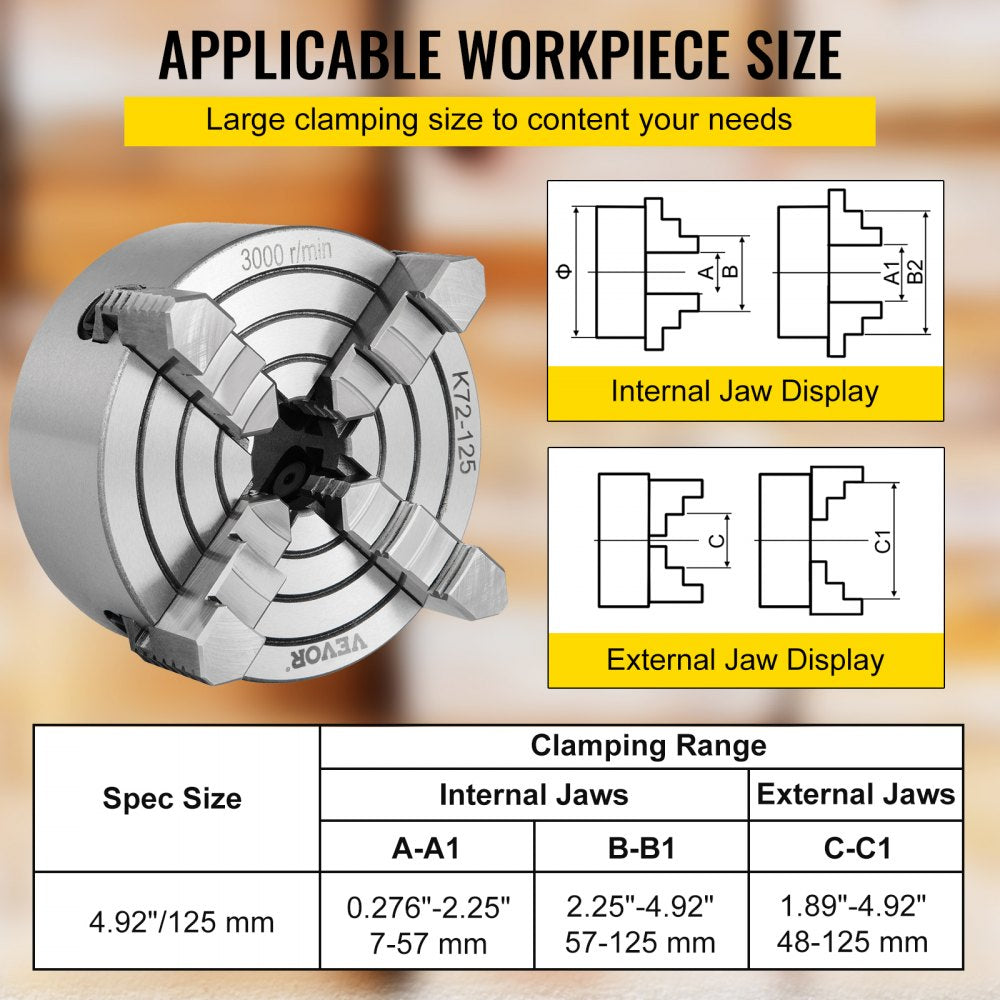

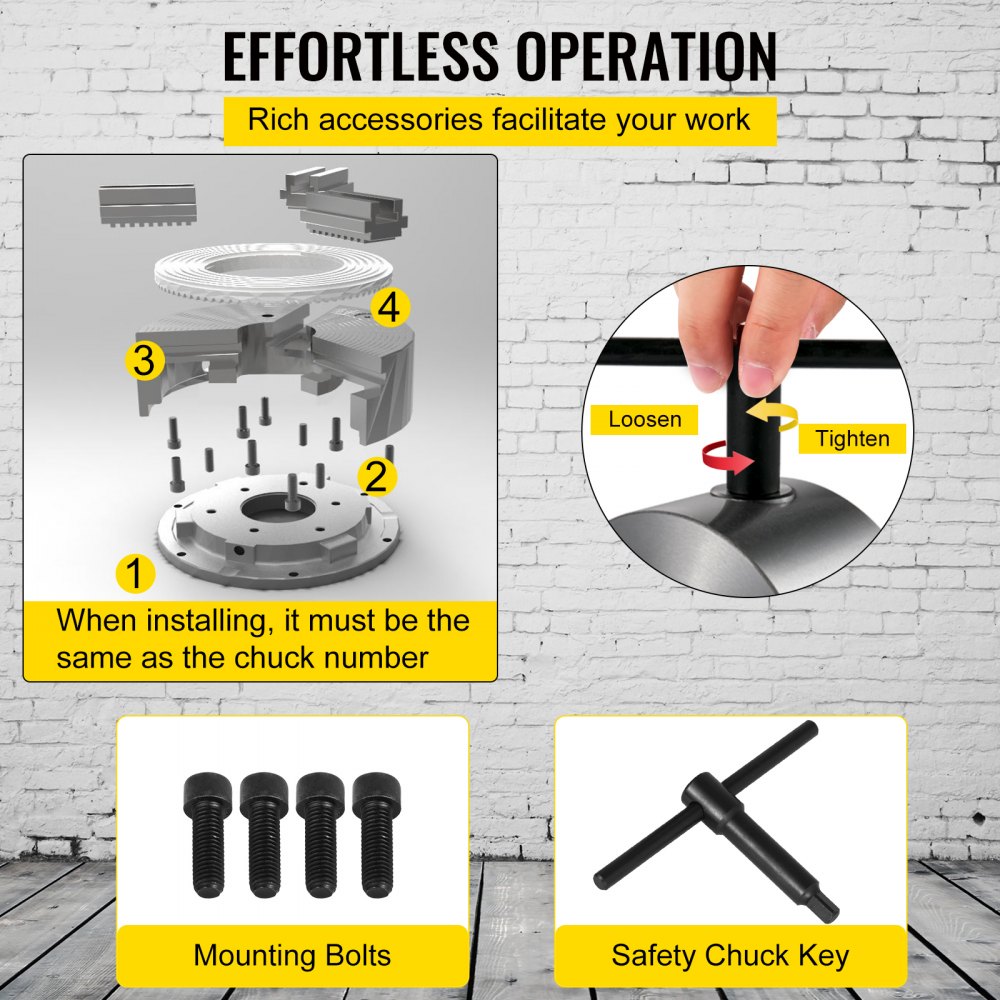

- Enhanced Flexibility: The T shape chuck key of the lathe part allows the installation of various workpieces. And effortless operation reduces changeover time for your convenience. Internal Jaw Clamping Range: 0.276"-2.244" / 7-57 mm. External Jaw Clamping Range: 1.89"-4.92" / 48-125 mm.
- High Precision: The 4-jaw lathe chuck works accurately, bearing tolerance is of ≤ 0.003 inch / 0.07 mm to ensure satisfying metal processing. The accessory screws make the scroll chuck highly adaptable and can be used with the same series of jaws as the chuck.
- Remarkable Versatility: This 4-jaw independent metal lathe chuck has a compact construction. It is suitable for installation on multiple kinds of metal lathe chuck and clamping workpieces of various shapes.

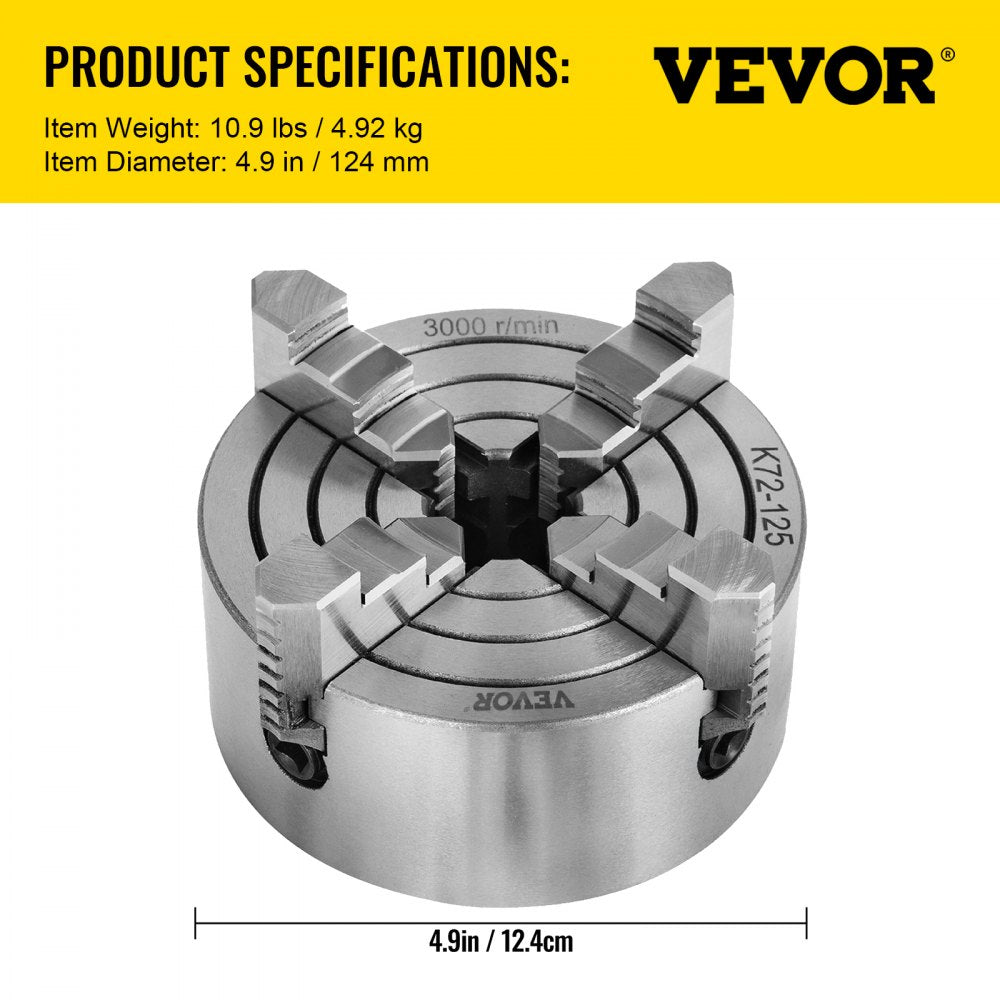

Specifications
| Model | K72-125 |
| Chuck Body Material | Cast Iron |
| Color | Silver |
| Jaws Material | 40CR Steel |
| Bevel Gear Material | 40CR Steel |
| Pinions Material | 20CR Steel |
| Chuck Diameter | 4.92" / 125 mm |

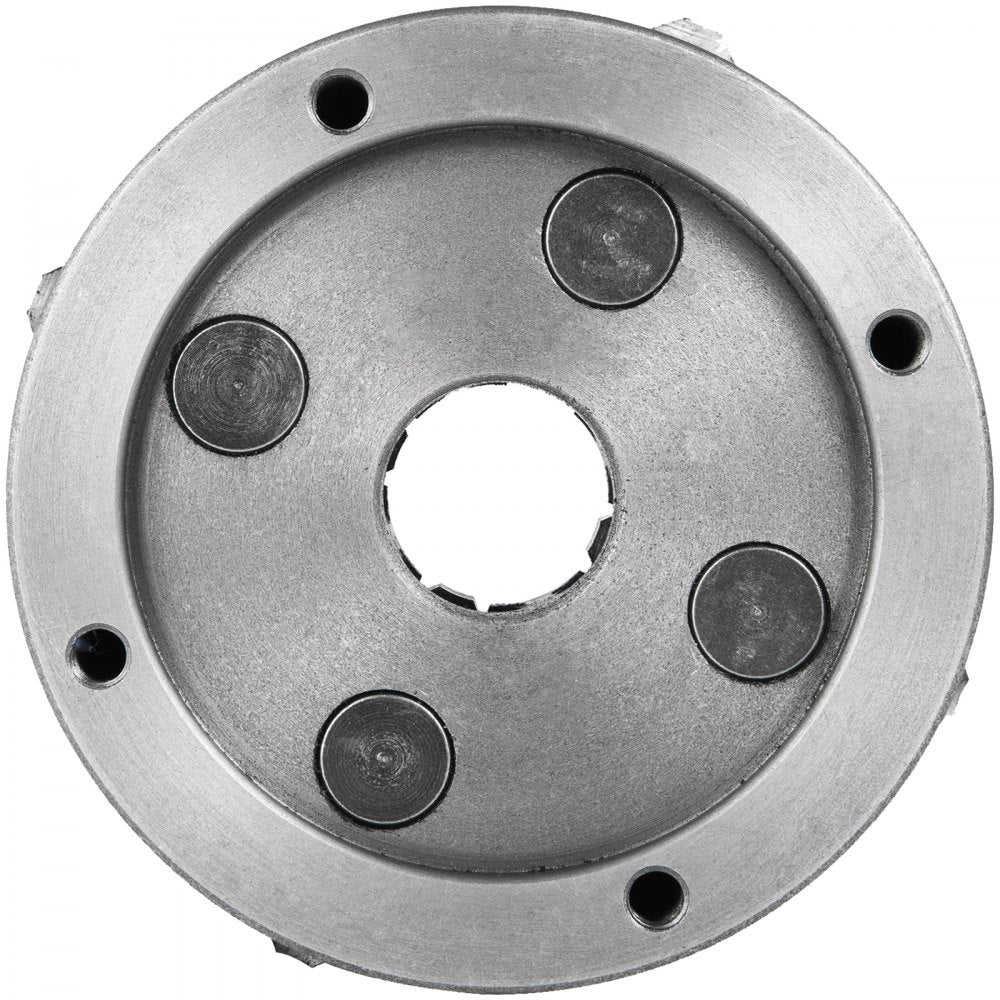

| Center Hole | 1.2" / 30 mm |
| Circle Diameter | 4.3" / 108 mm |
| Internal Jaw Clamping Range | 0.276"-2.244" / 7-57 mm |
| External Jaw Clamping Range | 1.89"-4.92" / 48-125 mm |
| Tolerance | ≤ 0.003" / 0.07 mm |
| Accuracy | 0.002" / 0.051 mm |
| Maximum Speed | 3000 RPM |
| Item Weight | 10.9 lbs / 4.92 kg |
| Package Dimensions | 5.9" x 5.5" x 3.93" / 15 x 14 x 10 cm |

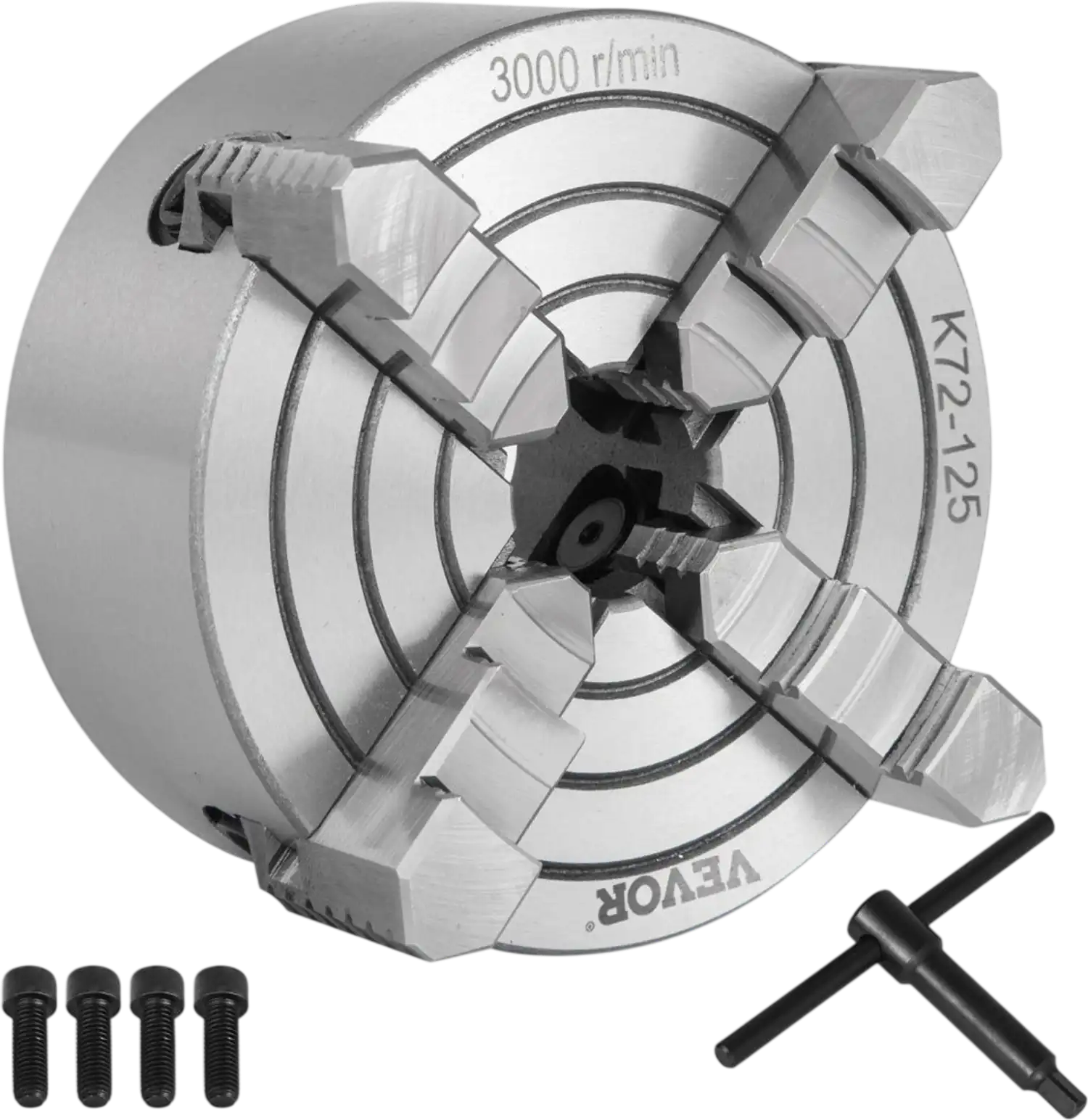

Package Contents
1 x Lathe Chuck
4 x Mounting Screws
1 x Chuck Key
Warranty
This item comes with a 1 year factory warranty.
