Vevor Lathe Chuck 6-Jaw Self-Centering with D1-4 Cam Lock Backing Plate New
Product Overview
This lathe chuck with backing plate achieves faster, steadier machine connection. Built from premium HT300 cast iron, it boasts a jaw hardness of ≥53 HRC for exceptional durability. The self-centering design ensures high-precision clamping ranging from 0.12" to 5.7" with 1.57" inner diameter and 6" outer diameter. Designed for both internal and external clamping, it meets a variety of machining needs.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features

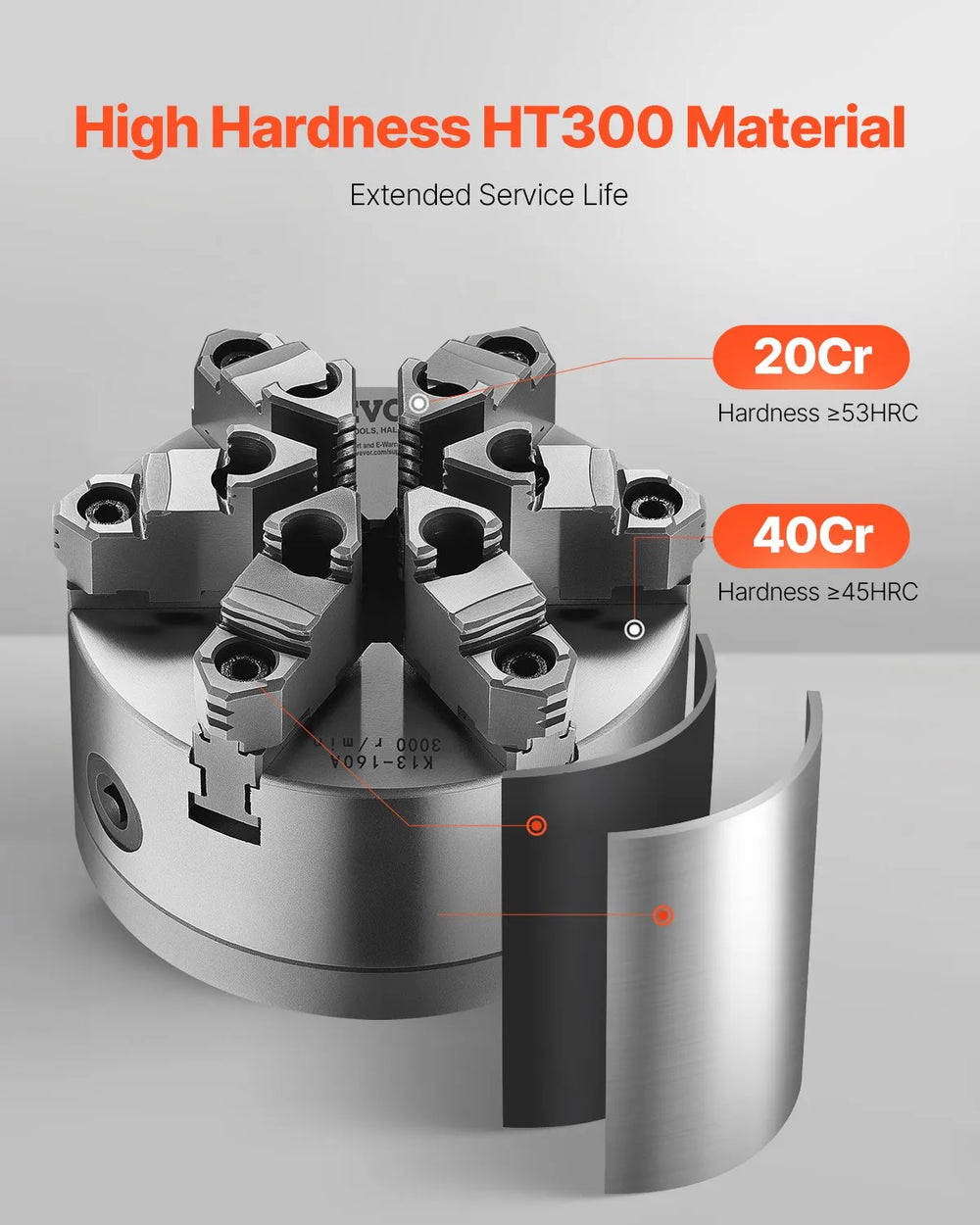

- Outstanding Hardness: Crafted from premium HT300 cast iron, this lathe chuck features jaws with a hardness of ≥53 HRC and a scroll plate hardness of ≥45 HRC. Quench-hardened for enhanced durability, it ensures excellent hardness and rust resistance, ensuring a long-lasting service life.

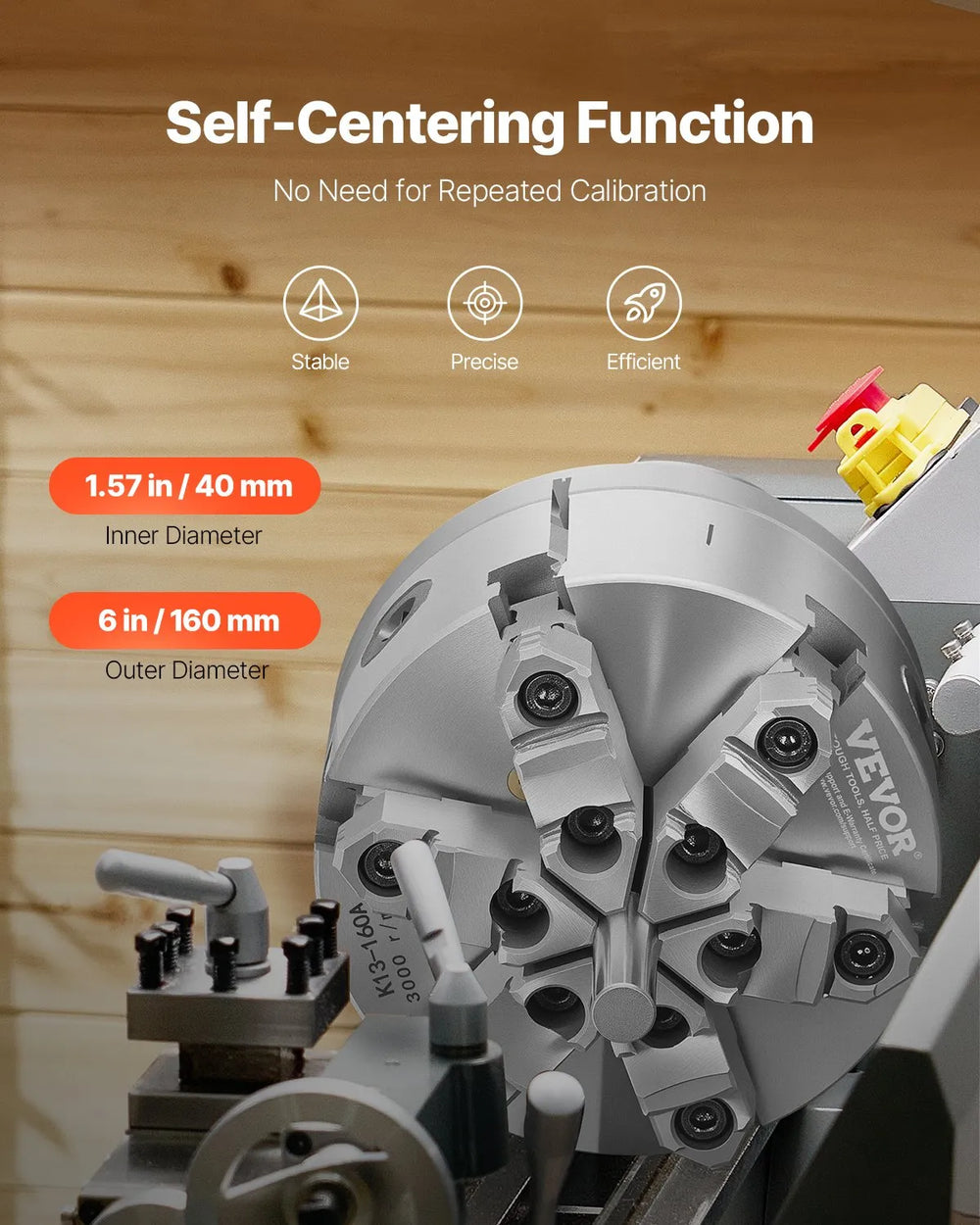

- Self-Centering Function: The built-in self-centering feature allows for hassle-free use without repeated calibration. It ensures precise control over clamping accuracy, maintaining the stability and high precision of the lathe chuck for flawless performance.

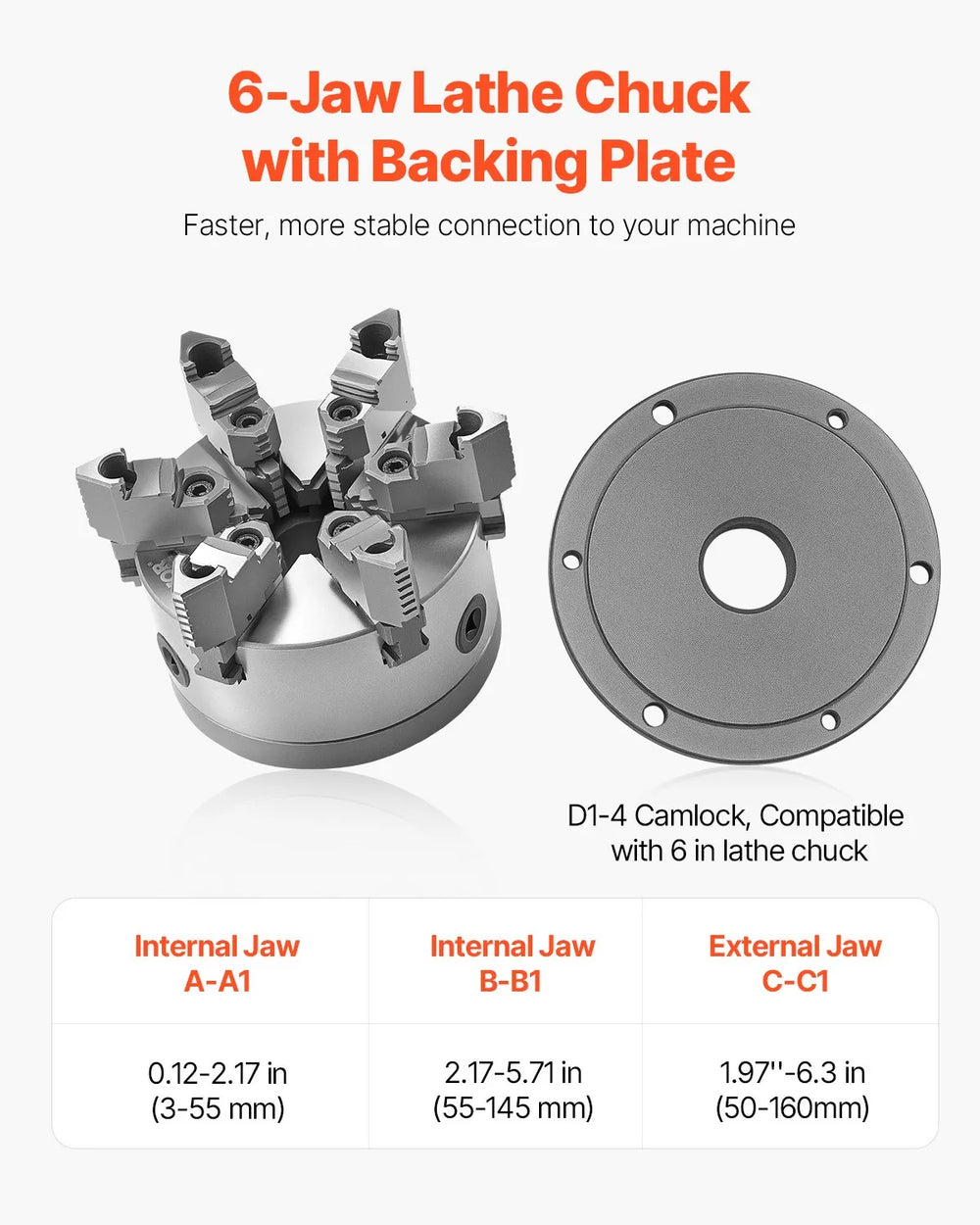

- 6-Inch 6-Jaw Lathe Chuck: Featuring a D1-4 cam lock adapter backing plate, this lathe chuck achieves a faster and more stable connection to your machine. With a 1.57 in (40 mm) inner diameter and 6 in (160 mm) outer diameter, it clamps workpieces ranging from 0.12-5.71 in (3-145 mm), making it versatile for a variety of sizes.

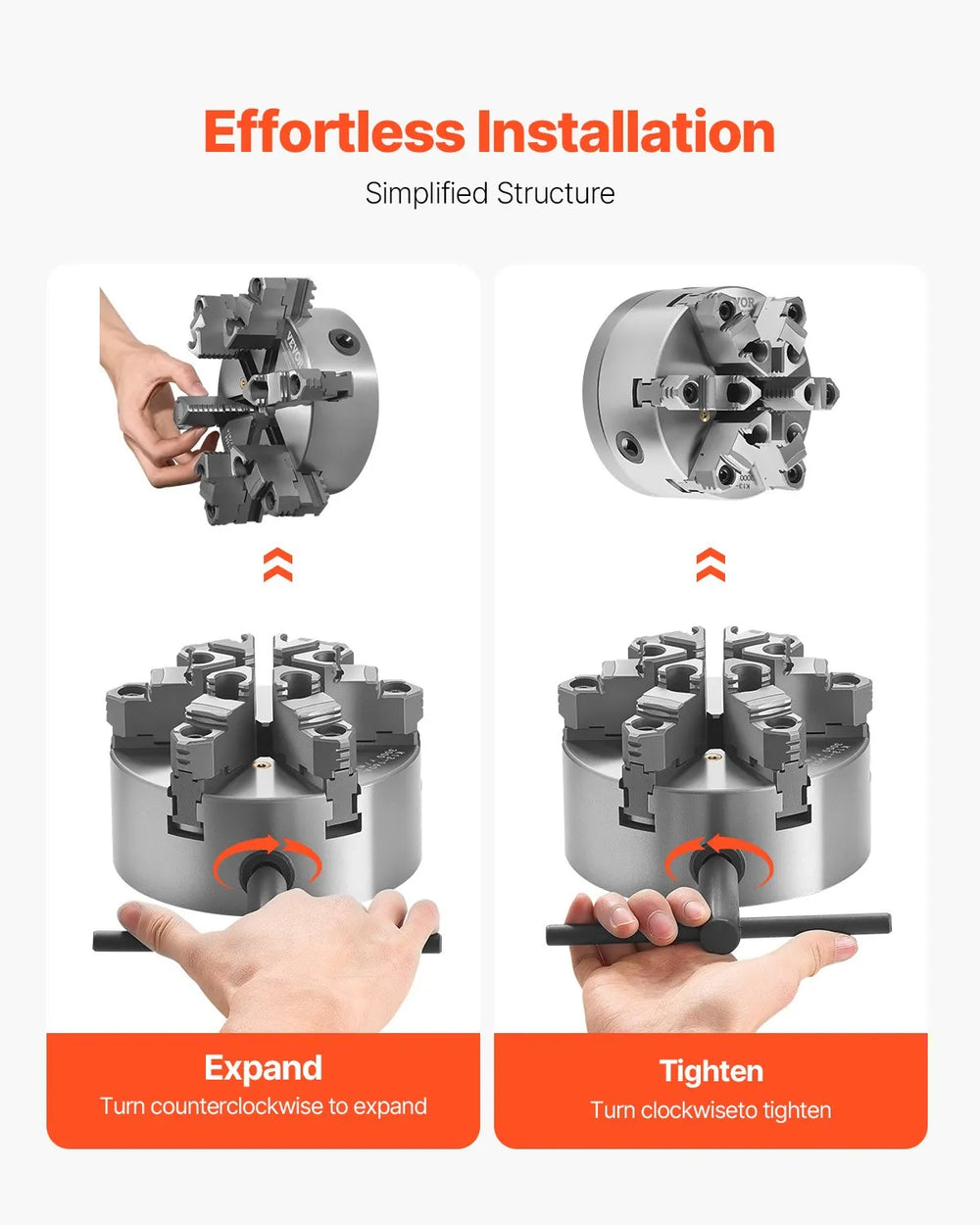

- Hassle-Free Operation: Featuring a simple, compact design, this lathe chuck balances functionality and reliability. Equipped with a T-shaped tool, installation of the lathe chuck is a breeze. Just follow the instructions for a seamless setup.

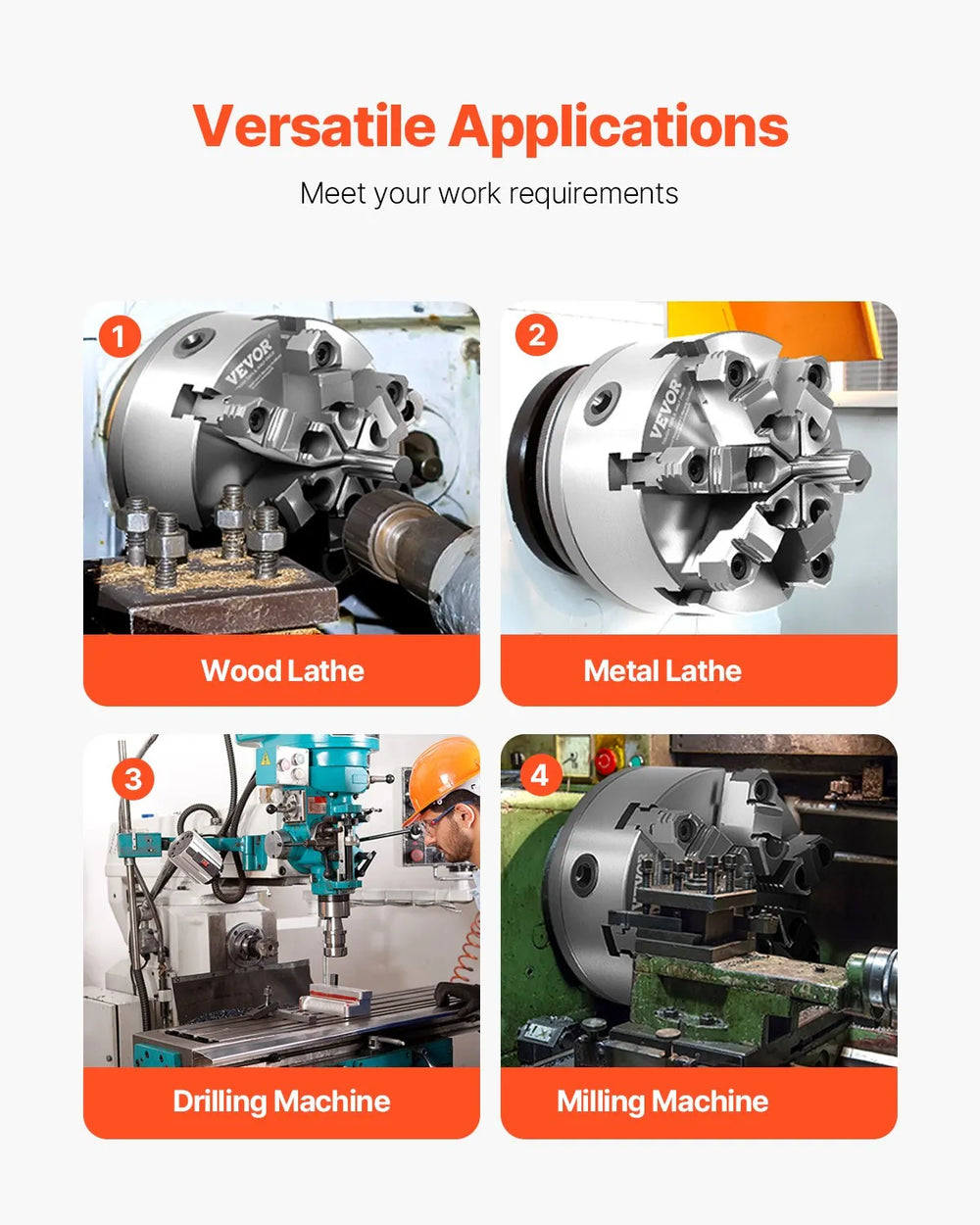

- Ideal for Most Lathes: Whether you're working with metal, drilling, or milling, this lathe chuck will enhance your machining efficiency and flexibility. It helps you achieve precise and consistent results every time.

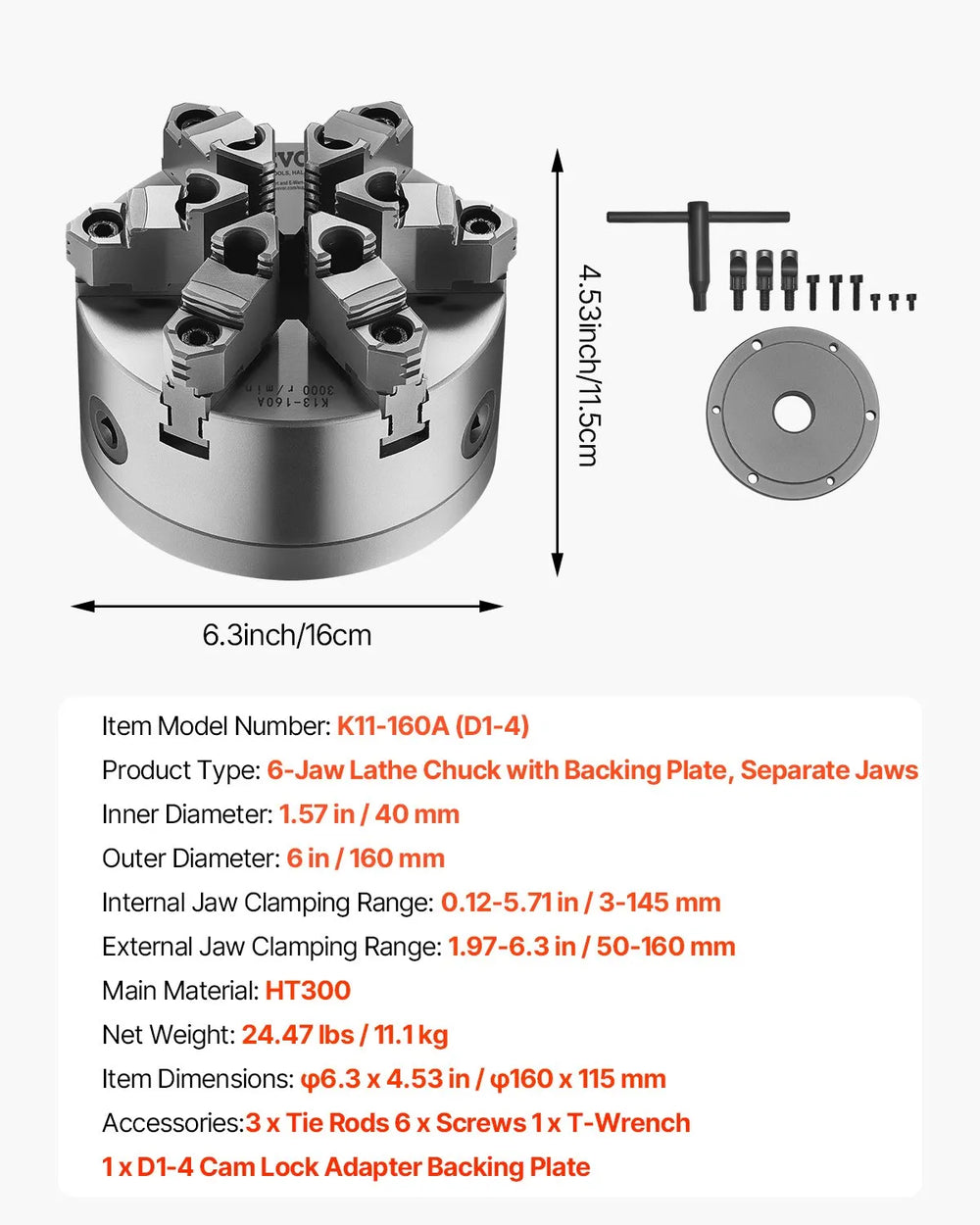

Specifications
| Item Model # | K11 160A（ D1-4） |
| Inner Diameter | 1.57" / 40 mm |
| Outer Diameter | 6" / 160 mm |
| Internal Jaw Clamping Range | 0.12" - 5.71" / 3-145 mm |
| External Jaw Clamping Range | 1.97" - 6.3" / 50-160 mm |
| Product Dimensions | 6.3" x 4.53" |
| Net Weight | 24.47 lbs |

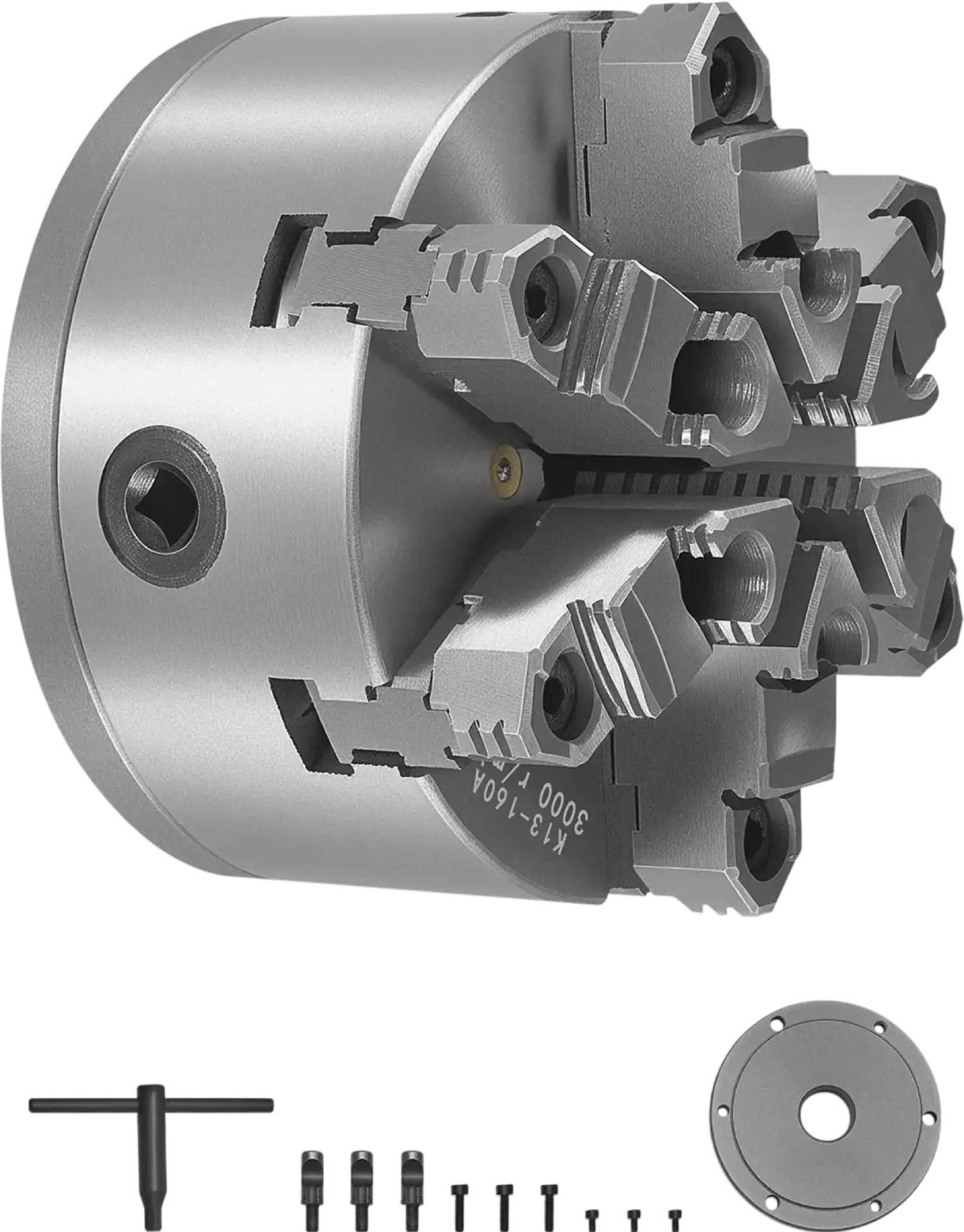

Package Contents
Vevor 6-Jaw Lathe Chuck
(3) Tie Rods
T-Wrench
Backing Plate
User Manual
Warranty
This item comes with a 1 year factory warranty.
