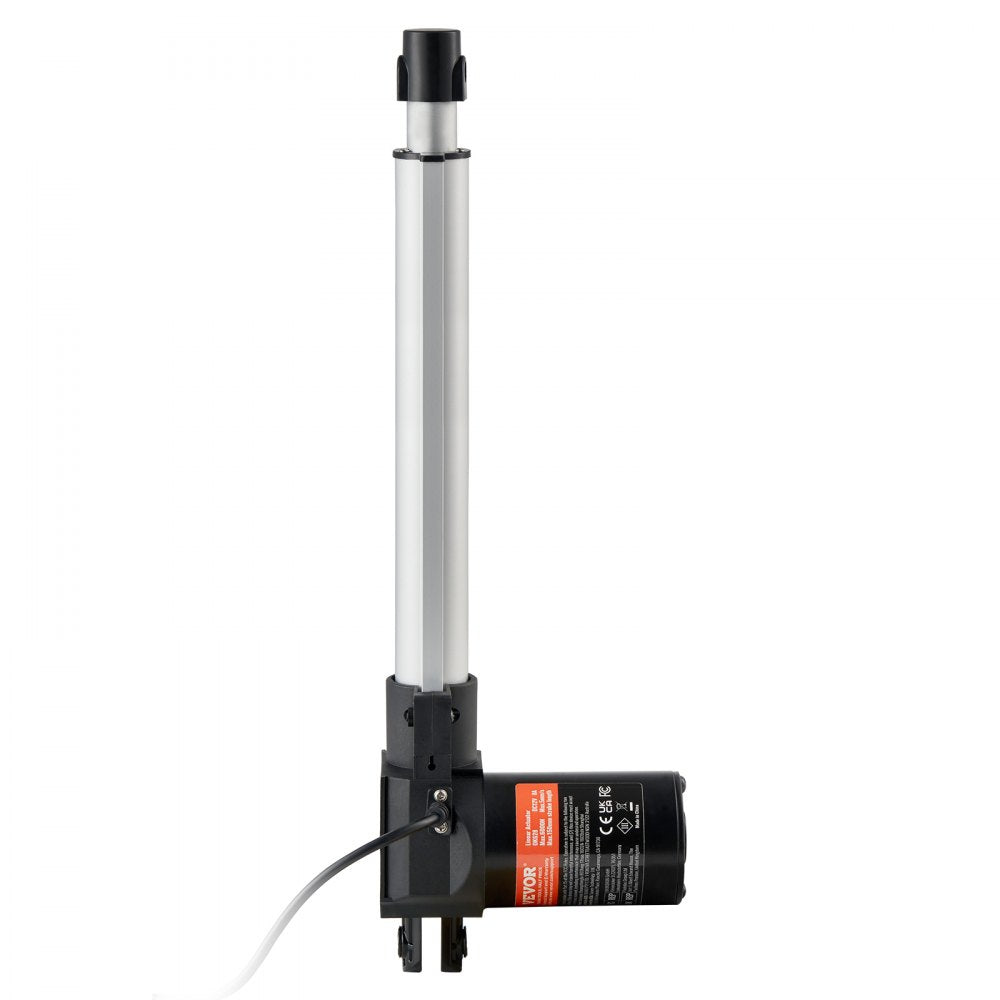

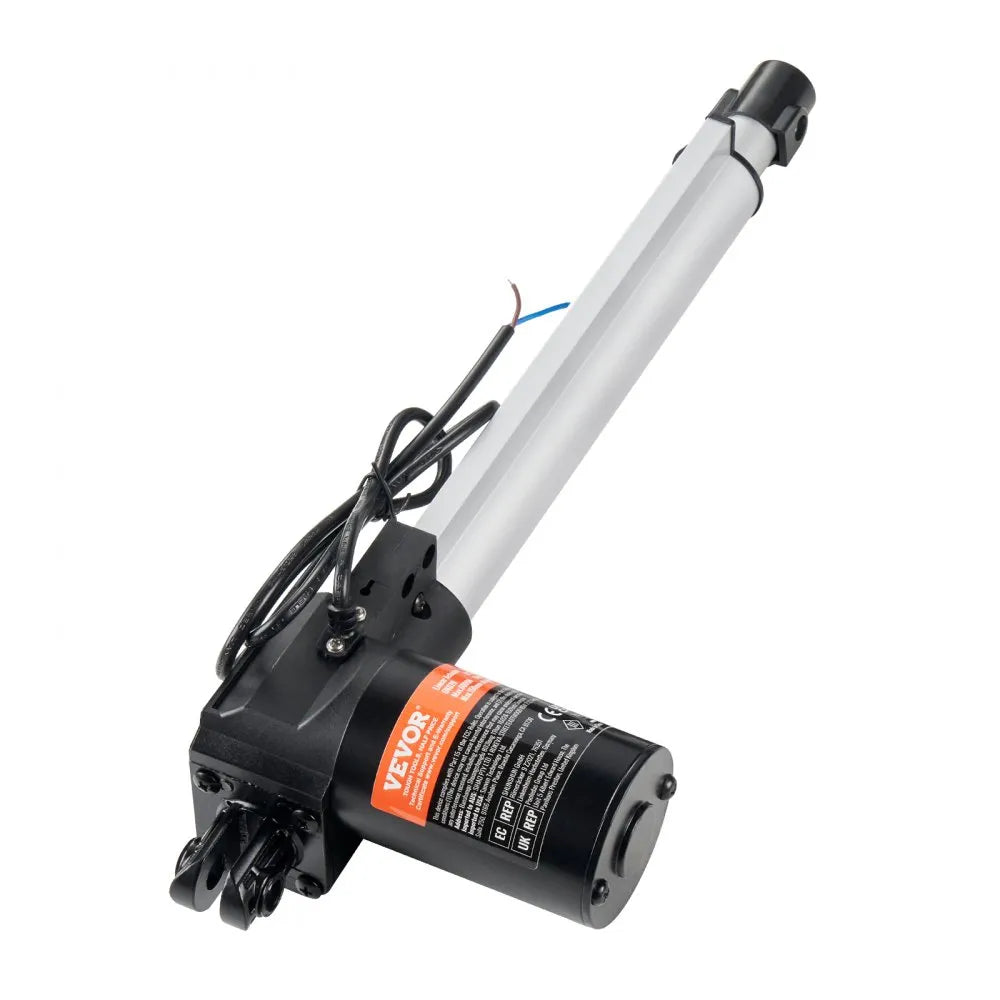

Vevor Linear Actuator 12V 10" Heavy Duty 1320 lbs 6000N New
Product Overview

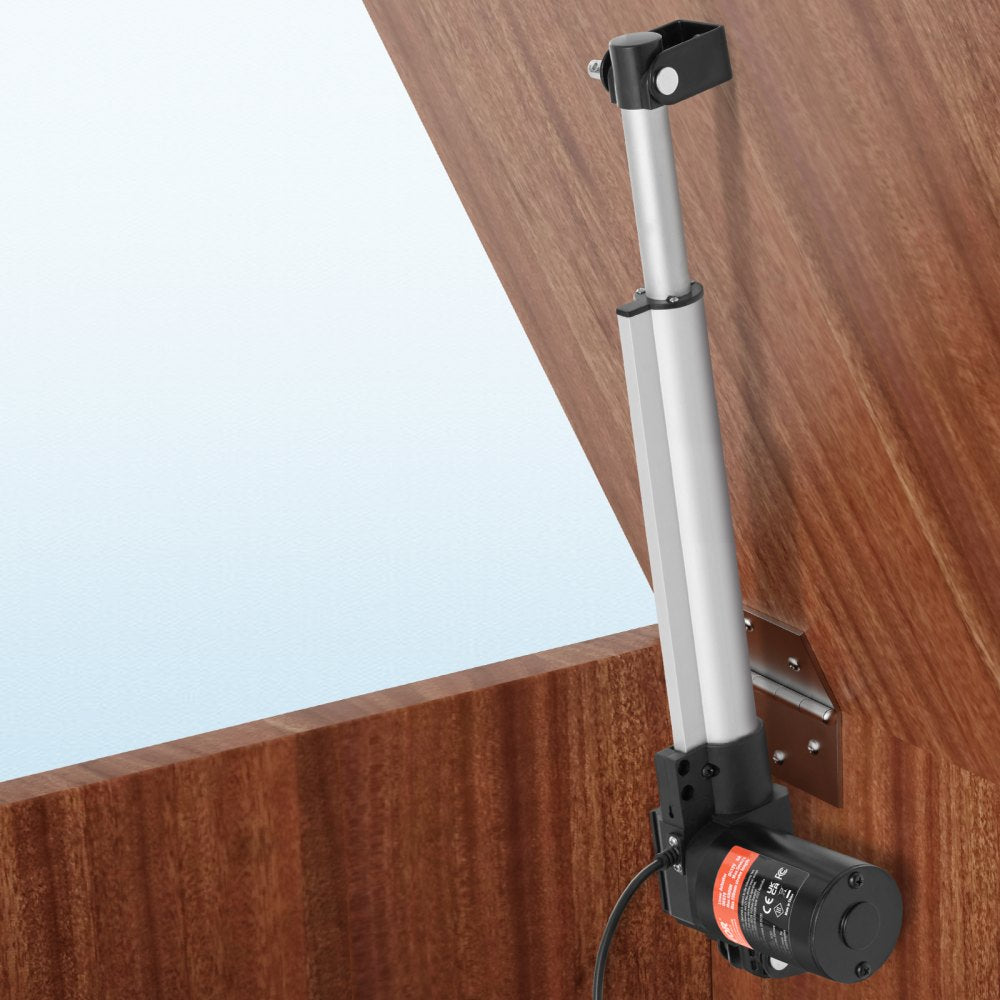

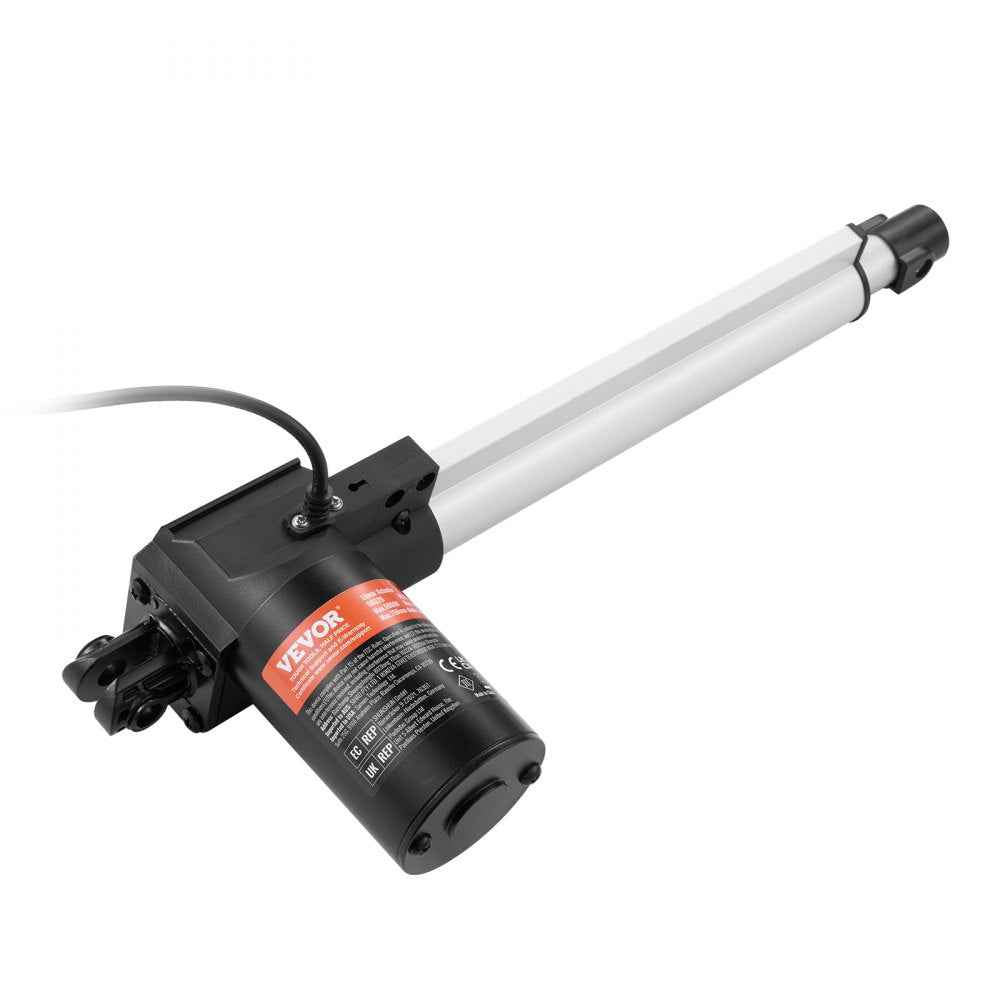

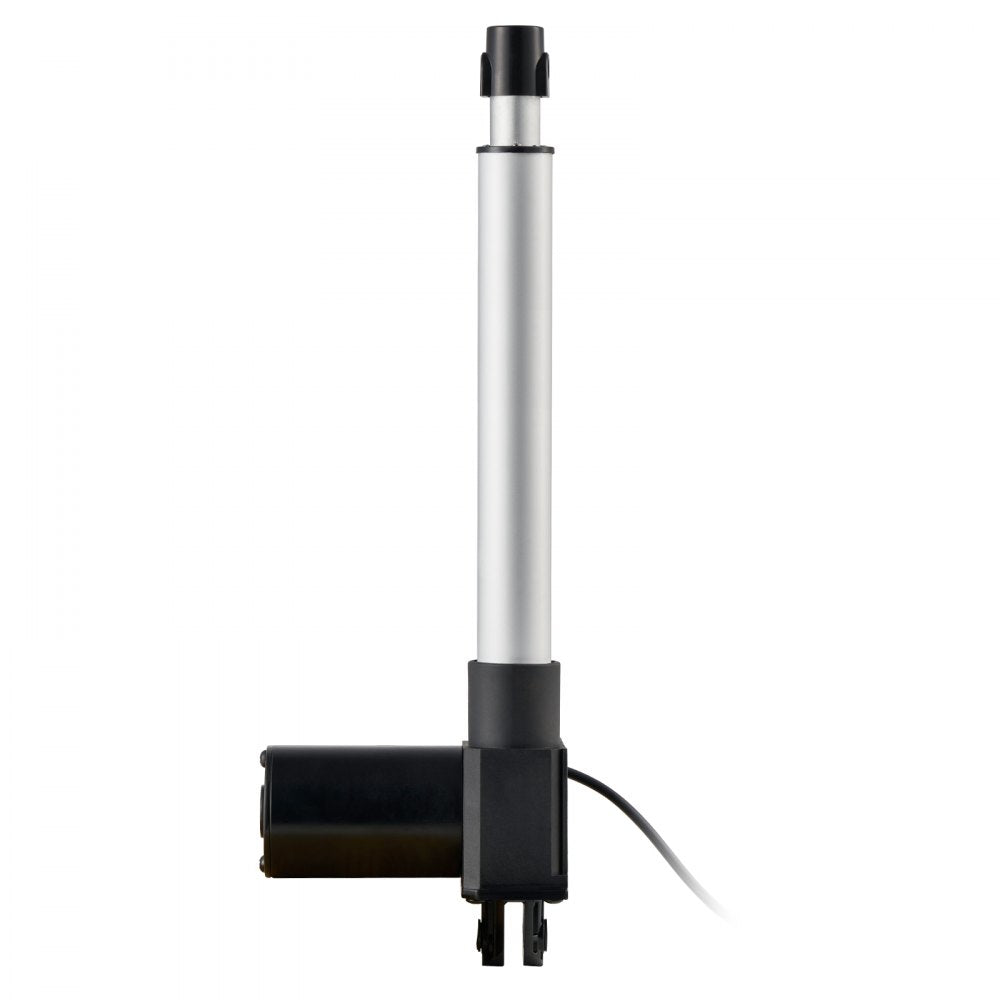

The Vevor 12V linear actuator is built for heavy-duty lifting and automation tasks with a maximum load capacity of 1320 lbs and a 10" stroke. It features an all-metal transmission mechanism, aluminum alloy construction, and quiet operation below 50 dB for dependable use in industrial, commercial, and home automation settings. With a travel speed of 0.19"/s and IP44 protection, it is designed to perform reliably in environments with dust and light splashing water. This actuator is suitable for applications such as electric doors, machinery, furniture adjustment, and transportation equipment.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Heavy-Duty Applications: VEVOR heavy duty linear actuator boasts 1320lbs/6000N powerful torque output, perfect for industrial automation and heavy-duty lifting system. It's designed to tackle high-torque and heavy-load tasks with ease, providing reliable performance in demanding environments.

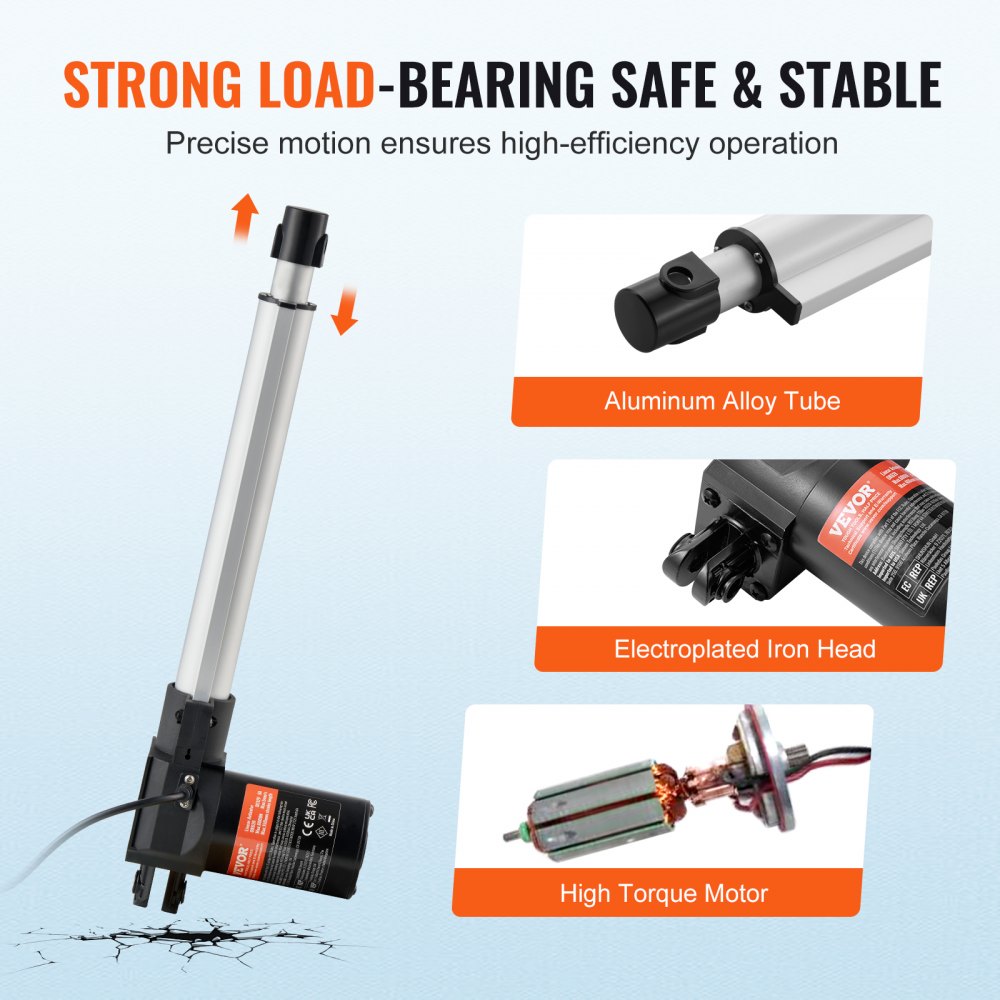

- Durable Construction: Reinforced design and an all-metal transmission mechanism ensure reliability even under high loads, making it suitable for a wide range of industrial and home automation applications. It's built to withstand long-term use and provide dependable operation.
- Versatility Unleashed: Get ready for a quiet revolution! VEVOR's linear motion actuators, with a noise level below 50db, are your go-to for furniture adjustment, automation systems, mechanical equipment, transportation and more. Enjoy seamless functionality wherever you need it!

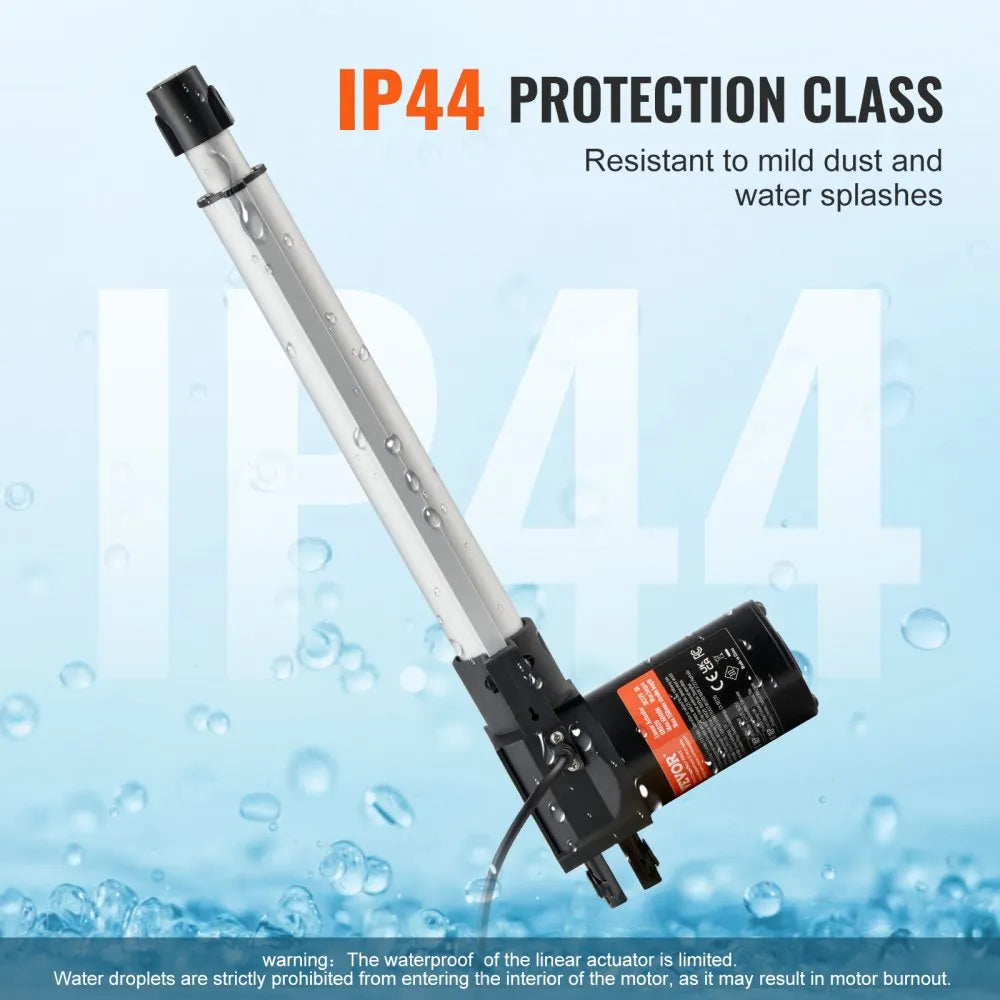

- IP44 Protection Rating: Featuring an IP44 protection rating, VEVOR 12V linear actuator excels in environments with dust, solid particles, and light-splashing water. Count on it to withstand dust and moisture in general industrial and household applications. (Caution: Water should not penetrate the interior of the motor)

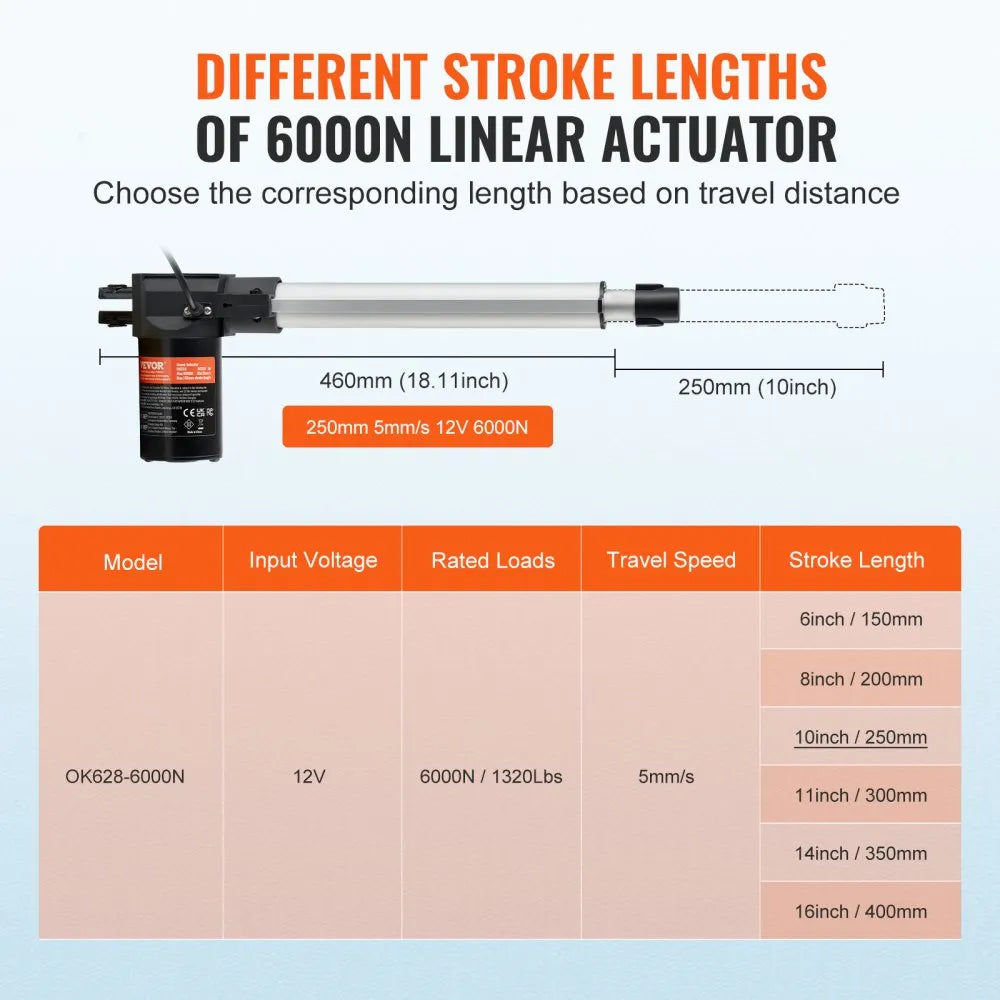

- Key Specifications: Stroke Length: 10 inch (250mm); Travel Speed: 0.19 in/s (5mm/s); Retracted Length: 18.11" (460mm); Extended Length: 28.11" (710mm); Current Draw: 8amps; Rated Voltage: DC12V; Duty Cycle: 10%.

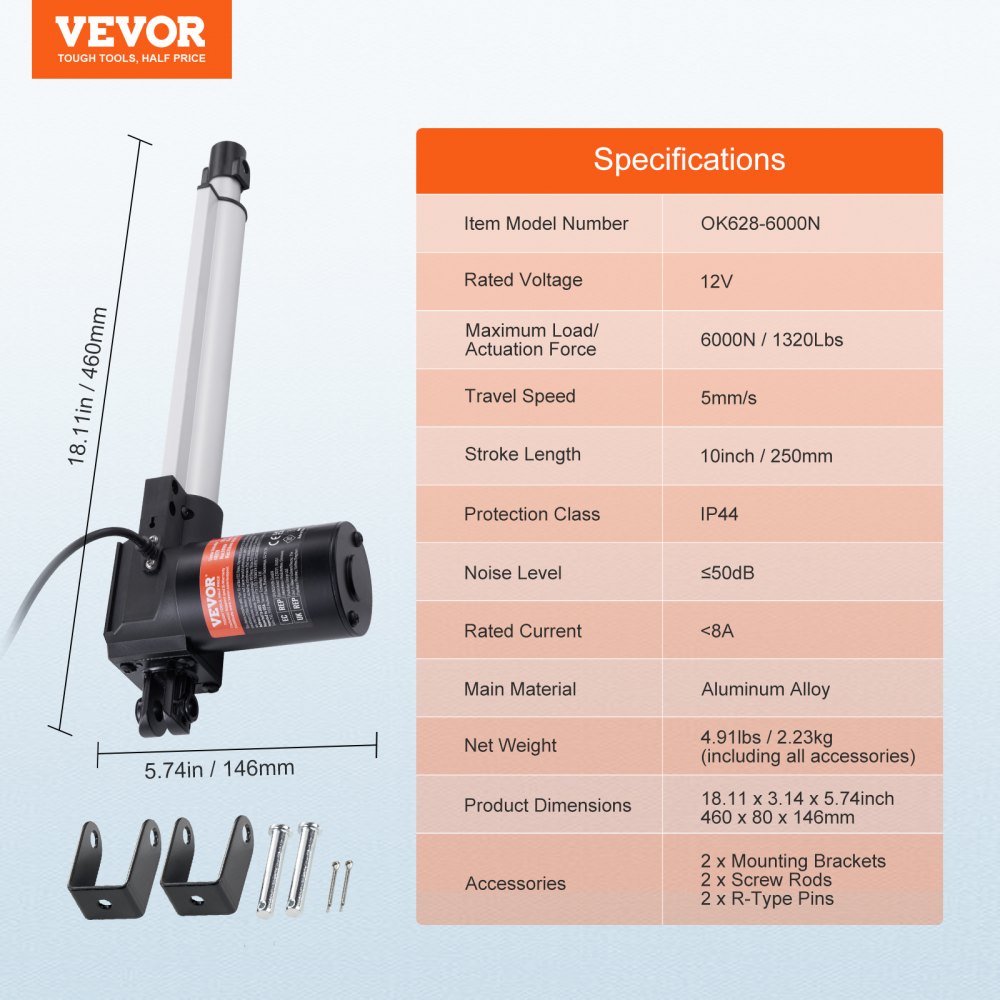

Specifications
| Item Model Number | OK628-6000N |
| Rated Voltage | DC12V |
| Maximum Load Actuation Force | 6000N |
| Travel Speed | 0.19"/s 5 mm/s |
| Stroke Length | 10" 250 mm |
| Protection Class | IP44 |
| Noise Level | ≤50 dB |
| Main Material | Aluminum Alloy |
| Net Weight | 4.91 lbs 2.23 kg including all accessories |
| Product Dimensions | 18.11 x 3.14 x 5.74" 460 x 80 x 146 mm |
| Retracted Length | 18.11" 460 mm |
| Extended Length | 28.11" 710 mm |
| Current Draw | 8 amps |
| Duty Cycle | 10% |

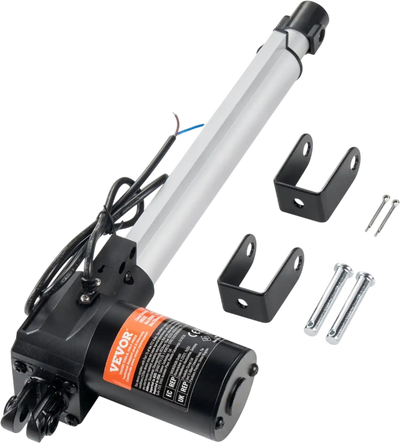

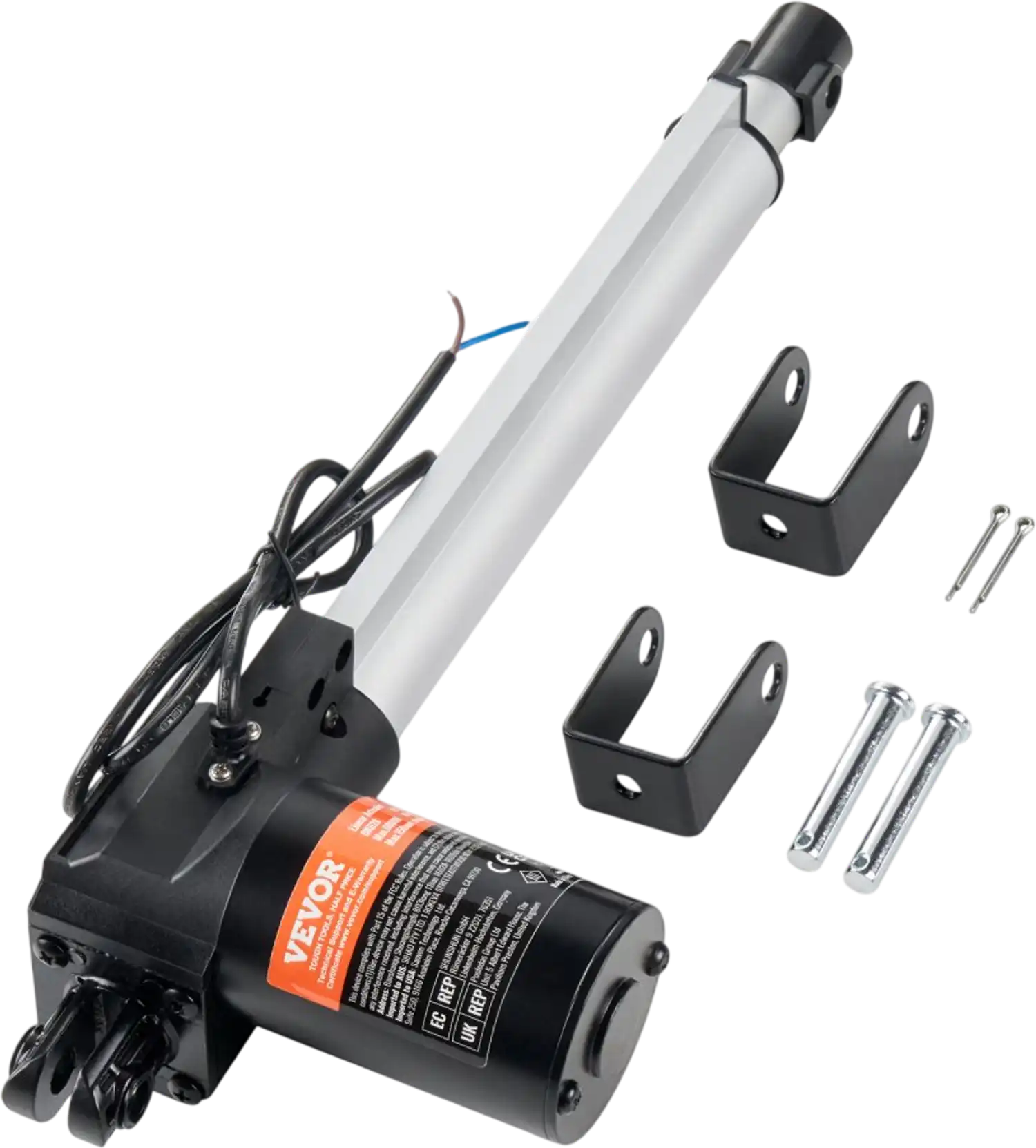

Package Contents
Linear actuator
Mounting bracket
Accessories
Warranty
This item comes with a 1 year factory warranty.
