Vevor Linear Actuator 12V 12" 330 lbs Linear Motion Actuator New
Product Overview

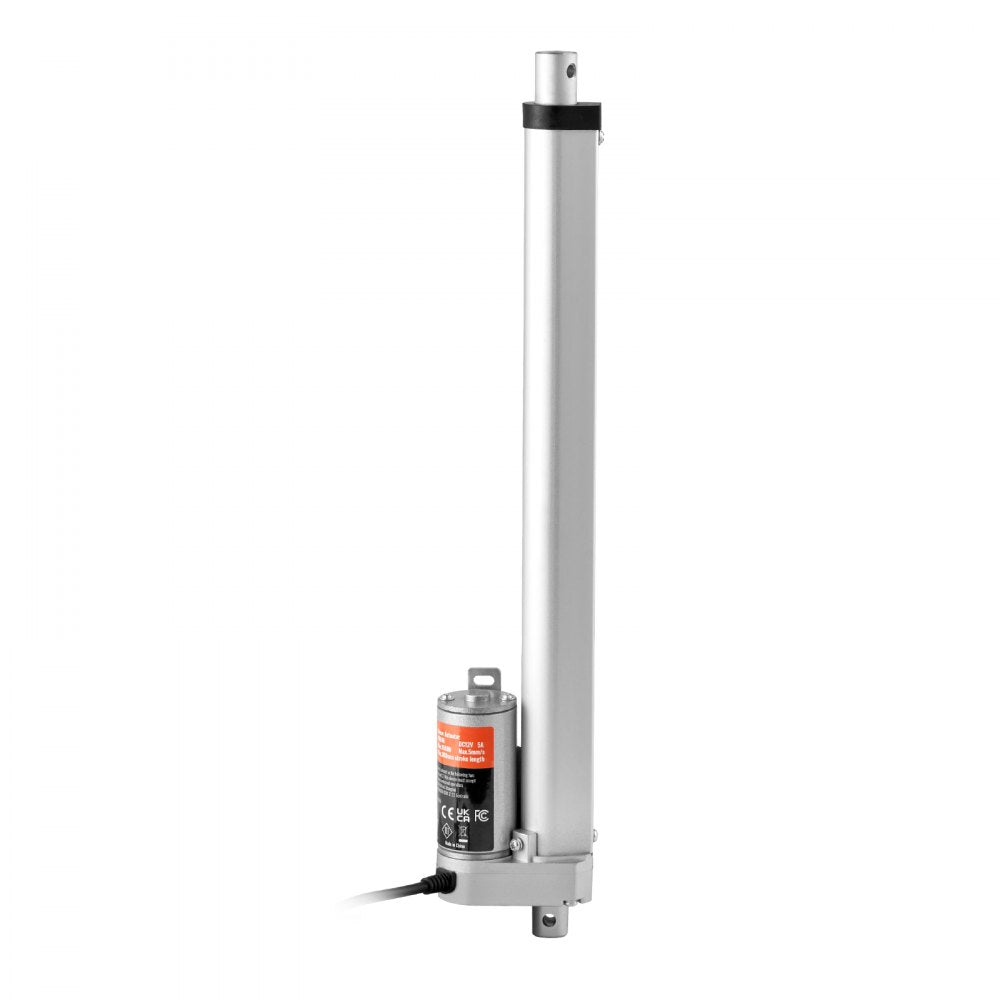

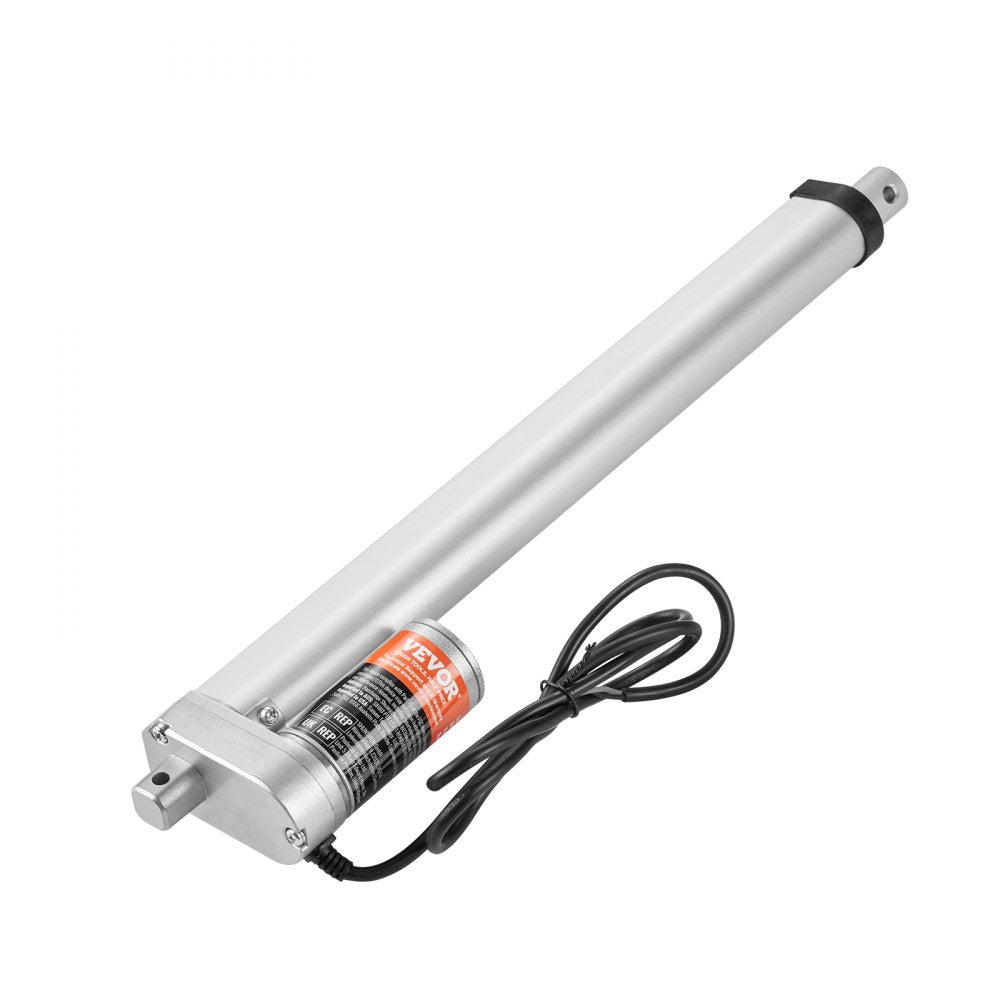

The Vevor 12V linear actuator delivers precise linear motion with a 12-inch stroke, 330 lbs of maximum load, and a stable travel speed of 0.19" per second. Its reinforced structure and all-metal transmission mechanism are designed for reliable performance under demanding use. The actuator is suitable for applications such as robotic arms, electric beds, furniture, automation systems, and mechanical equipment. An IP54 protection rating helps it perform in dusty or lightly wet environments. A mounting bracket is included for installation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Precision Motion Control: VEVOR linear actuator offers precise position control with 0.19"/s stable speed and 330lbs high torque output. Perfect for tasks requiring exact positioning, such as robotic arms or electric beds that demand precision.

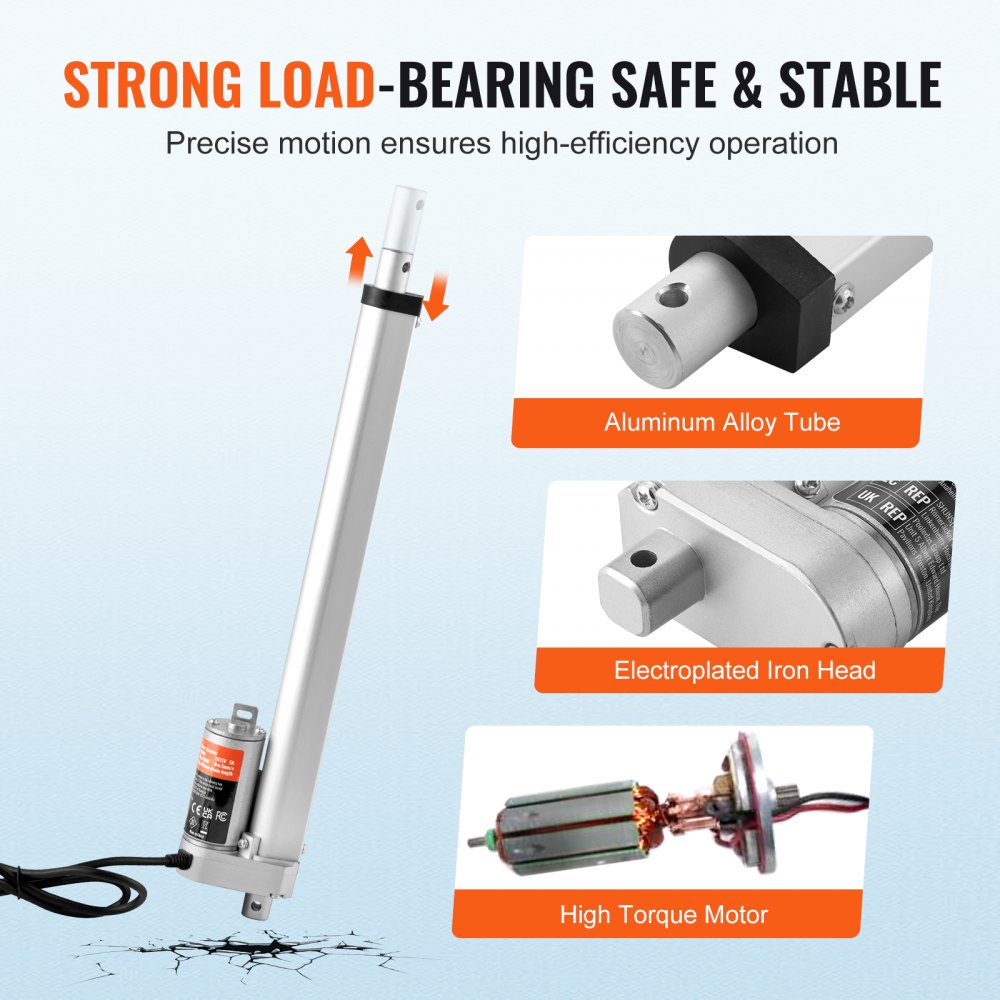

- Durable and Sturdy: With reinforced structure and all-metal transmission mechanism, our 12V linear actuator motor ensures reliability under high loads. Suitable for various industrial automation and laboratory equipment, it withstands the rigors of long-term use.

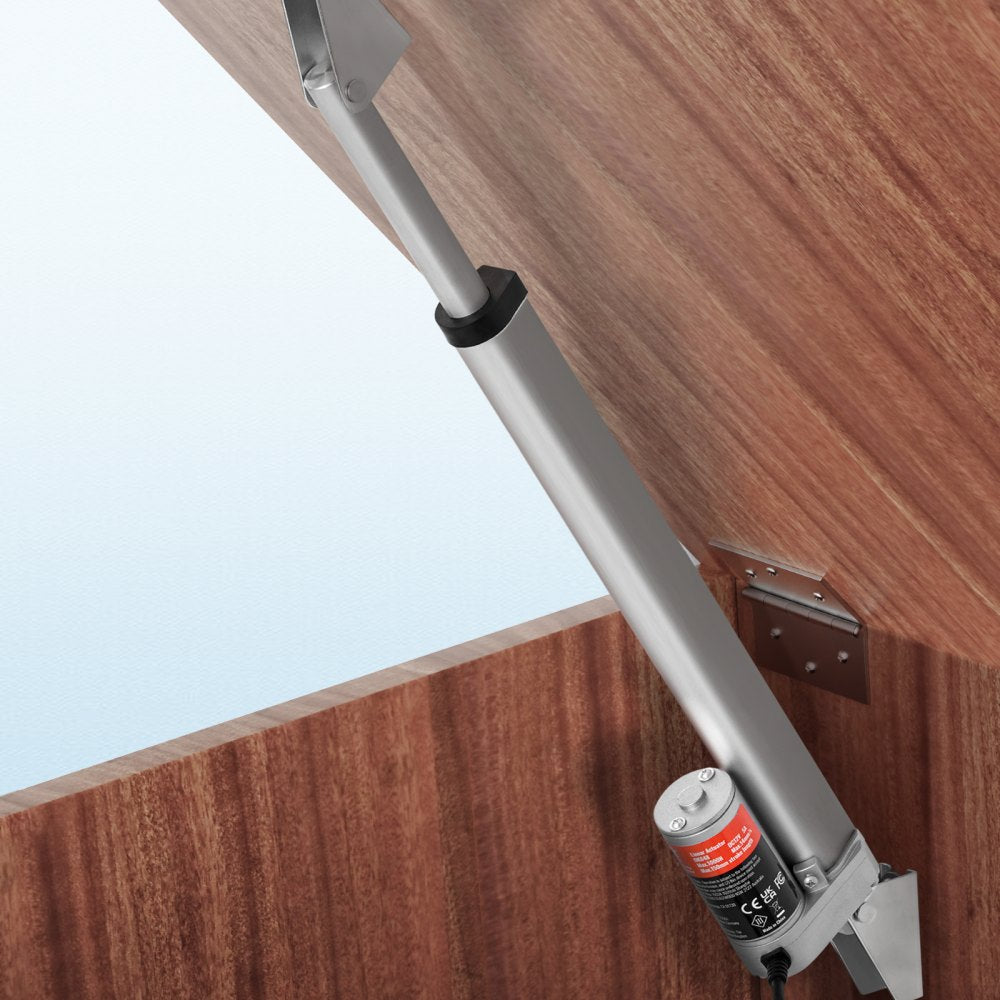

- Versatile Applications: With a noise level below 60db, our linear motion actuator seamlessly fits into various applications, from furniture to automation systems, mechanical equipment, transportation, and more. Enjoy versatile functionality wherever you need it!

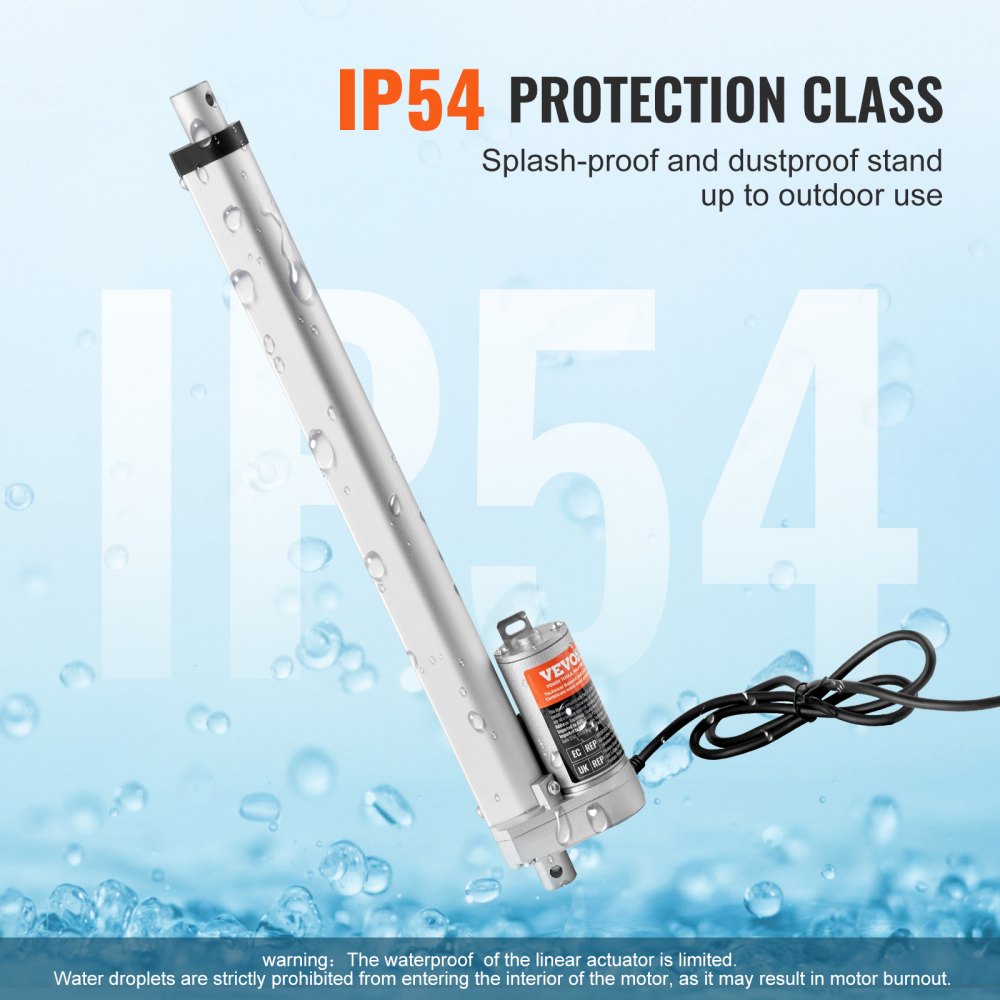

- IP54 Protection Rating: With an IP54 protection rating, VEVOR 12V linear actuator excels in harsh environmental conditions like dust, splashing water, and light humidity. Whether for outdoor or industrial use, it provides exceptional protection. (Caution: Water should not penetrate the interior of the motor)

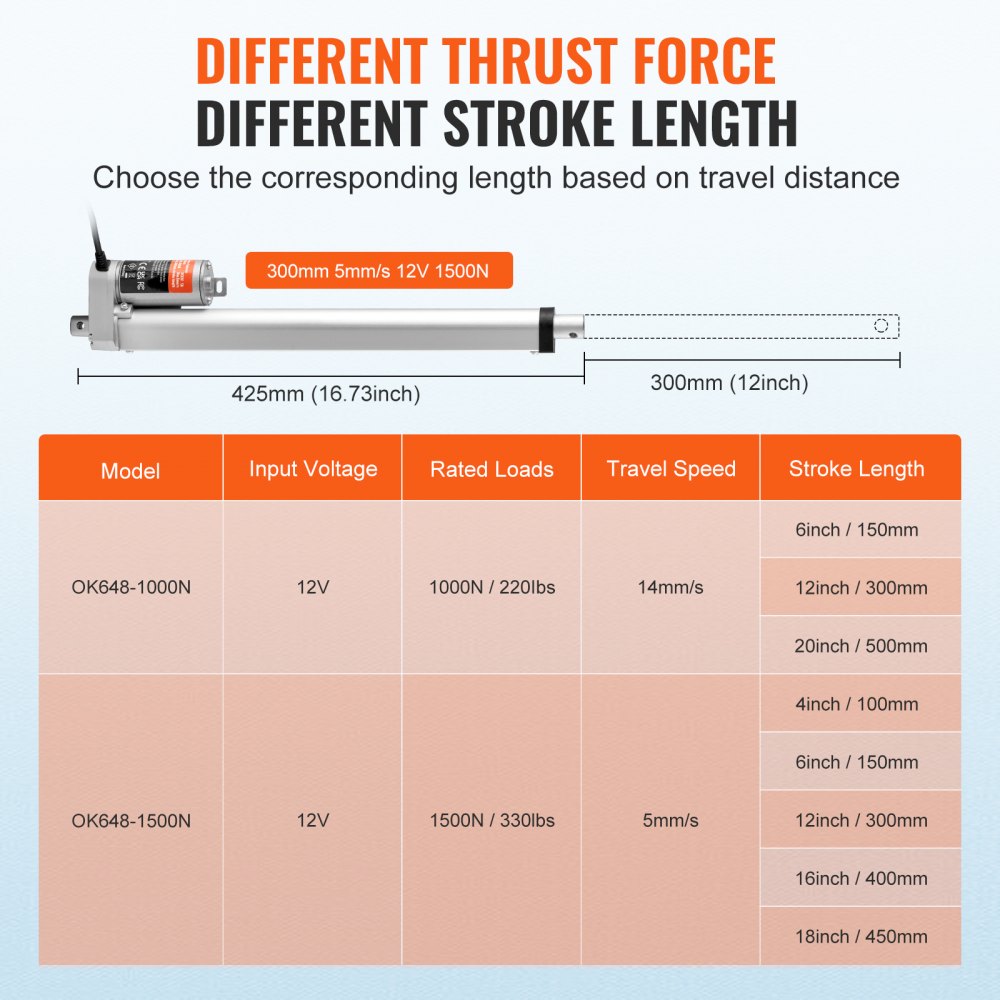

- Key Specifications: Stroke Length: 12 inch (300mm); Travel Speed: 0.19 in/s (5mm/s); Retracted Length: 16.73" (425mm); Extended Length: 28.73" (725mm); Current Draw: 5amps; Rated Voltage: DC12V; Duty Cycle: 25%.

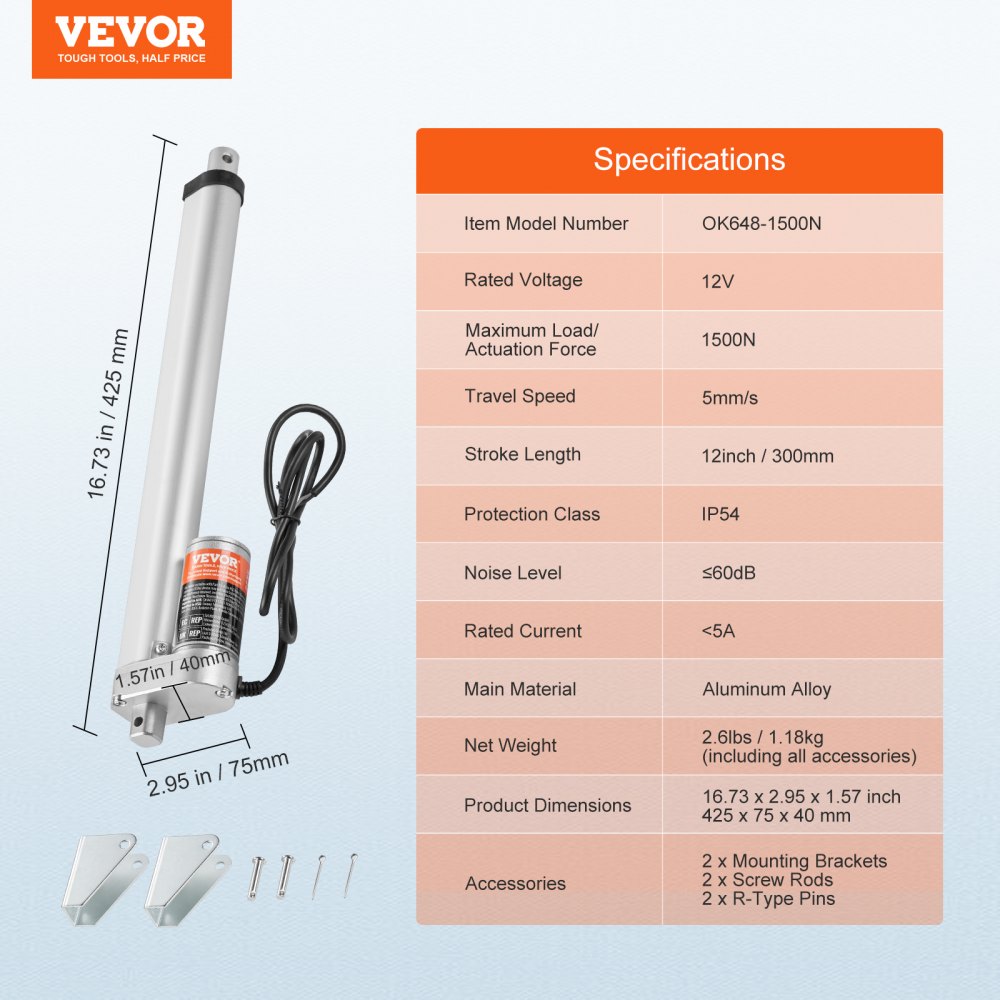

Specifications
| Item Model Number | OK648-1500N |
| Rated Voltage | DC12V |
| Maximum Load/Actuation Force | 1500N / 330 lbs |
| Travel Speed | 0.19"/s / 5 mm/s |
| Stroke Length | 12" / 300 mm |
| Protection Class | IP54 |
| Noise Level | ≤60 dB |
| Main Material | Aluminum Alloy |
| Current Draw | 5 amps |
| Duty Cycle | 25% |
| Net Weight | 2.6 lbs / 1.18 kg |
| Retracted Length | 16.73" / 425 mm |
| Extended Length | 28.73" / 725 mm |
| Product Dimensions | 16.73 x 2.95 x 1.57" / 425 x 75 x 40 mm |

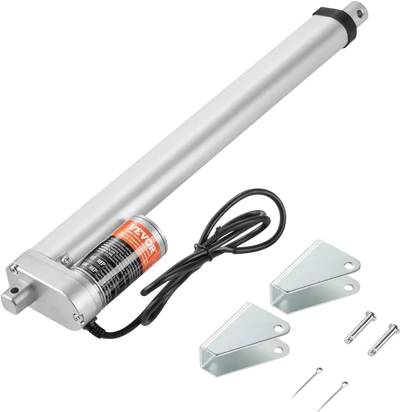

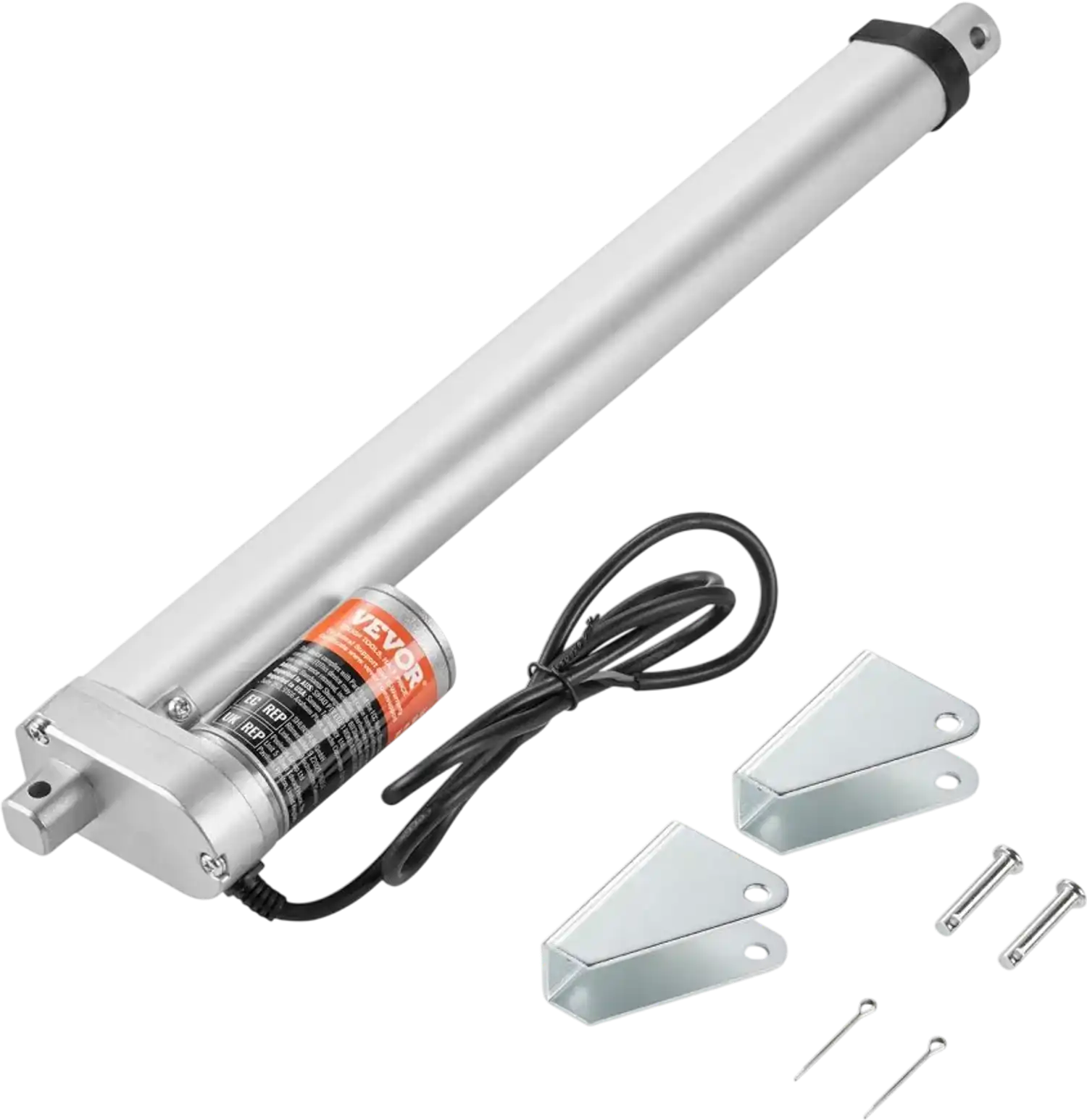

Package Contents
Linear actuator
Mounting bracket
User manual
Warranty
This item comes with a 1 year factory warranty.
