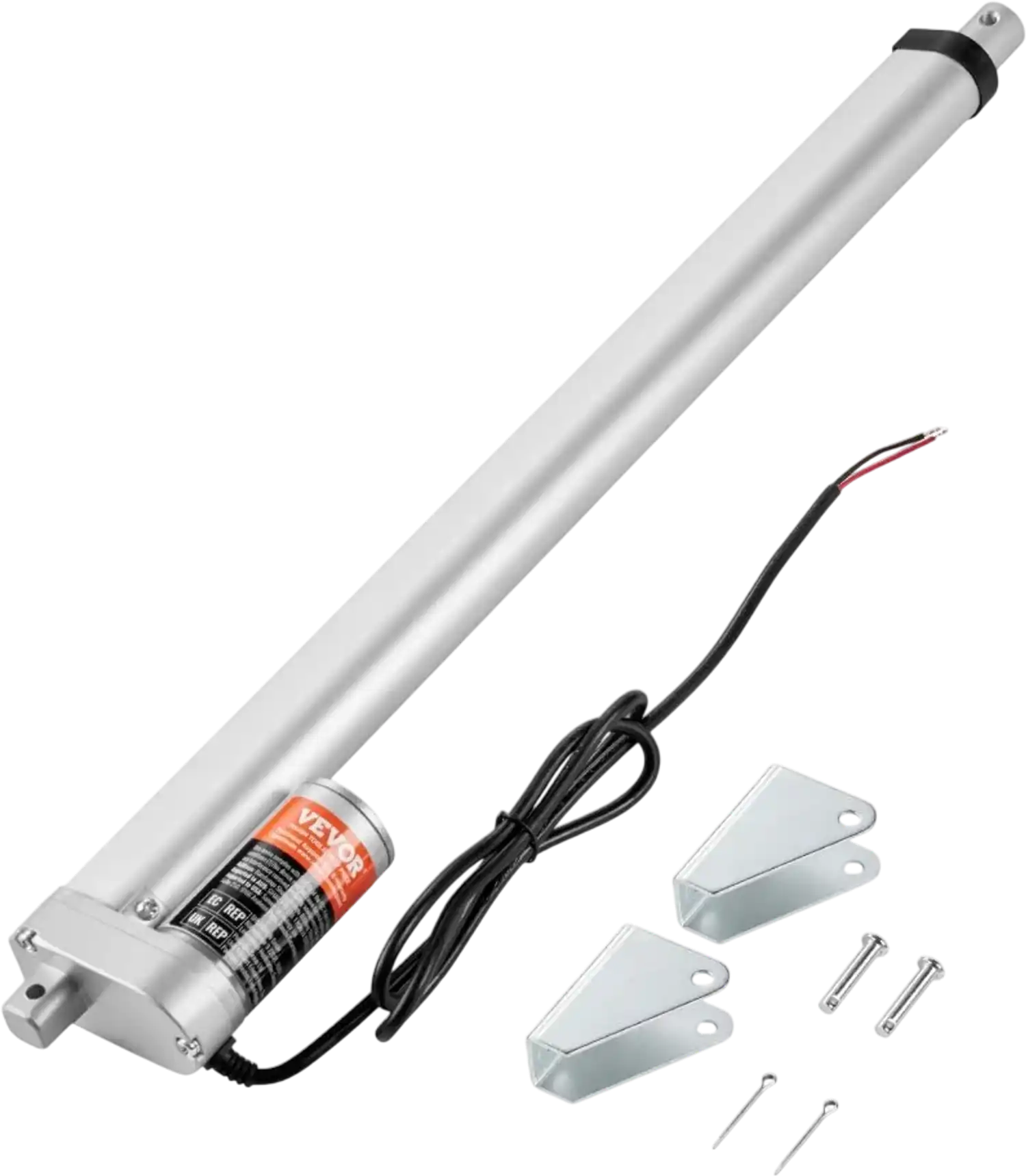

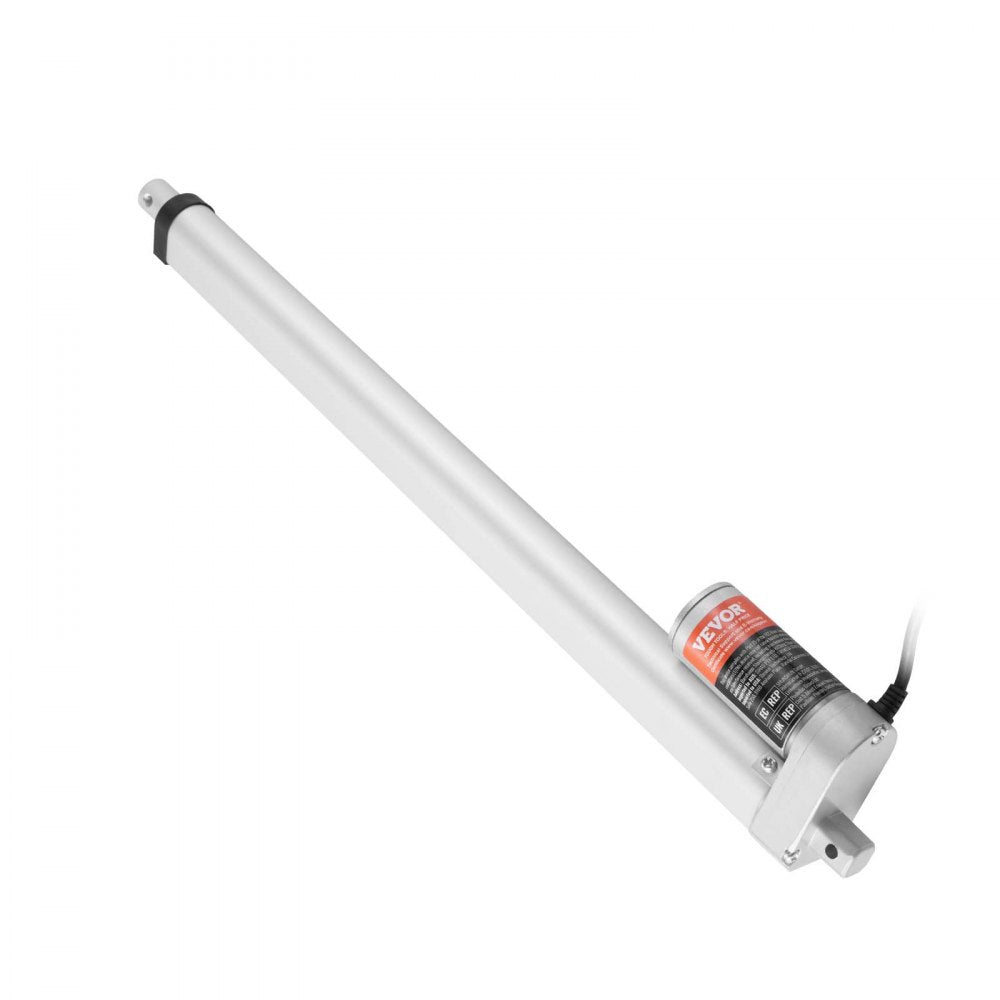

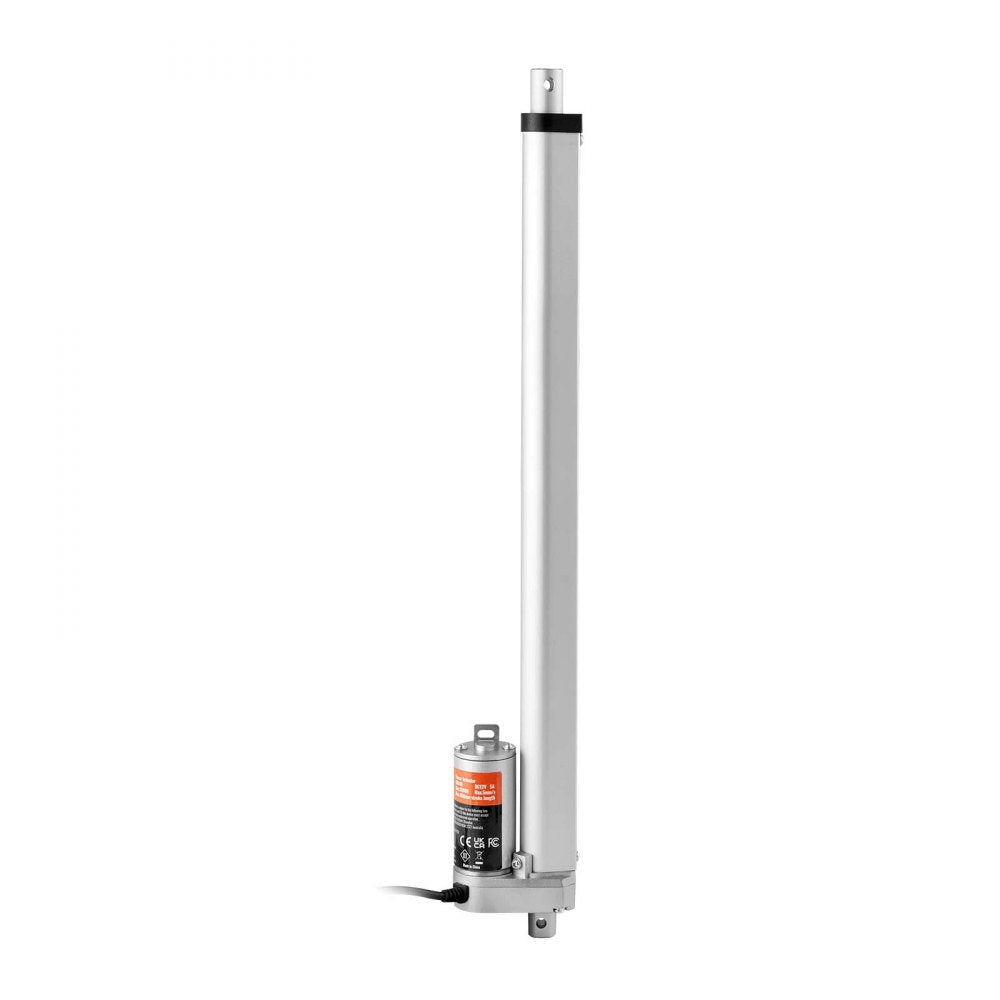

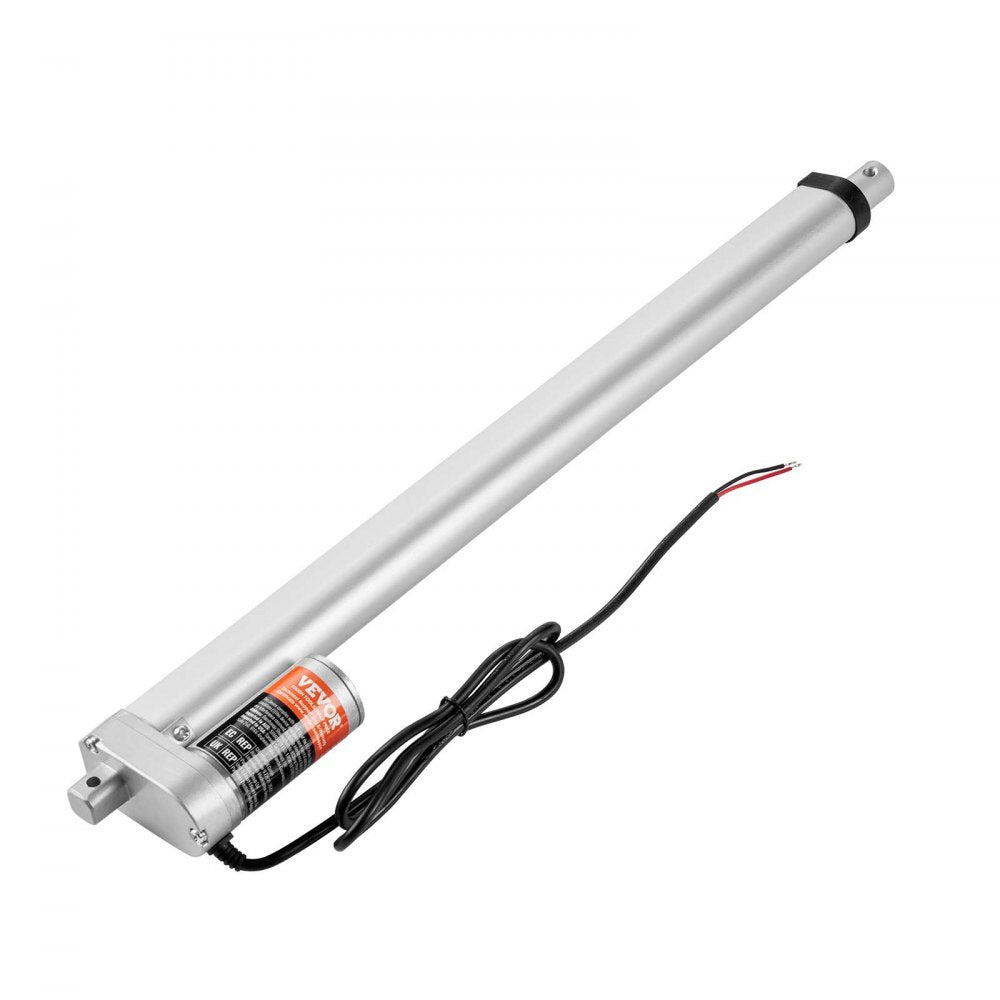

Vevor Linear Actuator 12V 18" 330 lbs High Load with Mounting Bracket New

Product Overview

The Vevor 12V linear actuator is designed for precise linear motion in automation, furniture, and mechanical equipment applications. It delivers up to 330 lbs of force with a stable travel speed of 0.19" per second for controlled positioning. Its reinforced all-metal transmission mechanism and aluminum alloy construction support reliable long-term performance. The IP54 protection rating helps guard against dust and light water exposure, while the included mounting bracket supports easier installation.
vendor logo
divider
authorized dealer
checkmark

Brand new

checkmark

1 year factory warranty

checkmark

Manufacturer direct shipping from CA, NJ, & TX

checkmark

Authorized Vevor Dealer

Features

  • Precision Motion Control: VEVOR linear actuator offers precise position control with 0.19"/s stable speed and 330lbs high torque output. Perfect for tasks requiring exact positioning, such as robotic arms or electric beds that demand precision.

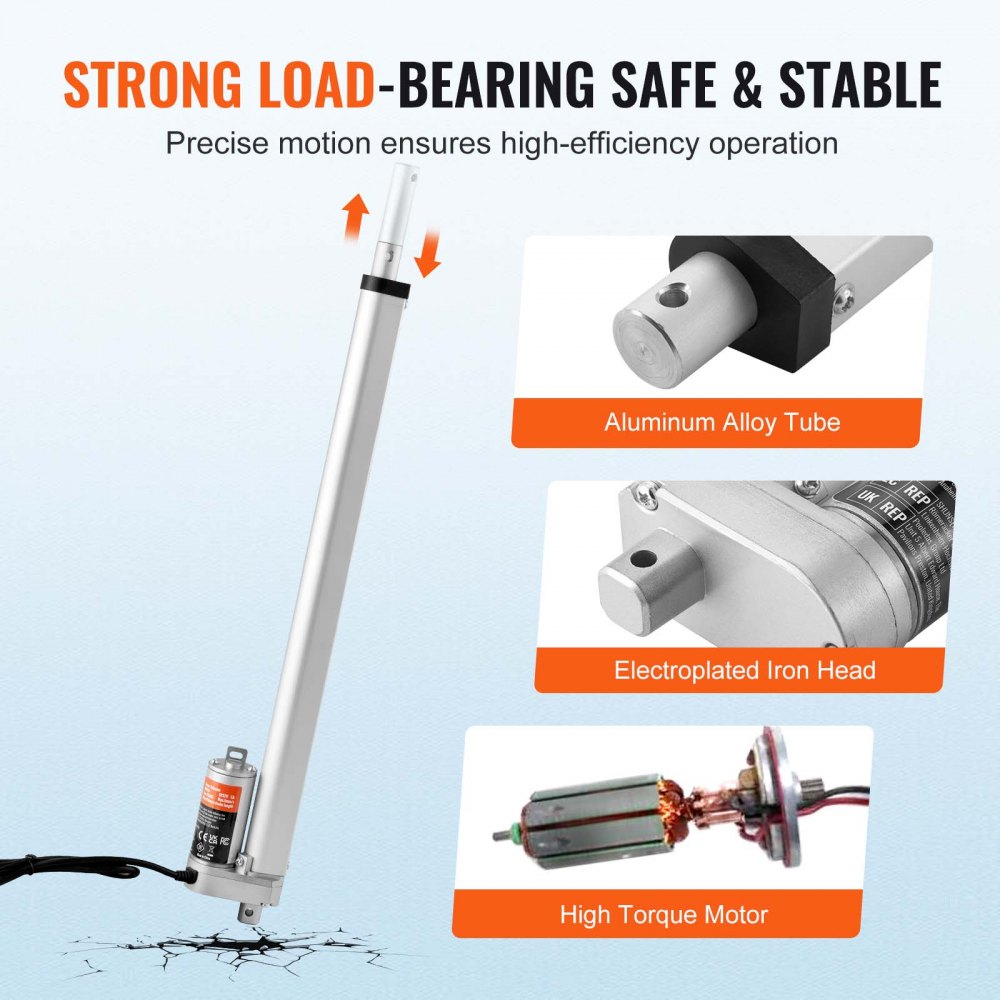

  • Durable and Sturdy: With reinforced structure and all-metal transmission mechanism, our 12V linear actuator motor ensures reliability under high loads. Suitable for various industrial automation and laboratory equipment, it withstands the rigors of long-term use.

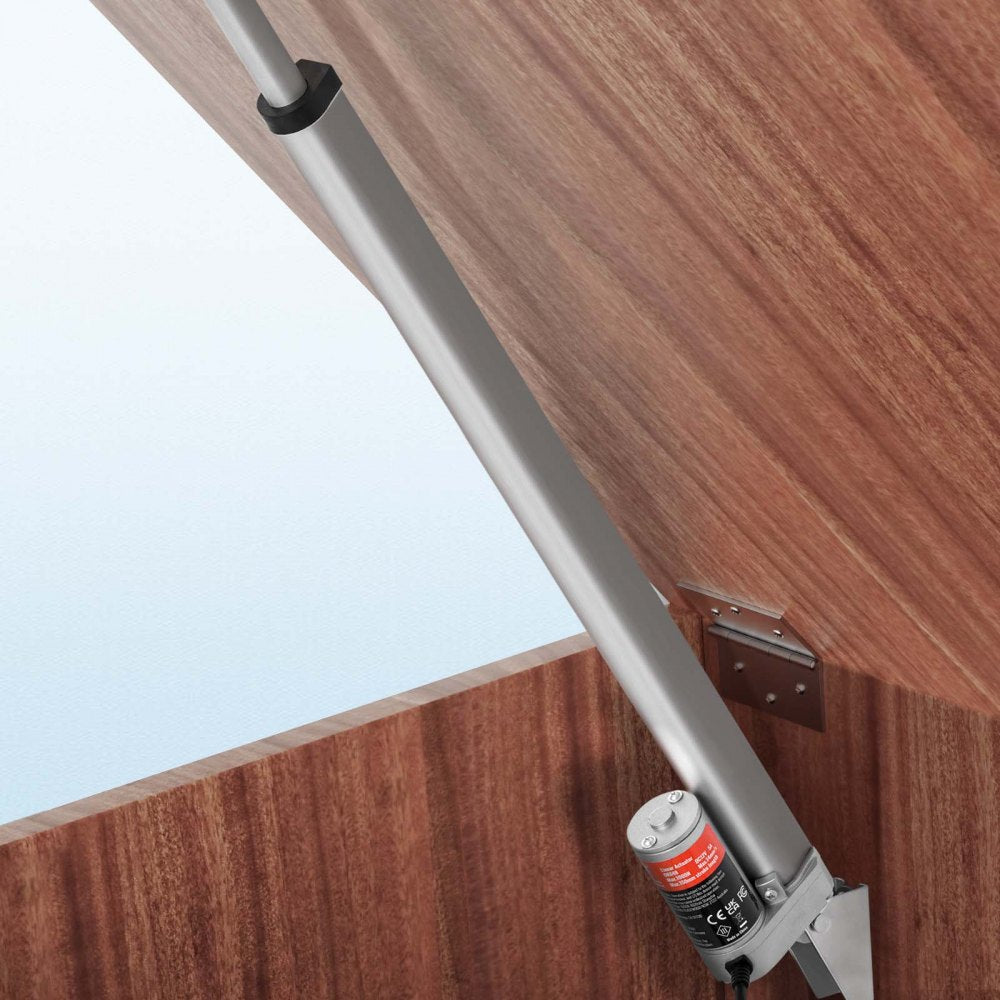

  • Versatile Applications: With a noise level below 60db, our linear motion actuator seamlessly fits into various applications, from furniture to automation systems, mechanical equipment, transportation, and more. Enjoy versatile functionality wherever you need it!

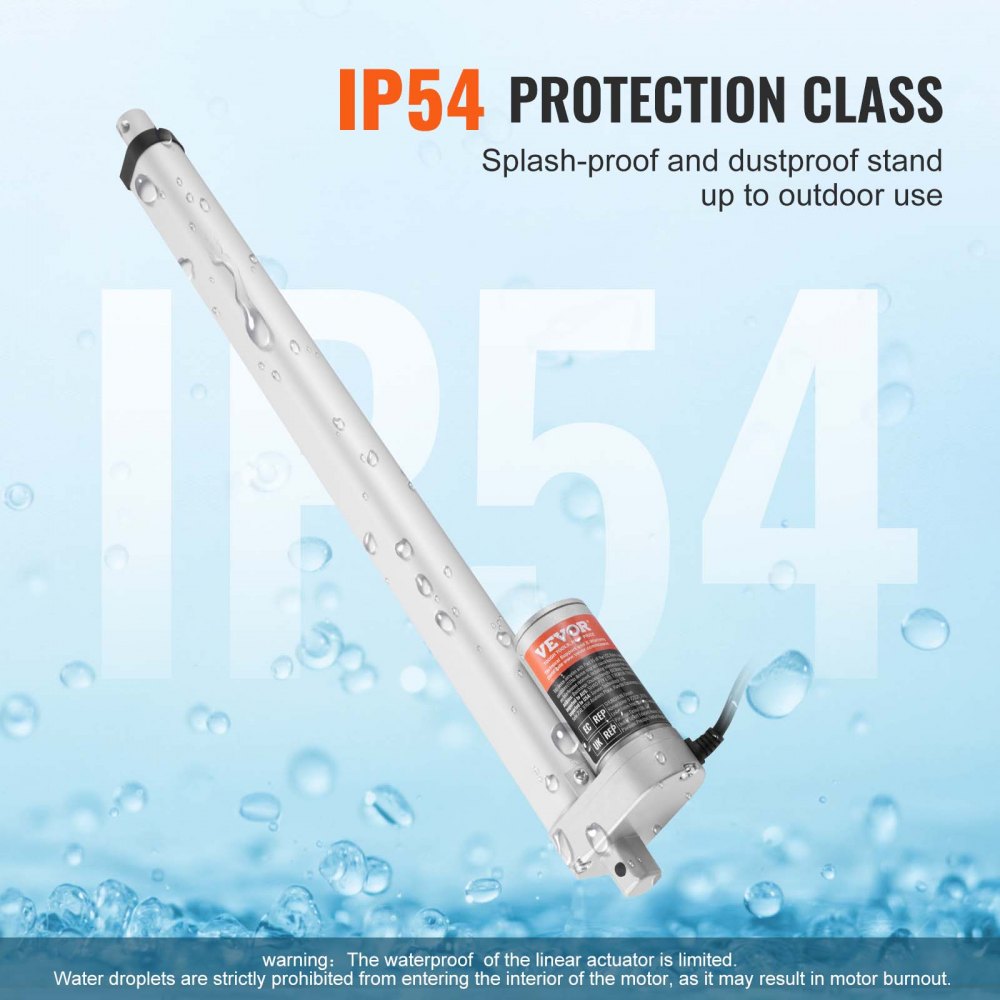

  • IP54 Protection Rating: With an IP54 protection rating, VEVOR 12V linear actuator excels in harsh environmental conditions like dust, splashing water, and light humidity. Whether for outdoor or industrial use, it provides exceptional protection. (Caution: Water should not penetrate the interior of the motor)

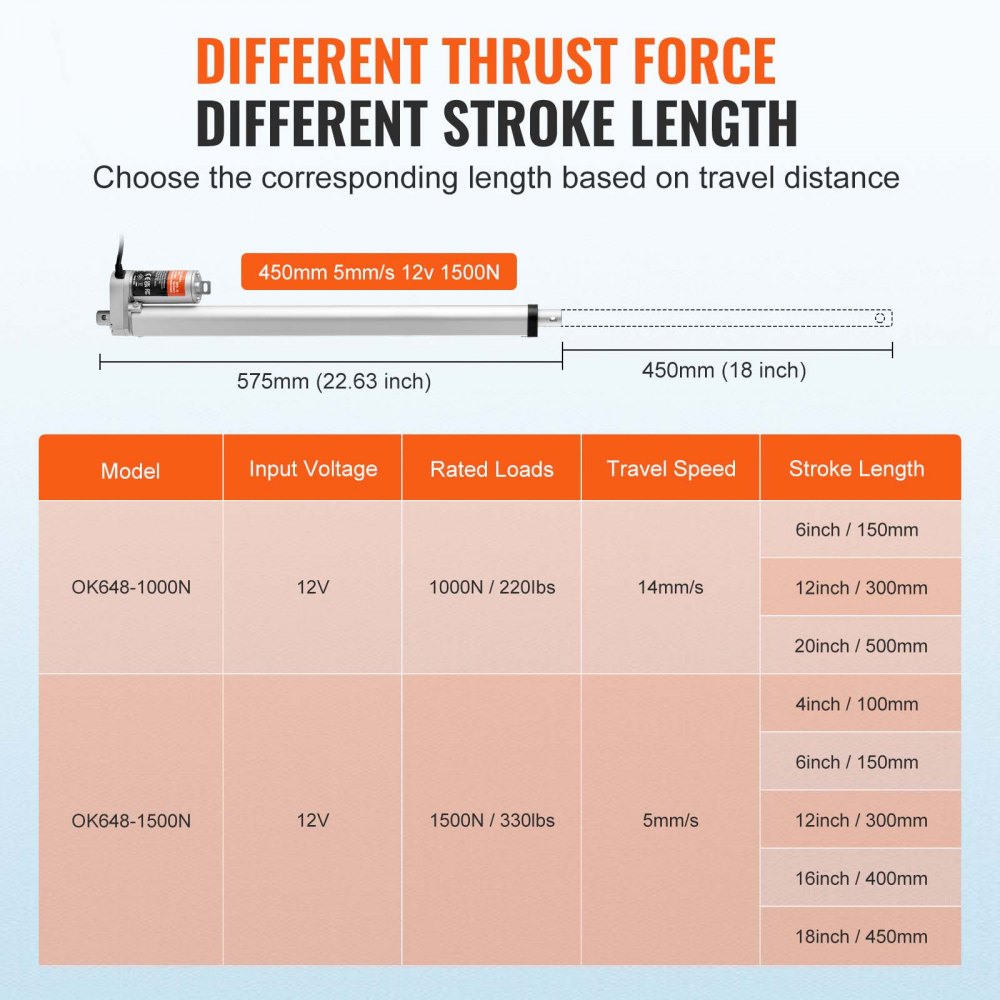

  • Key Specifications: Stroke Length: 18 inch (450mm); Travel Speed: 0.19 in/s (5mm/s); Retracted Length: 22.63" (575mm); Extended Length: 40.63" (1025mm); Current Draw: 5amps; Rated Voltage: DC12V; Duty Cycle: 25%.

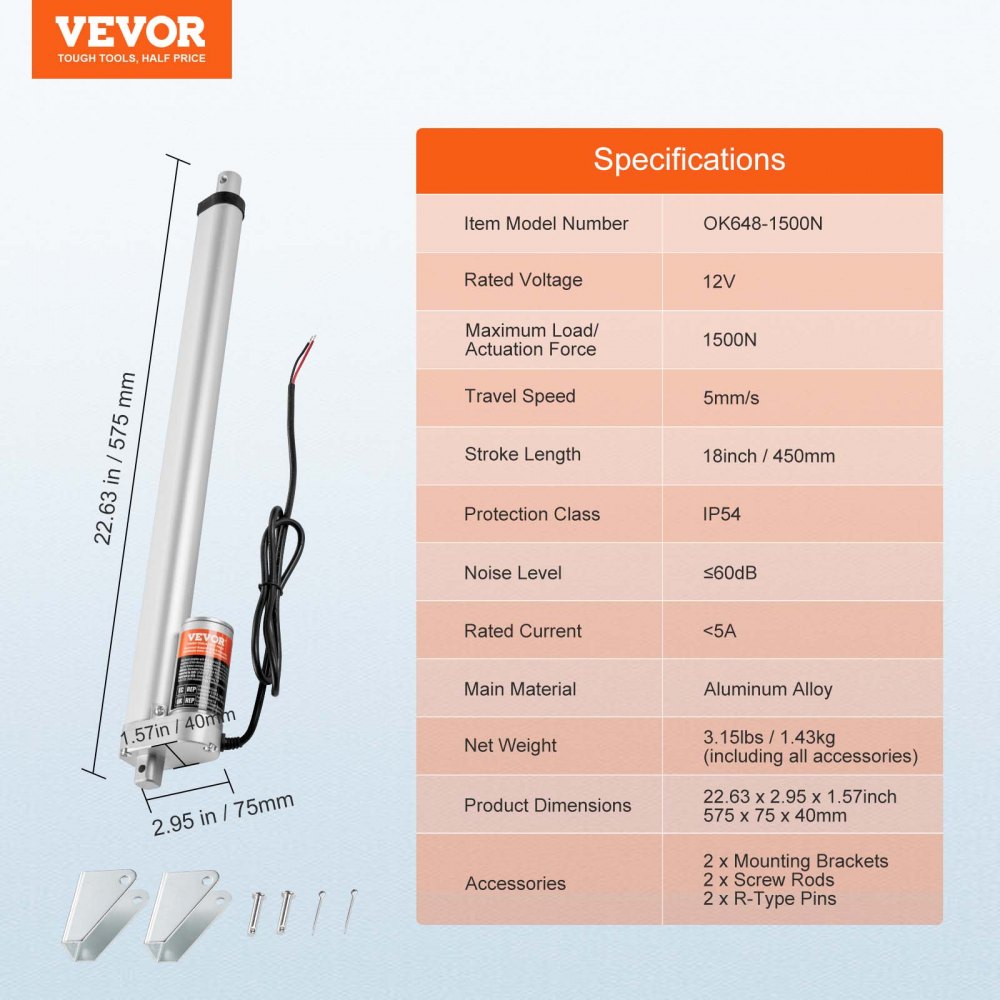

Specifications

Item Model Number OK648-1500N
Rated Voltage DC12V
Maximum Load/Actuation Force 1500N
Maximum Load Capacity 330 lbs
Travel Speed 0.19 inch/s / 5 mm/s
Stroke Length 18 inch / 450 mm
Protection Class IP54
Noise Level ≤60dB
Main Material Aluminum Alloy
Current Draw 5 amps
Duty Cycle 25%
Net Weight 3.15 lbs / 1.43 kg including all accessories
Retracted Length 22.63" / 575 mm
Extended Length 40.63" / 1025 mm
Product Dimensions 22.63 x 2.95 x 1.57" / 575 x 75 x 40 mm

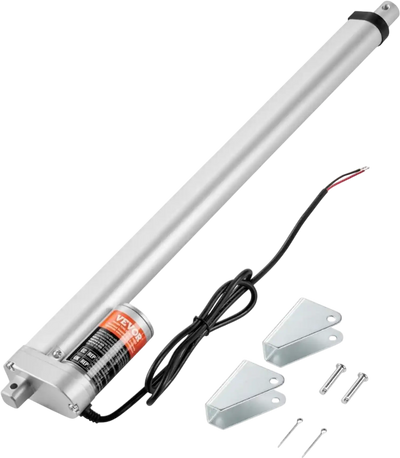

Package Contents

Linear actuator

Mounting bracket

Accessories

Warranty

vendor logo
divider
authorized dealer

This item comes with a 1 year factory warranty.
