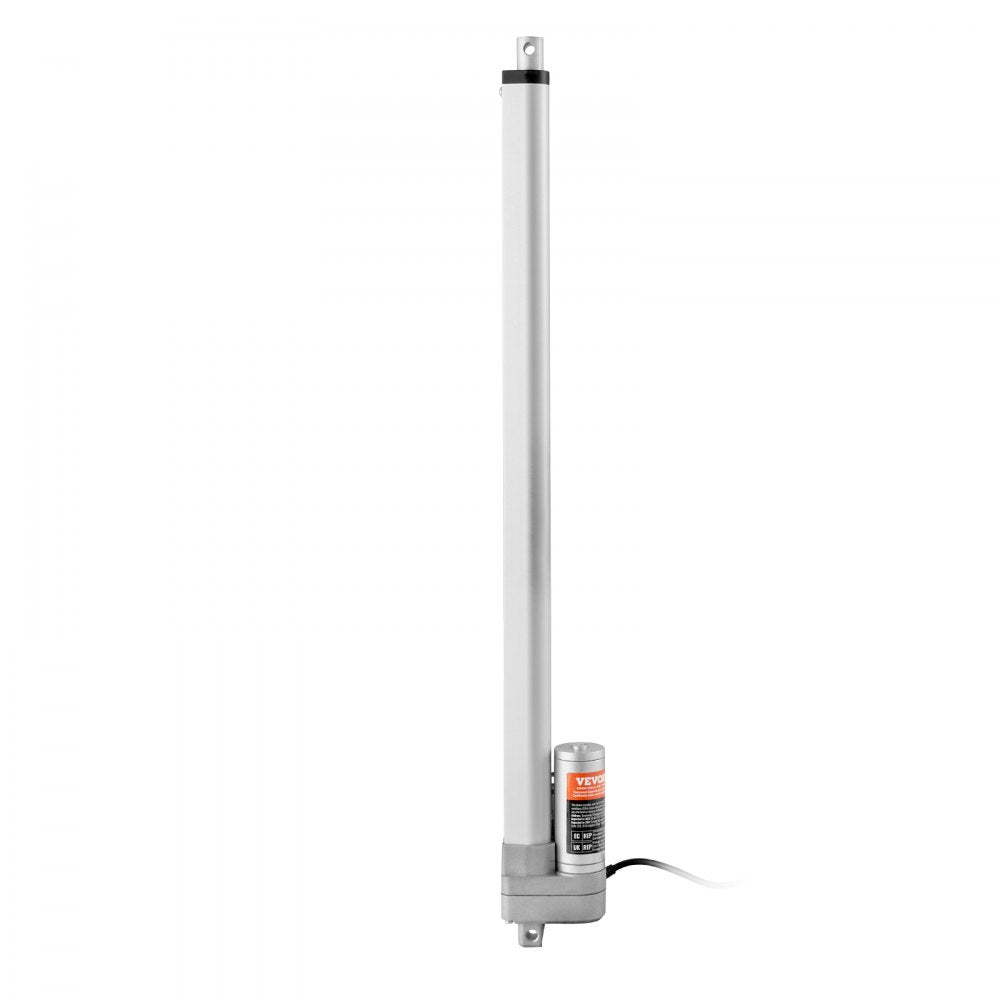

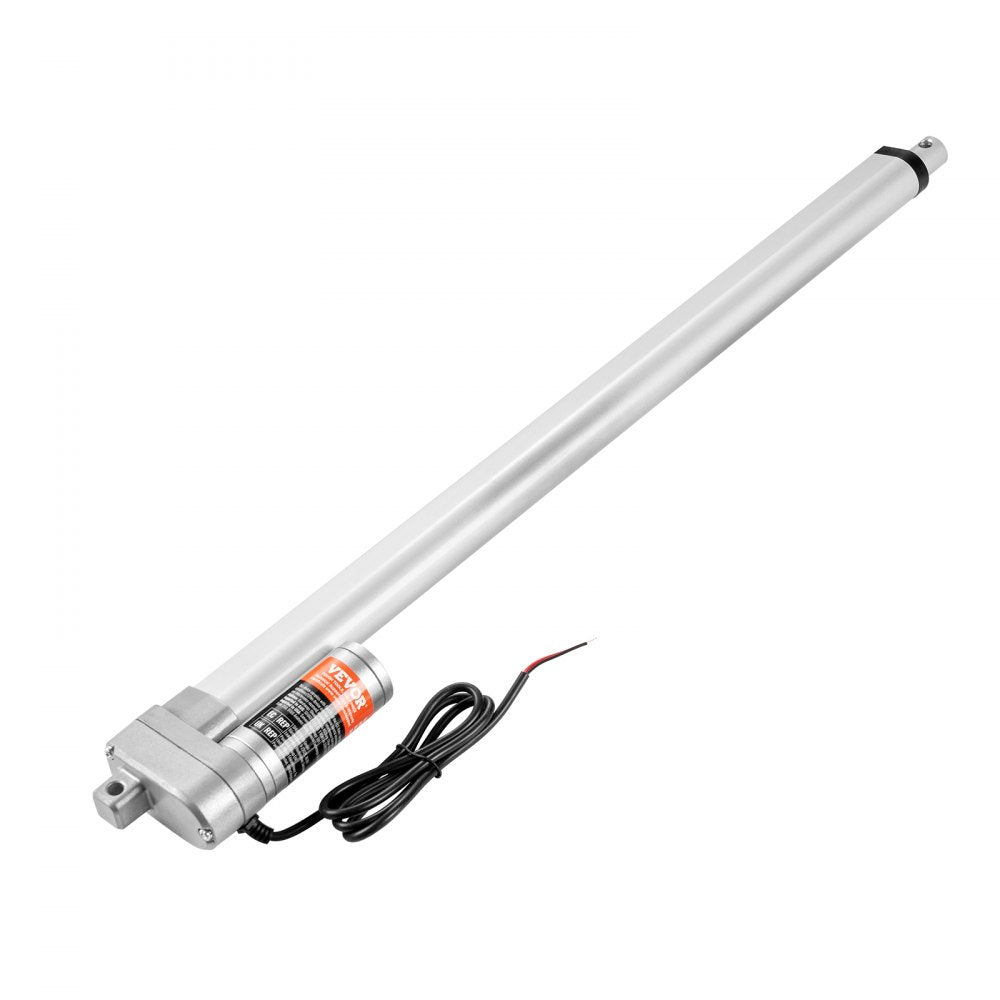

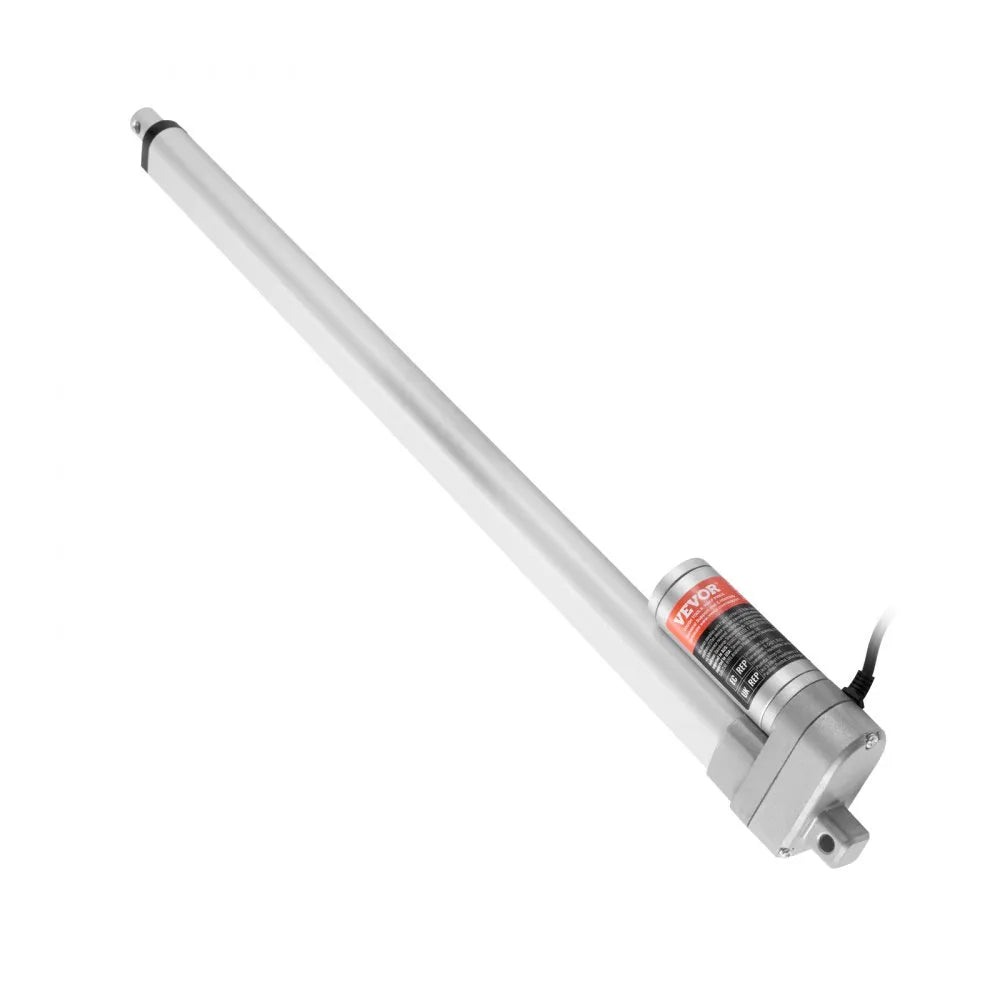

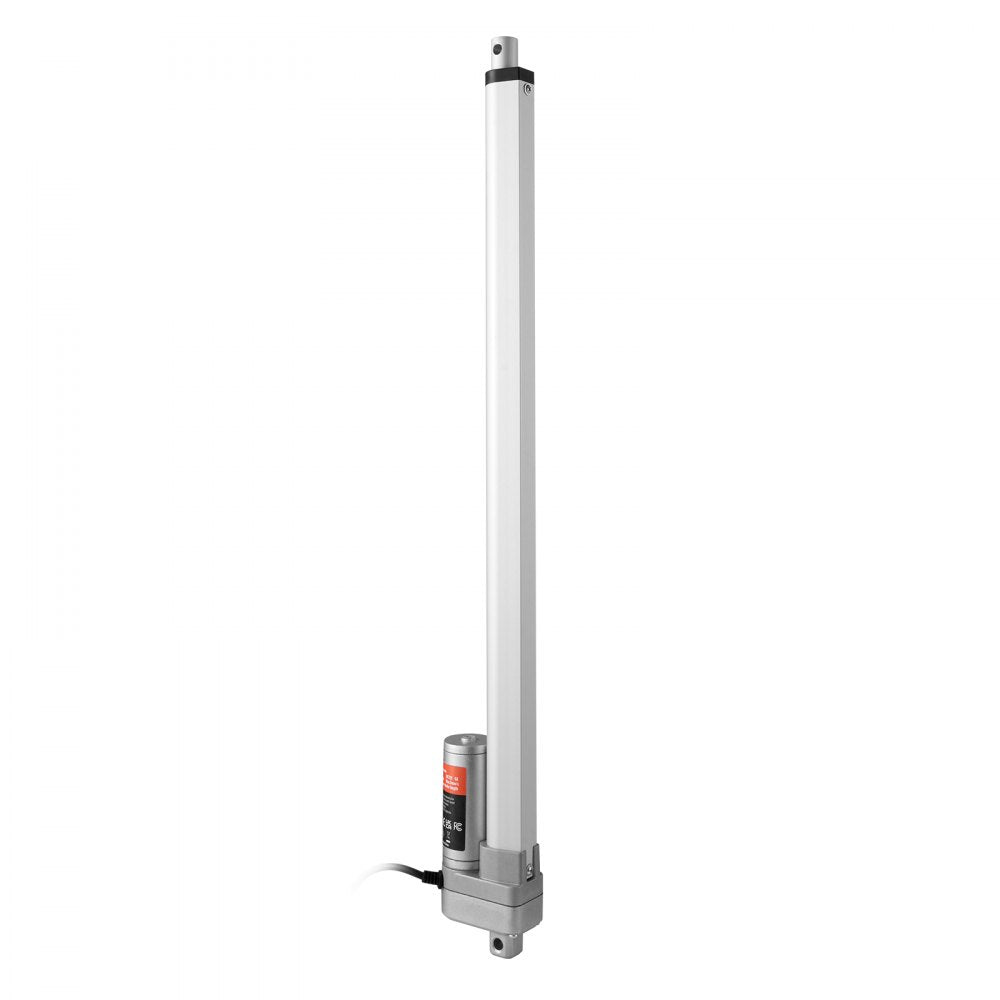

Vevor Linear Actuator 12V 20" Waterproof IP65 660lbs 0.19"/s with Mounting Bracket New
Manufacturer: Vevor
SKU: FHXXXZXQ20IN3WV1GV9
Extended Itinerary Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 71.90
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
Vevor Linear Actuator 12V 20" Waterproof IP65 660lbs 0.19"/s with Mounting Bracket New
Product Overview

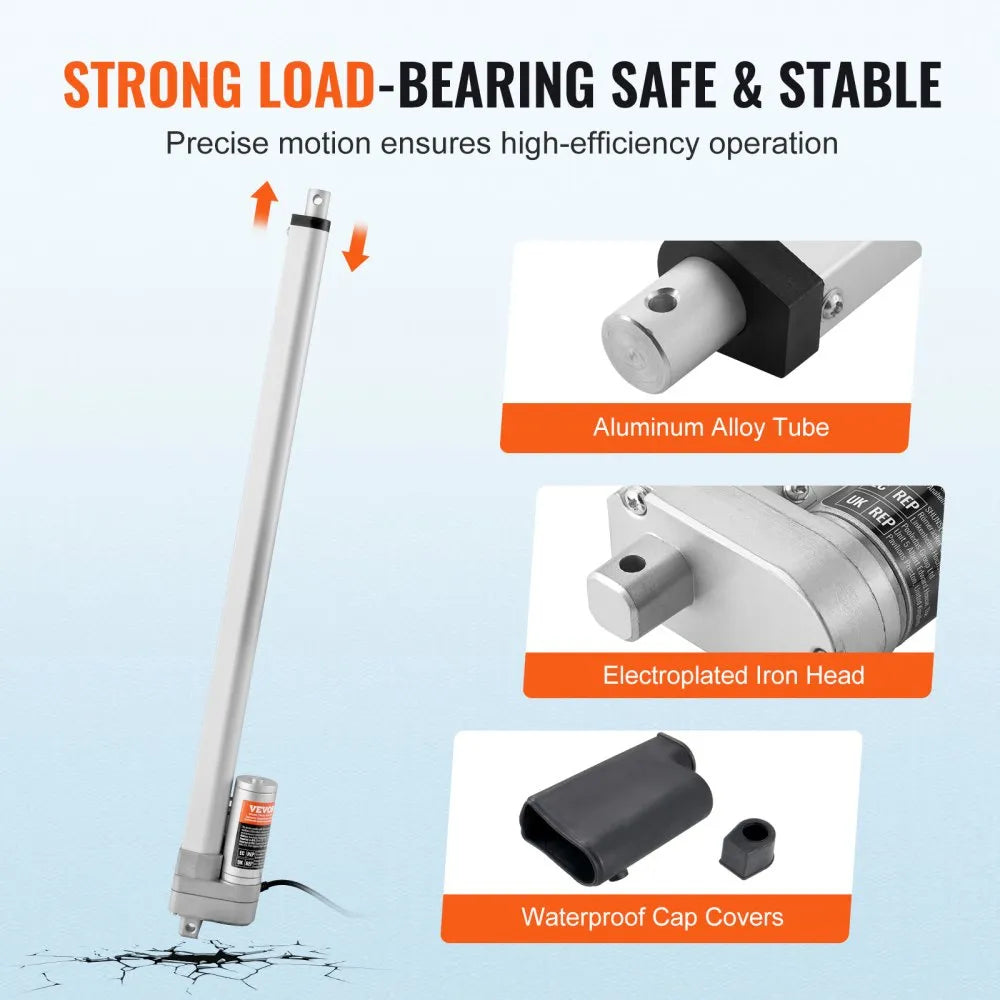

The Vevor 12V linear actuator is designed for automation tasks that require dependable force, weather resistance, and extended travel. It features a 20" stroke, 660 lbs / 3000N load capacity, and IP65 protection for resistance to dust and water. Its aluminum alloy construction and low-noise operation make it suitable for agricultural equipment, industrial automation, furniture, and outdoor systems. The actuator is built for smooth linear motion and includes a mounting bracket for installation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

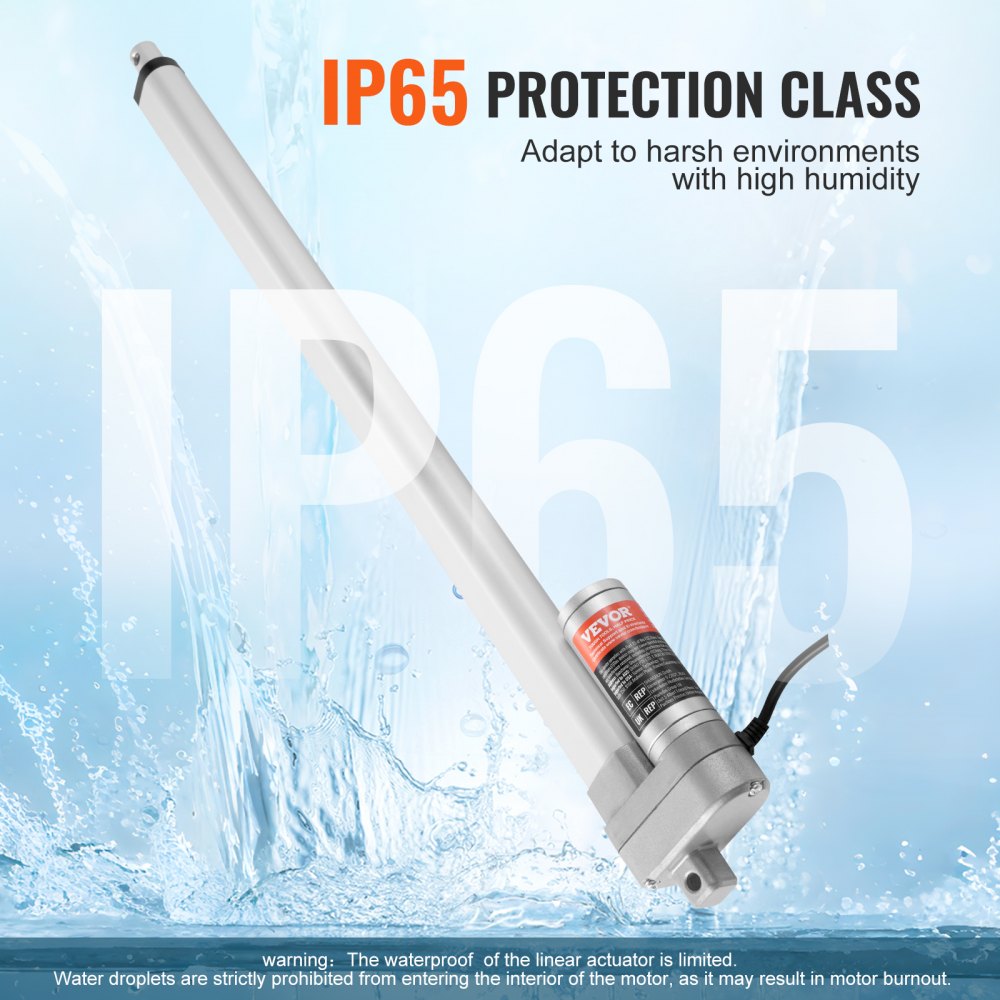

- IP65 Protection Rating: Featuring an IP65 protection rating, VEVOR's 12V linear actuator delivers resistance to dust and water. (For optimal performance and extended product life, we recommend avoiding prolonged exposure to outdoor conditions.)
- High Torque Output: With a torque output of 660lbs/3000N, our linear motion actuator is perfect for tasks requiring substantial torque, such as agricultural equipment, construction machinery, and industrial automation.
- Extended Range of Motion: With a generous 20-inch (500mm) stroke, our electric linear actuator provides a longer range of motion, making it suitable for tasks requiring extensive movement.

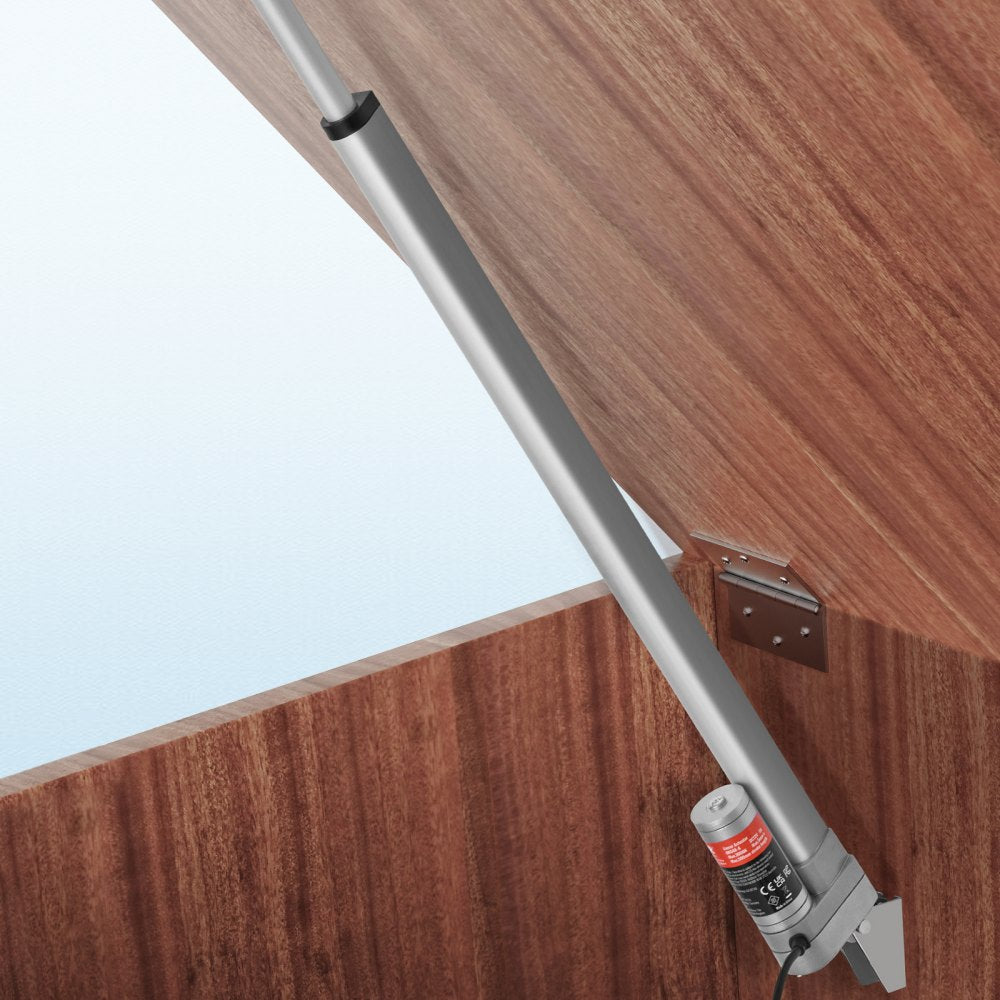

- Versatile Applications: With a noise level below 60db, VEVOR 12V linear actuator seamlessly fits into various applications, from furniture to automation systems, mechanical equipment, transportation and more. It's versatile and ready for various tasks.

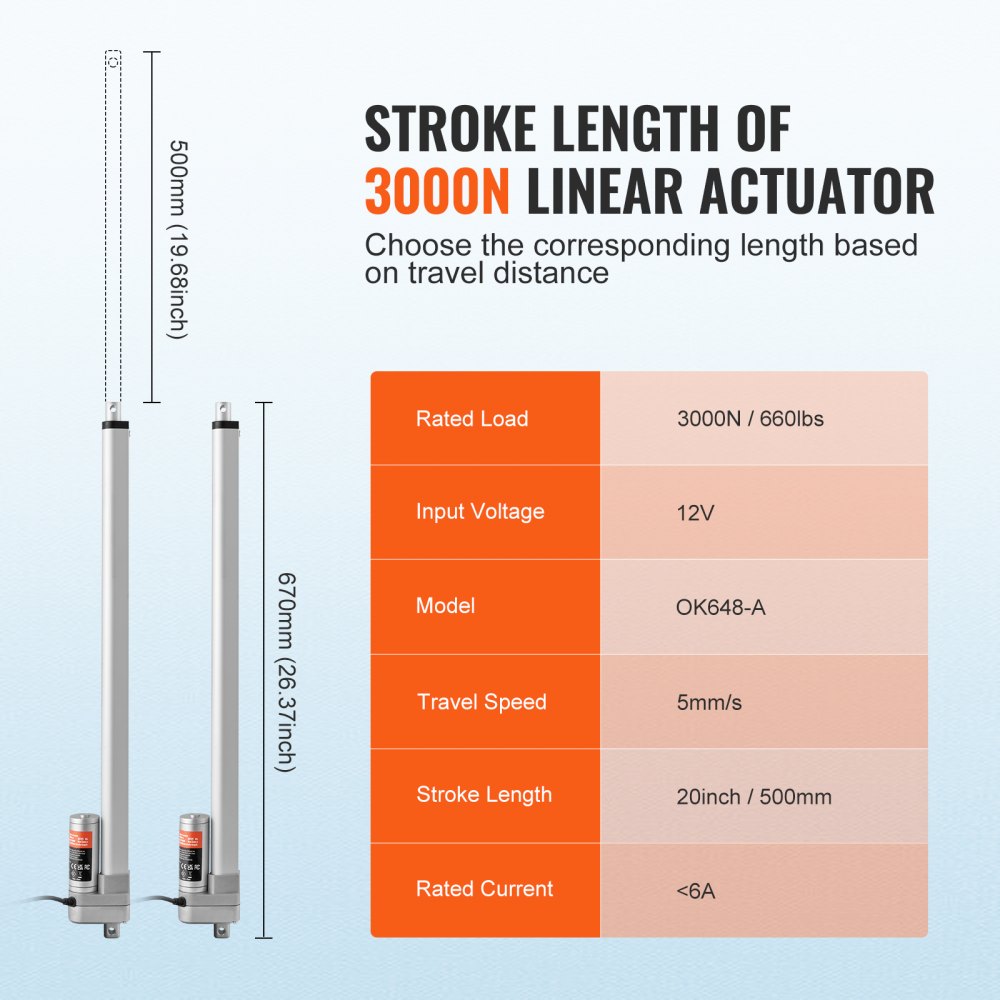

- Key Specifications: Stroke Length: 20 inch (500mm); Travel Speed: 0.19 in/s (5mm/s); Retracted Length: 26.37" (670mm); Extended Length: 46.37" (1170mm); Current Draw: 6amps; Rated Voltage: DC12V; Duty Cycle: 25%.

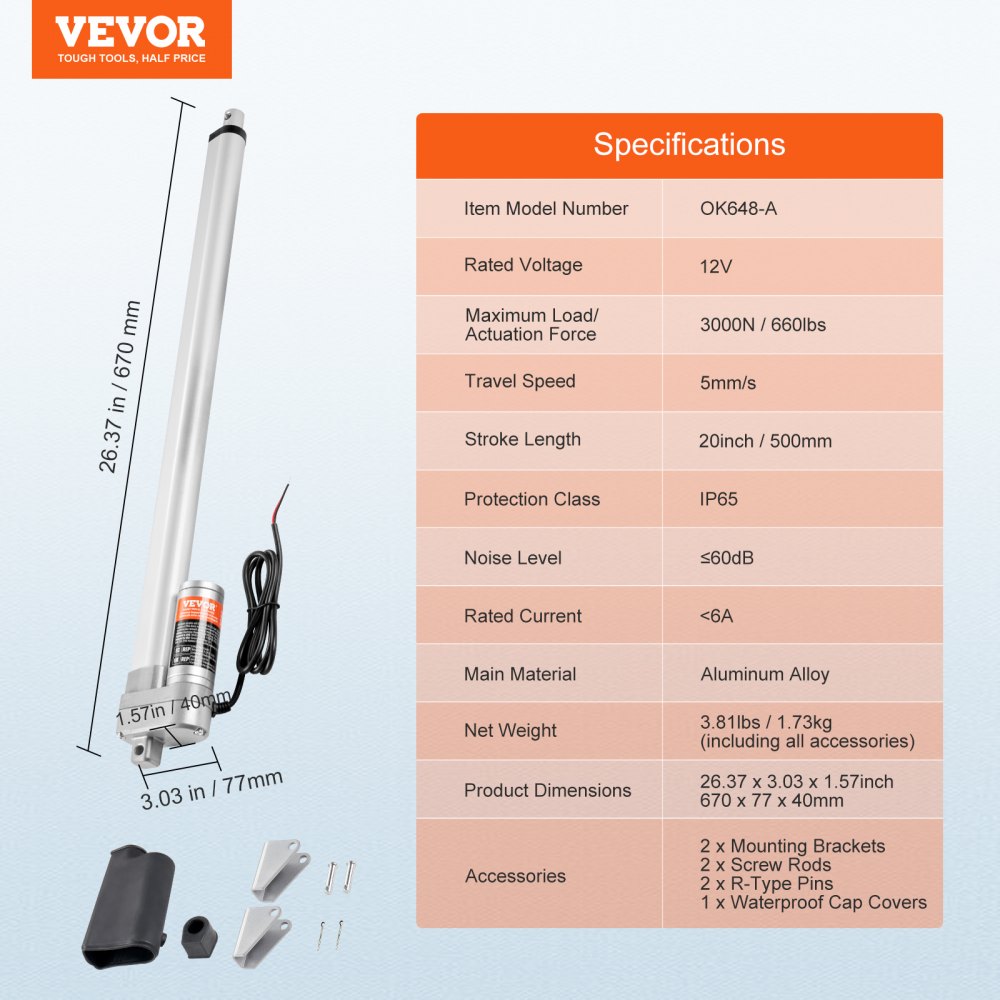

Specifications
| Item Model Number | OK648-A |
|---|---|
| Product Type | Linear Actuator |
| Rated Voltage | DC 12V |
| Maximum Load/Actuation Force | 3000N |
| Maximum Load Capacity | 660 lbs |
| Travel Speed | 0.19"/s / 5 mm/s |
| Stroke Length | 20" / 500 mm |
| Protection Class | IP65 |
| Noise Level | ≤60 dB |
| Main Material | Aluminum Alloy |
| Current Draw | 6 amps |
| Duty Cycle | 25% |
|---|---|
| Retracted Length | 26.37" / 670 mm |
| Extended Length | 46.37" / 1170 mm |
| Net Weight | 3.81 lbs / 1.73 kg |
| Product Dimensions | 26.37 x 3.03 x 1.57" / 670 x 77 x 40 mm |

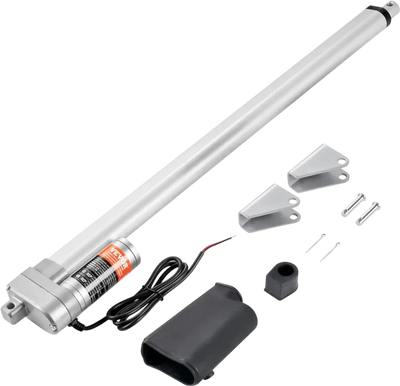

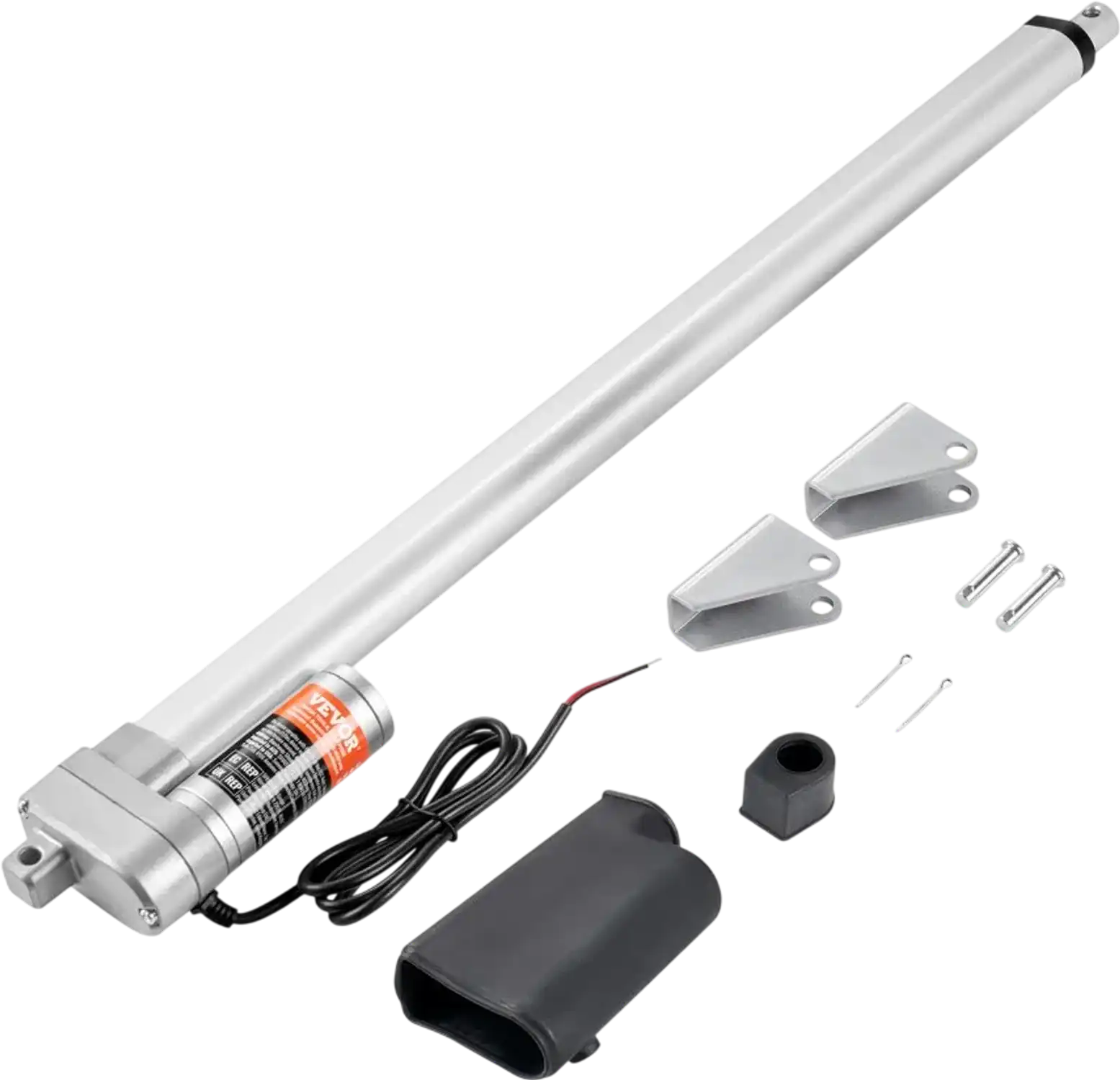

Package Contents
Linear actuator
Mounting bracket
Warranty
This item comes with a 1 year factory warranty.
