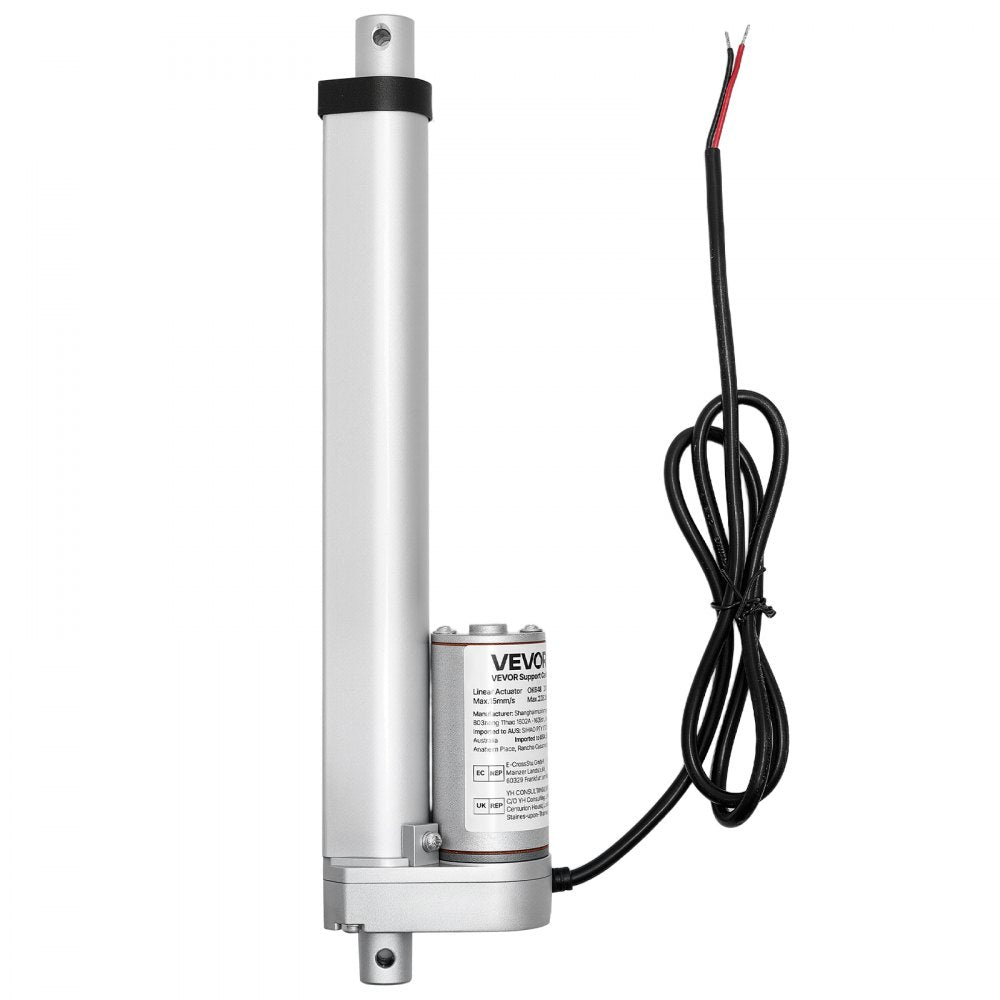

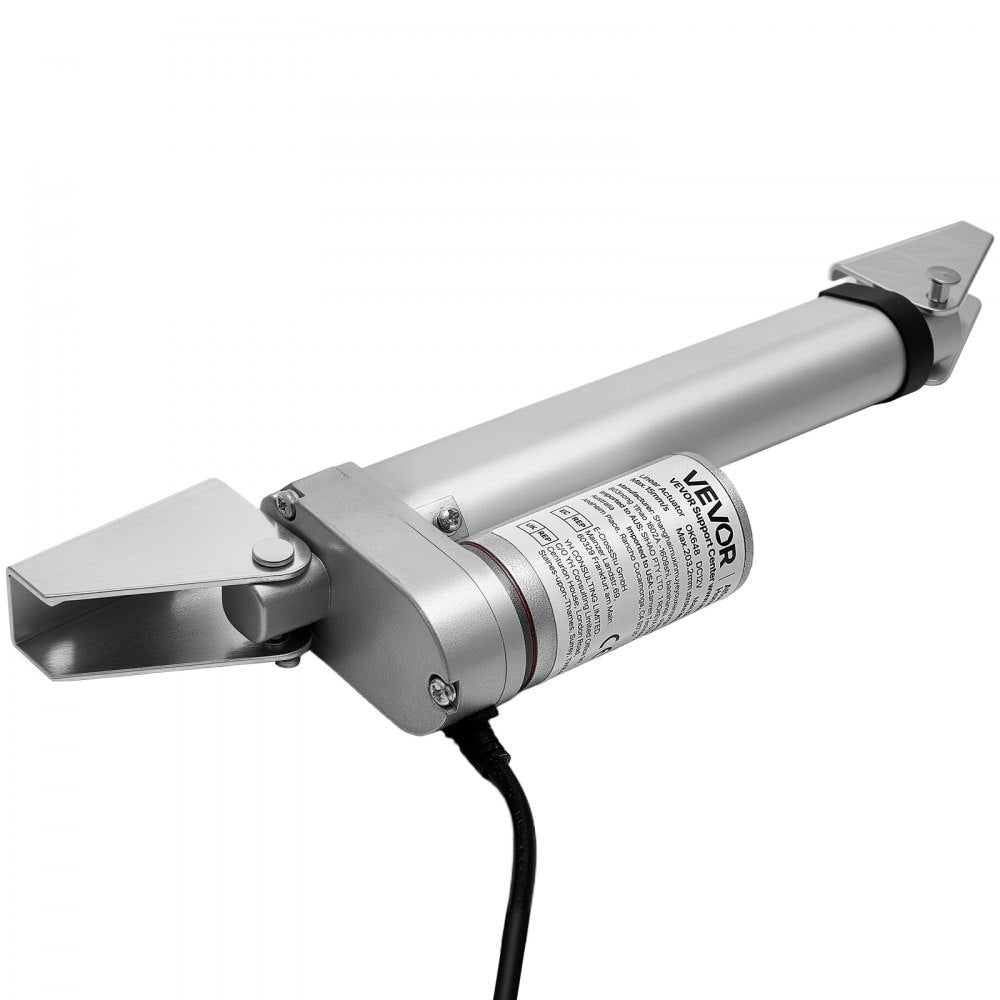

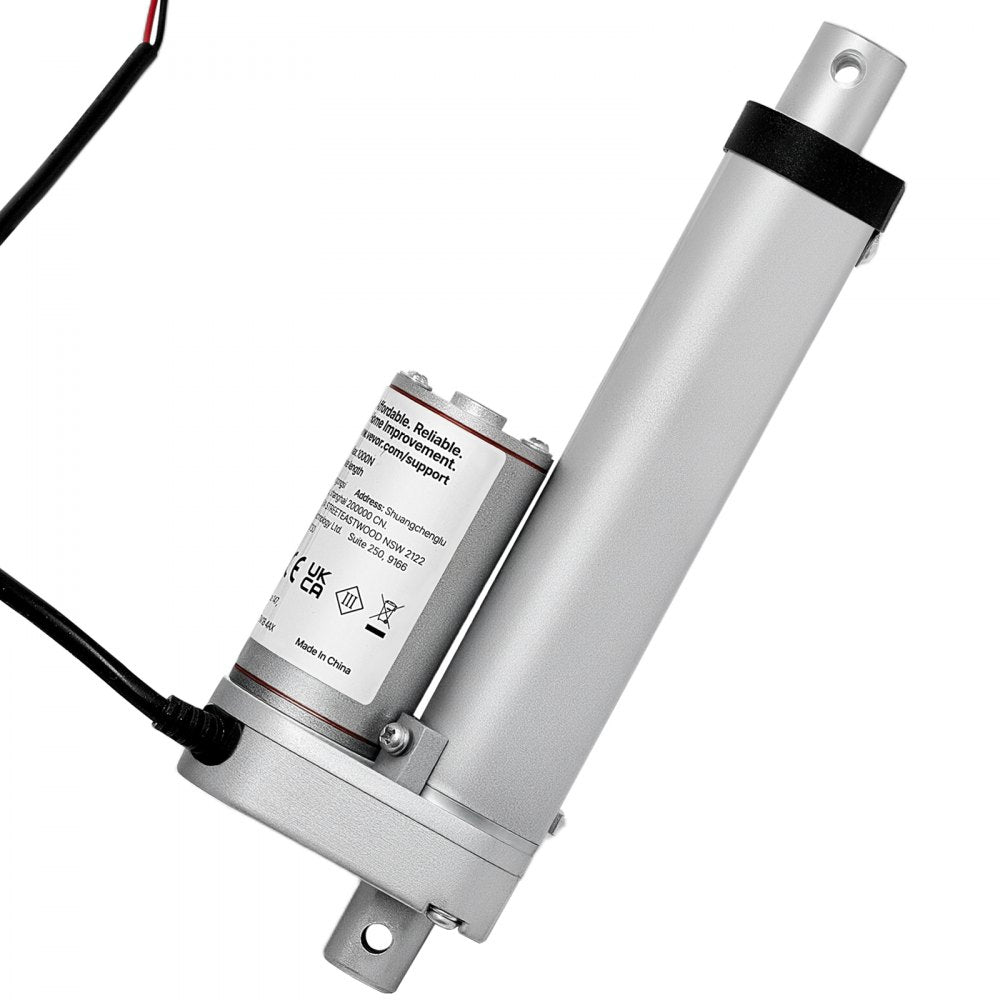

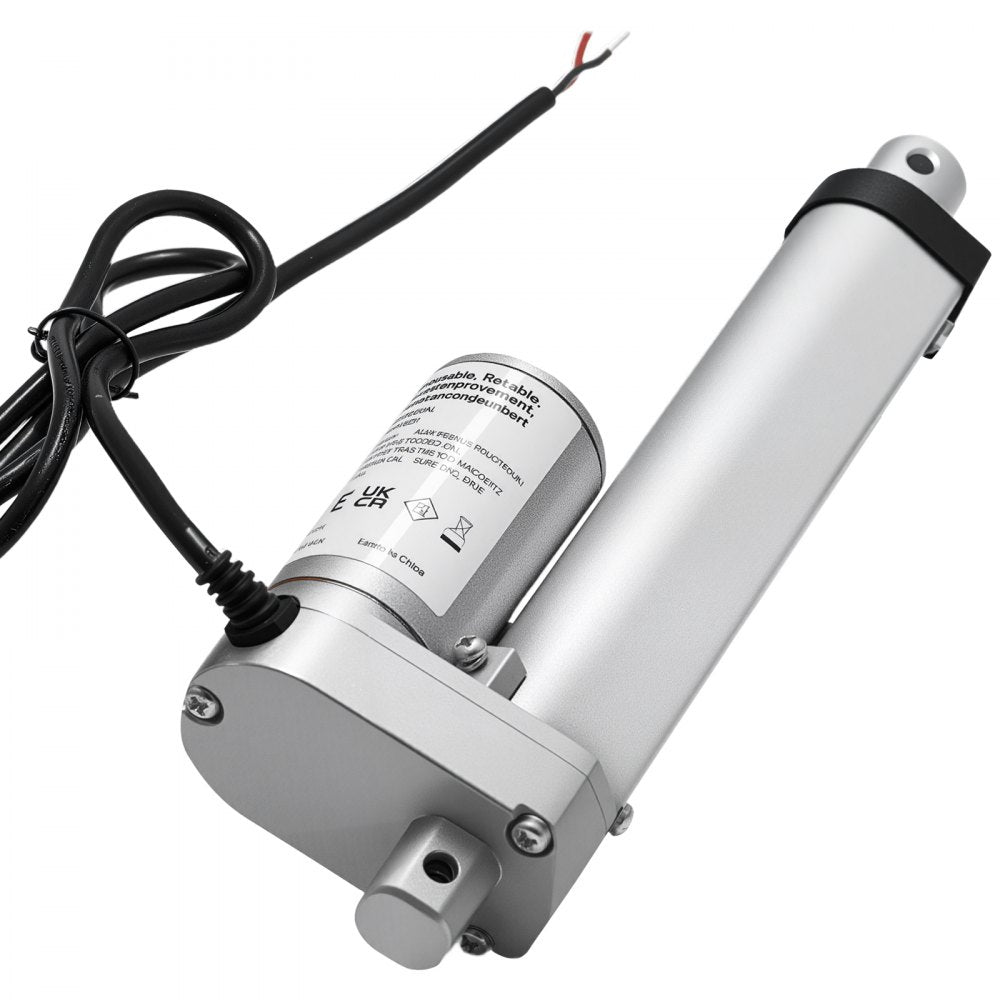

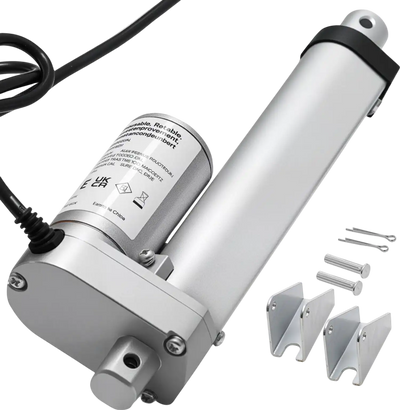

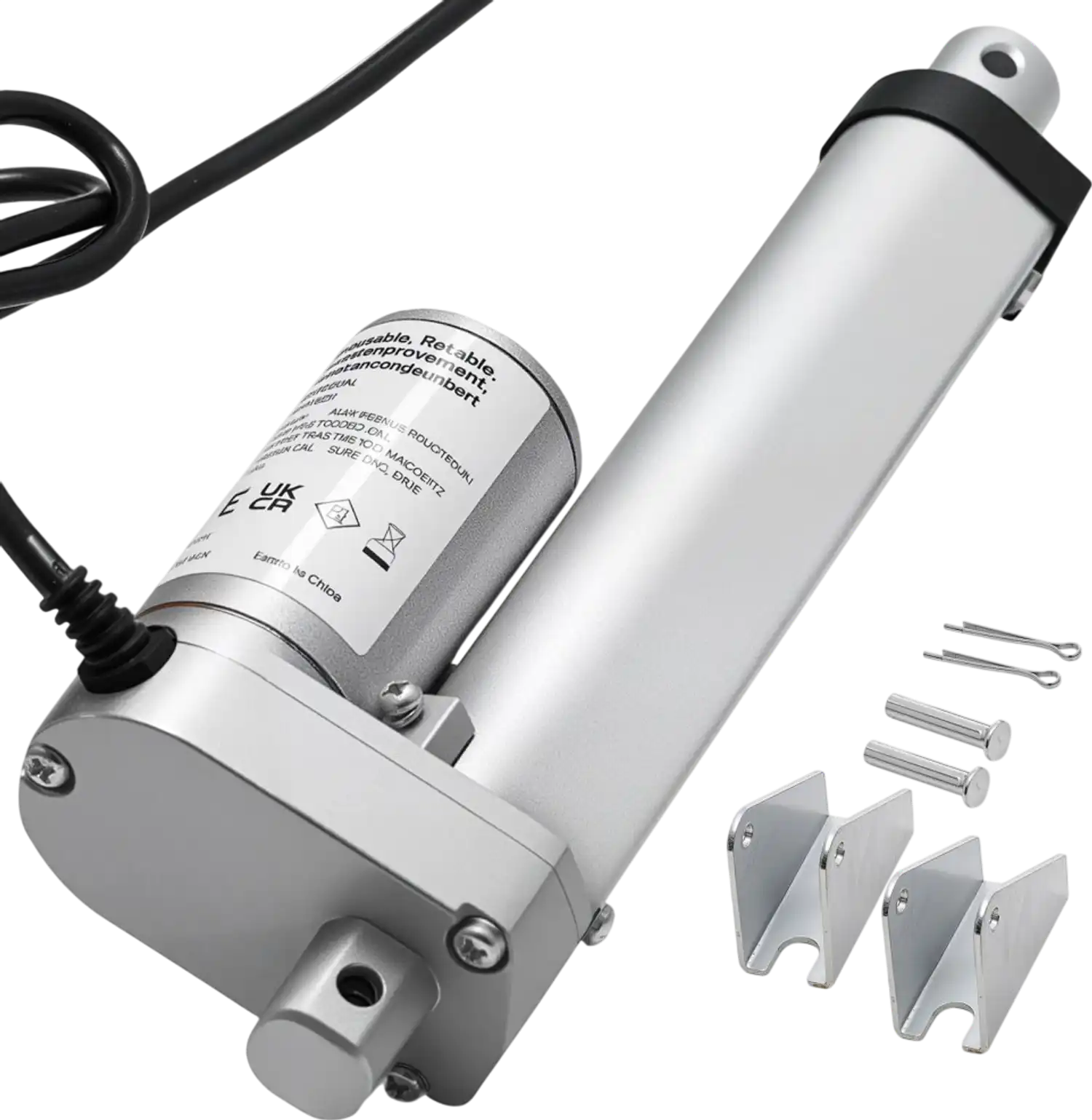

Vevor Linear Actuator 12V 4" Stroke High Speed 225 lbs New
Manufacturer: Vevor
SKU: CGXXZXQ4INCHGND8J001V9
Extended Itinerary Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 39.90
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Linear Actuator 12V 16" Heavy Duty 1320 lbs Linear Motion Actuator New
-
Vevor Linear Actuator 12V 18" 330 lbs High Load with Mounting Bracket New
-
Vevor Linear Actuator 12V 12" 330 lbs Linear Motion Actuator New
-
Vevor Linear Actuator 12V 20" High-Speed 220 lbs Linear Motion Actuator New
-
Vevor Linear Actuator 12V 8" Heavy Duty 1320 lbs 6000N IP44 New
-
Vevor Linear Actuator 12V 4" 330 lbs High Load with Mounting Bracket New
-
Vevor Linear Actuator 12V 16" 330 lbs Linear Motion Actuator with Mounting Bracket New
Vevor Linear Actuator 12V 4" Stroke High Speed 225 lbs New
Product Overview

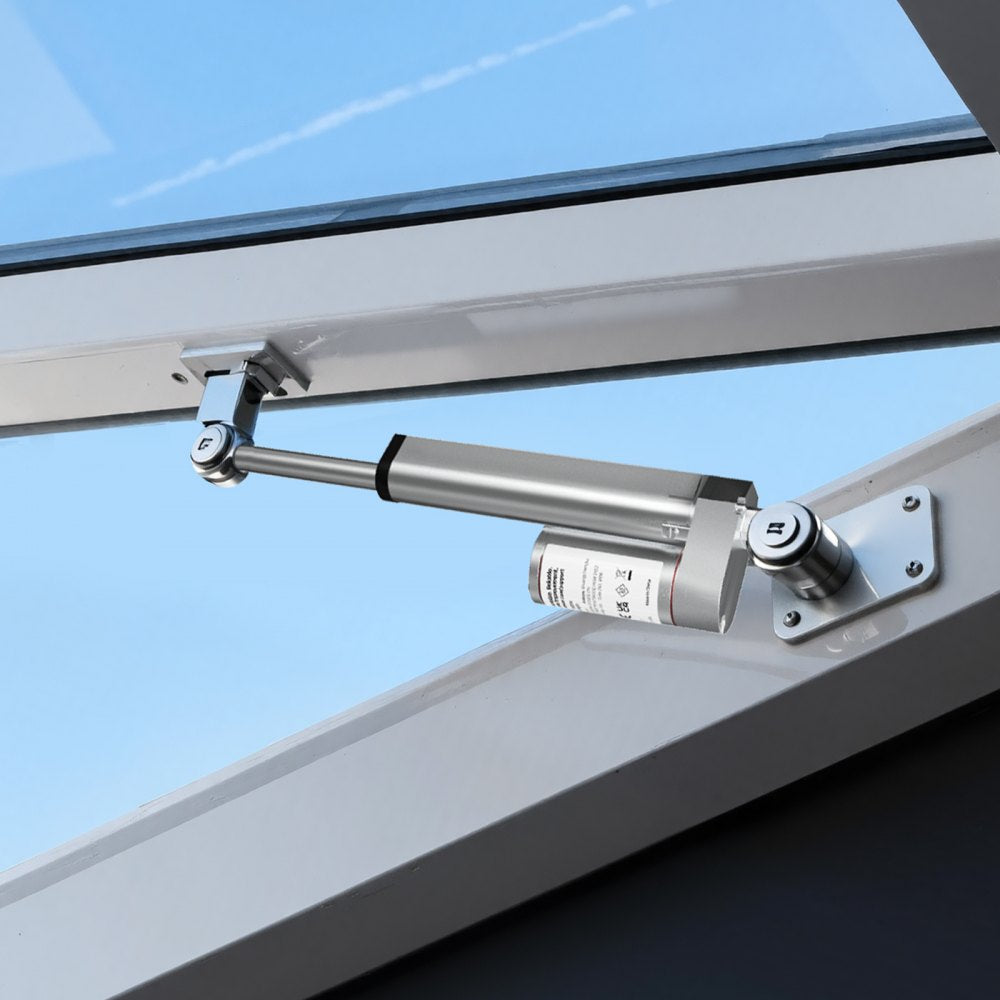

The Vevor 12V linear actuator is designed for smooth, efficient motion control in furniture, home automation, and light-duty lifting applications. It delivers a 4" stroke, 0.6"/s travel speed, and 225 lbs of thrust for reliable daily operation. Its aluminum alloy housing and IP54 rating support durable indoor use, while low noise output helps maintain a quieter environment. This actuator is well suited for lift desks, recliner chairs, window openers, TV lifts, and similar setups.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Efficient Stroke Adjustment: Moving swiftly at 0.6 inch/s, VEVOR 12V linear actuator is perfect for frequent height adjustments. Efficiently handles daily automation tasks, whether adjusting furniture height, raising and lowing the office desk, or opening car windows

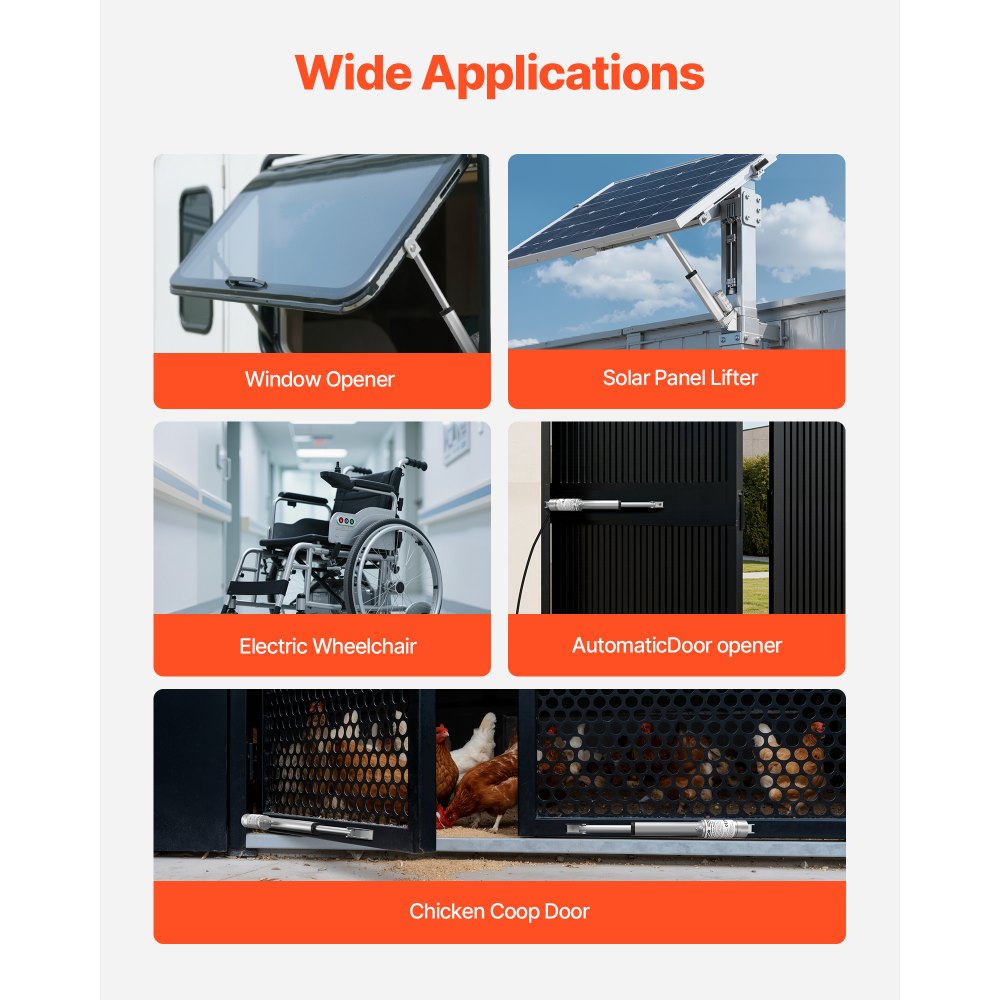

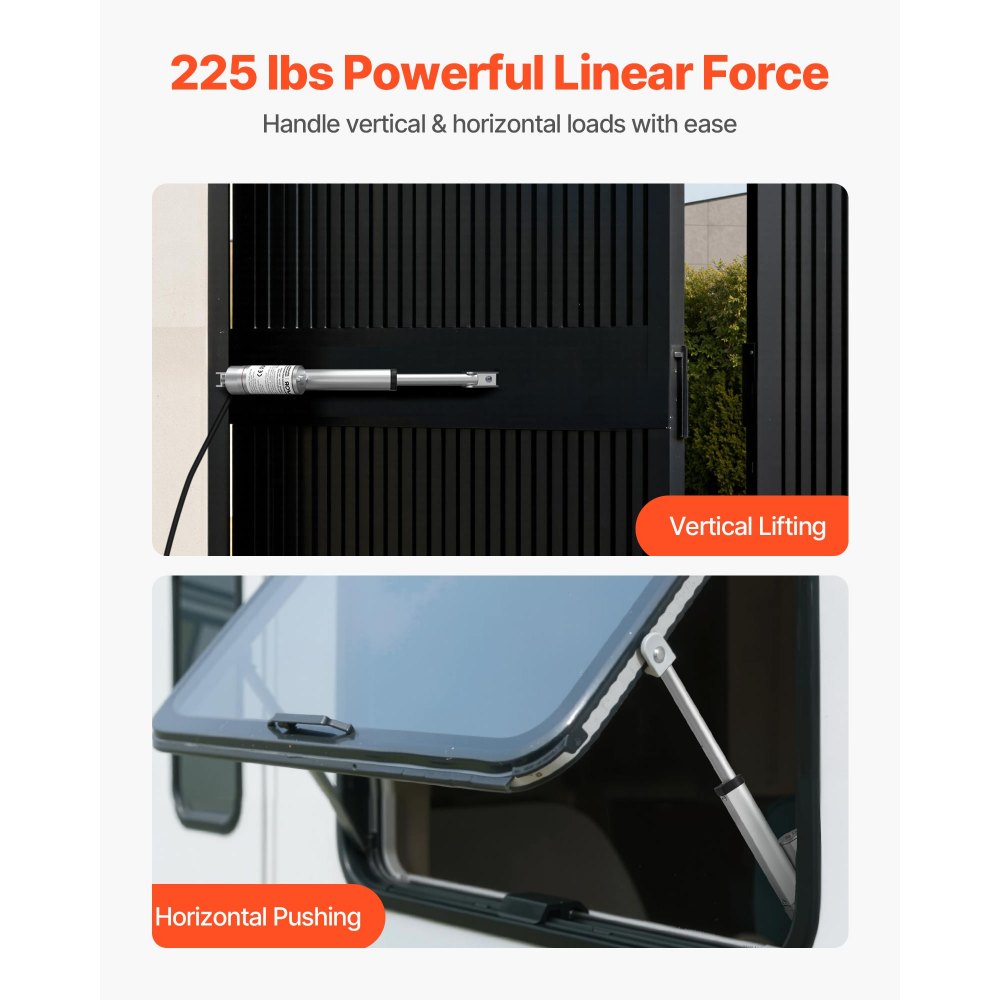

- Powerful & Steady Torque: 225lbs (1000N) stable torque output excels in light industrial and home use such as massage sofas, recliners, TV lifters, lifting tables, electric wheelchair and window openers. Smooth and stable for low-load, long-run applications

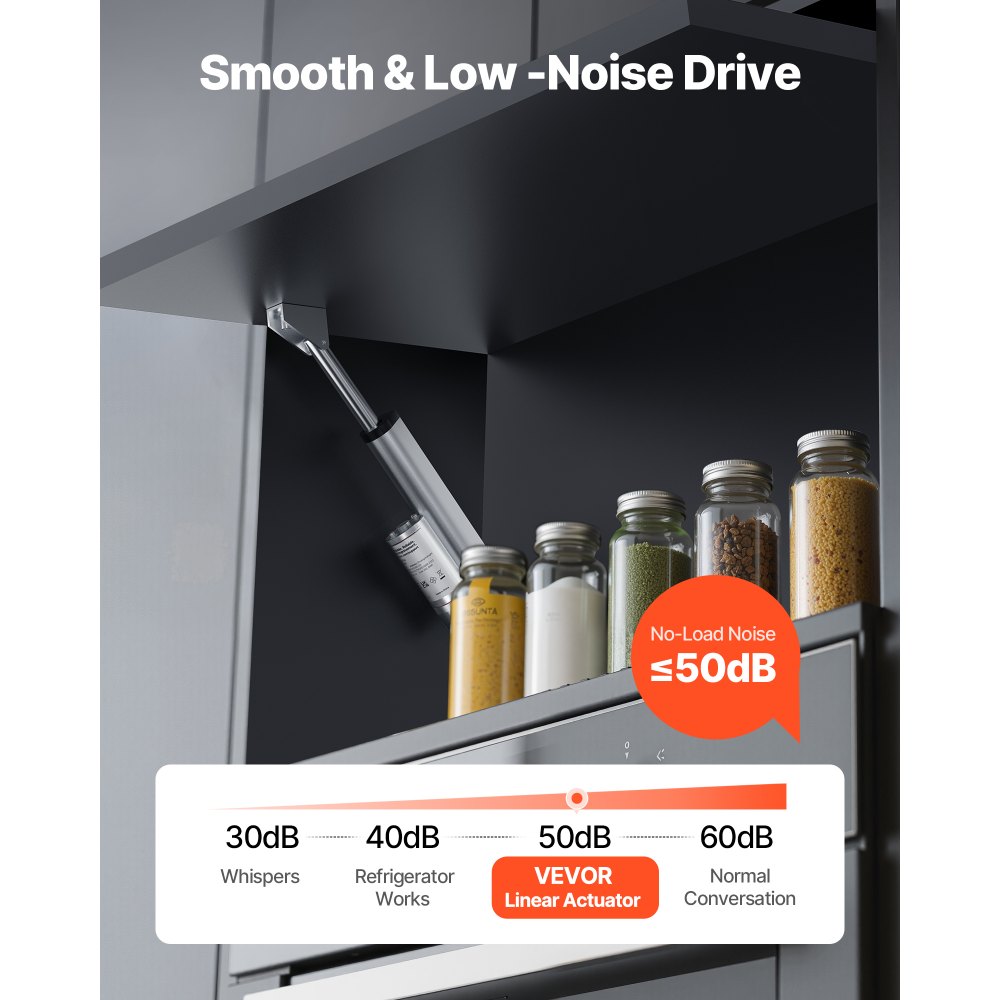

- Quiet Operation for Comfort: Operating at less than 50 dB (no-load noise), our 12V linear actuator is your go-to choice for bedrooms, offices, hospitals, and labs where silence matters. Enjoy efficient, reliable performance without disturbing your environment

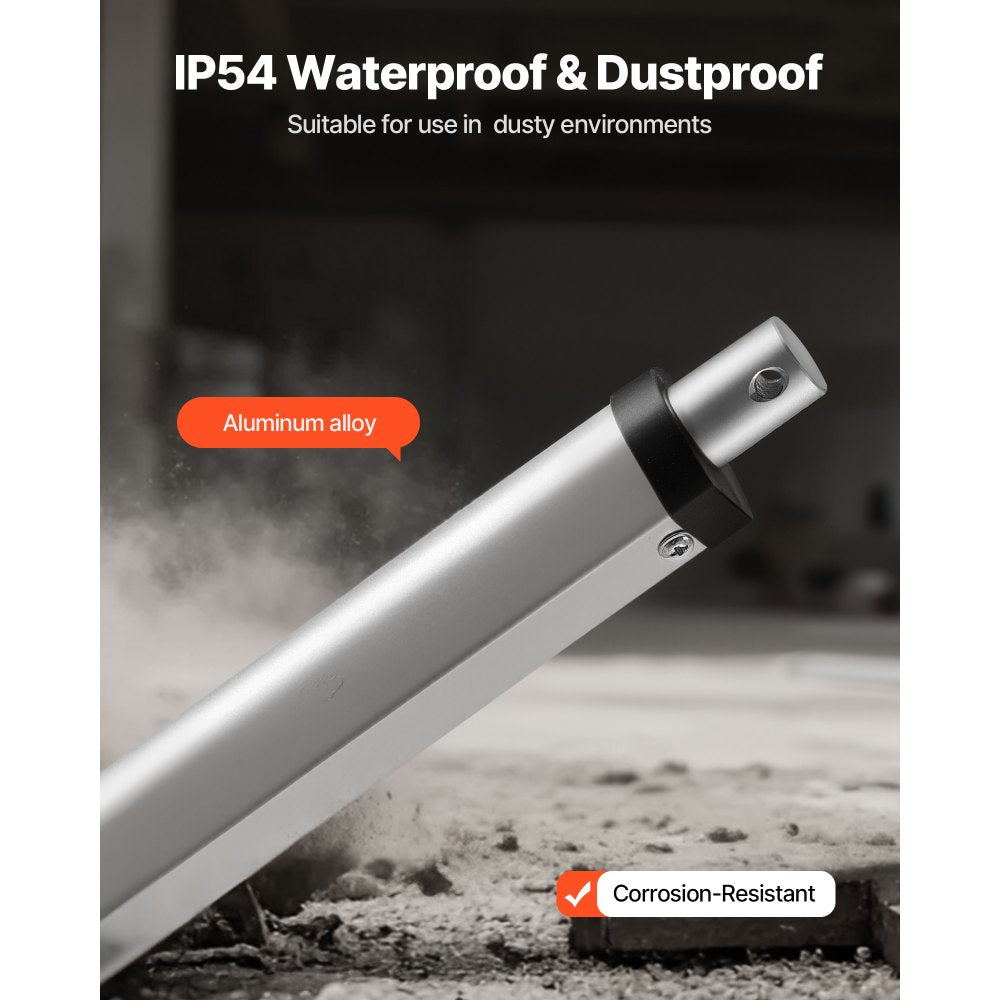

- IP54 Protection Rating: IP54 rating and a sturdy aluminum alloy housing deliver extended indoor use service life. (Caution: For consistent performance and longer longevity, avoid outdoor use and prevent water from entering the motor to cause burnout)
- Key Specifications: Travel Speed: 0.6"/s (15 mm/s); Stroke Length: 4" (101.6 mm); Extended Length: 12" (304.8 mm); Retracted Length: 8" (203.2 mm); Current Draw: 5 Amps; Input Voltage: DC 12V; Duty Cycle: 25%

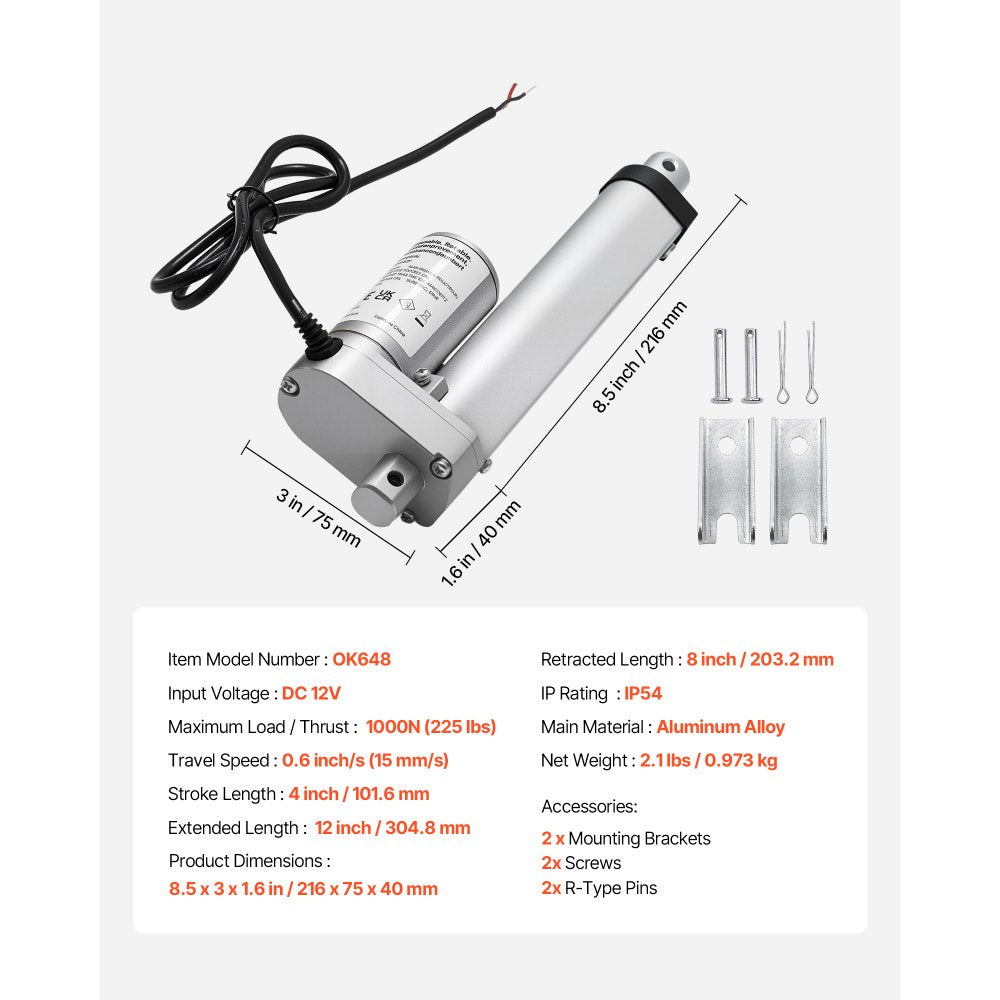

Specifications
| Item Model Number | OK648 |
| Input Voltage | DC 12V |
| Maximum Load / Thrust | 1000N (225 lbs) |
| Travel Speed | 0.6"/s (15 mm/s) |
| Stroke Length | 4" (101.6 mm) |
| Extended Length | 12" (304.8 mm) |
| Retracted Length | 8" (203.2 mm) |
| IP Rating | IP54 |
| Main Material | Aluminum Alloy |
| Current Draw | 5 Amps |
| Duty Cycle | 25% |
| Net Weight | 2.1 lbs (0.973 kg) |
| Product Dimensions | 8.5 x 3 x 1.6" (216 x 75 x 40 mm) |
Warranty
This item comes with a 1 year factory warranty.
