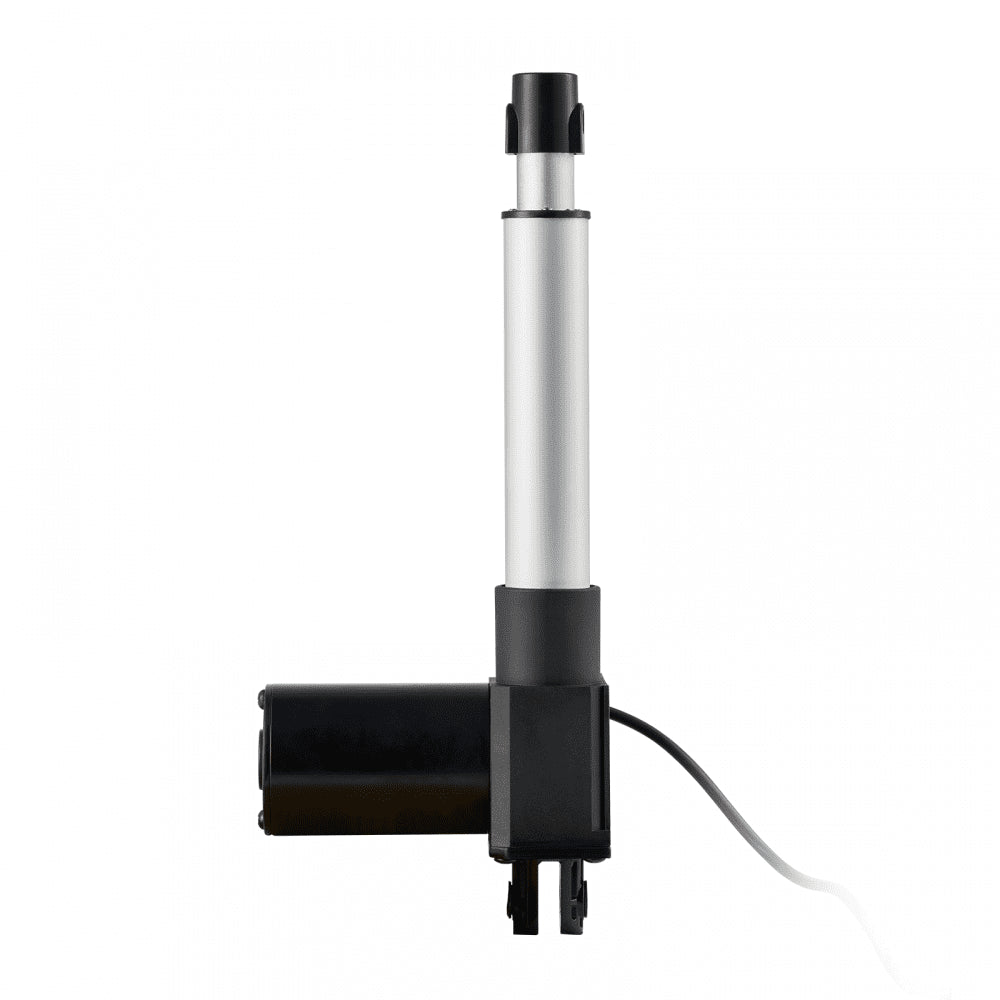

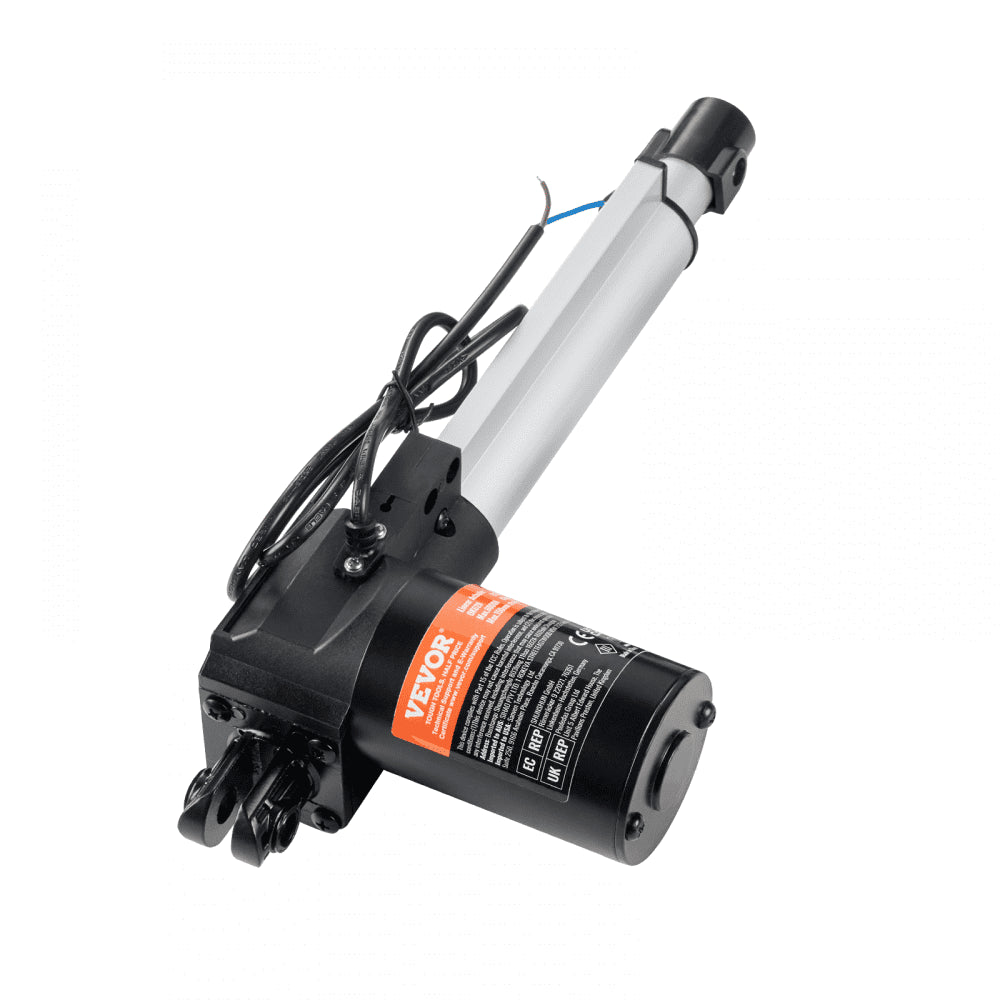

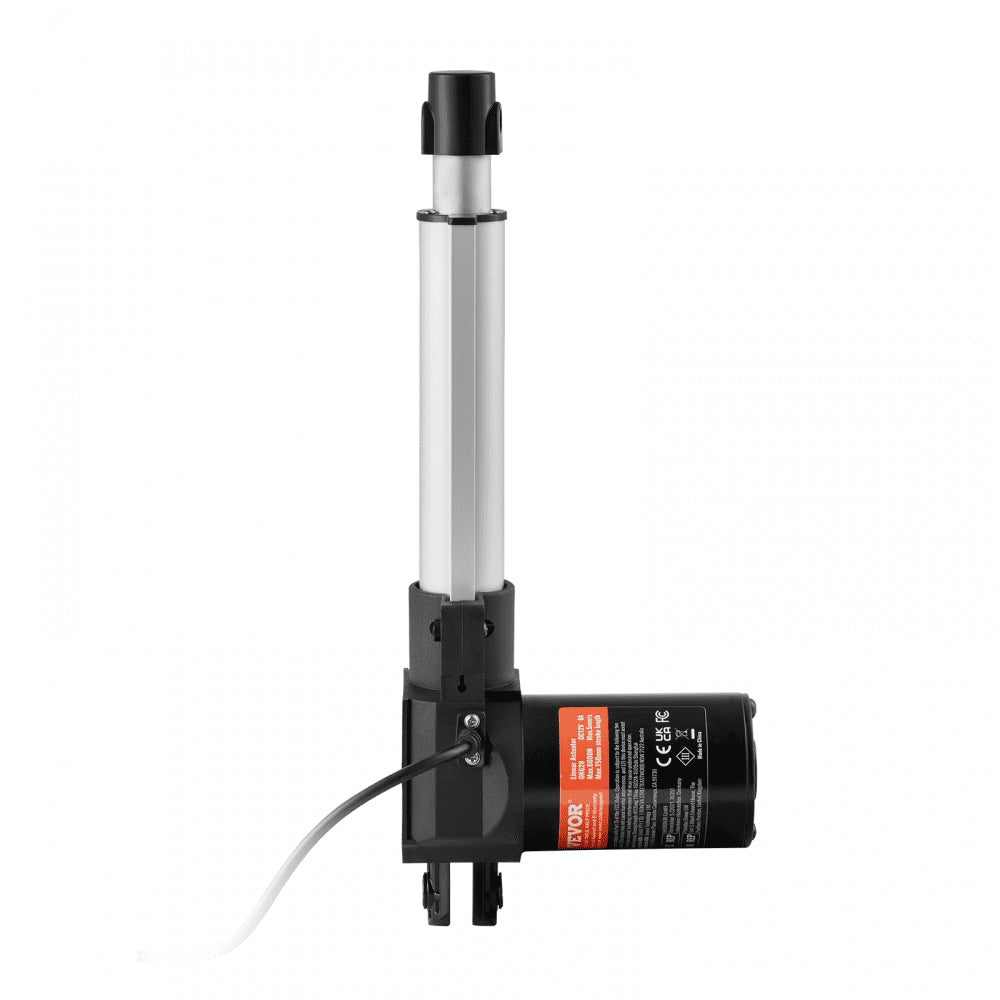

Product Overview

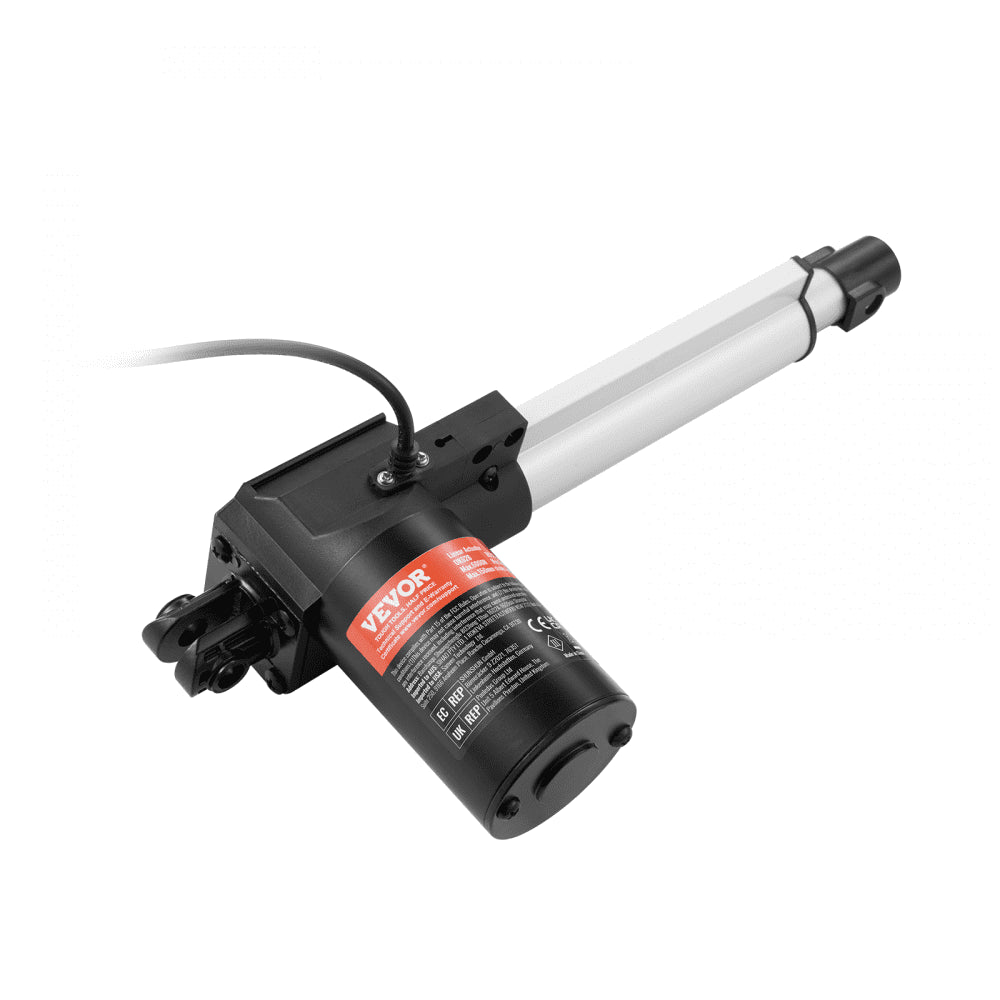

The Vevor 12V linear actuator is built for heavy-duty motion and lifting applications with up to 1320 lbs of actuation force. It delivers steady travel at 0.19" per second and features an all-metal transmission mechanism for dependable long-term use. The IP44 protection rating helps it handle dust, solid particles, and light splashing water in general industrial and household settings. With quieter operation below 50 dB, it is suitable for automation systems, mechanical equipment, furniture adjustment, and electric door applications. A mounting bracket is included for installation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Heavy-Duty Applications: VEVOR heavy duty linear actuator boasts 1320lbs/6000N powerful torque output, perfect for industrial automation and heavy-duty lifting system. It's designed to tackle high-torque and heavy-load tasks with ease, providing reliable performance in demanding environments.

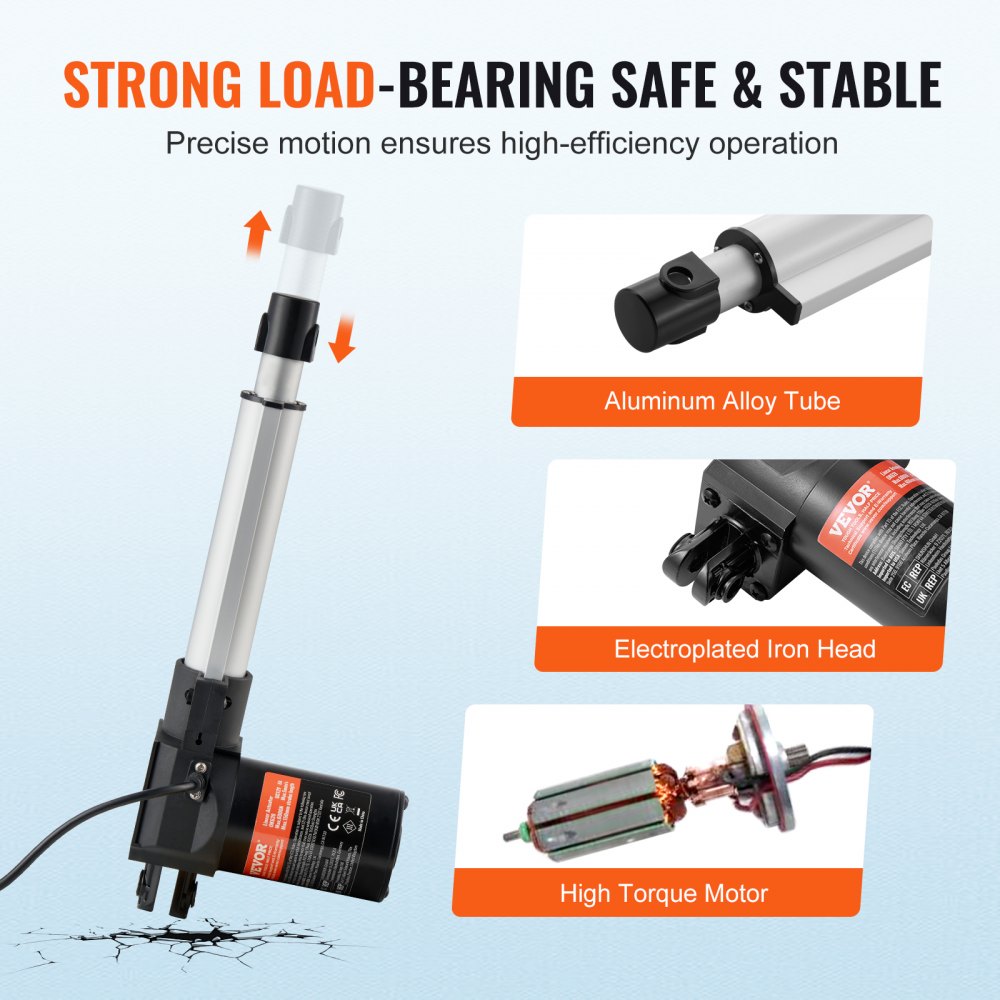

- Durable Construction: Reinforced design and an all-metal transmission mechanism ensure reliability even under high loads, making it suitable for a wide range of industrial and home automation applications. It's built to withstand long-term use and provide dependable operation.

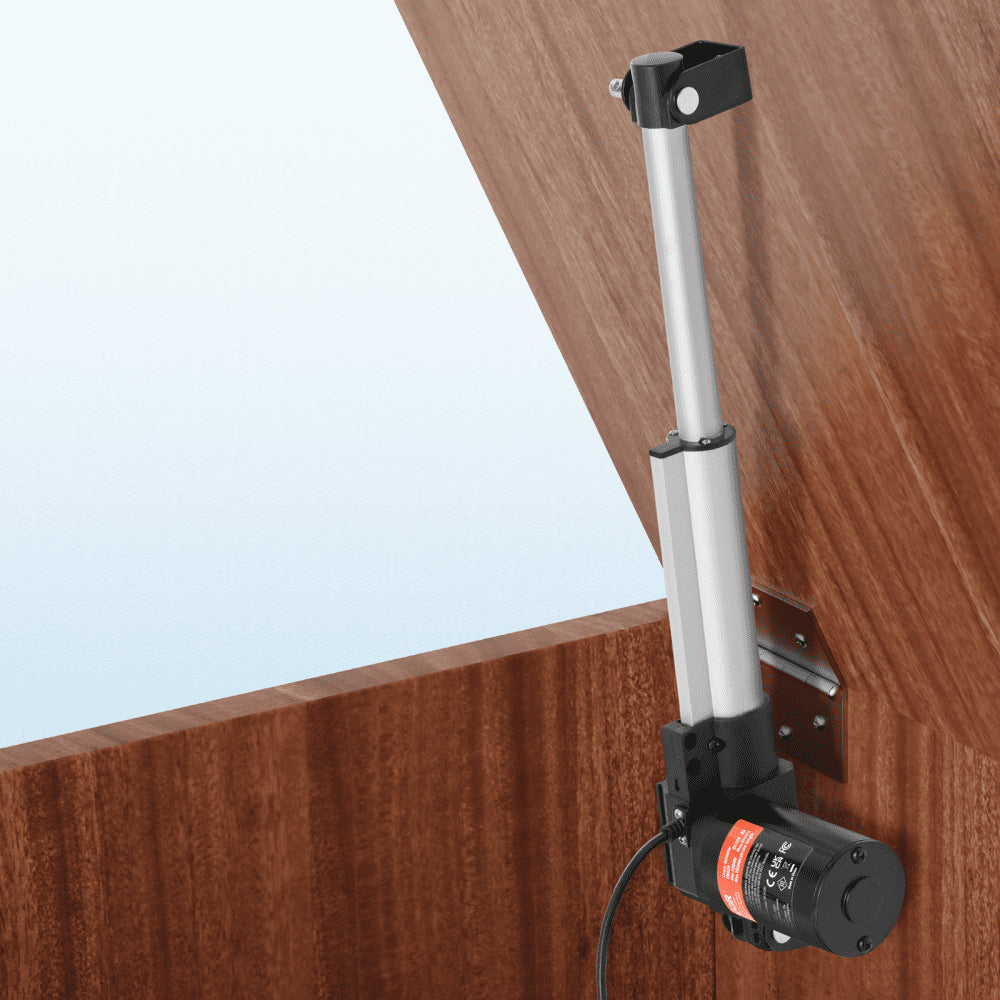

- Versatility Unleashed: Get ready for a quiet revolution! VEVOR's linear motion actuators, with a noise level below 50db, are your go-to for furniture adjustment, automation systems, mechanical equipment, transportation and more. Enjoy seamless functionality wherever you need it!

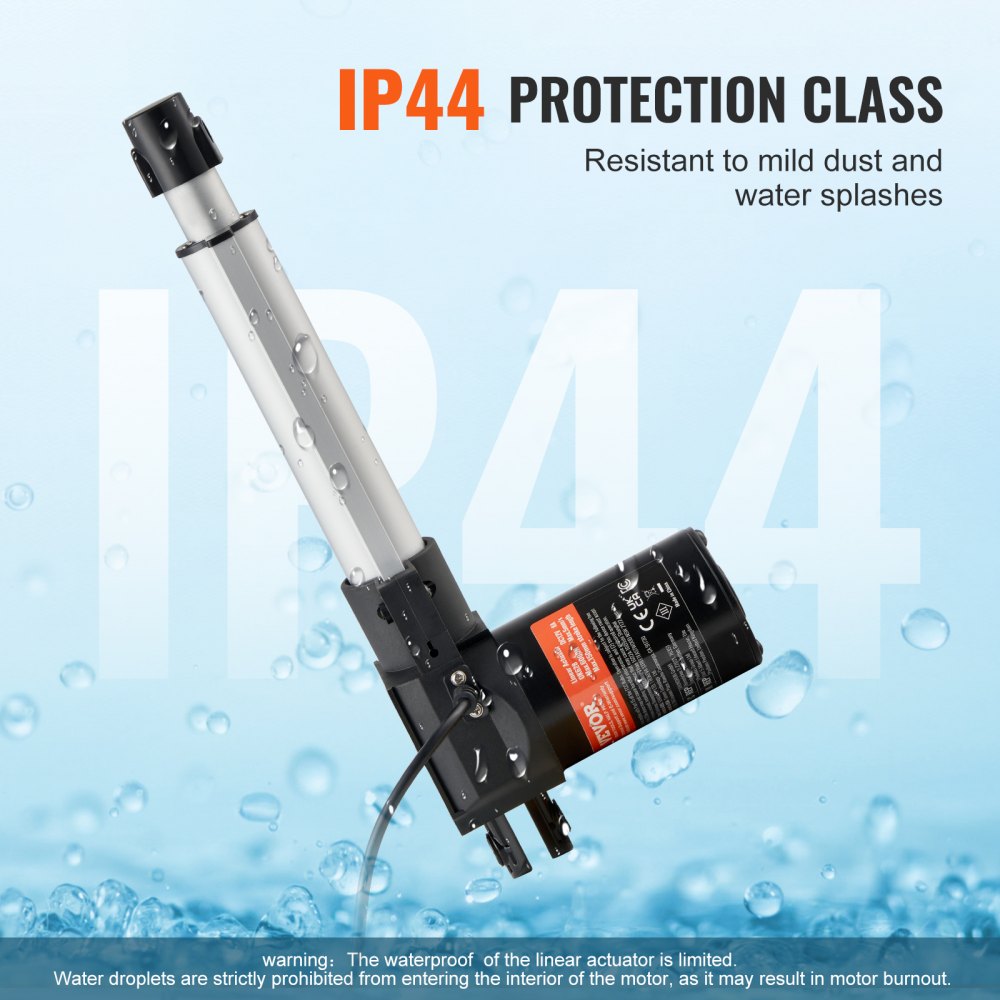

- IP44 Protection Rating: Featuring an IP44 protection rating, VEVOR 12V linear actuator excels in environments with dust, solid particles, and light-splashing water. Count on it to withstand dust and moisture in general industrial and household applications. (Caution: Water should not penetrate the interior of the motor)

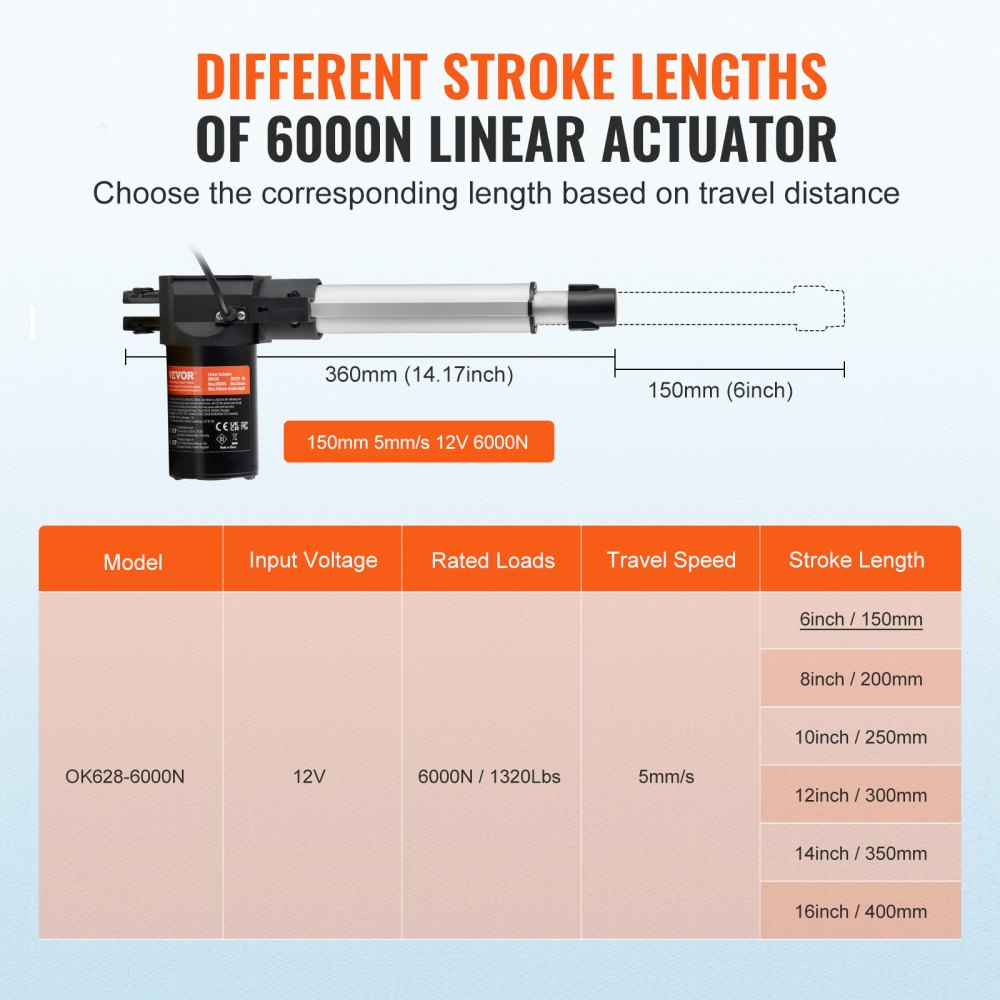

- Key Specifications: Stroke Length: 6 inch (150mm); Travel Speed: 0.19 in/s (5mm/s); Retracted Length: 14.17" (360mm); Extended Length: 20.17" (510mm); Current Draw: 8amps; Rated Voltage: DC12V; Duty Cycle: 10%.

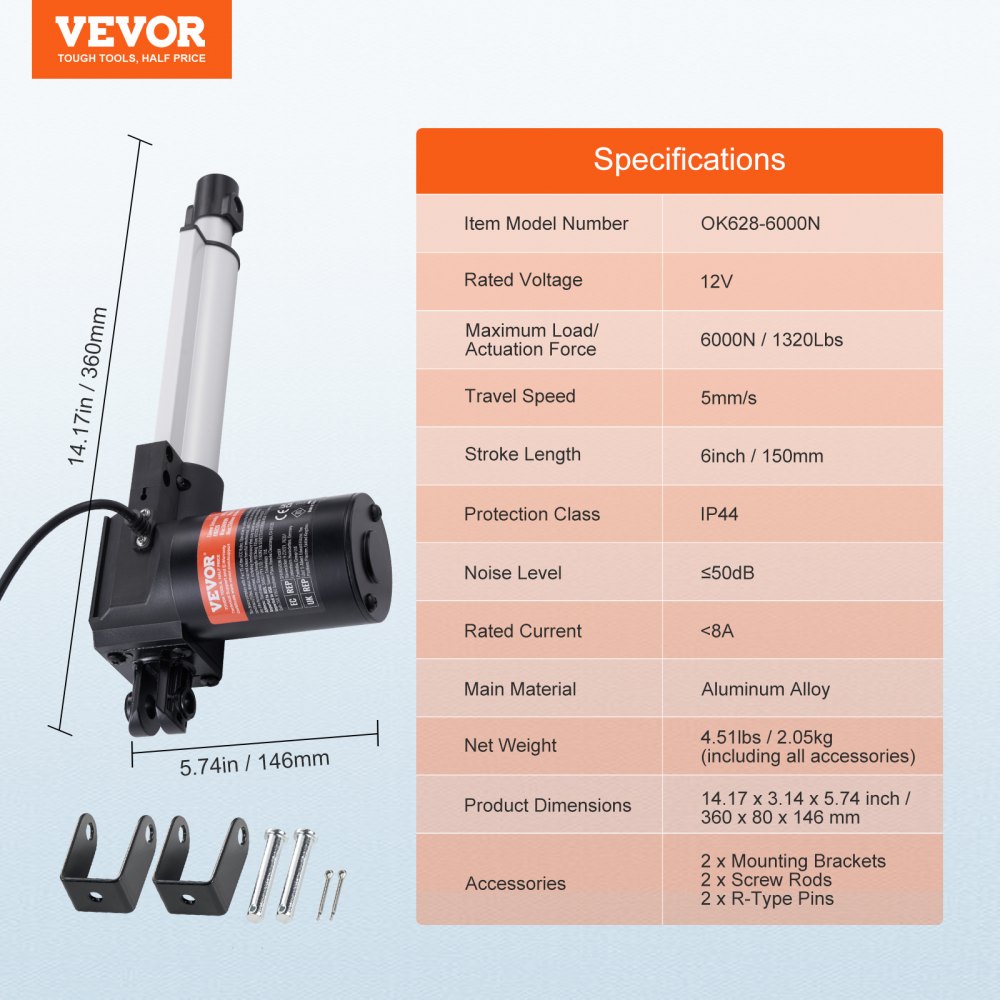

Specifications
| Model | OK628-6000N |
| Rated Voltage | DC12V |
| Maximum Load/Actuation Force | 6000N / 1320 lbs |
| Travel Speed | 0.19"/s / 5 mm/s |
| Stroke Length | 6" / 150 mm |
| Protection Class | IP44 |
| Noise Level | ≤50 dB |
| Main Material | Aluminum Alloy |
| Net Weight | 4.51 lbs / 2.05 kg including all accessories |
| Product Dimensions | 14.17 x 3.14 x 5.74" / 360 x 80 x 146 mm |
| Retracted Length | 14.17" / 360 mm |
| Extended Length | 20.17" / 510 mm |
| Current Draw | 8 A |
| Duty Cycle | 10% |

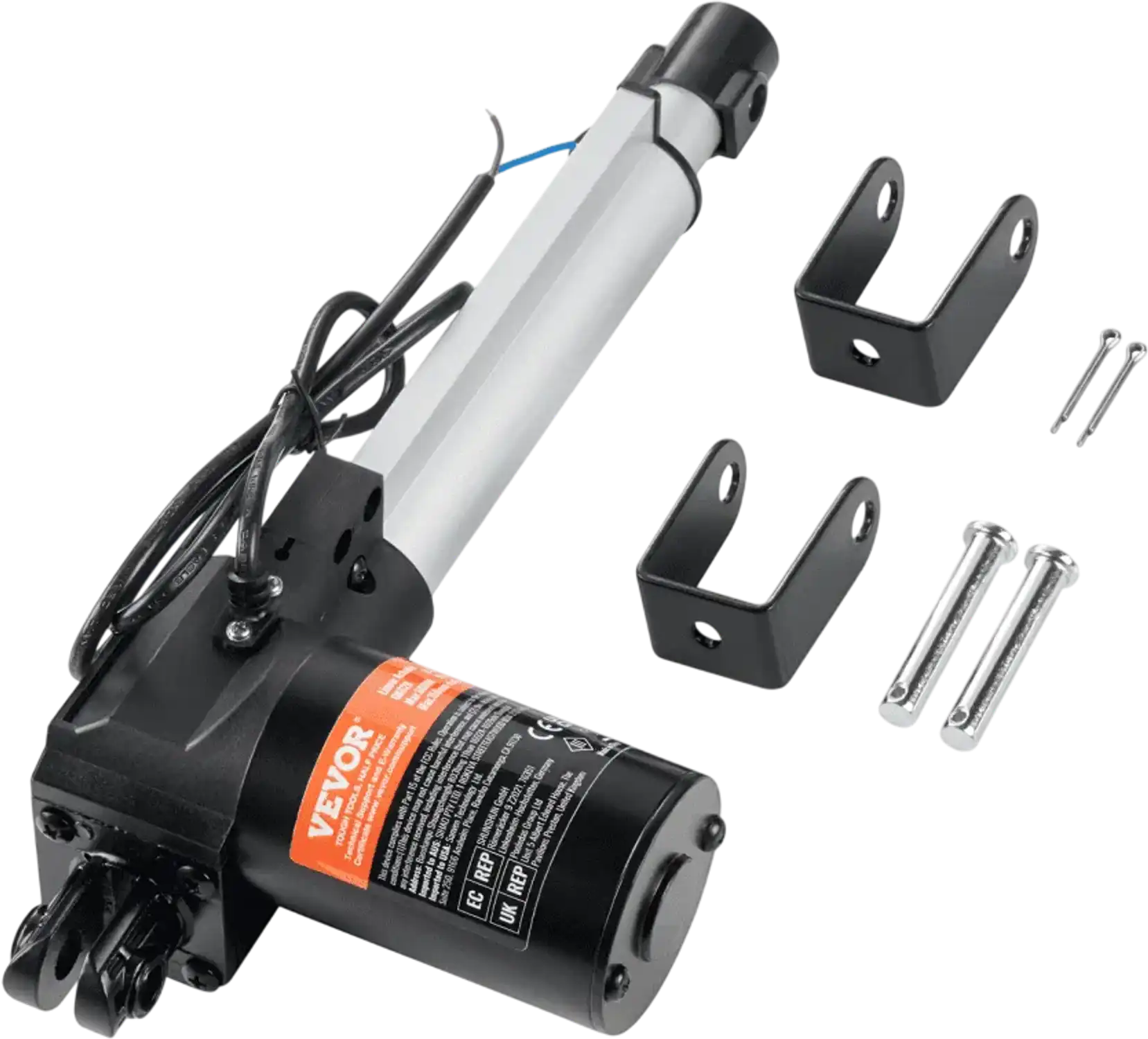

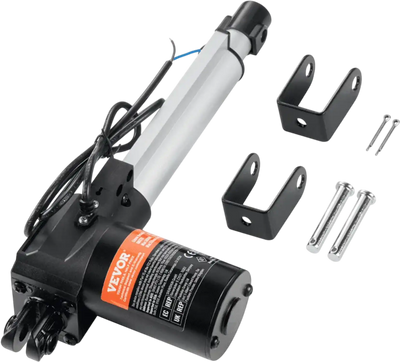

Package Contents
Linear actuator push rod
Mounting bracket
Warranty
This item comes with a 1 year factory warranty.
