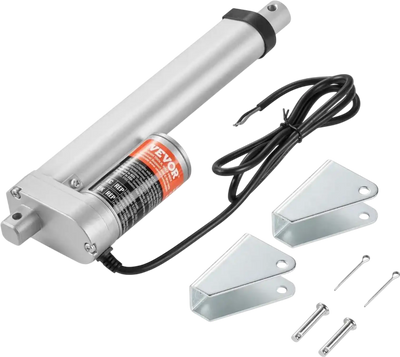

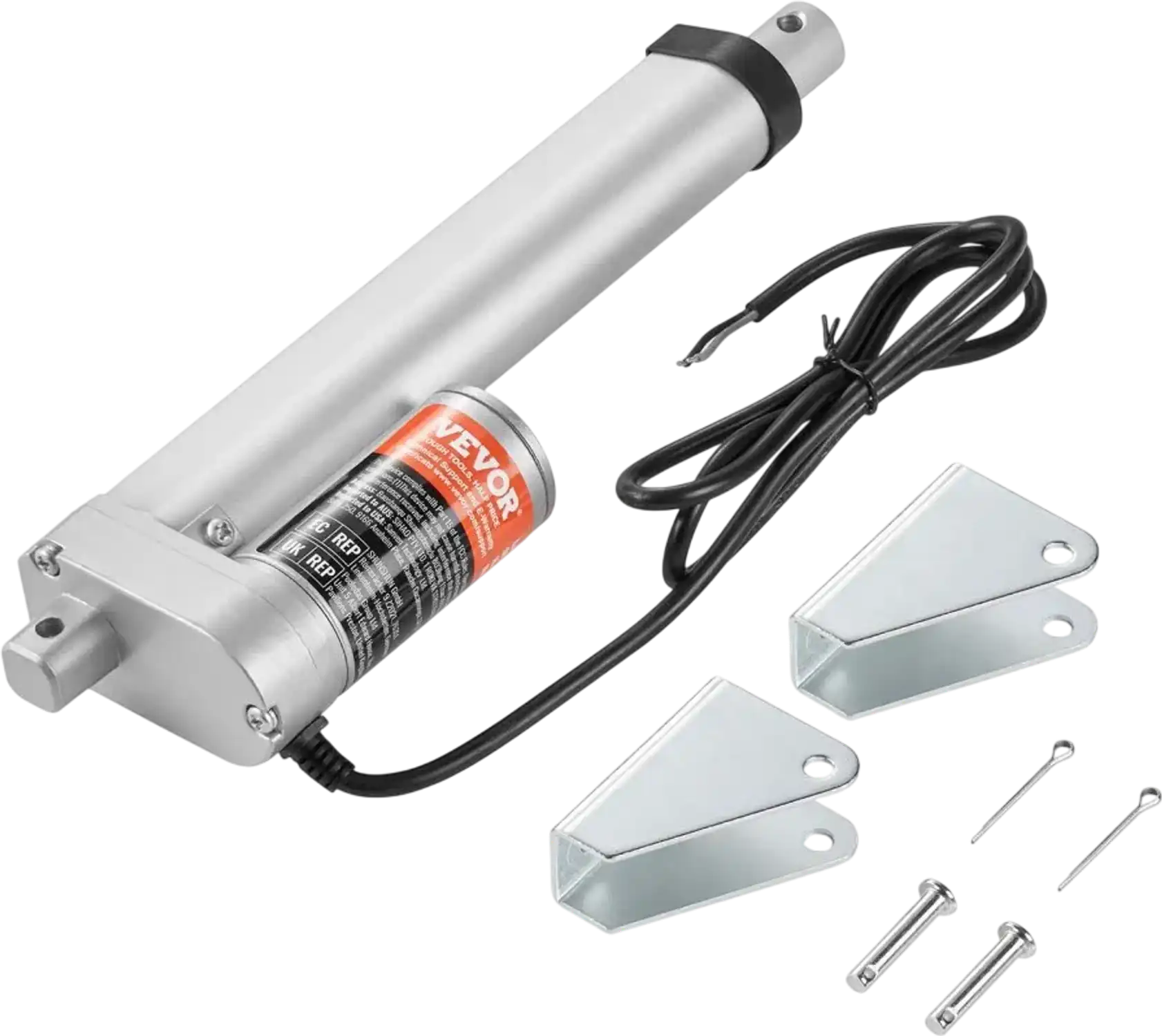

Vevor Linear Actuator 12V 6" High Speed 220 lbs IP54 New
Manufacturer: Vevor
SKU: CGXXZXQ6INCHMYUQYV9
Extended Itinerary Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 36.90
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Wind Turbine Generator Kit 3-Blade with MPPT Controller 800W 12V New
-
Vevor Linear Actuator 12V 20" High-Speed 220 lbs Linear Motion Actuator New
-
Vevor Linear Actuator 12V 16" Heavy Duty 1320 lbs Linear Motion Actuator New
-
Vevor Linear Actuator 12V 4" 330 lbs High Load with Mounting Bracket New
-
Vevor Linear Actuator 12V 18" 330 lbs High Load with Mounting Bracket New
-
Vevor Linear Actuator 12V 12" 330 lbs Linear Motion Actuator New
-
Vevor Linear Actuator 12V 8" Heavy Duty 1320 lbs 6000N IP44 New
Vevor Linear Actuator 12V 6" High Speed 220 lbs IP54 New
Product Overview

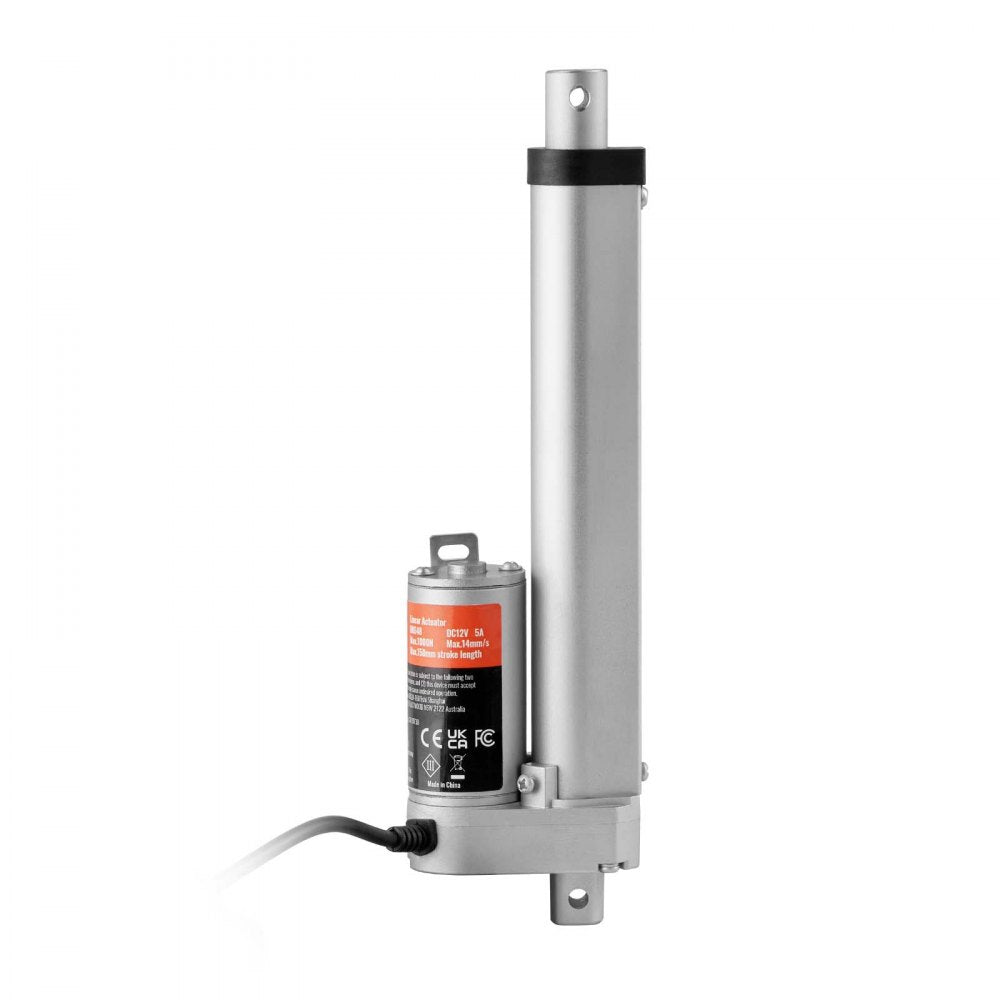

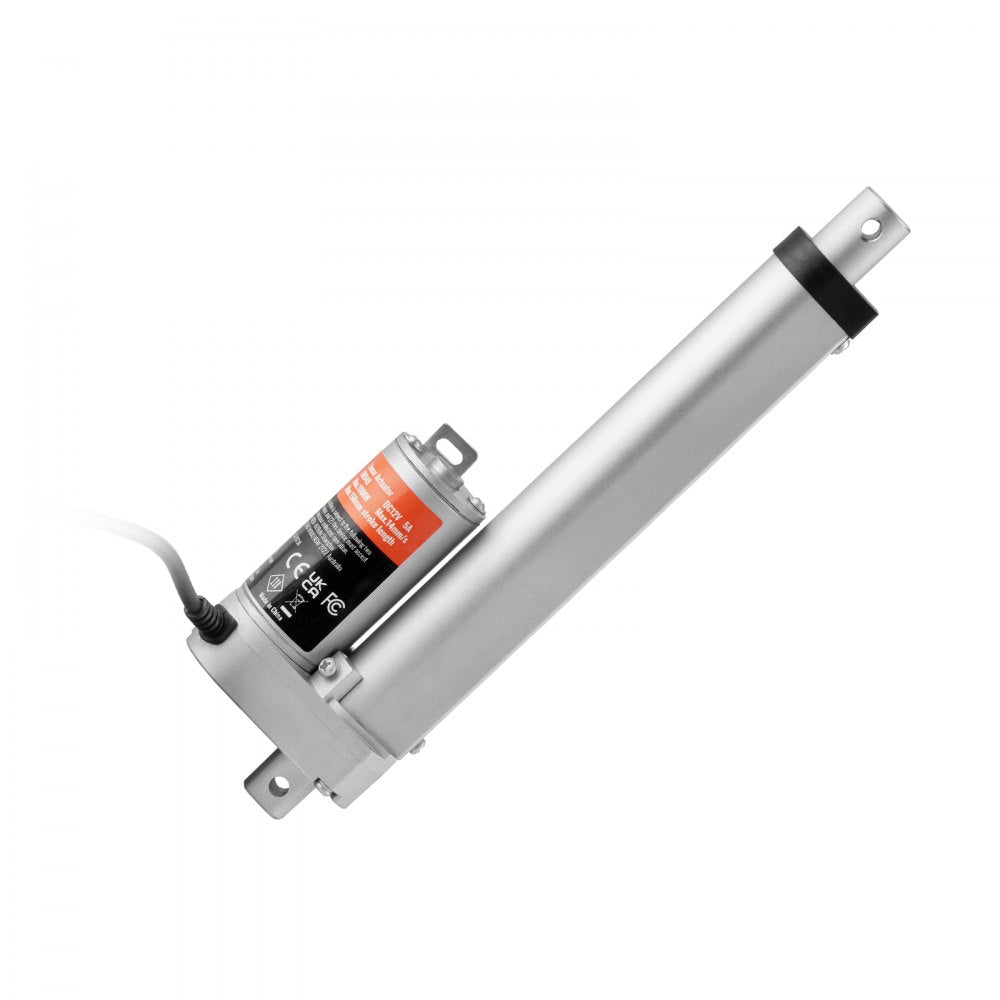

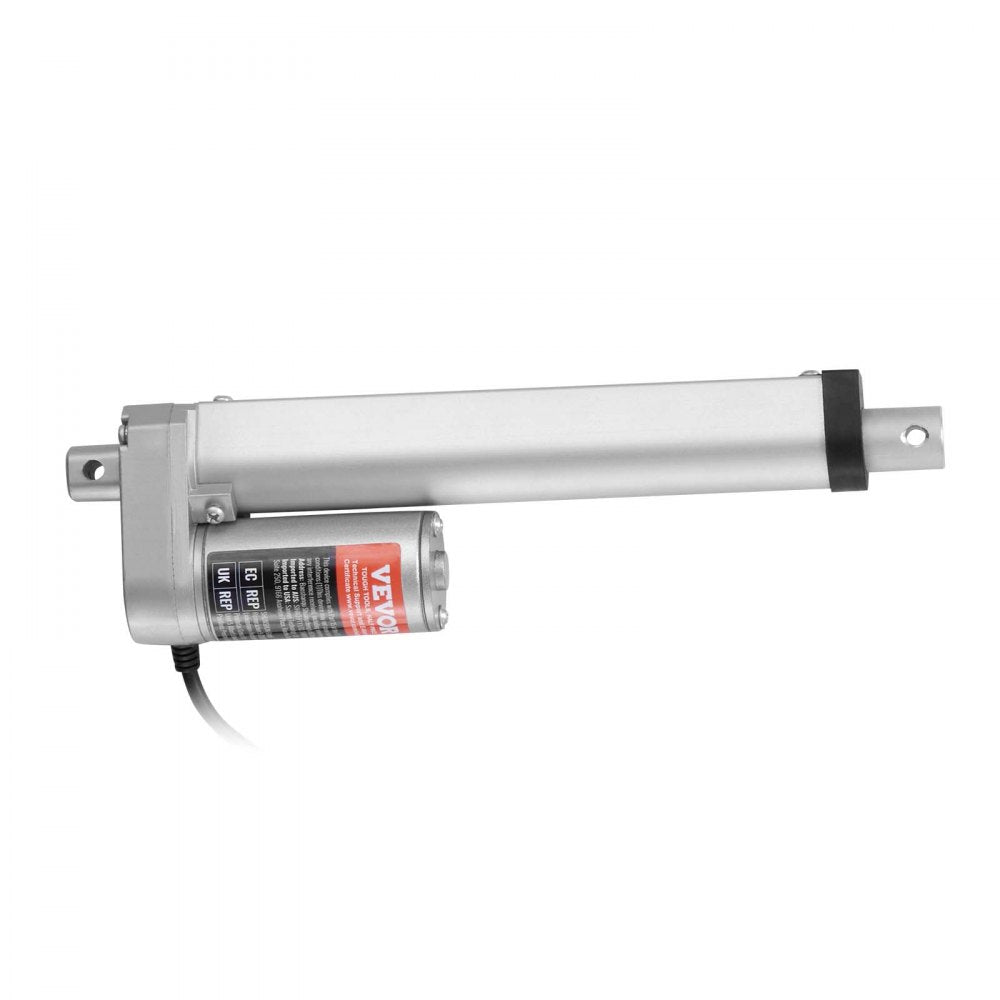

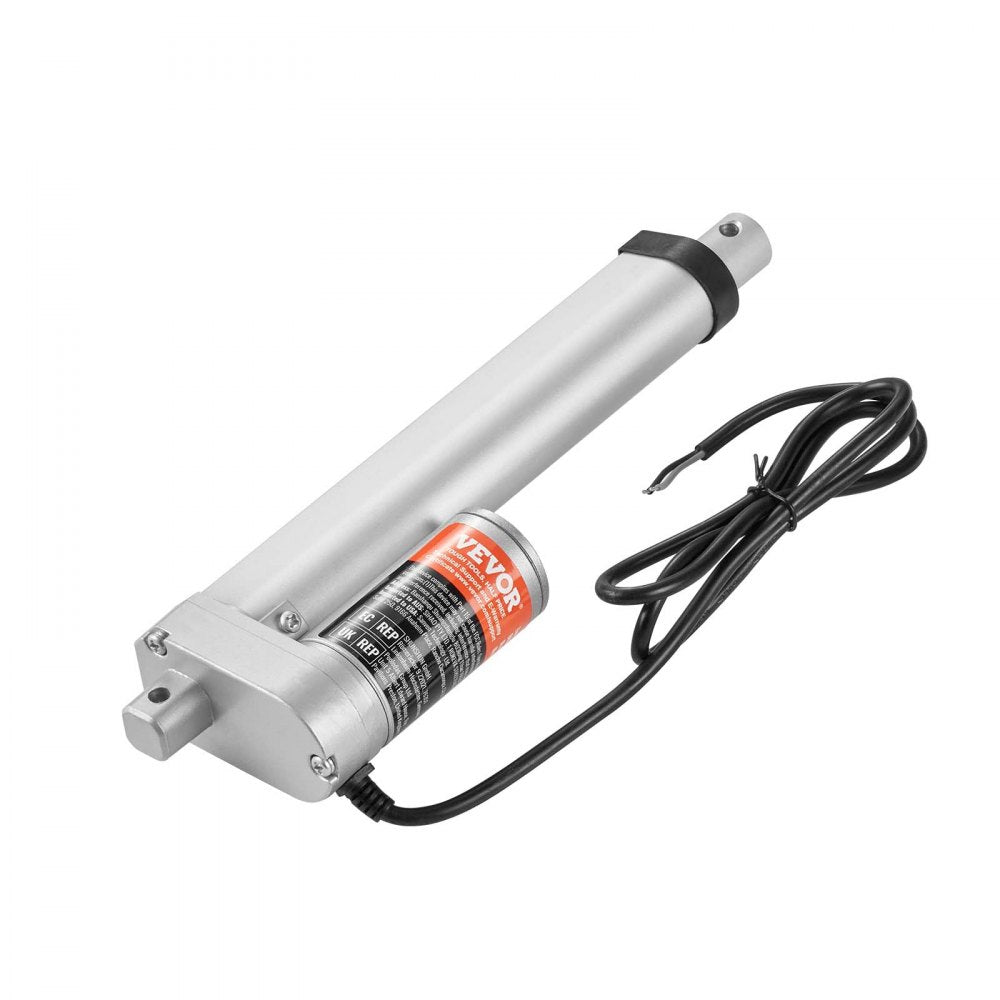

The Vevor 12V linear actuator is designed for fast, efficient motion in furniture adjustment, automation systems, and mechanical equipment. It delivers a travel speed of 0.55"/s with a 220 lbs load capacity and 6" stroke length for medium-duty lifting and positioning tasks. Its aluminum alloy construction and IP54 protection help it perform reliably in dusty or lightly humid environments. The actuator also operates at a noise level of 50 dB or less for quieter use. A mounting bracket is included for secure installation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

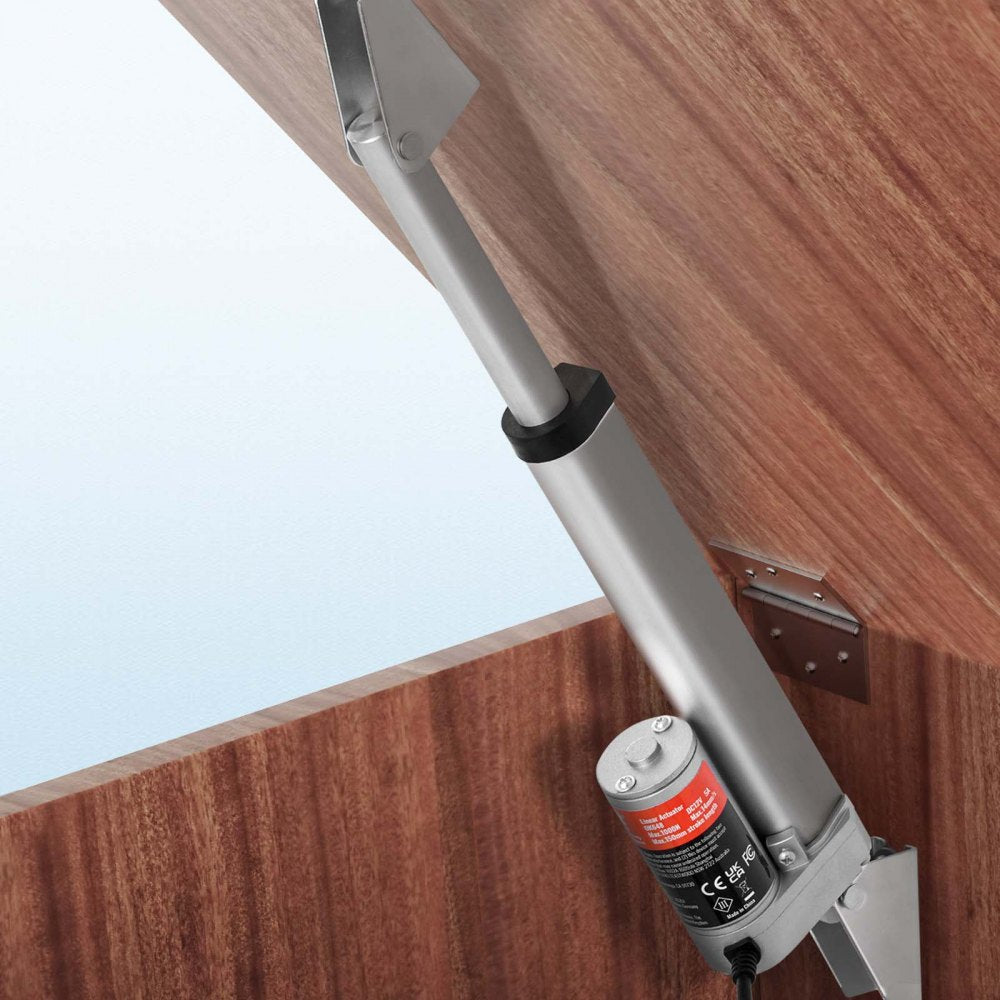

- Fast & Efficient Stroke Adjustment: Lift or lower effortlessly with VEVOR linear actuator, moving at a swift 0.55"/s. Perfect for applications requiring frequent height adjustments, whether it's altering furniture heights or raising and lowering office desks and chairs.

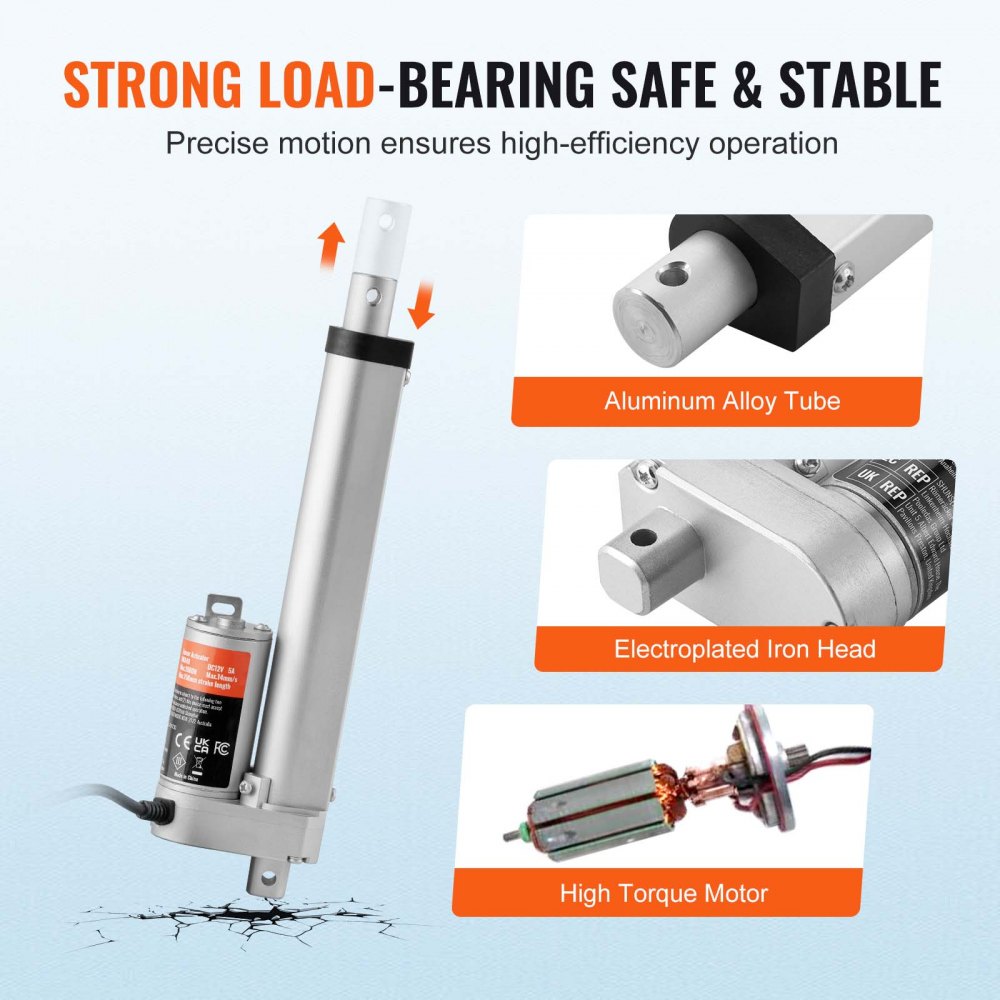

- Reliable Torque Output: 220lbs robust torque output ensure stable thrust for medium-duty tasks like lifting platforms and motorized doors and windows. Versatile for both home and industrial use, it delivers exceptional performance.
- Versatility Unleashed: VEVOR's 12V linear actuator motor, with a noise level below 50db, are your go-to for furniture adjustment, automation systems, mechanical equipment, transportation and more. Enjoy seamless functionality wherever you need it!

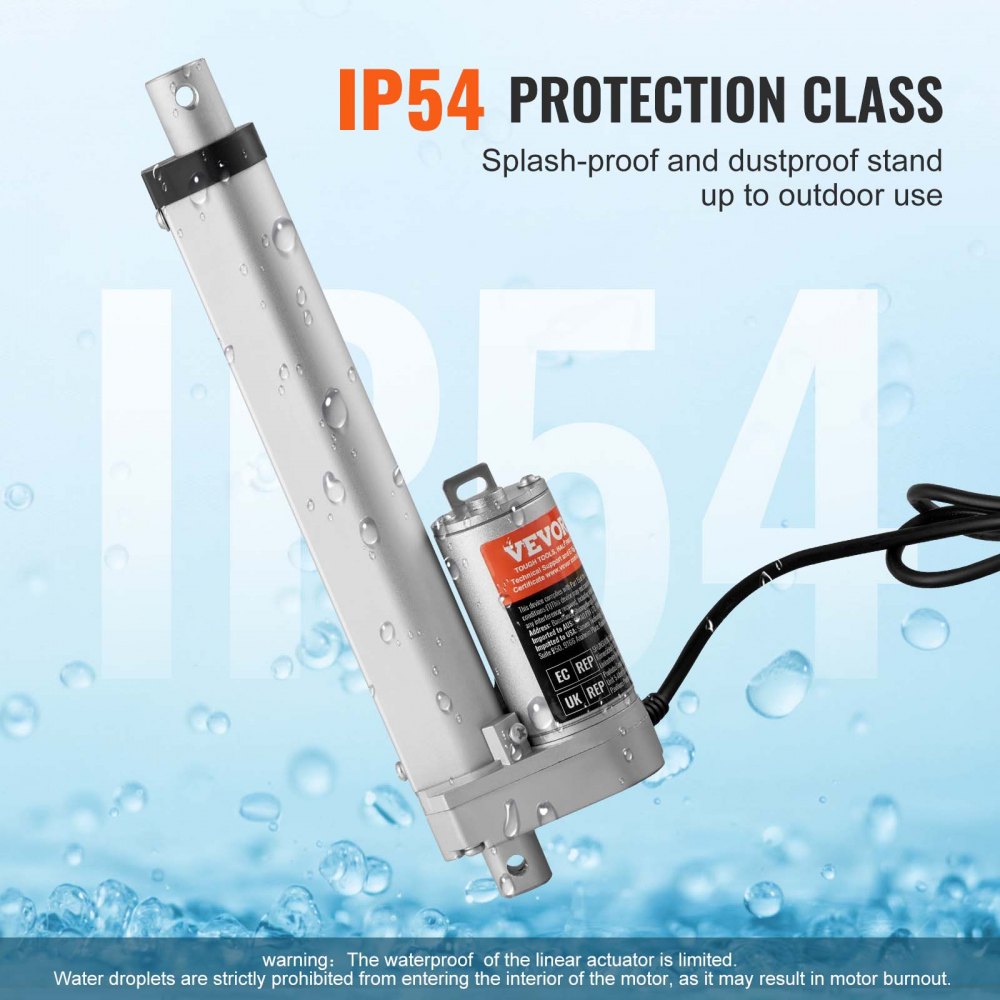

- IP54 Protection Rating: Dust, splashing water, or light humidity? No problem. VEVOR 12V linear actuator boasts an IP54 protection rating, ensuring reliable performance and protection whether in outdoor or industrial settings. (Caution: Water should not penetrate the interior of the motor)

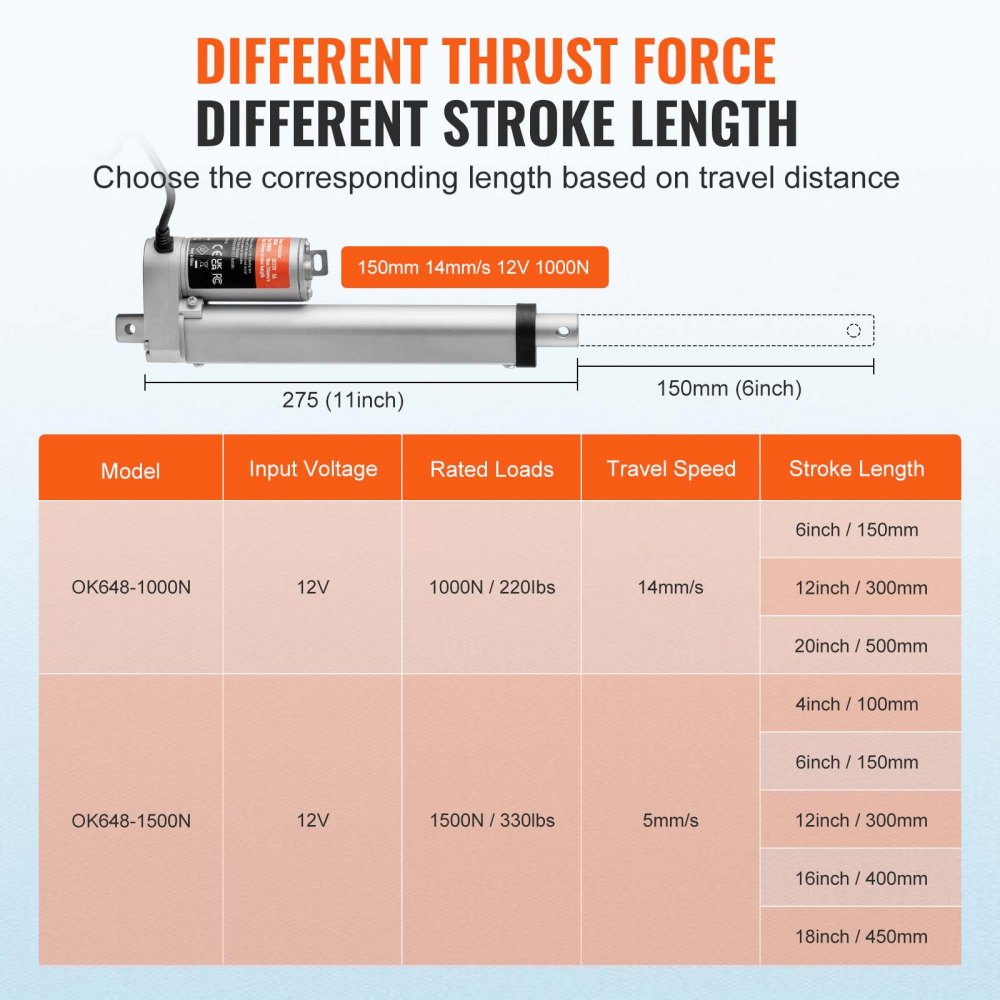

- Key Specifications: Stroke Length: 6 inch (150mm); Travel Speed: 0.55 in/s (14mm/s); Retracted Length: 10.82" (275mm); Extended Length: 16.82" (425mm); Current Draw: 5amps; Rated Voltage: DC12V; Duty Cycle: 25%.

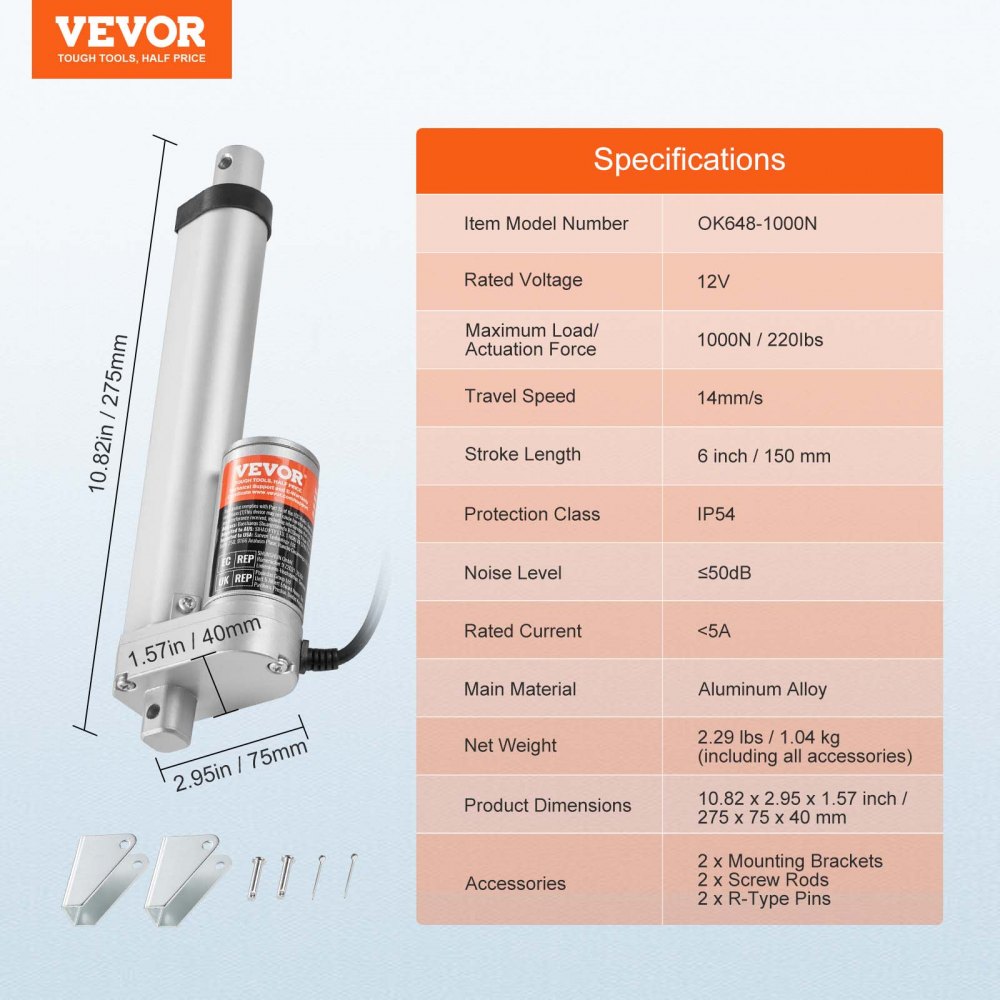

Specifications
| Item Model Number | OK648-1000N |
| Rated Voltage | DC12V |
| Maximum Load Actuation Force | 1000N |
| Load Capacity | 220 lbs |
| Travel Speed | >0.55"/s / >14 mm/s |
| Stroke Length | 6" / 150 mm |
| Protection Class | IP54 |
| Noise Level | ≤50 dB |
| Main Material | Aluminum Alloy |
| Current Draw | 5 amps |
| Duty Cycle | 25% |
| Retracted Length | 10.82" / 275 mm |
| Extended Length | 16.82" / 425 mm |
| Net Weight | 2.29 lbs / 1.04 kg |
| Product Dimensions | 10.82 x 2.95 x 1.57" / 275 x 75 x 40 mm |
Package Contents
6" high-speed linear actuator
Mounting bracket
Warranty
This item comes with a 1 year factory warranty.
