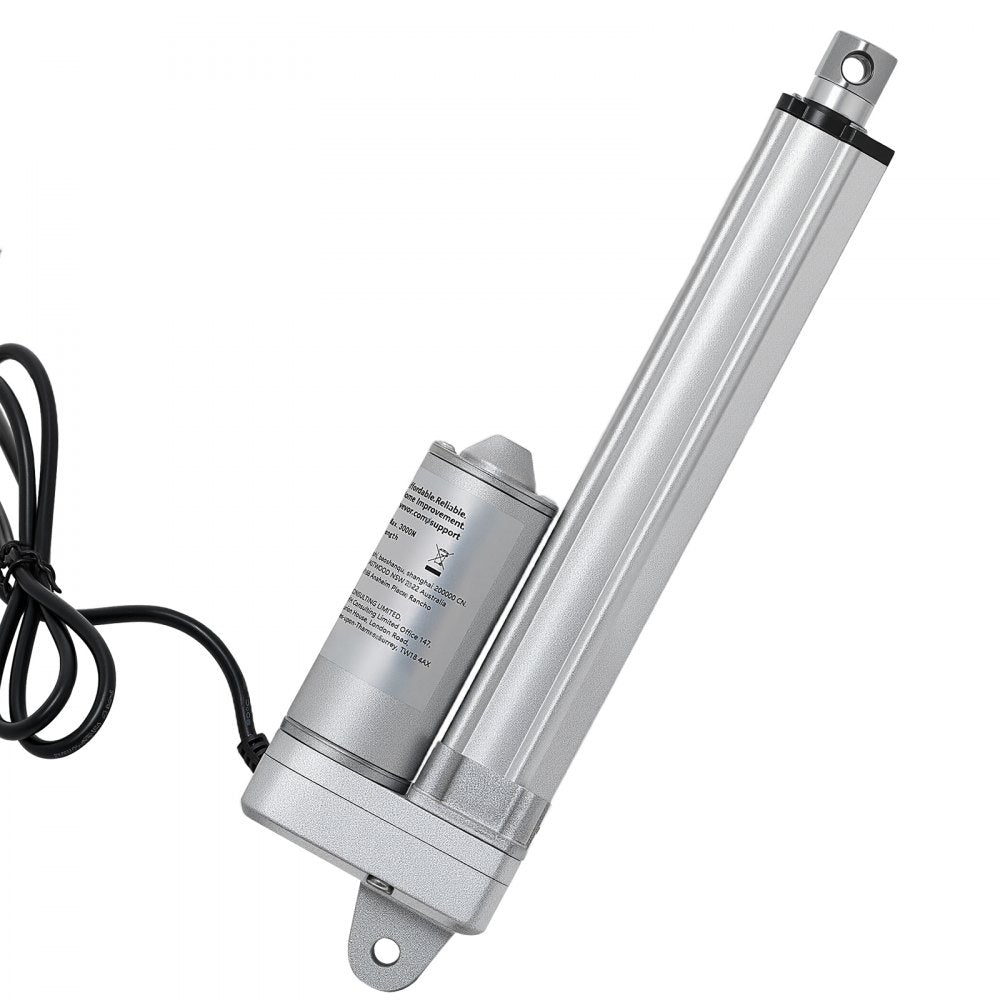

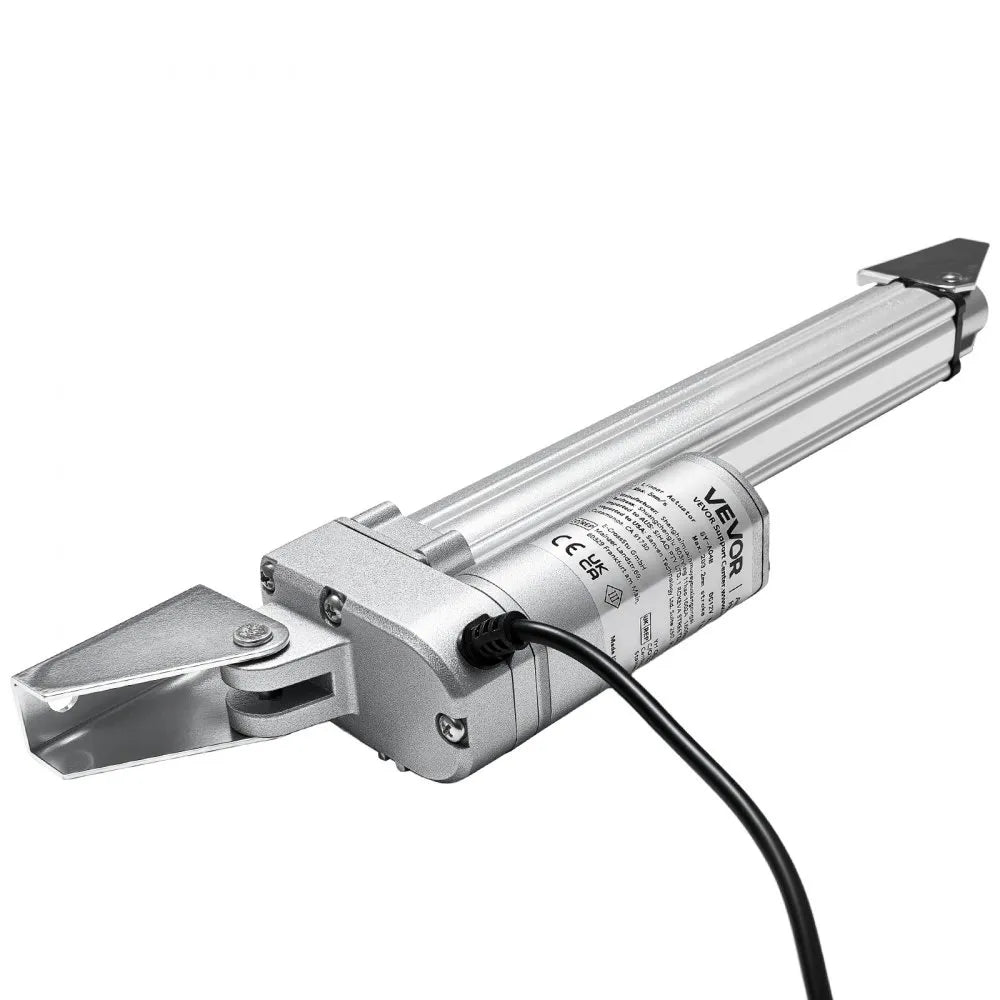

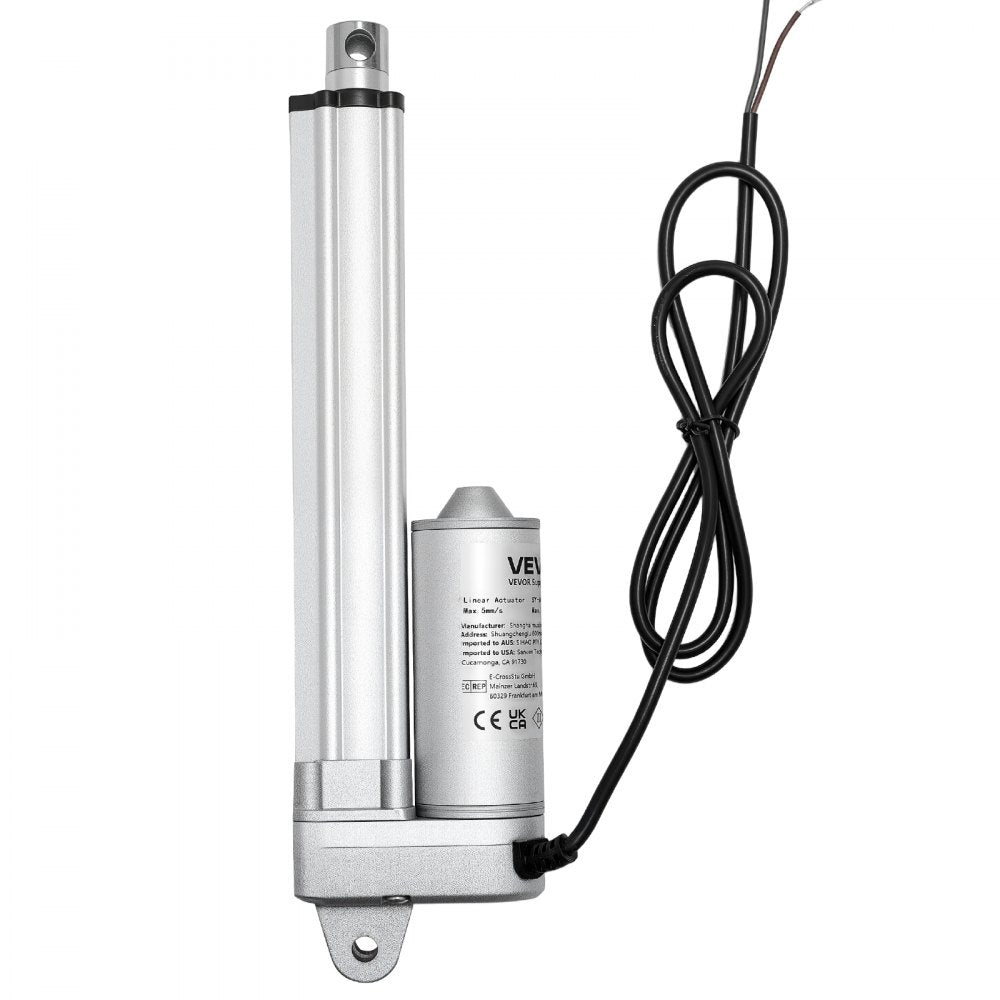

Vevor Linear Actuator 12V 6" IP65 Waterproof 675 lbs 3000N New
Product Overview

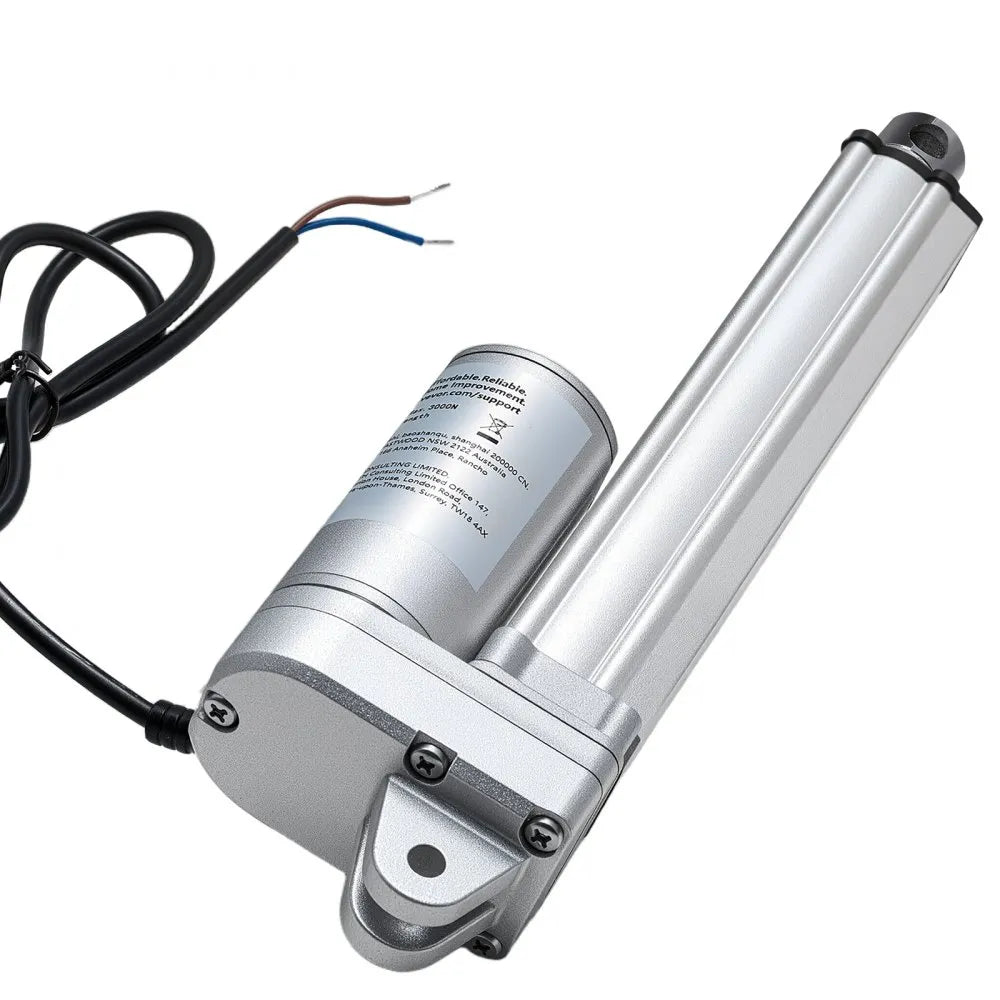

The Vevor 12V linear actuator is designed for smooth, reliable motion control in outdoor, industrial, and automation applications. It delivers up to 675 lbs of force with a 6" stroke and a travel speed of 0.2" per second. The aluminum alloy housing and IP65 rating help protect it against dust and water in demanding environments. It is well suited for uses such as solar trackers, door openers, lawn equipment, irrigation systems, and other medium-load automation projects.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

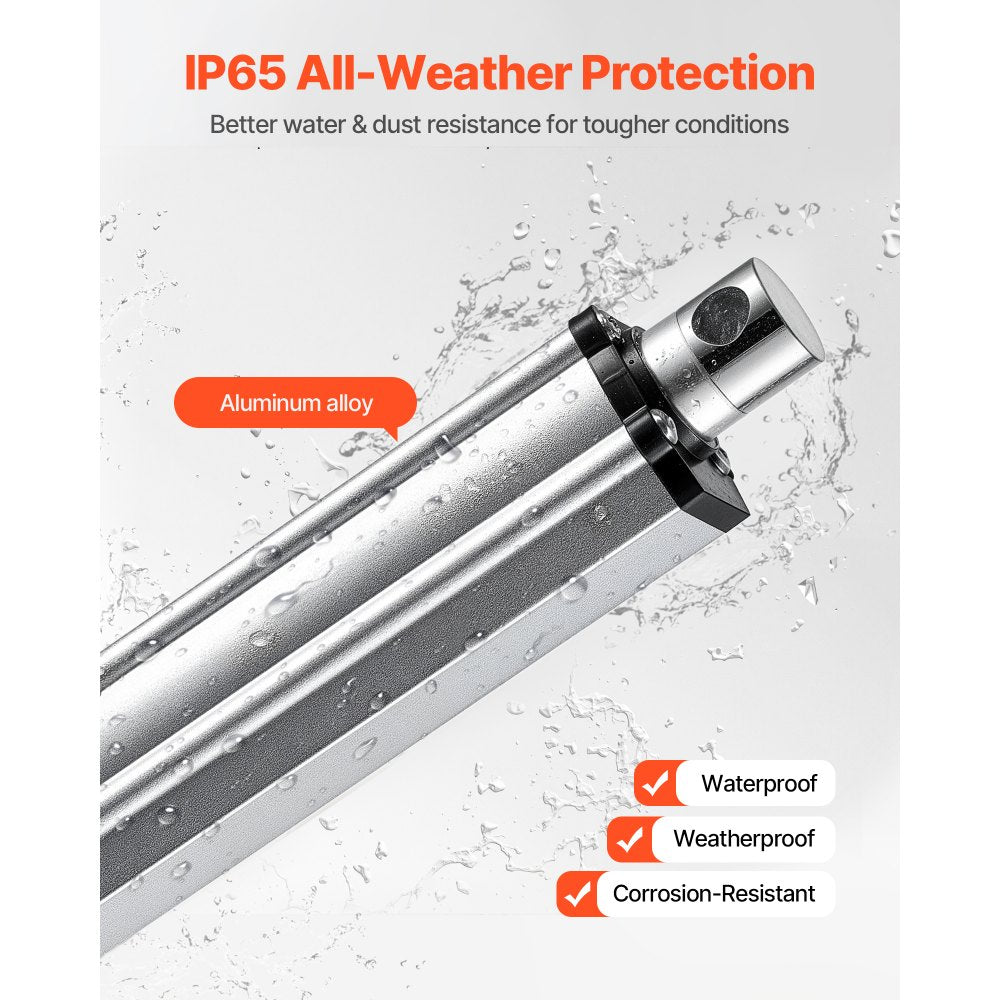

- IP65 Superior Protection: Rated IP65 for excellent dust and water resistance, VEVOR 12V linear actuator delivers dependable performance in outdoor environments. Suitable for door openers, lawn mowers, solar panel tracking systems, irrigation systems, etc

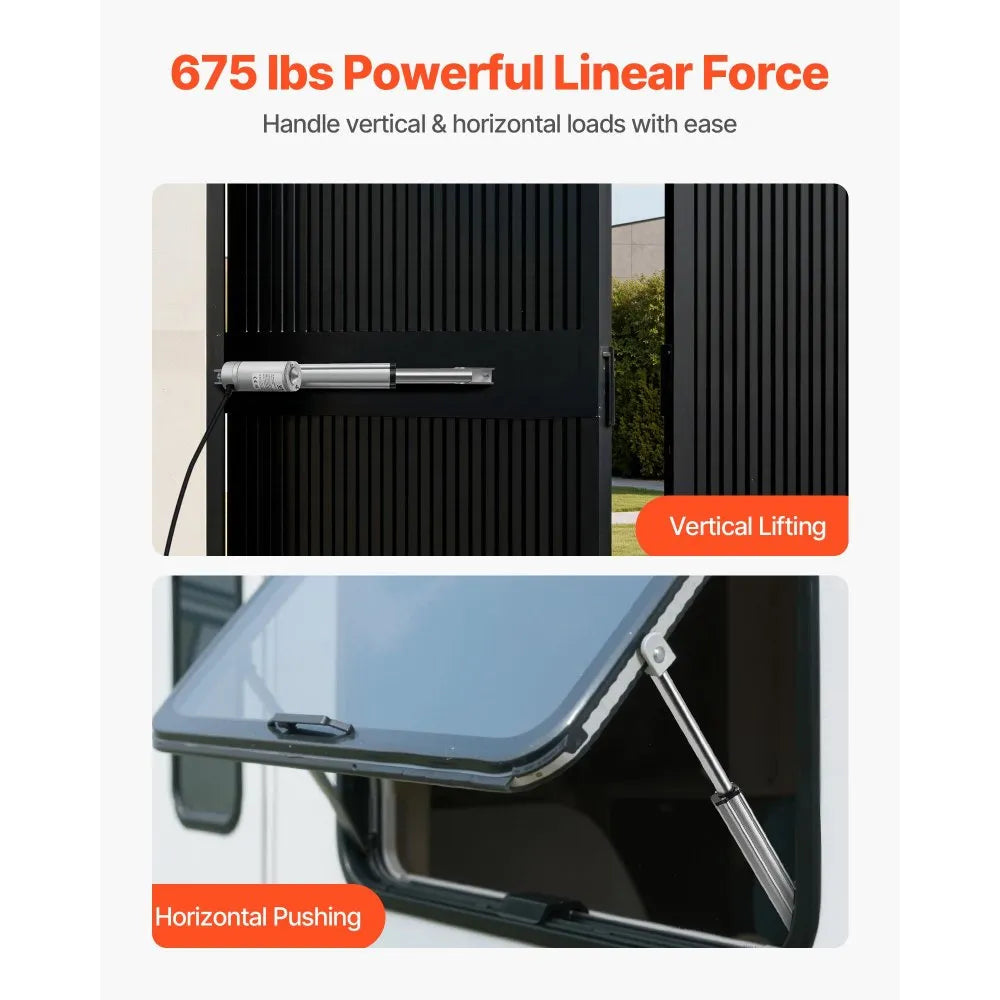

- Strong Torque Output: 675lbs (3000N) powerful torque output excels in various demanding tasks like agricultural machinery, construction equipment, and industrial automation, ensuring reliable performance in medium-load applications

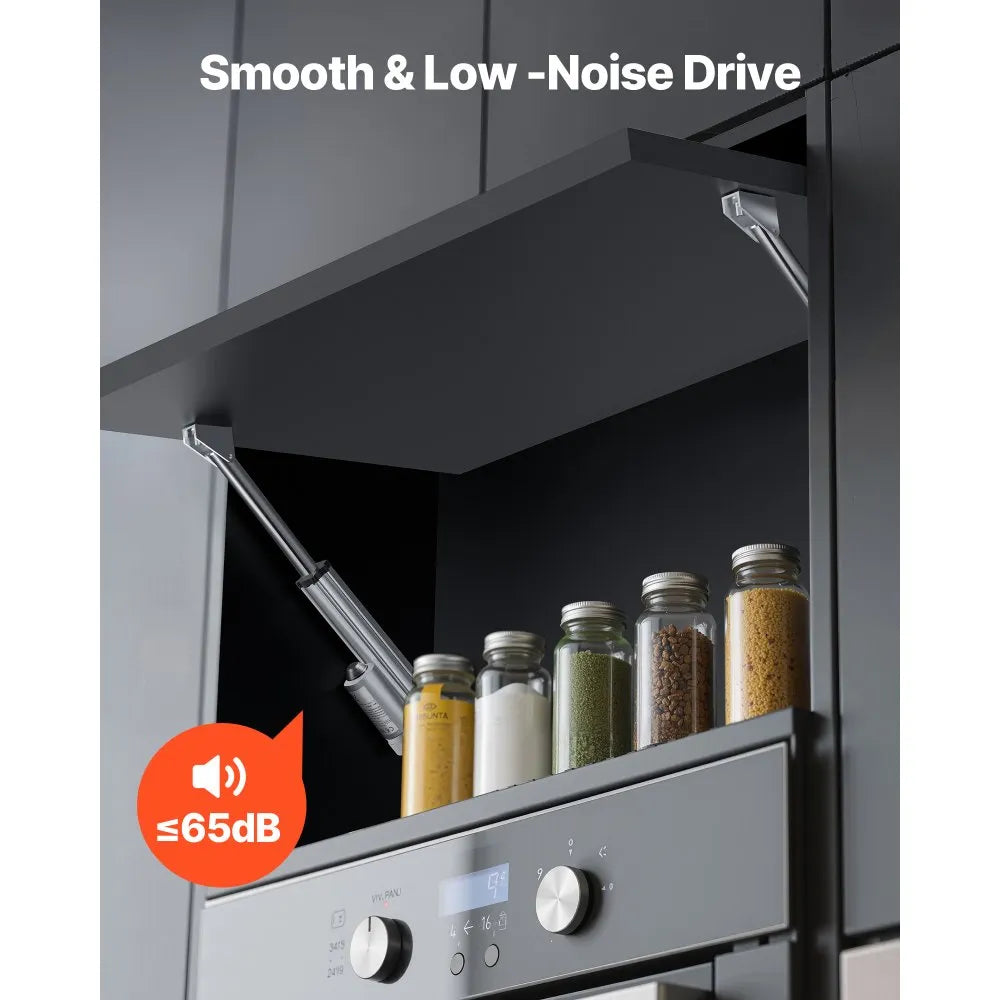

- Durable and Sturdy: Featuring an aluminum alloy housing and precision screw drive, the 12V linear actuator offers enhanced wear resistance and long-lasting stability. Operating under 65 dB (no-load noise) to reduce vibration and jamming during frequent cycles

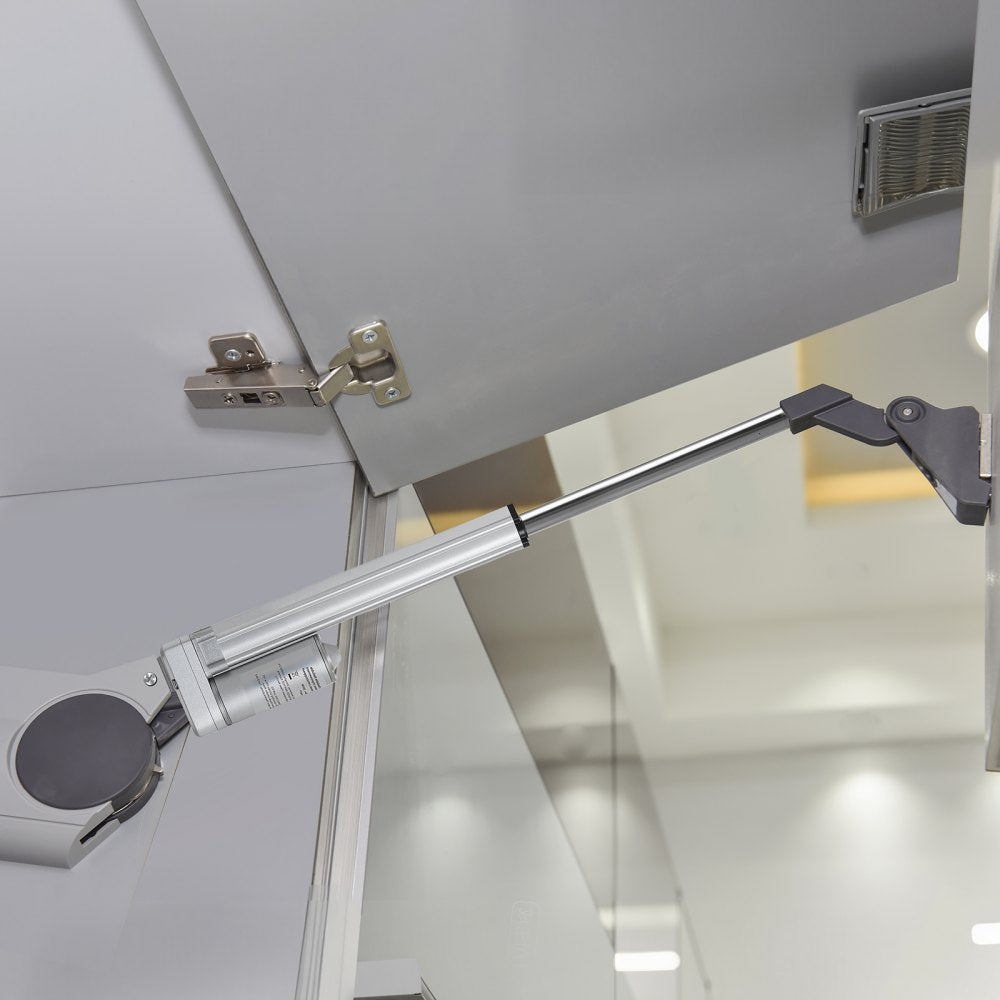

- Versatile Applications: Our linear motion actuator integrates across a wide range of applications, from furniture and home automation to industrial systems, mechanical equipment, transportation, and beyond. Empower automation at every step
- Key Specifications: Travel Speed: 0.2"/s (5 mm/s); Stroke Length: 6" (152.4 mm); Extended Length: 16" (406.4 mm); Retracted Length: 10" (254 mm); Current Draw: 6 Amps; Input Voltage: DC 12V; Duty Cycle: 25%

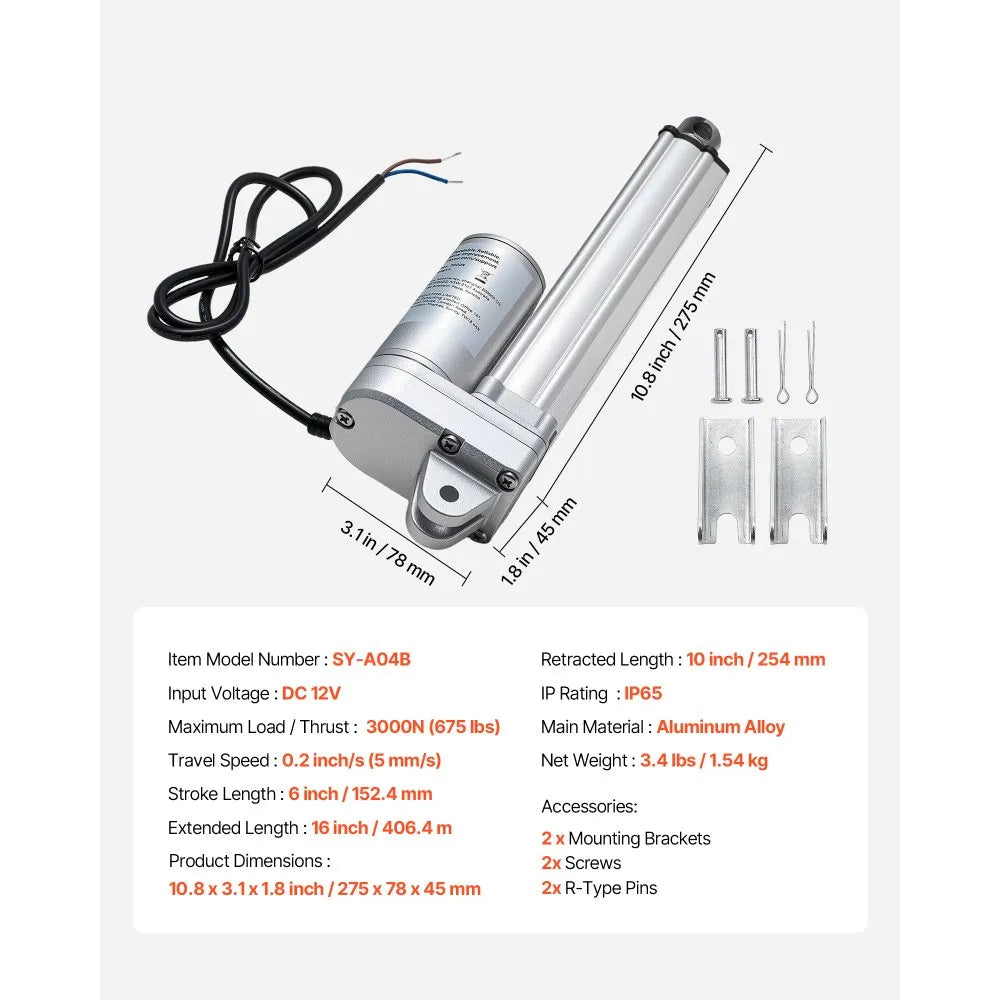

Specifications
| Item Model Number | SY-A04B |
| Rated Voltage | DC 12V |
| Maximum Load / Thrust | 3000N 675 lbs |
| Travel Speed | 0.2"/s 5 mm/s |
| Stroke Length | 6" 152.4 mm |
| Extended Length | 16" 406.4 mm |
| Retracted Length | 10" 254 mm |
| IP Rating | IP65 |
| Main Material | Aluminum Alloy |
| Current Draw | 6 Amps |
| Duty Cycle | 25% |
| Net Weight | 3.4 lbs 1.54 kg |
| Product Dimensions | 10.8 x 3.1 x 1.8" 275 x 78 x 45 mm |

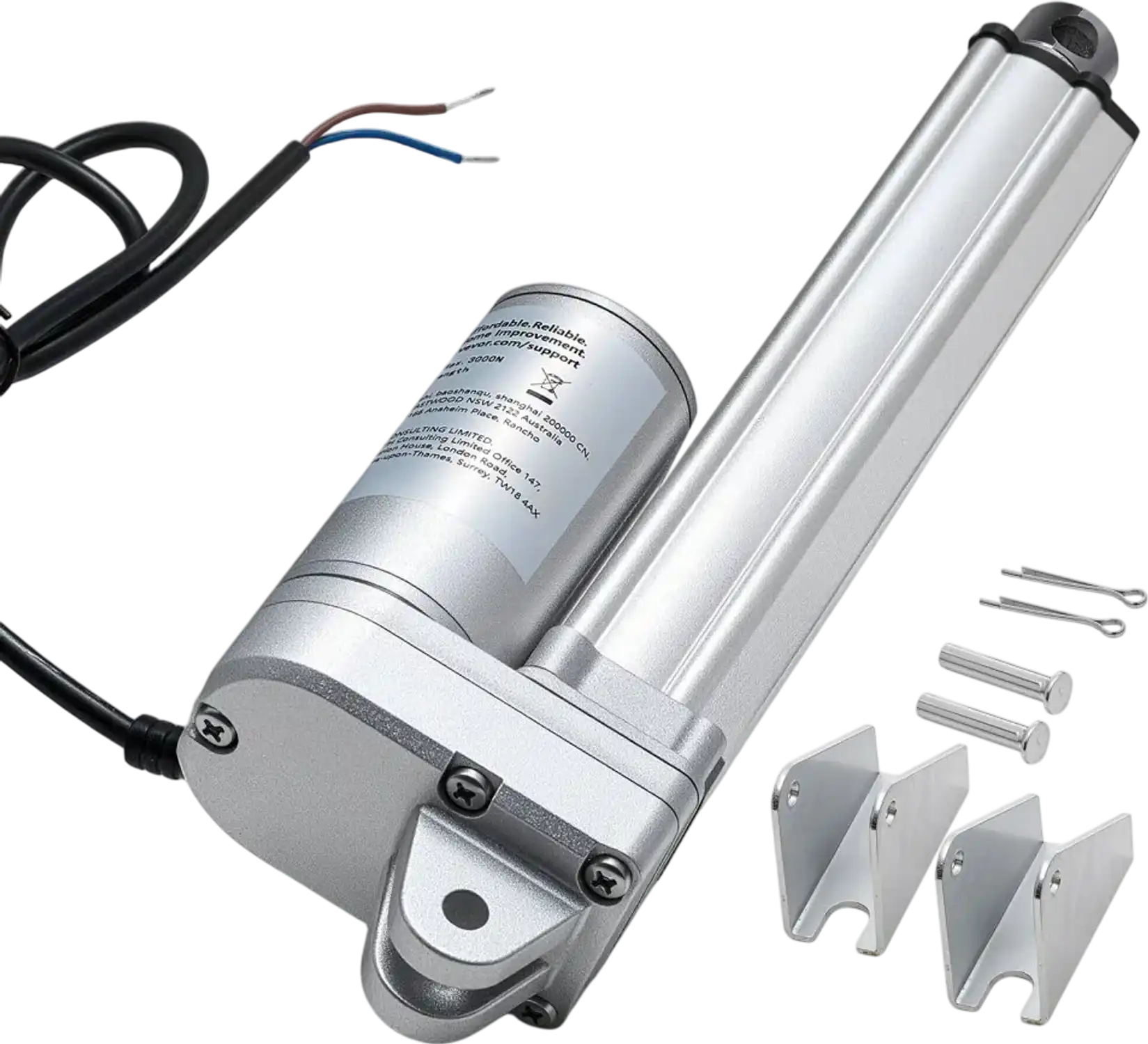

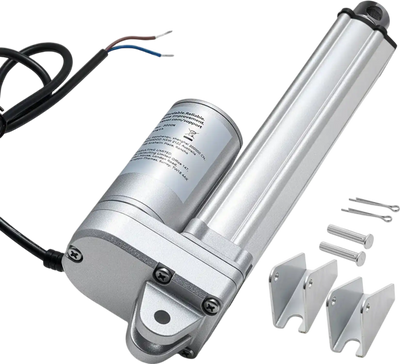

Package Contents
1 x Linear actuator
2 x Mounting brackets
Warranty
This item comes with a 1 year factory warranty.
