Vevor Linear Actuator 12V 6" Stroke 330 lbs High Load with Mounting Bracket IP54 New

Product Overview

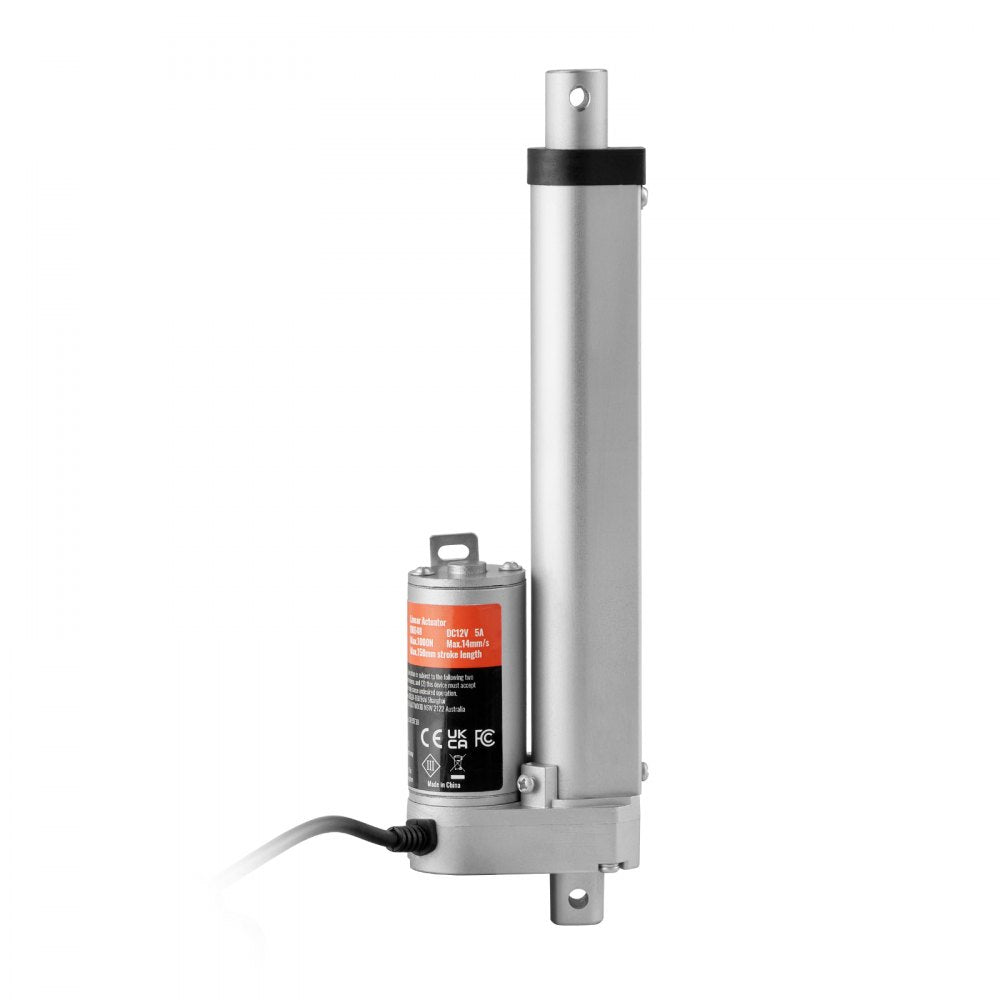

The Vevor 12V linear actuator is designed for precise motion control with a 6-inch stroke, 330 lbs load capacity, and stable 0.19"/s travel speed. Its reinforced structure and all-metal transmission mechanism provide dependable performance for automation, furniture, and industrial applications. The actuator features IP54 protection for resistance to dust and splashing water in demanding environments. Quiet operation under 60 dB makes it suitable for both commercial and residential use. A mounting bracket is included for added installation convenience.
vendor logo
divider
authorized dealer
checkmark

Brand new

checkmark

1 year factory warranty

checkmark

Manufacturer direct shipping from CA, NJ, & TX

checkmark

Authorized Vevor Dealer

Features

  • Precision Motion Control: VEVOR linear actuator offers precise position control with 0.19"/s stable speed and 330lbs high torque output. Perfect for tasks requiring exact positioning, such as robotic arms or electric beds that demand precision.

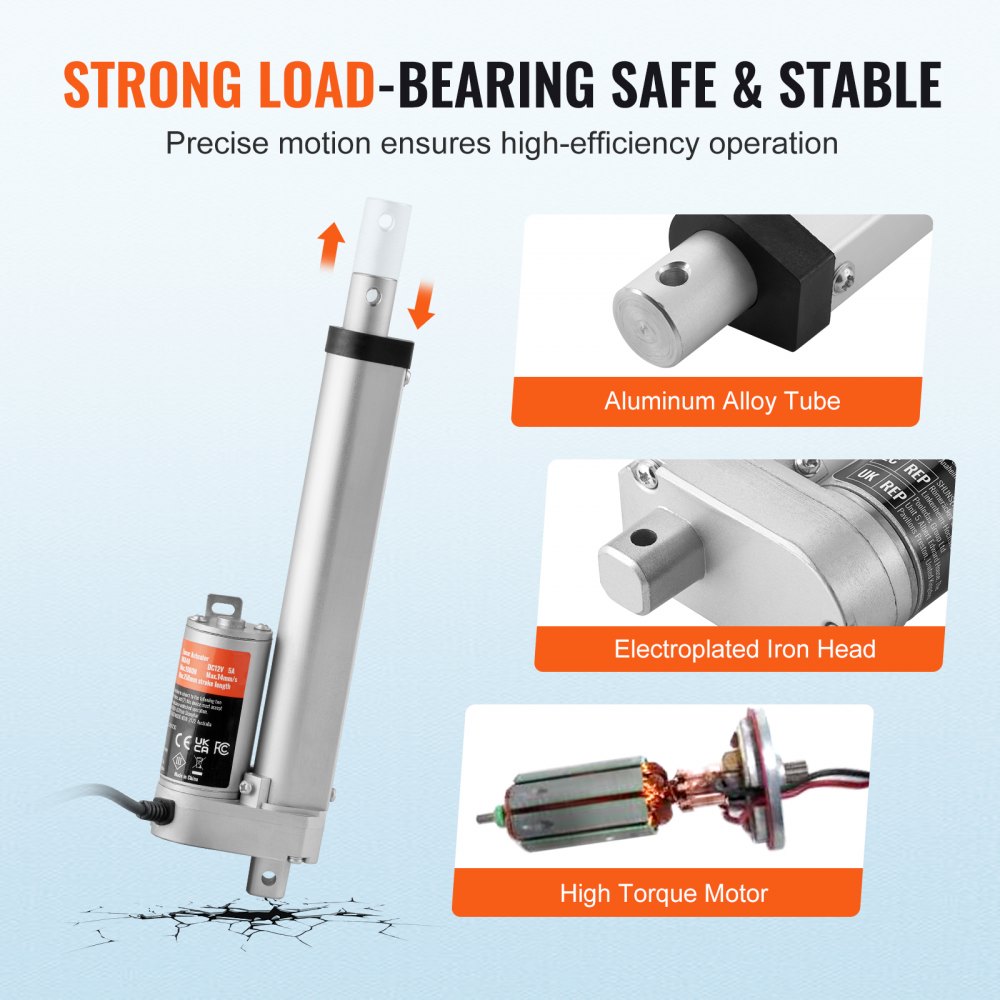

  • Durable and Sturdy: With reinforced structure and all-metal transmission mechanism, our 12V linear actuator motor ensures reliability under high loads. Suitable for various industrial automation and laboratory equipment, it withstands the rigors of long-term use.

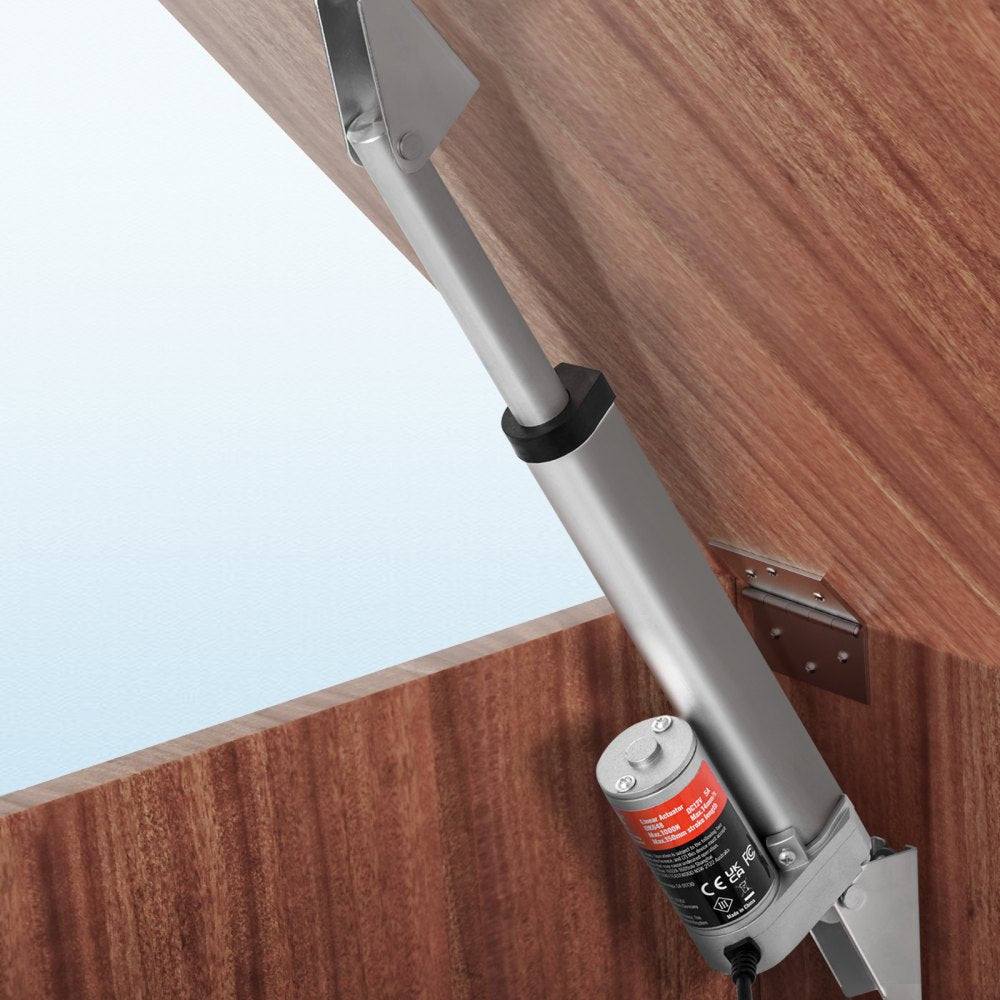

  • Versatile Applications: With a noise level below 60db, our linear motion actuator seamlessly fits into various applications, from furniture to automation systems, mechanical equipment, transportation, and more. Enjoy versatile functionality wherever you need it!

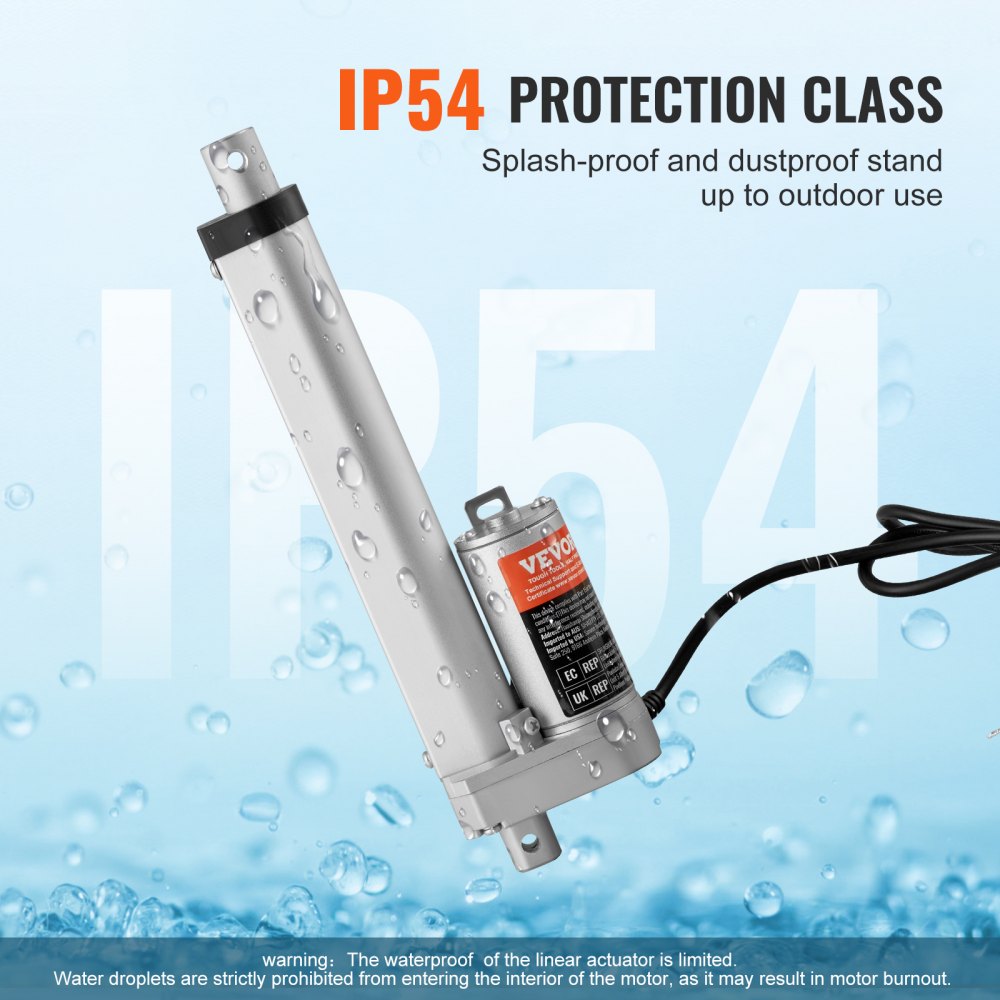

  • IP54 Protection Rating: With an IP54 protection rating, VEVOR 12V linear actuator excels in harsh environmental conditions like dust, splashing water, and light humidity. Whether for outdoor or industrial use, it provides exceptional protection. (Caution: Water should not penetrate the interior of the motor)

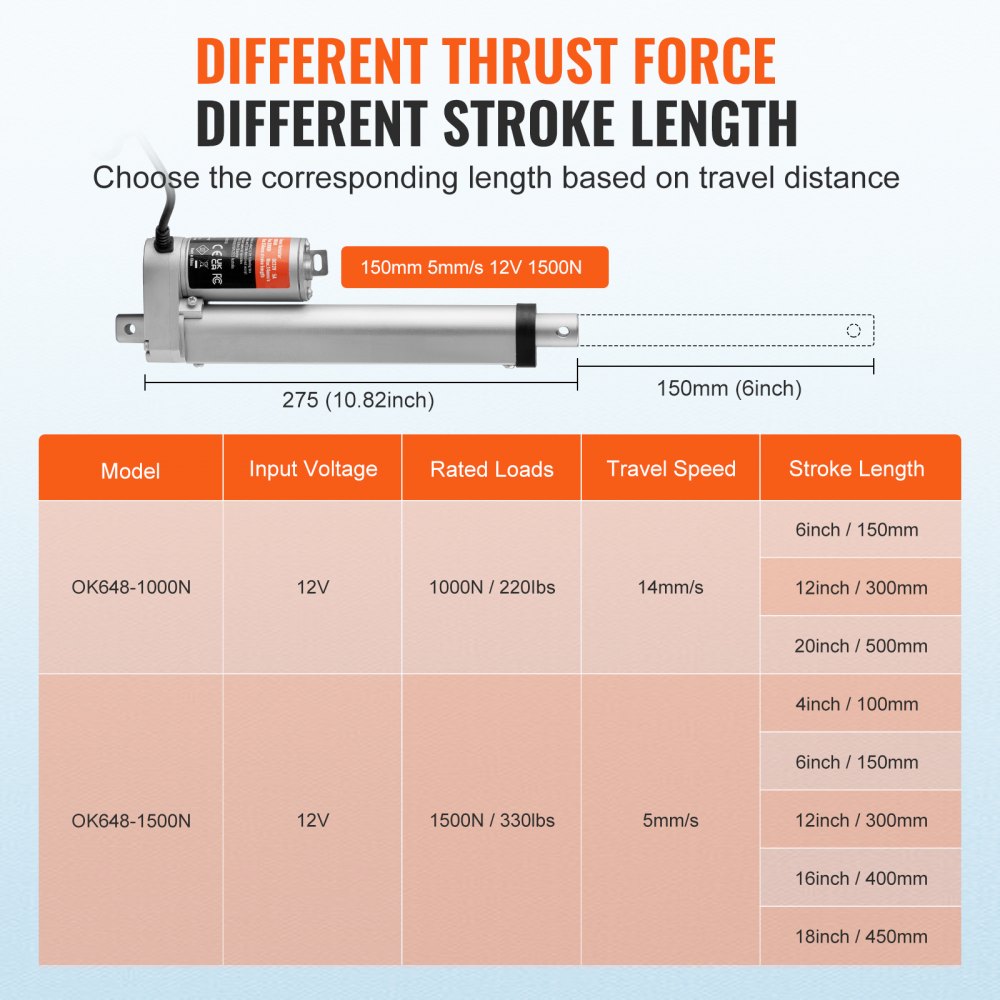

  • Key Specifications: Stroke Length: 6 inch (150mm); Travel Speed: 0.19 in/s (5mm/s); Retracted Length: 10.82" (275mm); Extended Length: 16.82" (425mm); Current Draw: 5amps; Rated Voltage: DC12V; Duty Cycle: 25%.

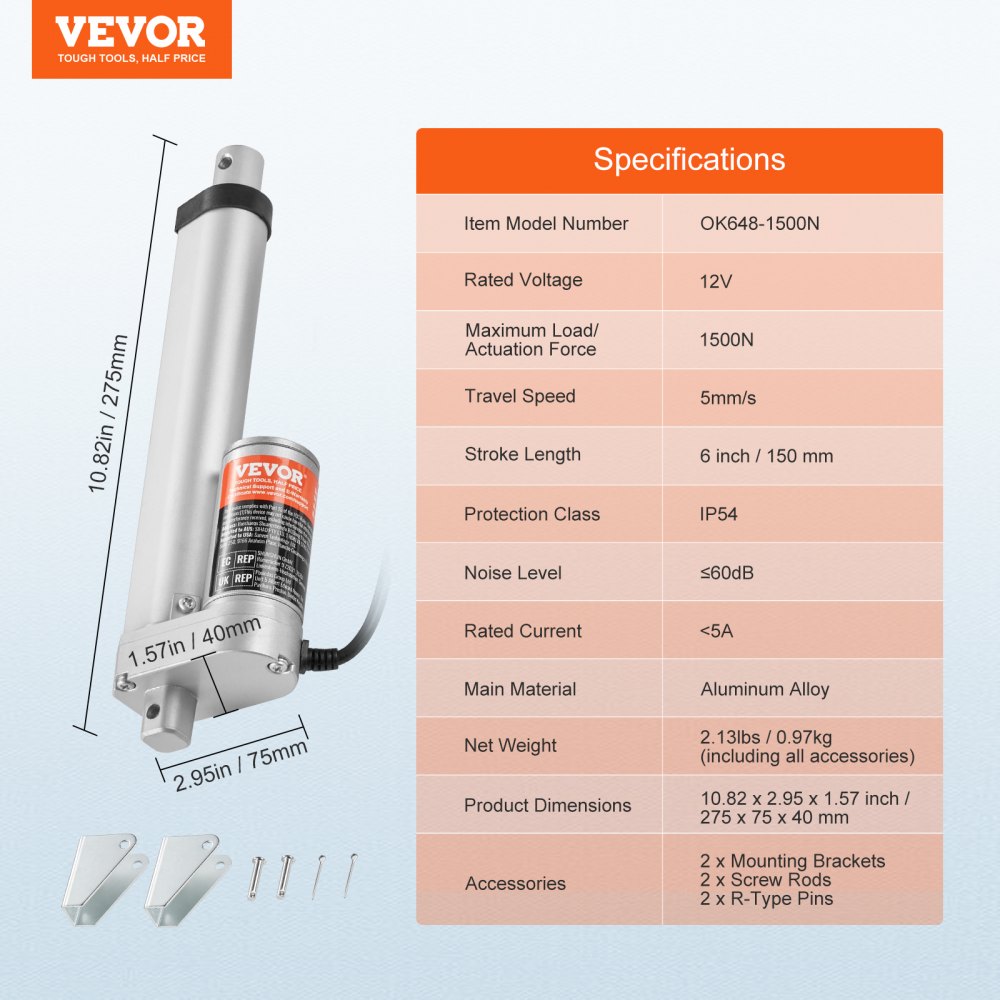

Specifications

Item Model Number OK648-1500N
Rated Voltage DC12V
Maximum Load Actuation Force 1500N
Maximum Load Capacity 330 lbs
Travel Speed 0.19"/s / 5 mm/s
Stroke Length 6" / 150 mm
Protection Class IP54
Noise Level ≤60 dB
Main Material Aluminum Alloy
Current Draw 5 amps
Duty Cycle 25%
Retracted Length 10.82" / 275 mm
Extended Length 16.82" / 425 mm
Net Weight 2.13 lbs / 0.97 kg including all accessories
Product Dimensions 10.82 x 2.95 x 1.57" / 275 x 75 x 40 mm

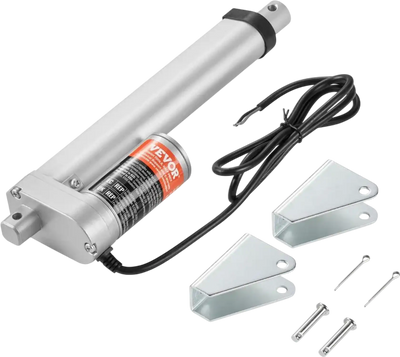

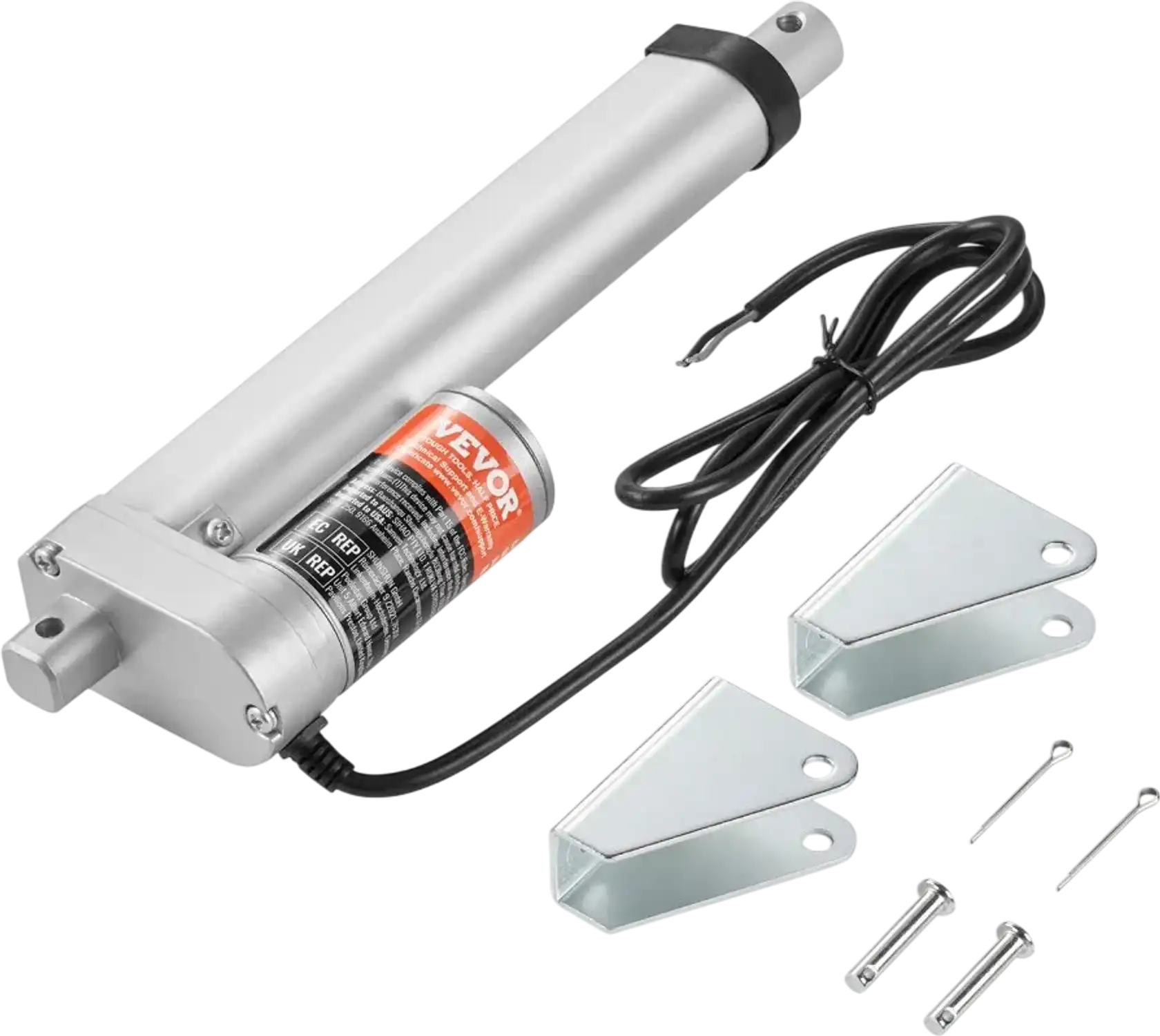

Package Contents

Linear actuator

Mounting bracket

All accessories

Warranty

vendor logo
divider
authorized dealer

This item comes with a 1 year factory warranty.
