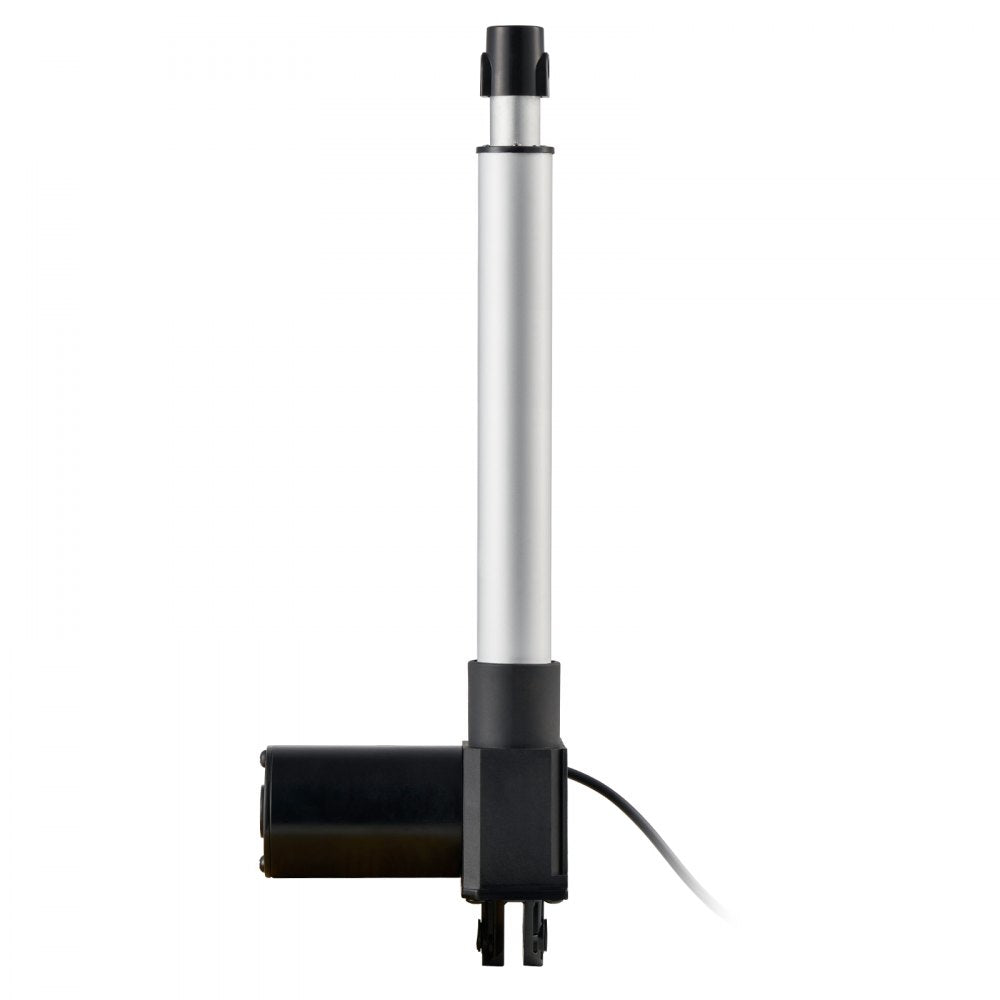

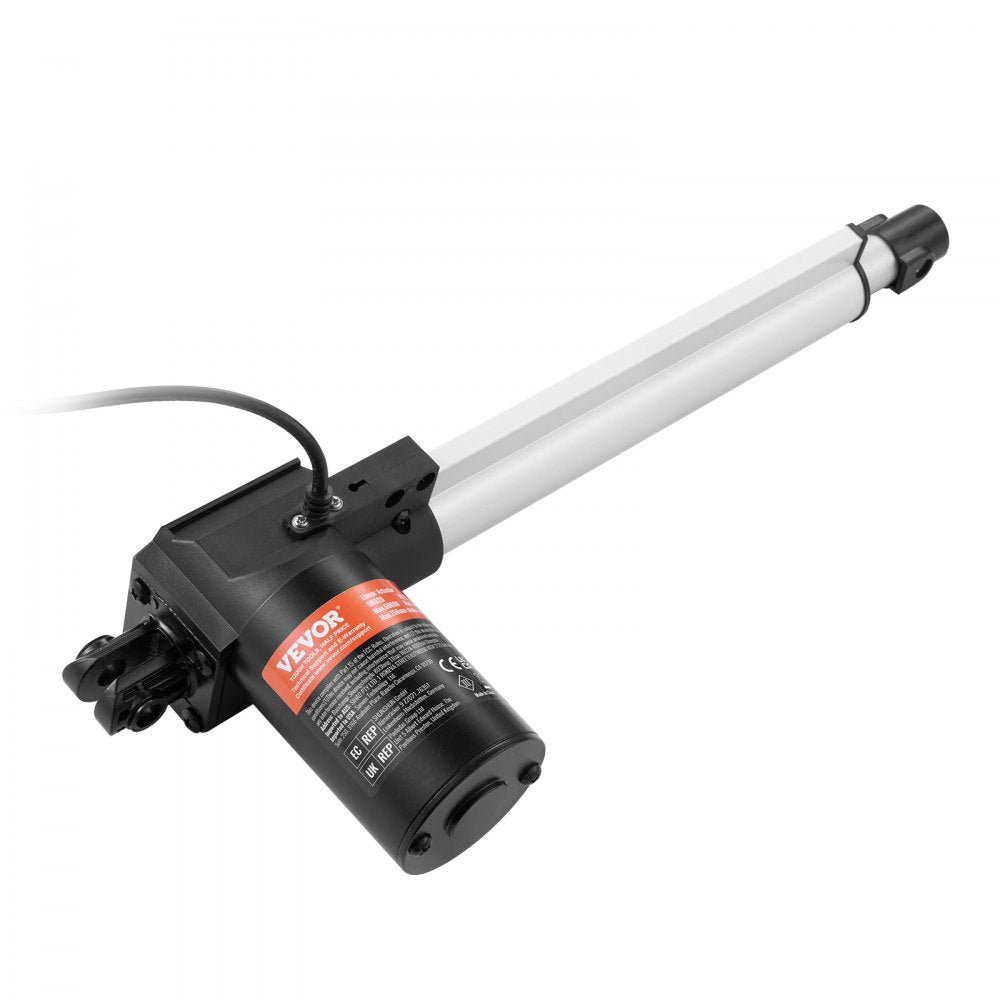

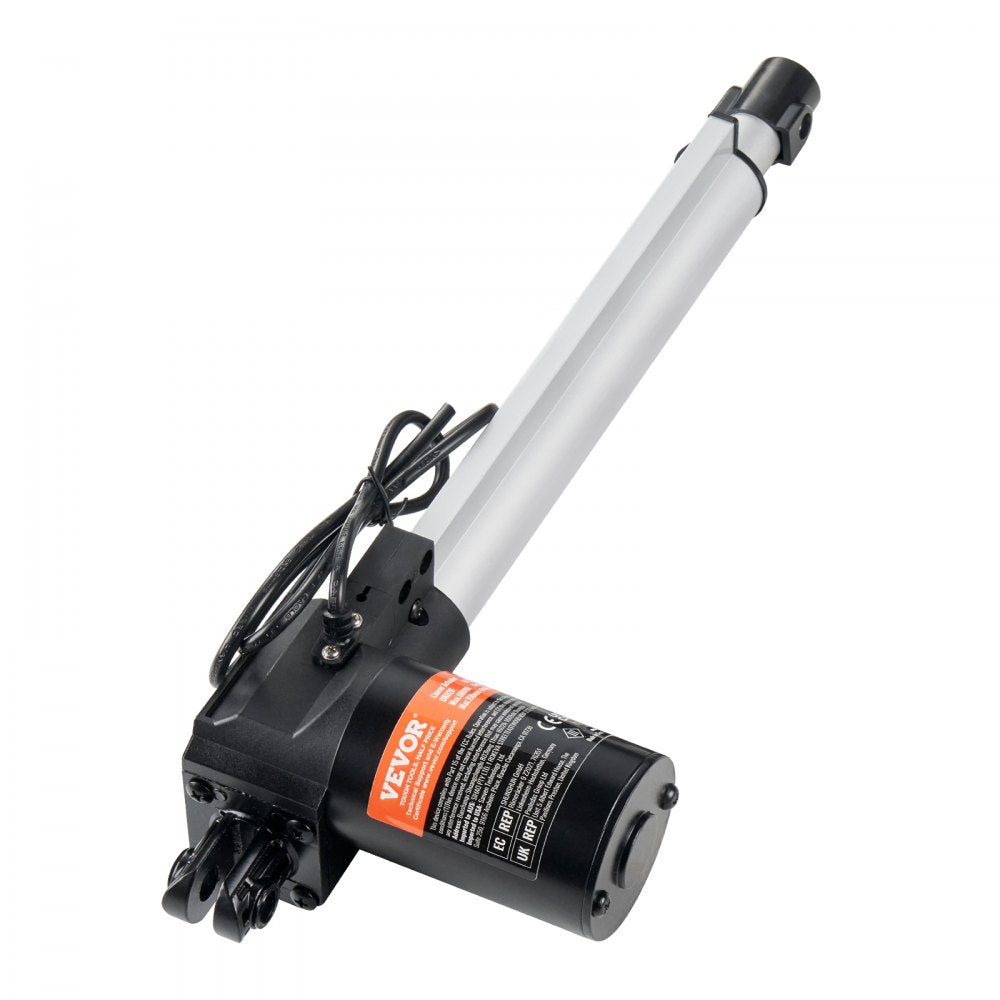

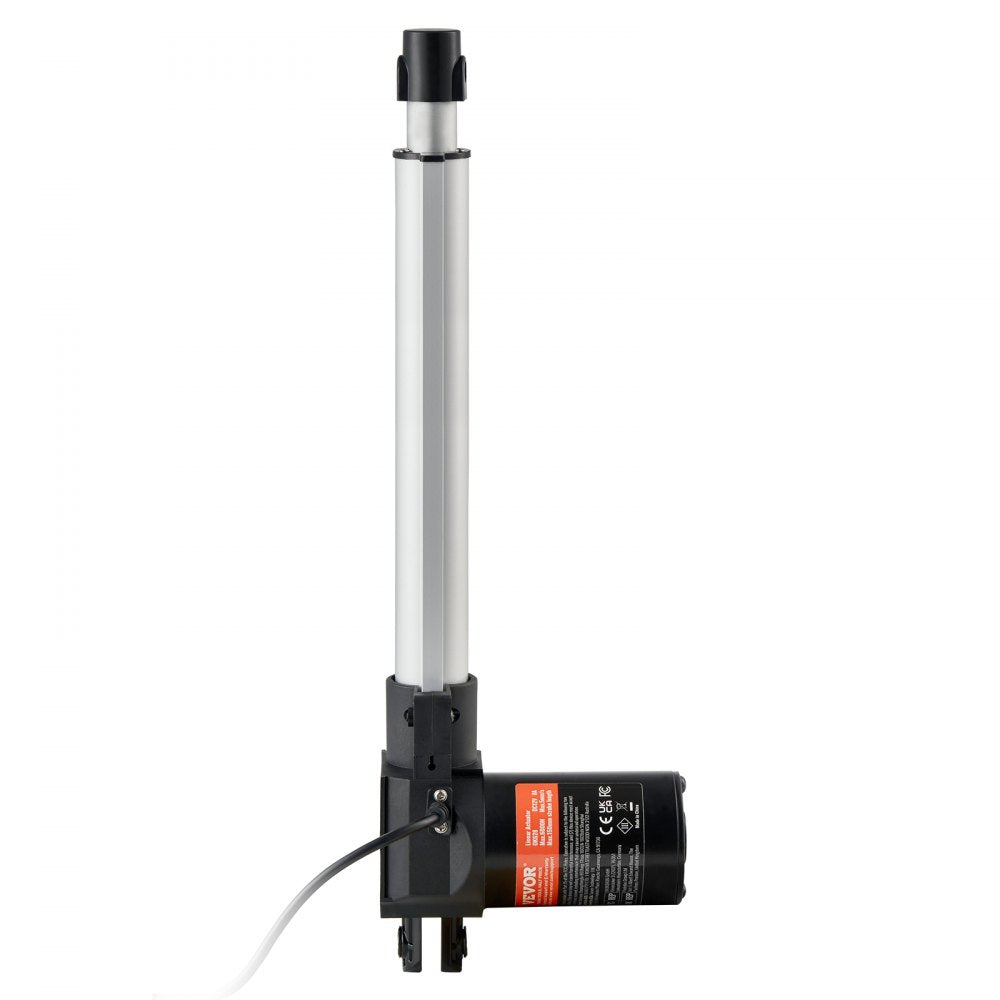

Vevor Linear Actuator Kit 24V 10" High Speed 220 lbs 1000N IP44 New
Product Overview
The Vevor linear actuator kit is a 24V electric motion solution designed for medium-duty lifting and automation tasks. It delivers up to 220 lbs of force with a 10" stroke and 0.98"/s travel speed for smooth, efficient operation. With an IP44 protection rating and noise level at or below 50 dB, it is suitable for home and industrial environments. The kit includes the necessary accessories for straightforward installation and setup.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

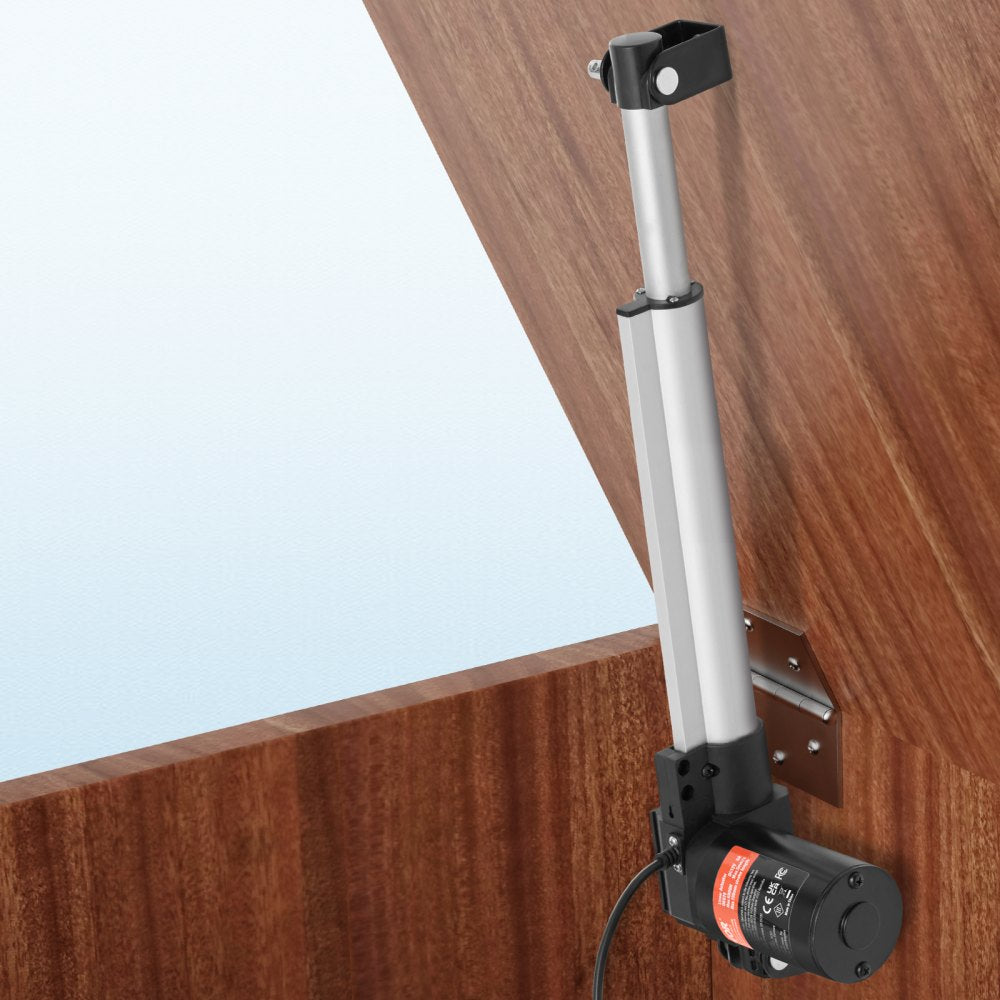

- Complete Electric Actuators Kit: VEVOR linear actuator kit includes necessary components for easy assembly. 220lbs/1000N robust torque output ensure stable thrust for medium-duty tasks like lifting platforms and motorized doors and windows, versatile for both home and industrial use.
- Reliable Torque Output: 220lbs robust torque output ensure stable thrust for medium-duty tasks like lifting platforms and motorized doors and windows. Versatile for both home and industrial use, it delivers exceptional performance.
- Versatility Unleashed: Get ready for a quiet revolution! VEVOR's linear motion actuator, with a noise level below 50db, are your go-to for furniture adjustment, automation systems, mechanical equipment, transportation and more. Enjoy seamless functionality wherever you need it!

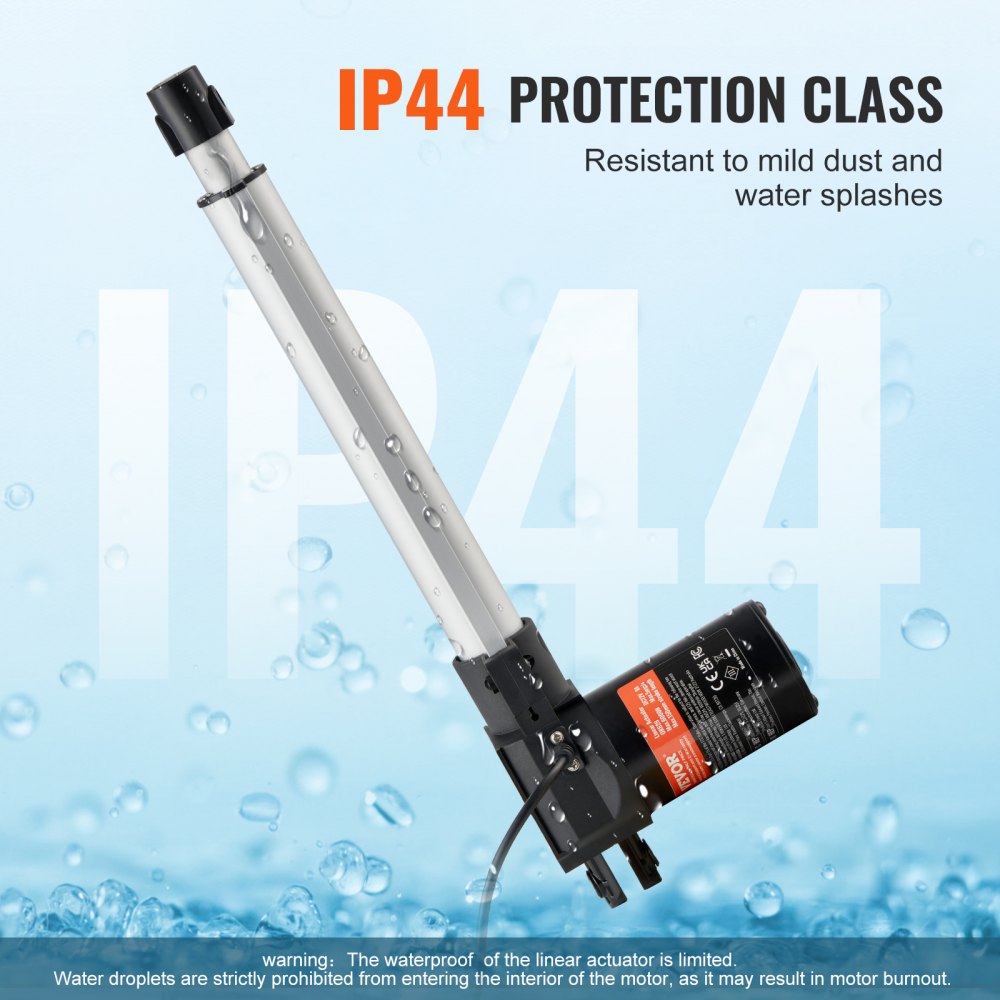

- IP44 Protection Rating: Featuring an IP44 protection rating, VEVOR motion actuator kit excels in environments with dust, solid particles, and light-splashing water. Count on it to withstand dust and moisture in general industrial and household applications. (Caution: Water should not penetrate the interior of the motor)
- Key Specifications: Stroke Length: 10 inch (250mm); Travel Speed: 0.98 in/s (25mm/s); Retracted Length: 18.11" (460mm); Extended Length: 28.11" (710mm); Input Voltage: AC100-240V; Duty Cycle: 10%. Efficiency is at its highest when the actuation force is approximately 75% of its maximum value.

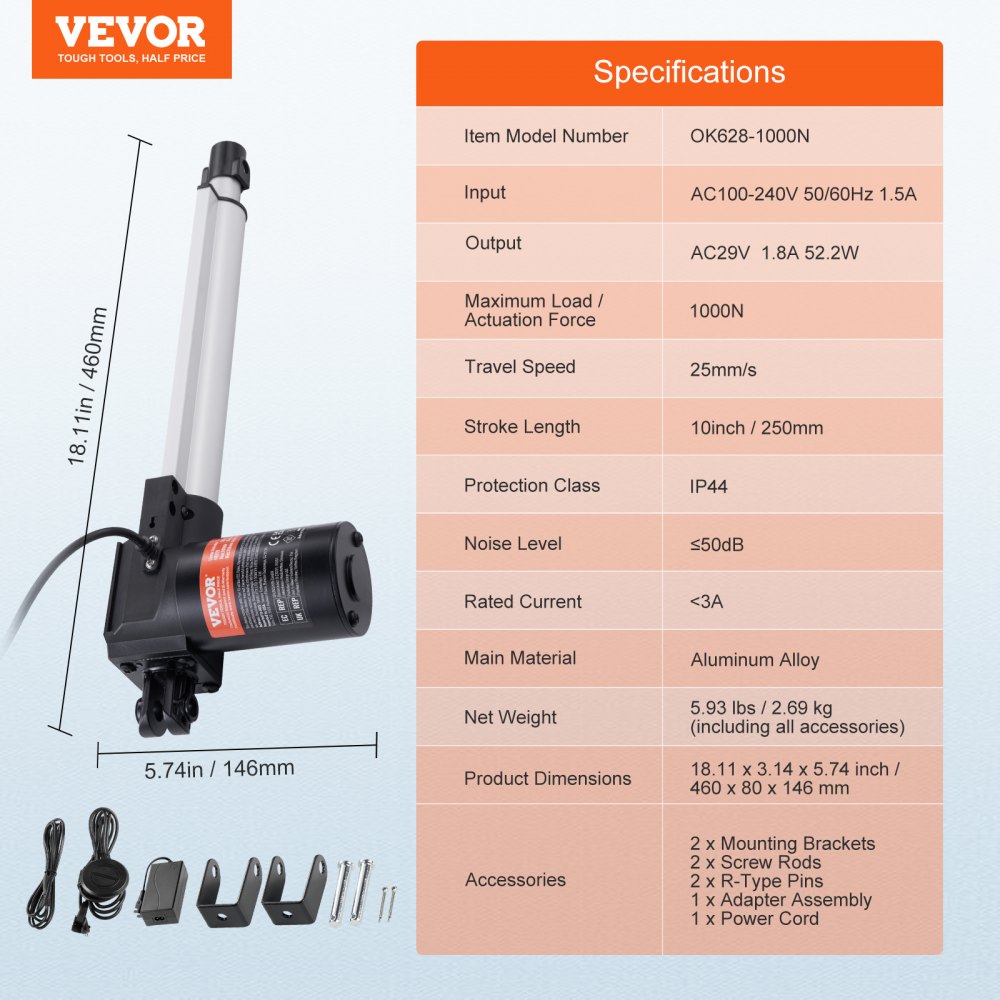

Specifications
| Item Model Number | OK628 |
|---|---|
| Input | AC100-240V 50/60Hz 1.5A |
| Maximum Load/Actuation Force | 220 lbs / 1000N |
| Travel Speed | 0.98"/s / 25 mm/s |

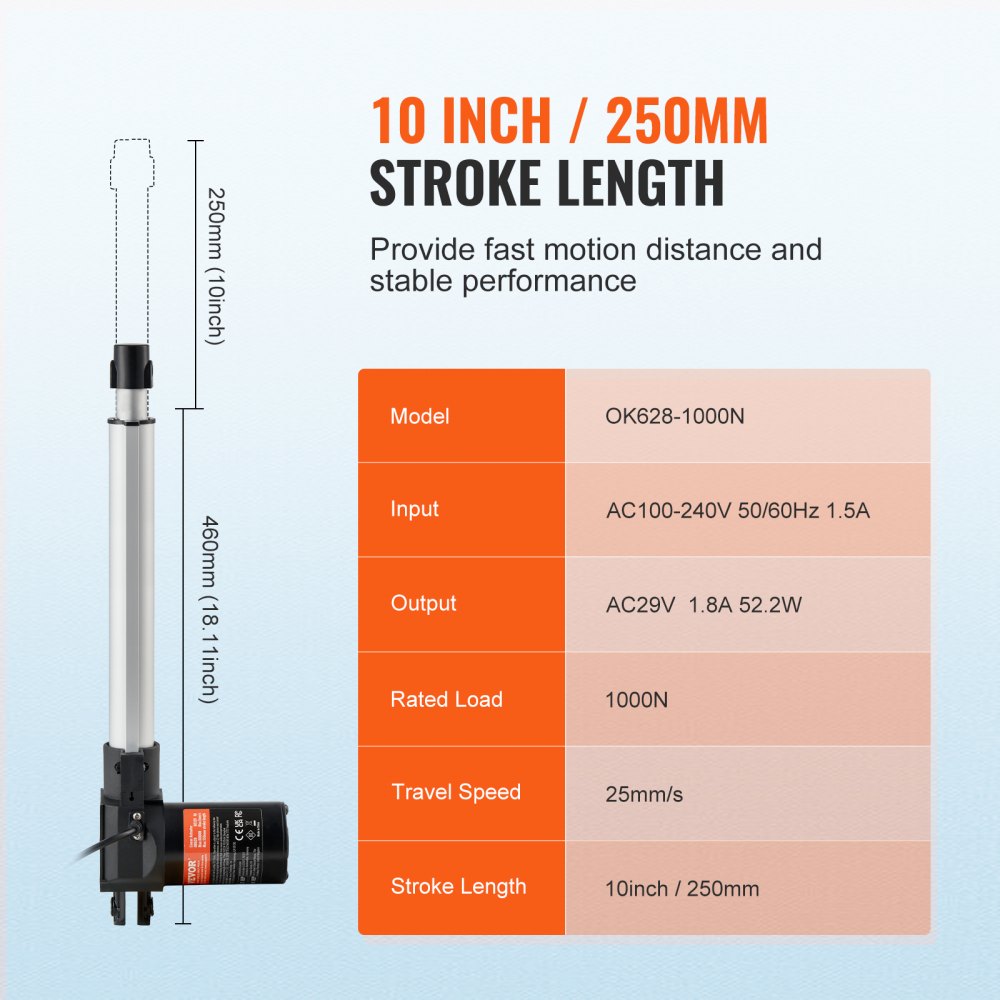

| Stroke Length | 10" / 250 mm |
| Protection Class | IP44 |
| Noise Level | ≤50 dB |

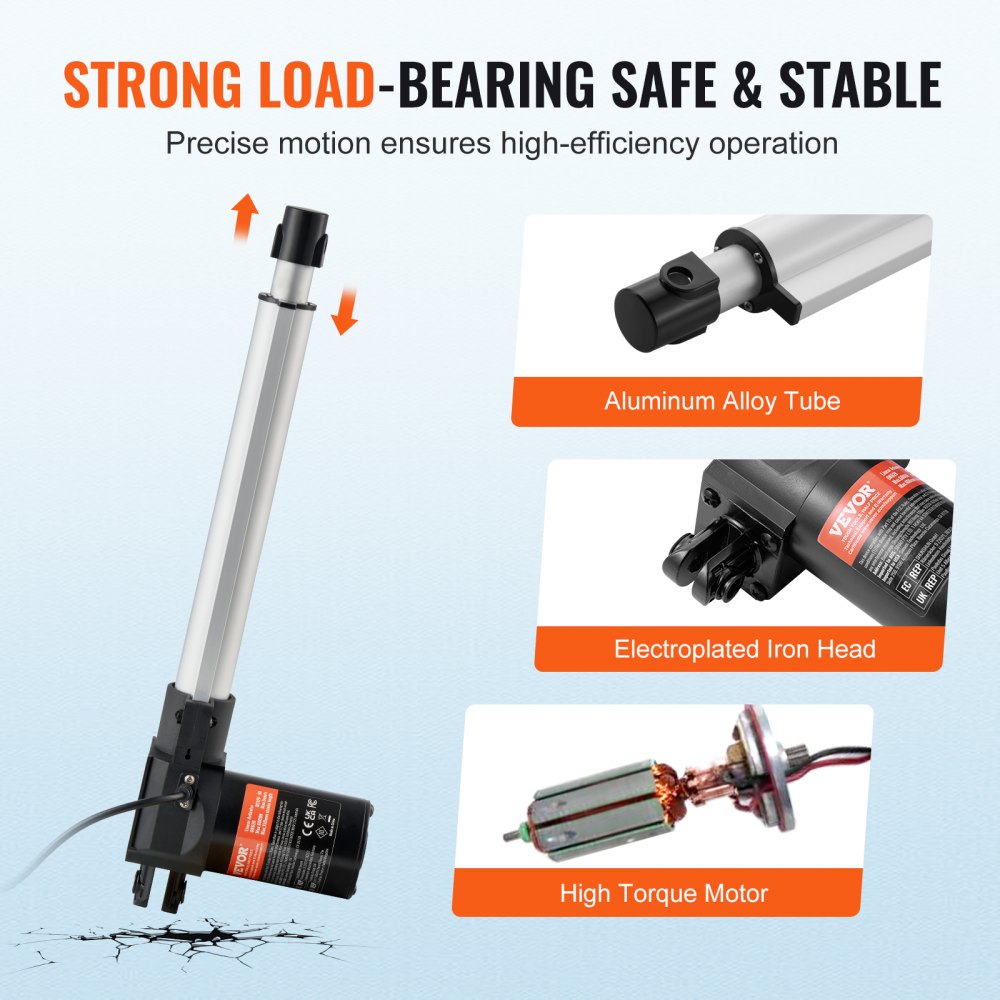

| Main Material | Aluminum Alloy |
| Net Weight | 5.93 lbs / 2.69 kg |
| Product Dimensions | 18.11 x 3.14 x 5.74" / 460 x 80 x 146 mm |
| Retracted Length | 18.11" / 460 mm |
| Extended Length | 28.11" / 710 mm |
|---|---|
| Duty Cycle | 10% |

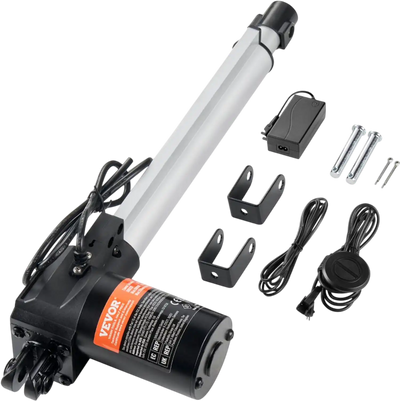

Package Contents
Linear actuator
Adapter power supply
Power cord
Mounting brackets
Mounting accessories
Warranty
This item comes with a 1 year factory warranty.
