Product Overview

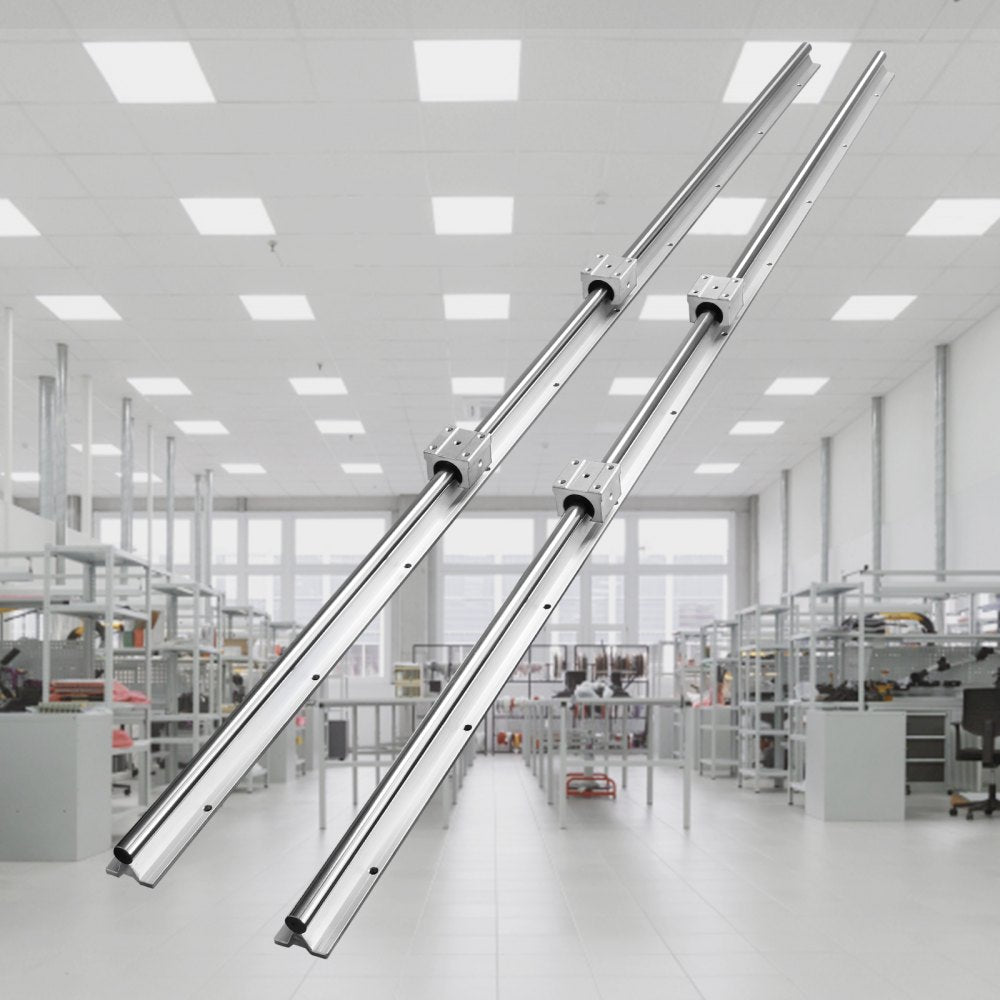

The Vevor linear guide rail set is designed to provide smooth, precise linear motion for CNC routers, automated machines, 3D printers, laser engravers, and other DIY equipment. It includes two 59" SBR20 guide rails and four SBR20UU slide blocks for stable movement and reliable support. Built from high carbon steel and aluminum with a chrome-plated surface, it is made for durability and rust resistance. The built-in ball bearings help deliver low-friction, low-noise sliding performance. Its accurate mounting holes and precise shaft dimensions support dependable installation and repeatable motion.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- SBR Linear Guide Rail Set: SBR20-1500 mm Linear motion guide rail includes 2 x 59 in/1500 mm length SBR20 guide rails and 4 x SBR20UU slide blocks. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.

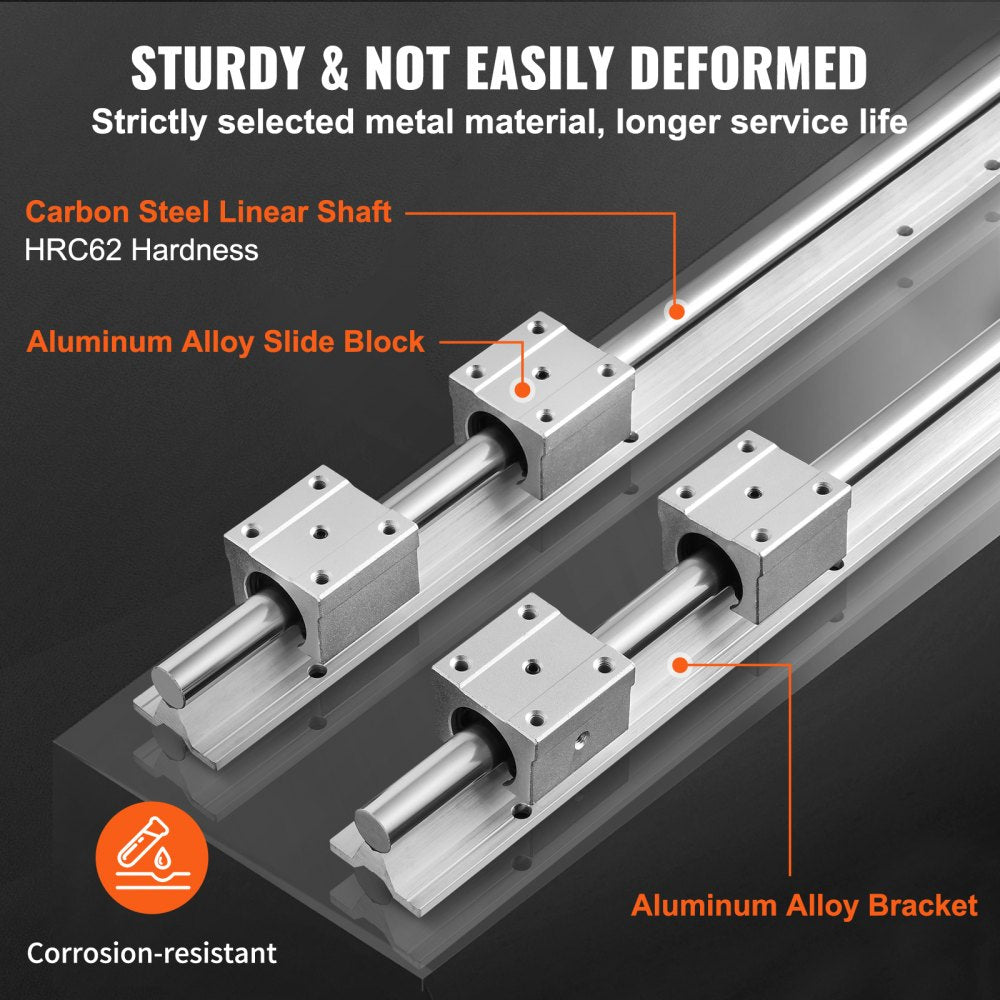

- Durable & Long-lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated surface for rust resistance and high durability. Built-in 4 aluminum slide blocks and ball bearings for smooth and unobstructed sliding.

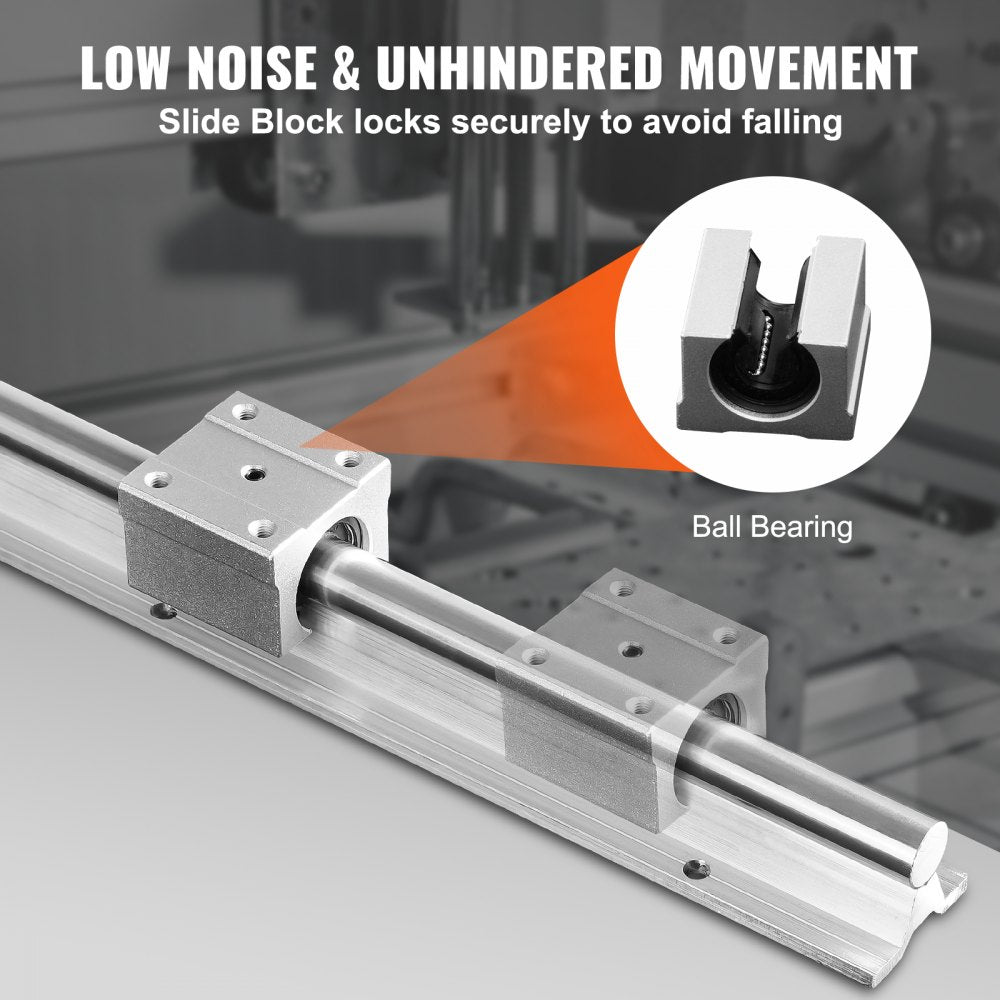

- Low Noise Sliding: Aluminum SBR slide blocks and carbon steel linear shaft are perfectly paired. The built-in ball bearing provides low friction movement and is smooth and not tilted, allowing you to control more labor-saving.
- High Precision: Precise circular shaft dimensions and straightness, ensuring high accuracy, repeatability, and stability in its motion. The sturdy aluminum base and slide block have accurate mounting holes, making it easy for users to perform reliable installation and connection.
- Wide Application: The SBR linear rail set is versatile and suitable for all kinds of high-load automation equipment and DIY project, such as router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, trainer rocker plates, etc.

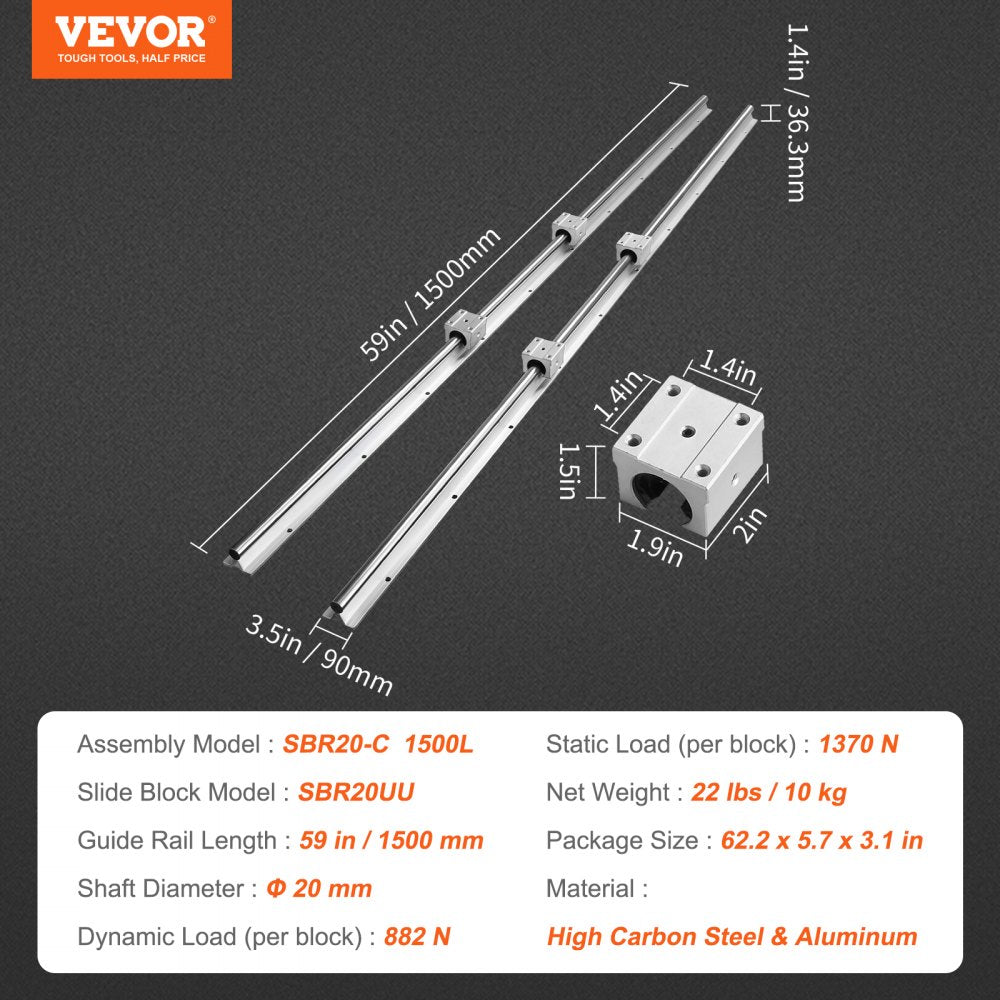

Specifications
| Model Number | SBR20-C 1500L |
| Slide Block Model | SBR20UU |
| Guide Rail Length | 59" / 1500 mm |
| Shaft Diameter | 20 mm |
| Dynamic Load per Block | 882 N |
| Static Load per Block | 1370 N |
| Material | High Carbon Steel and Aluminum |
| Mounting Hole Distance A | 1.4" / 35 mm |
| Mounting Hole Distance B | 1.4" / 35 mm |
| Slide Block Size L x W x H | 2 x 1.9 x 1.5" / 50 x 48 x 39 mm |
| Product Dimensions L x W x H | 59 x 3.5 x 1.4" / 1500 x 90 x 36.3 mm |
| Package Size L x W x H | 62.2 x 5.7 x 3.1" / 1580 x 145 x 80 mm |
| Net Weight | 22 lbs / 10 kg |

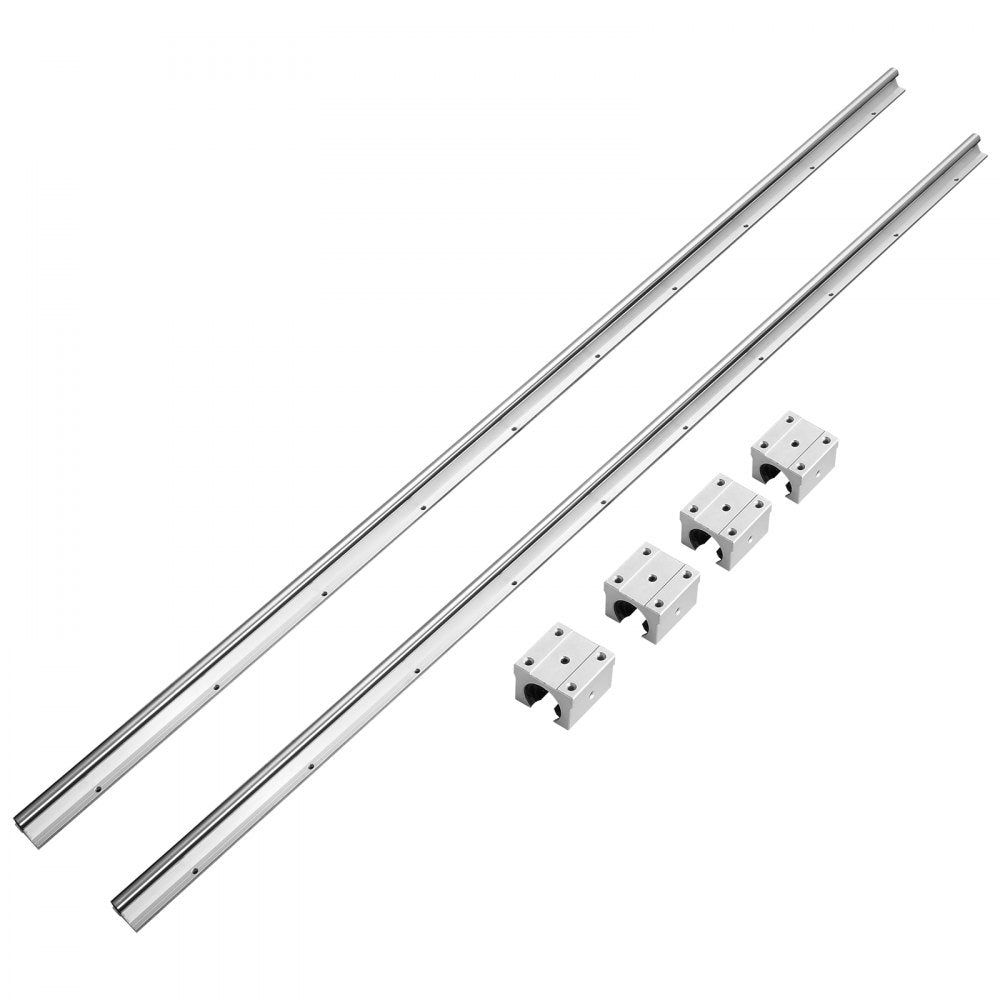

Package Contents

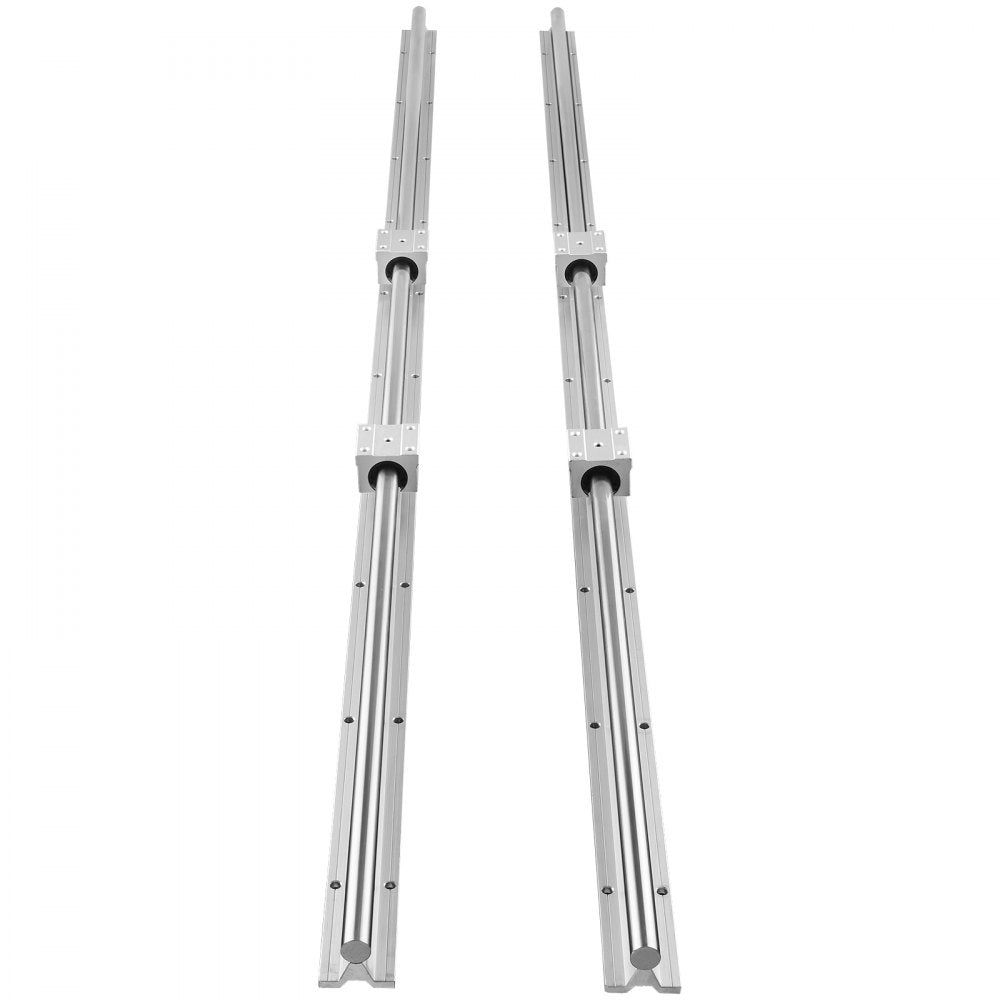

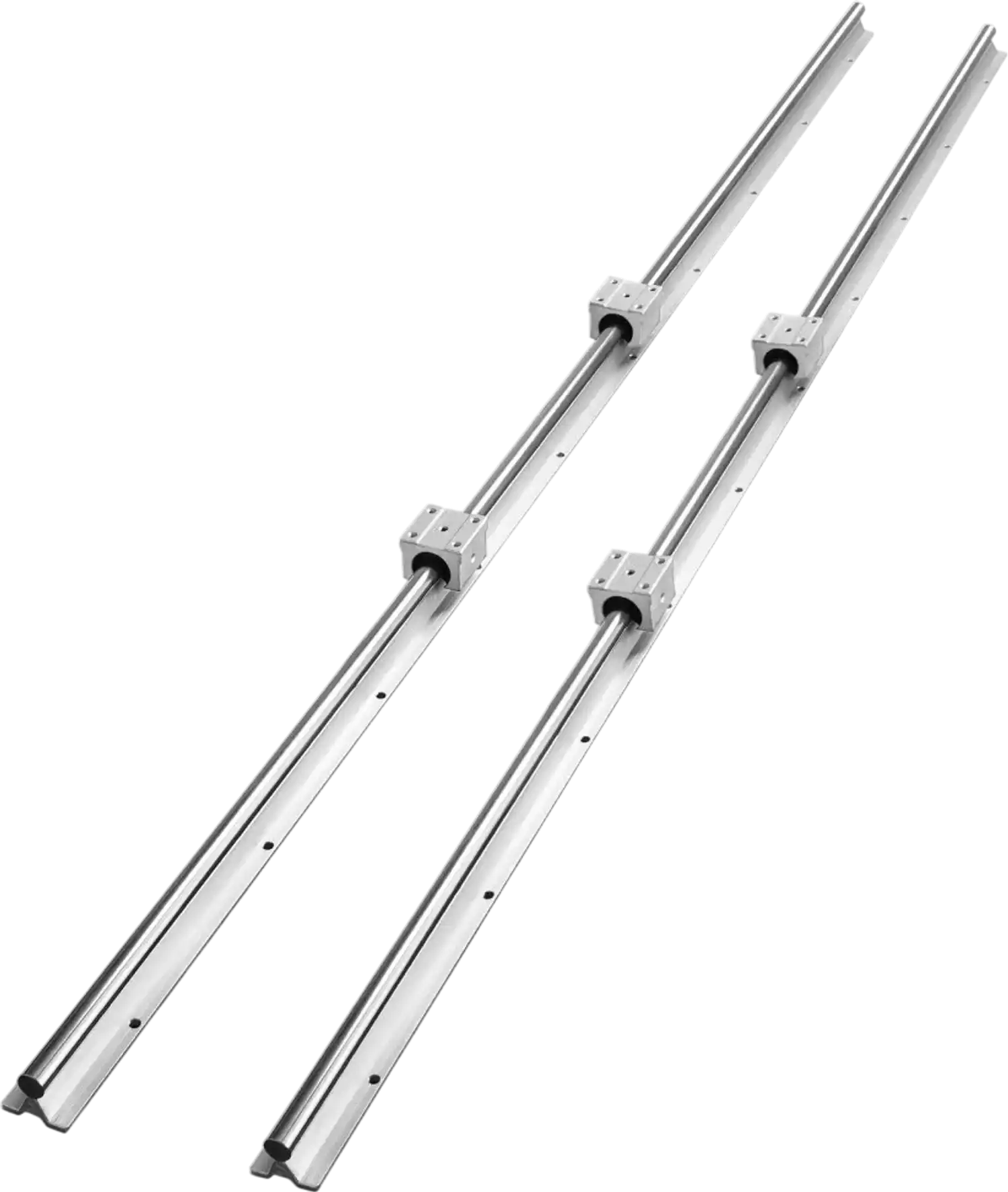

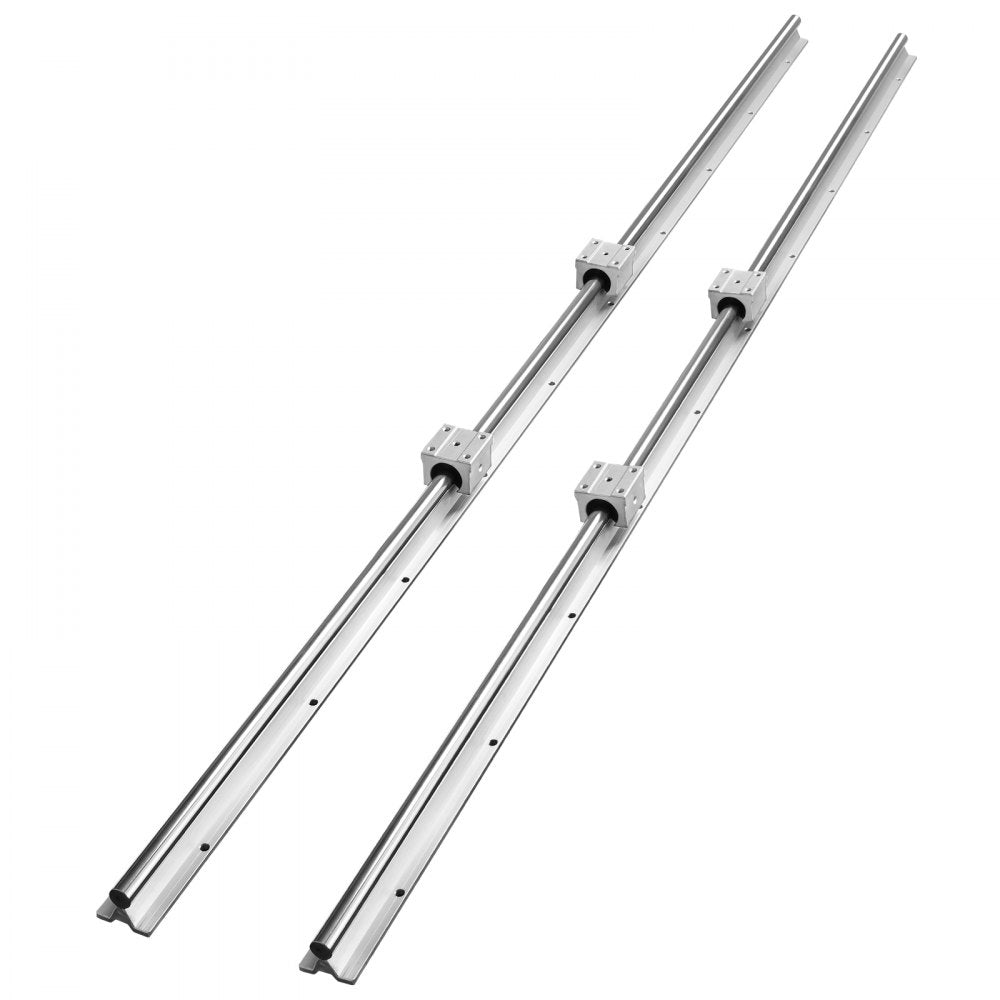

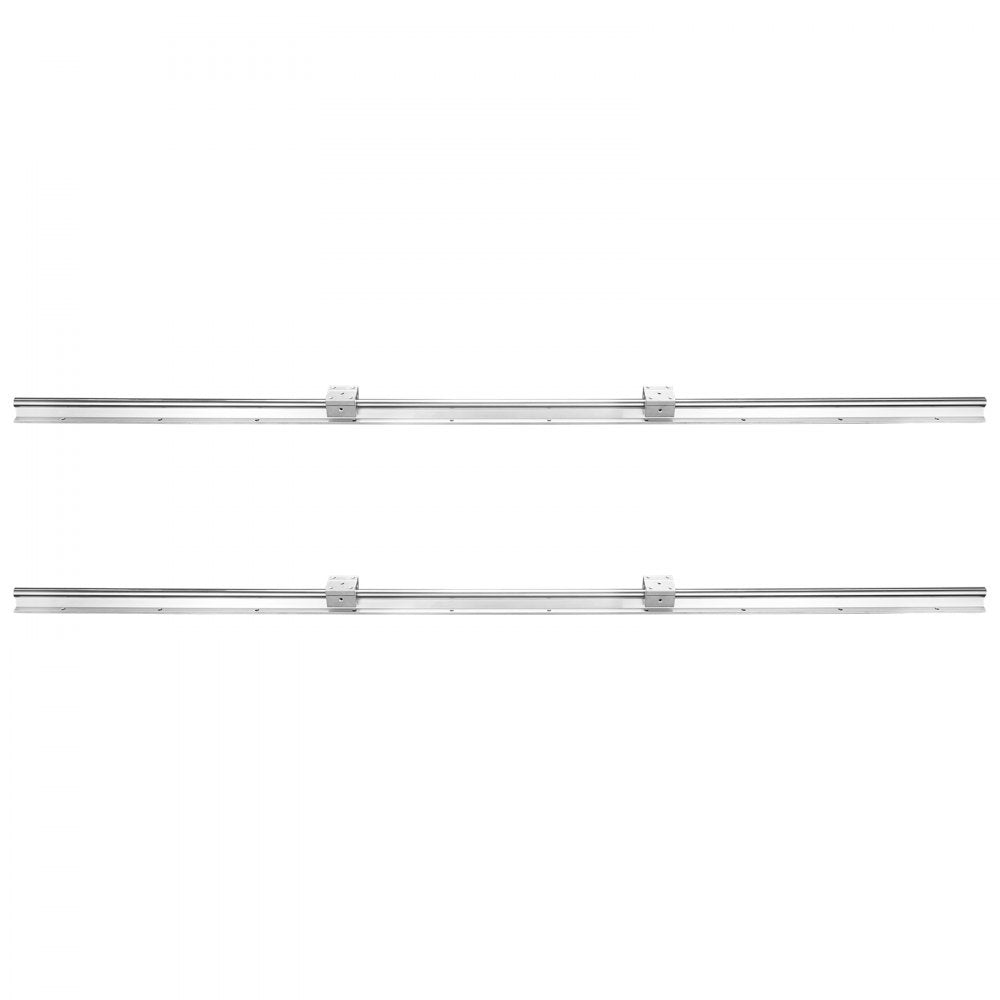

2 x 59" SBR20 guide rails
4 x SBR20UU slide blocks
Warranty
This item comes with a 1 year factory warranty.
