Vevor Linear Scale 3-Axis DRO Display Kit 16" 18" 38" New
Manufacturer: Vevor
SKU: SZGZCTZ5WM16V9OI1V1
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 179.99
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Mechanics Tool Set 1/4", 3/8", 1/2" Drive 450-Pc SAE and Metric Socket Set with Storage Cas...
-
Vevor Ratchet Wrench Set Flex-Head 12-Piece SAE Cr-V Steel with Roll Up Pouch New
-
Vevor Impact Socket Set 1/2" Drive 23-Piece SAE & Metric 6-Point Cr-V Alloy Steel New
-
Vevor Wrench Set Flex-Head Ratcheting SAE and Metric 30-Piece New
-
Vevor Wrench Set 30-Piece Ratcheting Combination SAE & Metric with Organizer Rack New
-
Vevor Torpedo Level 6-Piece Magnetic Set with Bubble Vials New
-
Vevor Pliers Set 8-Piece High Carbon Steel with Adjustable Wrench and Tool Bag New
-
Vevor Socket Organizer Set Magnetic 8-Piece Metric SAE Trays Blue Red New
-
Vevor Impact Socket Set 3/4" to 2 1/2" 29 Pieces 6 Point CR-M0 New
-
Vevor Rivet Nut Tool 16" Semi-Auto Rivnut Tool Kit New
-
Vevor Bolt Extractor Set 29-Piece Bolt and Nut Remover with Storage Case New
-
Vevor Nut Driver Set 80-Piece Magnetic Impact Metric & SAE with Storage Box New
-
Vevor Pocket Hole Jig Kit 34 Pcs Adjustable Woodworking Joinery System with 11" C-Clamp New
-
Vevor Impact Socket Set 1/2" Drive 65-Piece 6-Point SAE & Metric with Storage Case New
-
Vevor Rotary Laser Level 2000' Manual Self-Leveling Mode 360° 5 Rotation Speeds 4 Scanning Angles...
-
Vevor Needle Nose Pliers Set 5-Piece 11" Long Professional Set with Storage Bag New
-
Vevor Crimping Tool Hydraulic Cable Crimper Kit AWG12-2/0 New
-
Vevor Torque Wrench 1/2" Drive Click Adjustable 10-150 ft-lb New
-
Vevor Tap and Die Set 116-Piece Metric and SAE Bearing Steel Threading Tool Kit New
-
Vevor Rotary Laser Level Kit 984 ft 360-Degree Self Leveling with Tripod Scale Remote Control New
Vevor Linear Scale 3-Axis DRO Display Kit 16" 18" 38" New
Product Overview

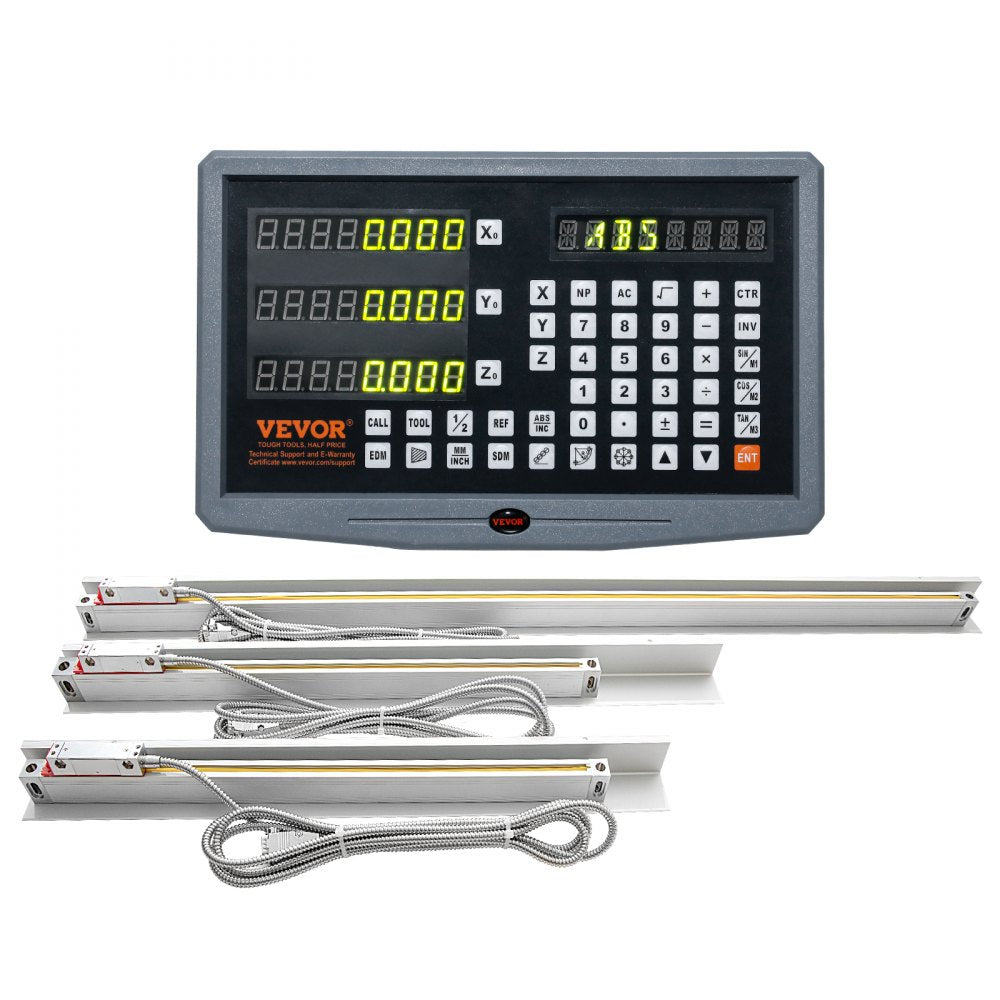

The Vevor 3-axis linear scale DRO display kit is designed to deliver precise measurements for machine tool applications across three axes. It includes 16", 18", and 38" measuring ranges, a crystal-clear multifunction display, and a 5μm resolution read head for accurate positioning. The system supports advanced functions such as arc cutting, circumference drilling, oblique line drilling, and inverse trigonometric calculation. Its IP54-rated design helps protect against dust and splashing liquids for dependable shop use. Suitable for vertical or horizontal installation on compatible cutting and drilling machines.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

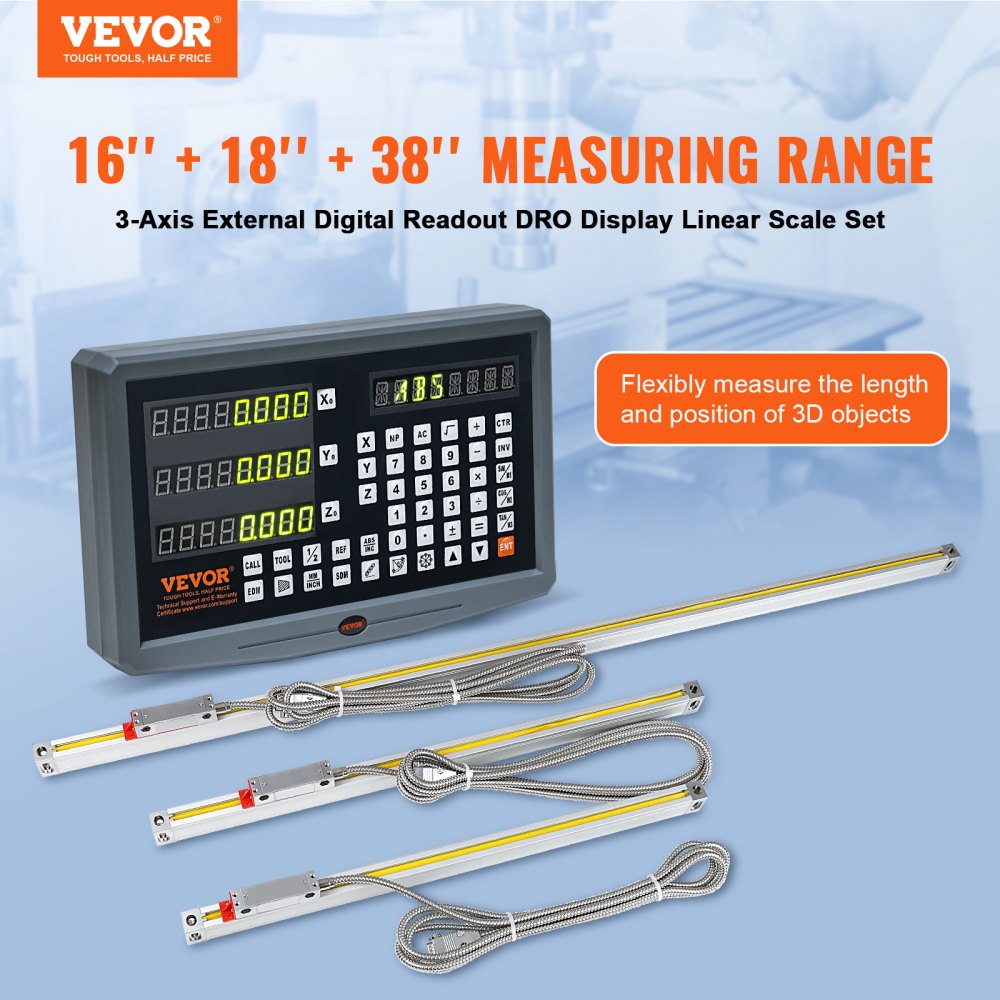

- 16'' + 18'' + 38'' Travel Length: Experience versatility with our 3-axis linear scale set, offering three travel lengths: 16 in/400 mm, 18 in/450 mm, and 38 in/950 mm. Adapt to your specific needs on the X-axis (length), Y-axis (height), and Z-axis (width), enabling seamless measurements of three-dimensional workpieces such as wood, stone, and metal. Facilitate high-precision processes such as circumference drilling.

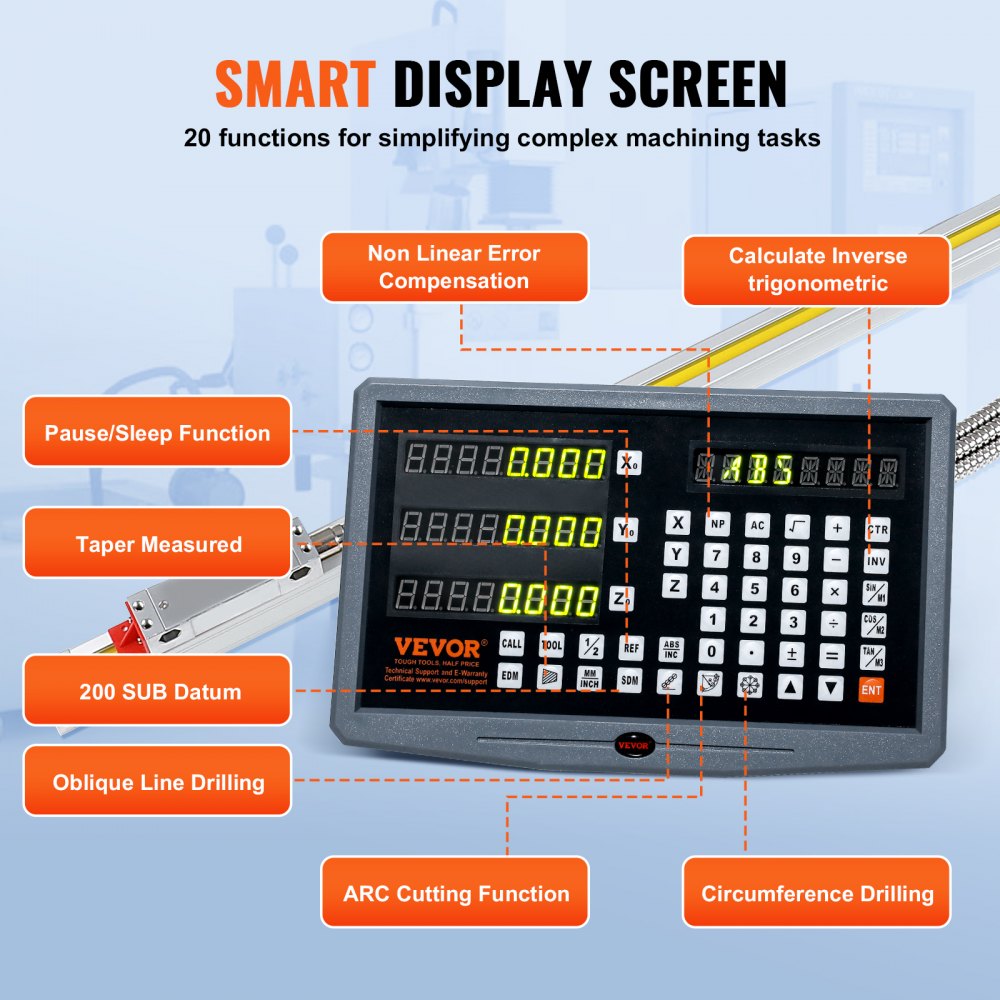

- Multifunctional Crystal-Clear Display: Our display screen offers many basic and specialized functions to ensure convenient measurement and positioning. The basic functions include standard data measurement, calculation, zeroing, unit conversion, pause sleep, power-off memory, non-linear error compensation, and more. Specialized functions encompass ARC cutting function, circumference drilling, oblique line drilling, and calculate inverse trigonometric.

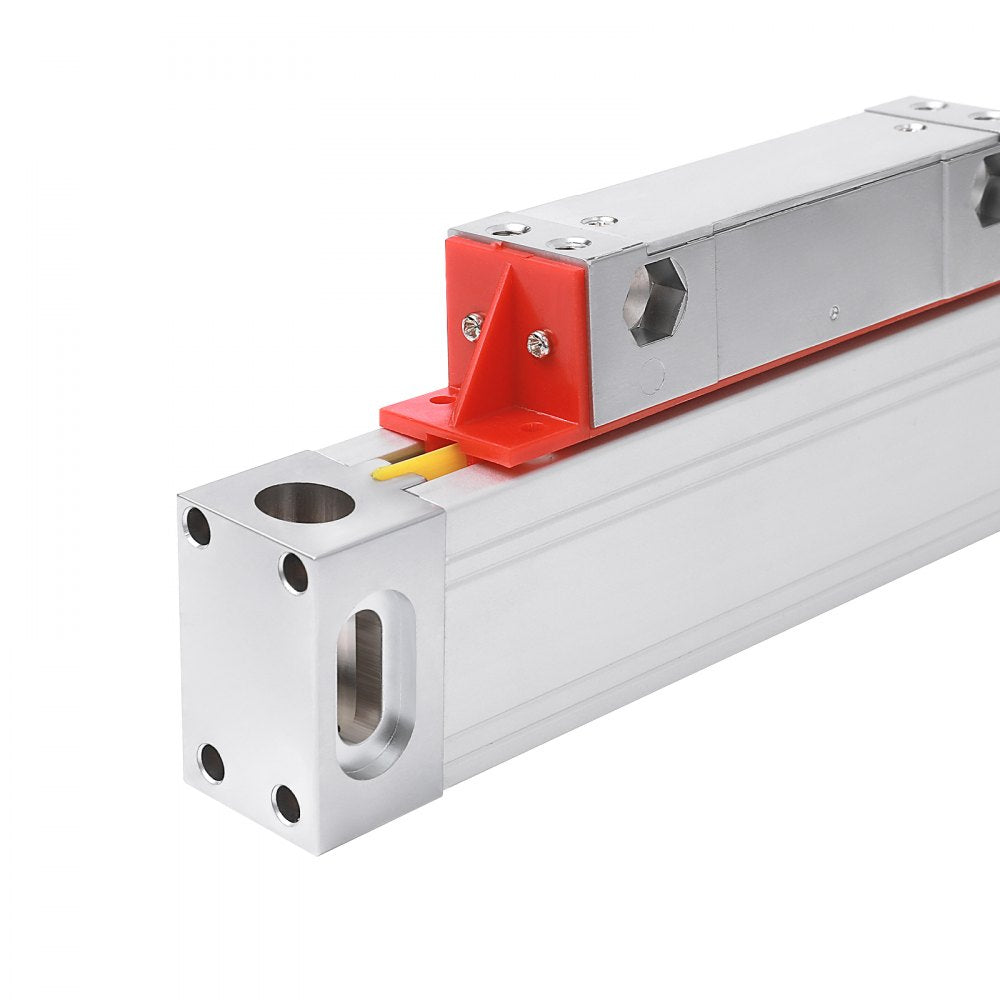

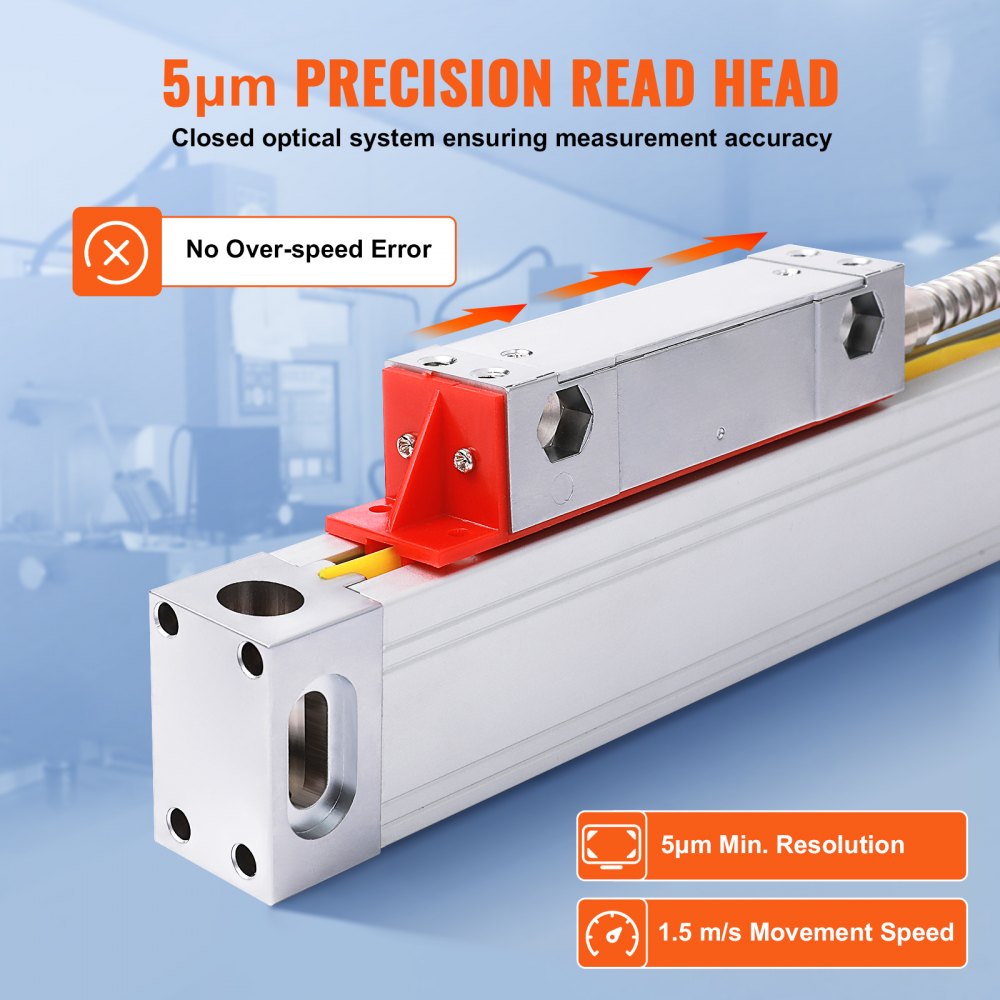

- Precision 5μm Read Head: Our linear scale boasts a remarkable 5μm minimum resolution. Even at the longest range of 38 in(950 mm), it exhibits an error of only 0.004 in (0.1 mm) during standard and repeated measurements. With a rapid read head movement speed of 1.5 m/s, it leaves no room for overspeed errors. Precision redefined, where every micron counts.

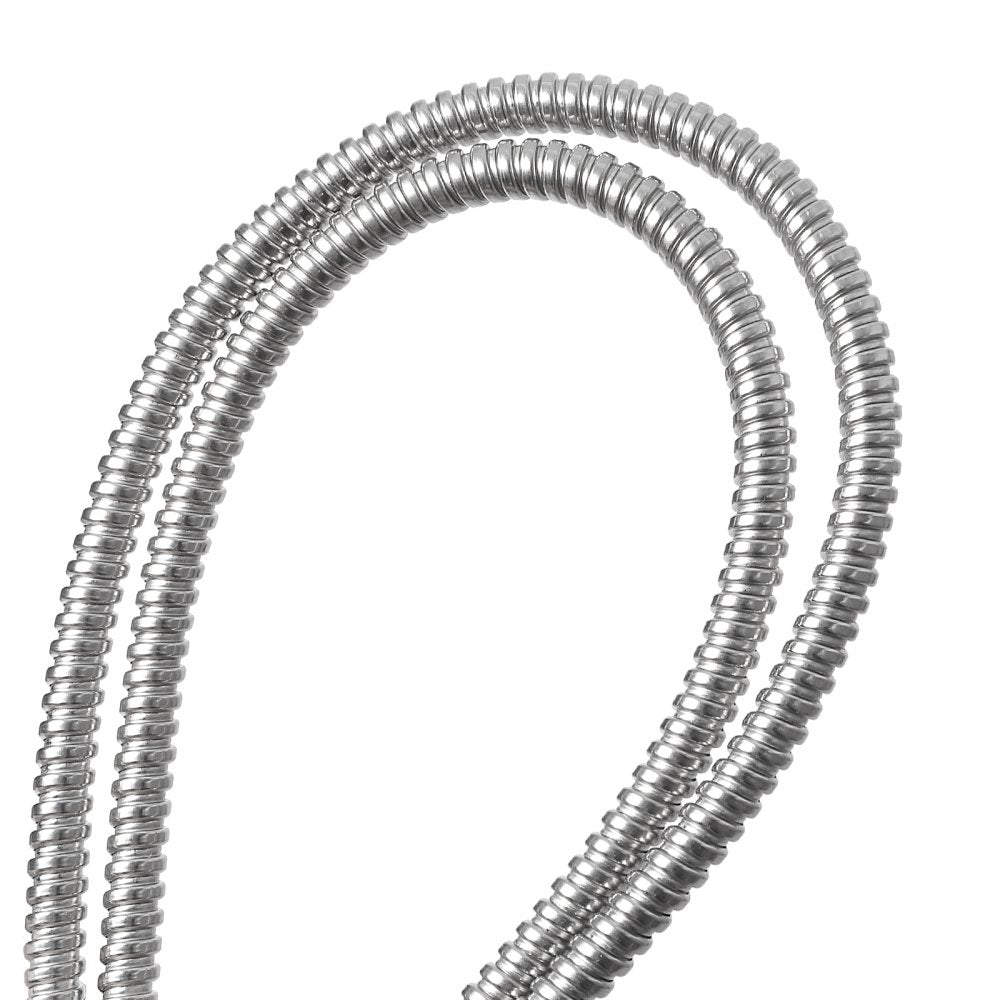

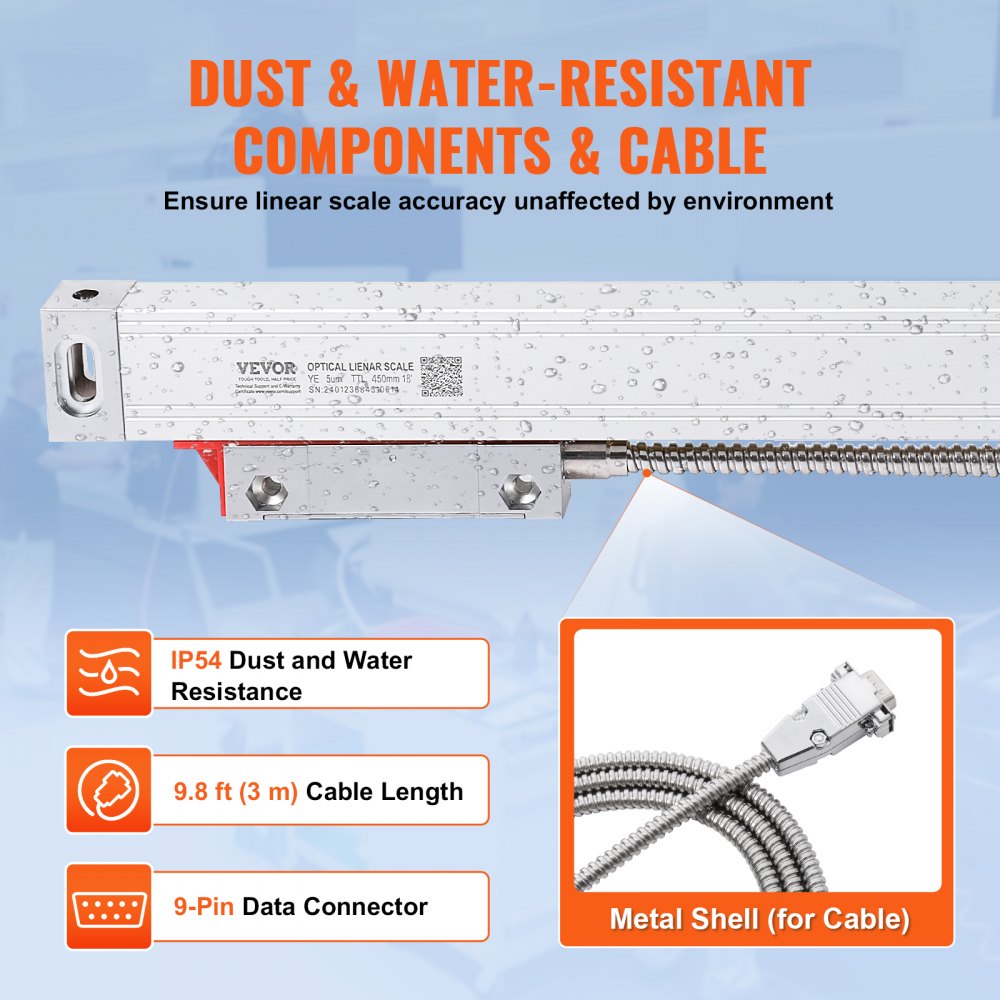

- Defense Against Debris and Liquids: With a dual-layer lubricated seal and thickened optical glass protection, our linear scale achieves an IP54 dust and waterproof rating. It avoids dust accumulation and shields against splashes from all directions. The 9.8 ft (3 m) signal cable, equipped with a 9-pin data connector, features multiple layers of shielded steel wires and a soft metal casing, providing outstanding waterproofing and interference resistance.
- Vertical or Horizontal Installation: Our linear scale is designed for both vertical and horizontal installation on various machine tools, including cutting and drilling machines. During scale installation, ensure that the height direction is parallel to the mounting surface of the workbench with a tolerance of less than 0.1 mm. Please note that when installing on non-machined surfaces, shims must be added to the back of the scale for stability. Your precision setup is made easy.
Specifications
| Product Type | 3-Axis Linear Scale DRO Display Kit |
| Model | SNS-3V-YE161838 |
| Rated Voltage | AC 80-230V, 50 Hz/60 Hz |
| Max Power Consumption | 15W, ±10% |
| Resolution | 5μm |
| Number of Axes | 3 |
| Measuring Range | 16" / 400 mm, 18" / 450 mm, 38" / 950 mm |
| Net Weight | 10.4 lbs / 4.7 kg, ±3% |
| Display Functions | Standard data measurement, calculation, zeroing, unit conversion, pause sleep, power-off memory, non-linear error compensation, ARC cutting function, circumference drilling, oblique line drilling, inverse trigonometric calculation |
| Protection Rating | IP54 |
| Signal Cable Length | 9.8' / 3 m |
| Measurement Error | 0.004" / 0.1 mm at 38" / 950 mm |
| Read Head Speed | 1.5 m/s |
| Installation Orientation | Vertical or horizontal |
Package Contents

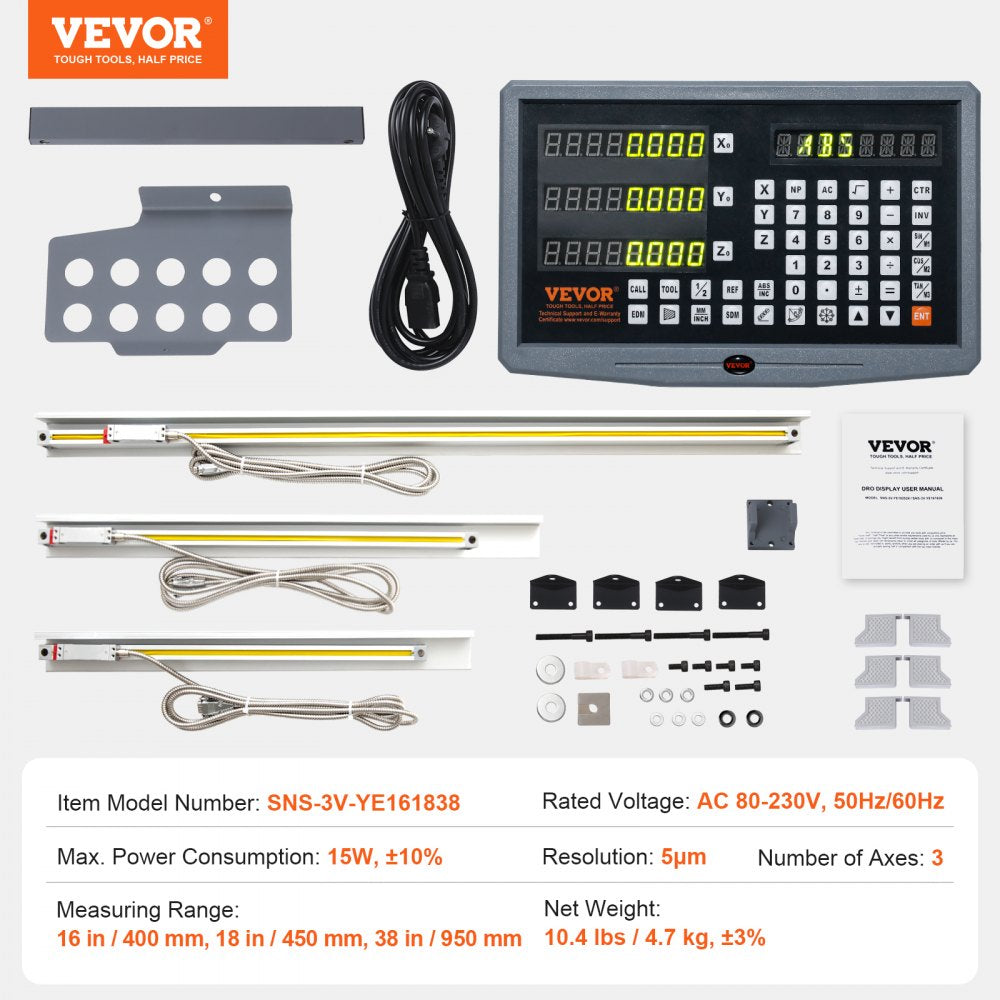

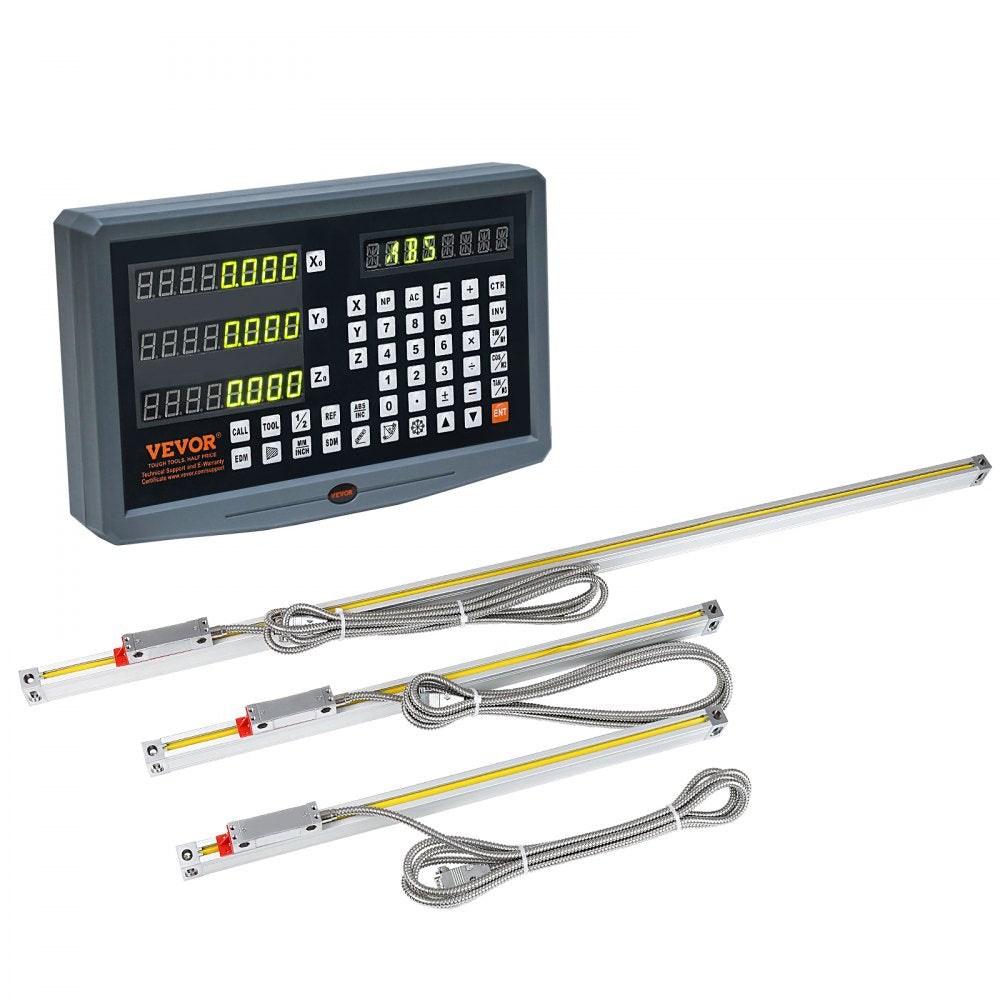

3-axis digital readout display
16" linear scale
18" linear scale
38" linear scale
Warranty
This item comes with a 1 year factory warranty.
