Vevor Metal Lathe 7" x 14" Mini Bench Top Variable Speed 50-2500 RPM 550W New
Manufacturer: Vevor
SKU: JSMNCC7X14-550W01V1
QTY
(888) 999-1522
$ 457.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor Mini Metal Lathe 7" x 12" Precision Benchtop Variable Speed 50-2500 RPM 550W New
-
Vevor Mini Metal Lathe Machine 8.3" x 31.5" 2500 RPM Variable Speed 750W New
-
Vevor Mini Precision Metal/Wood Lathe 7" x 14" Variable Speed with Tailstock 3-Jaw Chuck 550W New
-
Vevor Wood Lathe with Copy Attachment 13.8" x 37.8" 1HP 750W Variable Speed 700-2600 RPM New
Vevor Metal Lathe 7" x 14" Mini Bench Top Variable Speed 50-2500 RPM 550W New
Product Overview
The 7 x 14 inch Precision Mini Benchtop Lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest, and a 3/4HP motor, designed to perform various types of metal turning. It features variable speed control from 50 to 2500 RPM, and can operate forward and revers in all speeds. This mini metal lathe has reliable performance and is built from high-quality cast iron, ensuring it stands up to regular use without significant wear.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Sturdy Construction: The mini metal lathe bed is made of high-grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, durable, more accurate rotation and professional. The full-length splashguard provides maximum protection. Motor Power: 550W.
- Infinitely Variable Speeds: Variable speed from 50-2500 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. Emergency stop button included. Power metal lathe has a large center distance of 13.78" / 350 mm; Swing Over Bed: 7.09" / 180 mm; Spindle Bore: 0.82" / 21 mm.
- Accurate 3-Jaw Chuck: Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01 mm. A free lamp is included.
- Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting, and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.
- Wide Application: Driven by a DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing, and modeling works. It's an incredibly cost-effective choice for metalworking enthusiasts.
Specifications
| Motor | 550W, DC, Single Phase |
| Variable Speed | 50-2500 RPM |
| Swing Over Bed | 7.09" / 180mm |
| Chuck Diameter | 3.94" / 100mm |
| Centers Distance | 13.78" / 350mm |
| Spindle Bore | 0.82" / 21mm |
| Inch Thread | 12-52 T.P.I |
| Metric Thread | 0.5-2.5mm |
| Gear Material | Nylon |
| Item Dimensions | 30.3" x 8.5" x 11.6" |
| Item Weight | 88.18 lbs / 40 kg |

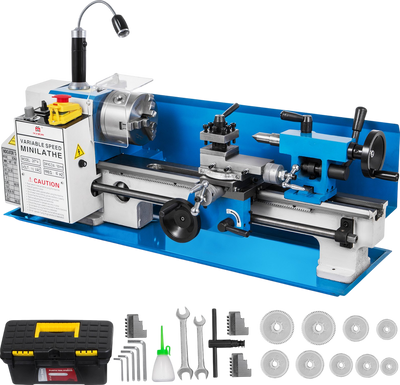

Package Contents
Vevor Mini Metal Lathe
Work Light
(3) Chuck Jaw
Chuck Wrench
(2) Wrench
Oil Can
(5) Hex Wrench
(9) Plastic Nylon Gear
Tool Box
User Manual
Warranty
This item comes with a 1 year factory warranty.
