Vevor Metal Lathe 8.7" x 29.5" with Infinitely Variable Speed 50-3000 RPM 1100W New
Product Overview

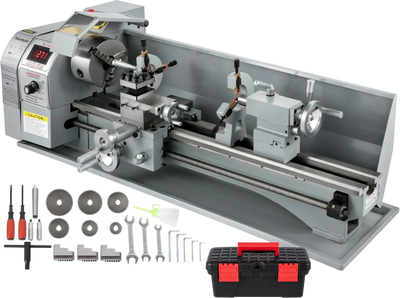

The 8.7" x 29.5" precision mini metal lathe features an 1100W motor, a 3-jaw chuck, MT5 spindle taper, a MT2 tailstock taper, designed to perform various types of metal turning. The lathe features an 8.7" swing over bed and a 29.5" swing over cross slide, ideal for larger and heavier workpieces. Made of rugged and wear-resistant cast iron, the lathe's durable construction ensures a long service life. It's ideal for various processing tasks including turning, drilling, threading, and cutting.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features

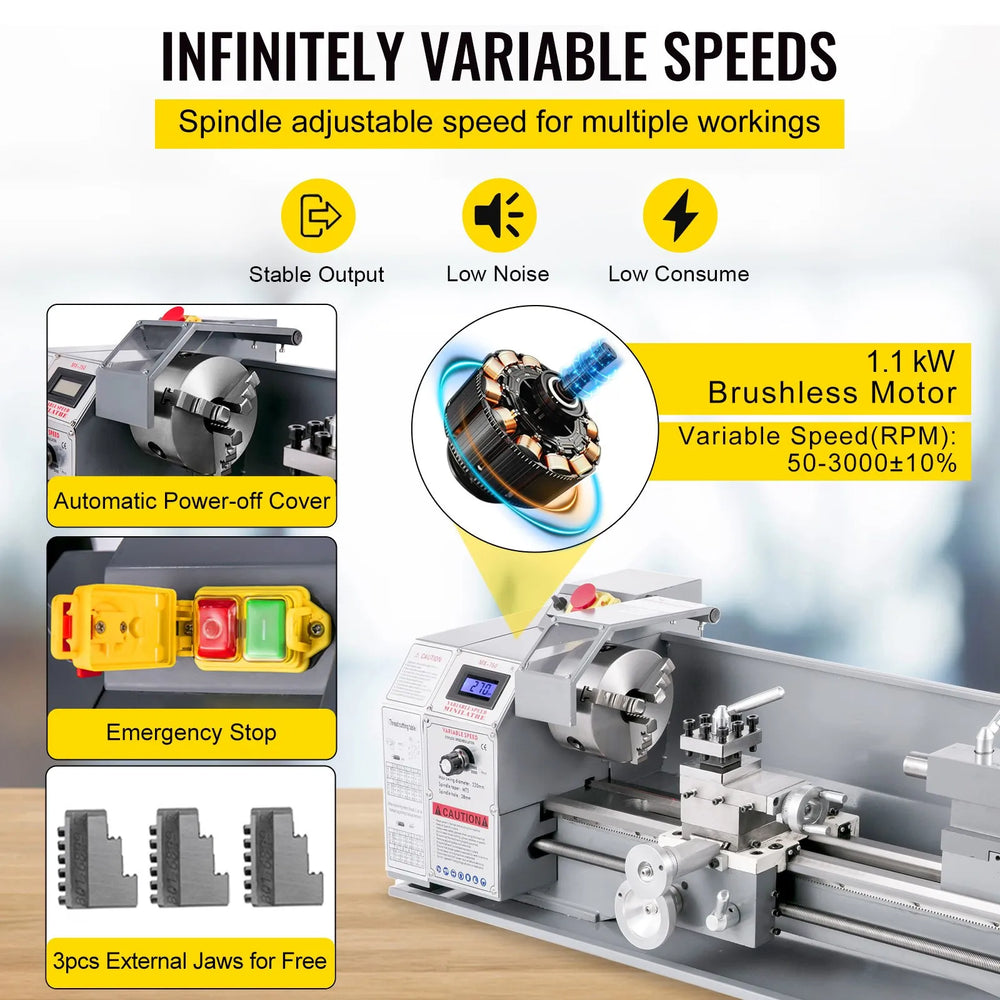

- Infinitely Variable Speed: The mini metal lathe is driven by DC motor with 1100W of power. Variable Speed(Rpm): 50-2250. Taper in Spindle Nose: MT5. LED screen shows you the clear and accurate speed for accurate working. Soft start, change-over switch for clockwise or counter-clockwise spindle rotation. Operate either manually or with the adjustable auto feed rate.

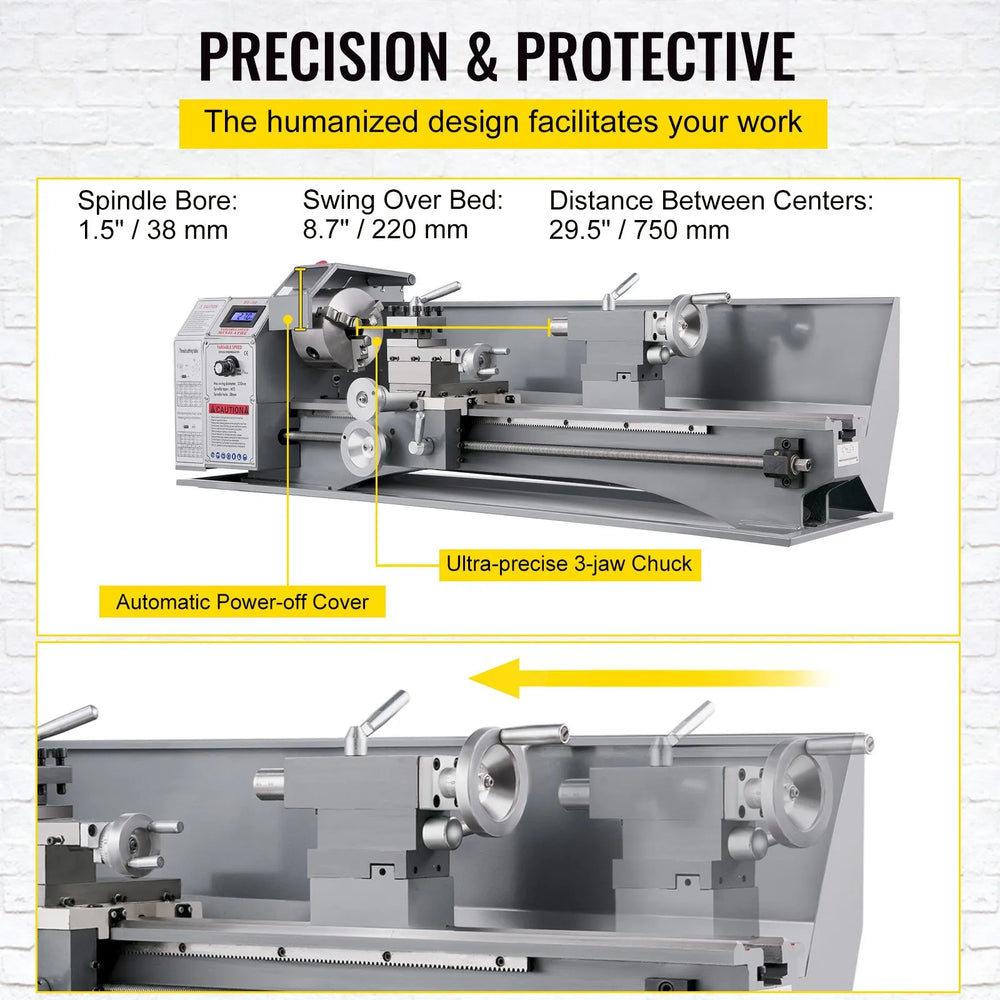

- 750 mm Large Swing Range: The bench top lathe brings a 3-jaw chuck with 4.9"/125mm diameter. Swing Over Bed: 8.7"/220 mm and Swing Over Cross Slide: 29.5"/750 mm offers more possibilities for large and heavy workpieces. Taper in Spindle Nose: MT5. Range of Imperial Threads: 8-44 T.P.I.

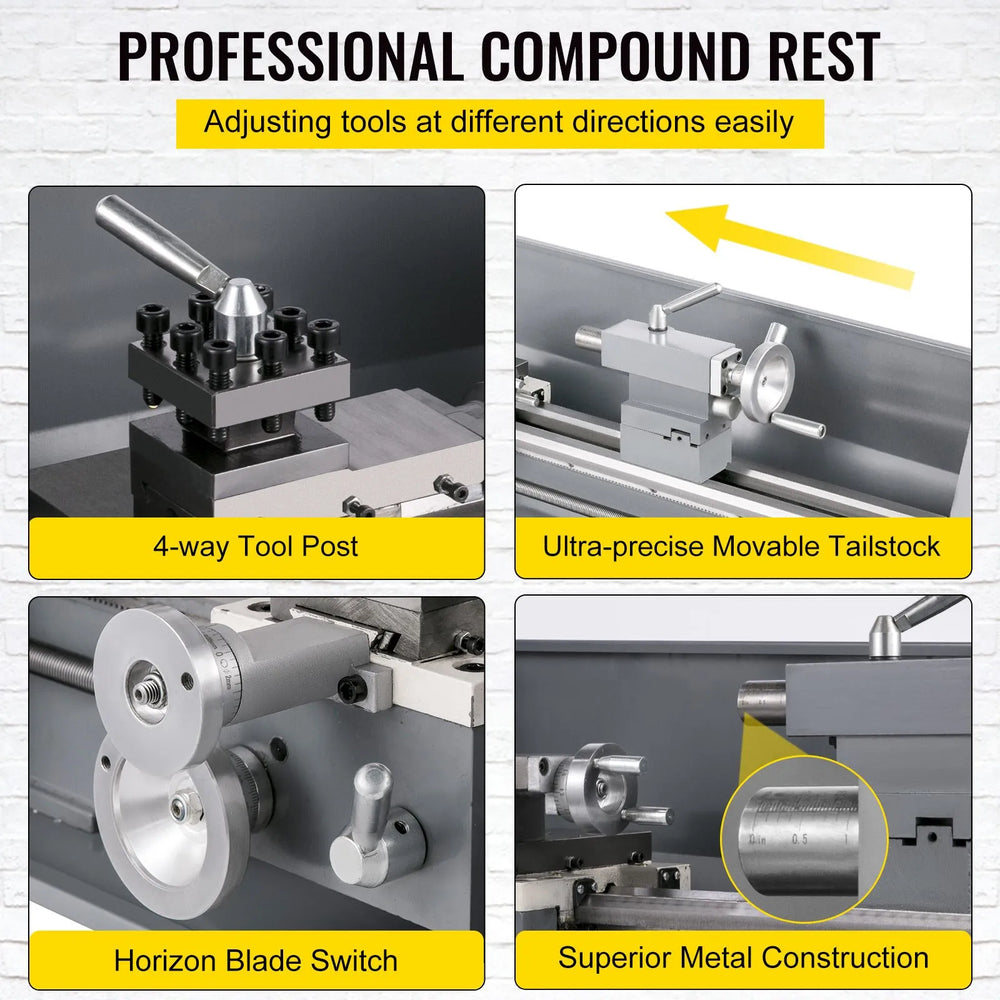

- Professional Compound Rest: The mini lathe machine quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the post angle and adjusting the compound rest, moving blades freely with feed rod.
- Supportive & Protective: Steady rest works as an end support, ensuring chatter-free operation. Follow rest is used for turning operations on long, slender workpieces. Backsplash guard included.
- Adjustable Tailstock: Taper in Tailstock Spindle - MT2. Rotate the lever clockwise to lock the spindle, and rotate clockwise to advance the handwheel. To off-set the tailstock for cutting tapers simply adjust the four set screws located on the tailstock base.
Specifications
| Power | 1100W |
| Voltage | 110V, 60Hz |
| Phase | Single Phase |
| Swing Over Bed | 8.7" / 220mm |
| Distance Between Centers | 29.5" / 750mm |
| 3-Jaw Chuck Diameter | 4.9" / 125mm |
| Hole Through Spindle | 1.5" / 38mm |
| Spindle Accuracy | 0.01mm |
| Variable Speed | 50-2250 RPM |
| Range of Imperial Threads | 8-44 T.P.I |
| Range of Longitudinal Feed | 0.02"-0.1" / 0.5-3mm |
| Gear Material | Metal |

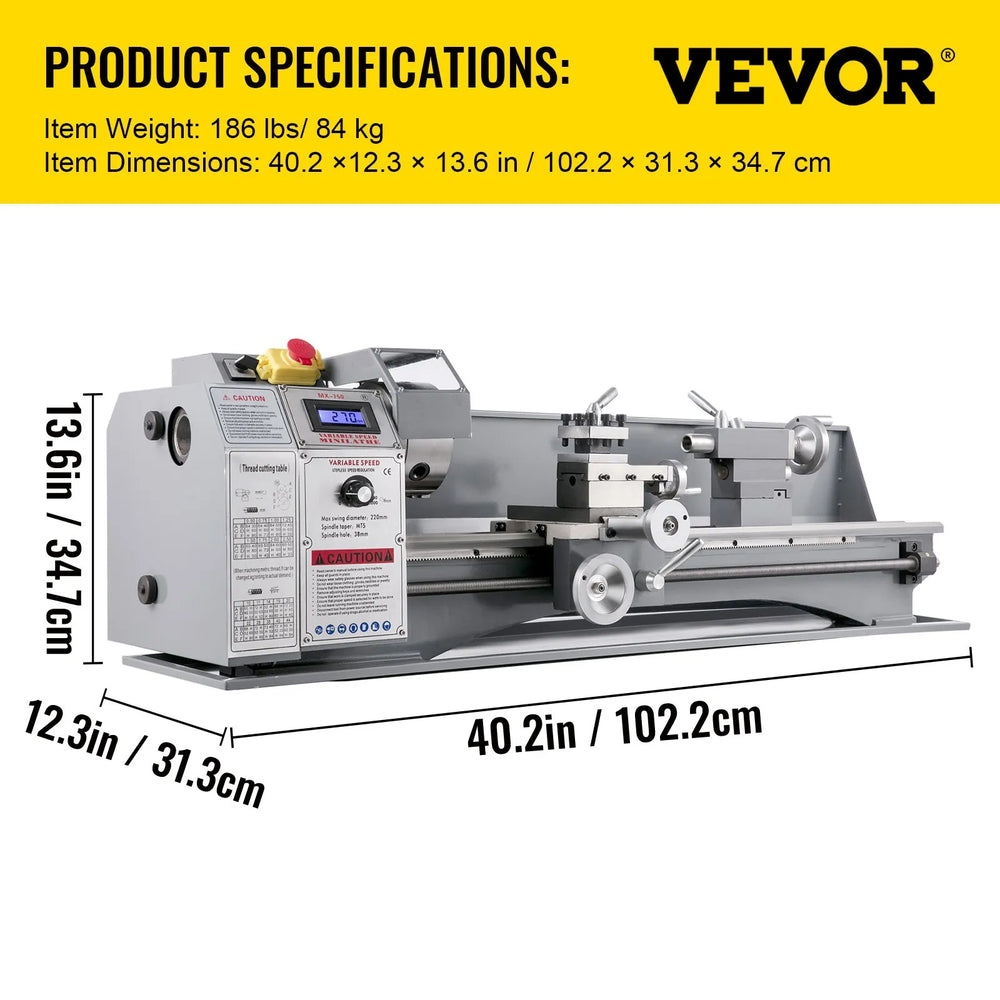

| Product Dimensions | 40.2" x 12.3" x 13.6" |
| Weight | 186 lbs |

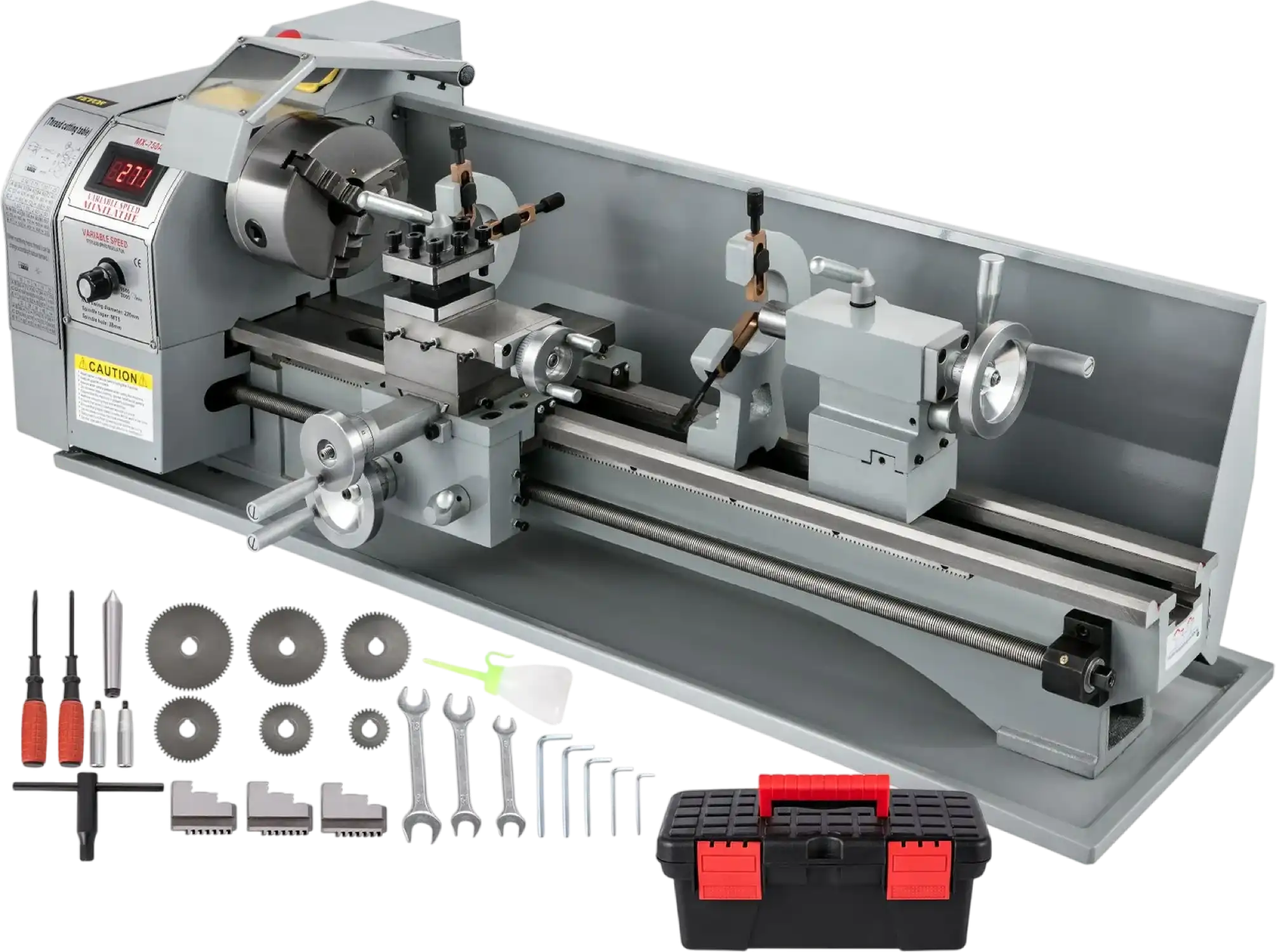

Package Contents
Vevor Metal Lathe
Centre Rest
Dead Center MT2
Oil Bottle
(3) Chuck Jaws
(6) Metal Gears
Accessory Kit
User Manual
Warranty
This item comes with a 1 year factory warranty.
