Vevor MPPT Solar Charge Controller 20A 12V/24V Auto DC Input LCD Display New
Manufacturer: Vevor
SKU: DYTYNCDKZQWYXOHN8V9
Rated Charging Current Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 57.90
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
Vevor MPPT Solar Charge Controller 20A 12V/24V Auto DC Input LCD Display New
Product Overview

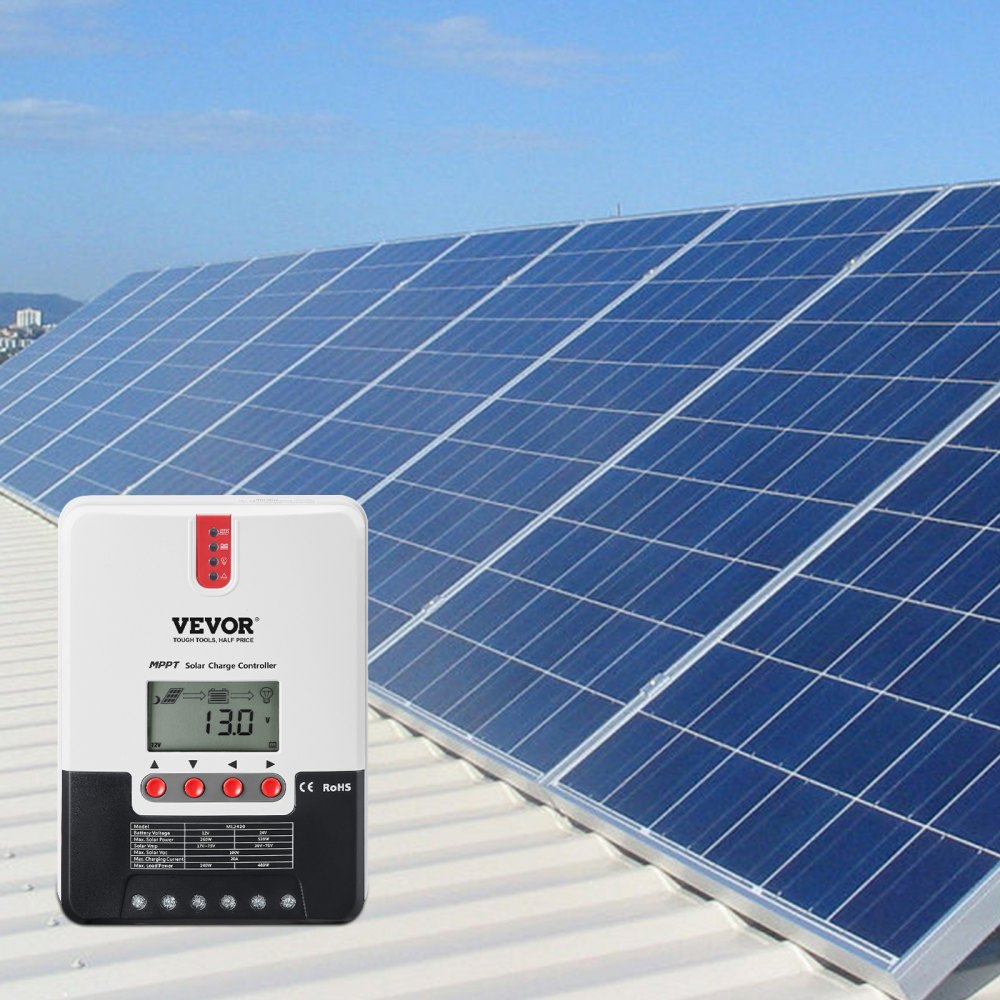

The Vevor MPPT solar charge controller is designed for efficient battery charging in 12V and 24V solar systems. It uses advanced MPPT technology with up to 98% control efficiency for faster charging and improved energy utilization. An LCD screen allows easy monitoring and adjustment, while built-in temperature sensing helps maintain stable charging performance. It supports sealed AGM, gel, flooded, and lithium batteries and includes multiple protection functions for safe operation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

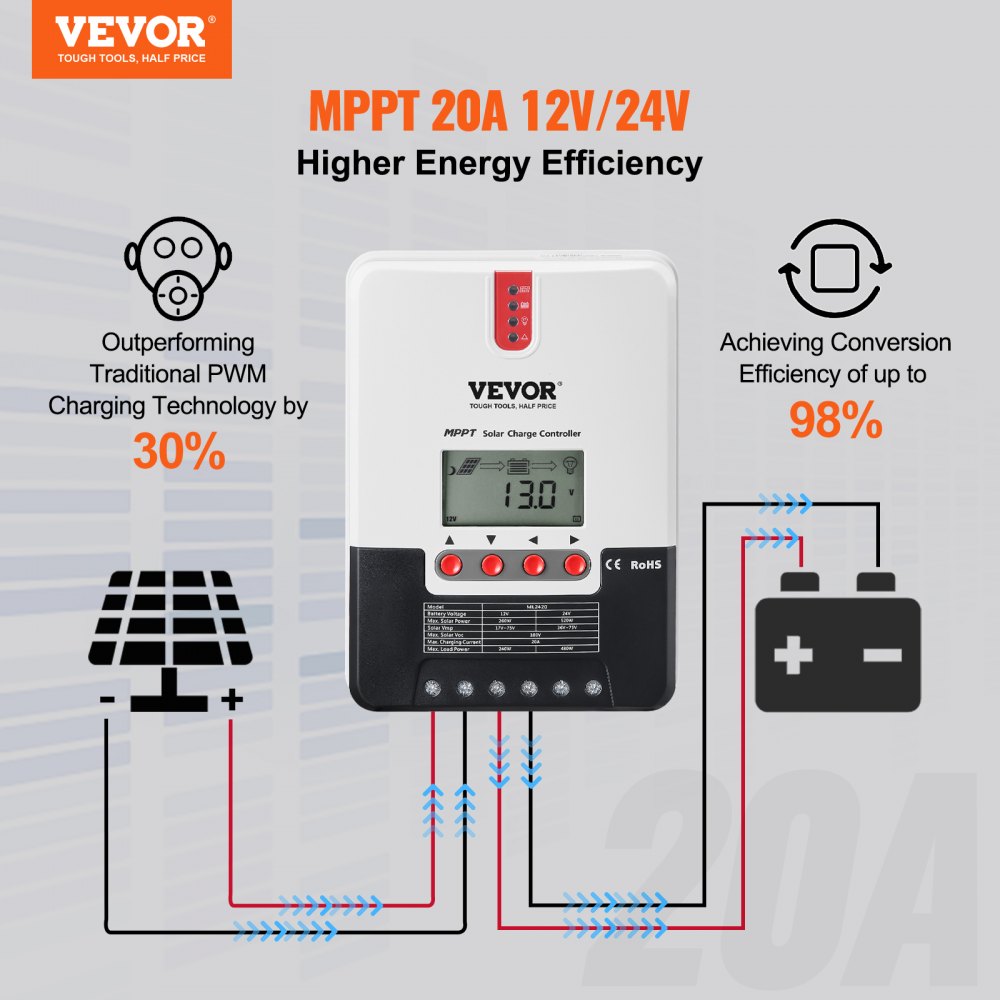

- Efficient Charging: Utilizing advanced MPPT technology, our solar charge controller surpasses traditional PWM charging methods by 15-30%. Under ideal conditions, it achieves a conversion efficiency of up to 98%, meaning quicker charging times and higher energy utilization, allowing your devices to operate for longer periods.

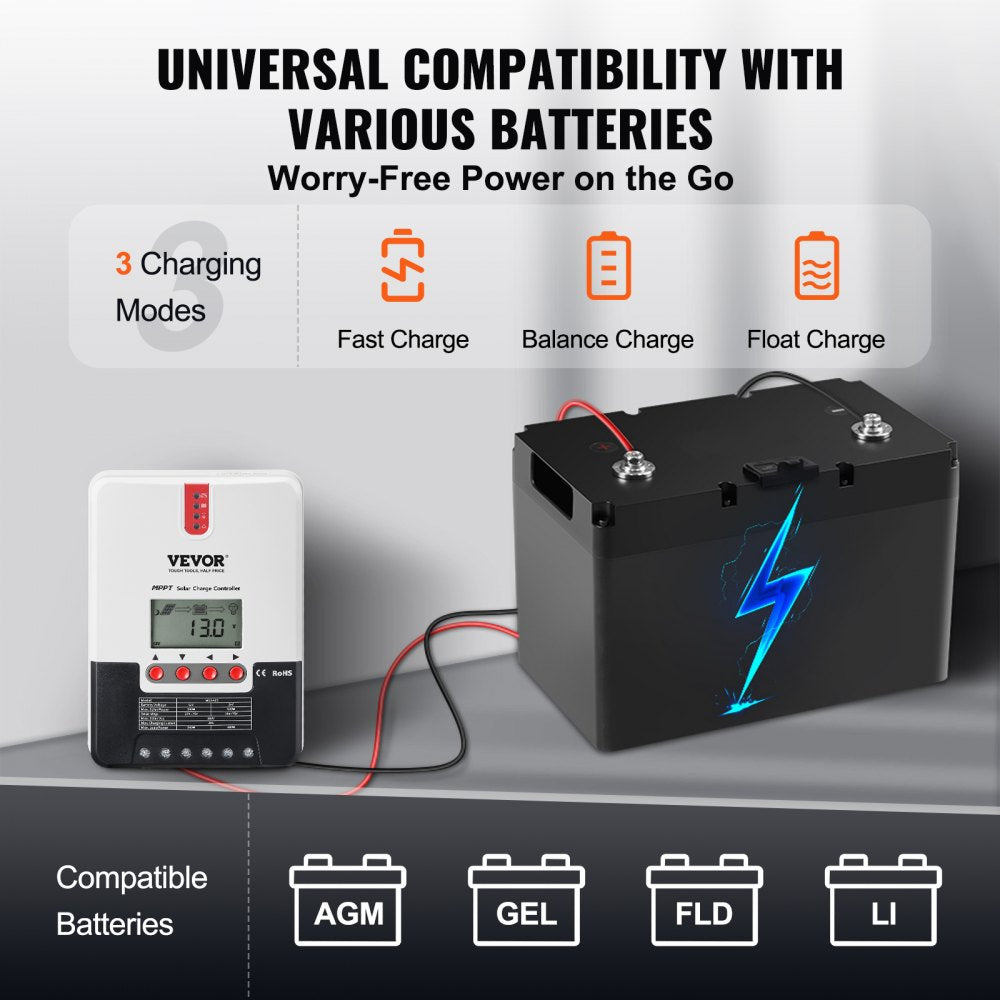

- Versatile Compatibility: Suitable for a wide range of environments and devices, from home solar systems to portable photovoltaic setups. This mppt solar charge controller can handle charging currents of up to 20A and supports solar panel power ratings of up to 260W/520W. It's compatible with various common battery types, including deep-cycle sealed (AGM), gel, flooded, and lithium batteries, among others.

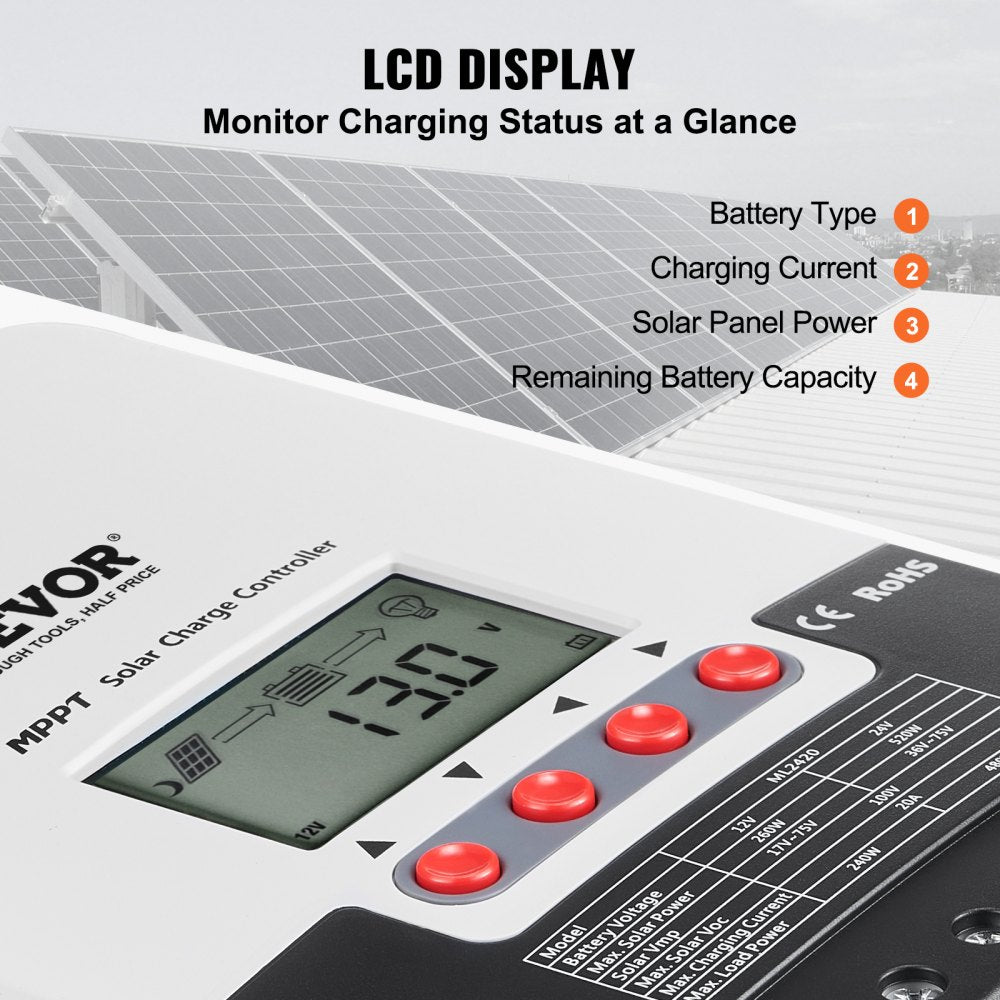

- Easy to Use & Control: Equipped with an LCD display screen, users can easily monitor crucial data and adjust the device operating status. Additionally, the mppt solar controller comes with an R232 communication interface that supports Modbus communication protocols, making it convenient for expanding functionality and meeting various communication needs.

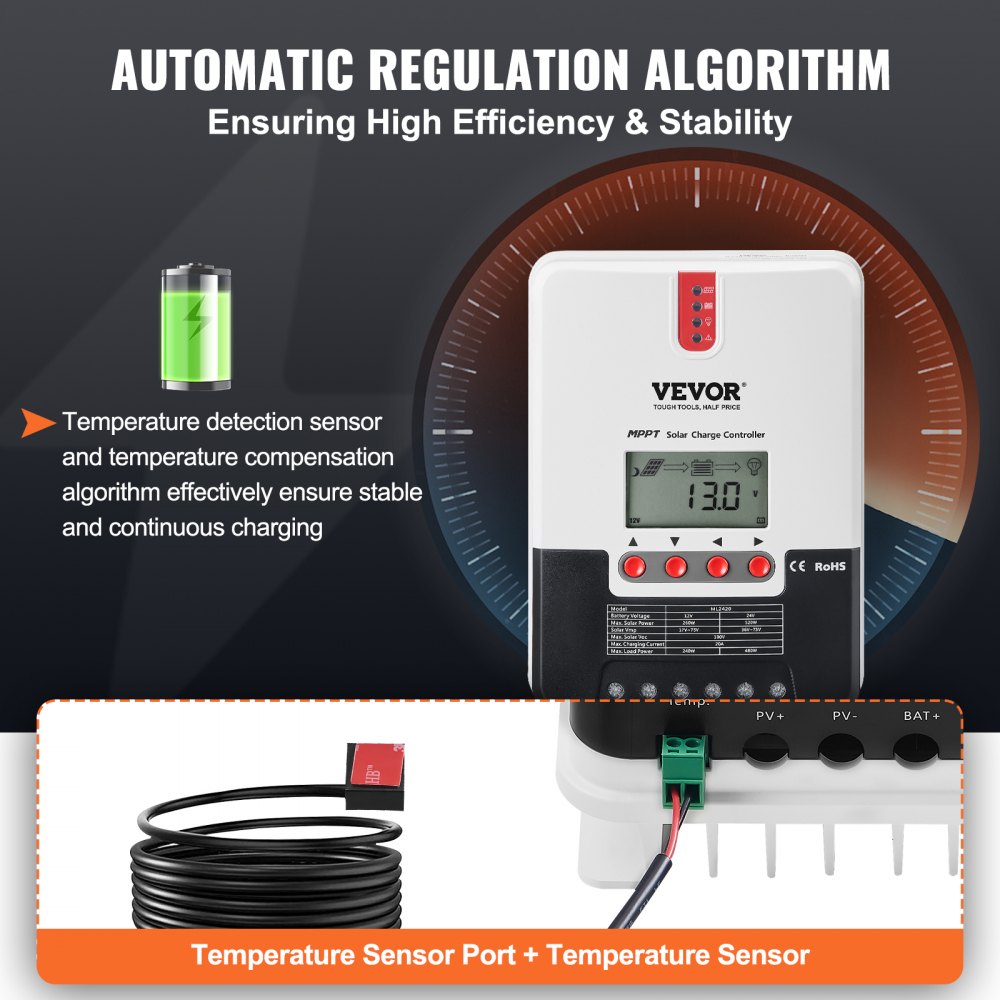

- High Stability: Featuring built-in temperature sensing capabilities, our charge controller 12V /24V can automatically adjust charging modes based on environmental temperatures, including limiting charging modes. It maintains stable operation even in high or low-temperature environments or during high charging power scenarios.

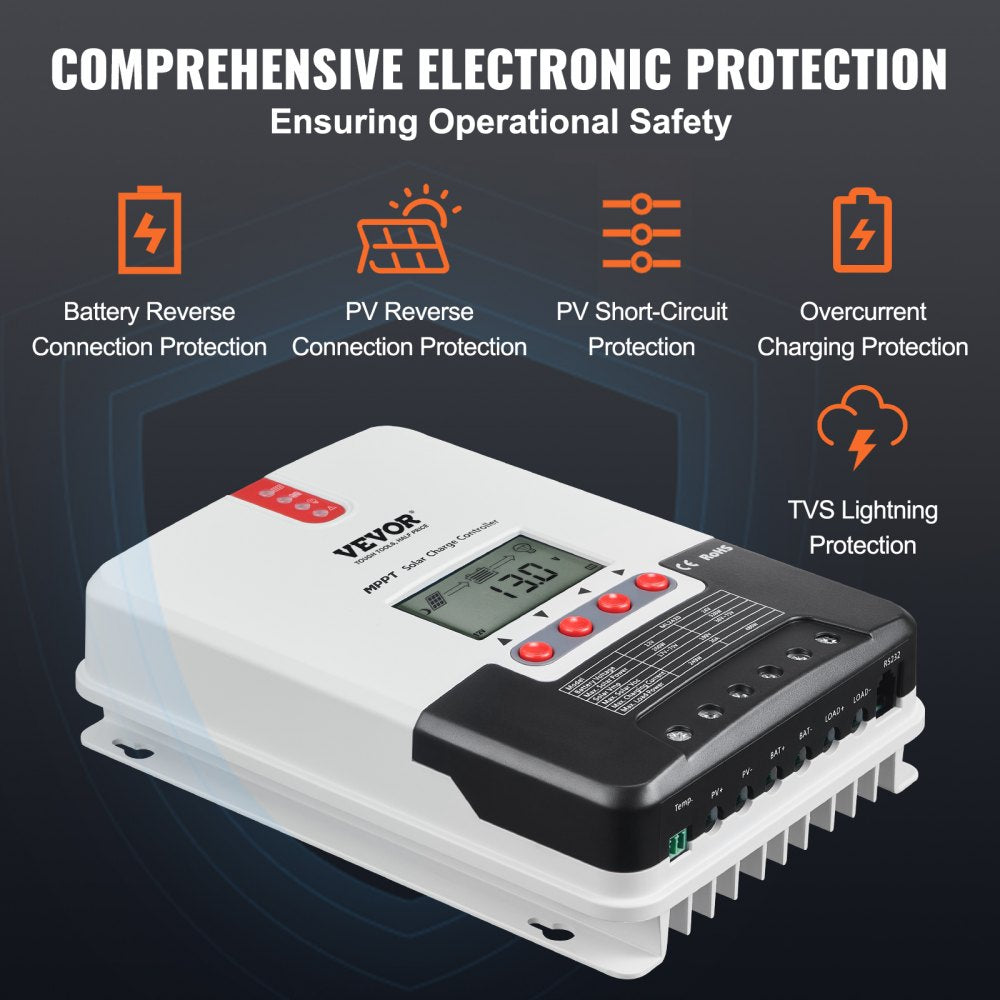

- Enhanced Security: With comprehensive protection functions, including battery reverse protection, PV reverse protection, PV short-circuit protection, overcurrent protection during charging, and TVS lightning protection, it ensures the security and long-term use of the device.

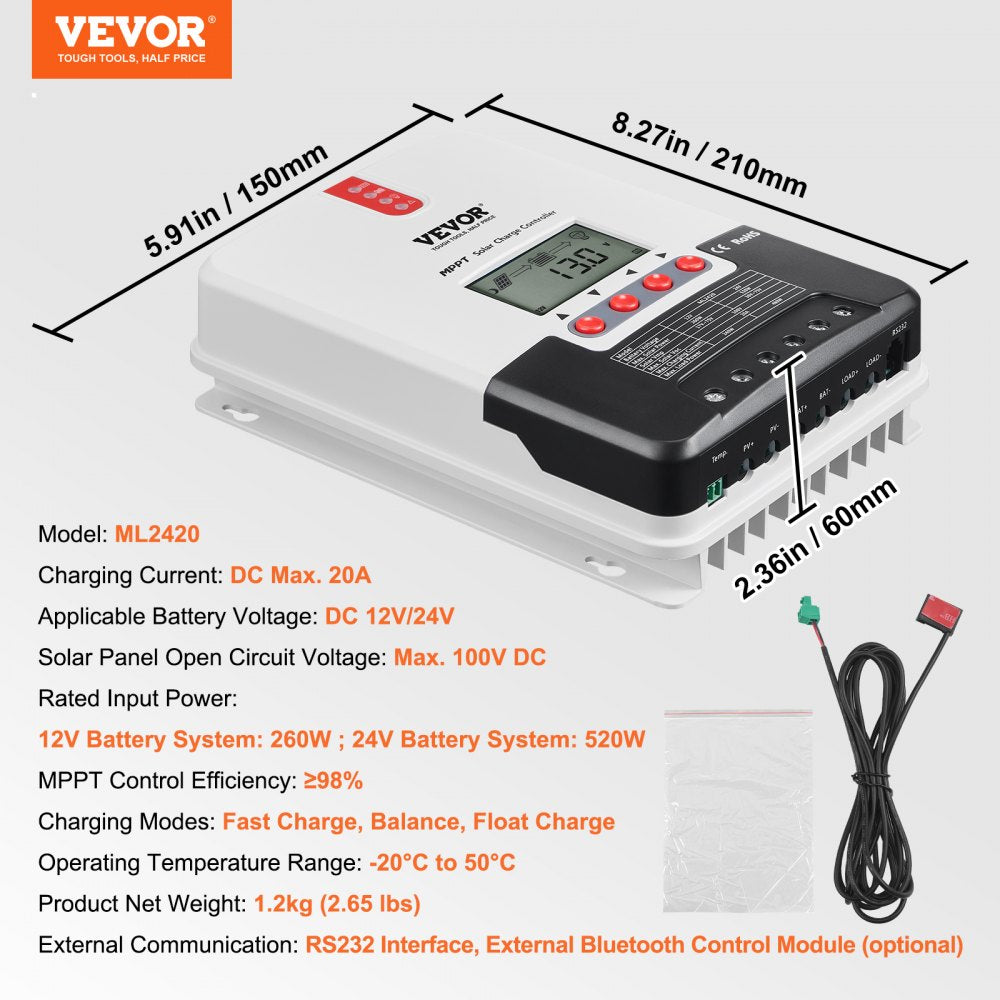

Specifications
| Item Model Number | ML2420 |
|---|---|
| Charging Current DC | Max. 20A |
| Applicable Battery Voltage DC | 12V/24V Auto |
| Solar Panel Open Circuit Voltage | Max. 100V DC |
| Rated Input Power | 12V/260W; 24V/520W |
| MPPT Control Efficiency | 98% or greater |
| Charging Modes | Fast Charge, Balance, Float Charge |
| External Communication | RS232 Interface, External Bluetooth Control Module optional |
| Main Material | ABS+PC |
| Operating Temperature Range | -20°C to 50°C / -4°F to 122°F |
|---|---|
| Product Weight | 1.2 kg / 2.65 lbs |
| Product Dimensions | 210 x 150 x 60 mm / 8.27 x 5.91 x 2.36 in |
| Package Dimensions | 270 x 197 x 105 mm / 10.63 x 7.76 x 4.13 in |

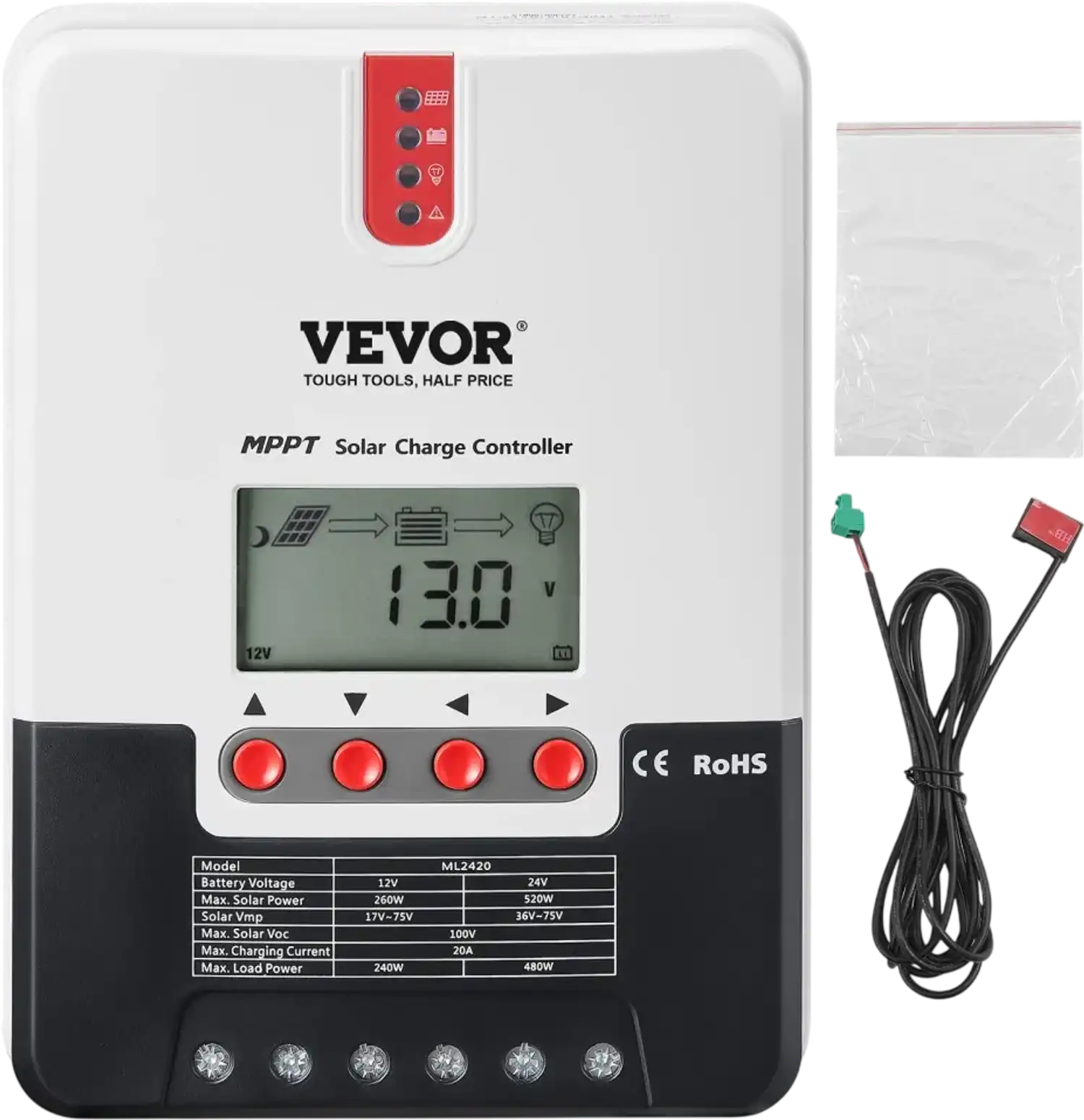

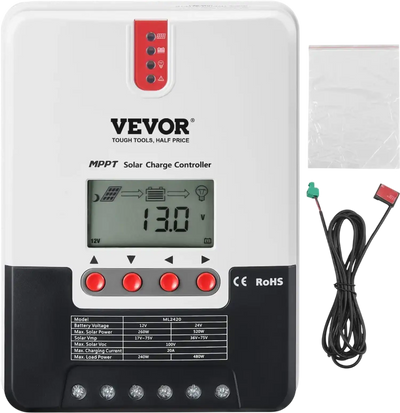

Package Contents
20A MPPT solar charge controller
Temperature sensor cable
Warranty
This item comes with a 1 year factory warranty.
