Vevor Pneumatic Punch Press Machine 440 lbs 110V Vertical Desktop New
Product Overview

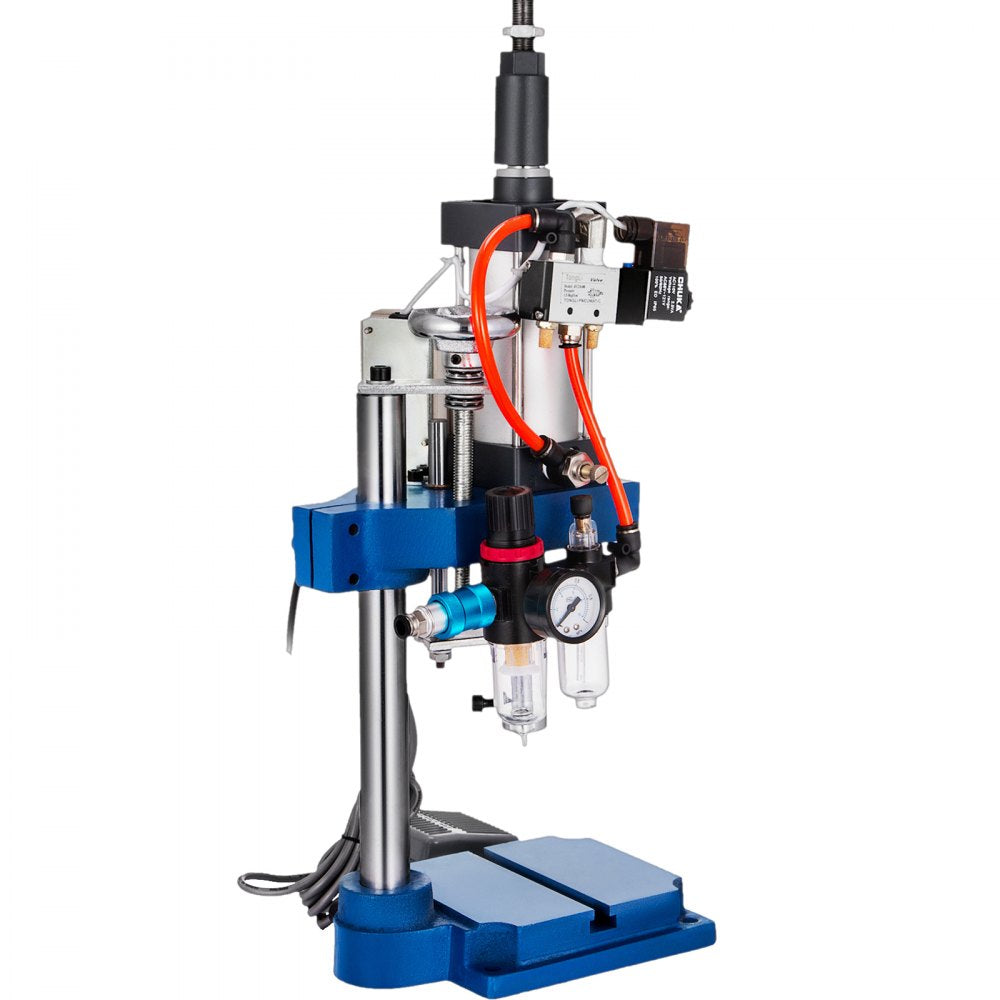

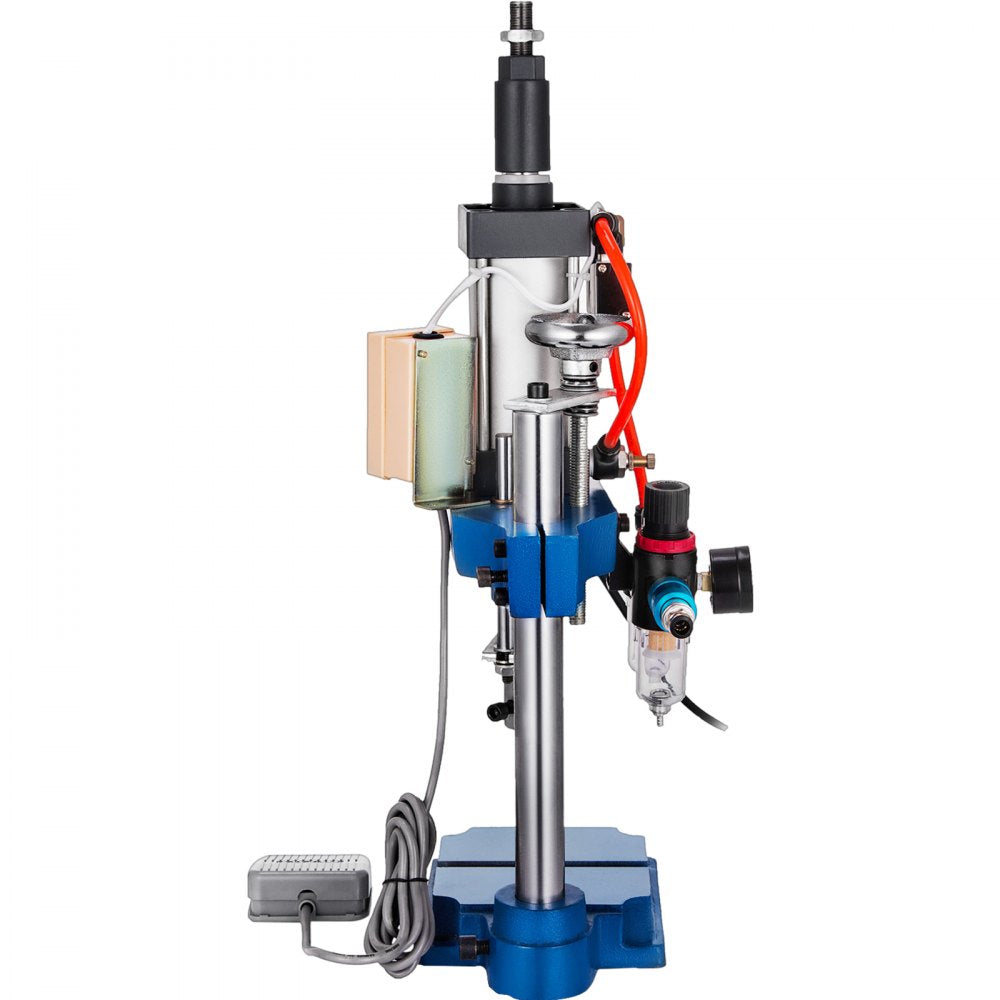

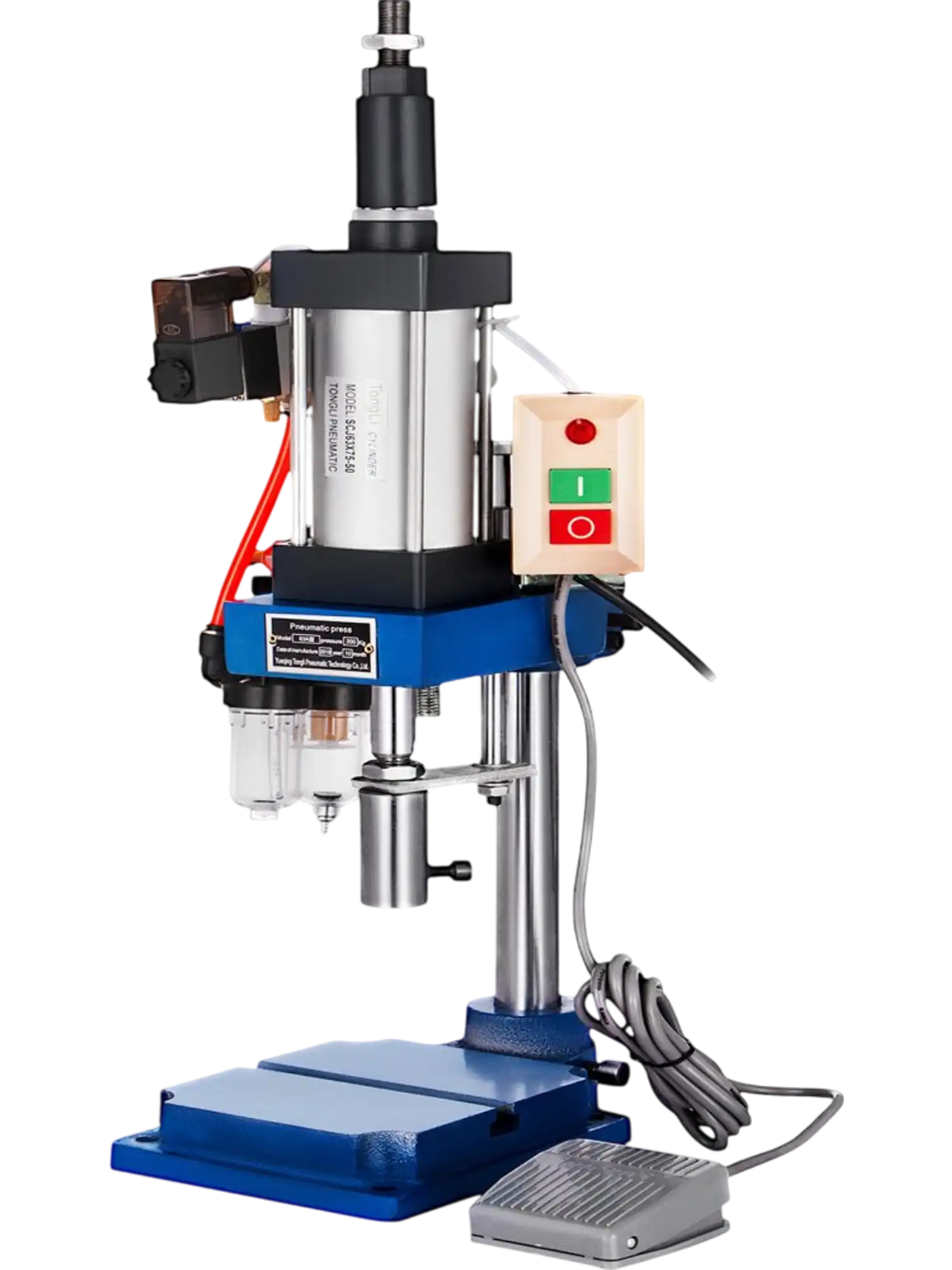

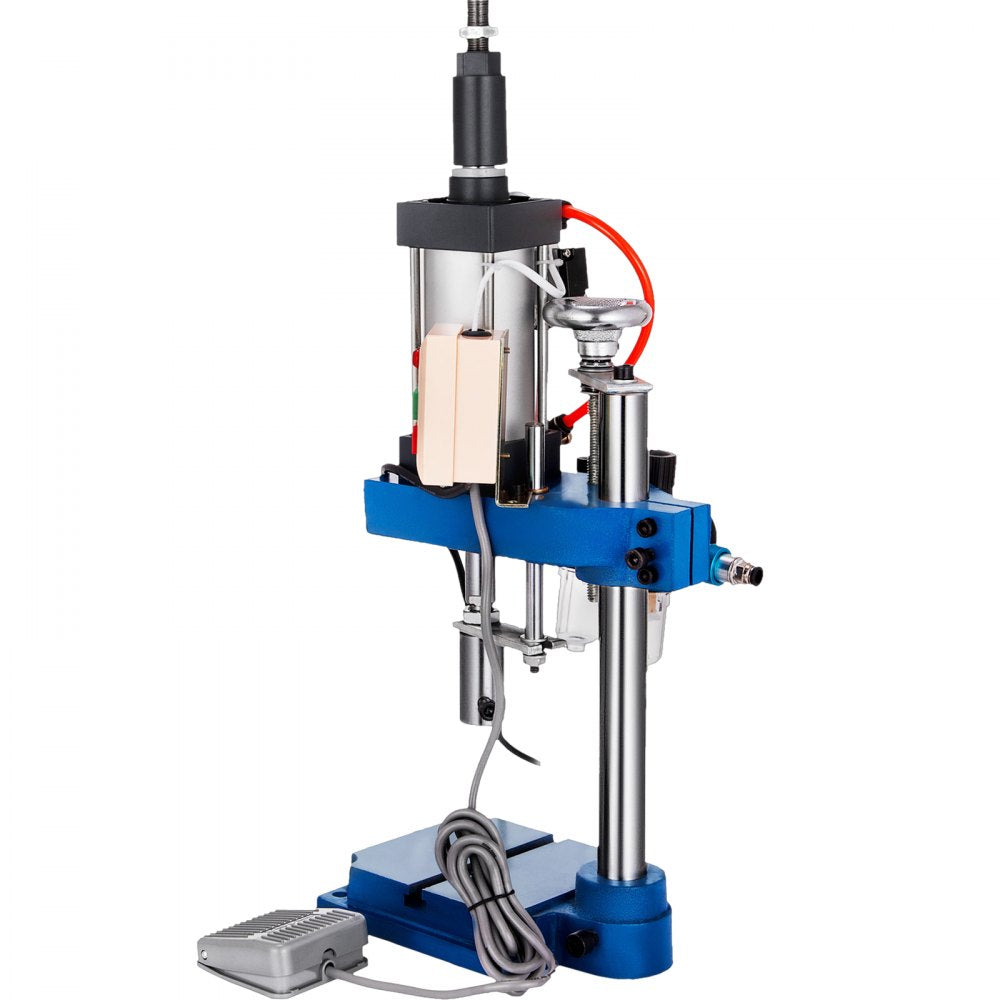

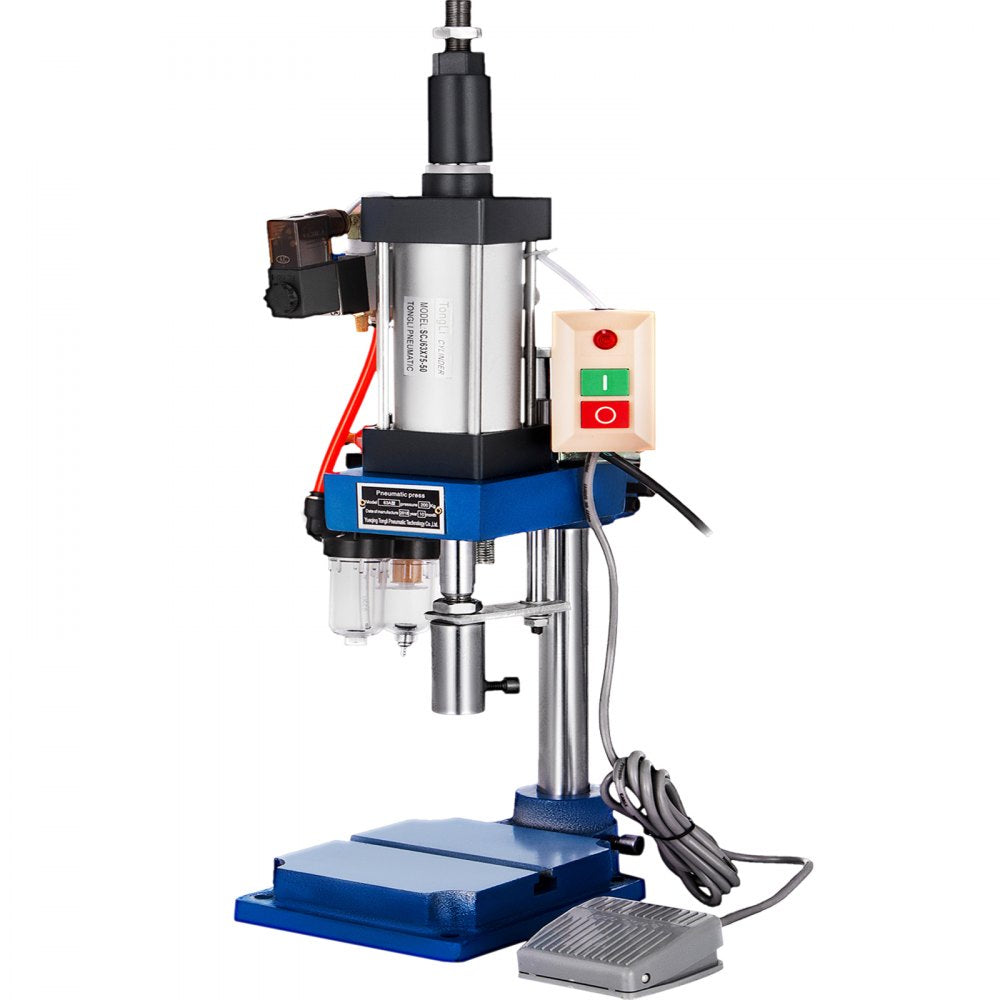

The Vevor vertical pneumatic punch press machine is a desktop stamping solution designed for precise, quiet operation in workshop and production environments. It runs on 110V AC pneumatic power and offers an adjustable operating pressure range of 0.4-0.7 Mpa with up to 440 lbs theoretical pressure. The machine features a vertical layout, manual control, and a 16 mm die hole for a range of punching and forming tasks. Its precision guide components help support high-speed impact loads while maintaining accuracy. Suitable applications include punching, bending, riveting, extrusion, and forming work across multiple industries.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

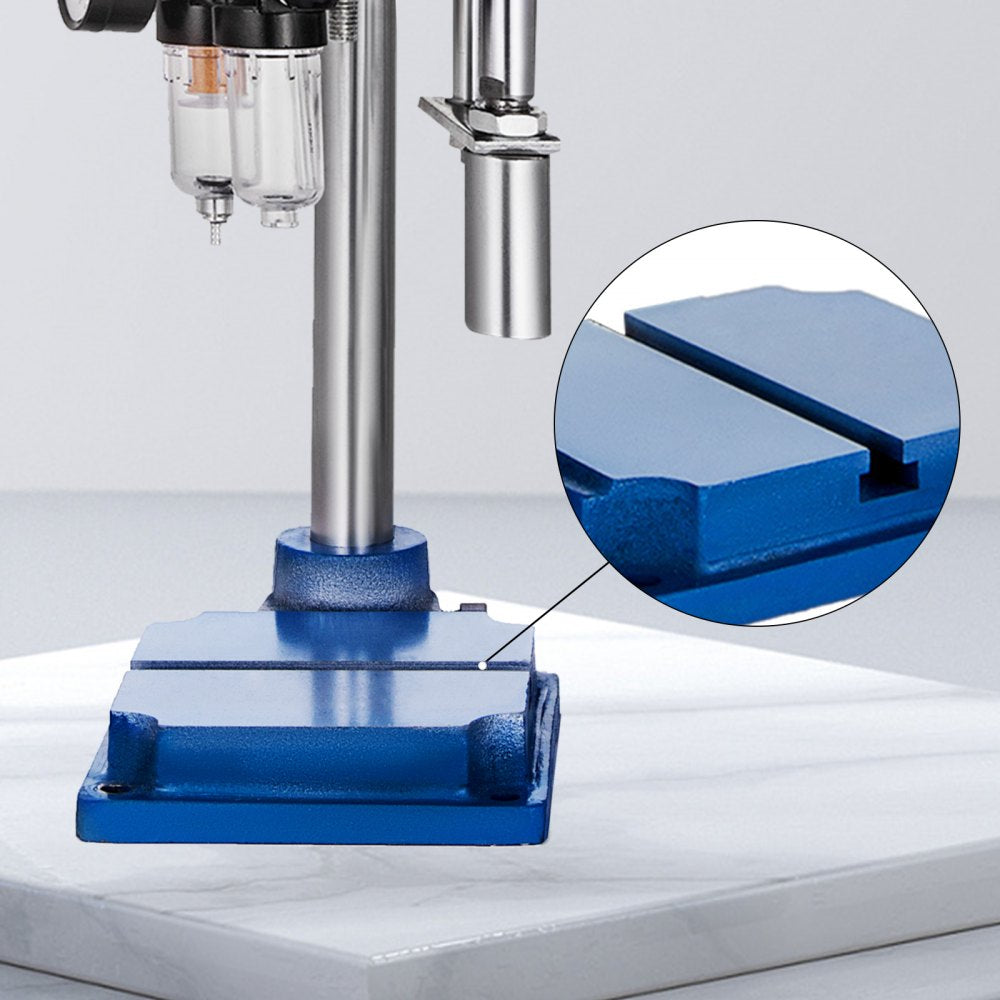

- High Accuracy: Theoretical Output Pressure: 1121-1962 N / 114-200 kg, Pressure: 441 lbs / 200 kg. Our machine is a small precision pressure equipment, equipped with high accuracy rotational resistance guide rod and guide plate, will adapt to high-speed precision impact load.

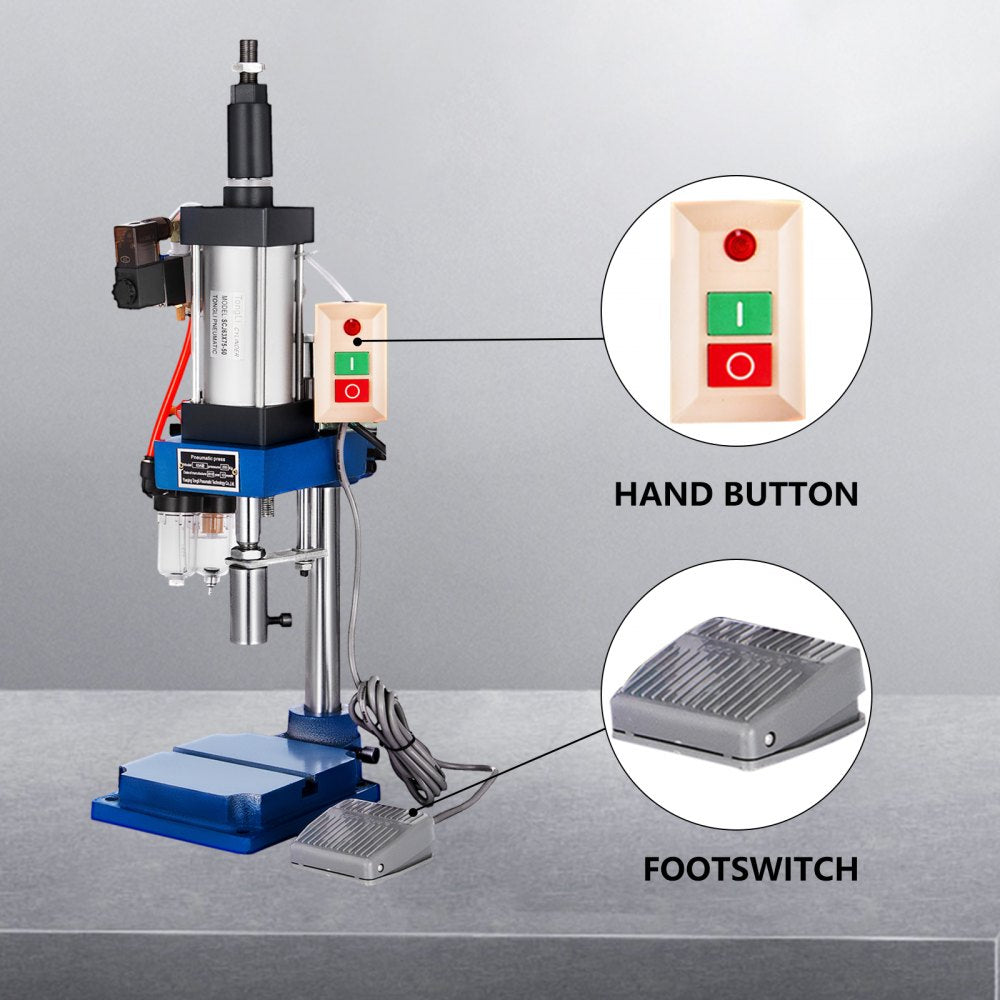

- Humanized Design: Can be used with both hand buttons and footswitch control, increase the protection device. Heating mode, temperature control and pressure sensors, and pre-control devices comply with the International standards to ensure operating safety.
- Simple Operation: Our cylinder adopts a double sealing structure with good sealing performance and a high power conversion rate. It is easy to install, easy to operate, no noise when the hydraulic system and the generated electric standby.

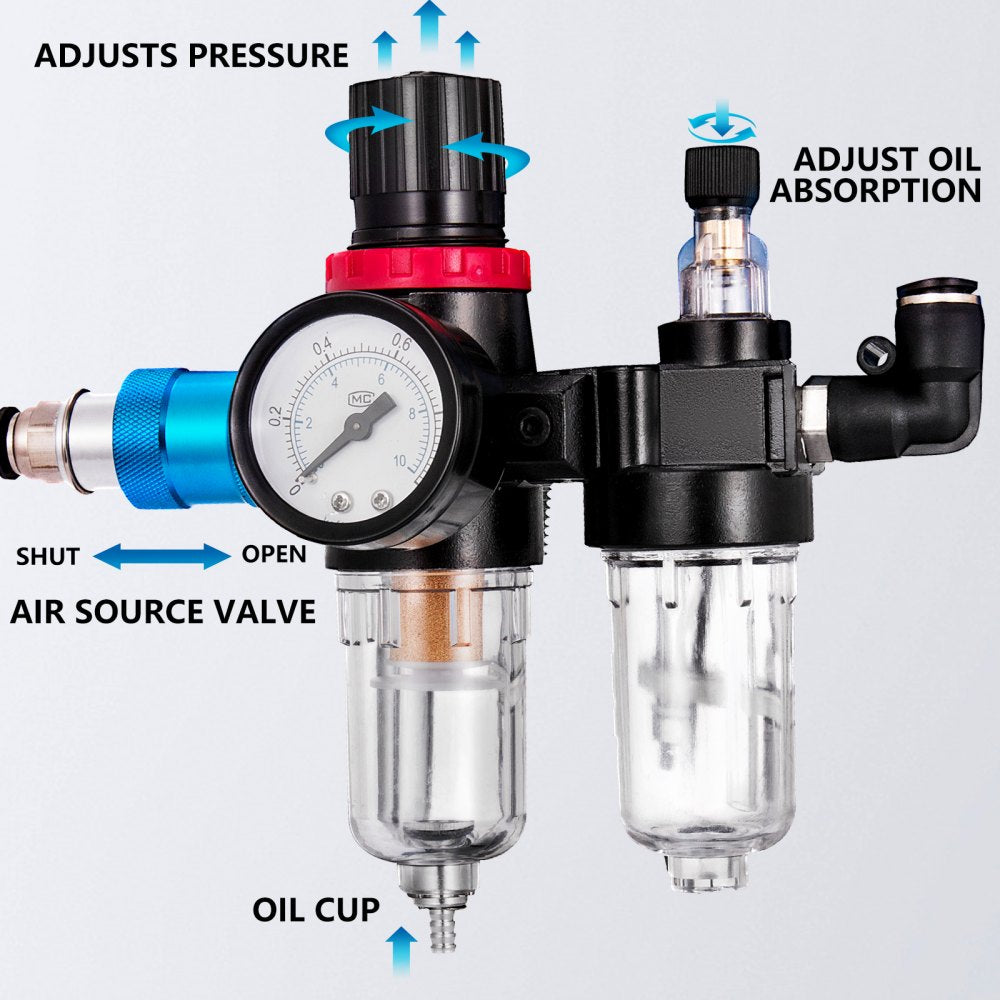

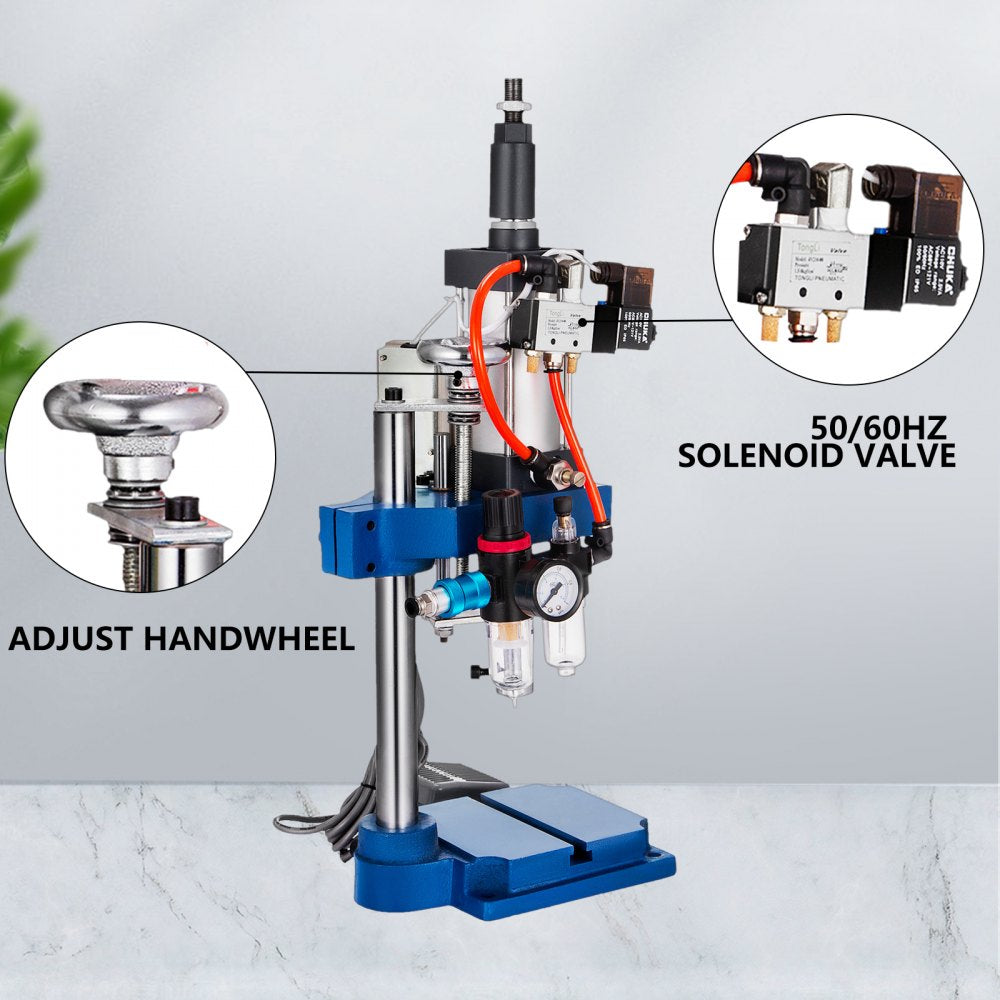

- Quick Adjustment: According to different products and modes, adjust the height of speed, stroke, pressure, and stamping time. Operation pressure easily adjustable from 0.4-0.7 Mpa according to the requirement.

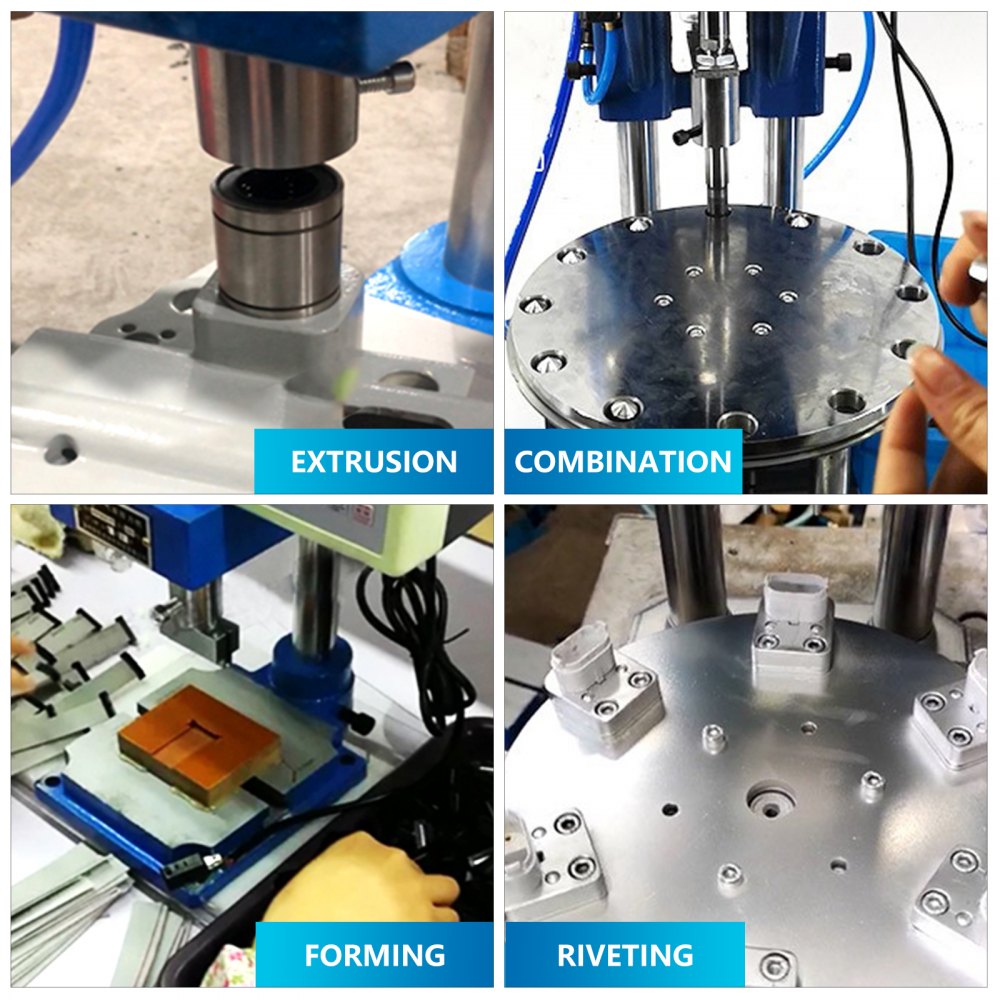

- Widely Applicable: Compressed air as a power source, high efficiency, and can reduce labor. Our machine is suitable for electronics, electrical appliances, instruments, meters, cameras, watches, jewelry, hardware, clothing, shoes and hats industries, etc.
Specifications
| Voltage | 110V AC |
| Power Source | Pneumatic |
| Operation Pressure | 0.4-0.7 Mpa (4-7 kg/cm², or 110-140 PSI) |
| Theoretical Output Pressure | 1121-1962 N / 114-200 kg |
| Actual Output | About 80% Theoretical Output |
| Die Hole Diameter | 0.63" / 16 mm |

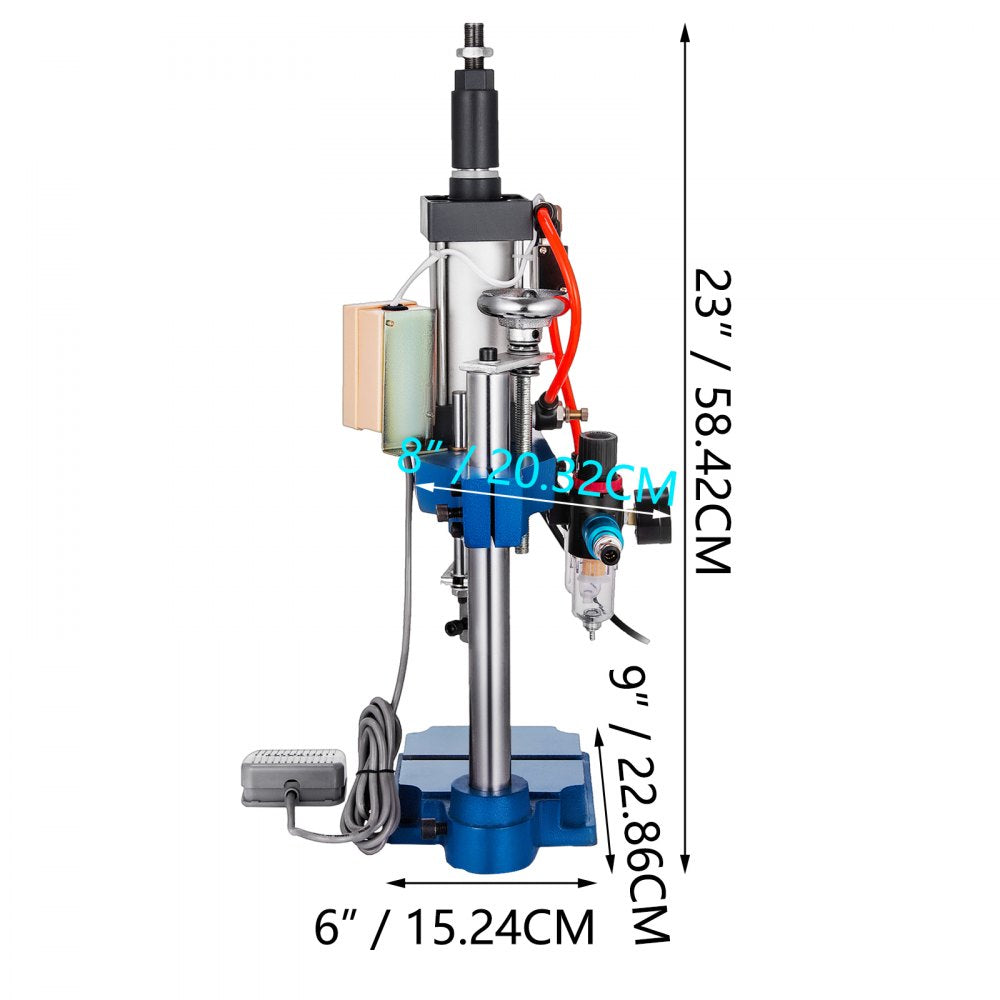

| Depth of Throat and Mouth | 5.3" x 5.9" / 135 x 150 mm |
| Stroke | 5.9" x 5.3" / 150 x 135 mm |
| Tracheal Size | 0.31" x 0.2" / 8 x 5 mm |

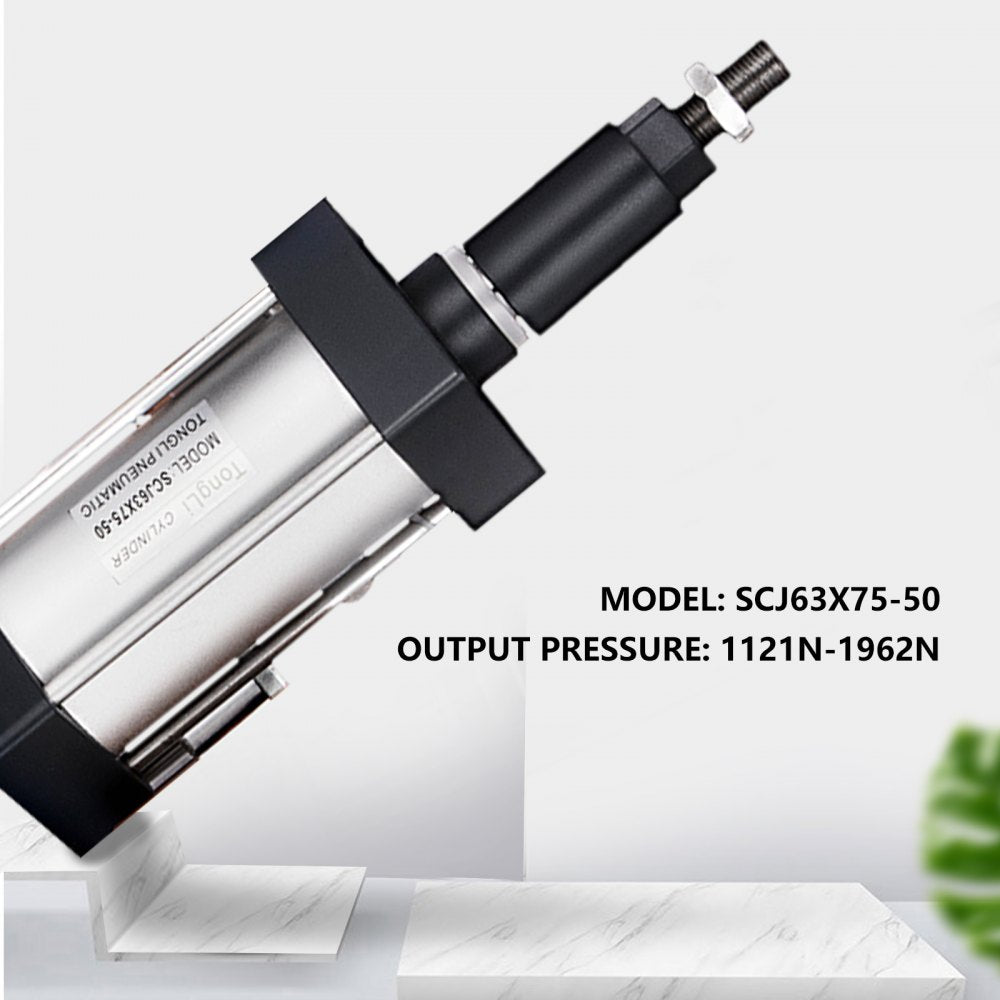

| Adjustable Cylinder Size | 2.5" x 2.95" / 63 x 75 mm |
| Control Form | Manual |
| Layout Form | Vertical |
| Gross Weight | 39.3 lbs / 17.8 kg |
| Package Dimensions | 26.4" x 13.4" x 13.4" / 67 x 34 x 34 cm |
| Thread Size | M16 x 1.5 |
Package Contents
1 x Pneumatic Punch Press Machine
1 x Foot Pedal
1 x Manual
Warranty
This item comes with a 1 year factory warranty.
