Vevor Pool Pump Motor 1.5 HP 56J 115/230V 3450 RPM Replacement Motor New

Vevor Pool Pump Motor 1.5 HP 56J 115/230V 3450 RPM Replacement Motor New

SMS
Messenger
WhatsApp
Add To Wishlist
Remove From Wishlist

Product Overview

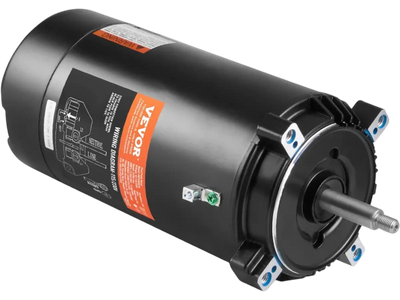

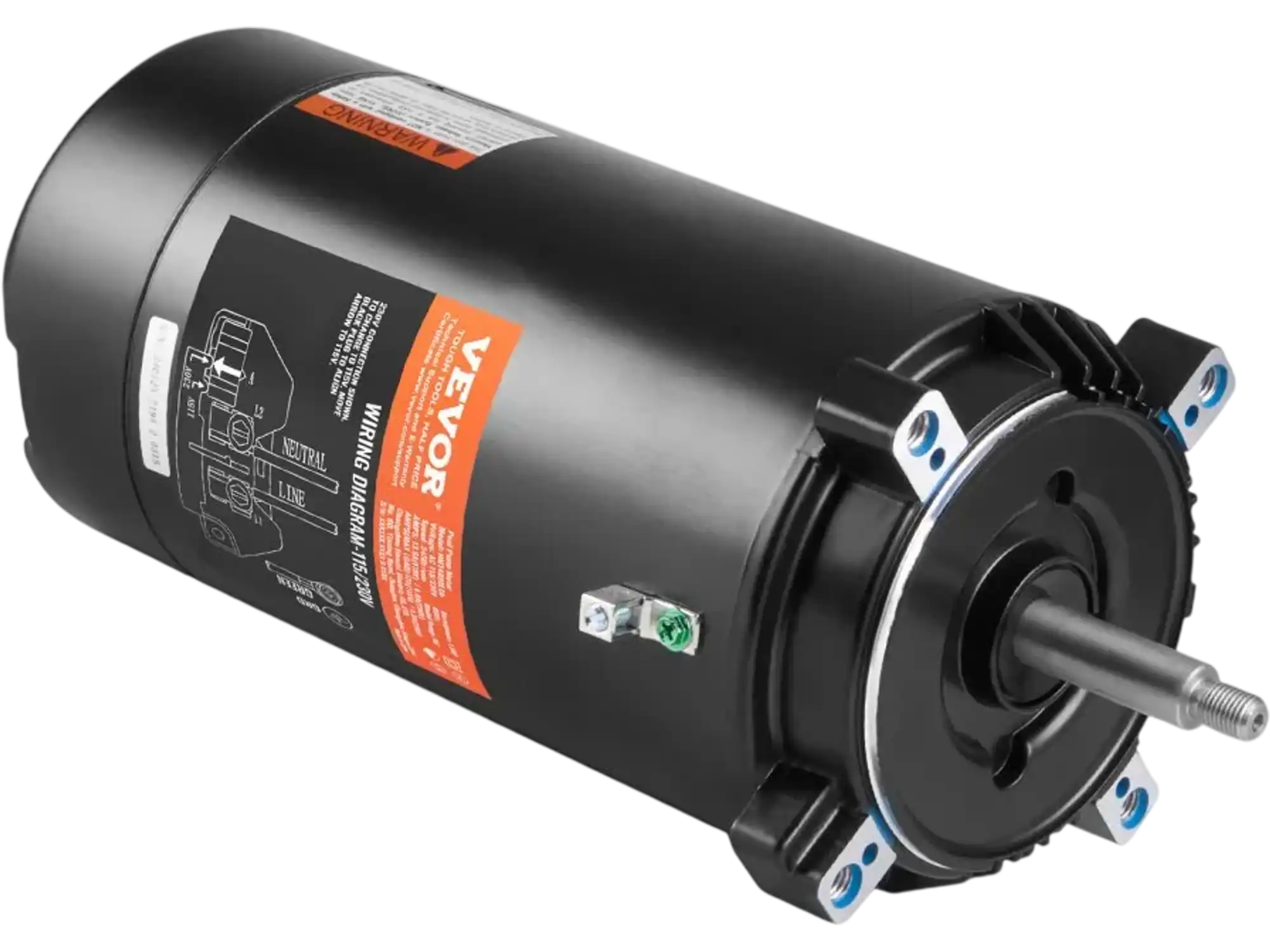

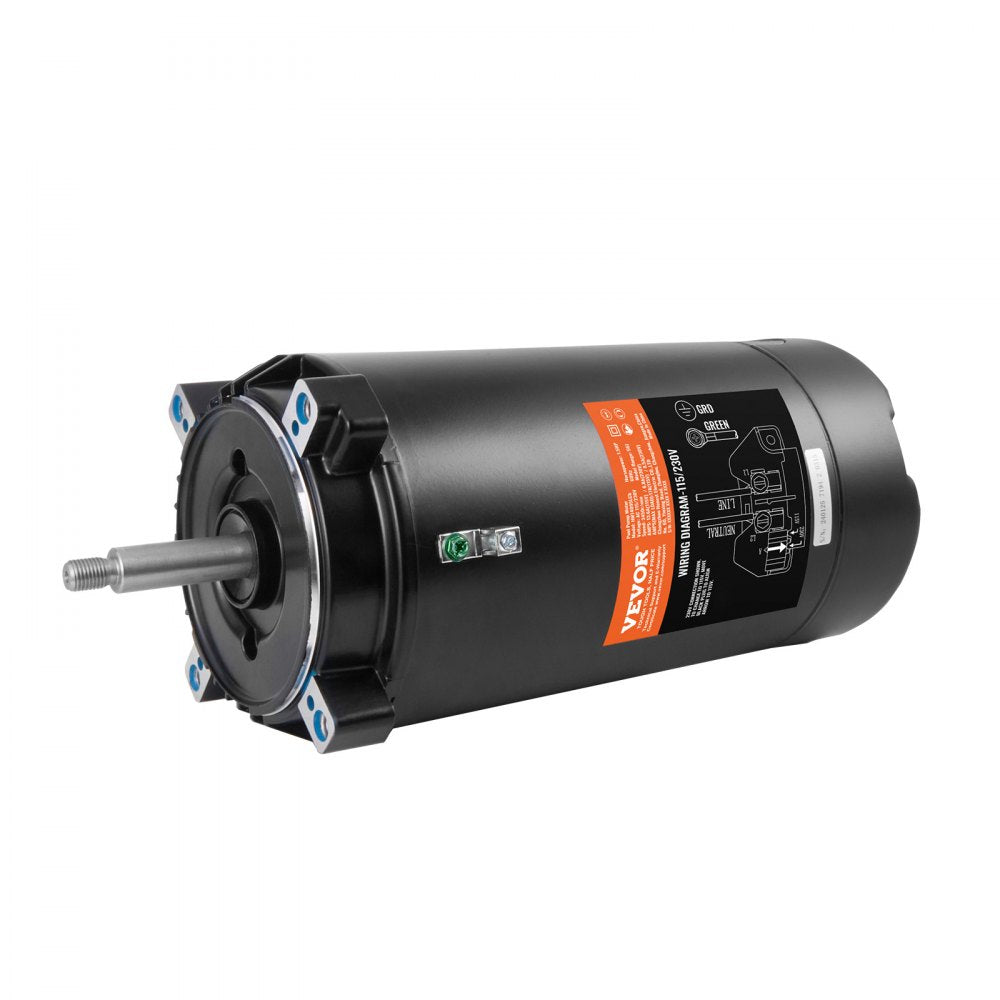

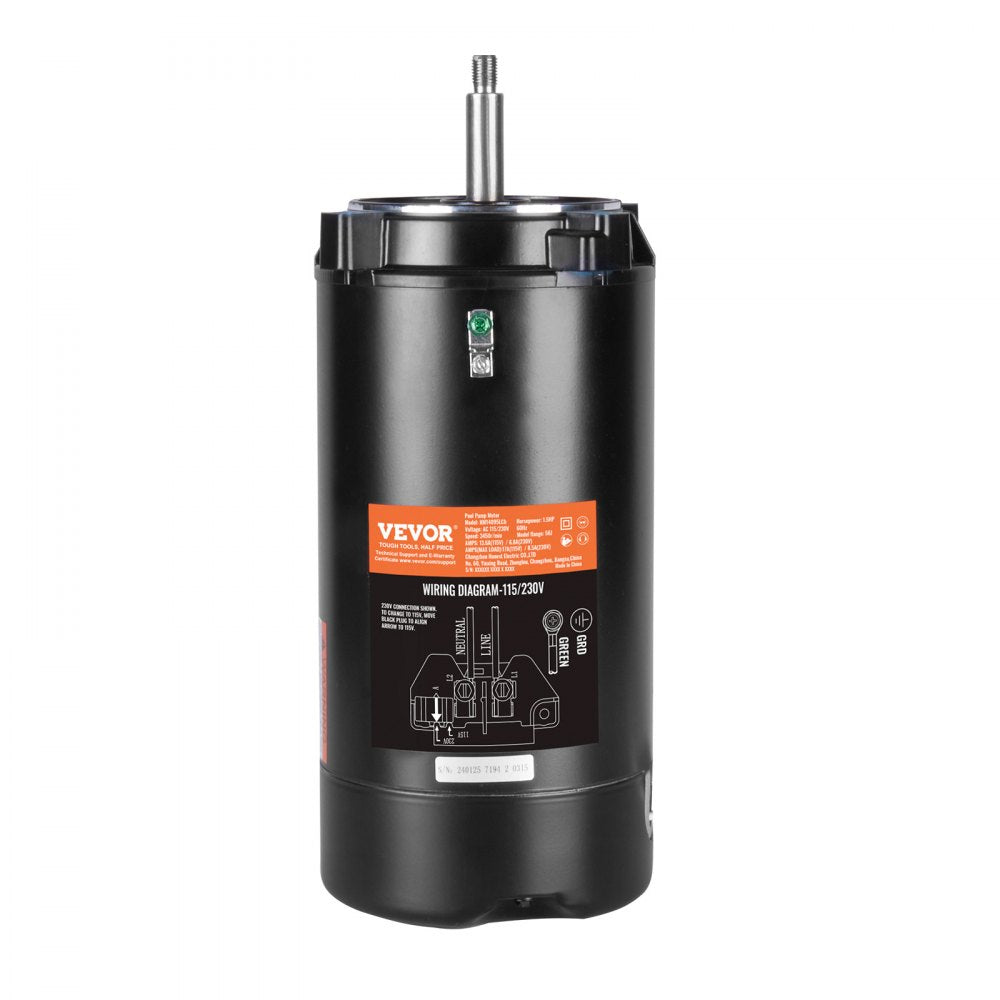

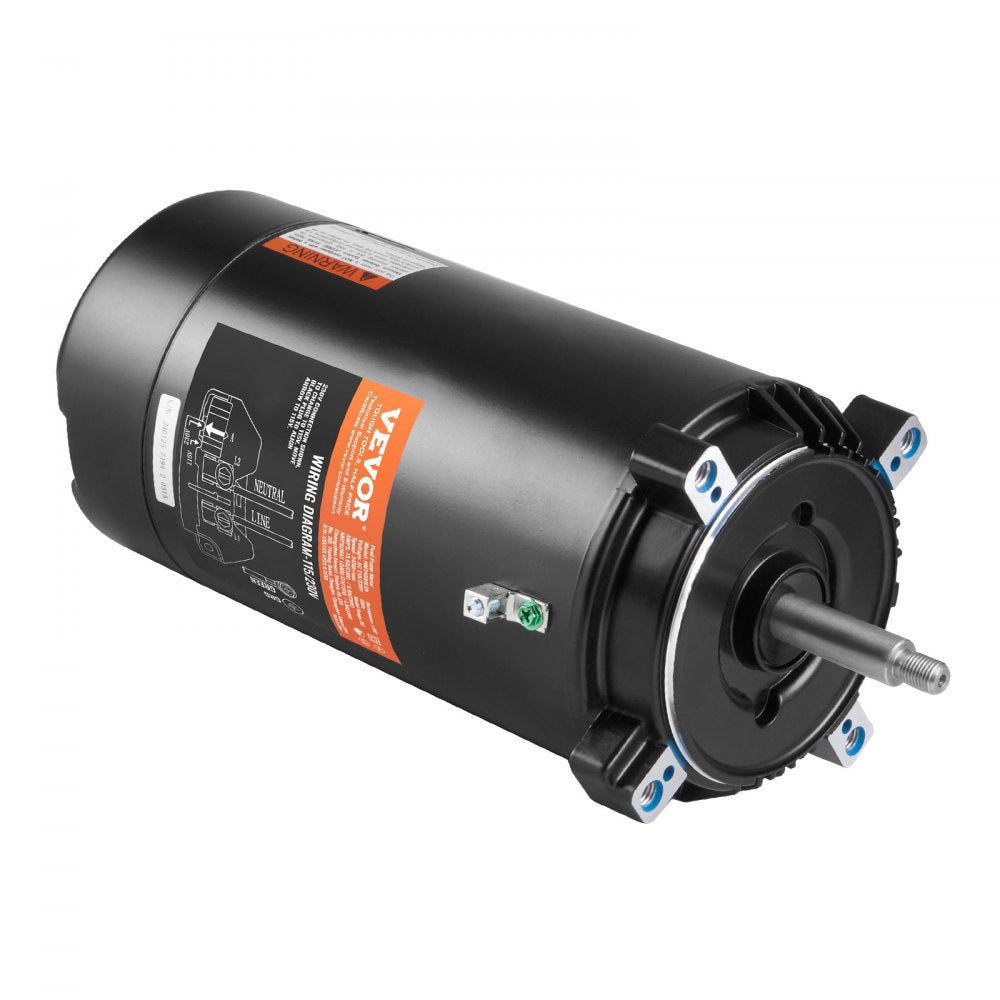

The Vevor pool pump motor is a 1.5 HP replacement motor designed to restore reliable circulation in residential or commercial pool systems. It operates on AC 115/230V power, delivers up to 3450 RPM no-load speed, and features a 56J round flange design for compatible installations. Its corrosion-resistant steel housing, ball-bearing construction, and overload protection help support long-lasting performance. The motor is built for efficient operation with low noise output and includes a user manual for setup guidance.


*Not for sale in California*

vendor logo
divider
authorized dealer
checkmark

Brand new

checkmark

1 year factory warranty

checkmark

Manufacturer direct shipping from CA, NJ, & TX

checkmark

Authorized Vevor Dealer

Features

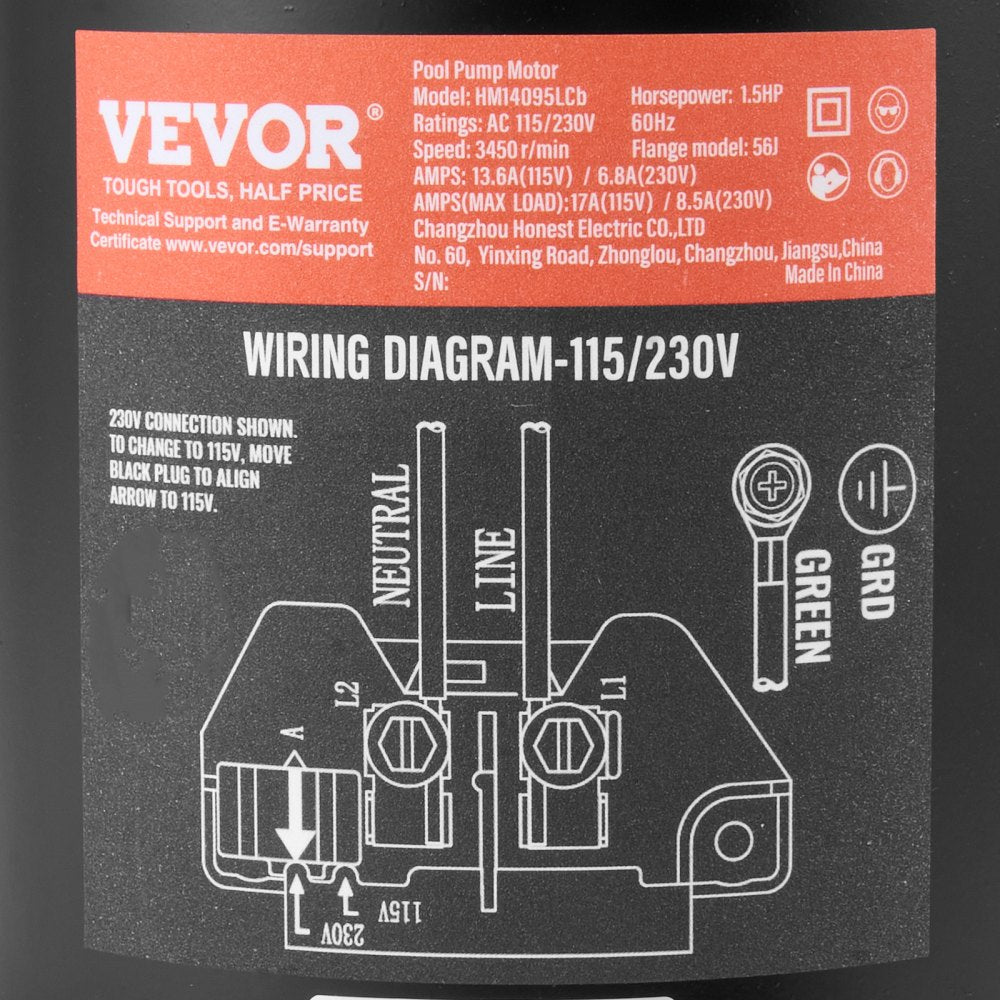

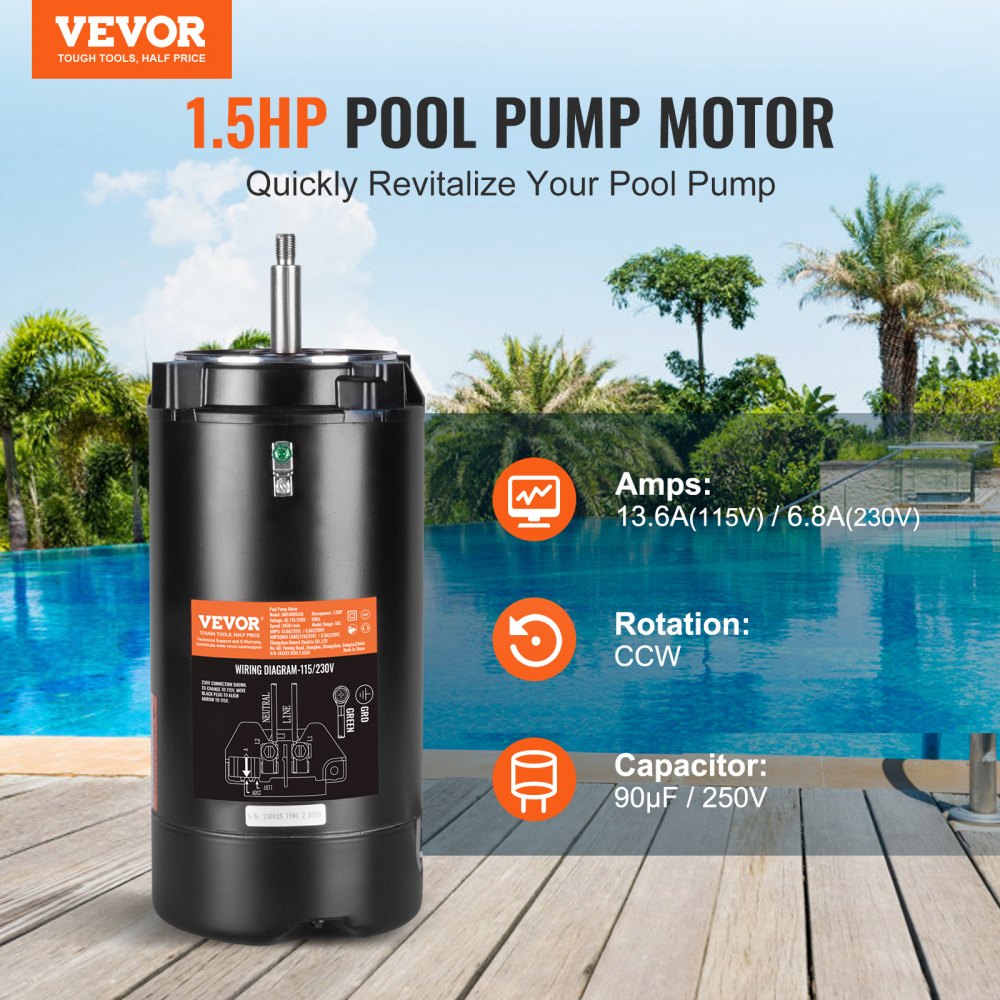

  • Reliable Performance: VEVOR 1.5HP pool pump motor runs at 3450RPM high speed, delivering high-efficiency water circulation and a refreshing pool pump system. Voltage - AC 115/230V; Amps: 13.6/6.8A ; Amps (Max Load): 17/8.5A ; SF: 1.3 ; Capacitor: 90μF/250V ; Model Flange: 56J.

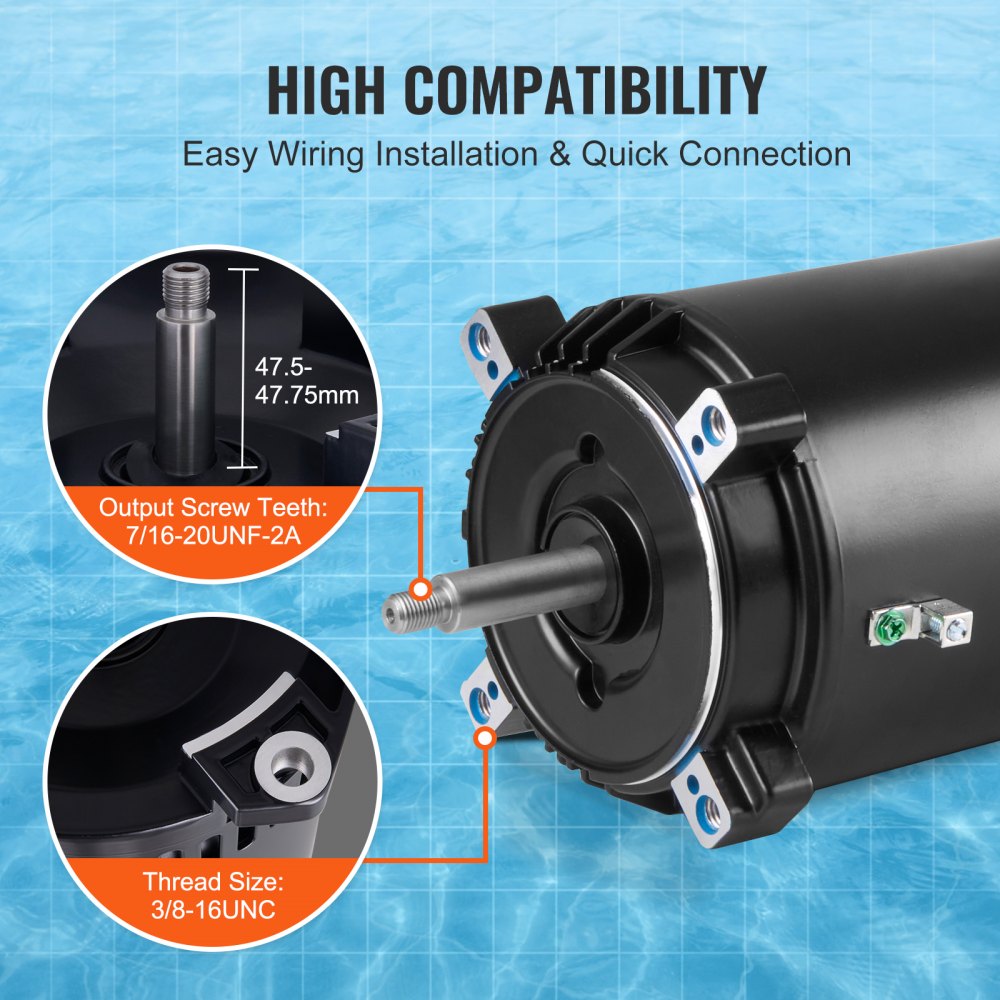

  • Easy Installation: Installing our swimming pool pump motor is a breeze with a thread size of 3/8-16UNC, output screw teeth of 7/16-20UNF-2A, and a 1.9-inch shaft extension. Get detailed installation instructions with the included user manual.

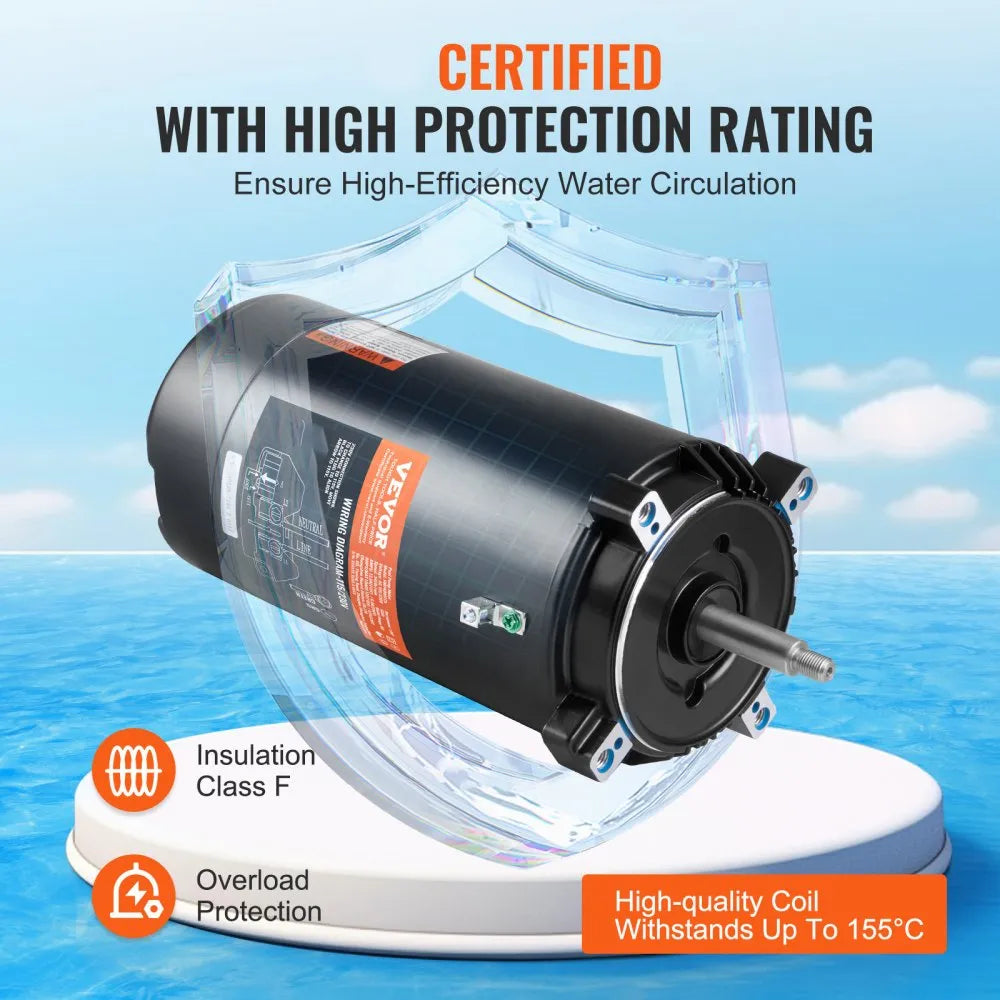

  • Safety and Durability: Our 1.5HP pool pump motor is fortified with corrosion-resistant steel housing, low starting torque, and ball-bearing construction and overload protection, it ensures safe and enduring power support for pool system.

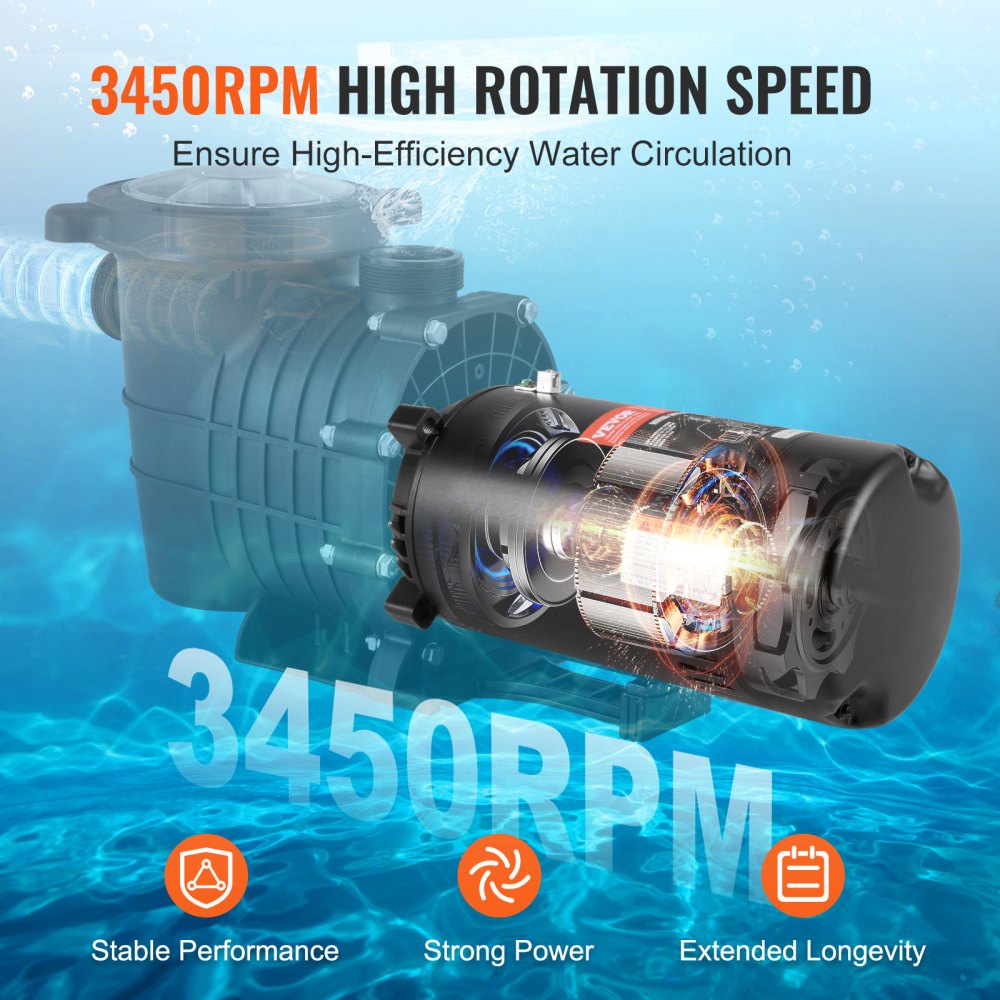

  • High Efficiency, Energy-Efficient: VEVOR pool pump motor combines powerful performance with minimal energy consumption, operating at 3450RPM high speed while maintaining 65db low noise level. Dive into a refreshing pool experience with reliability and tranquility.
  • Revitalize Your Pool Pump: Pump it up for all your pools. Our versatile pool pump motor caters to various types of pools - from residential to commercial settings, bringing you a clean and clear swimming water environment, thereby enhancing pool performance and vitality.

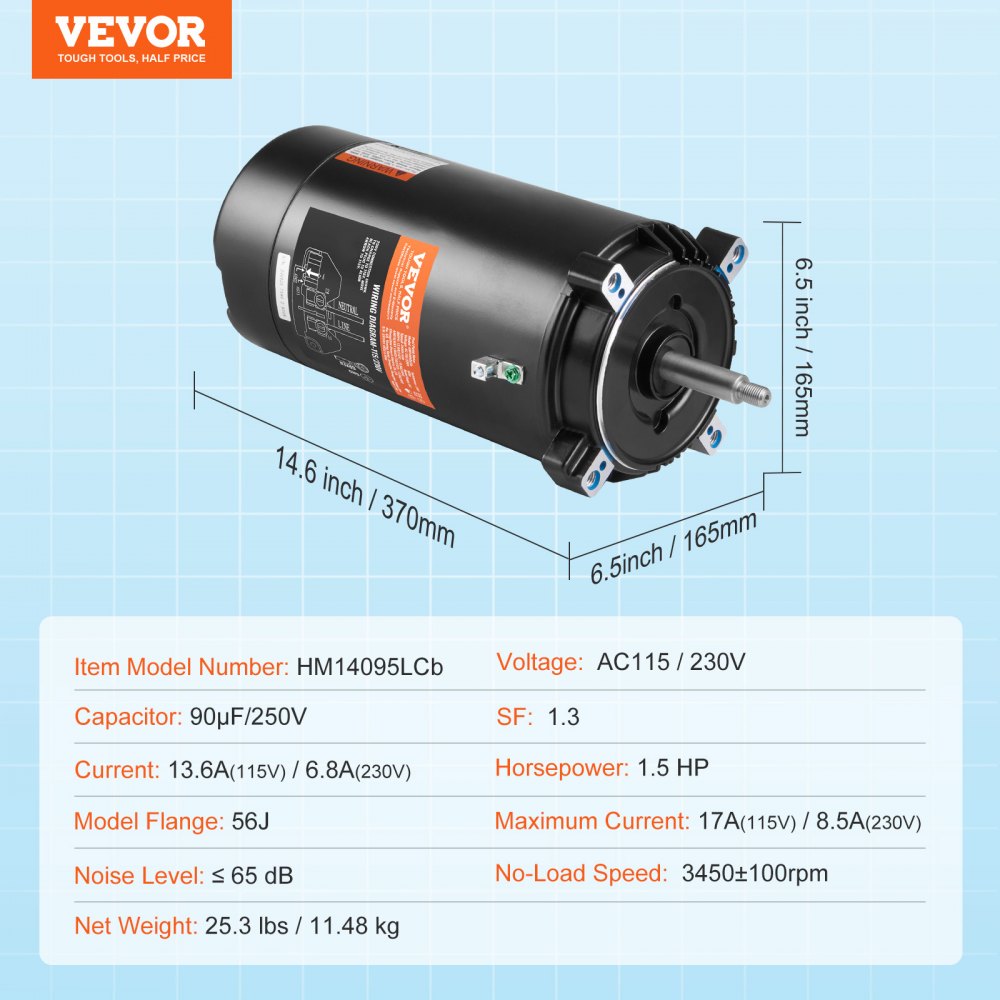

Specifications

Item Model Number HM14095LCb
Product Type Pool Pump Motor
Horsepower 1.5 HP
Voltage AC 115/230V
Current 13.6A (115V) / 6.8A (230V)
Current (Max Load) 17A (115V) / 8.5A (230V)
No-Load Speed 3450 RPM
Frequency 60 Hz
Service Factor 1.3
Capacitor 90μF/250V
Model Flange 56J
Rotation CCW
Noise Level ≤ 65 dB
Thread Size 3/8-16UNC
Output Screw Teeth 7/16-20UNF-2A
Shaft Extension 1.9"
Housing Material Corrosion-resistant steel
Product Dimensions 14.6 x 6.5 x 6.5"

Package Contents

Pool pump motor

User manual

Warranty

vendor logo
divider
authorized dealer

This item comes with a 1 year factory warranty.
