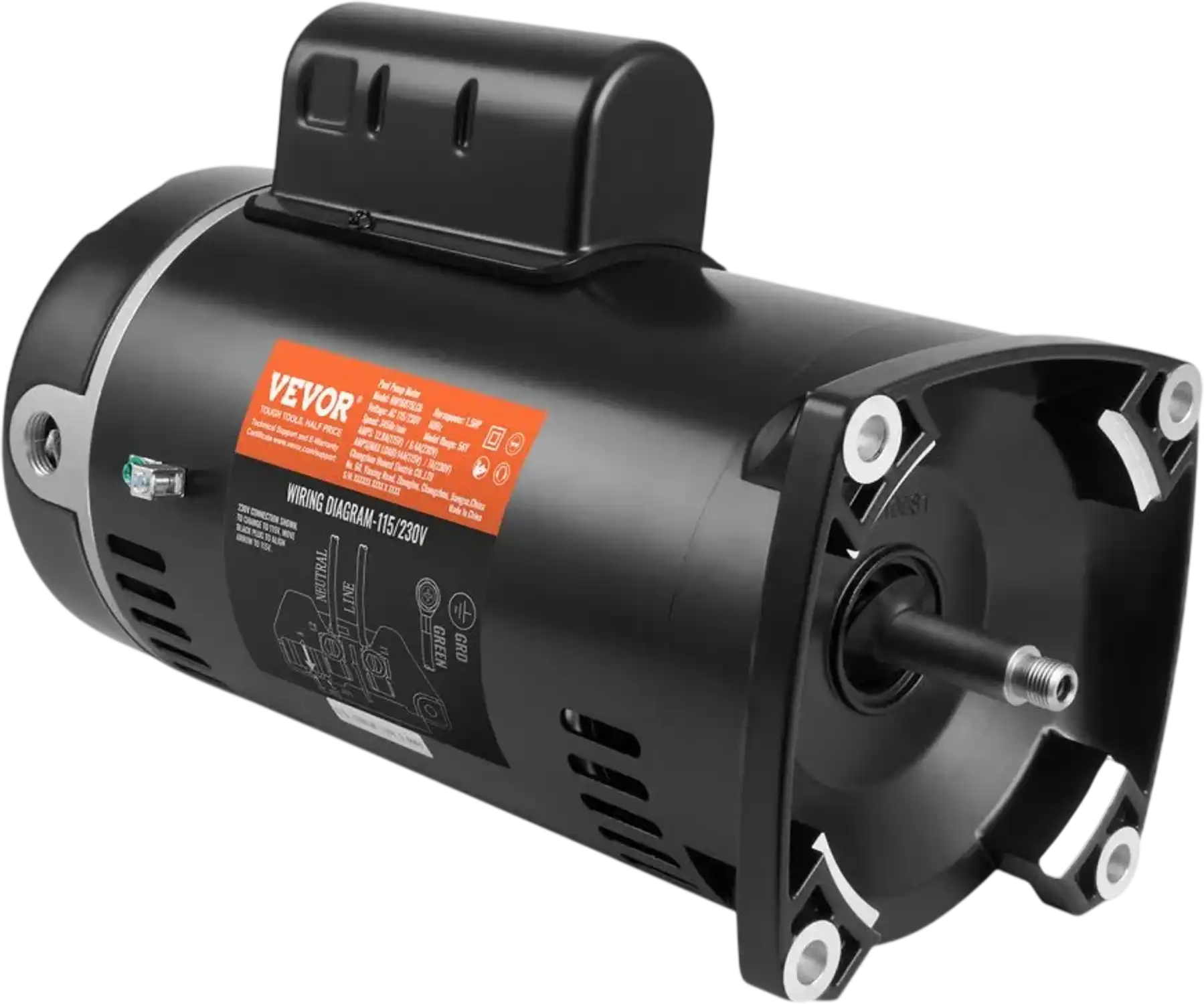

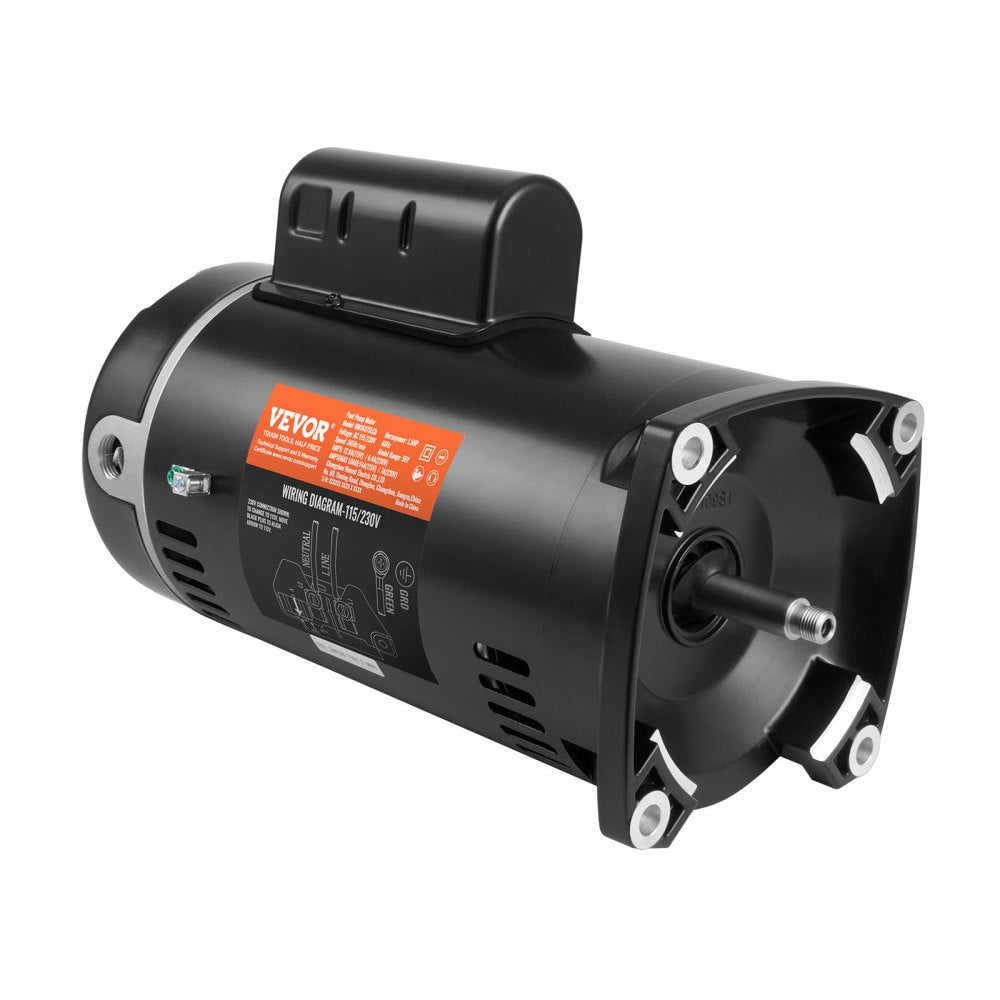

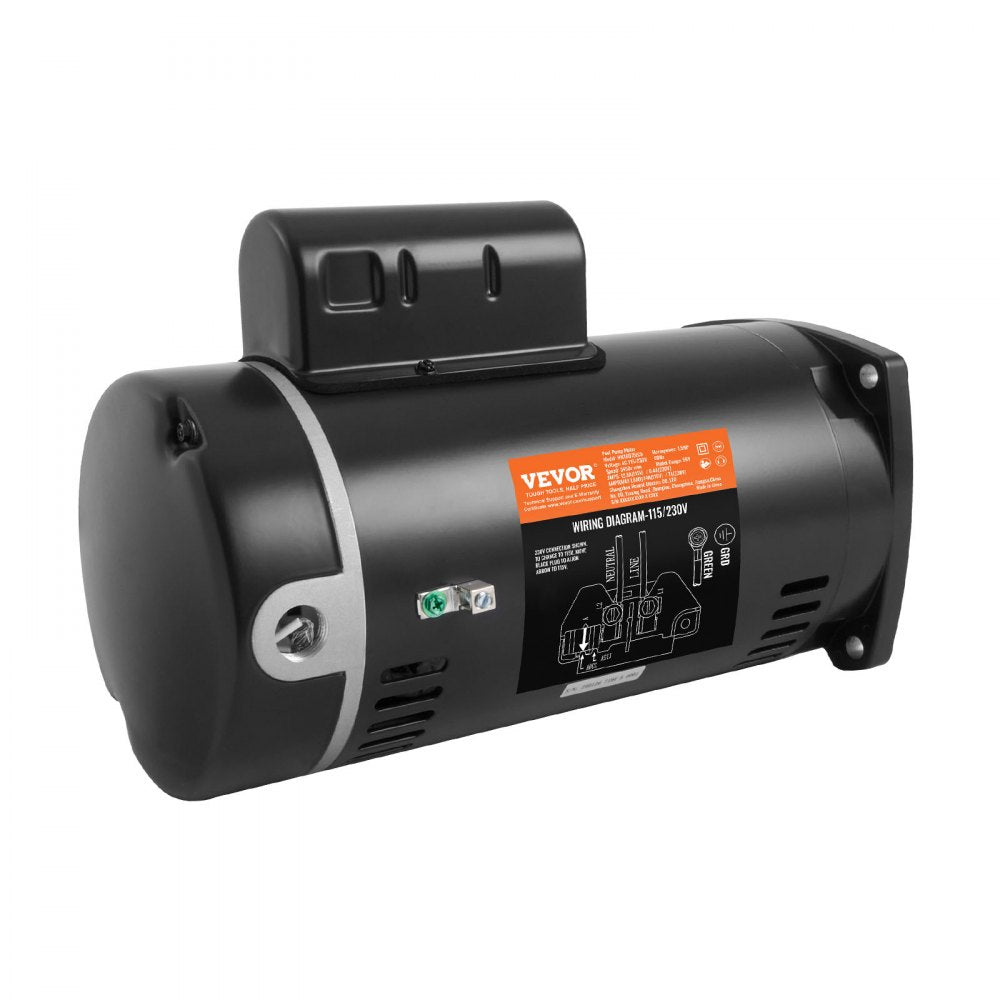

Vevor Pool Pump Motor 1.5 HP 56Y Frame 115/230V 3450 RPM Square Flange Replacement New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

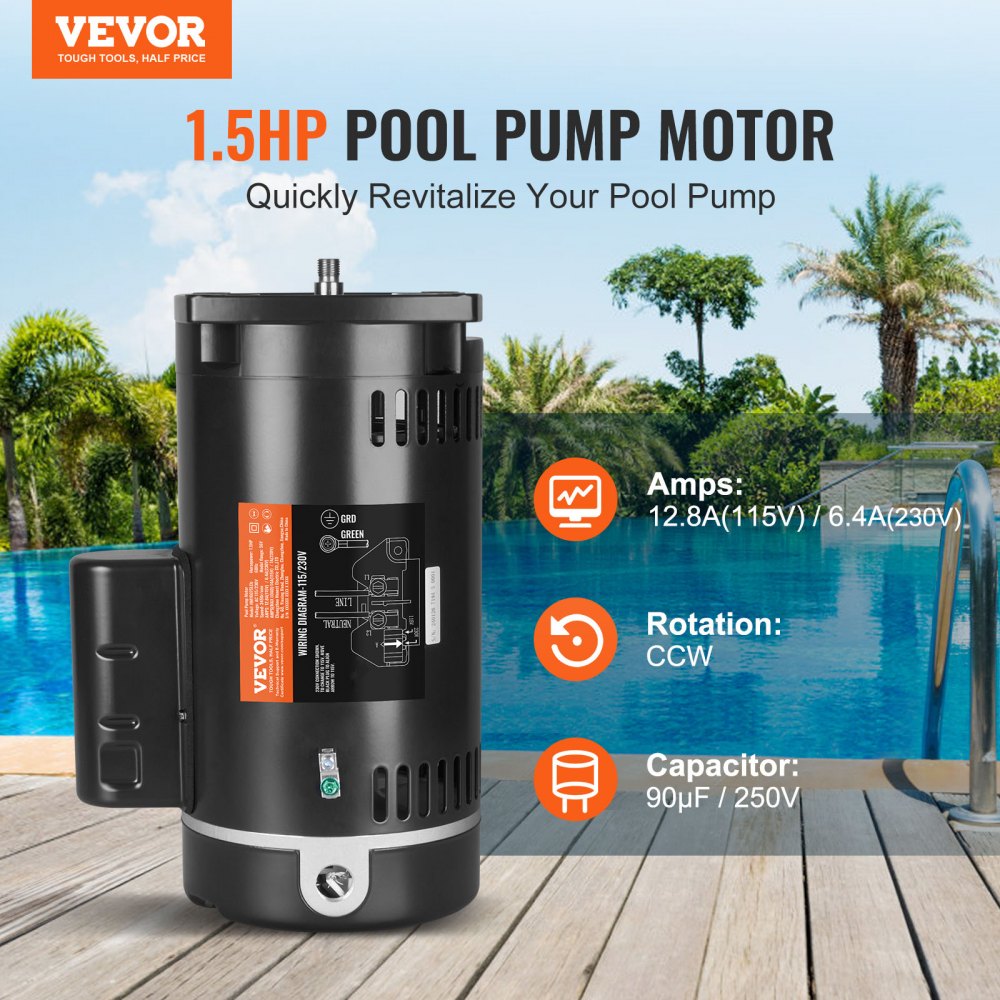

- Reliable Performance: VEVOR 1.5HP pool pump motor runs at 3450RPM high speed, delivering high-efficiency water circulation and a refreshing pool pump system. Voltage - AC 115/230V; Amps: 12.8/6.4A ; Amps (Max Load): 14/7A ; SF: 1.1 ; Capacitor: 90μF/250V ; Model Flange: 56Y.

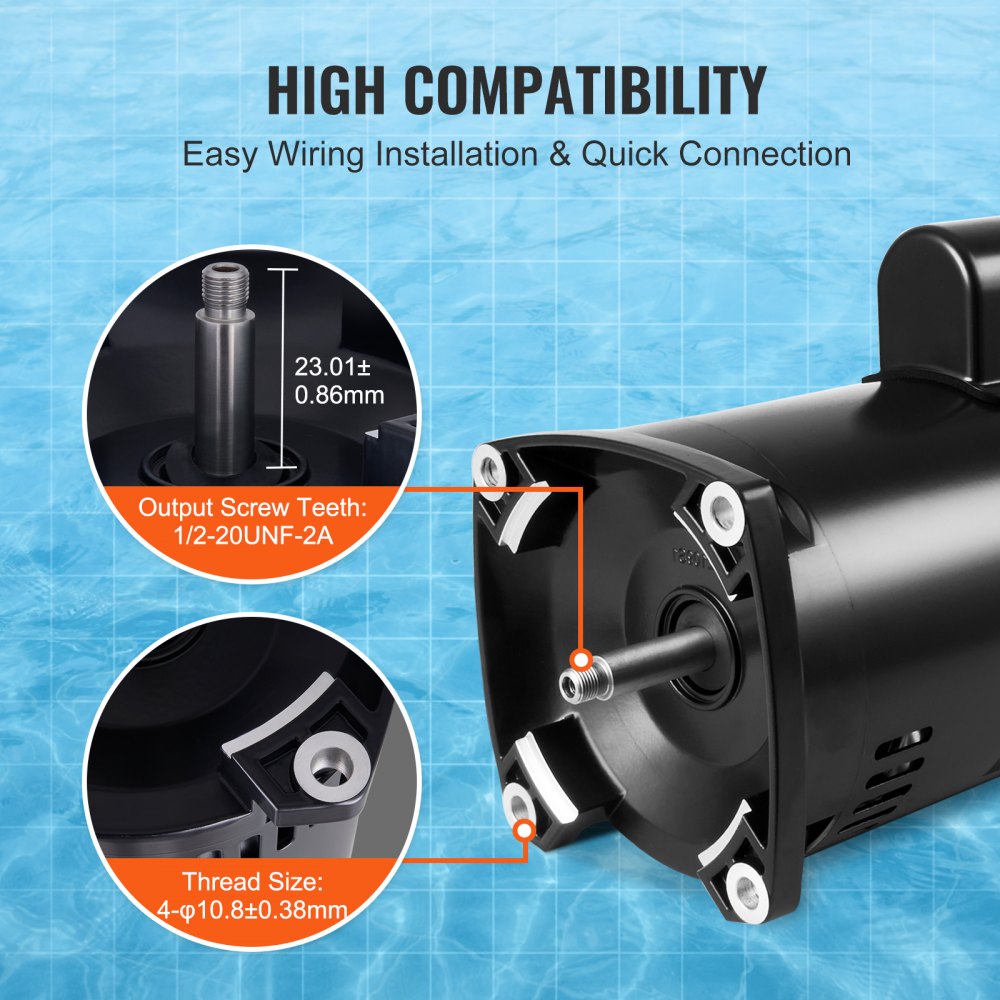

- Easy Installation: Installing our swimming pool pump motor is a breeze with a thread size of 4-φ10.8mm, output screw teeth of 1/2-20UNF-2A, and a 0.9-inch shaft extension. Get detailed installation instructions with the included user manual.
- Safety and Durability: Our 1.5HP pool pump motor is fortified with corrosion-resistant steel housing, low starting torque, and ball-bearing construction and overload protection, it ensures safe and enduring power support for pool system.
- High Efficiency, Energy-Efficient: VEVOR pool pump motor combines powerful performance with minimal energy consumption, operating at 3450RPM high speed while maintaining 70db low noise level. Dive into a refreshing pool experience with reliability and tranquility.
- Revitalize Your Pool Pump: Pump it up for all your pools. Our versatile pool pump motor caters to various types of pools - from residential to commercial settings, bringing you a clean and clear swimming water environment, thereby enhancing pool performance and vitality.

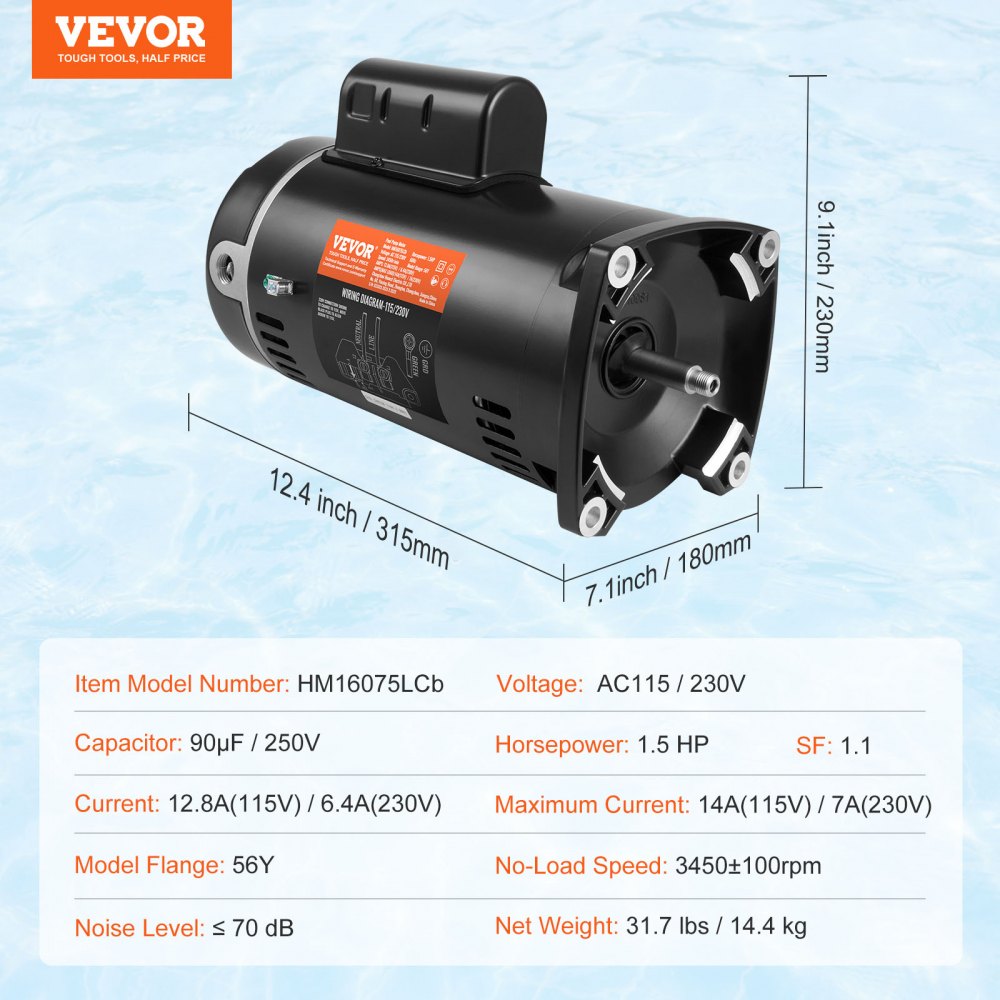

Specifications
| Item Model Number | HM16075LCb |
| Product Type | Pool Pump Motor |
| Horsepower | 1.5 HP |

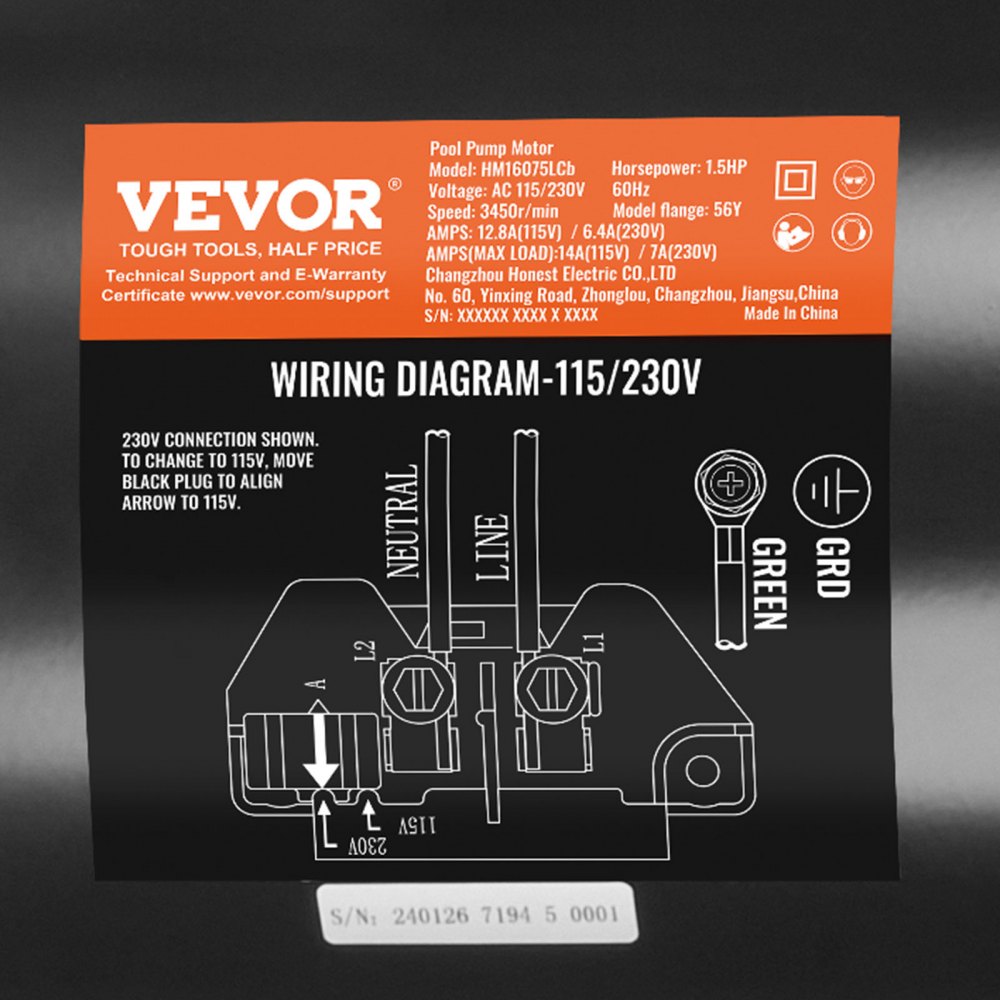

| Voltage | AC 115/230V |
| Current | 12.8A at 115V / 6.4A at 230V |
| Current Max Load | 14A at 115V / 7A at 230V |
| Frequency | 60Hz |
| Service Factor | 1.1 |
| Capacitor | 90μF/250V |
| Model Flange | 56Y |
| Rotation | CCW |
| No-Load Speed | 3450 RPM |
| Noise Level | ≤ 70 dB |
| Thread Size | 4-φ10.8 mm |
| Output Screw Teeth | 1/2-20UNF-2A |
| Shaft Extension | 0.9 in |
| Working Temperature Range | 0 to 40 degrees |
| Duty Cycle | Continuous operation |
| Product Dimensions | 12.4 x 7.1 x 9.1 in |
| Product Weight | 31.7 lbs |
Package Contents
Pool pump motor
User manual
Warranty
This item comes with a 1 year factory warranty.
