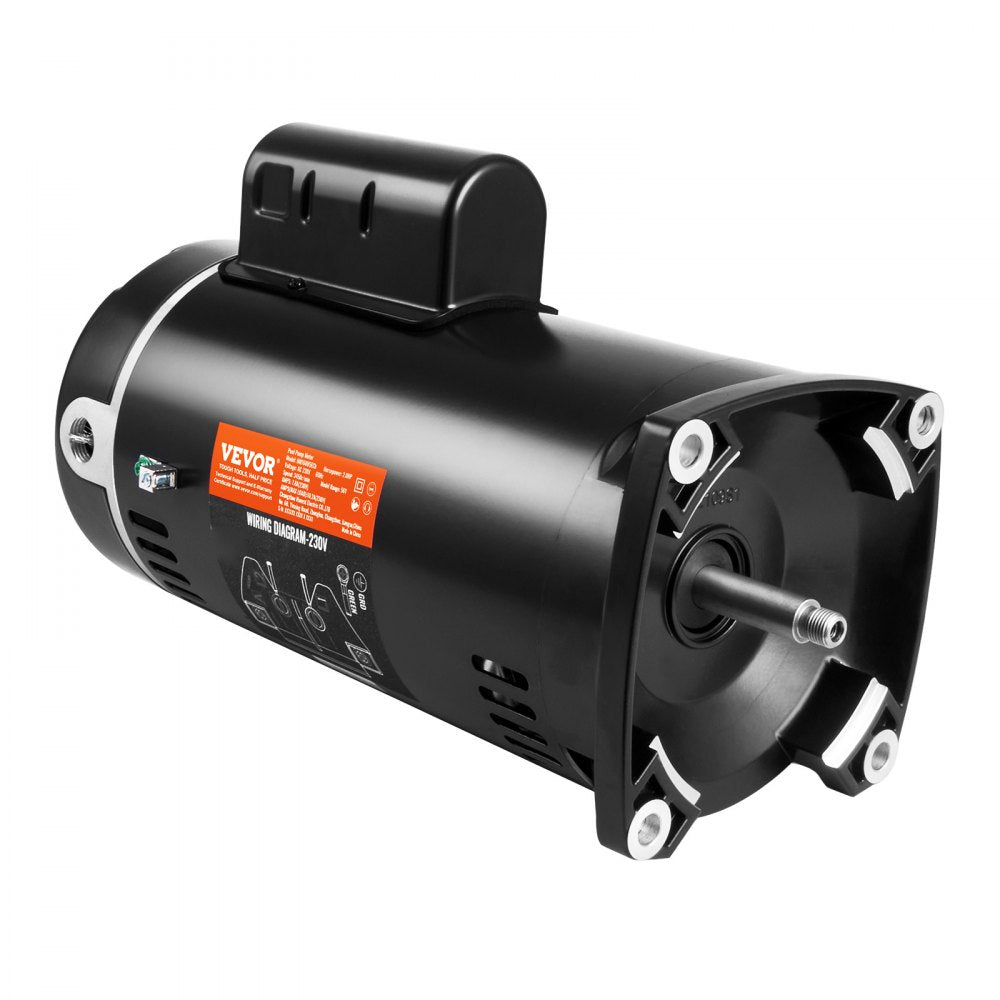

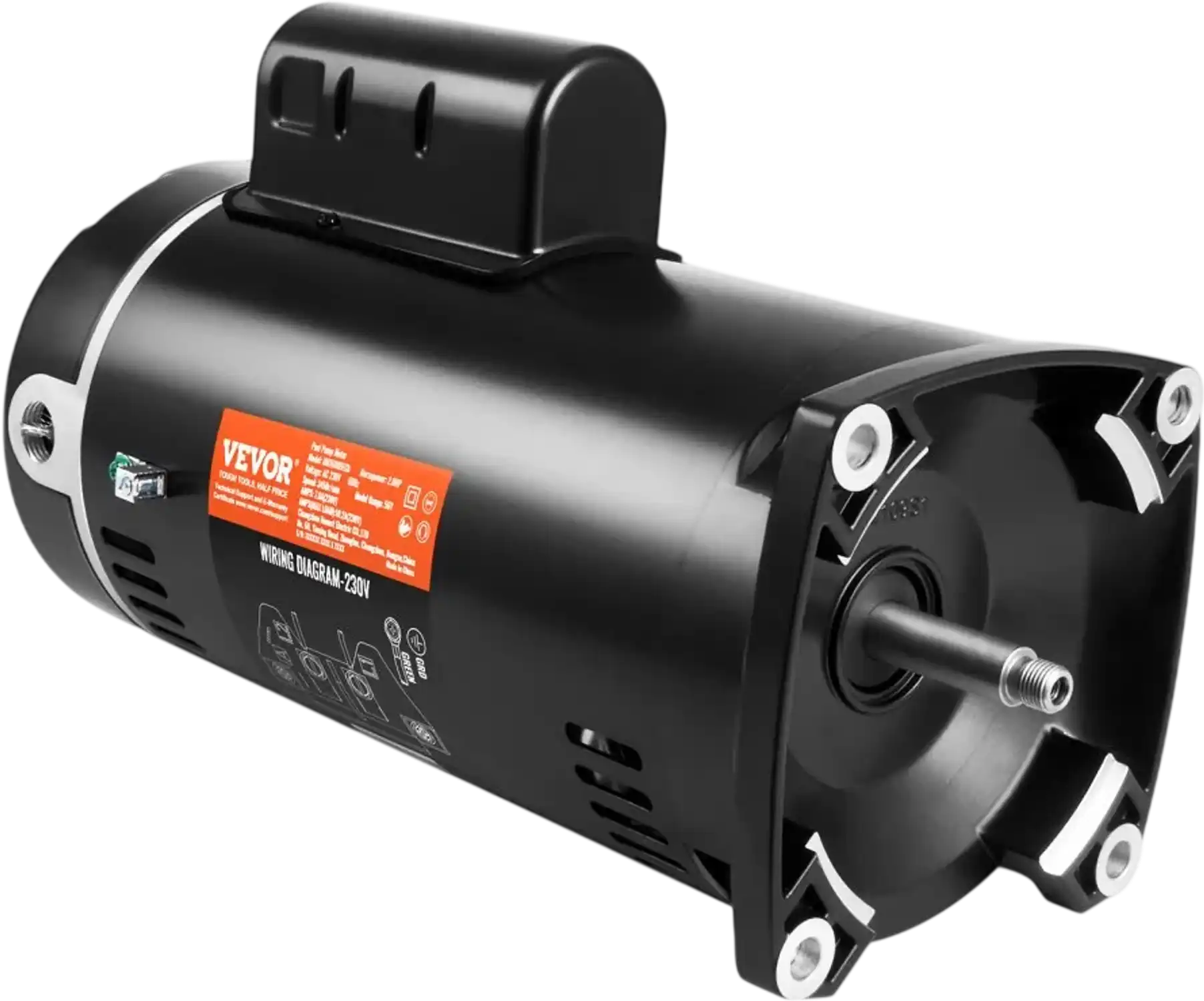

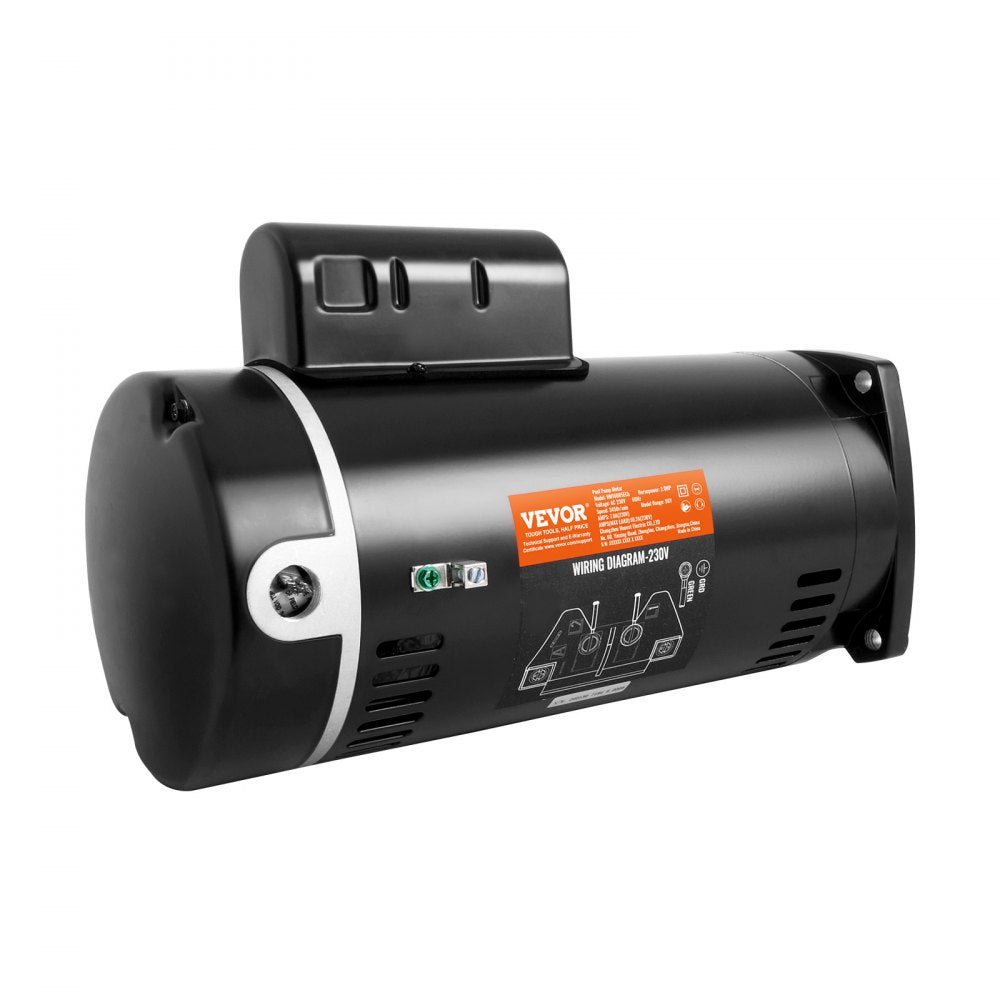

Vevor Pool Pump Motor 2 HP 56Y 230V Square Flange Replacement New
Manufacturer: Vevor
SKU: YCBDJ2HP56Y2APAN8V9
Power Options
Structure Options
QTY
(888) 999-1522
$ 170.90
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Vevor Pool Pump Motor 2 HP 56Y 230V Square Flange Replacement New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

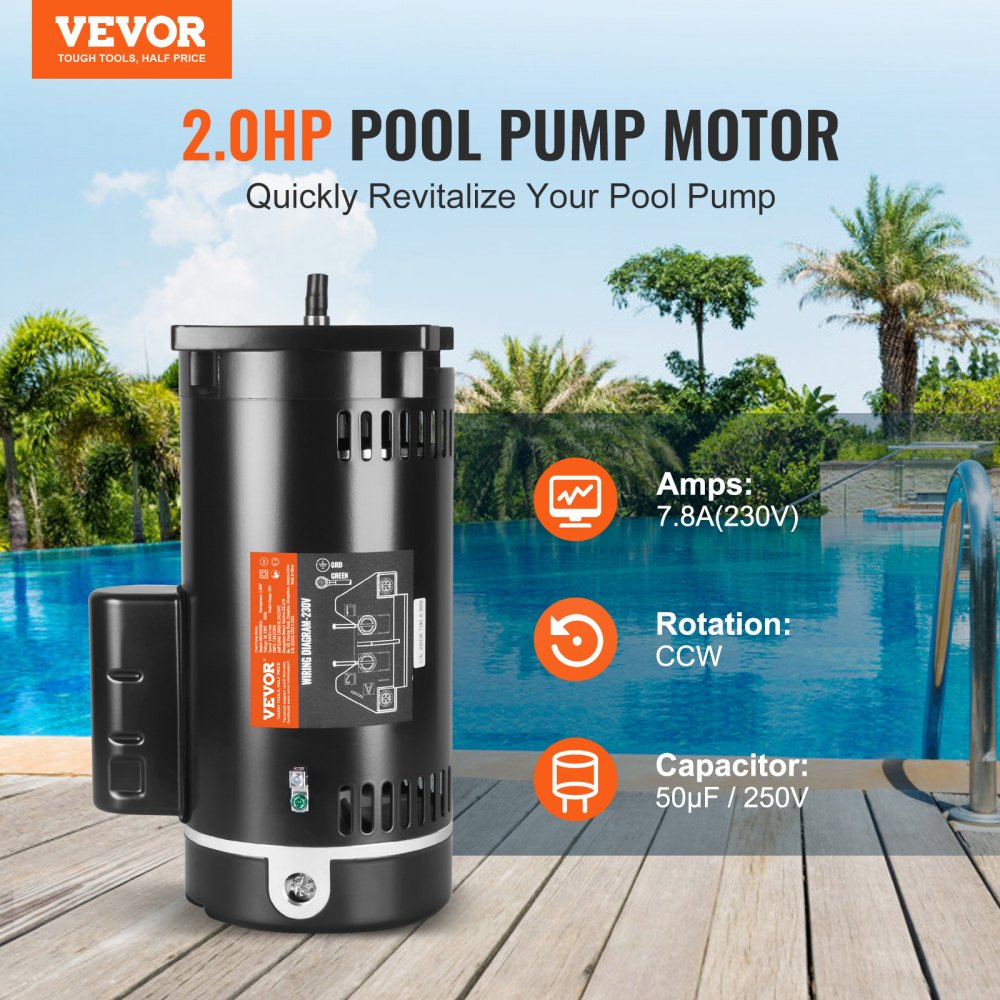

- Reliable Performance: VEVOR 2HP pool pump motor runs at 3450RPM high speed, delivering high-efficiency water circulation and a refreshing pool pump system. Voltage - AC230V; Amps: 7.8A ; Amps (Max Load): 10.2A ; SF: 1.3 ; Capacitor: 50μF/250V ; Model Flange: 56Y.

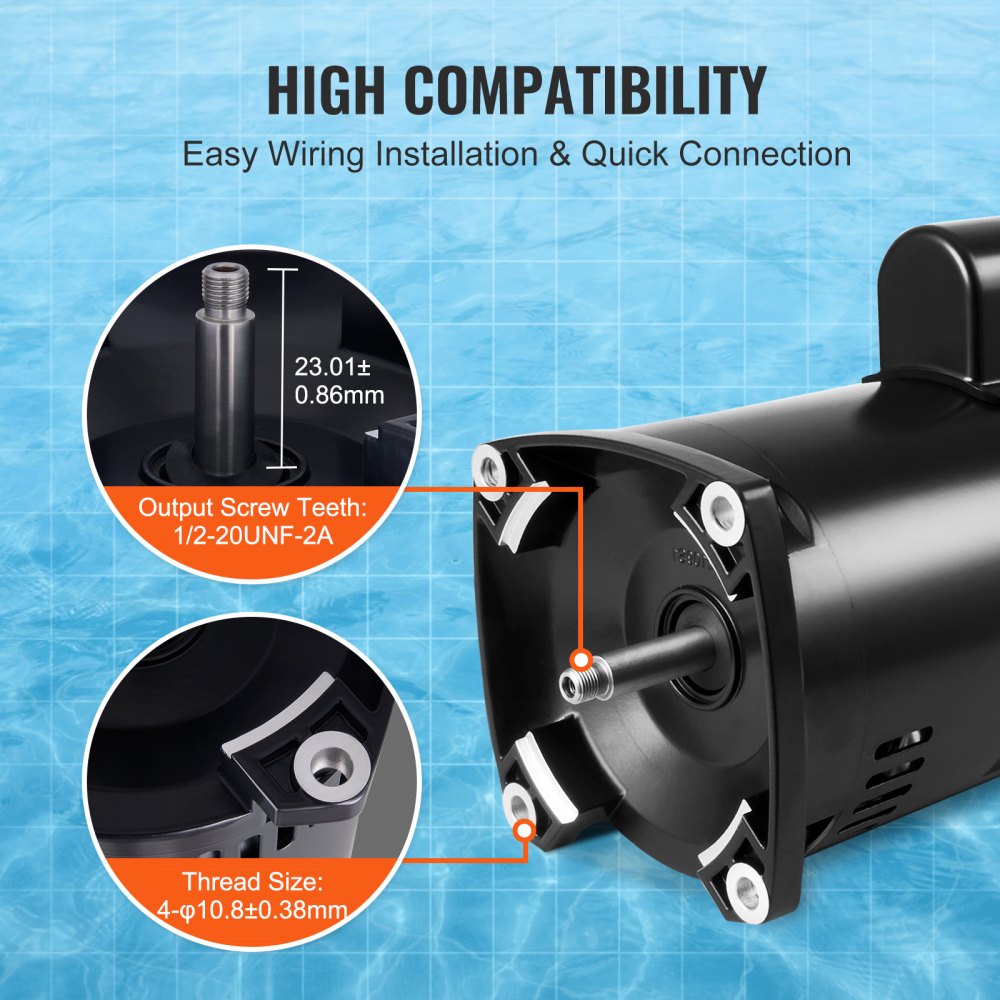

- Easy Installation: Installing our pool pump motor is a breeze with a thread size of 4-φ10.8mm, output screw teeth of 1/2-20UNF-2A, and a 0.9-inch shaft extension. Get detailed installation instructions with the included user manual.

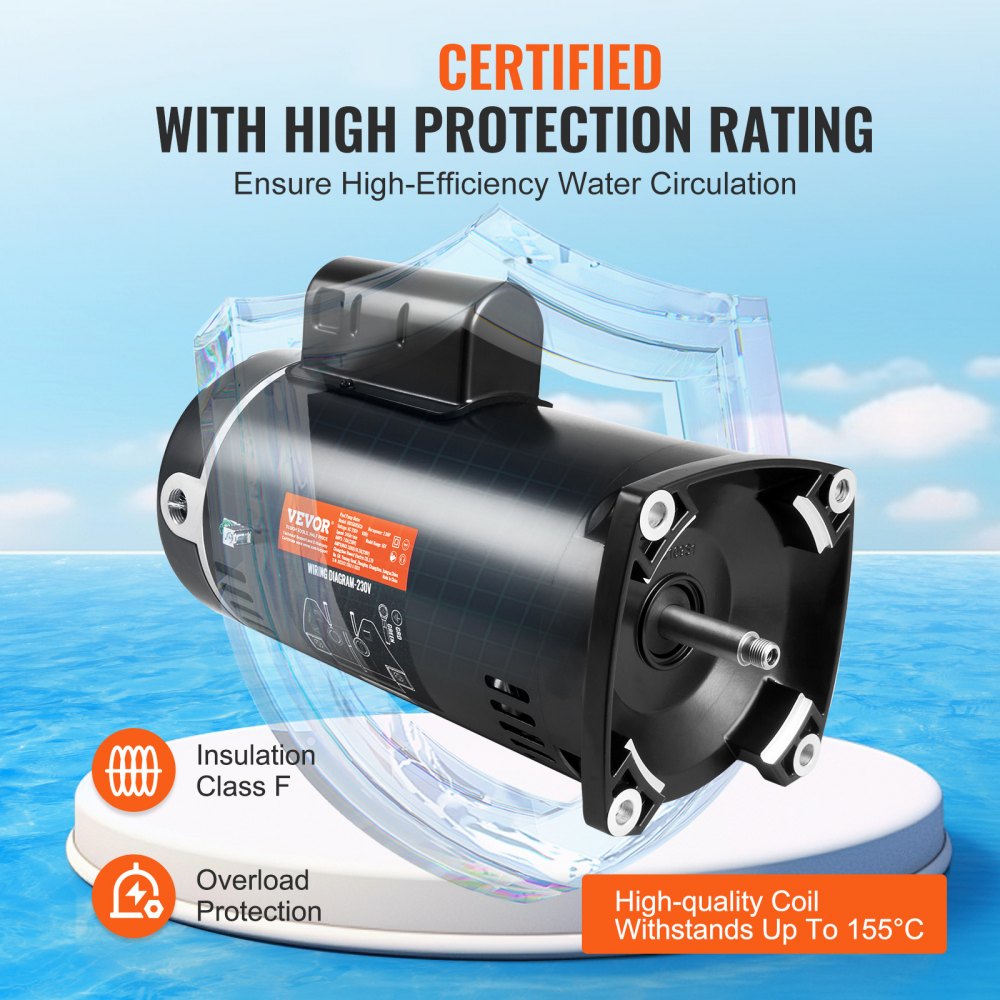

- Safety and Durability: Our pool pump motor is fortified with corrosion-resistant steel housing, low starting torque, and ball-bearing construction and overload protection, it ensures safe and enduring power support for pool system.
- High Efficiency, Energy-Efficient: VEVOR pool pump motor combines powerful performance with minimal energy consumption, operating at 3450RPM high speed while maintaining 70db low noise level. Dive into a refreshing pool experience with reliability and tranquility.
- Revitalize Your Pool Pump: Pump it up for all your pools. Our versatile pool pump motor caters to various types of pools - from residential to commercial settings, bringing you a clean and clear swimming water environment, thereby enhancing pool performance and vitality.
Specifications
| Item Model Number | HM16085ECb |
| Product Type | Pool Pump Motor |
| Voltage | AC 230V |
| Capacitor | 50μF/250V |
| Horsepower | 2 HP |
| Current | 7.8A (230V) |
| Current Max Load | 10.2A (230V) |
| Model Flange | 56Y |
| No-Load Speed | 3450 RPM |
| Frequency | 60Hz |
| Service Factor | 1.3 |
| Rotation | CCW |
| Noise Level | ≤ 70 dB |
| Thread Size | 4-φ10.8mm |
| Output Screw Teeth | 1/2-20UNF-2A |
| Shaft Extension | 0.9" |

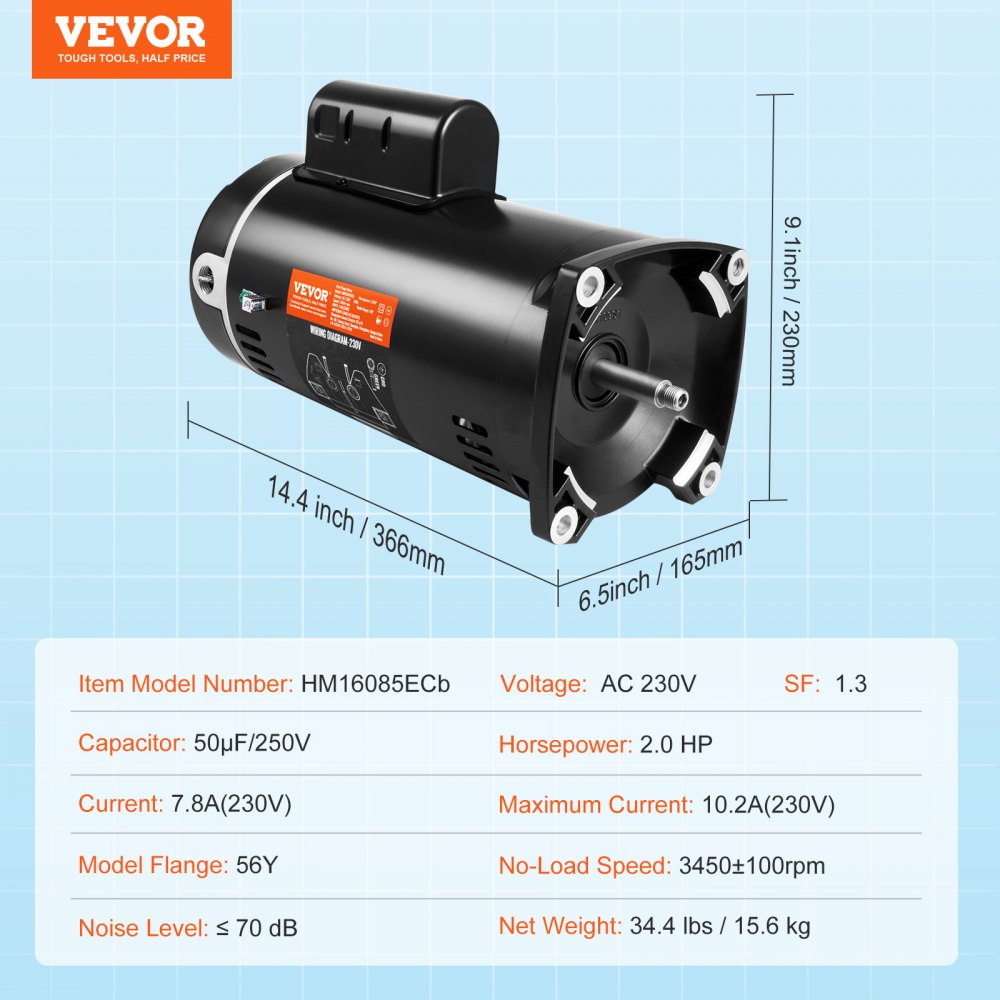

| Product Dimensions | 14.4" x 6.5" x 9.1" |
| Net Weight | 34.4 lbs |
Package Contents
Pool pump motor
User manual
Warranty
This item comes with a 1 year factory warranty.
