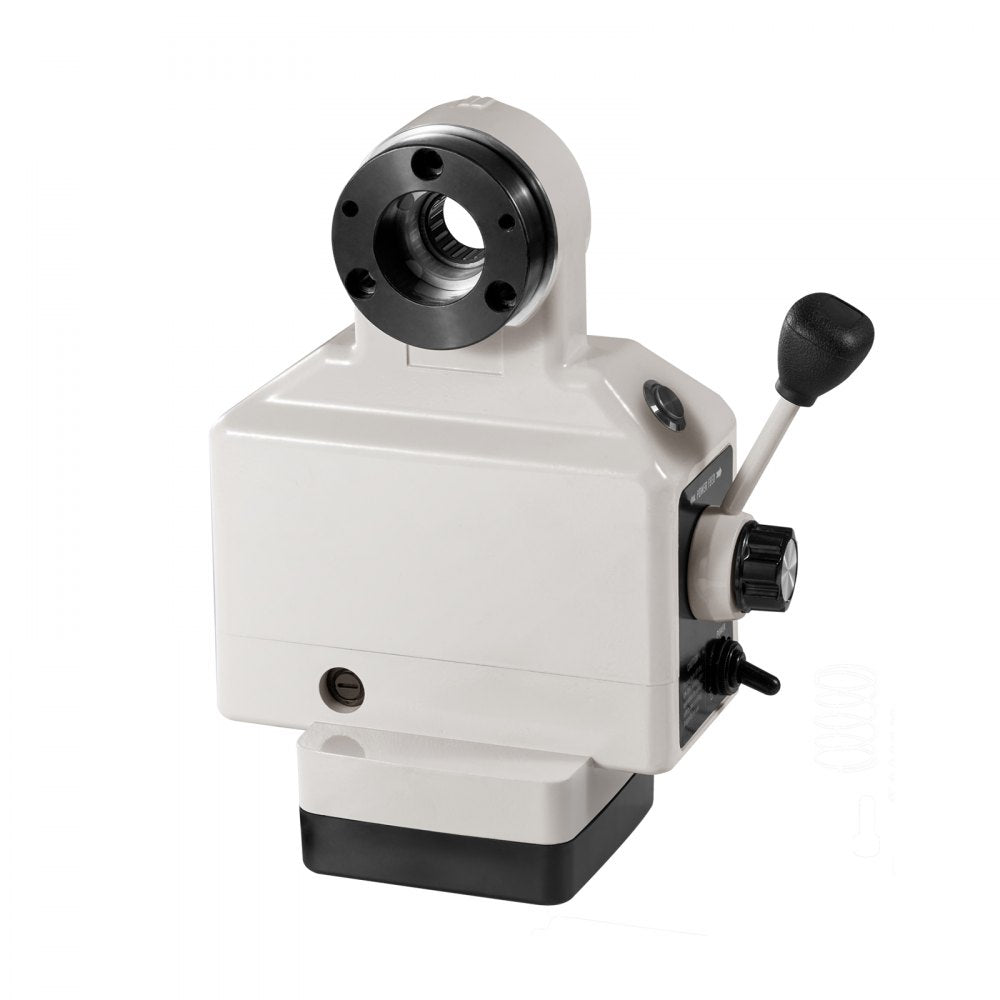

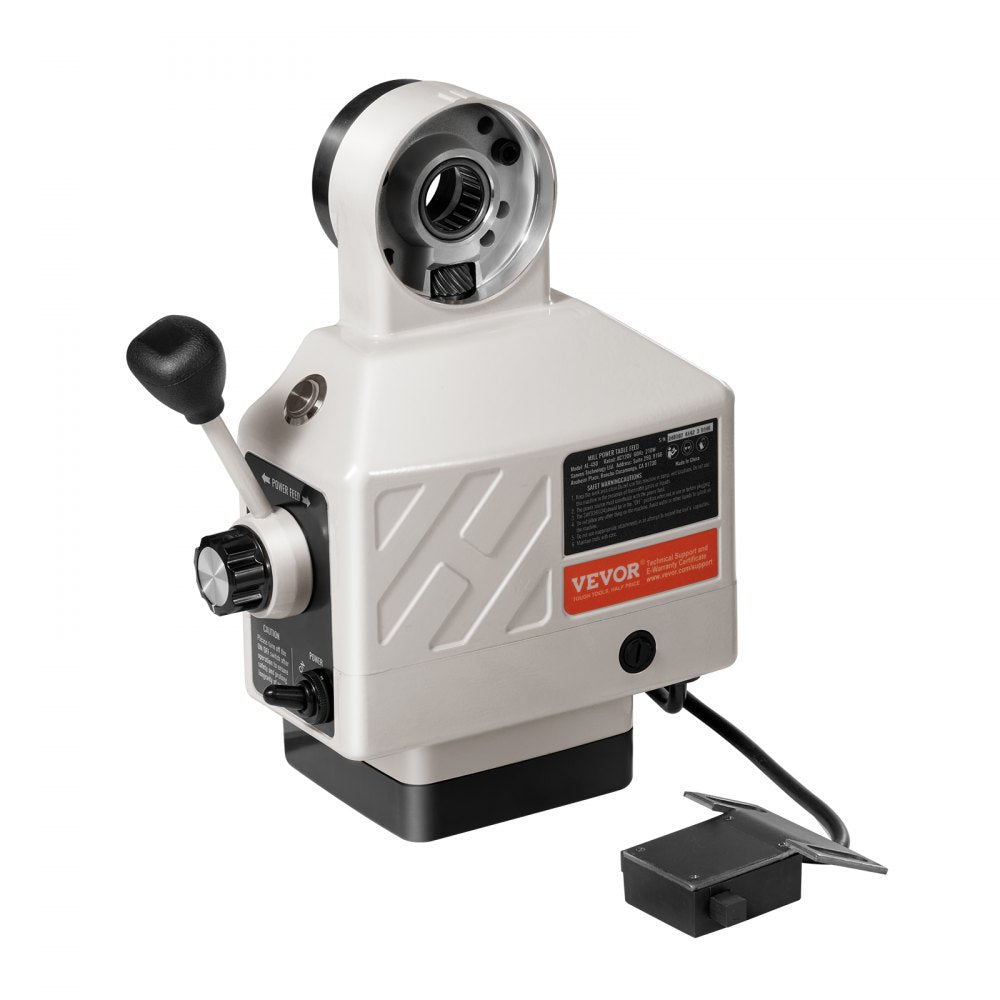

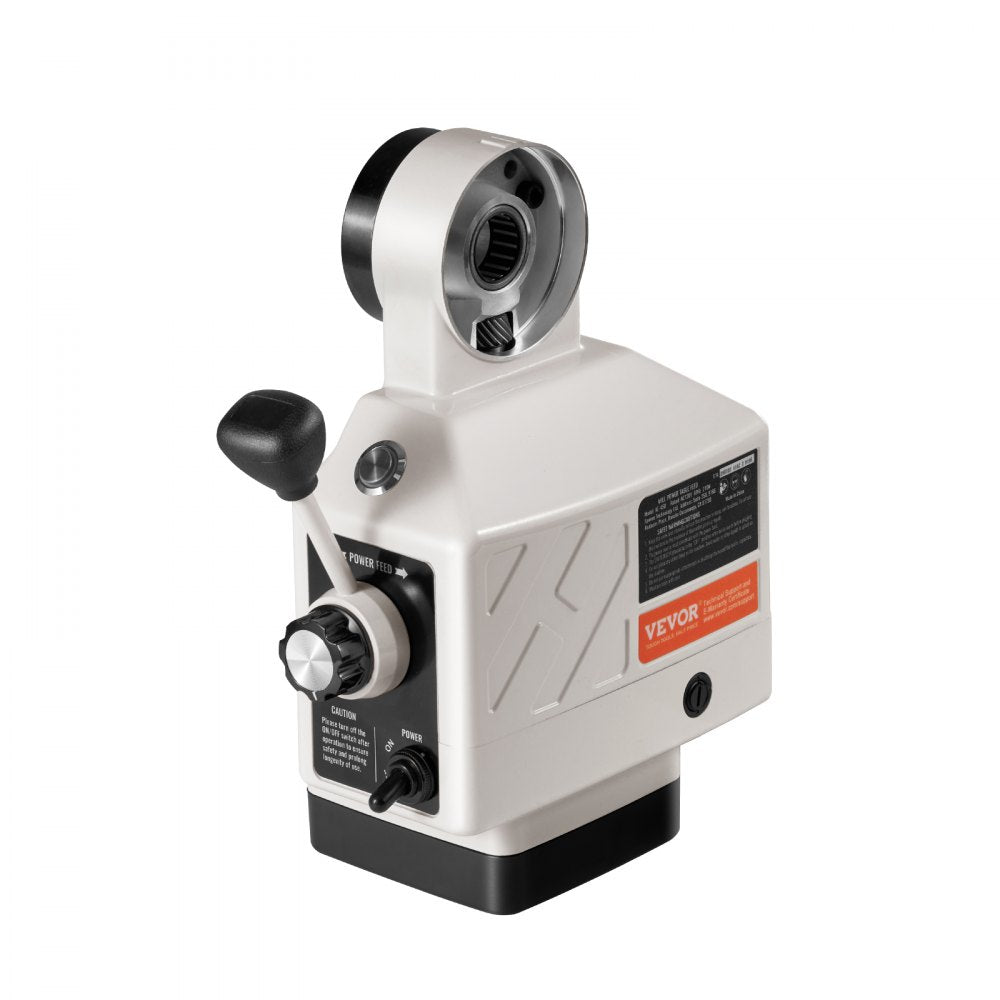

Vevor Power Feed Z-Axis Milling Machine Table Feed 450 in-lb 0-200 RPM 120V New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorize Vevor Dealer
Features

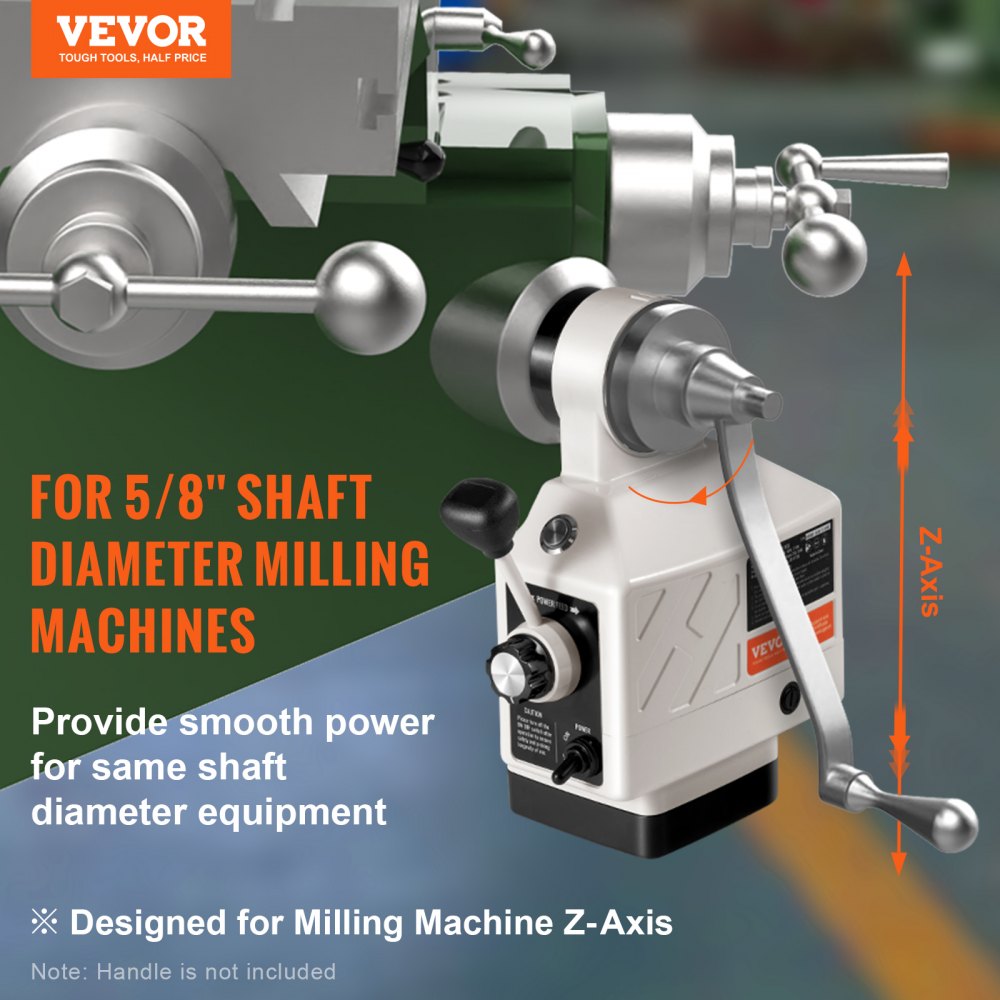

- Ultimate High-Compatibility Solution: Our power feed table mill Includes everything needed to mount on most knee-type mills with a 5/8'' end shaft diameter that shares the same installation pattern, such as Bridgeport, Precision Matthews, Enco, Jet, Sharp, Acer, Webb, and others.

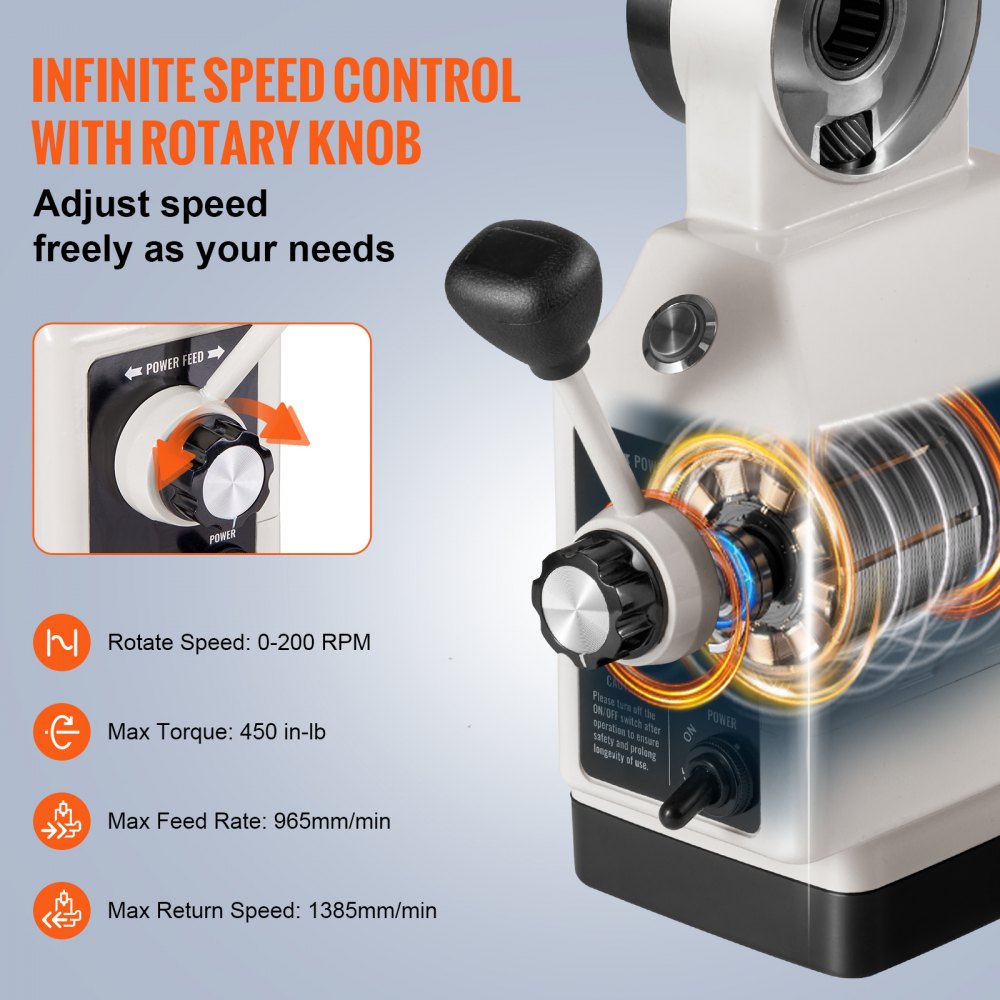

- Infinitely Variable Speed Control: With the continuously variable speed knob, you can adjust the speed according to your needs. Our milling machine power feed offers a rated torque of 450 in-lb(50.7 NM), a maximum speed of 200 RPM, a maximum feed rate of 965 mm/min, and a maximum return speed of 1385 mm/min.

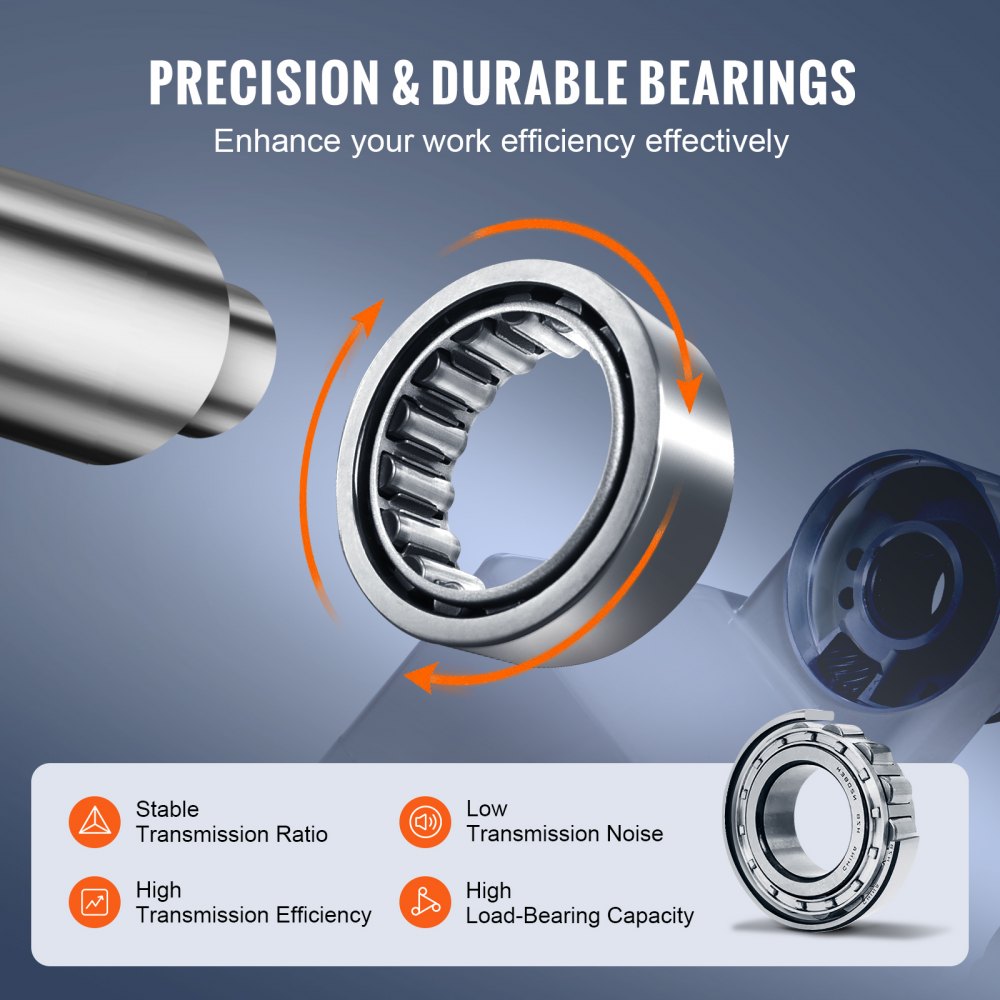

- Highly Stable and Efficient: Featuring Gleason spiral bevel gears, our power table feed boasts stable transmission ratios, low noise, high transmission efficiency, and high load-bearing capacity. Plus, it comes with a special security device that protects the gearbox plastic gears, and electronic components from damage in the event of tool collision or sudden reversal during rapid transmission.

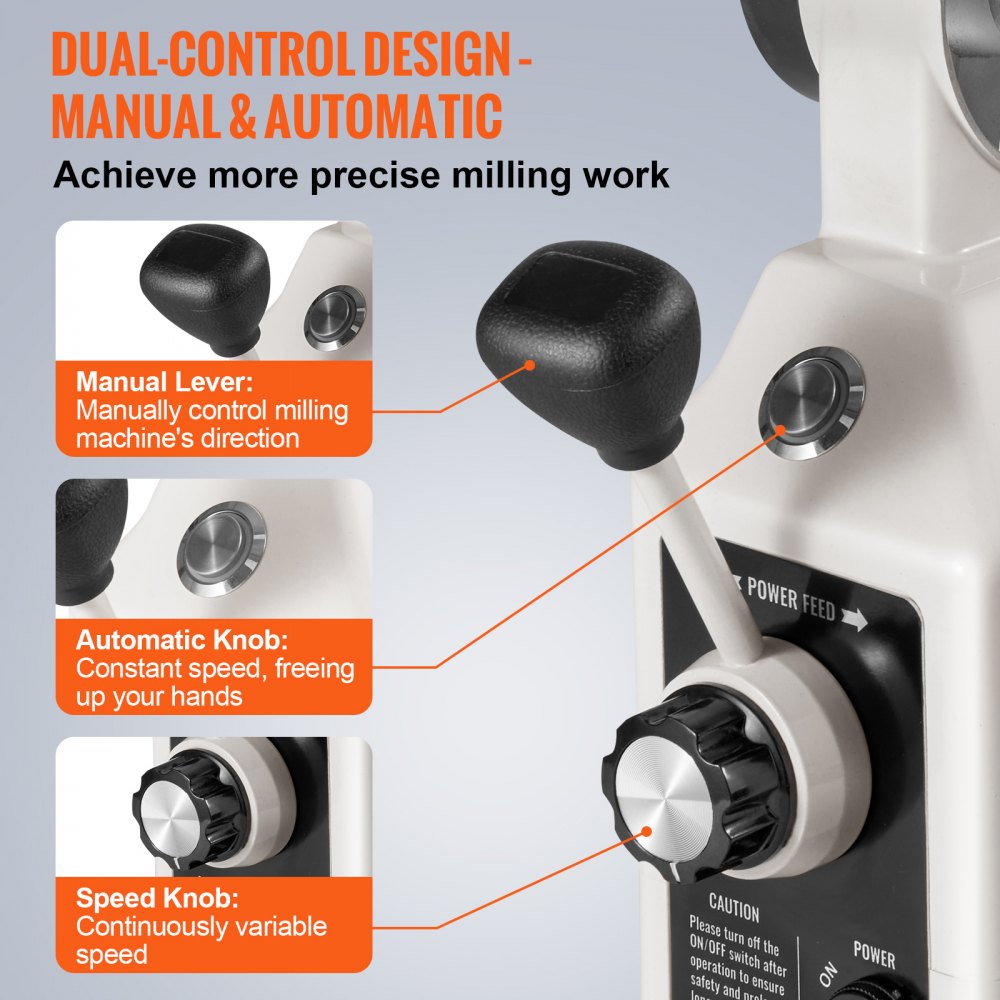

- Easy to Use, Manual or Automatic: Our power feed milling machine offers two different speed adjustment modes: manual and automatic. With manual control buttons, you can adjust the speed as needed. Alternatively, set the device to automatic constant speed mode for hands-free operation, making your milling tasks a breeze.

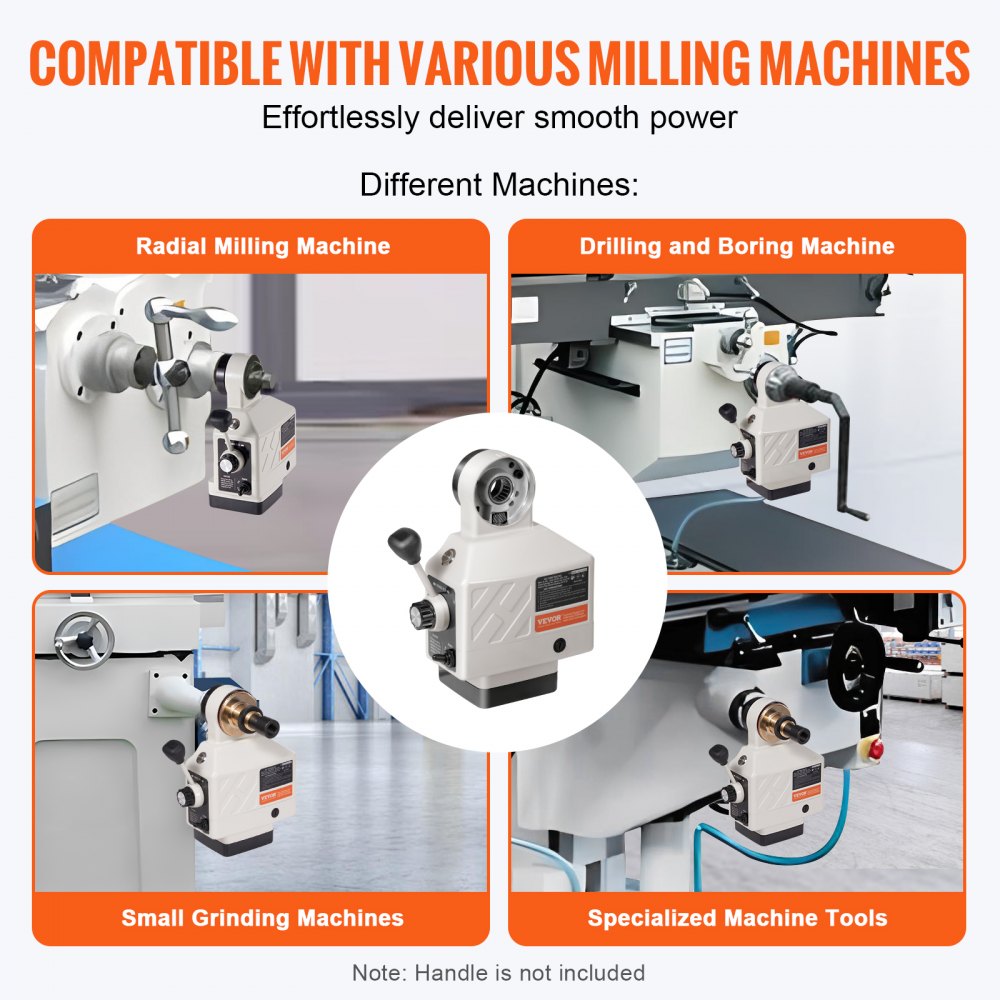

- Designed for Z-axis Direction: This power feed woodworking enables smooth movement in the Z-axis direction. Its versatility extends to various machines, including radial milling machines, drilling and boring machines, small grinding machines, and specialized machine tools, ensuring stable power delivery across a wide range of equipment.

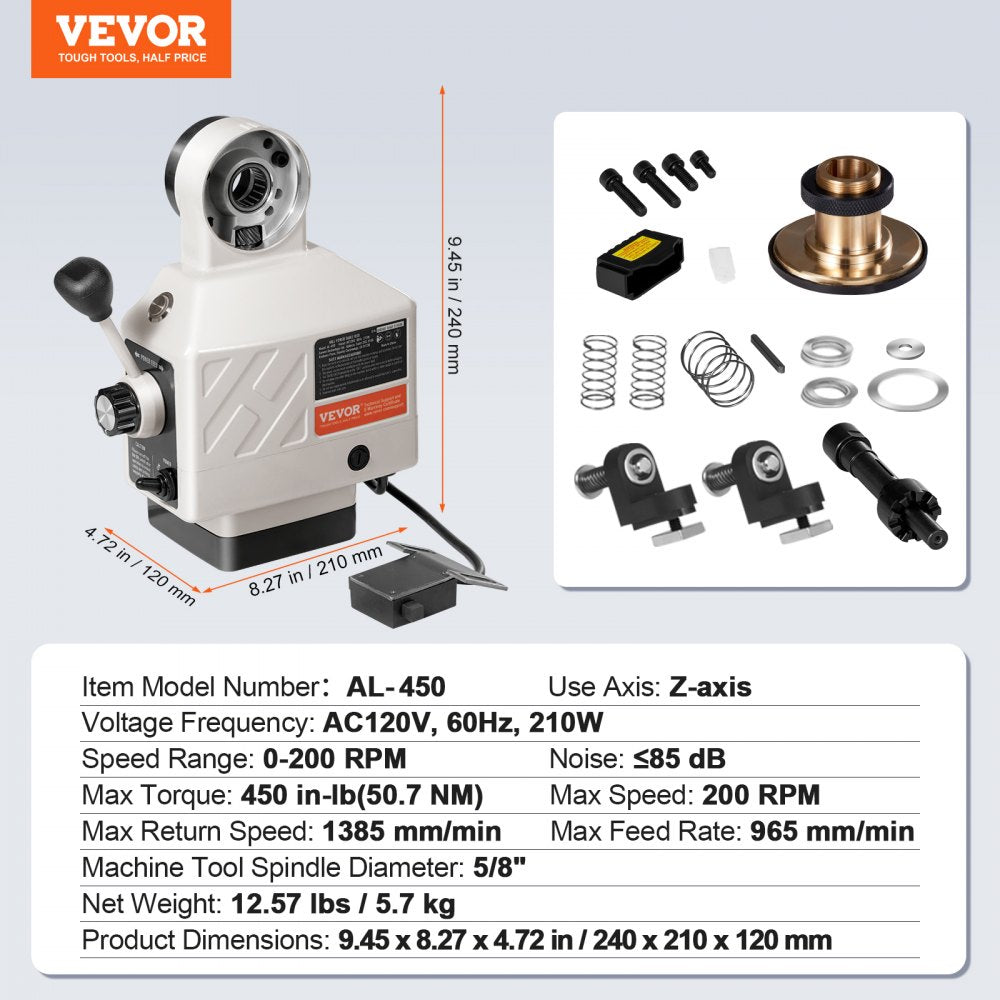

Specifications
| Item Model Number | AL-450 |
| Use Axis | Z-axis |
| Voltage Frequency | AC120V, 60Hz, 210W |
| Speed Range | 0-200 RPM |
| Max Speed | 200 RPM |
| Max Torque | 450 in-lb (50.7 Nm) |
| Max Feed Rate | 965 mm/min |
| Max Return Speed | 1385 mm/min |
| Machine Tool Spindle Diameter | 5/8" |
| Noise | ≤85 dB |
| Net Weight | 12.57 lbs / 5.7 kg |
| Dimensions | 9.45 x 8.27 x 4.72 in / 240 x 210 x 120 mm |

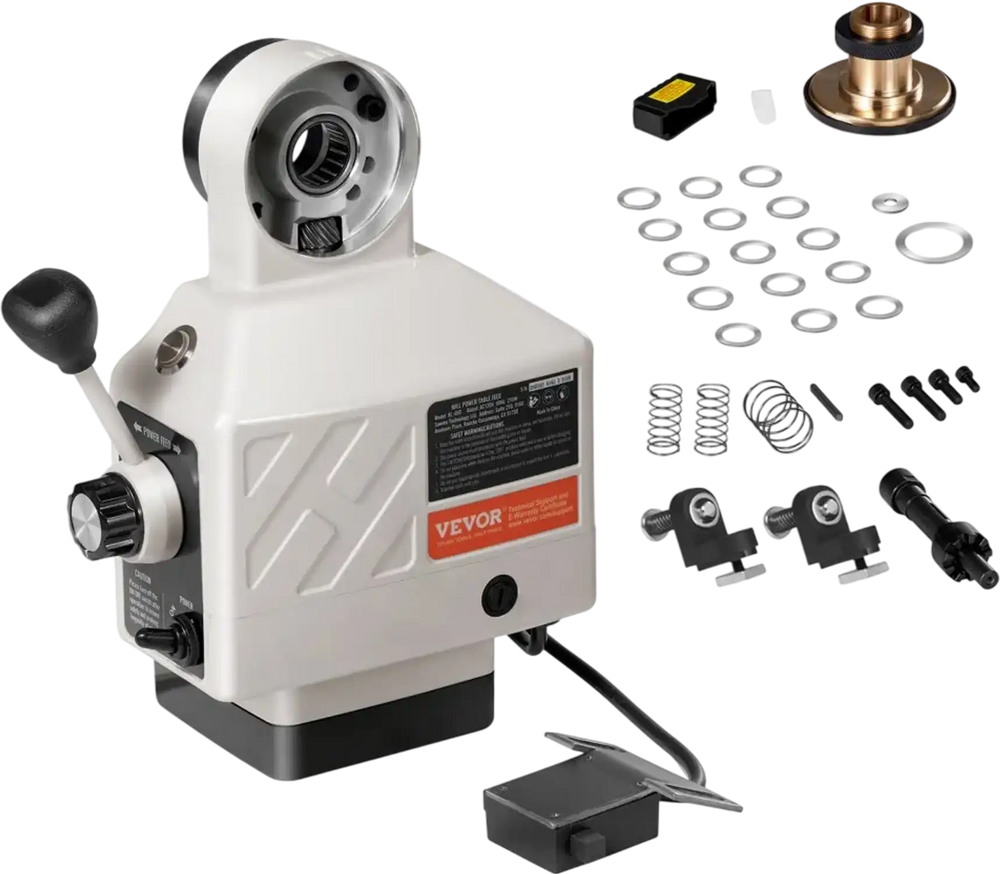

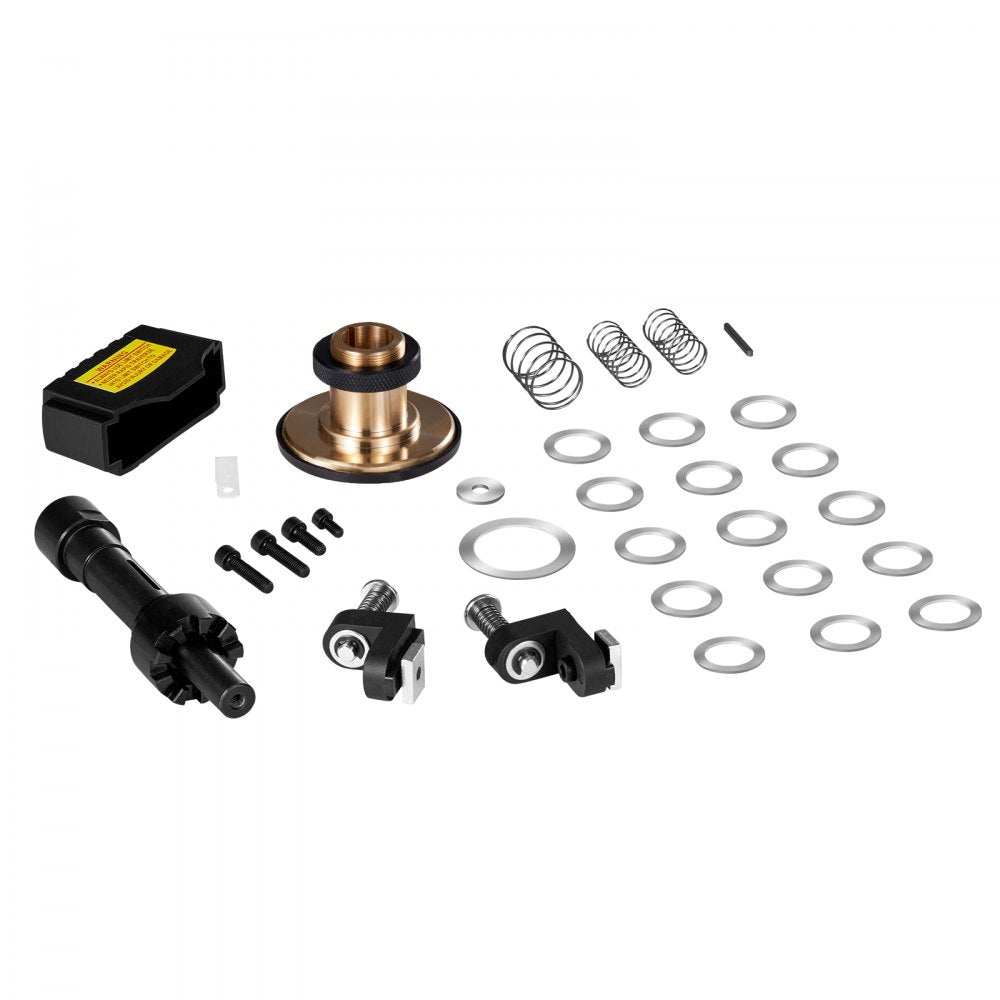

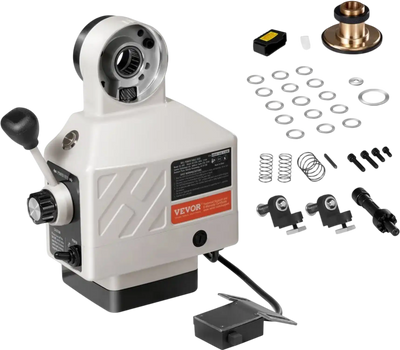

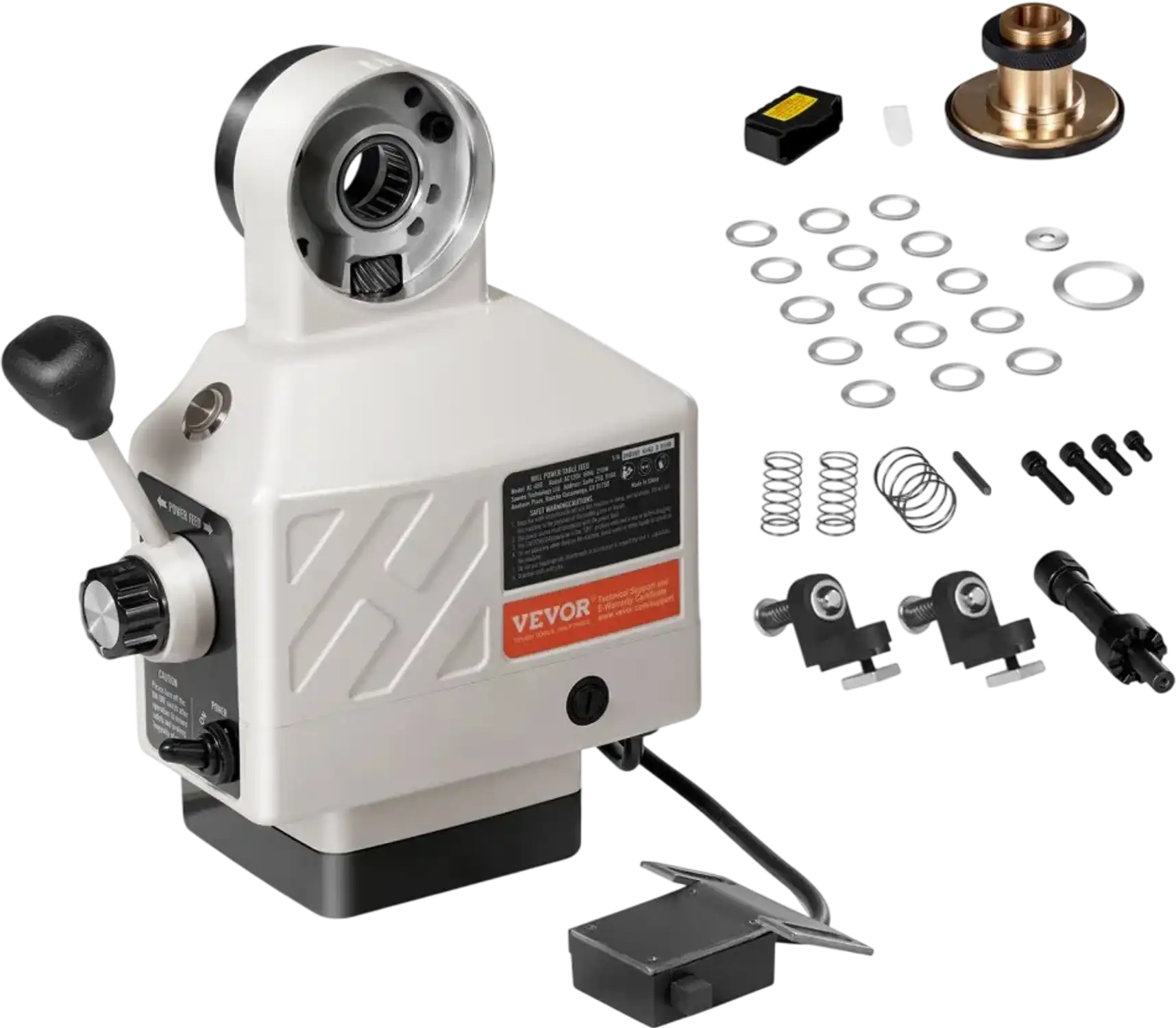

Package Contents
1 x copper gear
1 x retainer plate
2 x limit blocks
4 x fixing screws
1 x limit switch waterproof box
2 x limit switch springs
15 x adjusting shims
1 x extended shaft
11 x extended shaft springs
1 x copper gear gasket
1 x flat key
Warranty
This item comes with a 1 year factory warranty.
