Vevor Screen Printing Machine 4 Color 1 Station Silk Screen Press with 18" x 18" Flash Dryer New
Product Overview

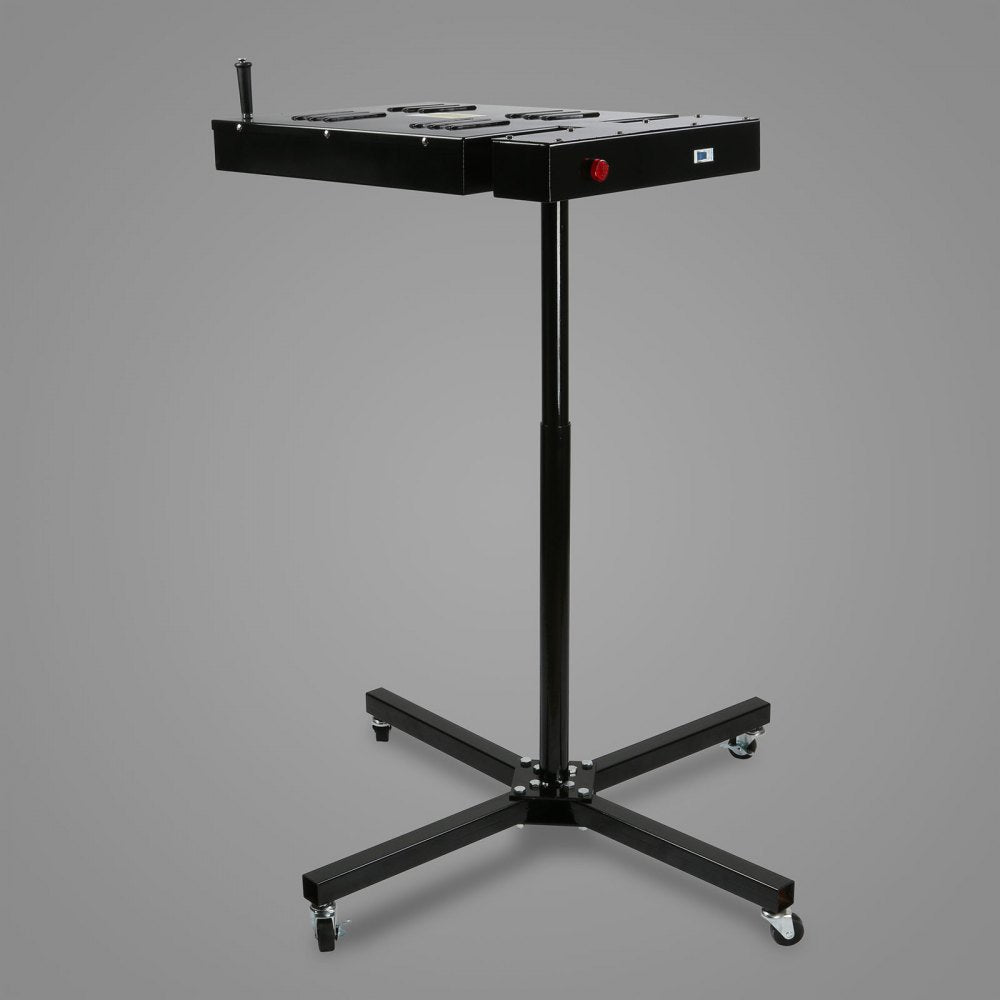

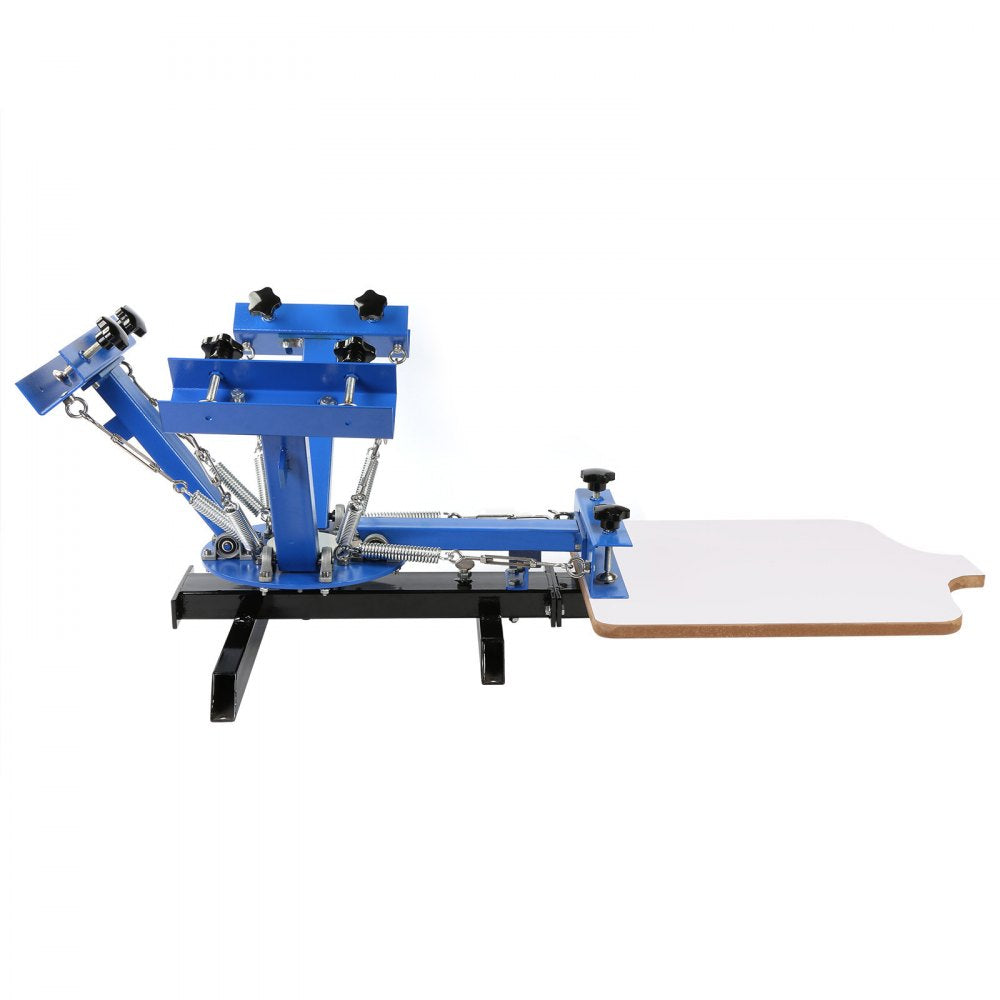

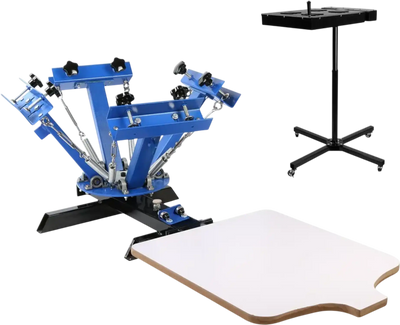

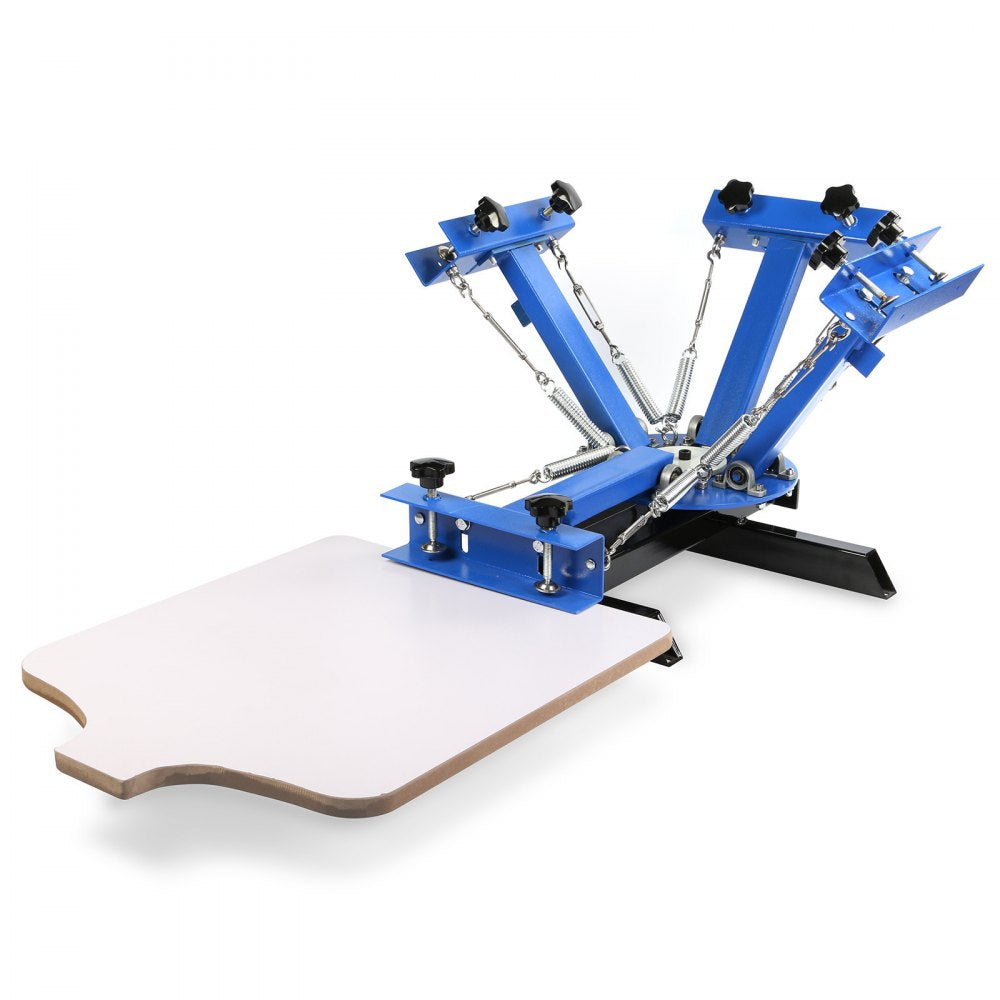

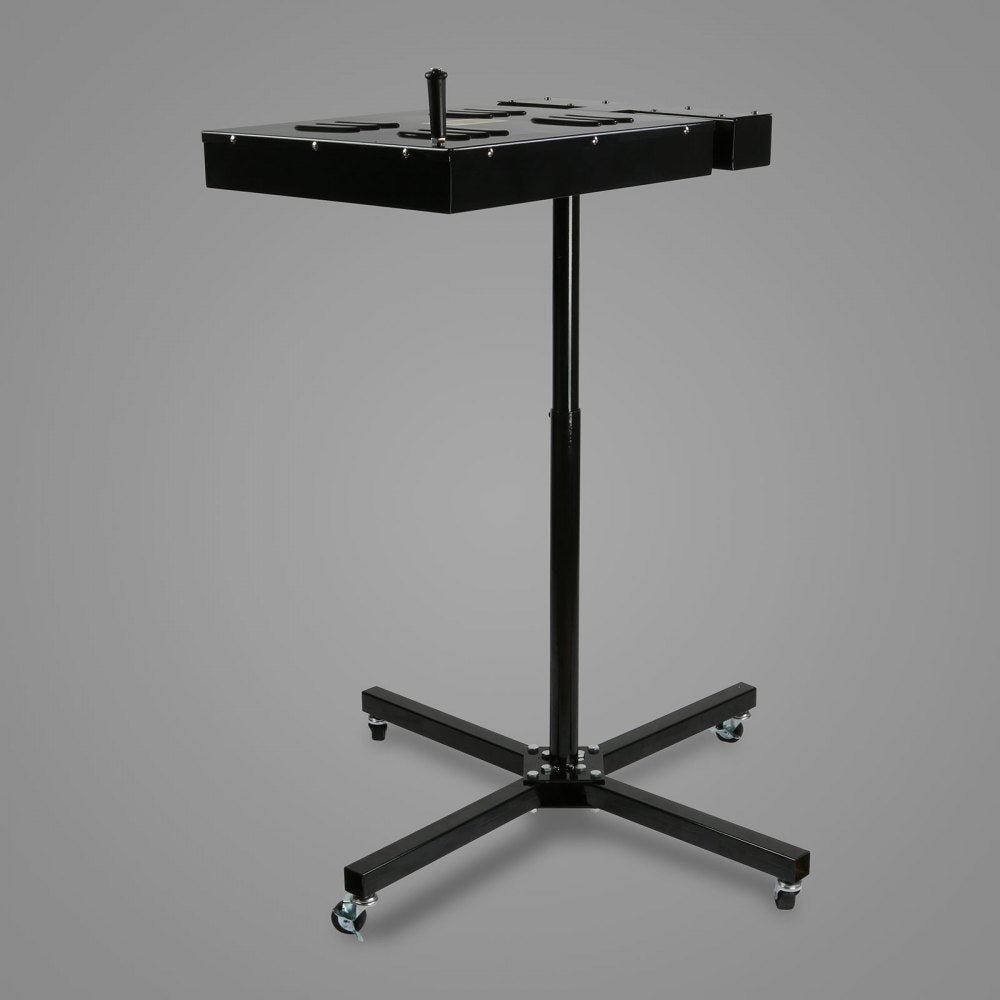

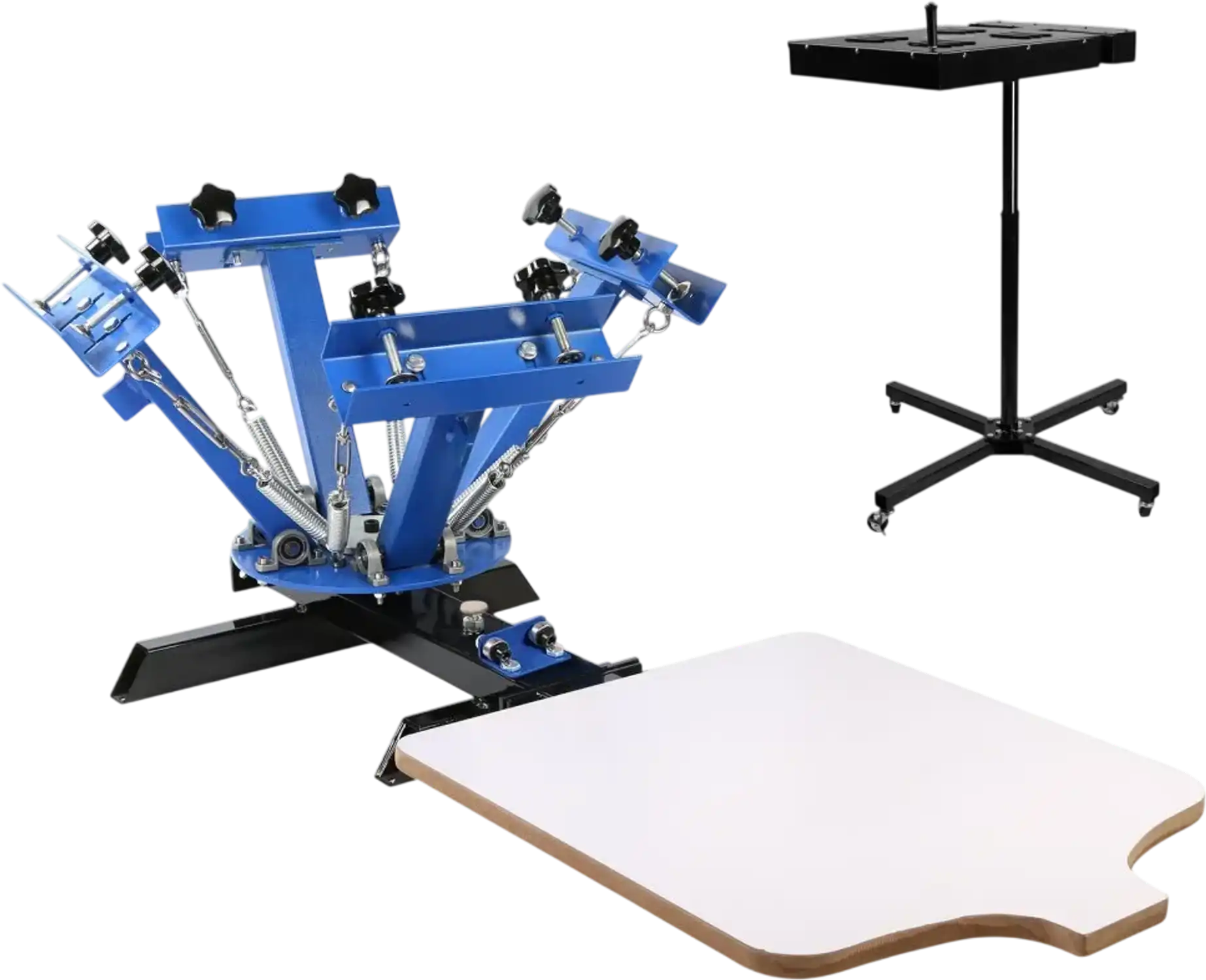

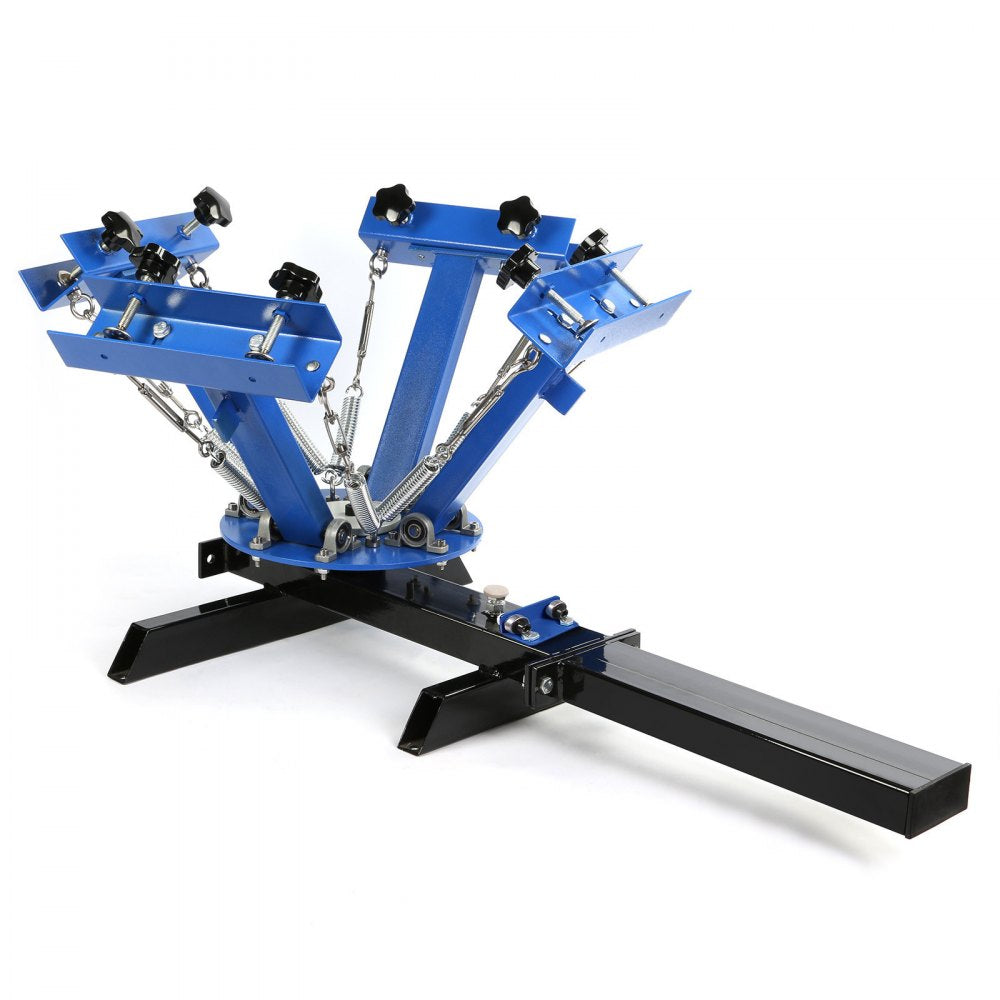

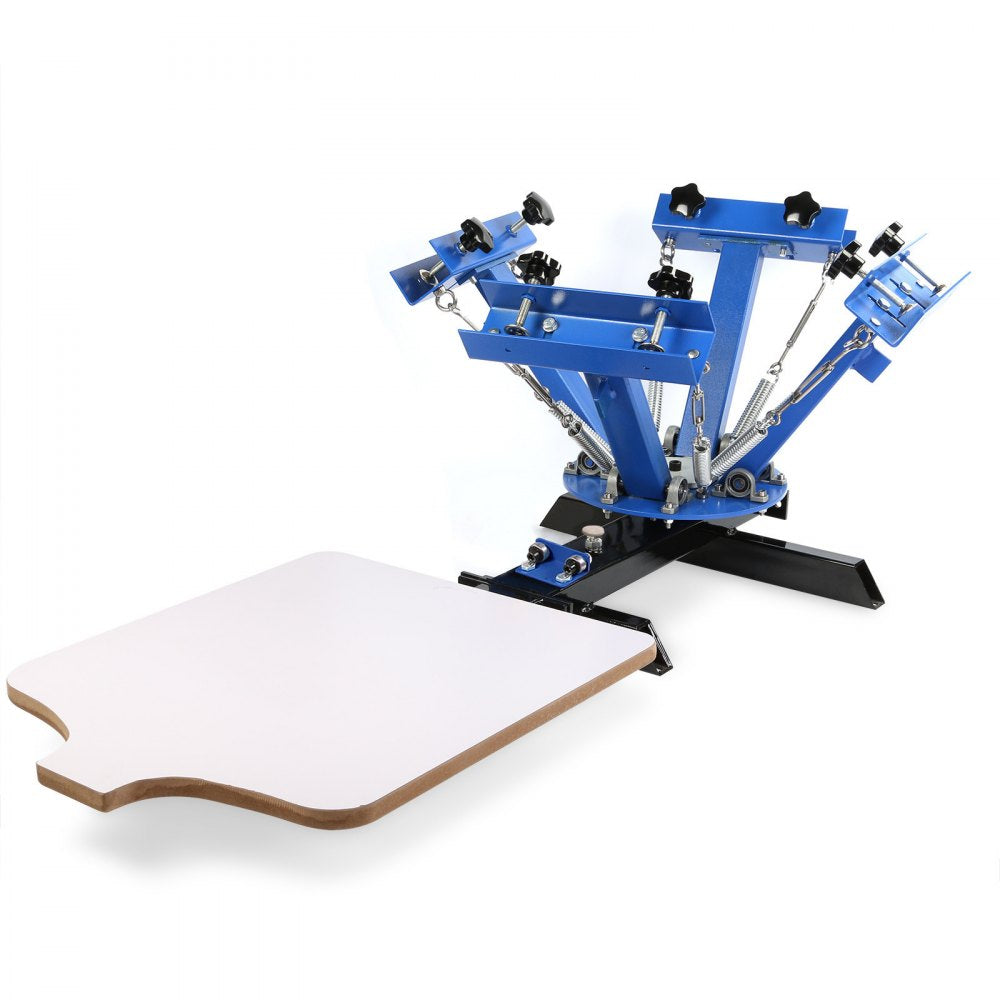

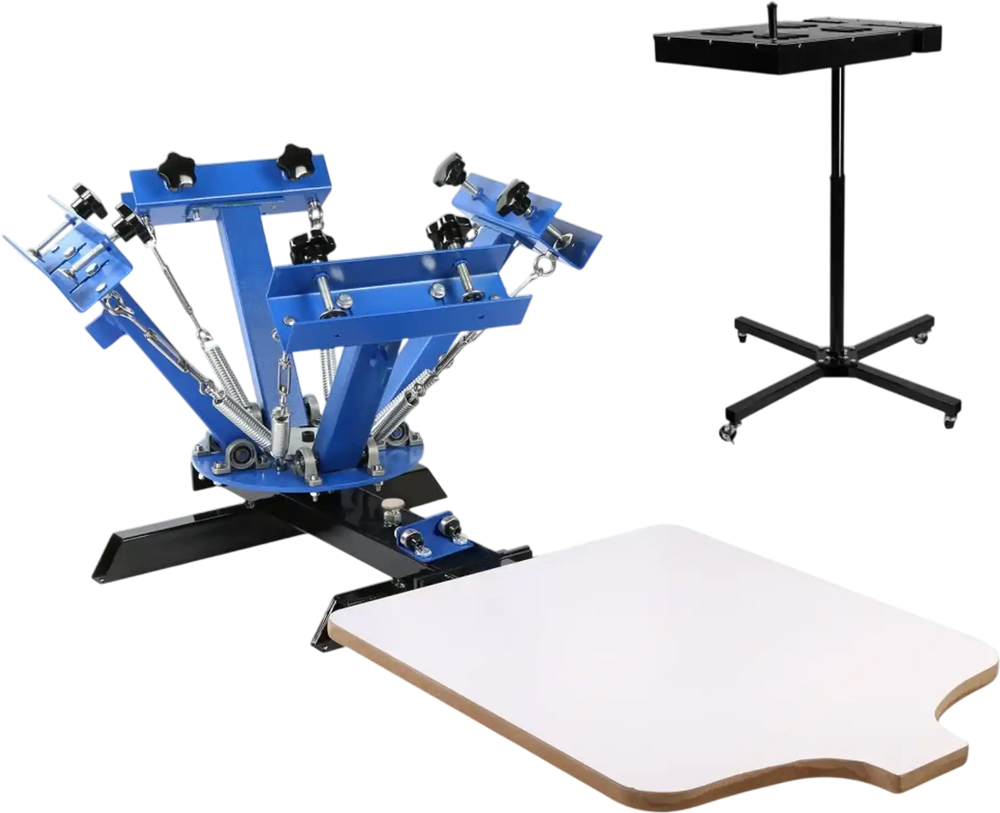

This screen printing machine and flash dryer combo is designed for small printing shops, startups, and individual users handling multi-color or volume printing. The 4 color 1 station press allows independent rotation of the screen platen layer for overprinting and progressive proofs. An included 18" x 18" flash dryer features a standard 110V plug, rolling casters, and adjustable height from 30" to 48" for convenient curing. Durable all-metal construction helps provide stable operation and easy cleaning.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- The products will be sent from different stocks.
- Please do not worry about it, you will receive ALL the parcels in recent days.
- If you don't get all tracking numbers in eBay, please contact us firstly.
- Thanks!
- Screen printing is arguably most versatile in printing, almost everything can be used as substrate. Our silk screen printing machine is designed for small printing shops, whether it is for multi-color or volume printing, this equipment can also serve as an ideal backup solution to larger companies. For those who are just getting into the printing business, this can be their best starting point. Manufactured with highly durable materials, this equipment is designed to last. There is no maintenance needed once assembled.It can simultaneously install four screen plates. The screen layer is able to rotate independently upon installation, then it is available for four colors’ overprinting and making progressive proofs. This machine is comes with a 18"x18" flash dryer,it makes your printing more convenient.The flash dryer has a 18x18" heating grid opening, wheels, and a standard 110V plug so there is no special wiring required. This unit can be raised or lowered from 30" to 48". It is very heavy duty. The temperature is over 400 degrees F at distance of 2 1/2" below the flash heating element. It can easily cure plastisol ink for silkscreen printing.It is ultra heavy and has a base diameter that is reasonable (about 38"). It can easily roll thru standard 32" door way. We have a flash dryer. It is only about 2/3 the weight. It is much lighter so its base has to have a big diameter (over 50") to prevent it from tipping over.
Specifications

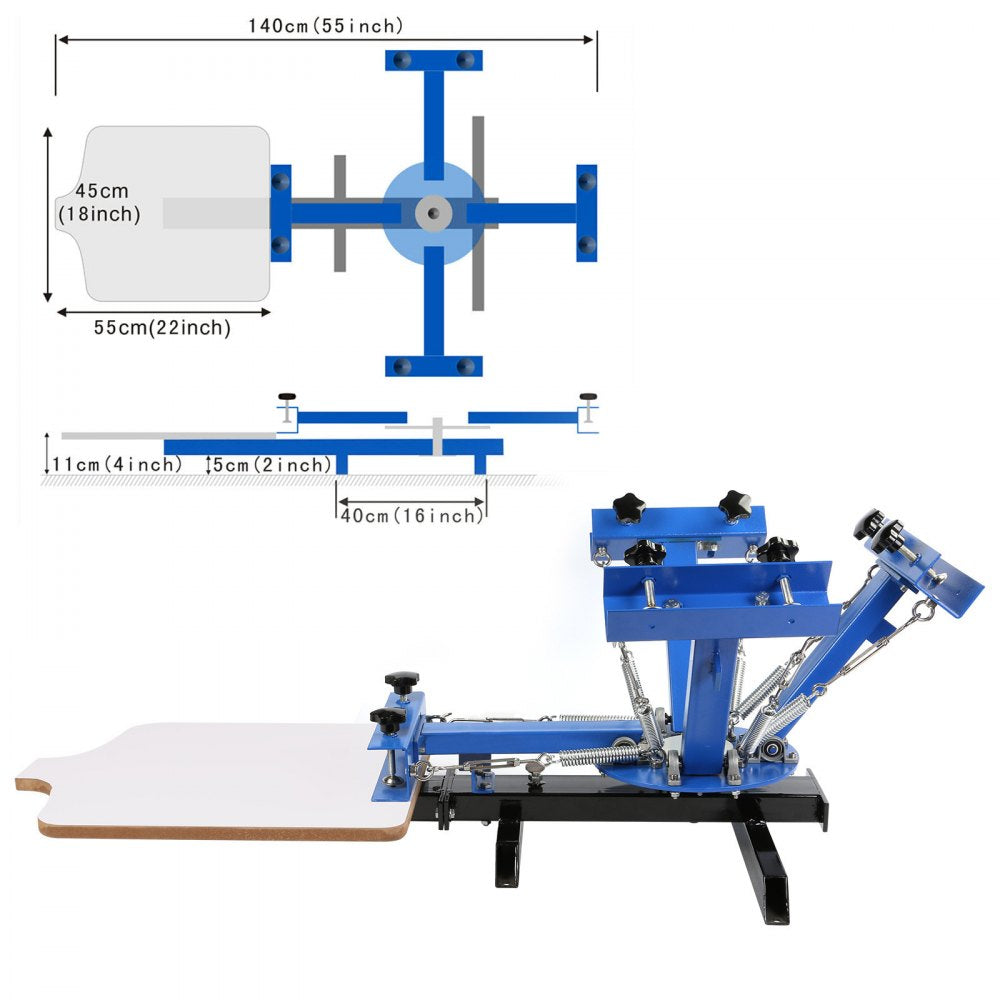

| Model | 401SYJ+18X18DXHGJV1 |
| Color Stations | 4 |
| Print Stations | 1 |
| Machine Size | 32" x 7.9" x 55" |
| Platen Size | 21.7" x 17.7" |
| Arm Length | 13.25" |
| Arm Width | 10" |
| T-shirt Board | 18" W x 21.5" L |
| Max Screen Thickness | 2" |
| Heating Area | 18" x 18" |
| Base Dimensions | 38" x 38" |
| Top Dimensions | 29" x 19" |
| Input Power | 110V/60Hz |
| Max Temperature | 660°F 350°C |
| Suggested Temperature Range | 140-180°C |
| Average Current Draw | 13 Amps |
| Maximum Current Draw | 16.5 Amps |
| Average Power Usage | 1350 Watts |
| Maximum Power Usage | 2000 Watts |
| Minimum Height | 30" |
| Maximum Height | 48" |
| Shipped Weight | 53 lbs |
| Assembled Dimensions | 38" x 38" x 48" |

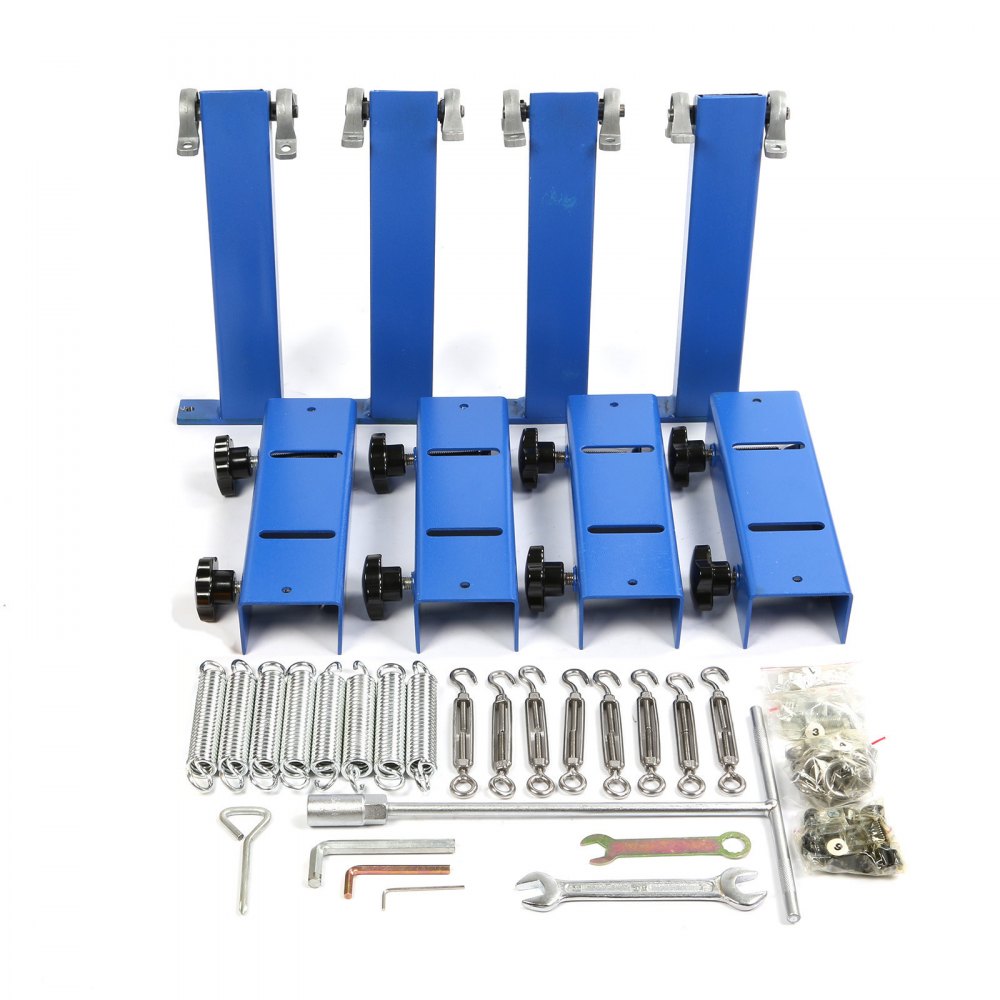

Package Contents

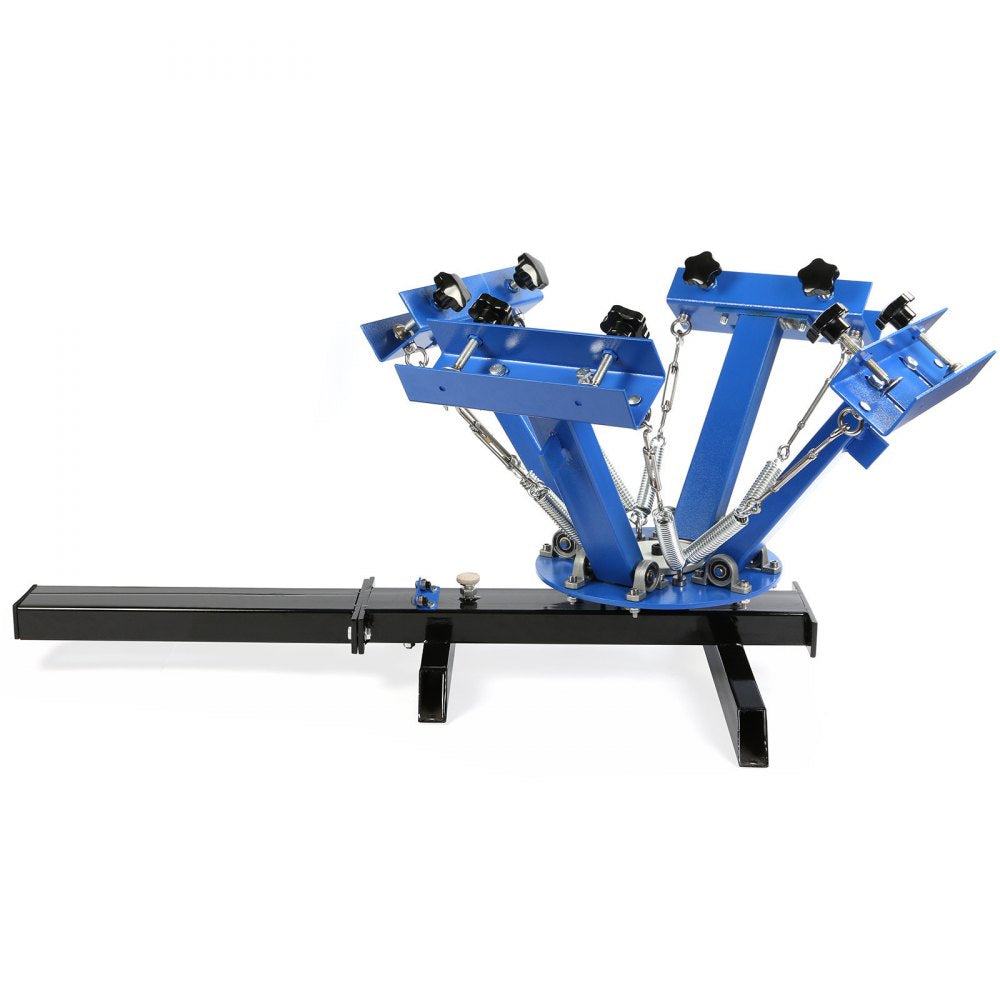

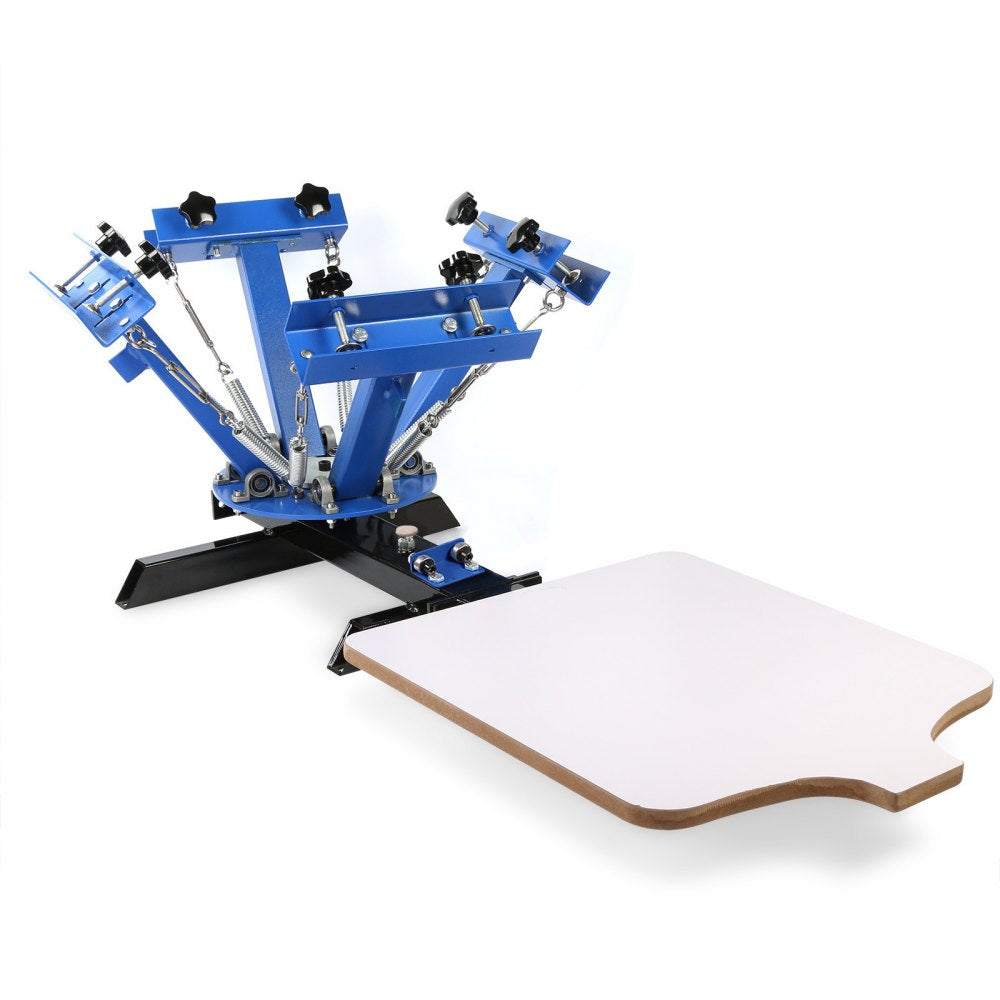

1 set of 4 color 1 station screen press

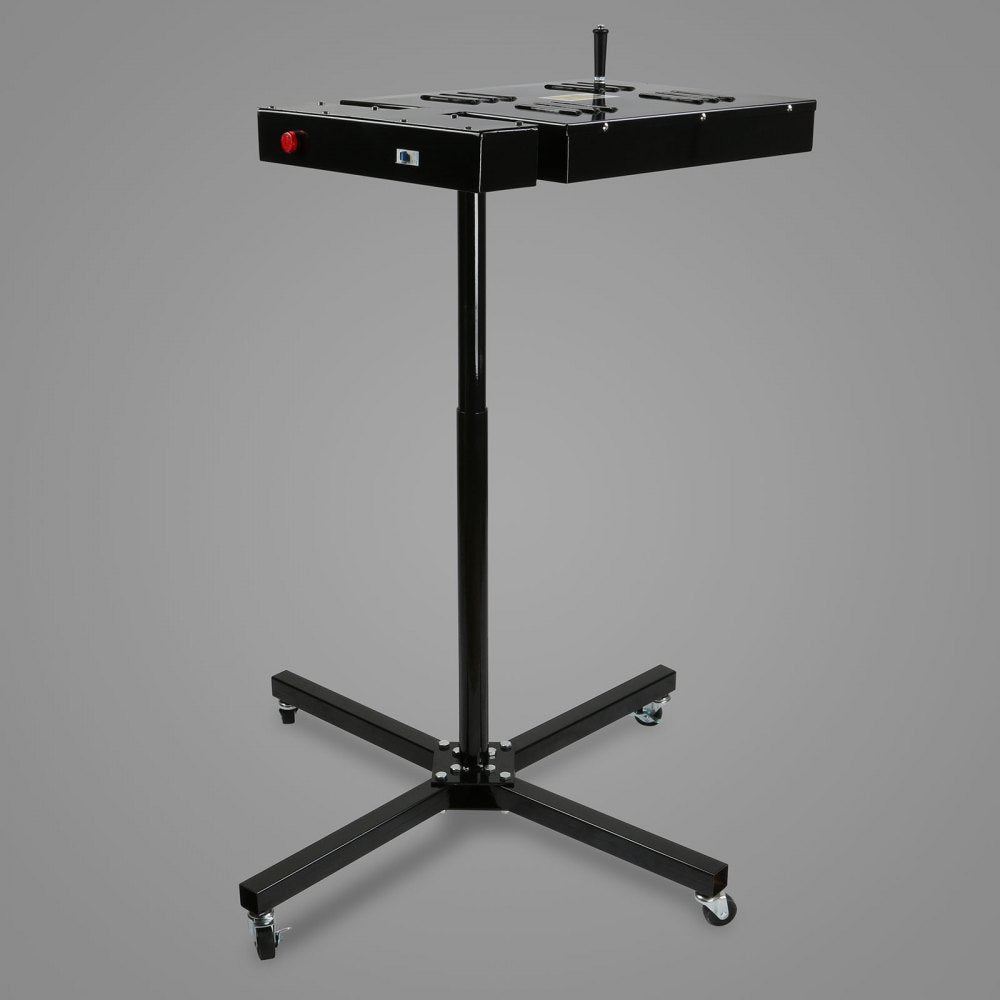

1 X Head of Flash Dryer
4 X Base Leg of Flash Dryer
1 X Below Support Bar
1 X Top Support Bar
4 X Caster
2 X Handle
8 X Screw For Base Legs
1 X Base Leg Support Plate
Hardwares for installtion
Warranty
This item comes with a 1 year factory warranty.
