Vevor Shop Press 20-Ton Pneumatic/Manual Hydraulic with Foot Pedal, Gauge & 9-Pc Punch Set New
Manufacturer: Vevor
SKU: YYYBSQCJYLJH33G5F001V0
QTY
or
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 770.99
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer

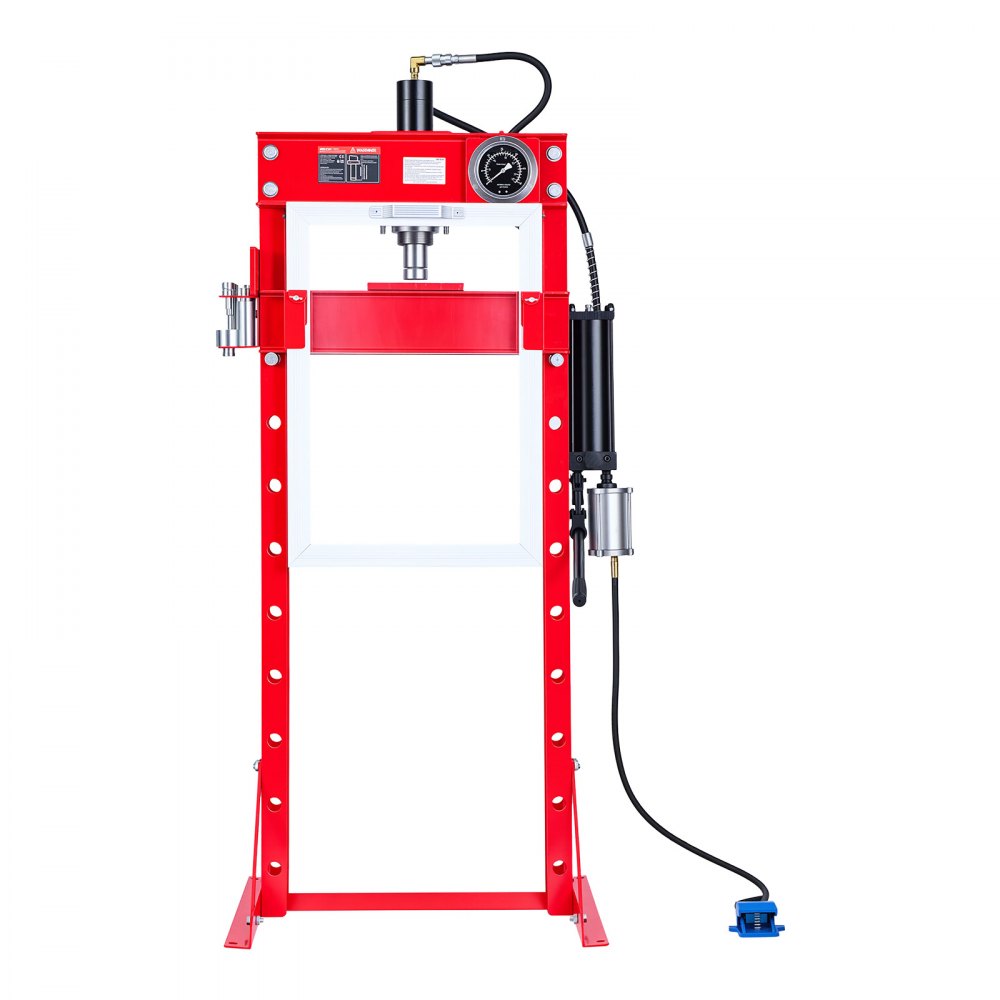

Vevor Shop Press 20-Ton Pneumatic/Manual Hydraulic with Foot Pedal, Gauge & 9-Pc Punch Set New
Product Overview
This hydraulic shop press is built for garages and workshops that need strong, consistent force for bending, straightening, pressing, and stamping tasks. It supports both manual hydraulic and pneumatic operation, giving you flexible control with an extended handle or foot pedal. The heavy-duty H-frame steel construction is designed for strength and stability under demanding loads. Adjustable height settings and movable stamping plates help accommodate different workpiece sizes. A pressure gauge and included punch set add versatility for a wide range of repair and fabrication jobs.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Strong Hydraulic Force: Equipped with a 20-ton hydraulic pump (max load), this shop press delivers strong foce for bending, straightening, pressing, and stamping tasks. Easily remove and install wheel bearings, U-joints, ball joints, and control arm bushings
- Flexible Operation Modes: Supports manual and pneumatic operation with foot pedal control. Use the extended handle for manual pressing, or connect to an air compressor and press the pedal to activate pneumatic operation, then release to stop
- Heavy-Duty Steel Support: Thickened carbon steel structure combined with an H-shaped frame delivers high strength, resists bending and deformation under heavy loads. Reinforced triangular base enhances stability, reduces wobbling for more reliable pressing
- Flexible Height Adjustment: Featuring 9 adjustable height settings (0.4 - 38.6 in) and movable stamping plates, this hydraulic garage floor shop press easily accommodates workpieces of different sizes and thicknesses for various pressing tasks
- Full Set of Punches: Comes with a standard Ø48 mm punch and a versatile set of additional punches (Ø10, Ø12, Ø16, Ø18, Ø20, Ø22, Ø25, and Ø30 mm) to accommodate various workpieces and pressing applications
Specifications
| Item Model Number | SJ-26SQB |
|---|---|
| Cylinder Stroke | 7.48 in / 190 mm |
| Rated Load Capacity | 13.3 T |
| Maximum Load Capacity | 20 T |
| Main Material | Q235B Steel |
| Net Weight | 198.4 lbs / 90 kg |
| Height Adjustment Range | 0.4 - 38.6 in |
Package Contents
Shop press
Foot pedal
Pressure gauge
Extended handle
Standard Ø48 mm punch
Additional punches set: Ø10 mm, Ø12 mm, Ø16 mm, Ø18 mm, Ø20 mm, Ø22 mm, Ø25 mm, and Ø30 mm
Movable stamping plates
Warranty
This item comes with a 1 year factory warranty.
