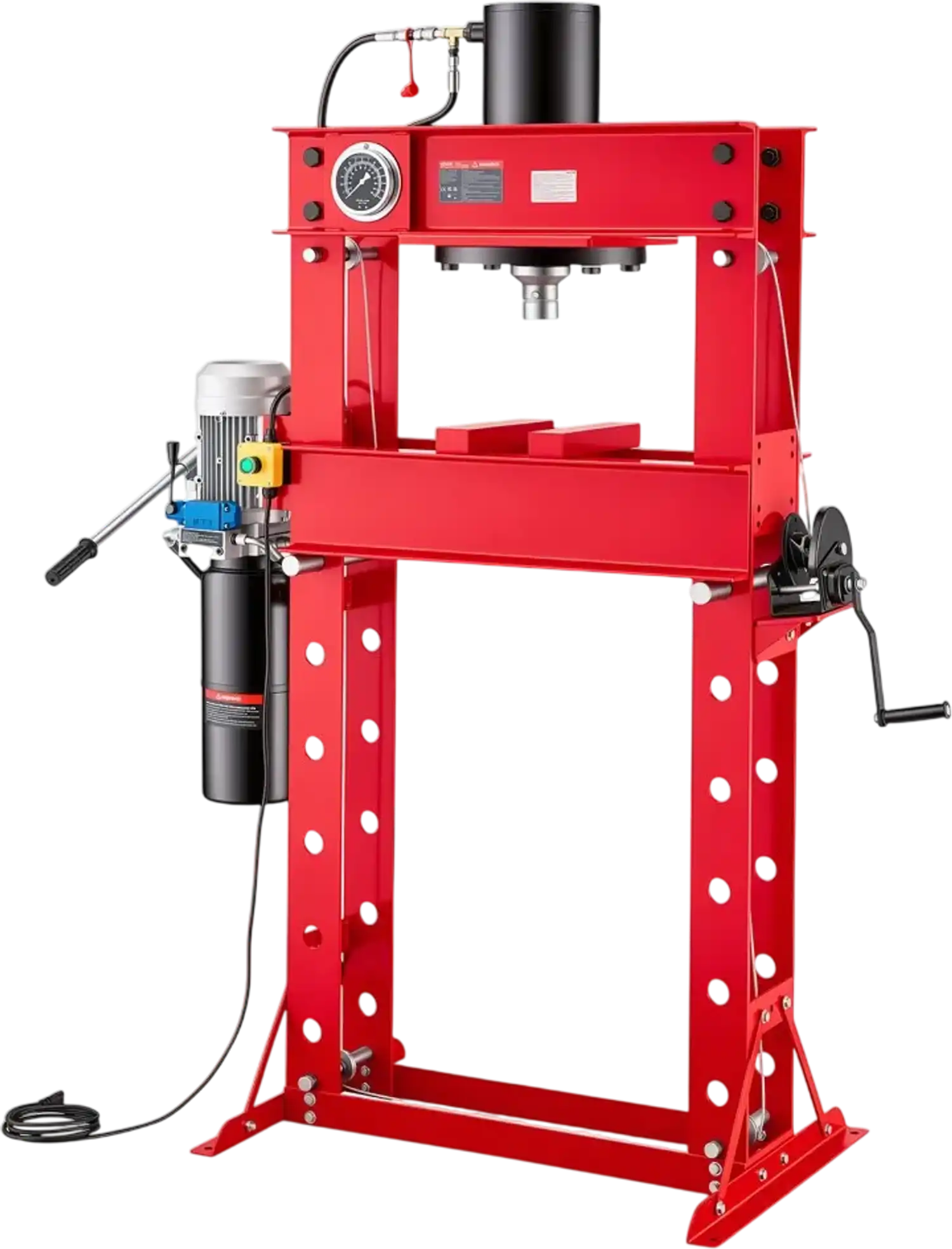

Vevor Shop Press 50-Ton Electric Hydraulic H-Frame Garage Floor Press New
Product Overview
The Vevor electric hydraulic shop press is built for garages and workshops that need strong, consistent pressing power for bending, straightening, pressing, and stamping tasks. Its 2.2 kW electric pump helps speed up operation while reducing manual effort and operator fatigue. The H-frame carbon steel construction is designed for strength and stability under heavy loads. It also features adjustable working height settings and supports both electric and manual operation for added versatility.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Efficient & Labor-Saving: Powered by an 2.2KW electric pump, the hydraulic shop press delivers fast and consistent hydraulic power, achieving quicker punch movement, reducing operator fatigue, minimizing the risk of oil leakage, and improving working efficiency compared with manual pumping
- Faster Retraction, Higher Efficiency: Equipped with a hydraulic ram return system, the punch retracts quickly and smoothly after each operation, ensuring faster cycle times and more stable performance. Also supports manual operation during power outages
- Strong Hydraulic Force: This garage floor shop press delivers 50-ton strong foce (max load) for bending, straightening, pressing, and stamping tasks. Easily remove and install wheel bearings, U-joints, ball joints, and control arm bushings
- Heavy-Duty Steel Support: Thickened carbon steel structure combined with an H-shaped frame delivers high strength, resists bending and deformation under heavy loads. Reinforced triangular base enhances stability, reduces wobbling for more reliable pressing
- Flexible Height Adjustment: Featuring 7 adjustable height settings and movable stamping plates, this electric hydraulic shop press easily accommodates workpieces of different sizes and thicknesses for various pressing tasks
Specifications
| Item Model Number | SJ-29JHB |
|---|---|
| Voltage | AC110V, 60Hz |
| Power | 2.2 kW |
| Speed | 3400 RPM |
| Maximum Flow Rate | 5.4 L/min |
| Cylinder Stroke | 7.87" / 200 mm |
| Punch Diameter | 2.36" / 60 mm |
| Punch Descent Speed | 0.16"/s / 4 mm/s |
| Punch Return Speed | 0.24"/s / 6 mm/s |
| Rated Load | 33.3 T |
|---|---|
| Maximum Load | 50 T |
| Operation Method | Manual & Electric |
| Main Material | Q235B Steel |
| Net Weight | 639.3 lbs / 290 kg |
Warranty
This item comes with a 1 year factory warranty.
