Vevor Shower Curb Install Kit Center Drain 48" x 48" with Installation Tools New
Manufacturer: Vevor
SKU: LYDZT48X48PVCBSSLV0
Drain Position Options
Shower Tray Size Options
QTY
(888) 999-1522
$ 160.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Ships in (est) 1-3 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Vevor Shower Curb Install Kit Center Drain 48" x 48" with Installation Tools New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- PREMIUM SHOWER TRAY - The 48 x 48 in. (1219.2 x 1219.2 mm) shower tray is made of EPS high-pressure foam board and forms a 5° inclination (from four sides to the middle) to ensure convenient drainage through the center 4 in. (10 cm) drain.
- DRAINAGE ACCESSORIES - The shower curb overlay includes a durable PVC flange and auxiliary drainage device (fits 2 in. pipes) to ensure smooth water flowing. The gravity automatic seal grate ensures that the pipes won’t be blocked. Included are (2) 48 x 4.5 x 6 in. (1219.2 x 114.3 x 152.4 mm) shower curbs made of XPS plastic that is easy to cut to fit your needs.
- WATER IMPERMEABLE - There are (2) rolls of HDPE material water-impermeable membrane included in this shower curb kit. The small roll is 5 in. x 32.8 ft. (12.7 cm × 10 m) and the large roll is 3.3 ft. x 32.8 ft. (1 m x 10 m). Additionally, there are 4 inside corners and 2 outside corners of the membrane that are provided ready for use.
- STAINLESS STEEL TROWEL - The square-toothed stainless steel trowel helps create uniform lines during mortar brushing to help secure the adhesion between the membrane and another surface.
Specifications
| Model | VV-LYDZ-PVC4848Z |
| Shower Tray Material | EPS Foam |
| Shower Tray Size (W x L) | 48 x 48 in. (1219.2 x 1219.2 mm) |
| Drain Inclination | 5° |
| Drain Position | Center |
| Pipe Fits | 2 in. (51 mm) |
| Drain Material | 304 Stainless Steel |
| Drain Size (W x L) | 4 x 4 in. (10 x 10 cm) |
| Flange Material | PVC |
| Shower Curb Size (L x W x H) | 48 x 4.5 x 6 in. (1219.2 x 114.3 x 152.4 mm) |
| Cuttable Shower Curbs | Yes |
| Membrane Size (sq. ft.) | 121.3 ft² (11.3 m²) |
| Small HDPE Roll | 5 in. x 32.8 ft. (12.7 cm x 10 m) |
| Large HDPE Roll | 3.3 x 32.8 ft. (1 m x 10 m) |
| Trowel | Square-tooth |
| Space Between Tooth | 0.1 x 0.1 in. (2.5 x 2.5 mm) |

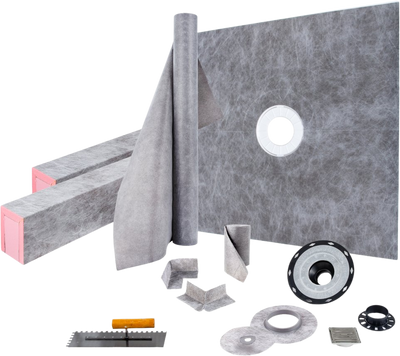

Package Contents
Vevor Shower Curb Install Kit Center Drain 48" x 48"
Shower Tray
(2) Shower Curbs
PVC Flange
Flange Collar
Drainage Assistant
Stainless Steel Grate
Square Tooth Trowel
(4) Inside Corners
(2) Outside Corners
(2) HDPE Rolls
Valve and Pipe Seal
User Manual
Warranty
This item comes with a 1 year factory warranty.
