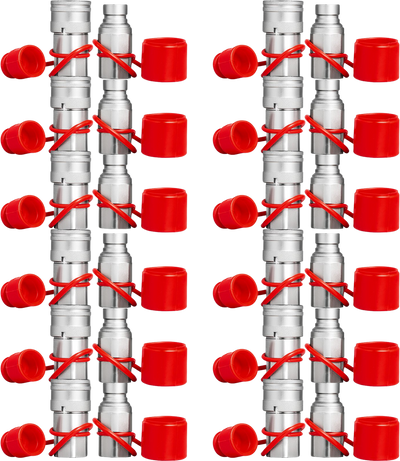

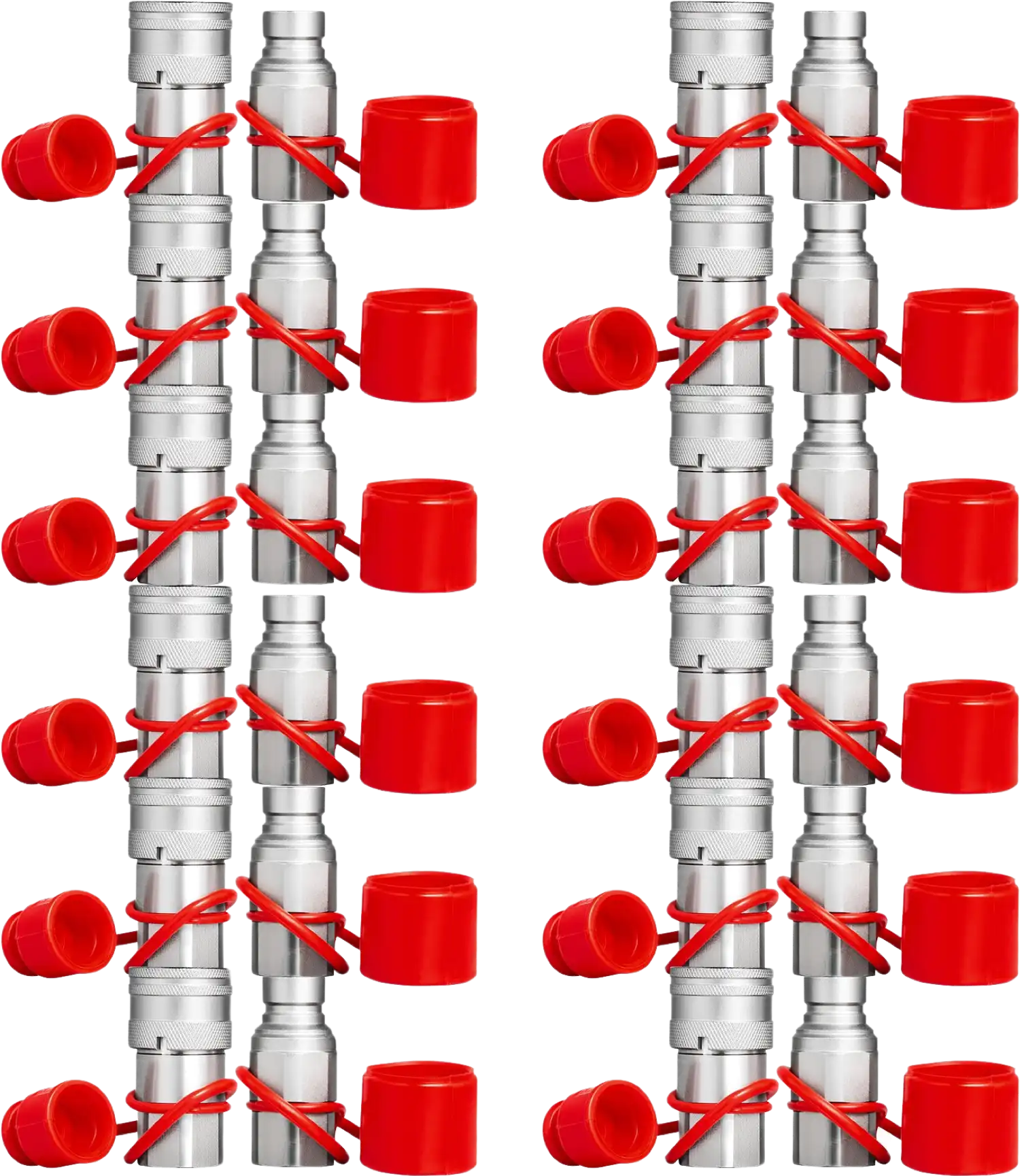

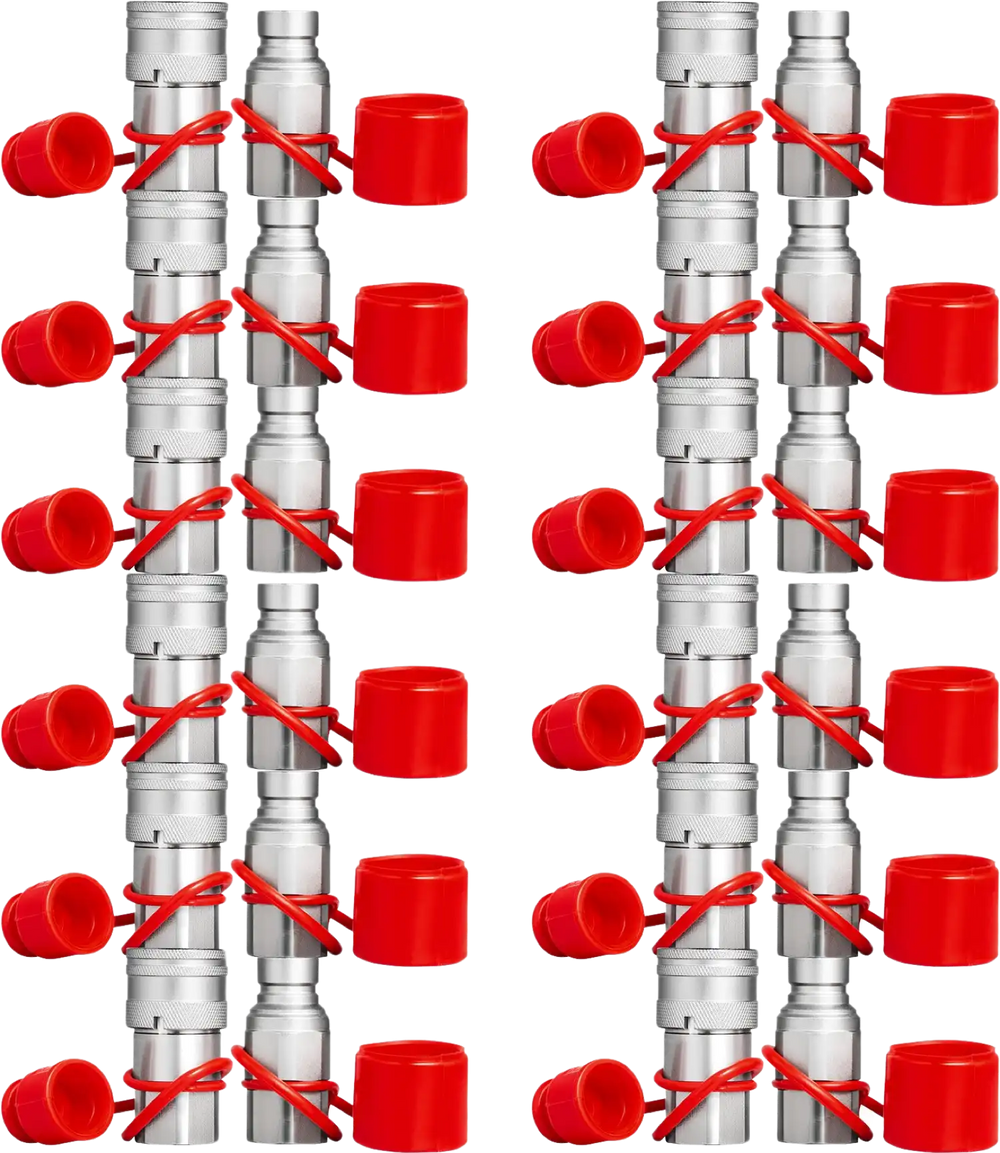

Vevor Skid Steer Hydraulic Quick Connect Coupler 1/2" Body 1/2" NPT 27.6 MPa 12 Pairs New
Manufacturer: Vevor
SKU: YYJT1/2YCYYJT12D1V0
QTY
(888) 999-1522
$ 199.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Ships in (est) 1-3 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Vevor Skid Steer Hydraulic Quick Connect Coupler 1/2" Body 1/2" NPT 27.6 MPa 12 Pairs New
Product Overview
The Vevor Skid Steer Hydraulic Quick Connect Coupler set features an advanced valve design with a rated pressure of 4000 PSI and a high flow rate of 12 gallons (45.5 liters) per minute, ensuring zero fluid loss and a long service life. Compliant with ISO 16028 standards, these couplers are perfect for connecting hydraulic lines. The 1/2 in. NPT thread sleeve locking mechanism allows for easy, secure connections with a simple push and rotation to prevent accidental disconnection. Made from hardened stainless steel with zinc-nickel plating, these couplers resist deformation, high temperatures, rust, and corrosion. Dust caps are included to prevent dirt contamination, ensuring system reliability. Compatible with most skid steer loaders, including Bobcat, John Deere, CAT, Case/New Holland, and Kubota, this set is ideal for applications prone to hydraulic spillage.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Advanced Design: This flat face hydraulic connect coupler set features an improved valve design, which allows for a rated pressure of 4000 PSI, 12 gallon (45.5 liter) high-flow, zero fluid loss, and long service life. It meets the standards of ISO 16028, perfect for connecting your hydraulic lines.
- Quick Connecting: The sleeve locking mechanism (with 1/2 in. NPT thread) makes the couplers easy to connect with a simple push. Rotate the collar to lock them tightly, preventing accidental disconnection. If you need to disconnect it, aim the point at the gap, then give a pull. Connection is simple, effortless, and requires minimal force.
- Hardened Steel Construction: Our quick couplers are strongly built with hardened stainless steel to resist deformation and high temperatures. The zinc-nickel plating provides high resistance against rust and corrosion. They are built tough to last for years to come.
- Dust Covers Included: Dust caps are included to prevent dirt from disrupting the connecting system, preventing the risk of malfunction. The retaining ring is covered by a sleeve. Additionally, a dust seal is placed within the spring area.
- High Compatibility: The quick coupler set is designed for applications where hydraulic spillage is likely to occur. It can be interchanged with most types of skid steers loaders, such as Bobcat, John Deere, CAT, Case / New Holland, Kubota, and many others.
Specifications
| Body Size | 1/2 in. |
| NPT Size | 1/2 in. |
| Rated Pressure Of Steel | 27.6 MPa |
| Rated Pressure Of Stainless Steel | 10.4 MPa |
| Rated Flow | 12 gallons per minute (45.5 L/Min) |
| Temperature Range (Nbr) | -4°F ~ 212°F (-20°C~100°C) |
| Temperature Range (Fkm) | -4°F ~ 356°F (-20°C~180°C) |
| Standard | ISO 16028 |
Package Contents
Vevor Skid Steer Hydraulic Quick Connect Coupler 1/2 in. Body 1/2 in. NPT
(12) Pairs Hydraulic Coupler
Protective Covers
User Manual
Warranty
This item comes with a 1 year factory warranty.
