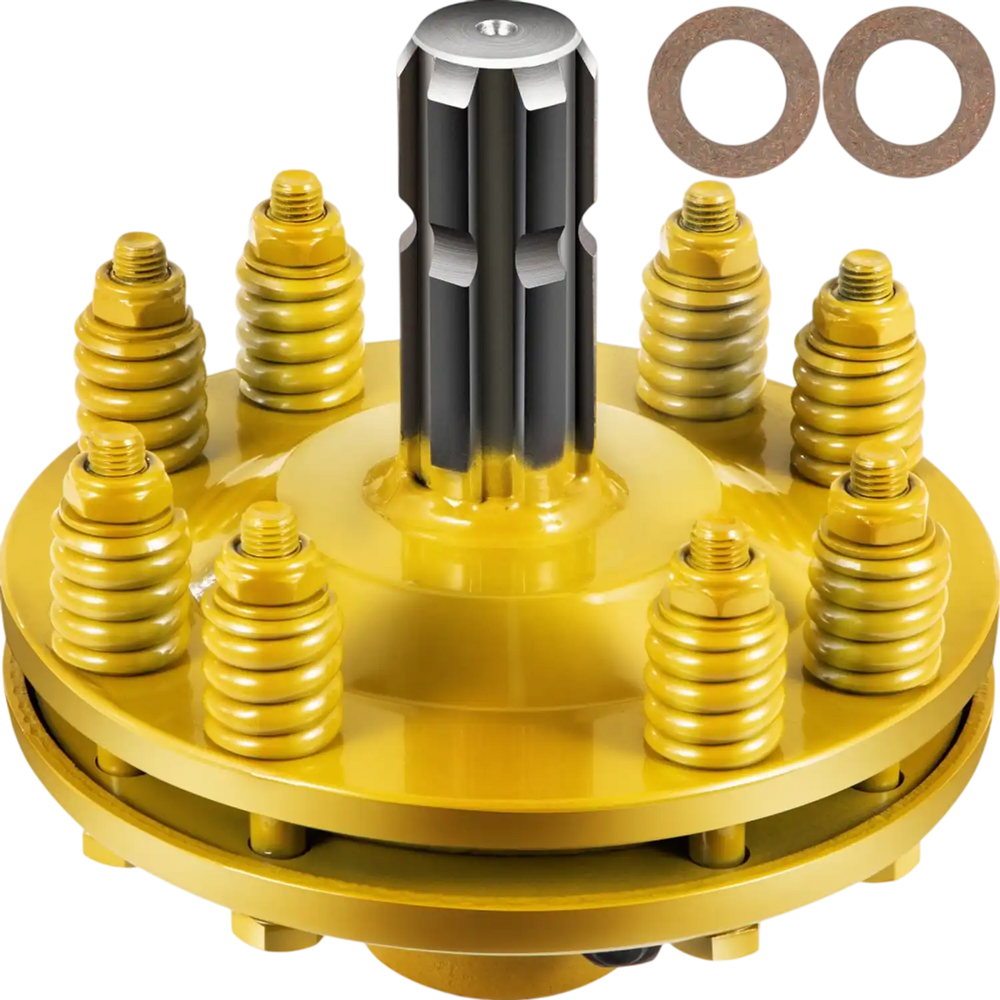

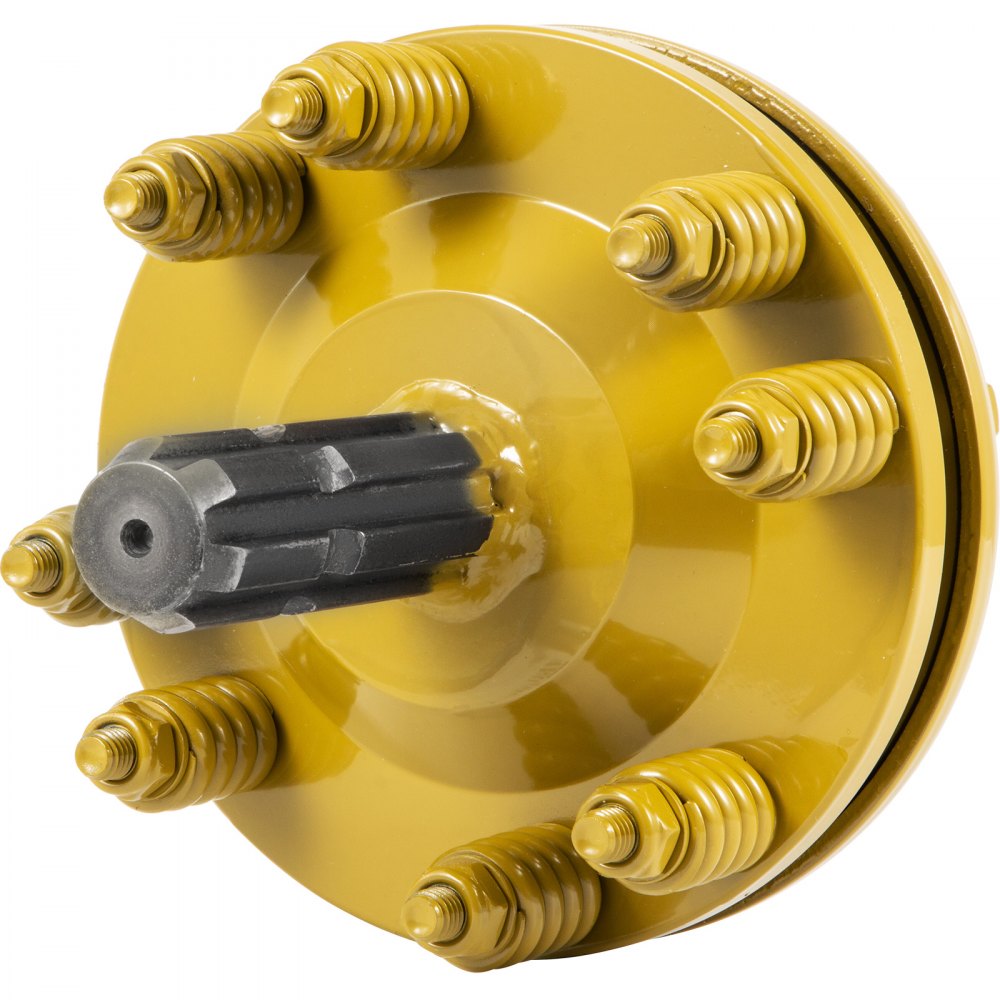

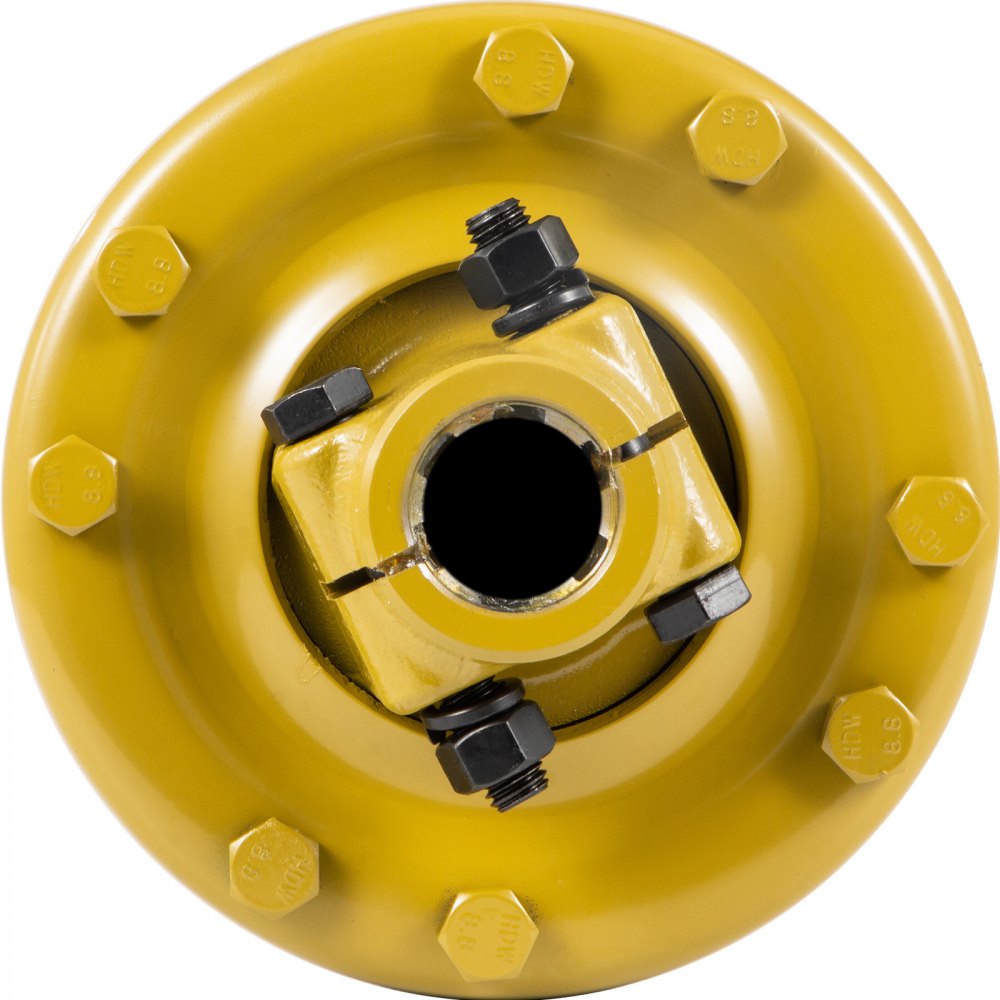

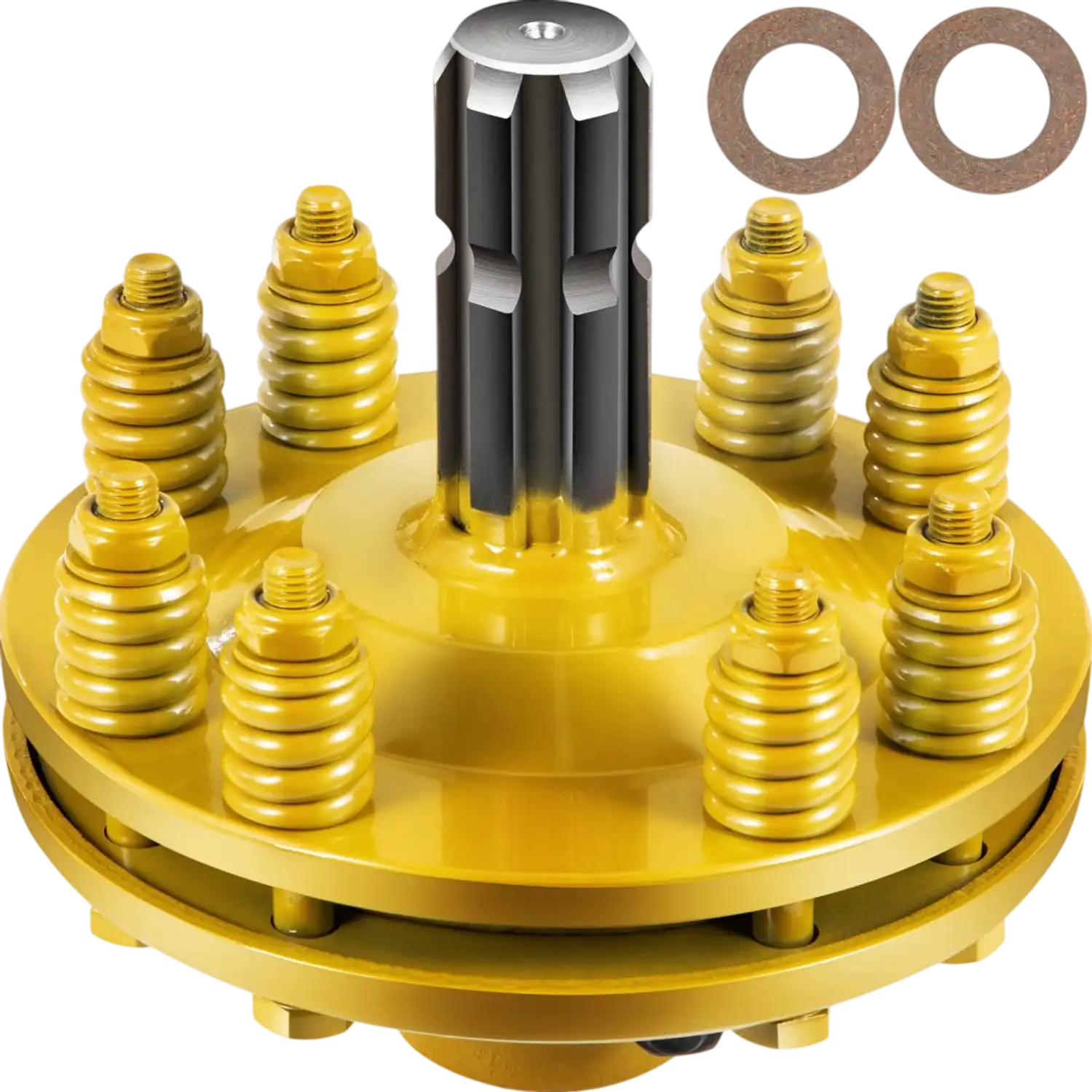

Vevor Slip Clutch 1-3/8" 6-Spline Adjustable PTO Friction Clutch Yellow New
Manufacturer: Vevor
SKU: CDZGZBHQHS2DHJ001V0
Color Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 68.90
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Weed Barrier Fabric 6' x 300' Heavy-Duty Ground Cover New
-
Vevor Battery Charger 35A Smart Lithium LiFePO4 Lead-Acid Car Battery Charger with LCD Display New
-
Vevor Airless Paint Sprayer with Stand 1.2L/min Flow Rate 750W 3000PSI Max Pressure New
-
Vevor 3-Point Quick Hitch with 2" Receiver 3000 lb. Capacity 5-Level Adjustable New
-
Vevor Tire Wheel Solid PU Run-Flat 10" 2-Pack New
-
Vevor Discharge Hose 2" x 105' PVC Fabric Lay Flat Backwash Drain Hose with Clamps New
-
Vevor Ultrasonic Vinyl Cleaner for 7-12" Records 6L with Drying Rack 180W New
-
Vevor Inline Duct Fan 4" 200 CFM Variable Speed Controller Quiet AC Motor Ventilation Exhaust Fan...
-
Vevor Driveway Markers 100-Pc 48" Orange Fiberglass Snow Stakes with Reflective Tape New
-
Vevor Hay Spear 32" 1350 lbs Capacity Square Bale Spike New
-
Vevor Diesel Air Heater Bluetooth App Control All-in-One 12V 8KW New
-
Vevor Golf Cart Rear Seat Bag Holder 27.8" x 16.1" x 30.9" Carbon Steel Black New
-
Vevor Hay Spear 49" 1600 Lbs. Loading Capacity Skid Steer Loader Attachment 17.5" Stabilizer Spea...
-
Vevor Power Inverter 3000W Pure Sine Wave DC 12V AC 120V LCD Display and Remote Controller New
-
Vevor Weather Station 7-in-1 Wireless Indoor Outdoor Home Weather Station with 7.5" Color Display...
-
Vevor Attachment Bale Spears 49" 4000 lbs. Capacity Quick Attach Hex Nut and Sleeve for Bucket Ha...
Vevor Slip Clutch 1-3/8" 6-Spline Adjustable PTO Friction Clutch Yellow New
Product Overview

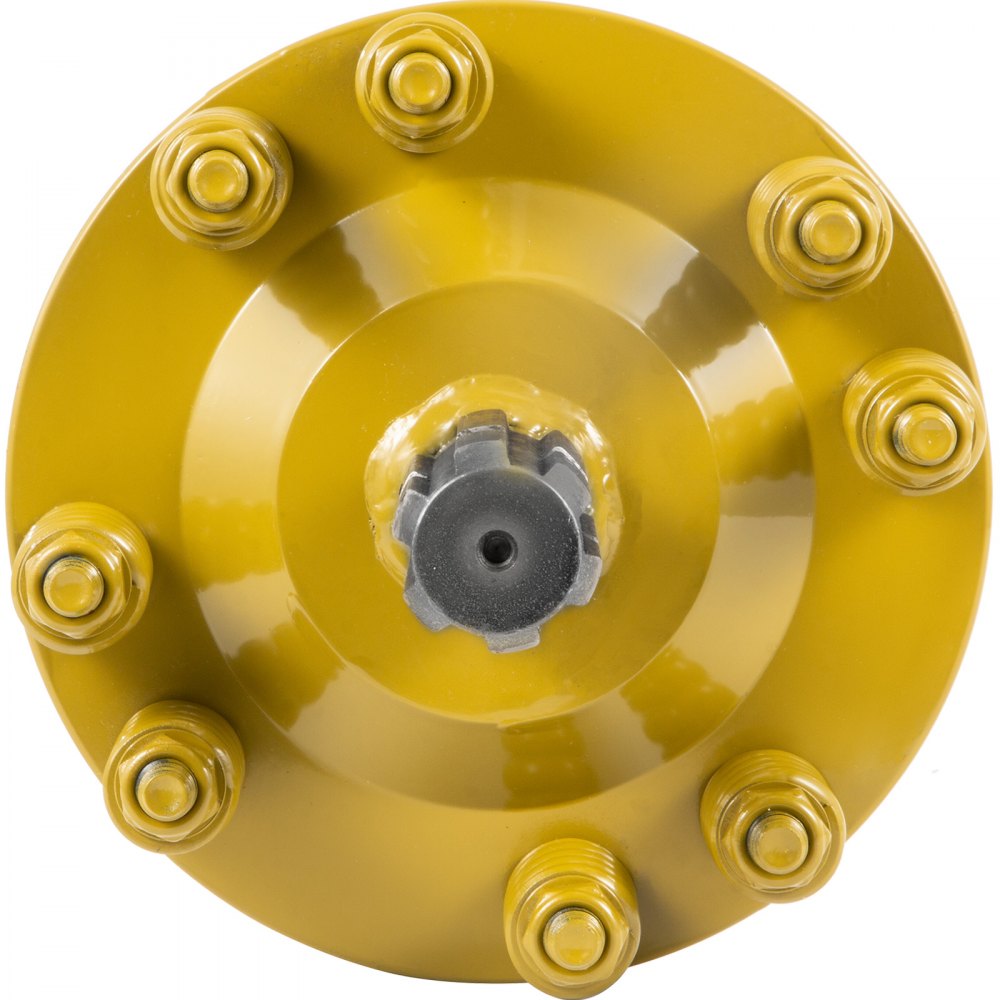

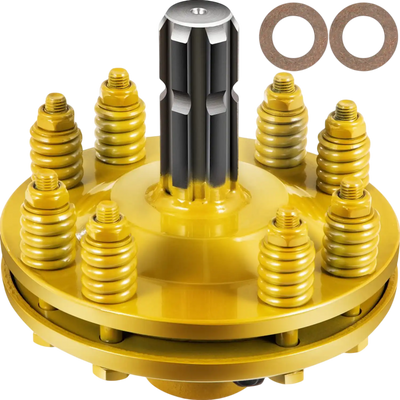

The Vevor PTO slip clutch is designed to protect PTO-driven equipment by limiting transmitted torque and allowing controlled slip between connected components. Built from 20CrMnTi carburized steel with a painted finish, it is made for durability and impact resistance. This adjustable clutch features 1-3/8" 6-spline male and female ends for compatibility with standard PTO shafts. It includes replaceable friction discs and is suited for use with rotary cutters, brush cutters, rotary mowers, and similar attachments.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Allow Two Speeds: Our PTO slip clutch limits the amount of torque being transferred from the tractor to the implement. This is accomplished by slipping or spinning free, which allows the two sides of the PTO shaft to spin at different speeds

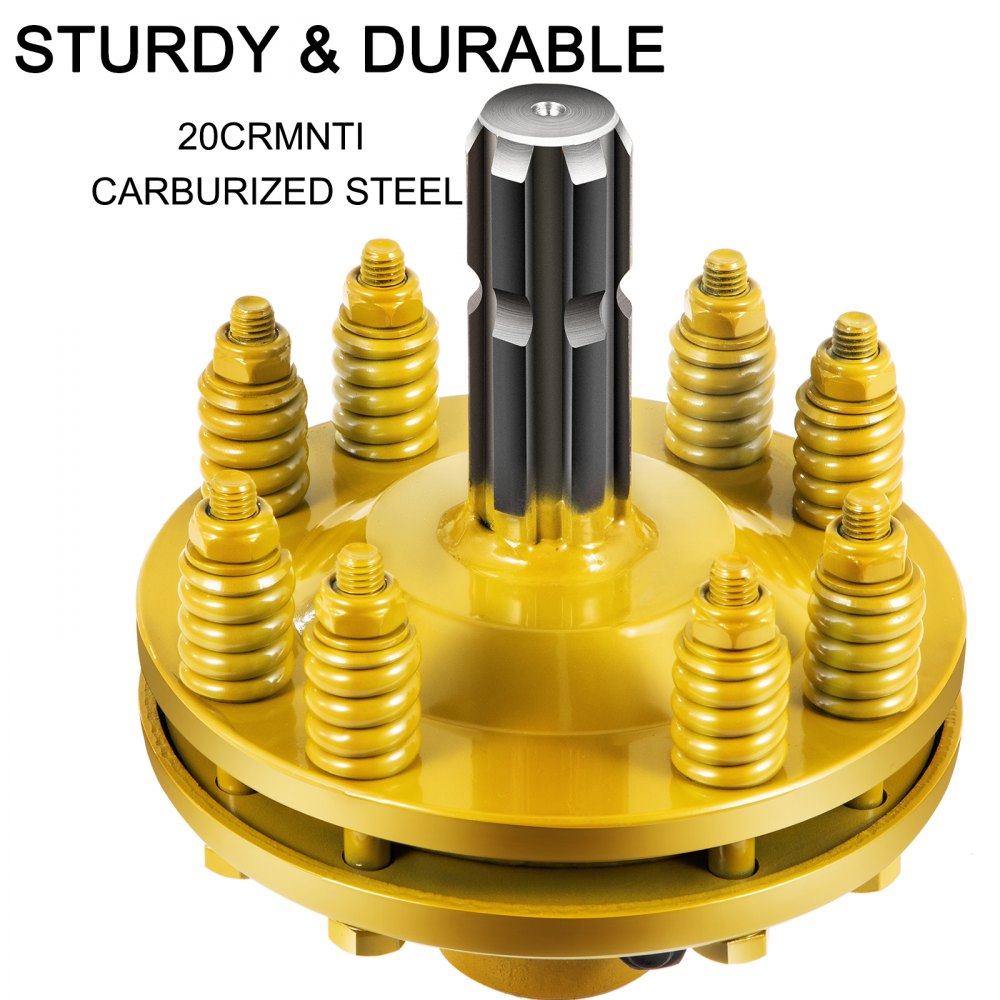

- Quality PTO Slip Clutch: The 20CrMnTi carburized steel which built this tractor PTO slip clutch has been reinforced to resist impact. The black-painted surface is smooth and anti-weary. So, it can withstand higher torque and speed to gain better protection for your PTO shaft.

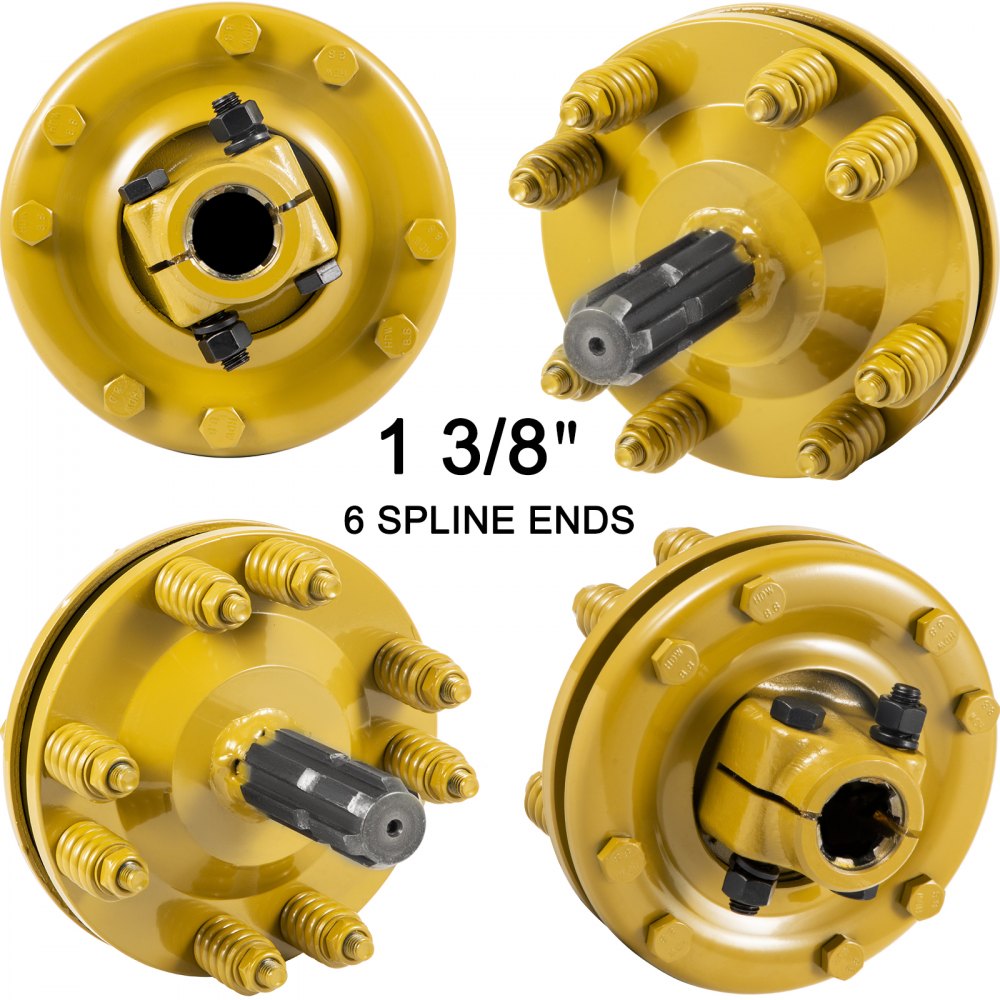

- 1-3/8" x 6 Spline Ends: Constructed with 6-spline ends, this PTO clutch has a standard size of 1-3/8" for both male and female ends. It perfectly matches the same diameter of implement input shaft and tractor output shaft, featuring superior safety functions as shear bolts.

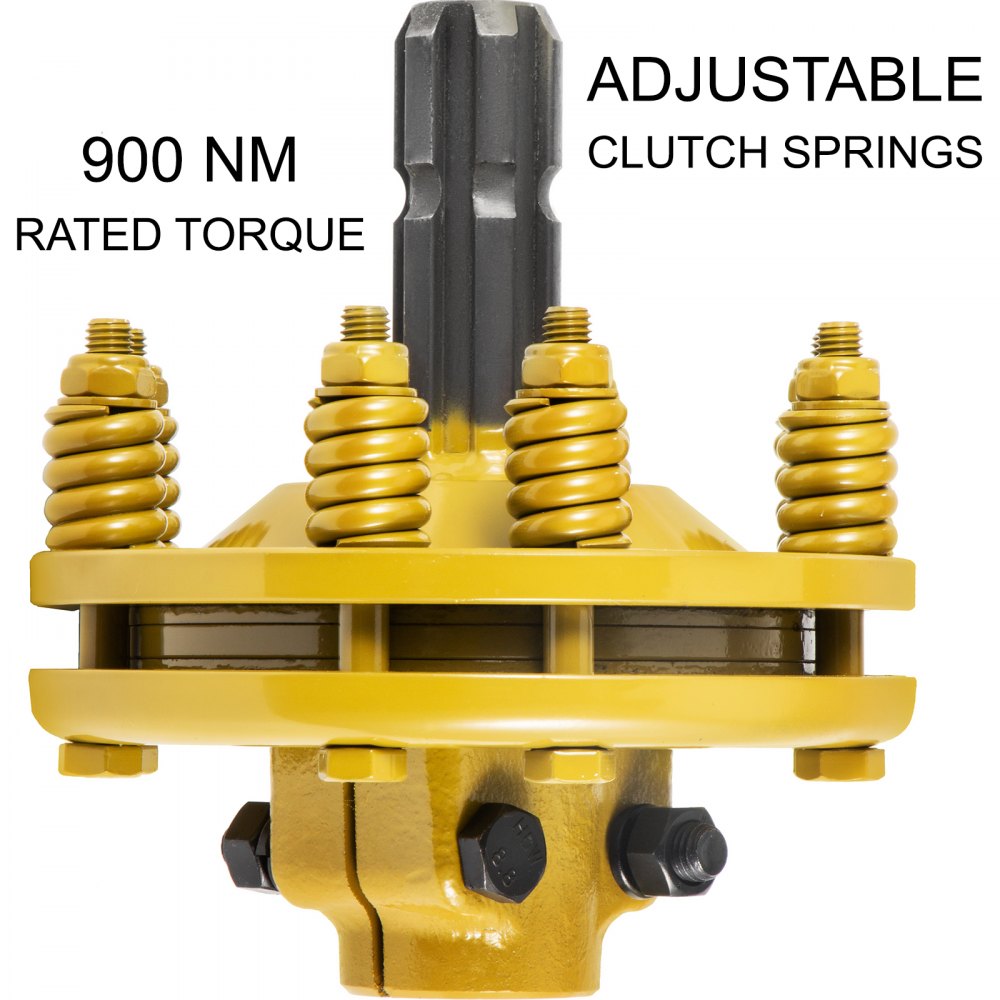

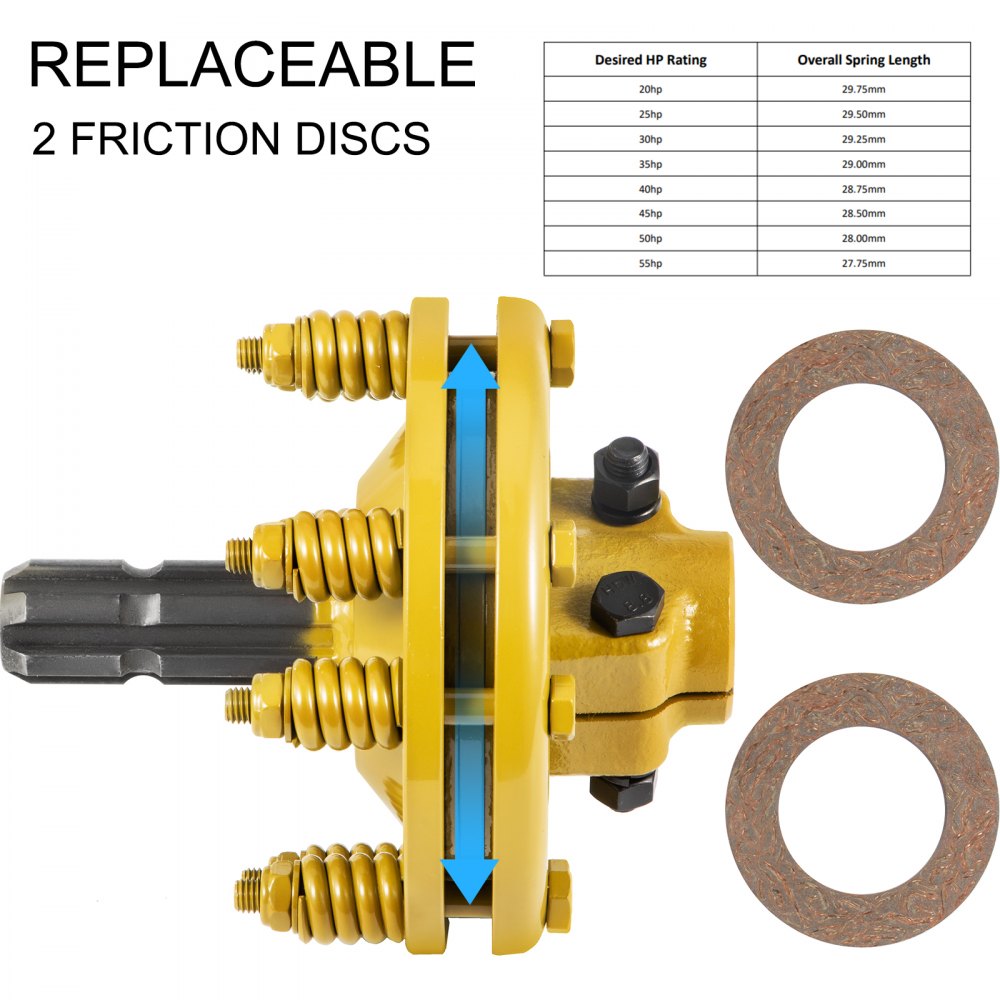

- Easy Torque Adjustments: Rated torque: 900 nm, adjustment range: 20 - 55 hp. You can adjust the length of the tension springs to acquire an appropriate torque for your rotary cutter slip clutch. Just tight / loose the eight nuts by 1/4 of a turn and check its tightness for correct operation.

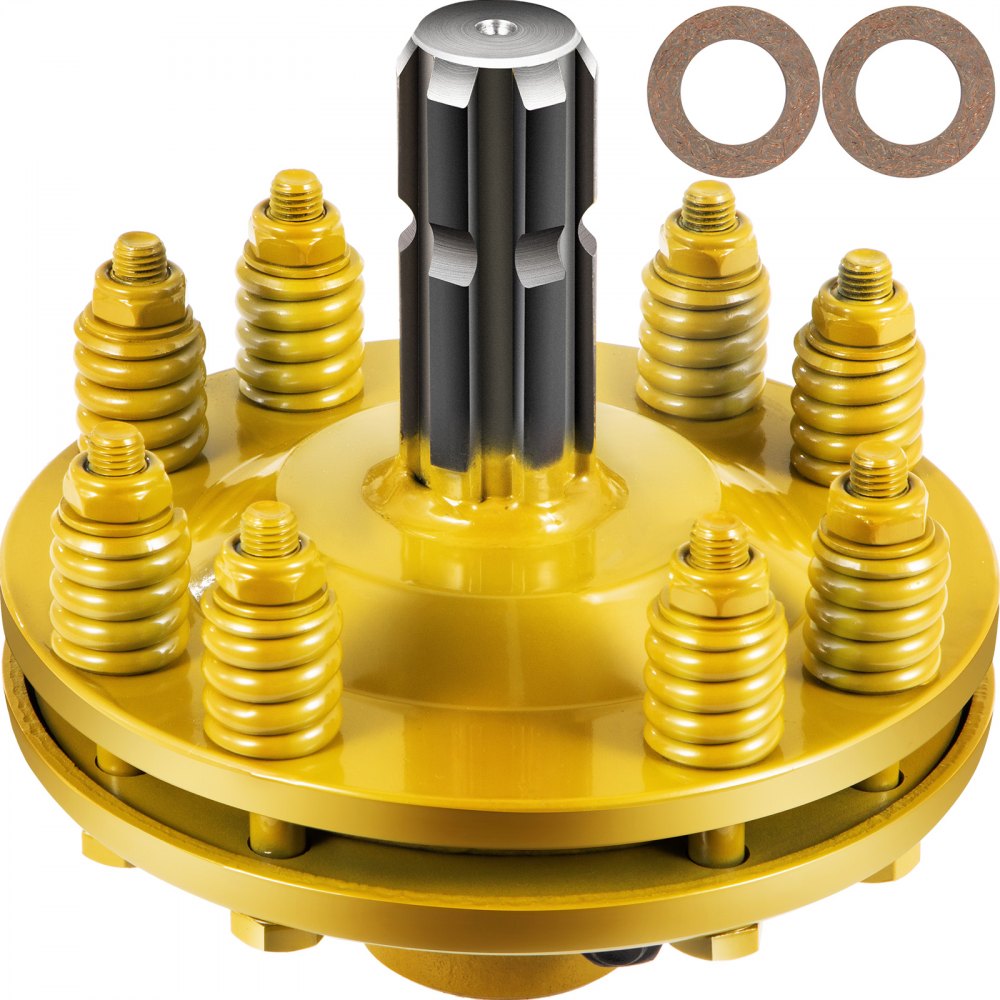

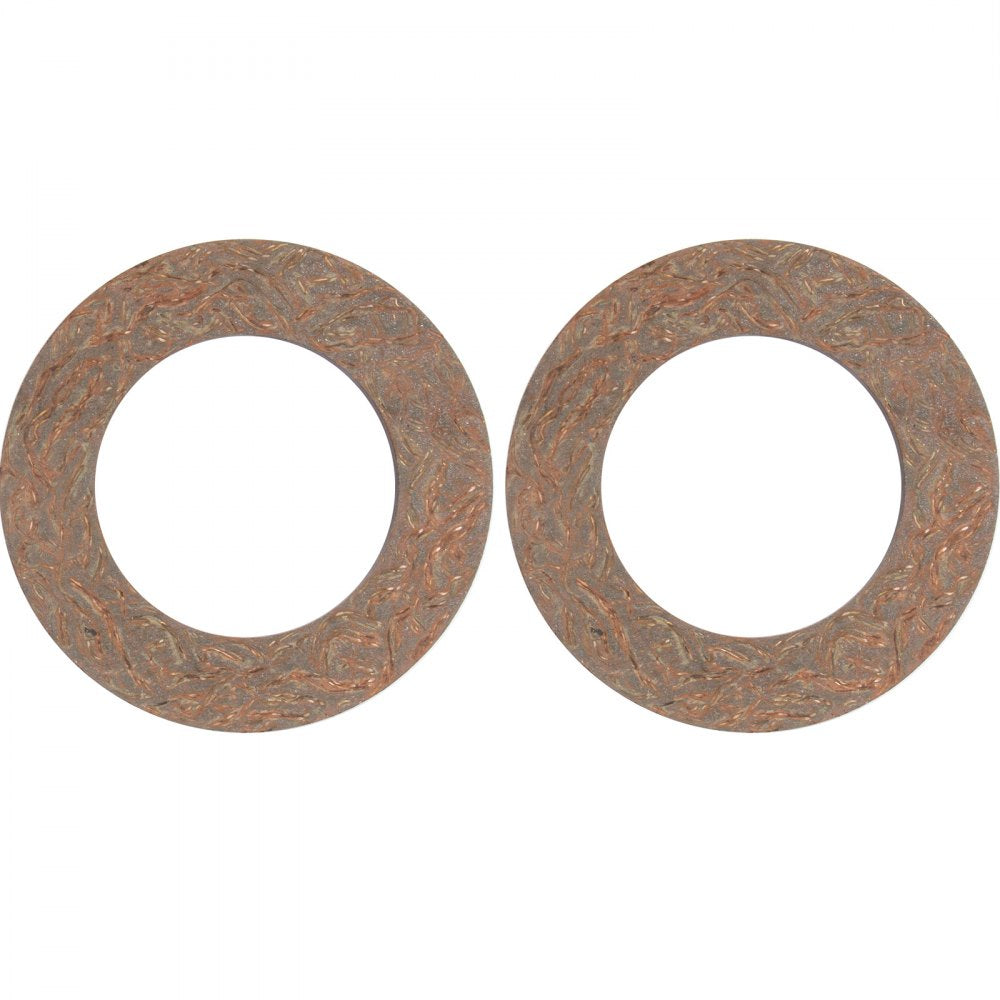

- Replaceable Friction Discs: The PTO slip clutch adopts an essential spring and disc set-up. It is assembled with fiction discs inside to help transmit forces. It is most commonly used on rotary tilling attachments like rotary cutters, brush cutters, rotary mowers, and tractors.

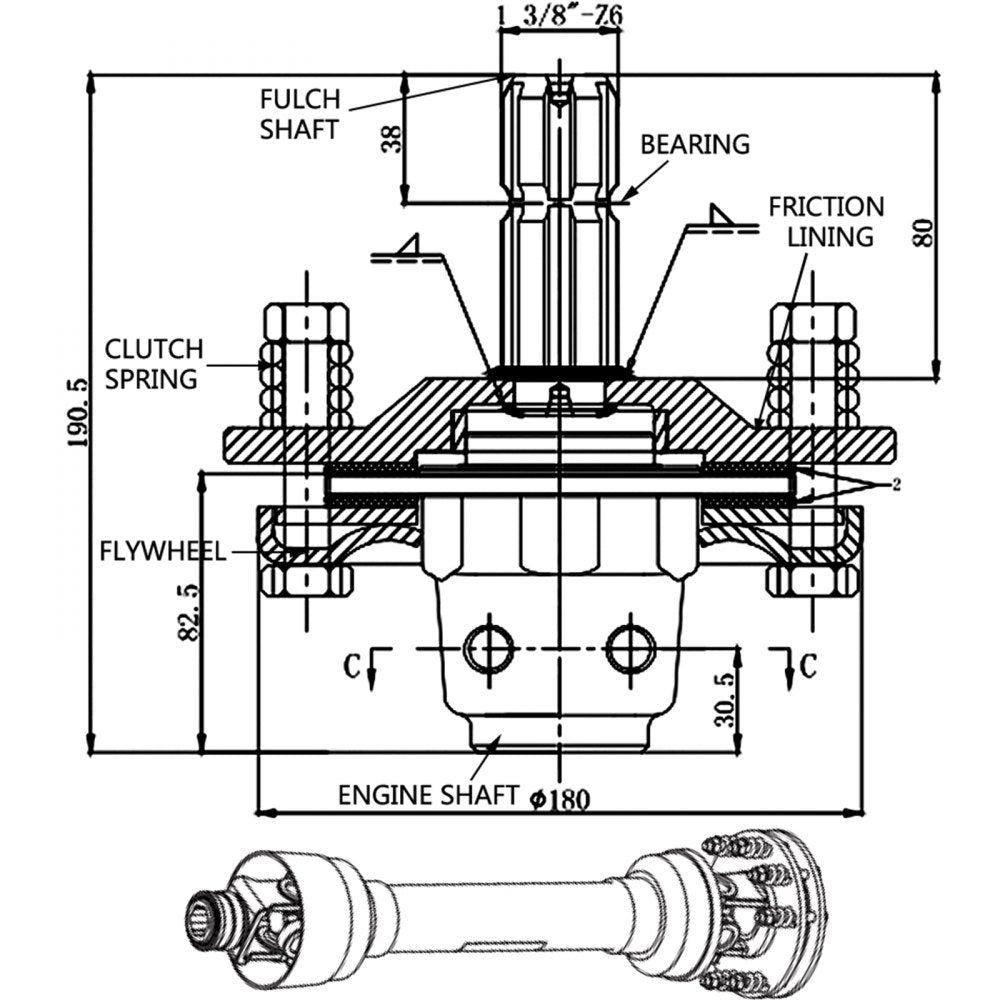

Specifications
| Material | 20CrMnTi Carburized Steel |
| Color | Yellow |
| Surface Finishing | Painted |
| Female & Male End Size | 1-3/8" 6 Spline |
| Tension Springs | Adjustable |
| Friction Discs | Replaceable |
| Rated Torque | 900 nm |
| Adjustment Range | 20 - 55 Horse Power |
| Dimensions | 1-3/8" 6-spline ends |
Package Contents
1 x PTO Split Clutch
Warranty
This item comes with a 1 year factory warranty.
