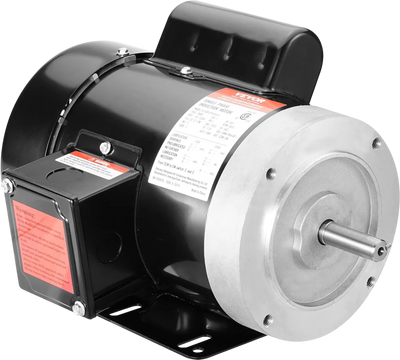

Vevor Electric Motor 1 HP 3450 RPM 56C Frame Single Phase 5/8" Keyed Shaft 115/230V New
-
Vevor Electric Motor 1.5 HP 3450 RPM 56C Frame 5/8" Keyed Shaft Single Phase 115/230V New
-
Vevor Motor Electric 1.5HP 1725 RPM CW/CCW Rotation 5/8" Keyed Shaft Single Phase AC115V/230V New
-
Vevor Air Compressor Motor CW/CCW Rotation 5 HP 230V 25A 3450 RPM New
Vevor Spindle Motor 1.5KW Water Cooled CNC Router Motor New
Product Overview

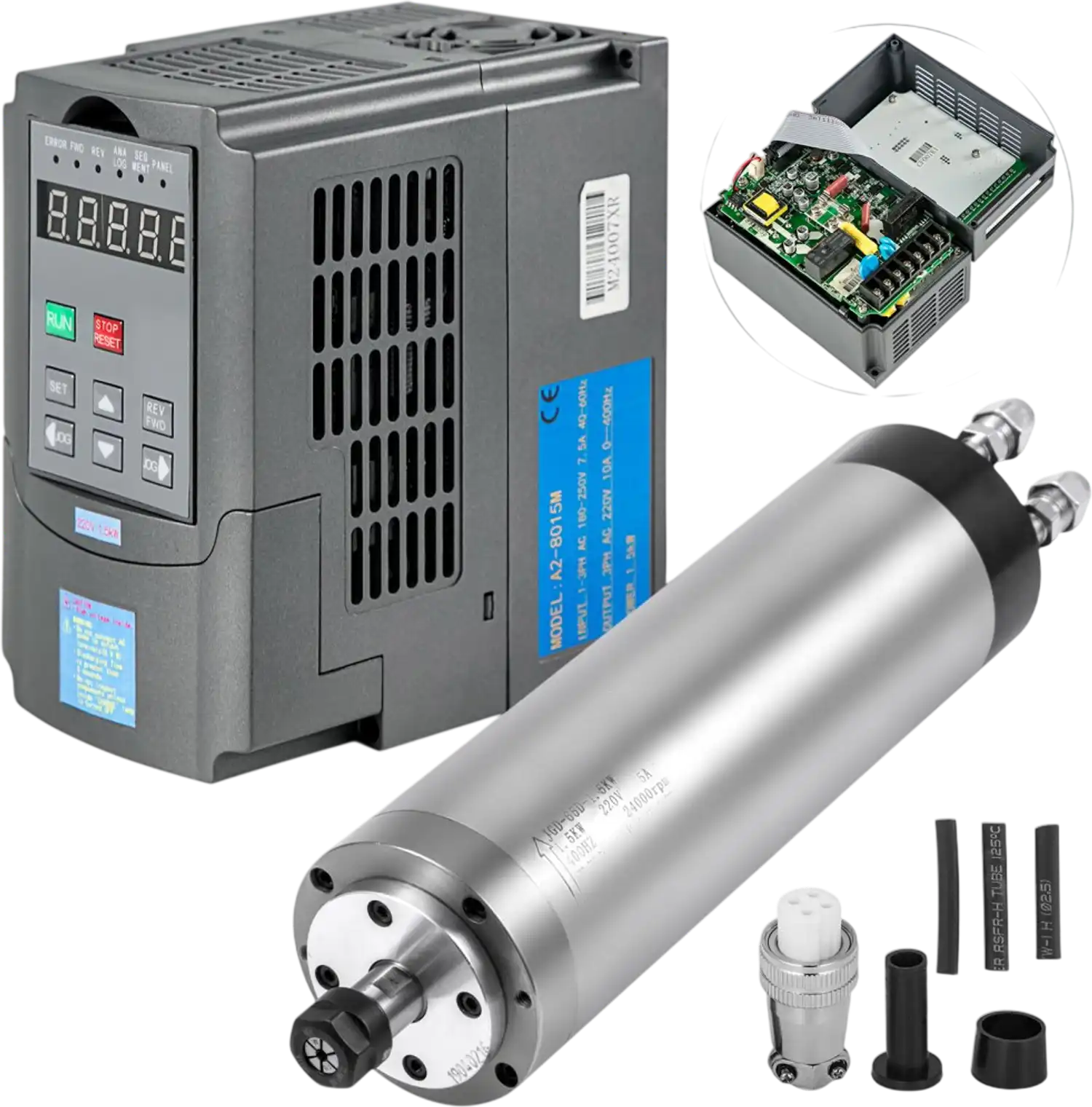

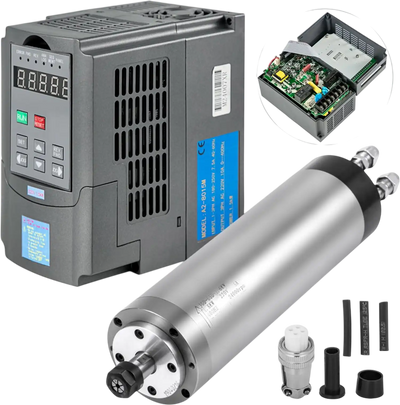

The Vevor 1.5KW water cooled spindle motor is designed for CNC engraving, milling, and grinding applications. It features an ER11 collet, four bearings, and a high-speed range of 8000 to 24000 RPM for precise and stable operation. The stainless steel housing and pure copper rotor help improve durability, efficiency, and corrosion resistance. Its water circulation cooling system supports low-noise performance and effective heat dissipation during extended use. This spindle motor is suitable for working with wood, stone, metal, and other materials.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Technical Parameters: Spec: φ2.6 x 8.6 in (Diameter: 6.5 cm x Length: 21.75 cm); Power: 1.5 KW; Voltage: 220V~250V; Current: 5A; Collet Size: ER11; Bearings: 4 bearings; Frequency: 400 Hz; Speed: 8000-24000 R/min; Runout off: less than 0.005 mm. The CNC spindle motor is mainly used for engraving machine or used with frequency converter.
- ER11 Standard Collet: The collet of the cnc spindle is quenched with manganese steel, and the runout is less than 0.005 mm, which has high precision and is not easy to break the knife, increasing the stability of the working process. Dynamic balance technology can effectively reduce noise during use.

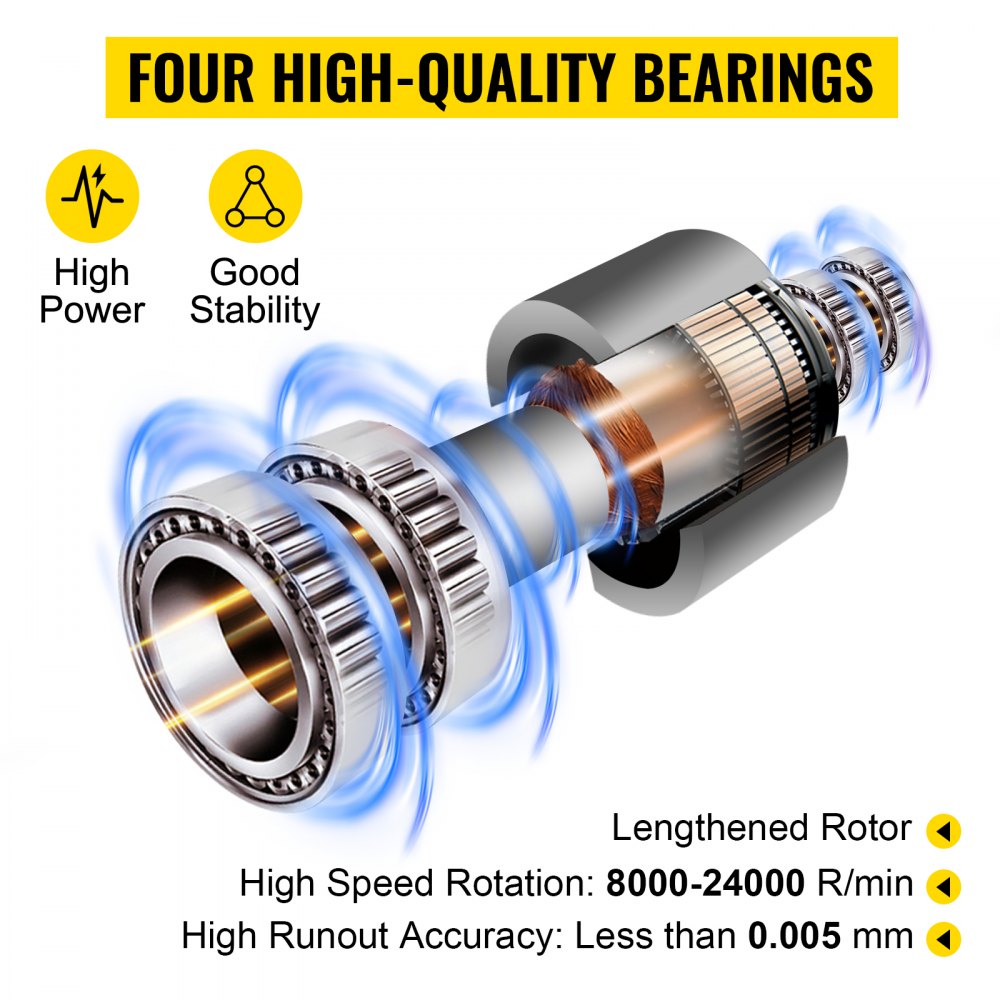

- Powerful Bearing: The water cooled spindle motor adopts imported bearings with high accuracy, precision, and durability. Significantly improve the hardness and anti-rust performance.

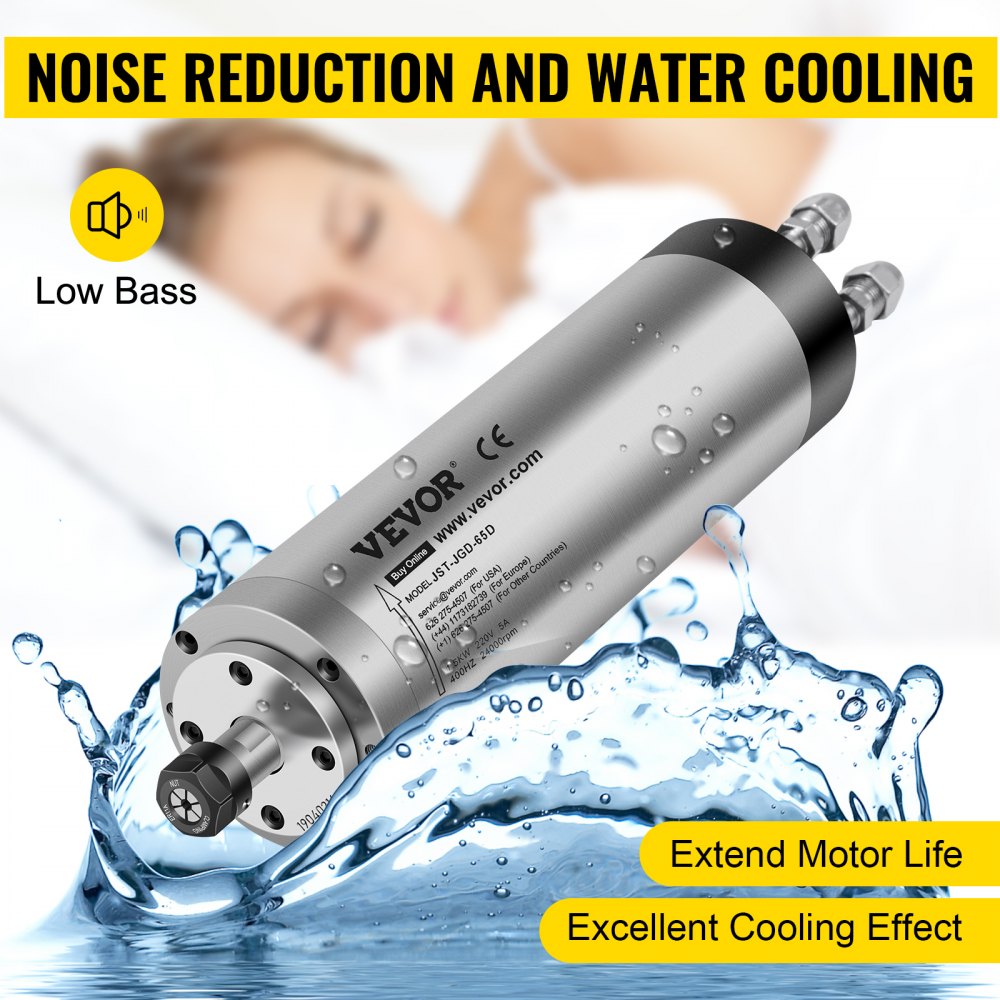

- Low Noise & Heat Dissipation: The dynamic balance technology can effectively reduce the noise during use. The scientifically designed water circulation system has a better heat dissipation effect to ensure smooth operation.

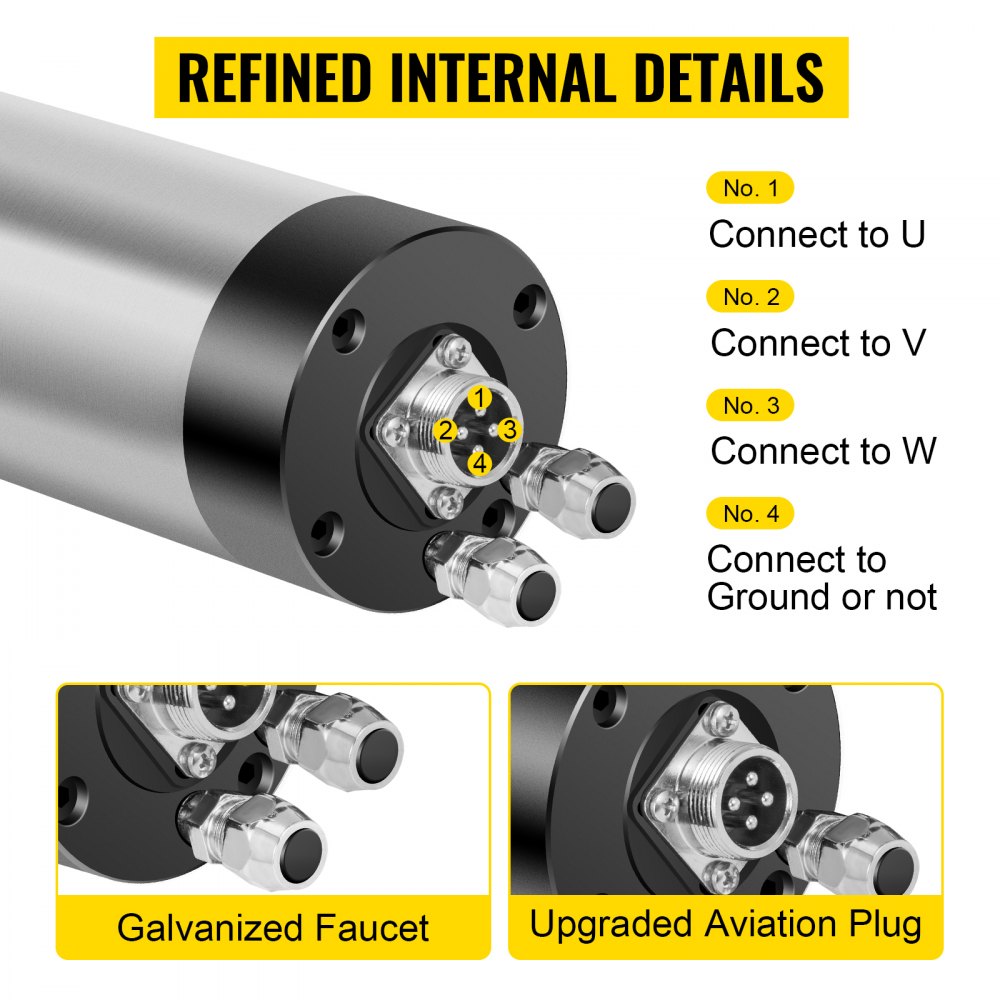

- Fine Workmanship: The body of the CNC router spindle is made of high-quality stainless steel, equipped with a pure copper rotor. The upgraded version of the aviation plug can ensure the stability and security of the input power, and the dust cover prevents dust from entering the body.
Specifications
| Product Type | Spindle Motor |
| Power | 1.5 KW |
| Voltage | 220V~250V |
| Current | 5A |
| Collet Size | ER11 |
| Bearings | 4 bearings |
| Frequency | 400 Hz |
| Speed | 8000-24000 R/min |
| Runout Off | Less than 0.005 mm |
| Product Dimension | 2.6 x 8.6 in / 6.5 x 21.75 cm |
| Weight | 8.4 lbs / 3.8 kg |
| Dust Shoe Size | 65 mm |
Package Contents
1 x Water Cooled Spindle Motor
Warranty
This item comes with a 1 year factory warranty.
