Vevor Spindle Motor Air Cooled with ER20 Collet for CNC Router 2.2kW 24000 RPM 220V New
Manufacturer: Vevor
SKU: 2.2KW220VFLDJ0001V0
QTY
(888) 999-1522
$ 136.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
Only 3 left in stock
Ships in (est) 1-3 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor Rotary Table 8" Horizontal & Vertical MT-3 Milling Drilling Machine 4 Slots New
-
Vevor Rotary Table 8" Horizontal & Vertical MT-3 Milling Drilling Machine 3 Slots New
-
Vevor Rotary Table 6" (150 mm) 4-Slot Horizontal Vertical Dividing Plates for Milling Machine New
-
Vevor Dividing Head BS-1 with 6" 3-Jaw Chuck Tailstock Dividing Plates Semi-Universal Milling Set...
-
Vevor Dividing Head K11-100mm 3-Jaw Chuck CNC Router Indexing Head 2.6" Center Height New
-
Vevor Dividing Head BS-0 5-Inch 3 Jaw Chuck for Milling Machine Rotary Table New
Vevor Spindle Motor Air Cooled with ER20 Collet for CNC Router 2.2kW 24000 RPM 220V New

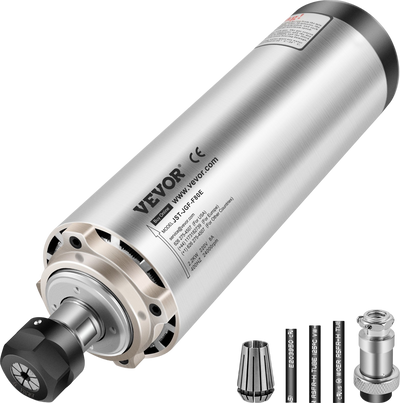

Product Overview
The spindle motor features high-quality bearings and stainless steel material, providing superior durability and anti-rust performance. The ER20 collet system on this spindle motor offers versatility and precision, supporting a wide range of tools up to 1/2". This spindle motor is designed for easy installation and fits most CNC routers without modifications.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Technical Parameters: Spec: φ3.1 x 11.8 in (Diameter: 8 cm x Length: 29.9 cm); Power: 2.2KW; Voltage: 220V; Current: 8A; Collet Size: ER20; Bearings: 4 bearings; Frequency: 200-400 Hz; Speed: 12000-24000 R/min; Runout off: less than 0.002 mm. Mainly used for engraving machine or used with frequency converter.
- ER20 Standard Collet: The collet of the CNC router spindle is quenched with manganese steel, and the runout is less than 0.002 mm, which has high precision and is not easy to break the knife, increasing the stability of the working process. Dynamic balance technology can effectively reduce noise during use.
- Powerful Bearing: The air spindle motor adopts high-quality bearings with high accuracy, precision, and durability. Significantly improve the hardness and anti-rust performance.
- Low Noise & Heat Dissipation: The dynamic balance technology can effectively reduce the noise during use. The scientifically designed air cooling system has a better heat dissipation effect to ensure smooth operation.
- Wide Application: The CNC spindle motor kit is mainly used for engraving machines or frequency converters. It uses air circulation to cool and has a good heat dissipation effect.
Specifications
| Power | 2.2kW |
| Voltage | 220V |
| Frequency | 200-400 Hz |
| Speed | 12000-24000 RPM |
| Runout Off | Less than 0.002 mm |
| Maximum Torque | 1.7NM |
| Product Dimensions | 3.1" x 11.8" |
| Weight | 13.2 lbs (6 kg) |
Package Contents
Vevor Air Cooled Spindle Motor
ER20 Collet
User Manual
Warranty
This item comes with a 1 year factory warranty.
