Vevor Steering Rack and Pinion Hydraulic Power-Assisted Assembly for Lexus RX330 RX350 Toyota Highlander New

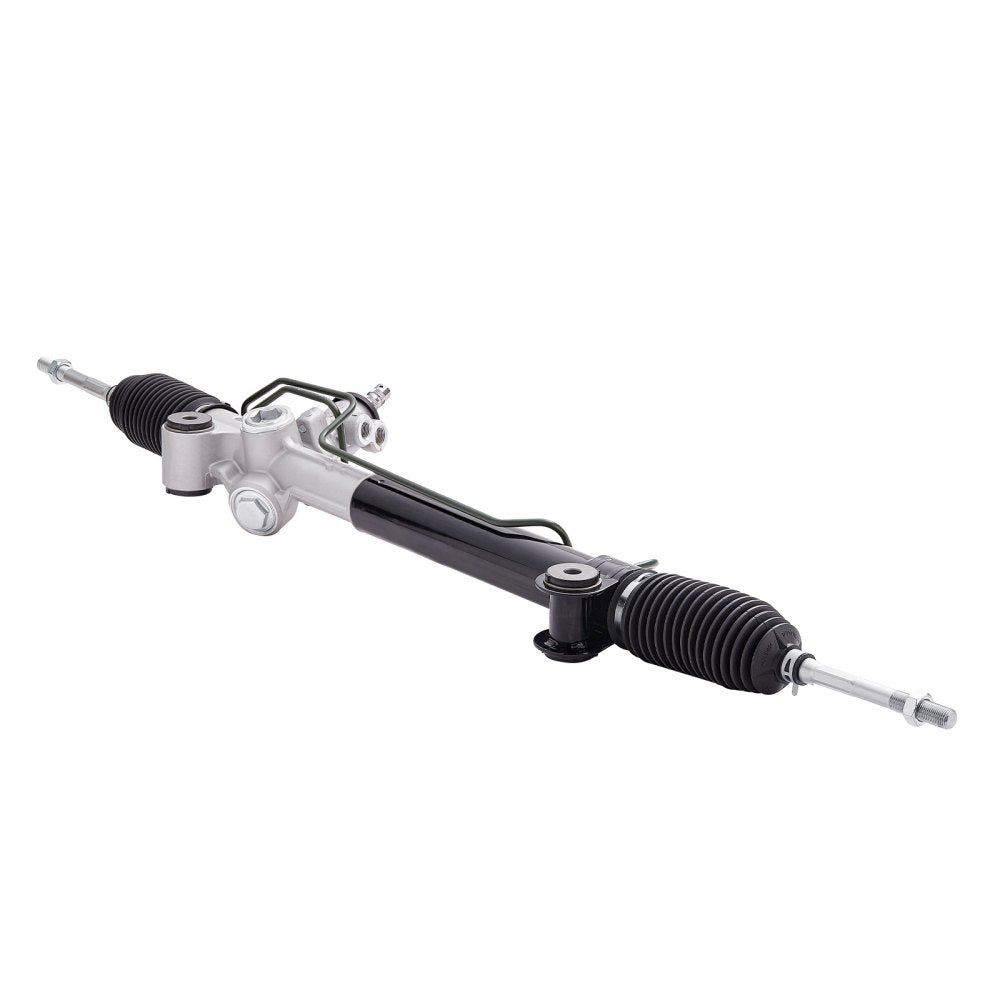

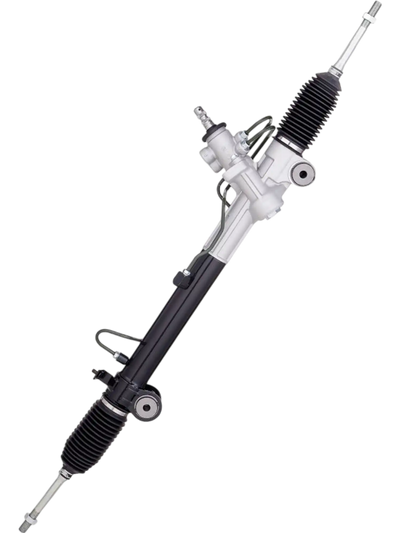

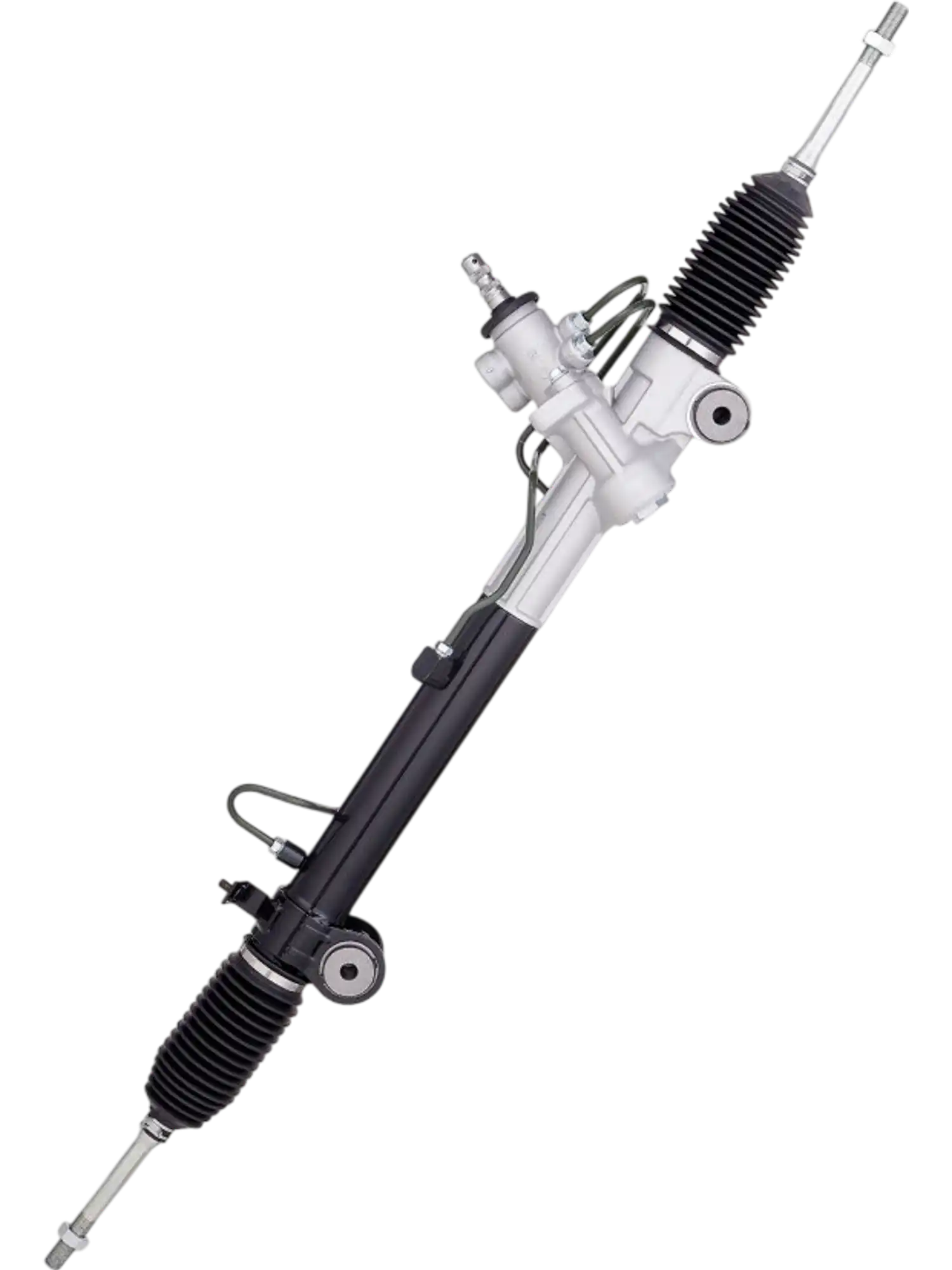

Product Overview
This hydraulic power steering rack and pinion assembly is designed as a direct replacement unit for select Lexus and Toyota vehicles. It is built for smooth, responsive steering and stable handling with optimized gear and rack meshing technology. The assembly features durable construction with corrosion-resistant materials and a fully enclosed dust boot for added protection. It is intended for left-hand-drive applications and includes an inner tie rod for secure suspension connection.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Wide Vehicle Compatibility: Our hydraulic power steering rack and pinion fits: 2004-2006 Lexus RX330, 2007-2009 Lexus RX350, 2001-2007 Toyota Highlander. Note: For left-hand drive only.
- OE Part Numbers: This steering rack and pinion assembly is a direct replacement for OE part numbers: 4420048090, 26-2617, 262617, 4420048091, 4420048180, 442500E010, 442500E011, 4425048120, 4550309270, 4550349125.
- Specifications: Input shaft diameter: 17.3 mm / 0.68 inch; Input shaft length: 49 mm / 1.93 inch; Rack length: 1115 mm / 43.94 inch; Tie rod thread length: 47 mm / 1.85 inch; Tie rod thread size: M15×1.5-6g; Pressure port thread size: M16×1.5-6H; Return port thread size: M17×1.5-6H; Total turns lock to lock: 3.

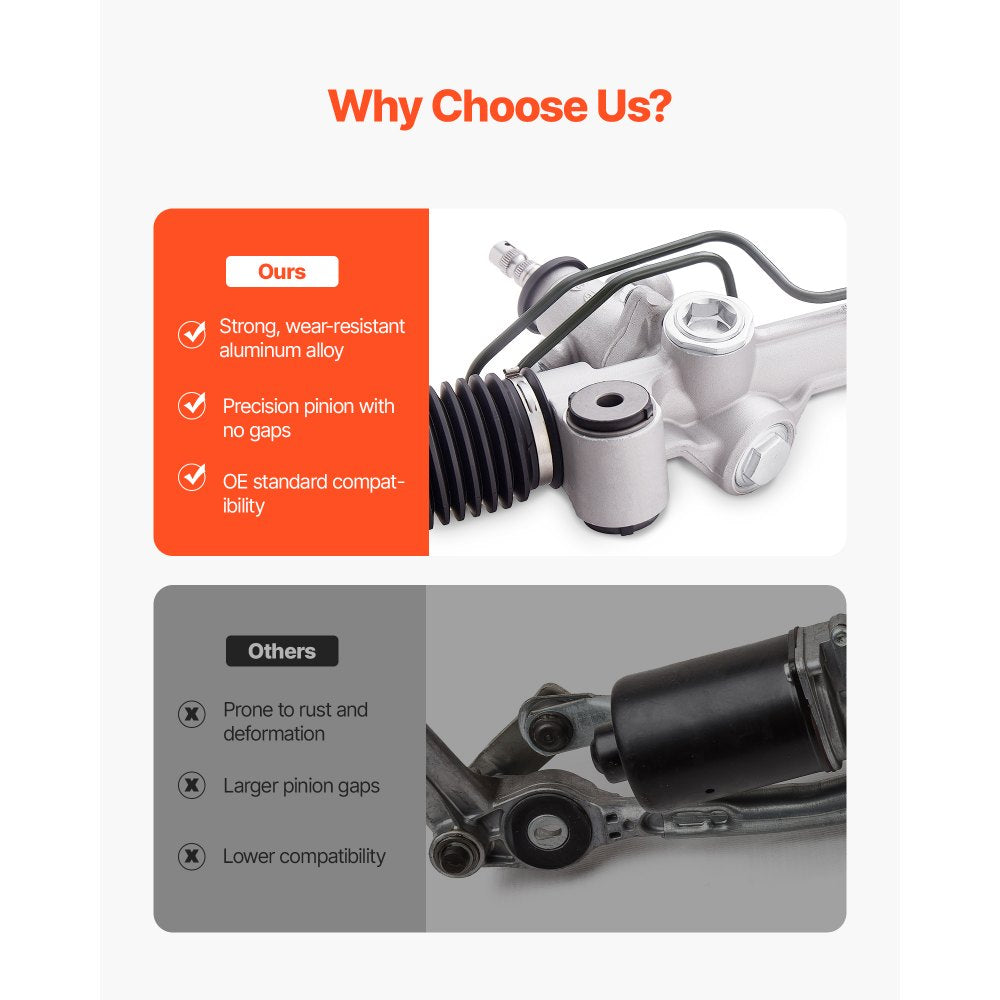

- Corrosion-Resistant Alloy: Crafted from high-quality aluminum alloy, the steering rack and pinion assembly offers exceptional strength and durability for smooth driving on harsh terrains while preventing the steering system from jamming with a leak-free dust boot design.

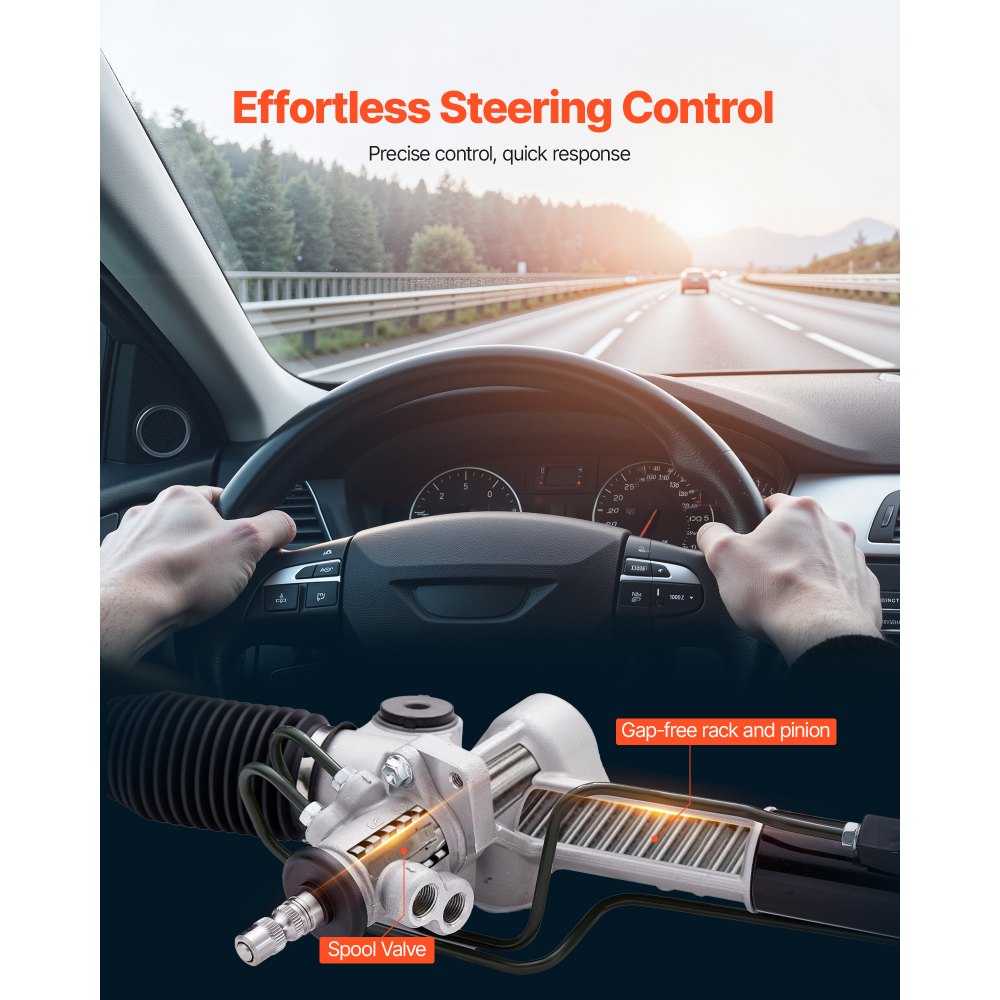

- Agile Steering: Optimized gear and rack meshing technology provides enhanced stability and quick, responsive steering, ensuring smooth and precise control for a superior driving experience.

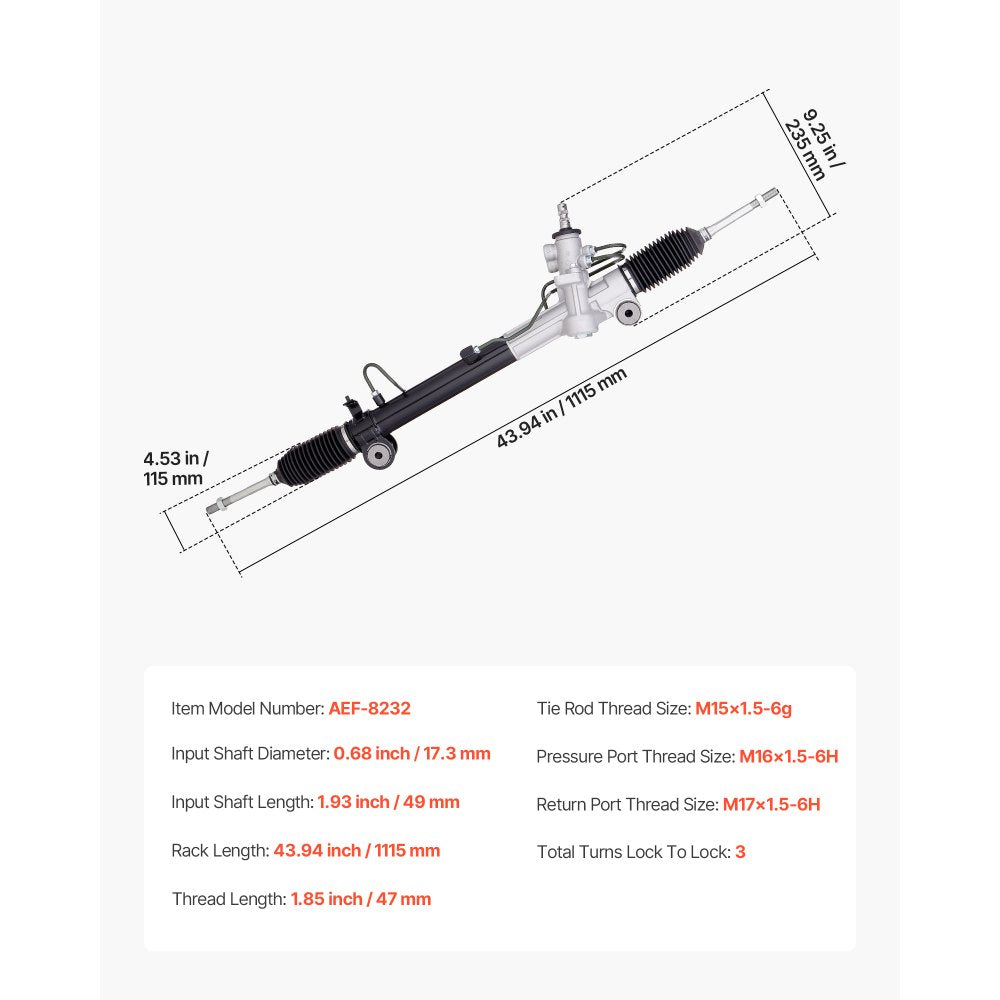

Specifications
| Item Model Number | AEF-8232 |
| Compatible Vehicles | 2004-2006 Lexus RX330; 2007-2009 Lexus RX350; 2001-2007 Toyota Highlander |
| Drive Type | Left-hand drive only |
| OE Part Numbers | 4420048090; 26-2617; 262617; 4420048091; 4420048180; 442500E010; 442500E011; 4425048120; 4550309270; 4550349125 |
| Input Shaft Diameter | 17.3 mm / 0.68" |
| Input Shaft Length | 49 mm / 1.93" |
| Rack Length | 1115 mm / 43.94" |
| Tie Rod Thread Length | 47 mm / 1.85" |
| Tie Rod Thread Size | M15×1.5-6g |
| Pressure Port Thread Size | M16×1.5-6H |
| Return Port Thread Size | M17×1.5-6H |
| Total Turns Lock to Lock | 3 |
| Net Weight | 19.40 lbs / 8.8 kg |
| Dimensions | 43.86 x 4.53 x 9.25" / 1115 x 115 x 235 mm |

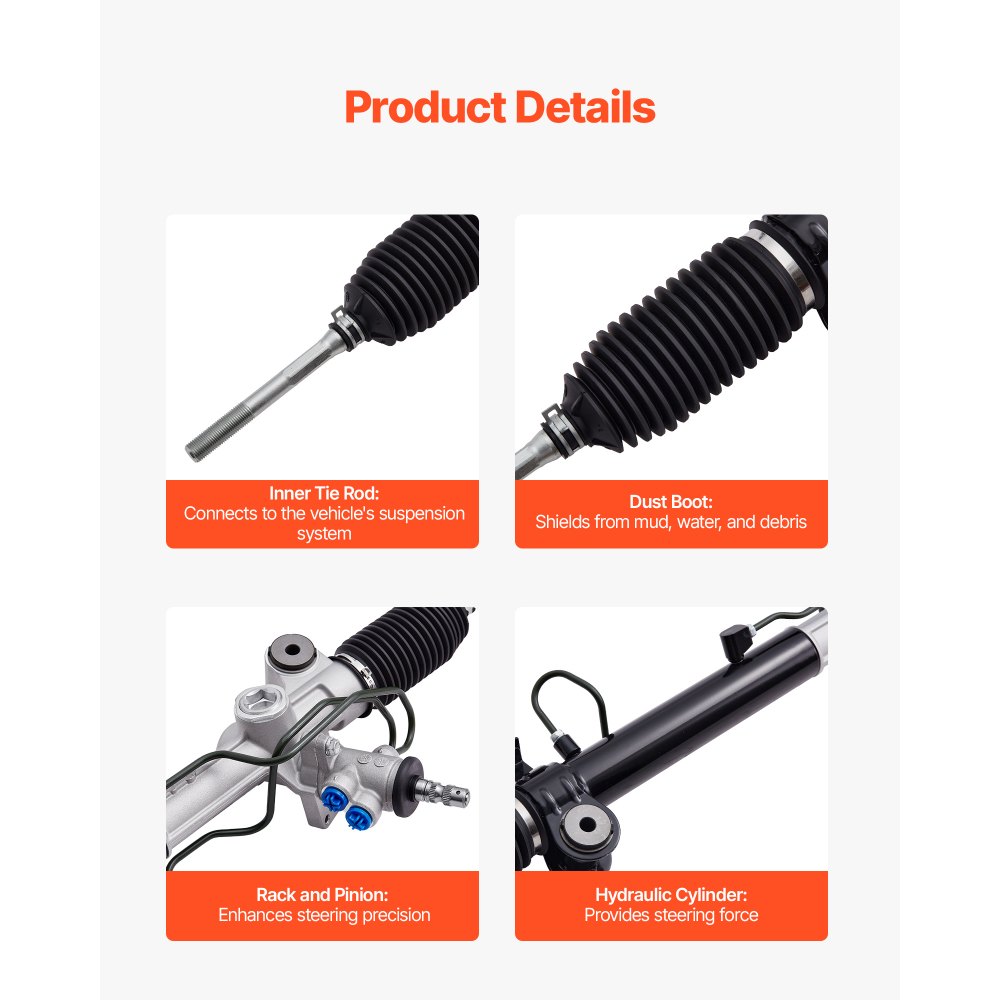

Package Contents
Hydraulic power steering rack and pinion assembly
Inner tie rod
Warranty
This item comes with a 1 year factory warranty.
