Vevor Trailer Brake Assembly 10 x 2-1/4" Electric Brakes Kit for 3500 lb Trailers & RVs 1 Pair New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

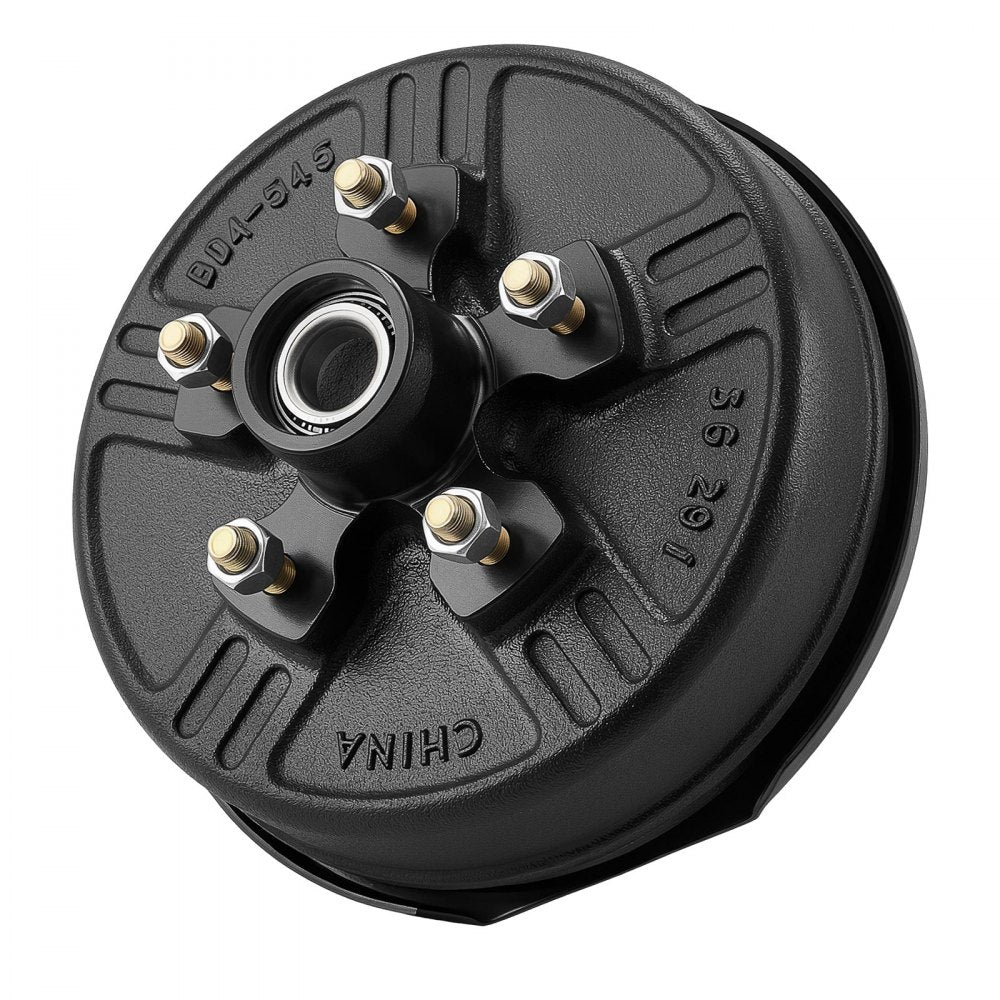

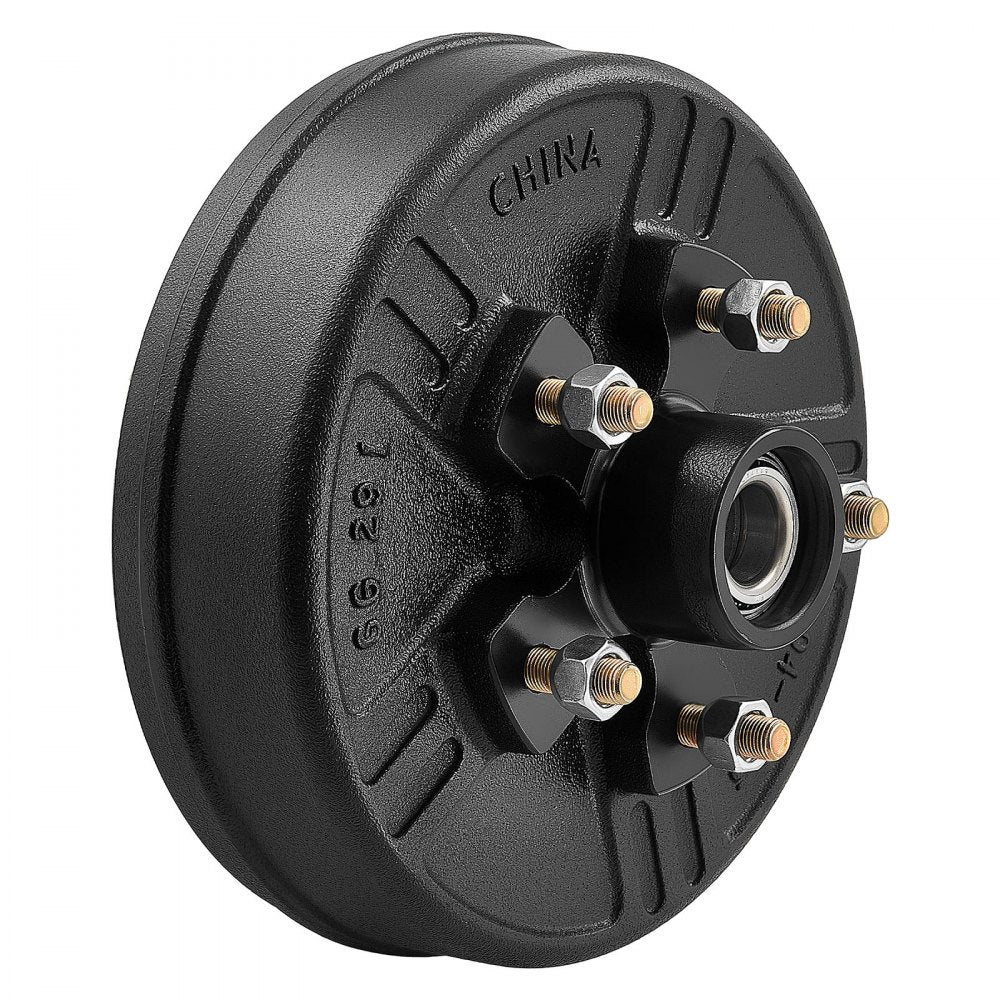

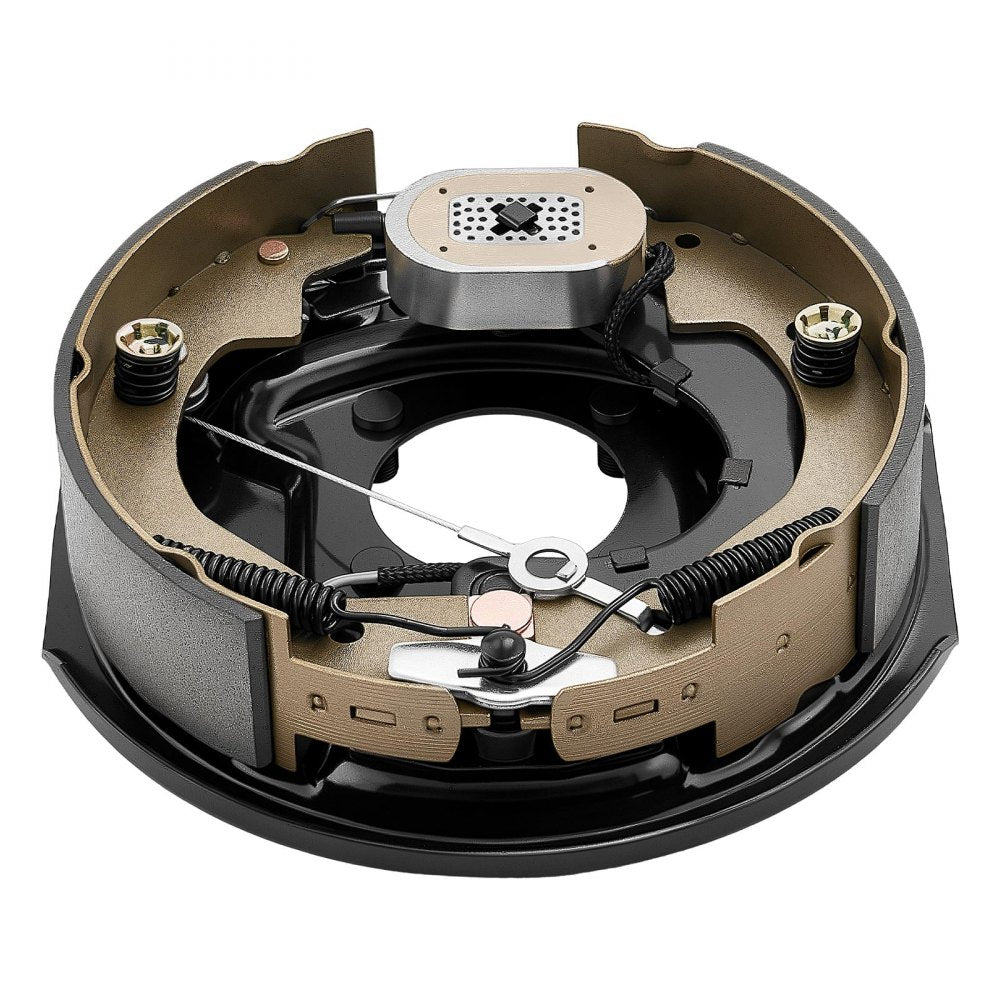

- Upgrade Your Braking System: This electric trailer drum brake kit includes 2 brake assemblies and 2 drums for 3500 lbs trailers and RVs with tapered spindles. The 10 x 2-1/4 in brakes have 4 holes on a 4 in bolt circle. The 10 in drums have 5 holes on a 5 in bolt circle. L44649/L68149 bearings
- Self-Adjusting Braking: This trailer brake kit maintains proper clearance between the brake shoes and drums automatically, helping reduce uneven wear and maintain responsive braking during long-distance travel or frequent braking without manual adjustment
- Convenient Installation: Each electric trailer brake assembly is inspected, packaged, and preassembled with core components. Add grease before use and follow the included instructions to complete DIY brake system replacement more efficiently and save time
- Stable Braking Under Heavy Loads: The trailer brake uses asbestos-free semi-metallic pads with a 0.48 friction coefficient and GG rating, helping handle high temperatures, wear, downhill braking, heavy loads, and frequent stops with responsive braking
- 30,000 km+ Service Life: Each brake assembly uses a steel structure to withstand impact, while gray cast iron drums help resist wear and rough-road shocks. Dust covers help keep dirt and debris out, helping extend service life

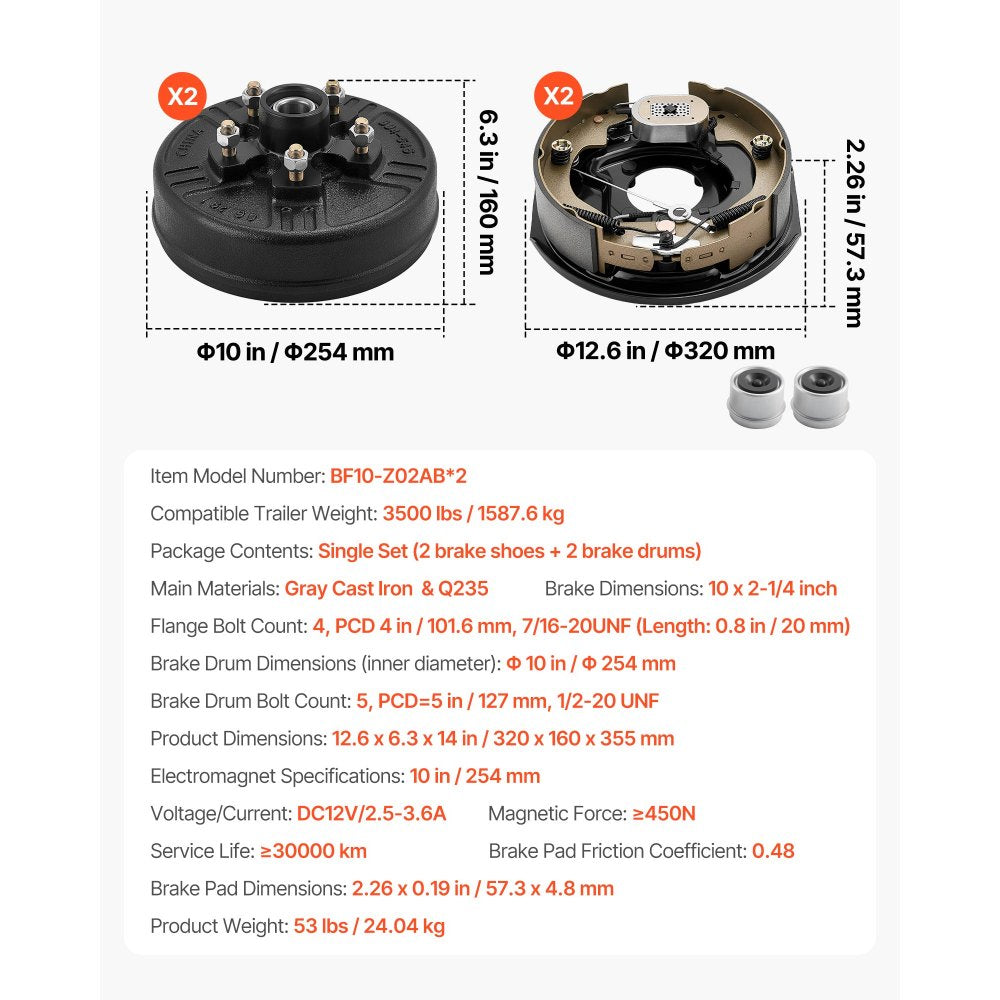

Specifications
| Item Model Number | BF10-Z02AB*2 |
|---|---|
| Compatible Trailer Weight | 3500 lbs / 1587.6 kg |
| Main Materials | Gray Cast Iron & Q235 Steel |
| Brake Dimensions | 10 x 2-1/4 in |

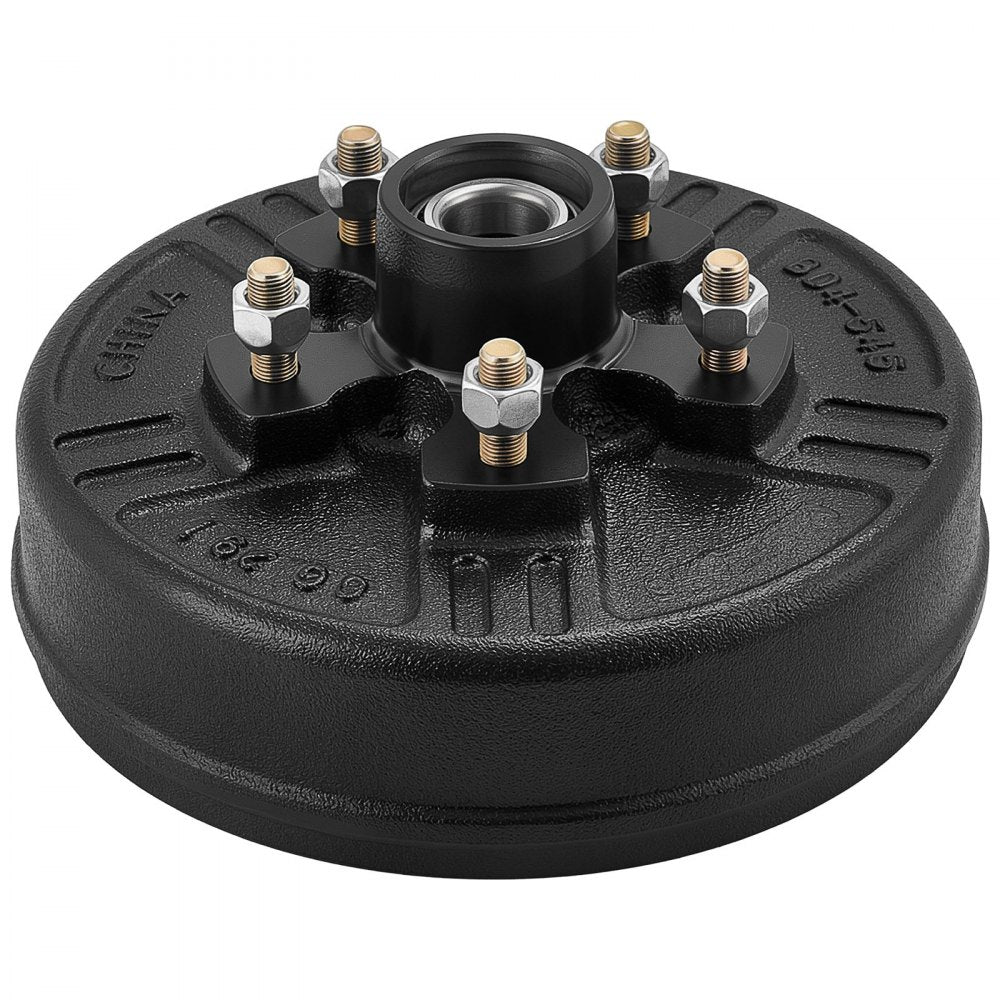

| Brake Drum Dimensions Inner Diameter | 10 in / 254 mm |
| Brake Drum Bolt Count | 5, PCD=5 in / 127 mm, 1/2-20 UNF |
| Product Dimensions | 12.6 x 6.3 x 14 in / 320 x 160 x 355 mm |
| Electromagnet Specifications | 10 in / 254 mm |
| Voltage/Current | DC 12 V / 2.5-3.6 A |
| Magnetic Force | 450 N or greater |
|---|---|
| Service Life | 30000 km or greater |
| Brake Pad Friction Coefficient | 0.48 |
| Brake Pad Dimensions | 2.26 x 0.19 in / 57.3 x 4.8 mm |

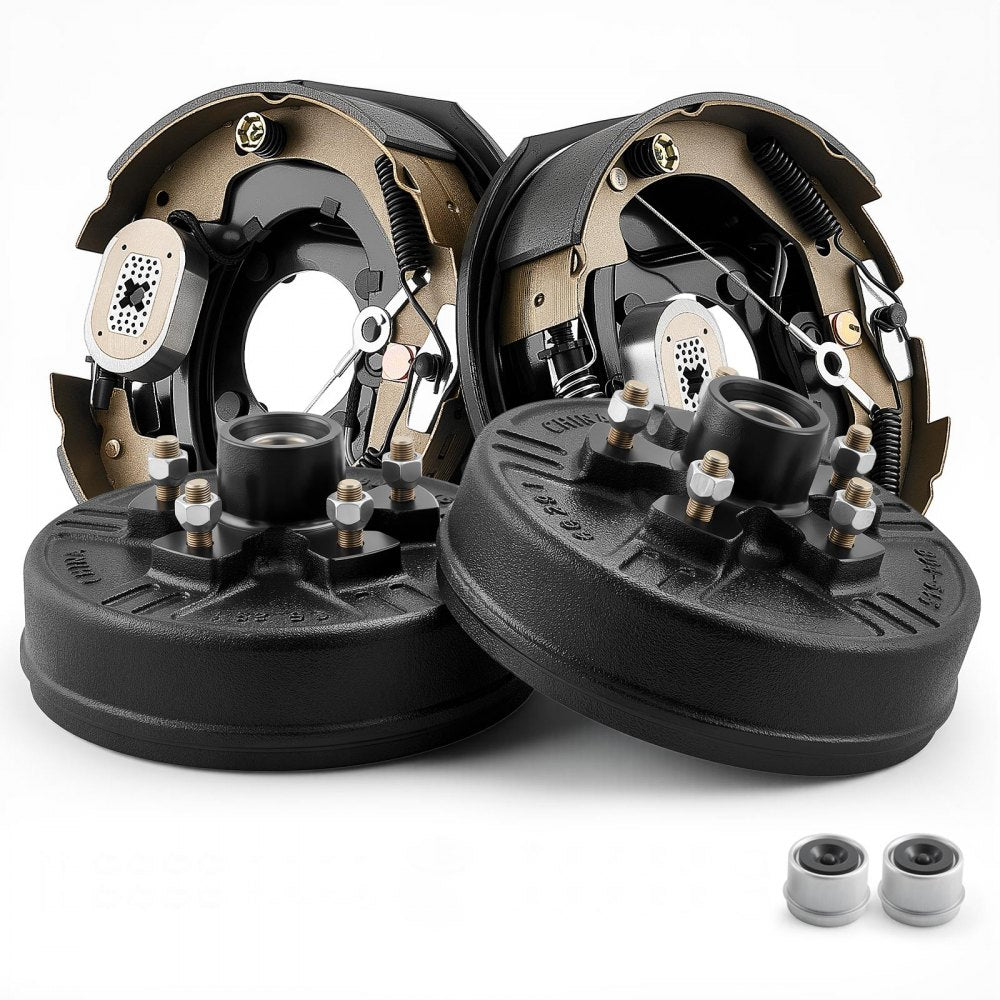

Package Contents
2 Brake Assemblies
2 Brake Drums
Warranty
This item comes with a 1 year factory warranty.
