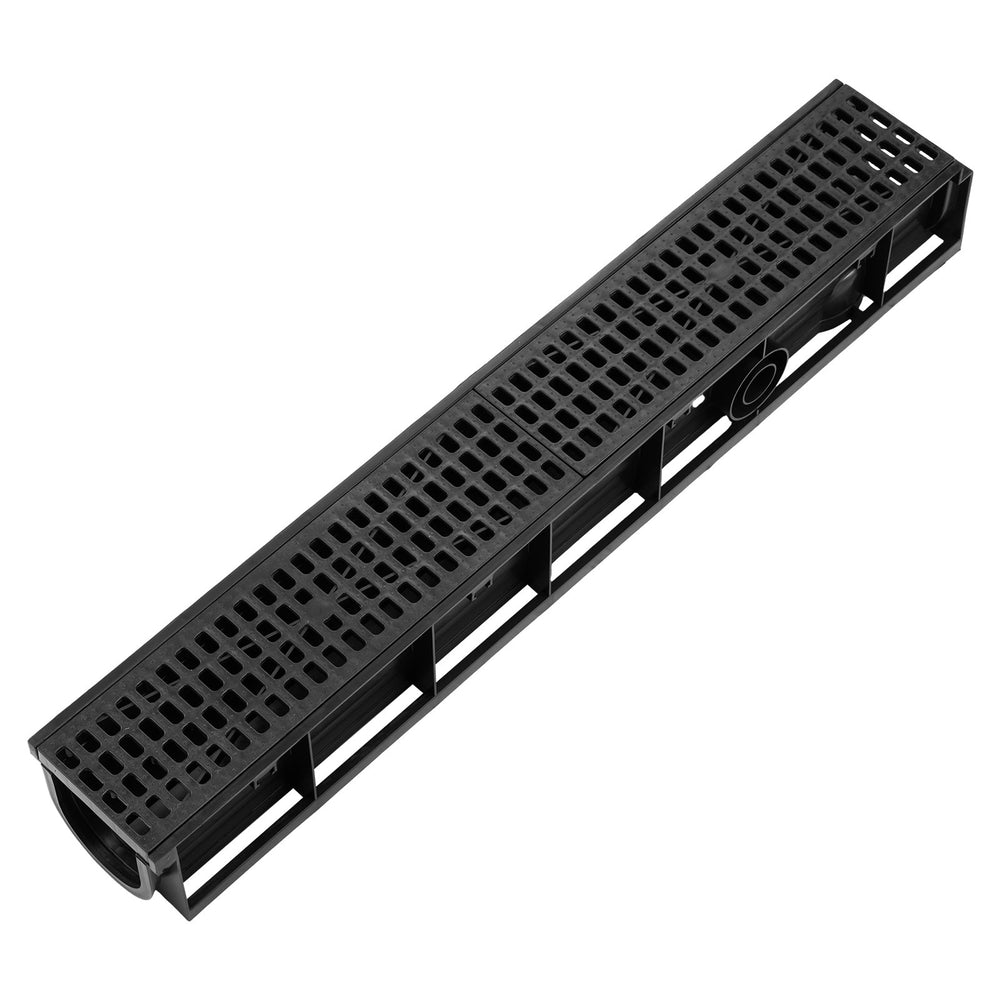

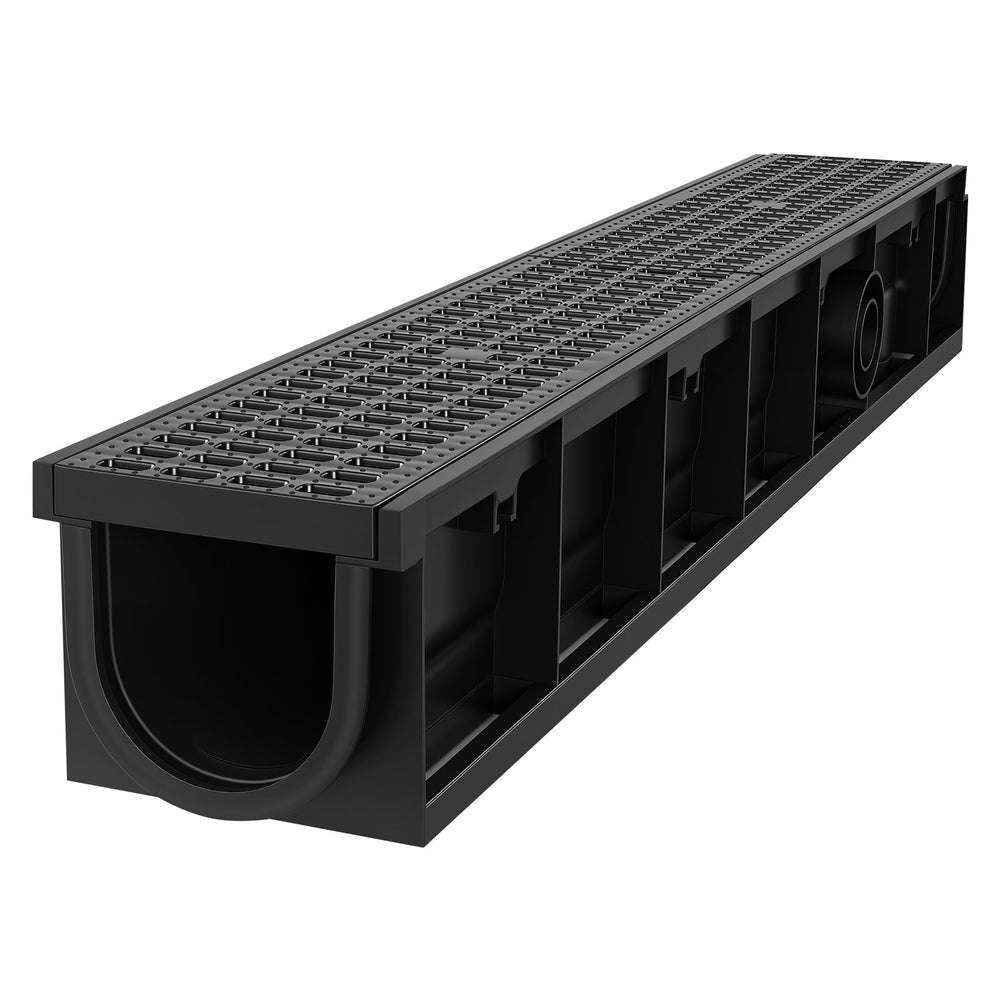

Vevor Trench Drain 40.2 x 6.6 x 5.5" 3-Pack Linear Drainage Channel New
Product Overview
This trench drain system is designed to move standing water away from driveways, patios, poolside areas, and other outdoor surfaces. It features HDPE construction, detachable grates for easier cleaning, and end caps for a complete drainage setup. The linear channels can be connected to extend the overall run for larger installations. With a high load capacity and clog-resistant design, it is well suited for residential outdoor drainage applications.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorize Vevor Dealer
Features

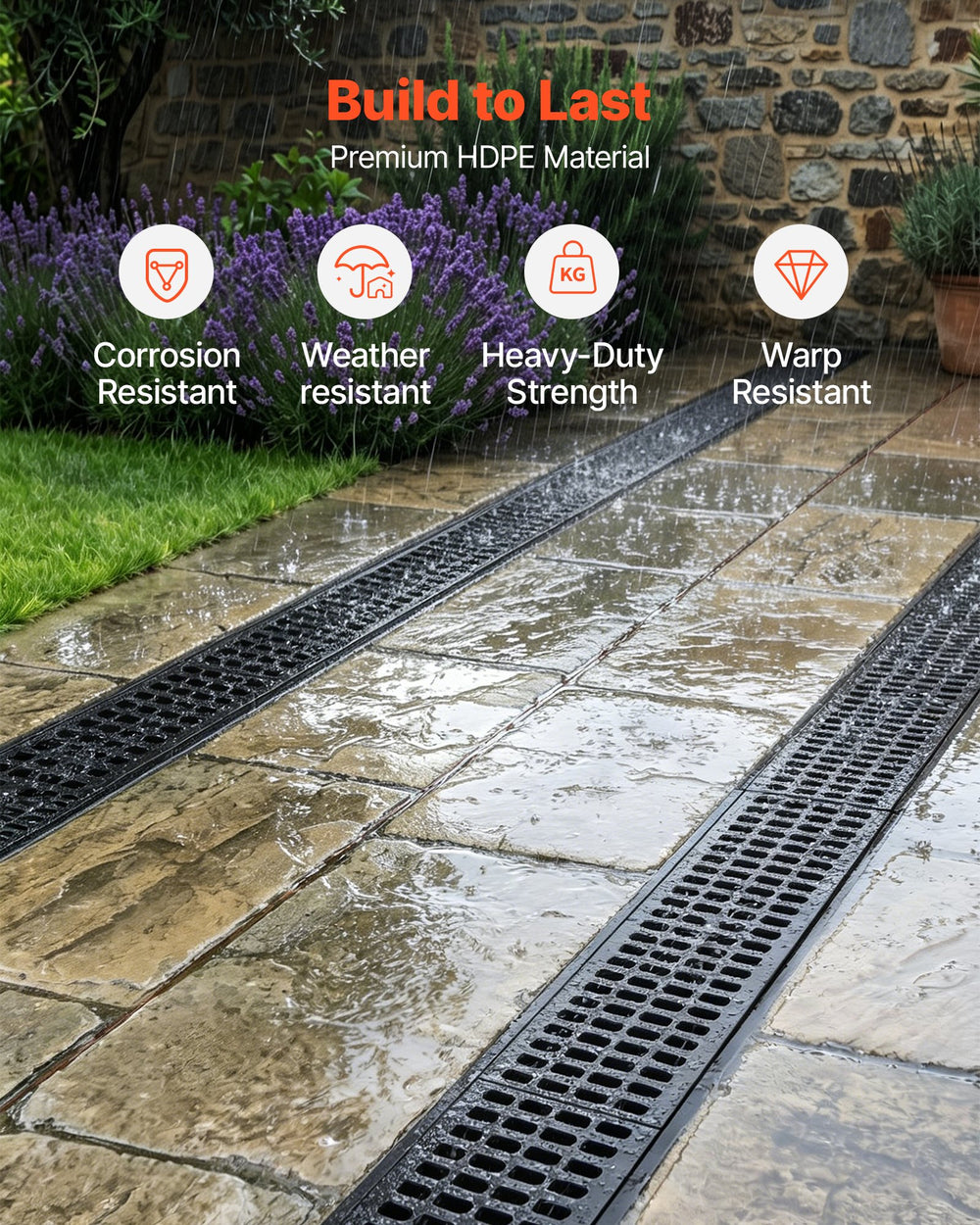

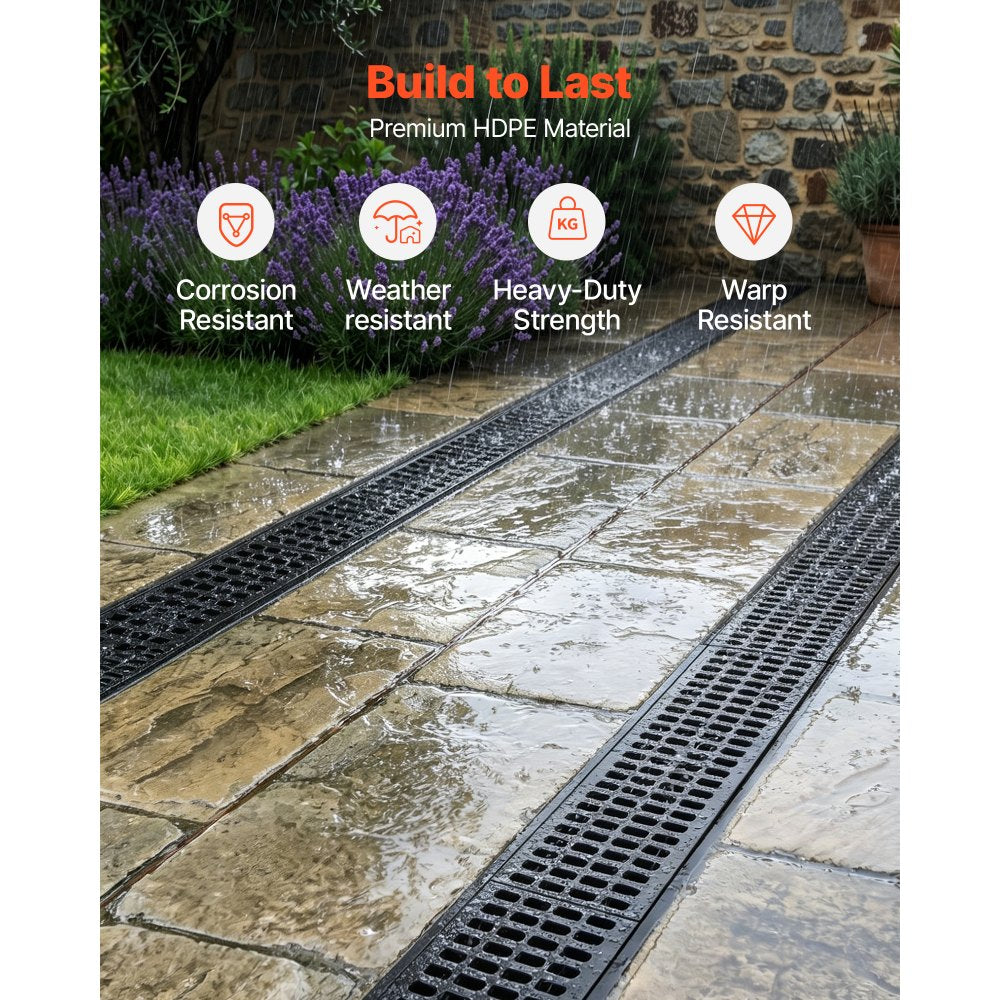

- High-Quality Material: This trench drain features HDPE channel, designed to help withstand exposure to damp, sunlight, and regular use, while supporting strong load capacity and reliable drainage performance

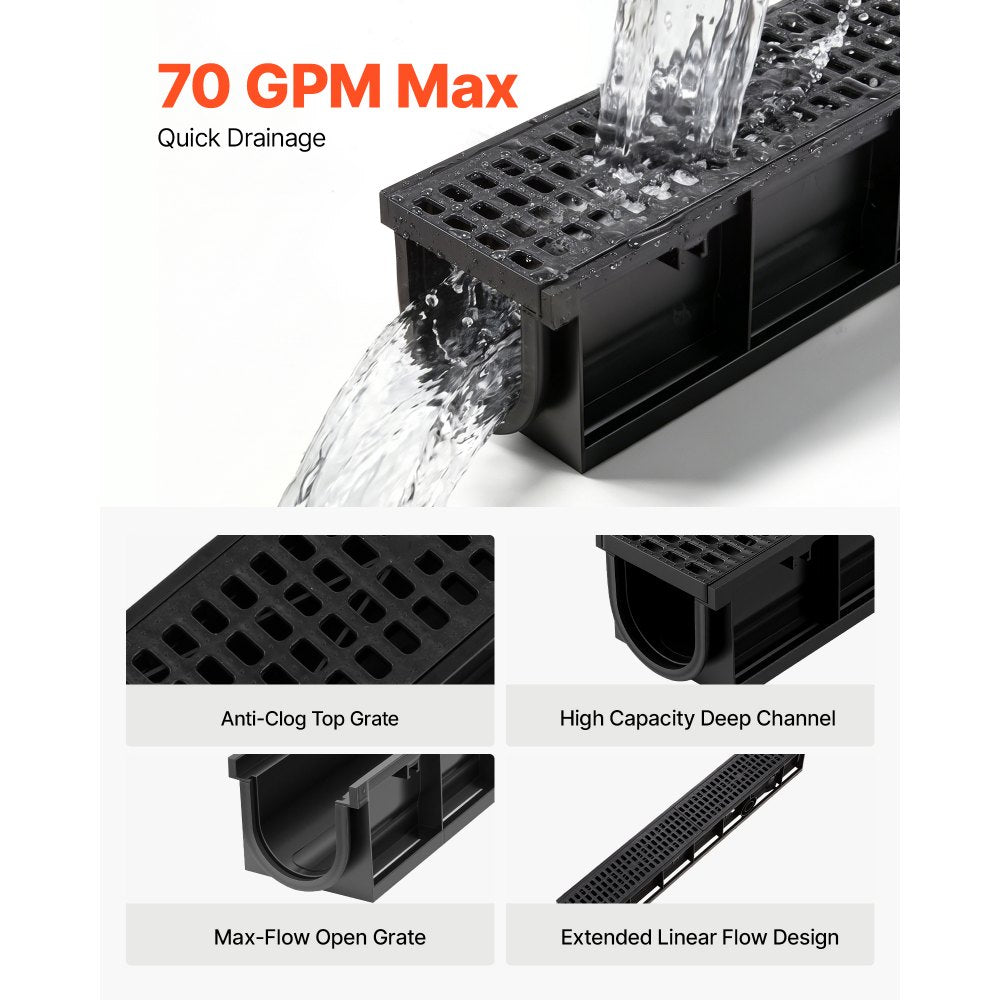

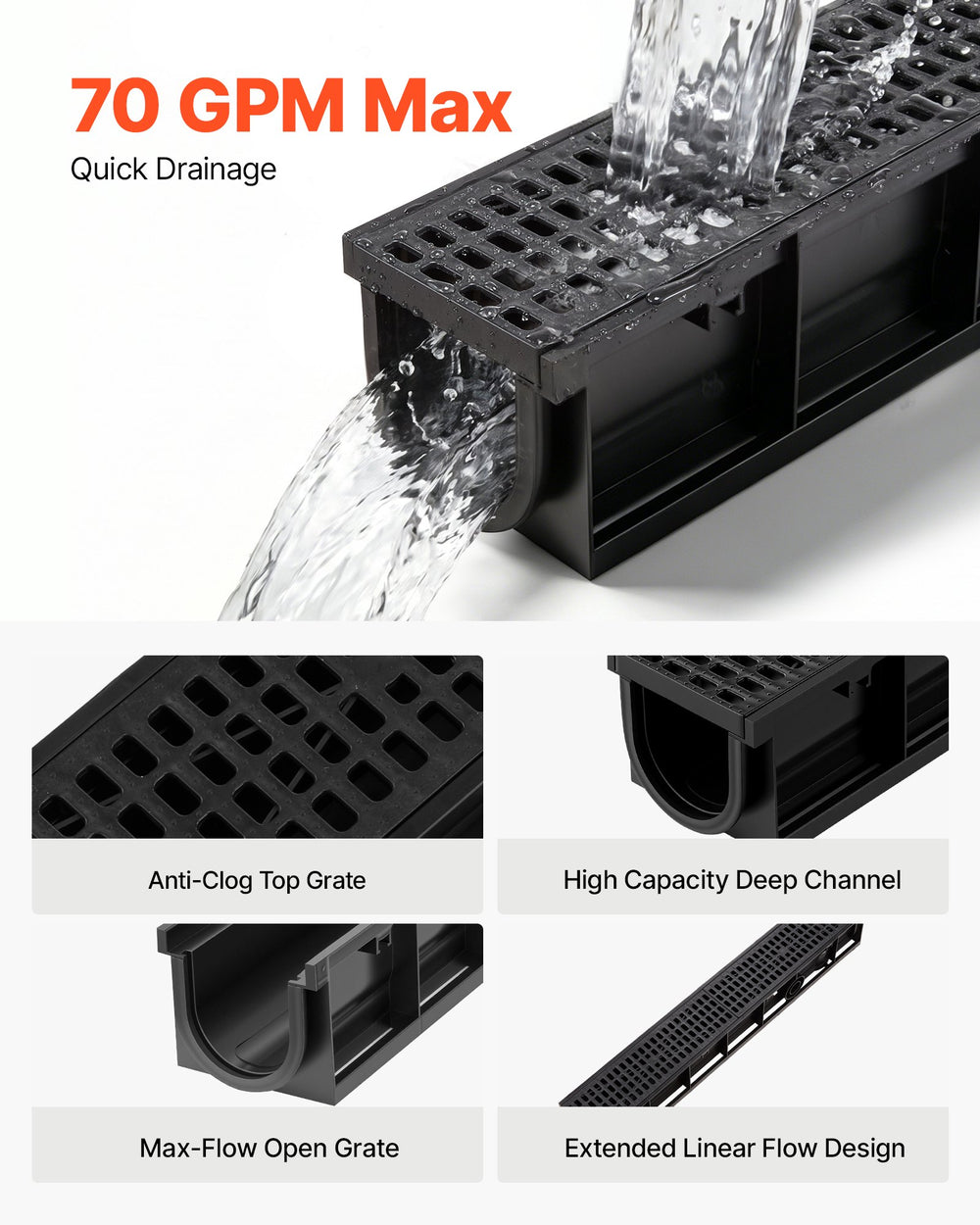

- Fast Flow & Clog-Resistant: The channel drain features a 3.9 in wide and 3.9 in deep drainage channel to support fast water flow and help avoid flooding or standing water. The detachable top grate makes it easy to clean leaves and debris, helping keep the drain clear with less effort

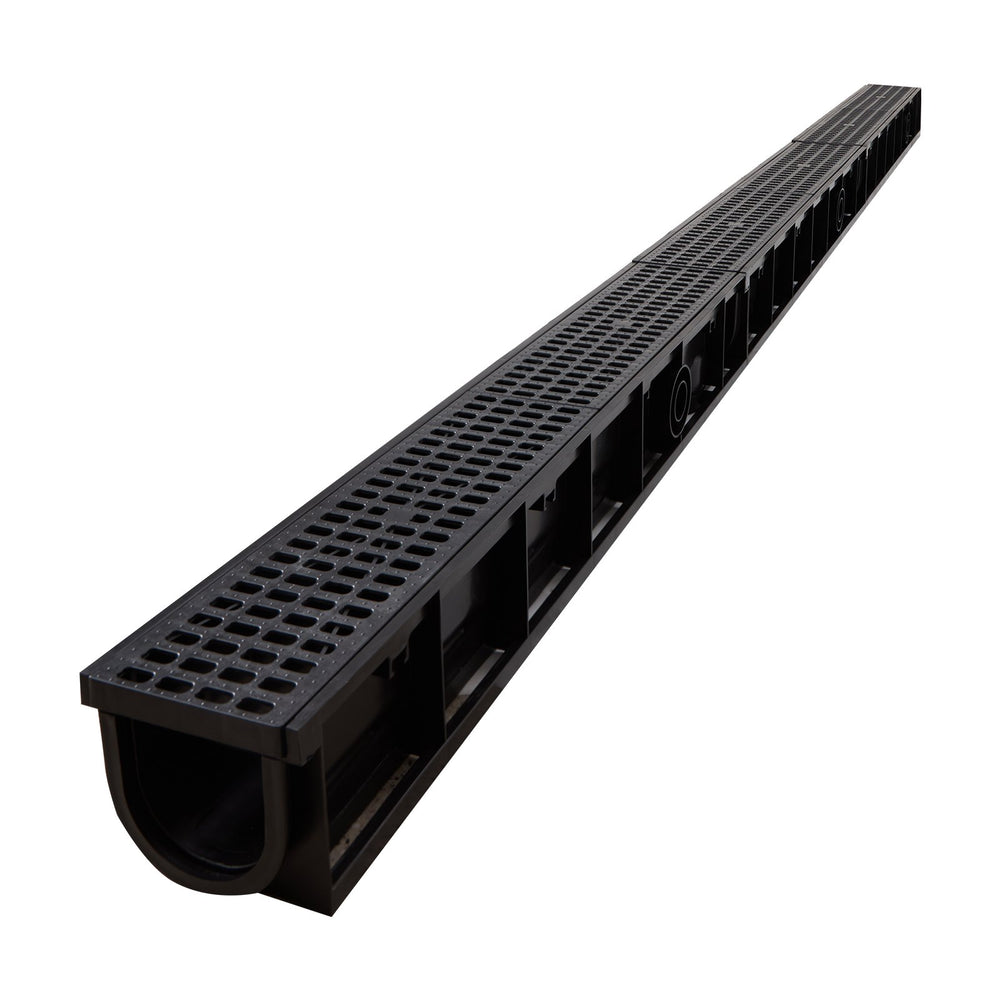

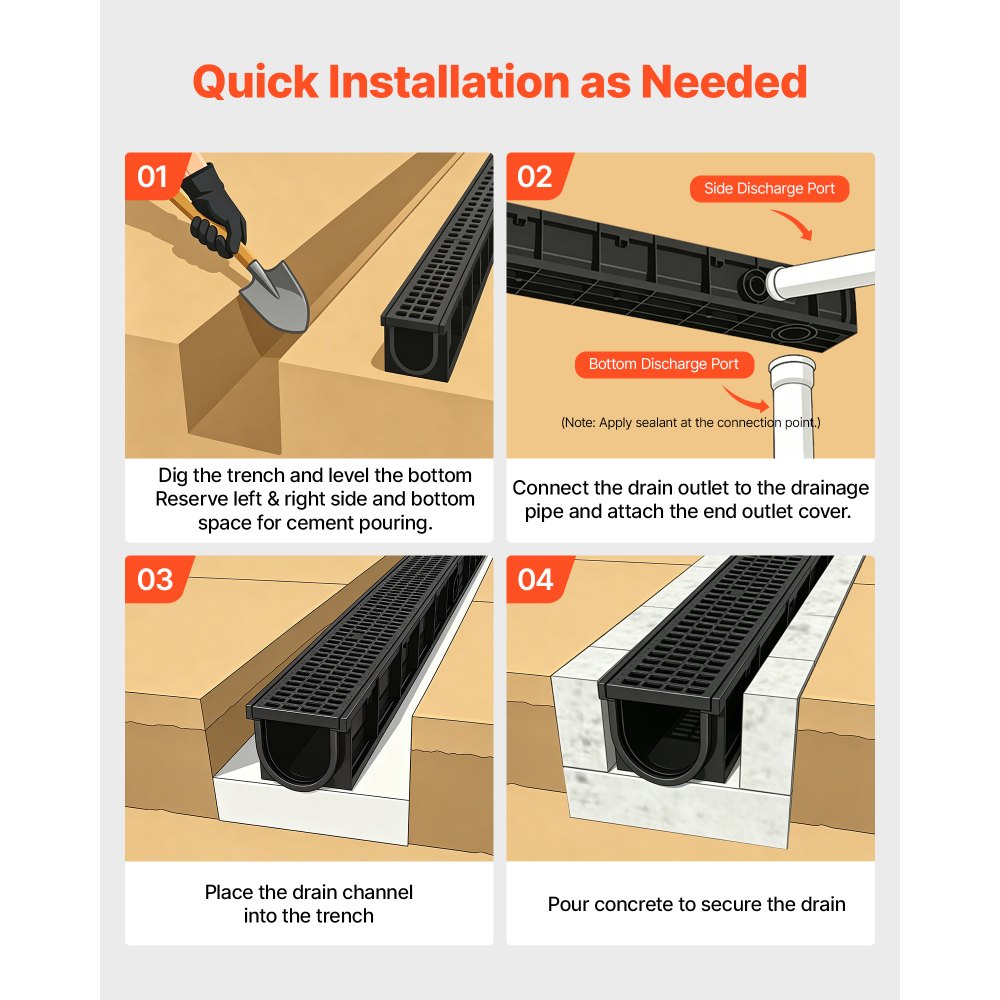

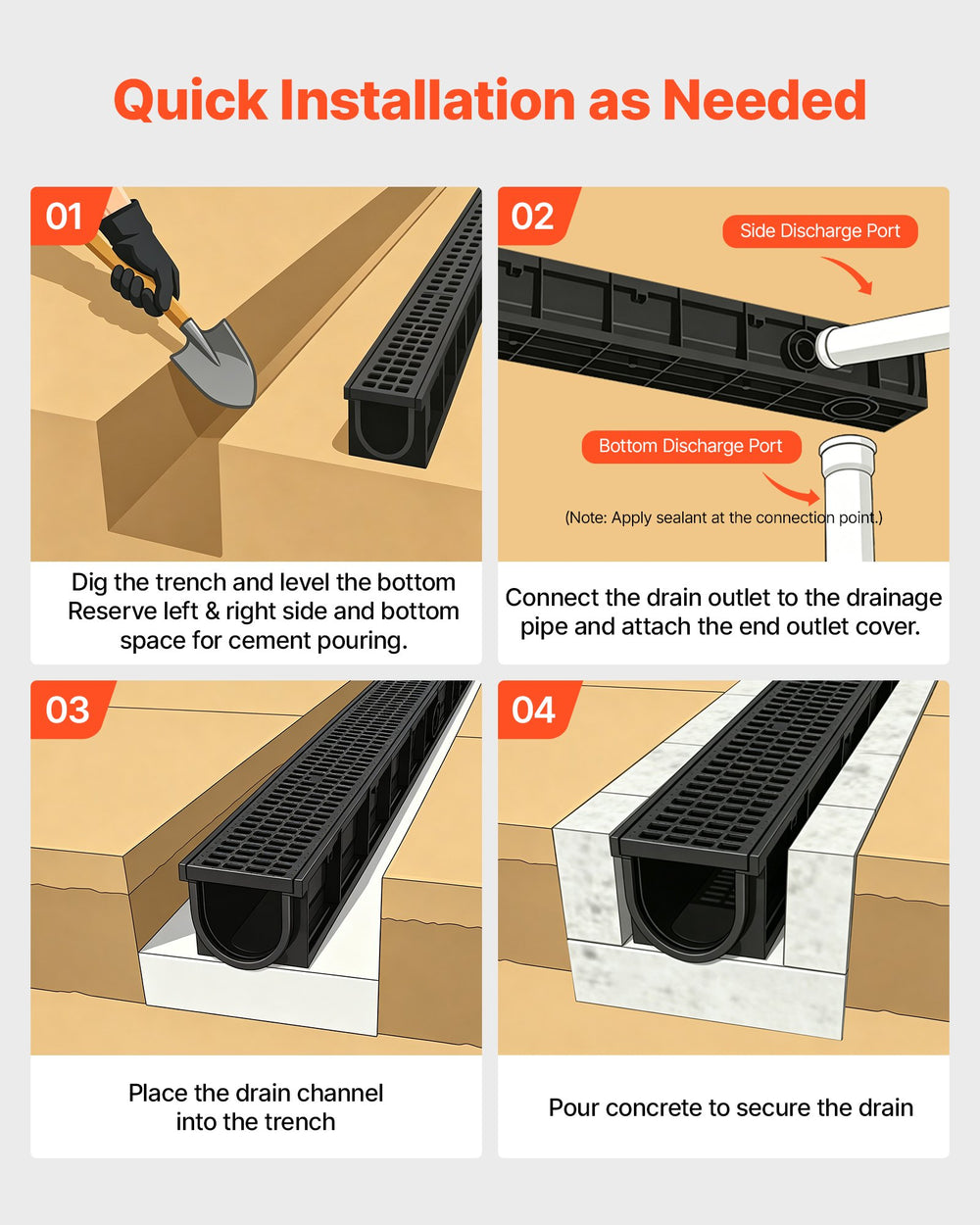

- Quick & Easy Installation: This linear drain can be connected with other drain sections to extend the total length. Apply construction adhesive(not included), to the drain cross-section, then tighten with the included screws

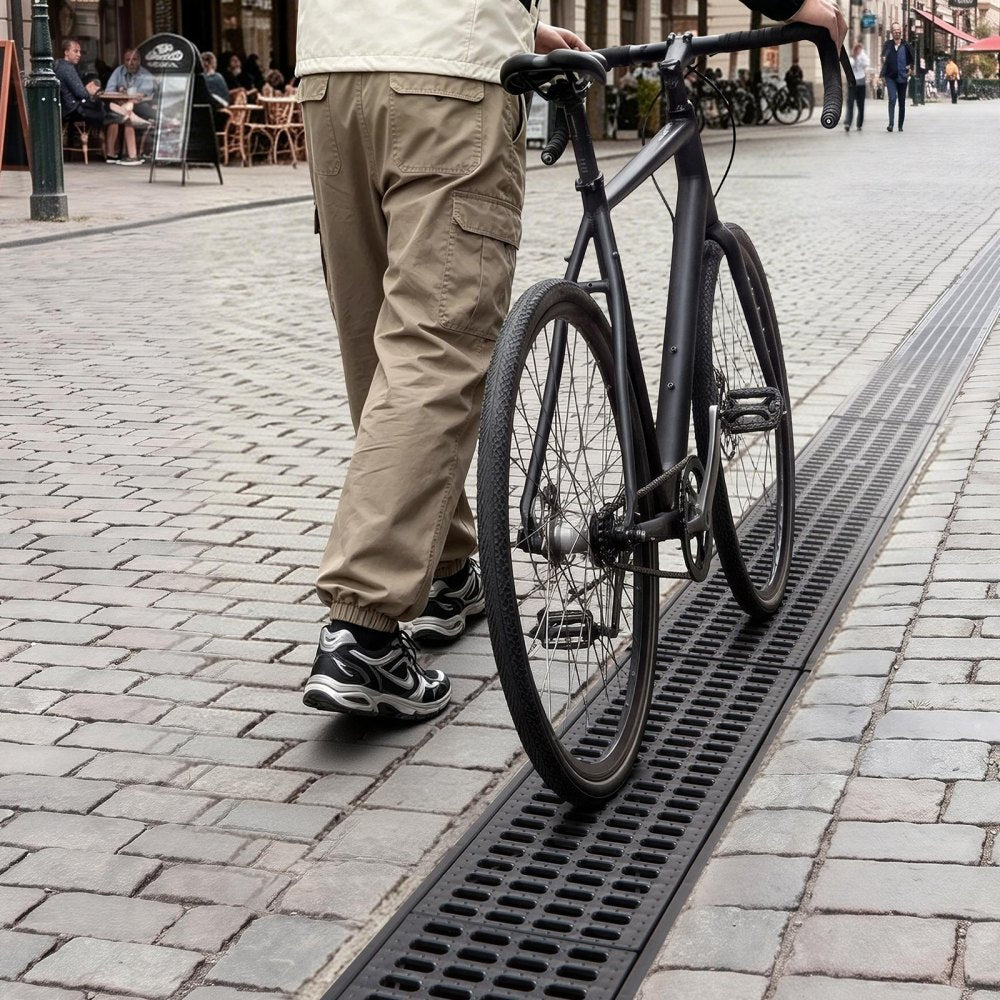

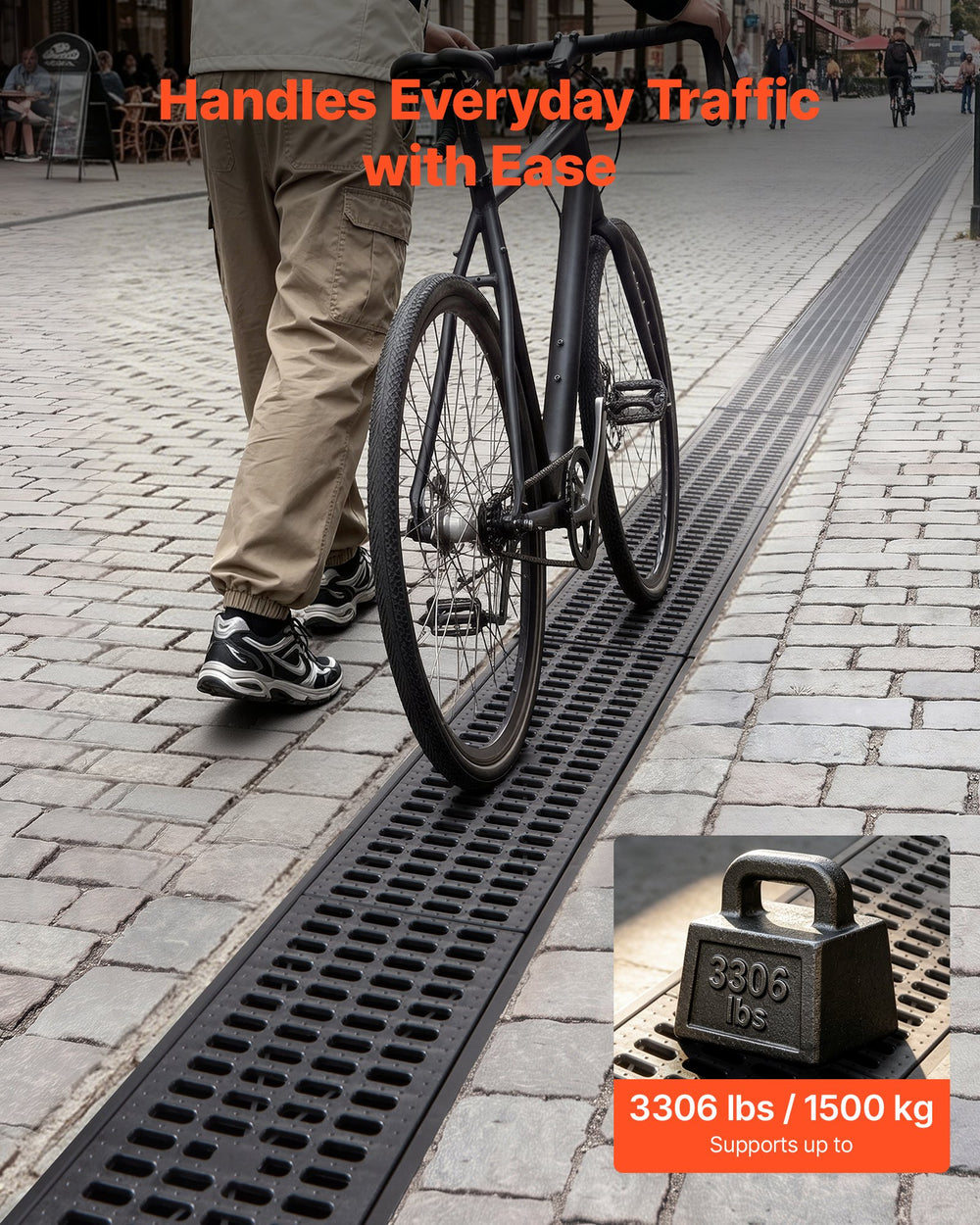

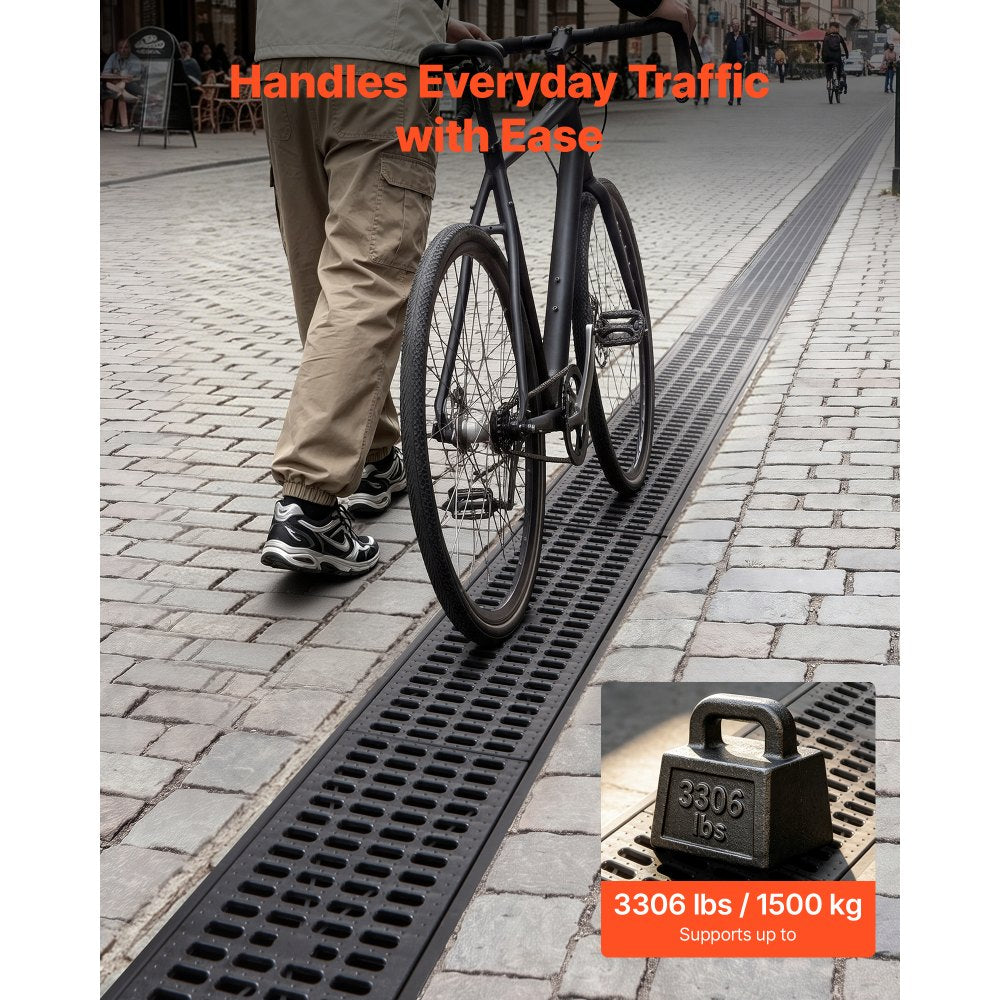

- Strong Load Capacity: Built for reliable performance and can support up to 3306 lbs / 1500 kg when properly installed, This linear drain is suitable for pedestrian areas and gardens
- Broad Application Range: Our channel drain linear is suitable for embedding in concrete, brick, stone, or wood decks, meeting drainage needs for garages, garden patios, poolside areas, sidewalks, and other outdoor spaces

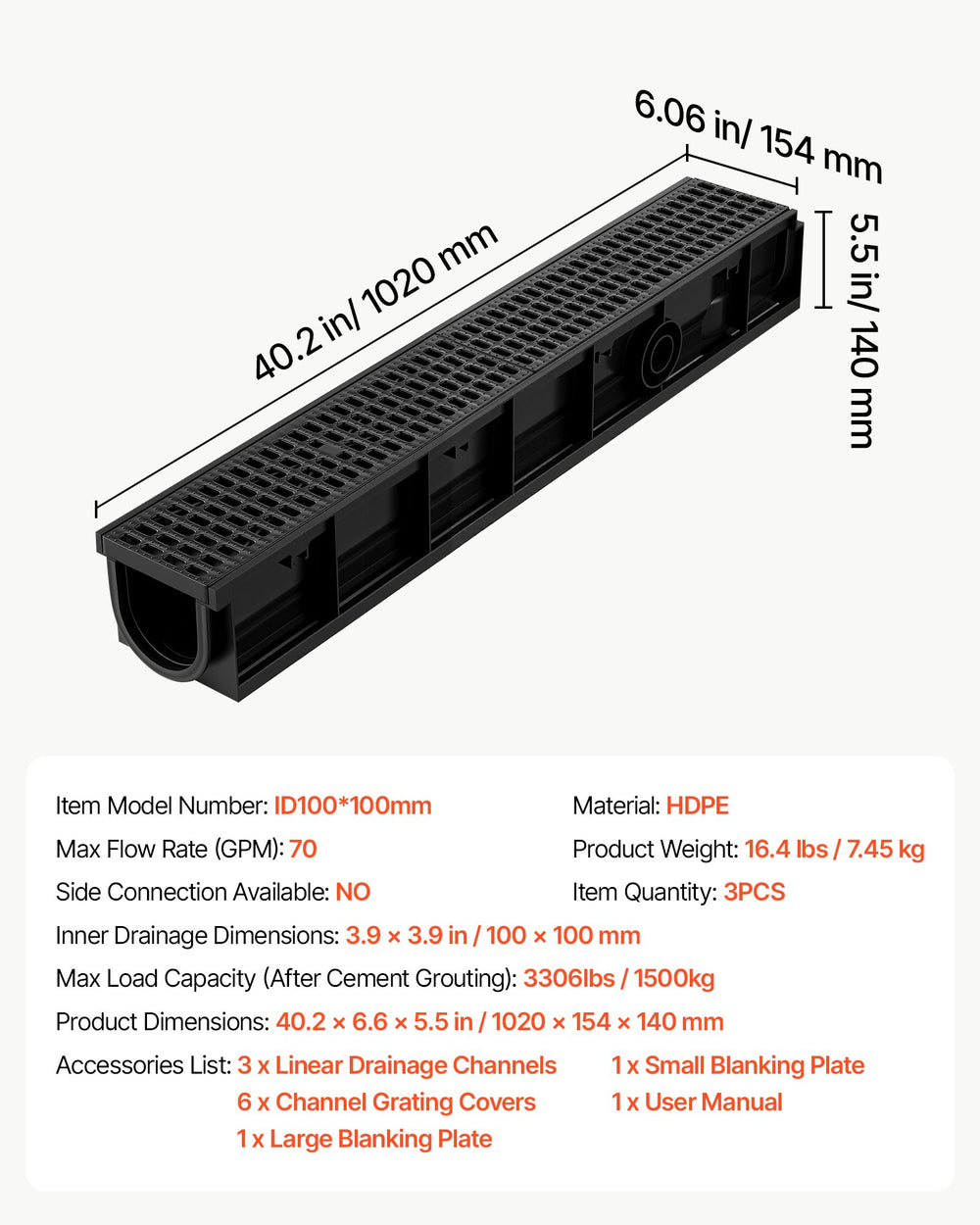

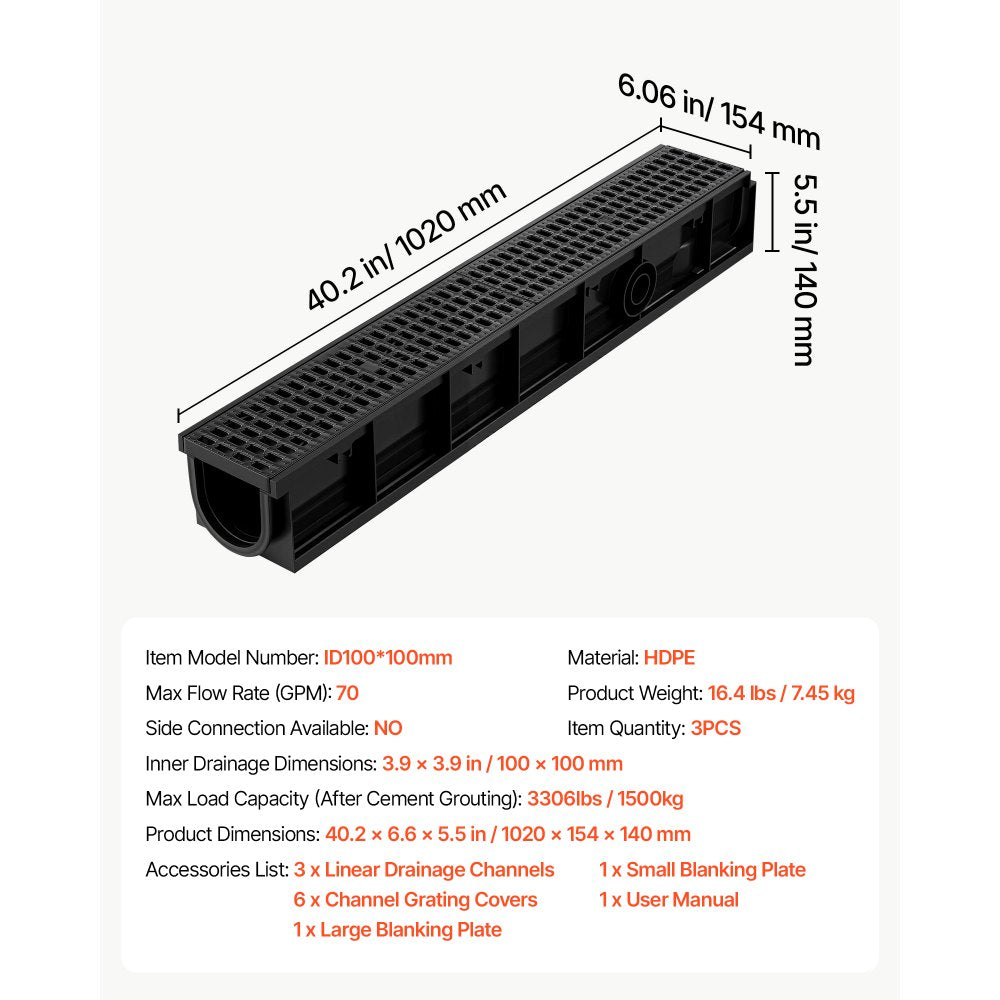

Specifications
| Item Model Number | ID100*100mm |
| Product Type | Trench Drain |
| Color | Black |
| Pack Quantity | 3 Pack |
| Max Flow Rate | 70 GPM |
| Max Load Capacity After Cement Grouting | 3306 lbs / 1500 kg |

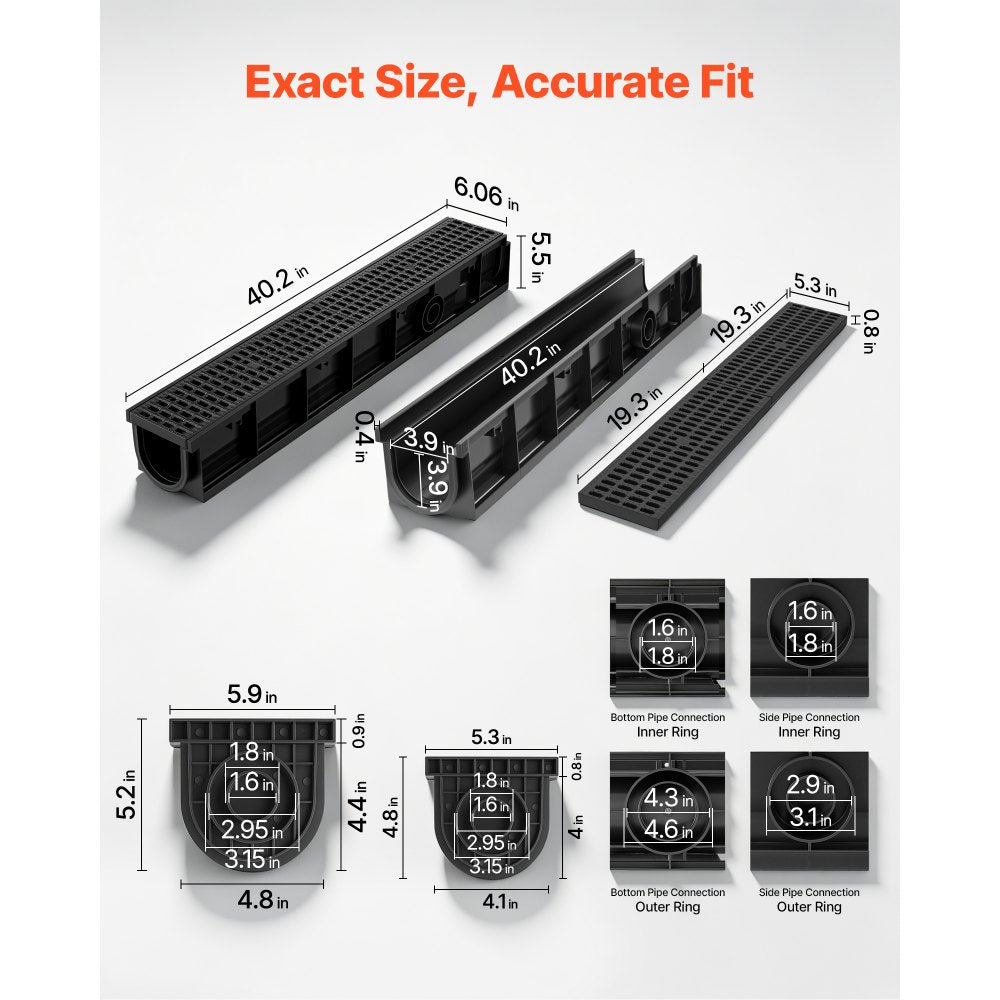

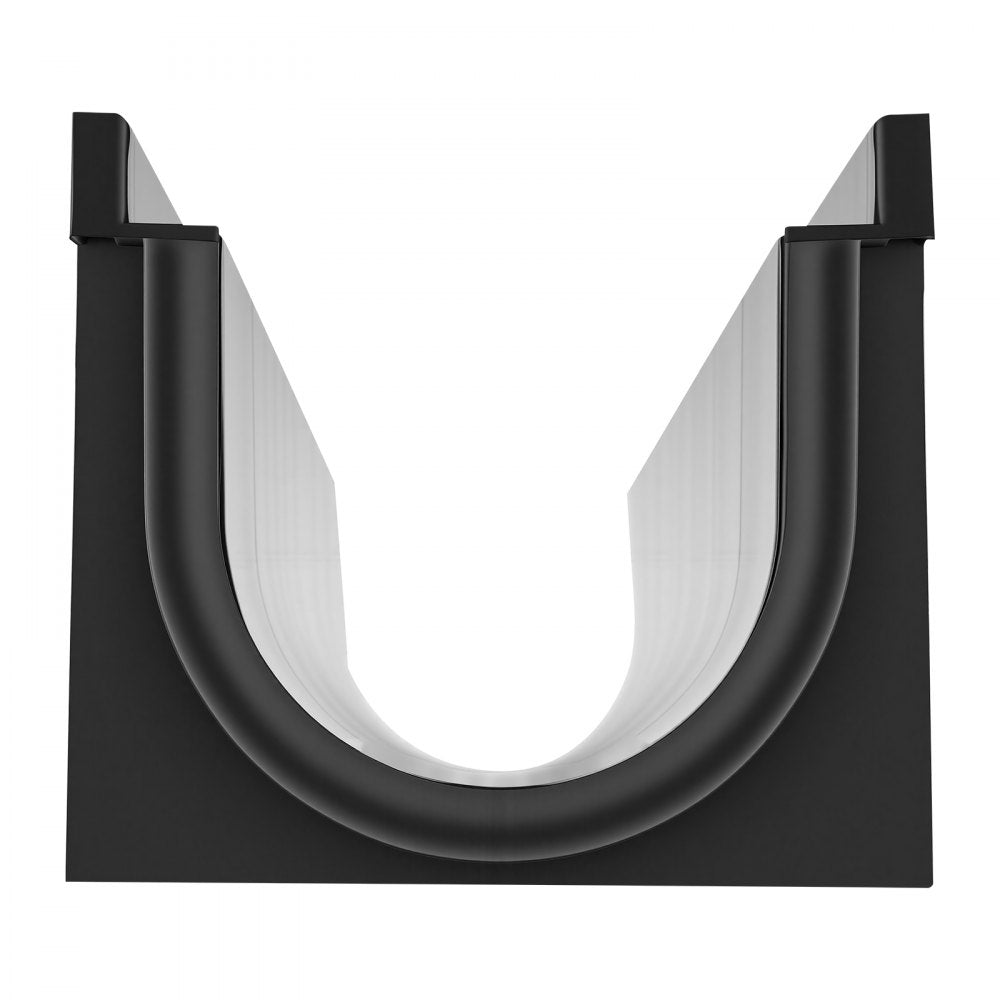

| Inner Drainage Dimensions | 3.9 x 3.9" / 100 x 100 mm |
| Side Connection Available | Yes |
| Material | HDPE |
| Product Weight | 16.4 lbs / 7.45 kg |

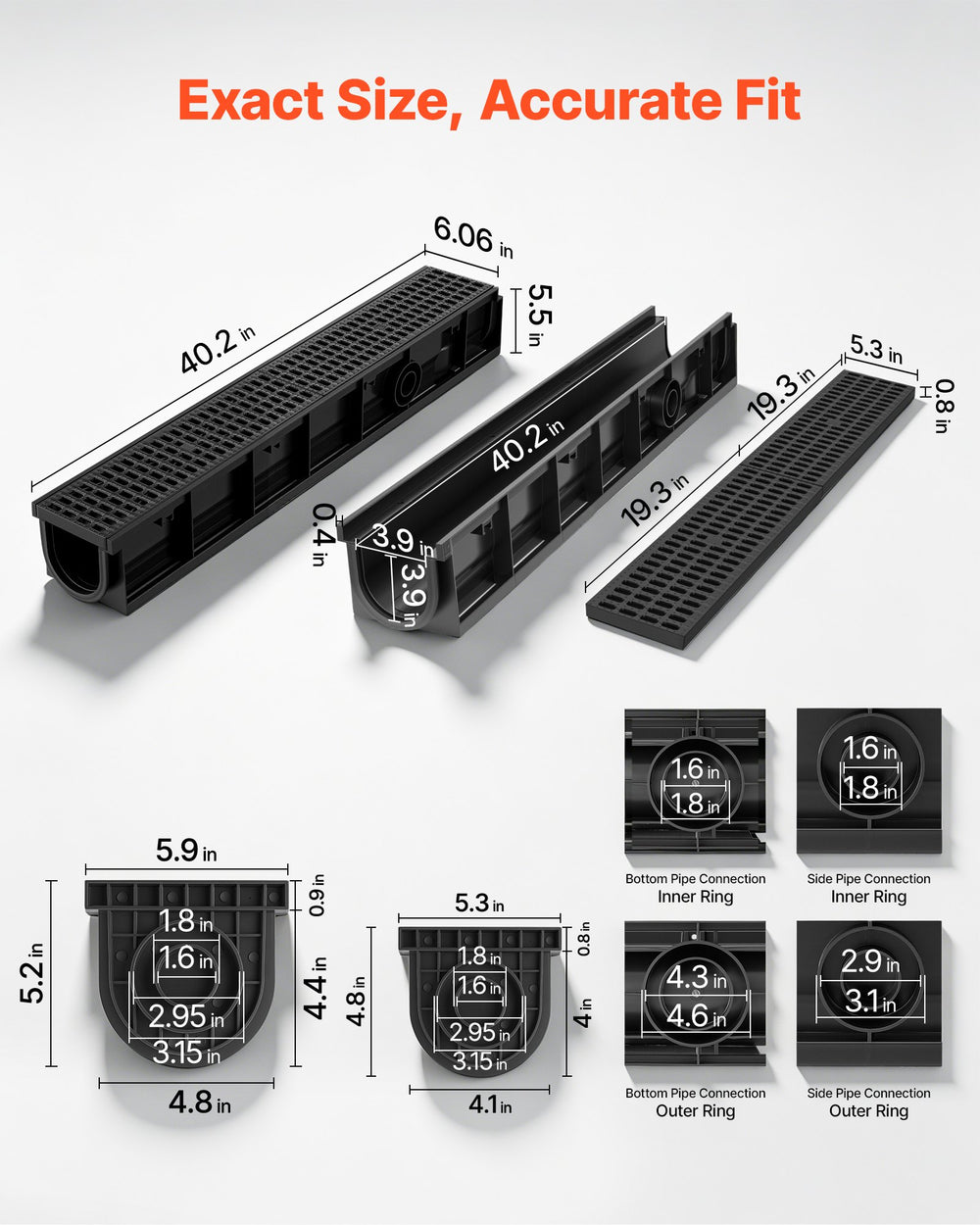

| Product Dimensions | 40.2 x 6.6 x 5.5" / 1020 x 154 x 140 mm |

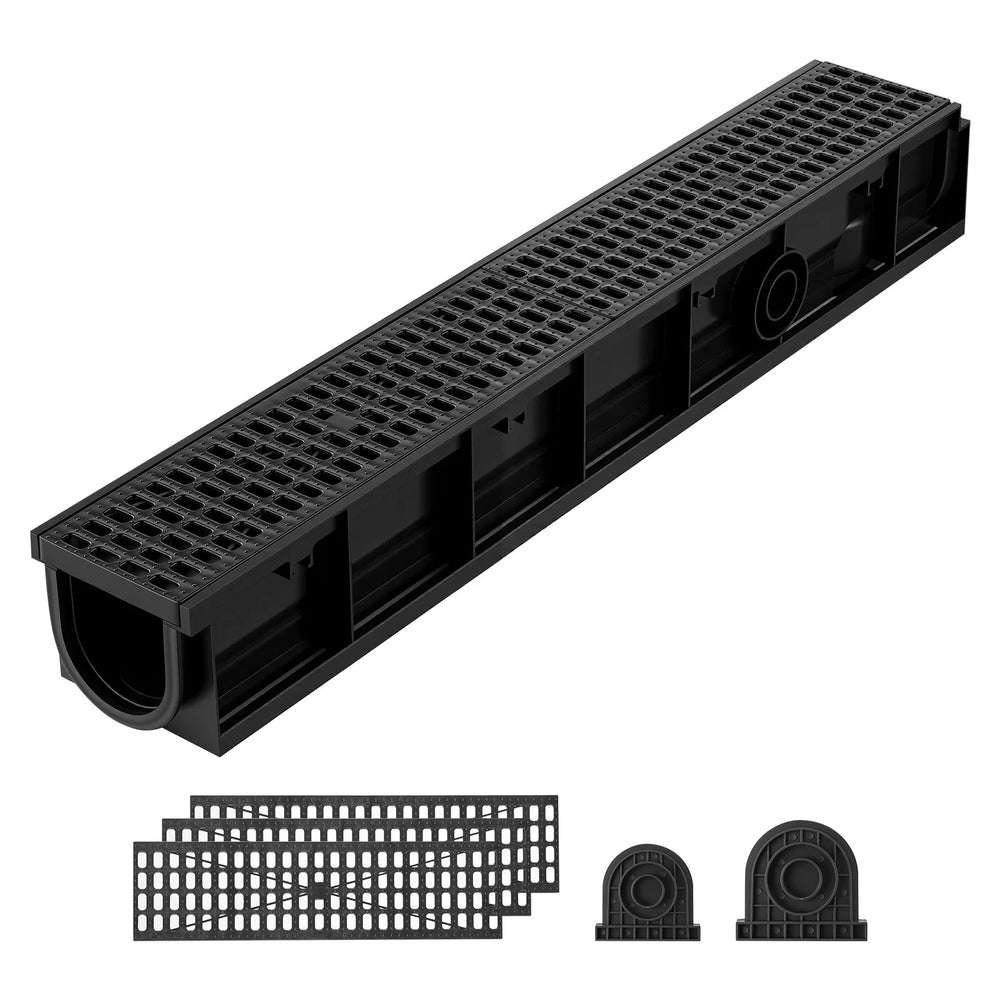

Package Contents
3 x Trench drain channels
Grates
End caps
Screws
Warranty
This item comes with a 1 year factory warranty.
