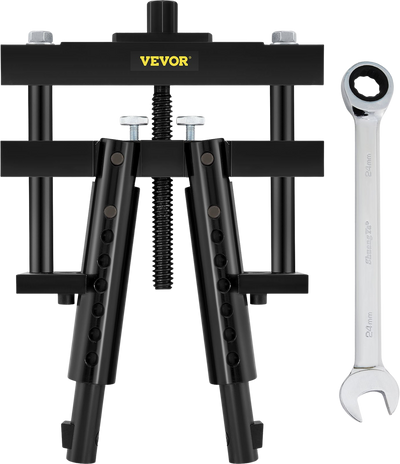

Vevor Universal Cylinder Liner Puller for CAT Mack Cummins Fits 3-7/8" to 6-1/4" Bore Replaces PT-6400-C M50010-B and 3376015 New
Manufacturer: Vevor
SKU: TYZXCYGTLBQ8OWIUIV0
QTY
(888) 999-1522
$ 183.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Vevor Universal Cylinder Liner Puller for CAT Mack Cummins Fits 3-7/8" to 6-1/4" Bore Replaces PT-6400-C M50010-B and 3376015 New
Product Overview
The Vevor Universal Cylinder Liner Puller offers exceptional compatibility with Mack, Cummins, Volvo, Detroit, and CAT engines, ensuring efficient removal of cylinder liners without risk of damage. It replaces PT-6400-C, M50010-B, and 3376015, handling wet liners from 3-7/8 in. to 6-1/4 in. diameter and depths up to 12.1 in. with a minimum wall thickness of 0.15 in. Featuring spring-loaded feet for automatic adjustment and a spread range of 3.7 to 6.2 inches, it accommodates various liners effortlessly. Crafted from durable 45# steel for abrasion, corrosion, and impact resistance, it includes gaskets, bearings, bushings, and detent brake pins for stability. This puller’s robust design ensures reliable performance, complemented by 0.7-inch thick baffles and an included wrench for heavy-duty use, facilitating quick and efficient cylinder removal tasks.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Great Compatibility: The cylinder liner puller is compatible with Mack, Cummins, Volvo, Detroit, and other CAT engines. With the manual liner puller, you can quickly remove the cylinder liner. Besides, its power is evenly distributed and will not cause damage to your cylinder liner.
- Premium Performance & Features: With high working efficiency, this universal liner puller can directly replace PT-6400-C, M50010-B, and 3376015. It can work perfectly on a heavy-duty truck, with wet liners of 3-7/8 in. to 6-1/4 in. diameter, 12.1 in. depth, and 0.15 in. minimum wall thickness.
- Spring-loaded Feet Design: Equipped with spring-loaded feet, the puller can automatically be adjusted to fit the liner so that you don't need to operate the swing arms manually. The adjustable spread range is from 3.7 to 6.2 inches, suitable for most wet cylinder liners. Plus, there are 7 holes in the lower leg so that you can adjust the length of the rod according to the depth of the cylinder.
- Superior Material: The universal cylinder puller is made of durable 45# steel, providing good performance to withstand abrasion, corrosion, and impact, which can effectively extend the service life of the cylinder liner puller.
- Reasonable Structure: The universal cylinder puller's structure is very stable and reasonable. There are gaskets, bearings, bushings in the upper part, and detent brake pins in the middle. Besides, two baffles with 0.7 inches thickness are designed on both sides. Plus, We will provide you with a wrench so that you can use it with heavy-duty tools. All these designs are constructed to stabilize the whole puller significantly and help you quickly finish the removal work.
Specifications
| Item Model # | K04T |
| Dismantling Size Range | 3-7/8 in. to 6-1/4 in. (95-157 mm) |
| Material | 45# Steel |
| Applicable Models | Wet-type Cylinder Liner |
| Max. Lead Screw Length | 12.1 in. (308 mm) |
| Baffle Thickness | 0.7 in. (15 mm) |
| Item Weight | 23.1 lbs. (10.5 kg) |
| Item Size | 12.1 x 22.2 in. (26 x 56.5 cm) |
Package Contents
Vevor Universal Cylinder Liner Puller for CAT Mack Cummins Fits 3-7/8 in. to 6-1/4 in. Bore
User Manual
Warranty
This item comes with a 1 year factory warranty.
