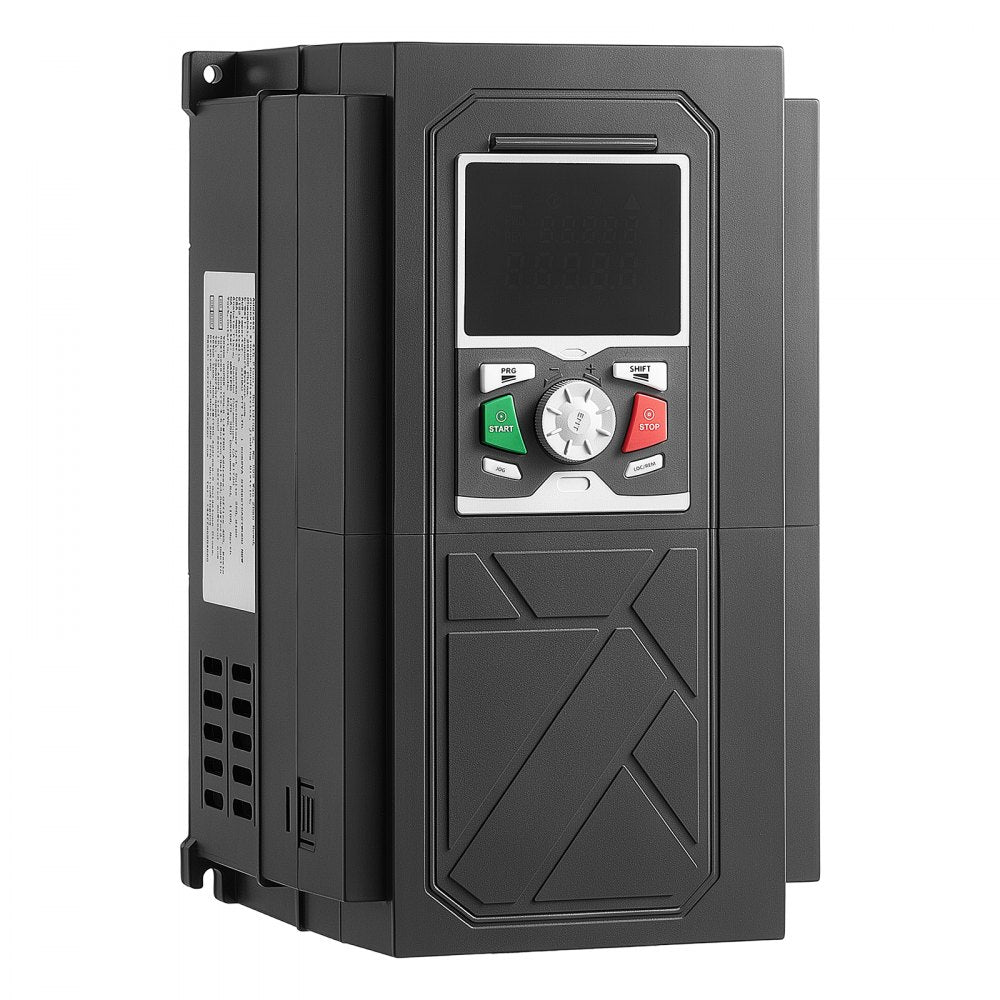

Vevor Variable Frequency Drive 10HP 7.5KW 20.5A 3-Phase AC 480V 0-500Hz Motor Speed Control New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Key Parameters: Designed for 7.5KW motors, this 10HP 20.5A VFD supports AC 480V 3-phase input/output and 0–500Hz output frequency, providing flexible and reliable motor speed control
- Reliable 3-Phase Power: With 3-phase input and 3-phase output, this VFD delivers strong torque at low frequencies, maintaining powerful load performance even at low speeds
- Flexible Control Modes: Supports V/F Control and Sensorless Vector Control (SVC), allowing you to select the appropriate mode based on different load types and control precision requirements

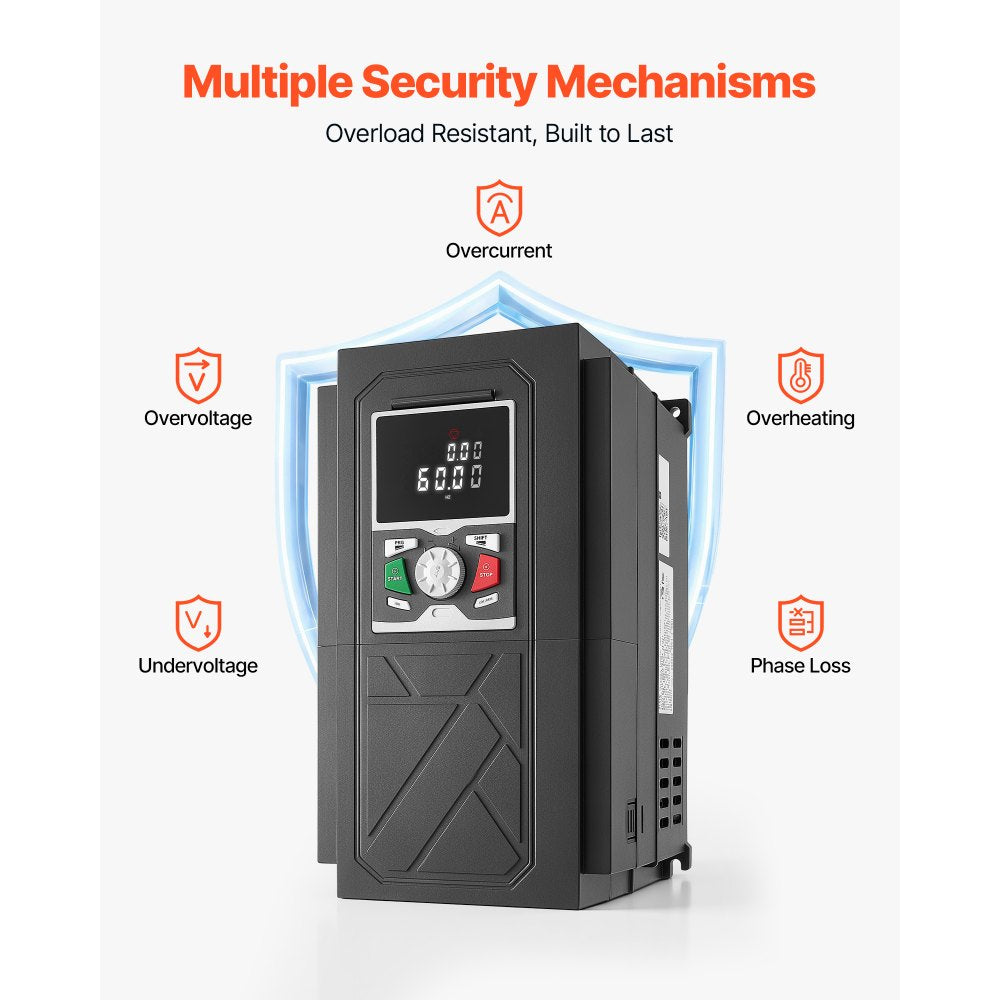

- Multiple Security Protections: Built-in protection against overcurrent, overvoltage, undervoltage, overheating, and phase loss. Combined with a flame-retardant housing and aluminum heat sink for enhanced heat dissipation and reliable operation
- Wide Applications: Suitable for a variety of 3-phase motor-driven equipment, including spindle motors, CNC routers, milling machines, lathes, water pumps, ventilators, fans, conveyors, compressors, and more speed-controlled motors
Specifications
| Item Model Number | EV520-0075G / 0110P-T4(T5) |
|---|---|
| Horsepower | 10HP |
| Compatible Motor Power | 7.5KW |
| Input / Output Phase | 3-Phase |
| Input / Output Voltage | AC 480V |
| Input Frequency | 60Hz |
| Output Frequency | 0-500Hz |
| Input Current | 20.5A |
|---|---|
| Main Material | Flame-Retardant Plastic Housing |
| Net Weight | 6.8 lbs / 3.1 kg |
Warranty
This item comes with a 1 year factory warranty.
