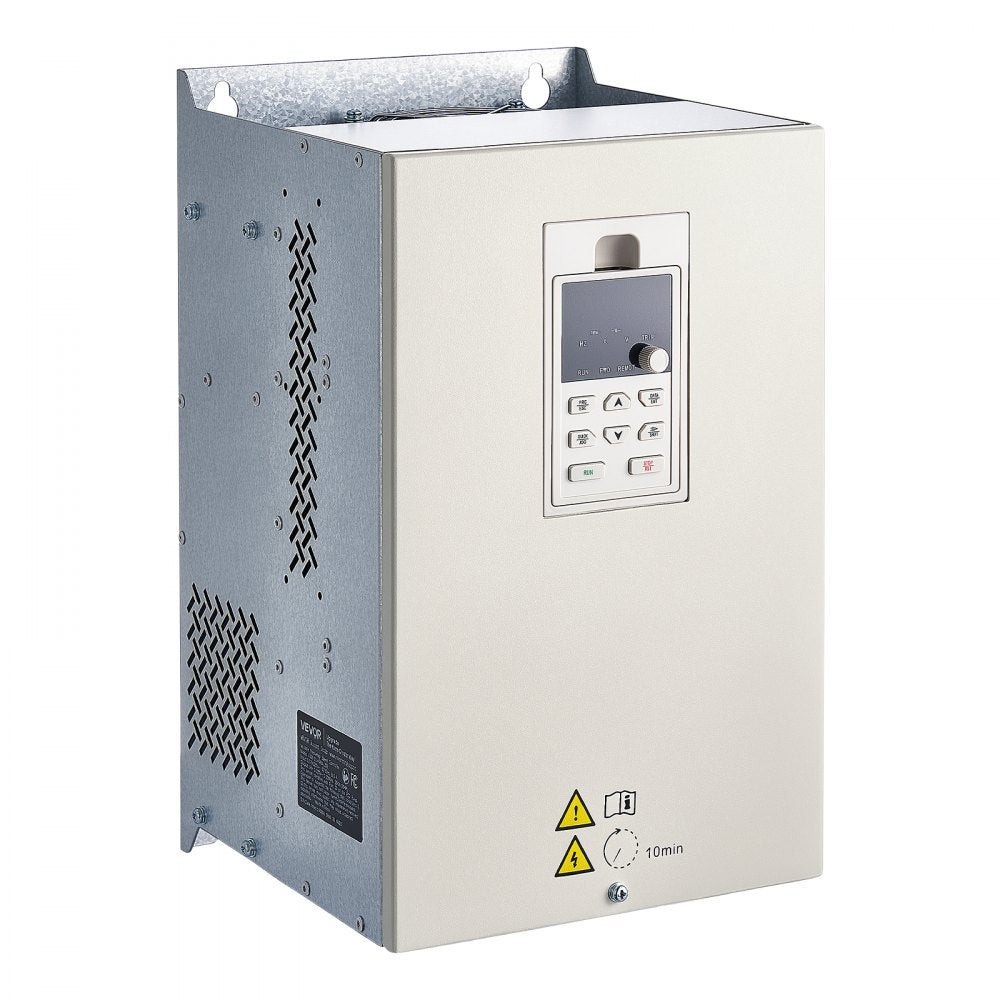

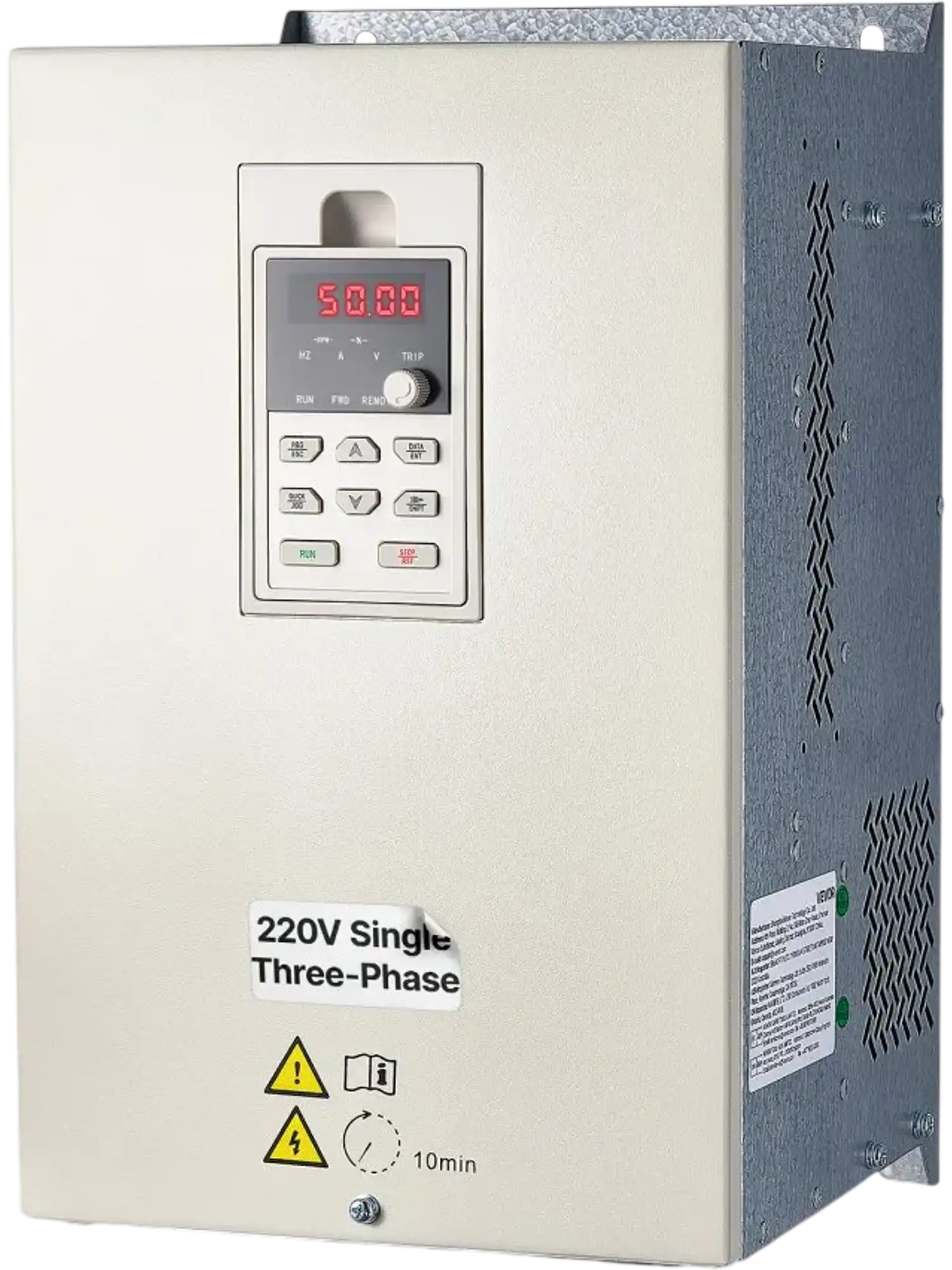

Vevor Variable Frequency Drive 20HP 15KW 68.5A Single/3-Phase 220V to 3-Phase 220V New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Powerful Motor Control: Designed for 15KW motors, this 20HP 68.5A VFD supports single/3-phase 220V input and 3-phase 220V output, delivering flexible, stable, and reliable speed control for a wide range of motor applications
- Strong Low-Frequency Torque: Supports automatic torque compensation during low-frequency operation, maintaining strong load capacity even at low speeds. V/f mode supports a wide 0–2000 Hz frequency output range to meet more flexible speed control
- Smarter Control: Features a built-in PID constant pressure water supply function, enabling real-time constant pressure water supply without the need for an external PLC. Supports Modbus 485 communication and features a built-in braking unit. Suitable for controlling three-phase asynchronous AC motors, spindle motors, and more
- Reliable 3-Phase Power: Delivers strong torque and powerful load performance. Suitable for automotive lifts, air compressors, water pumps, constant-pressure water supply systems, engraving machines, and more
- Enhanced Security: Built-in protection against overcurrent, overvoltage, undervoltage, overheating, and phase loss. Combined with a durable housing and aluminum heat sink for enhanced heat dissipation and reliable operation
Specifications
| Item Model Number | G300-015-045A-2SB |
|---|---|
| Horsepower | 20HP |
| Compatible Motor Power | 15KW |
| Input / Output Phase | 1/3-Phase / 3-Phase |
| Input / Output Voltage | AC 220V |
| Input Frequency | 50/60Hz |
| Output Frequency | 0–2000Hz |
|---|---|
| Input Current | 68.5A |
| Net Weight | 17.6 lbs / 8 kg |
Warranty
This item comes with a 1 year factory warranty.
