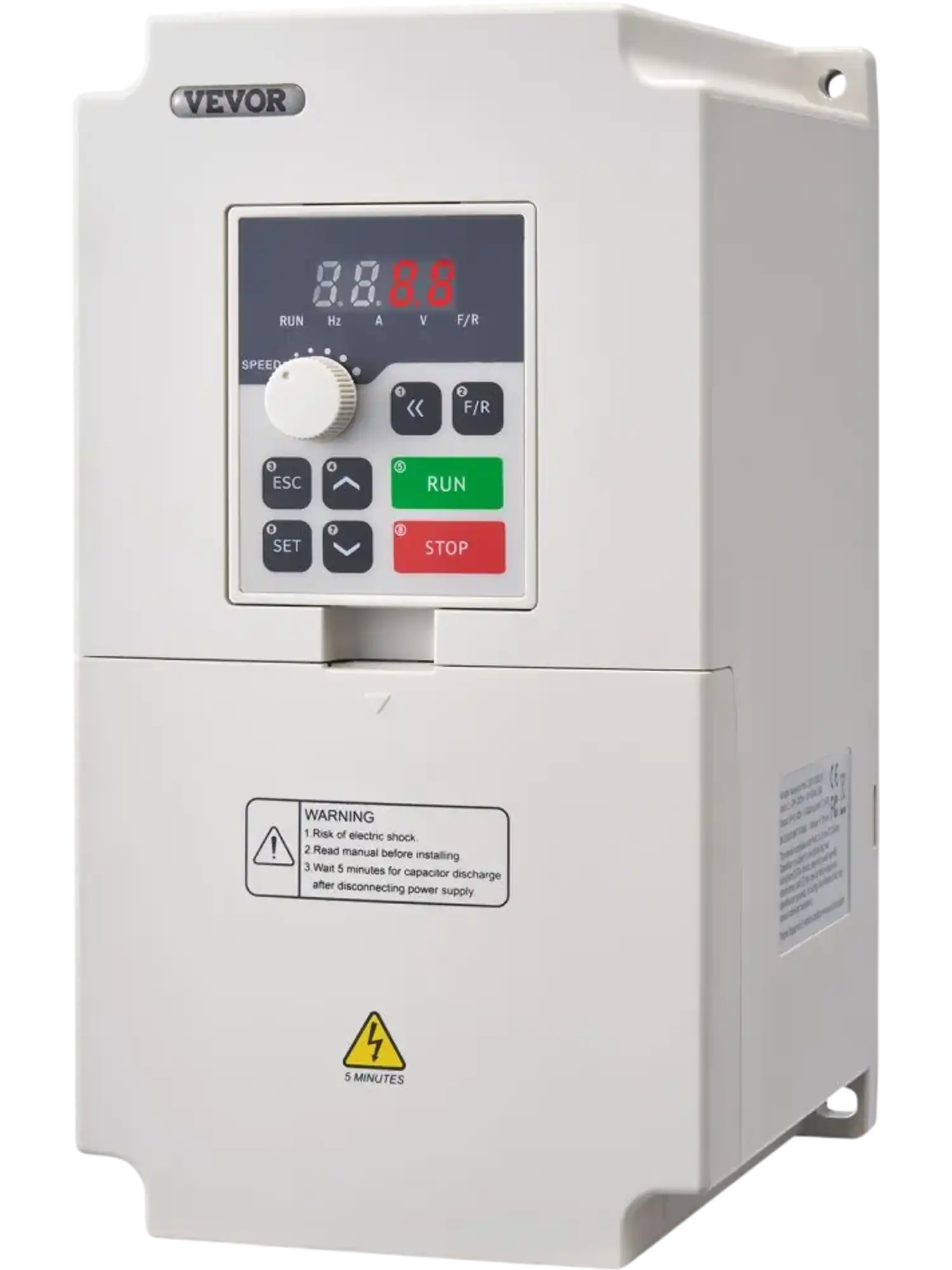

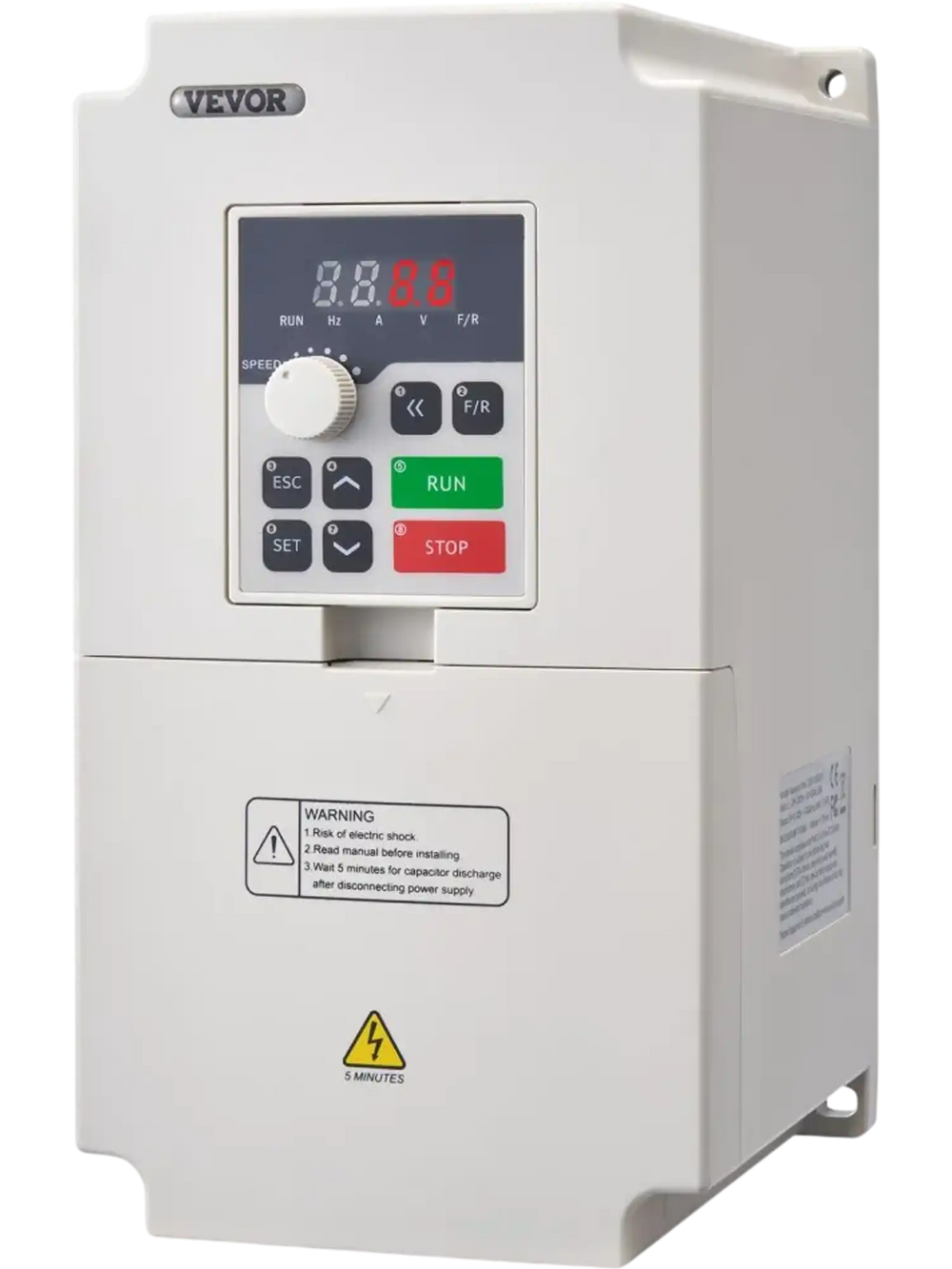

Vevor Variable Frequency Drive 4kW 220V 5.5 HP Motor Inverter Converter New
Manufacturer: Vevor
SKU: BPQDXN4KW220V8MZPV7
Power Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
$ 111.90
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Extended Warranty
×
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Spindle Motor Air Cooled with ER20 Collet for CNC Router 2.2kW 24000 RPM 220V New
-
Vevor Hybrid Solar Inverter 6000W Pure Sine Wave Charger 48V DC to 220/230V AC Single Phase New
-
Vevor 3 Phase Converter 5HP 220V Digital Phase Shifter New
-
Vevor Variable Voltage Transformer 2000VA 15.3A 110V Input 0-130V Output with LCD Display New
-
Vevor Voltage Converter Transformer 1000VA Step Up/Down 110V to 220V New
-
Vevor Single Phase to 3-Phase Rotary Converter 2.5 HP 7A 208-240V New
-
Vevor Voltage Converter 3000VA Step Up Transformer 110V to 220V New
-
Vevor Voltage Converter 2000VA Step Down 220V to 110V Power Transformer New
-
Vevor Phase Converter 220V Single Phase to 3 Phase 2HP Digital Shifter New
-
Vevor Voltage Converter Transformer 3000W Step Up Down Power Converter New
-
Vevor Digital Phase Converter Single to 3-Phase 10HP 30A 220V New
-
Vevor Voltage Converter Transformer 500VA Step Up/Down 110V to 220V and 220V to 110V New
-
Vevor Rotary Phase Converter Single Phase to 3-Phase 5HP 14A 208-240V New
-
Vevor Voltage Converter 220V to 110V 3000VA Step Down Power Transformer New
-
Vevor Voltage Converter 2000VA Step Up 110V to 220V Power Transformer New
-
Vevor Rotary Phase Converter Single Phase to 3-Phase 10HP 28A 208-240V for Heavy-Load Equipment New
-
Vevor Voltage Converter Transformer 6000VA Step Up/Down 110V to 220V Auto New
-
Vevor 3 Phase Converter 7.5HP 220V Digital Phase Shifter New
-
Vevor Variable Transformer 2000VA 15.3 Amp 110V Input 0-130V Output Voltage Regulator New
-
Vevor Voltage Converter Transformer 2000W Step Up Down with USB and Type-C New
-
Vevor Digital Phase Shifter Single to 3-Phase Converter 20HP 70A 220V Input/Output New
Vevor Variable Frequency Drive 4kW 220V 5.5 HP Motor Inverter Converter New
Product Overview

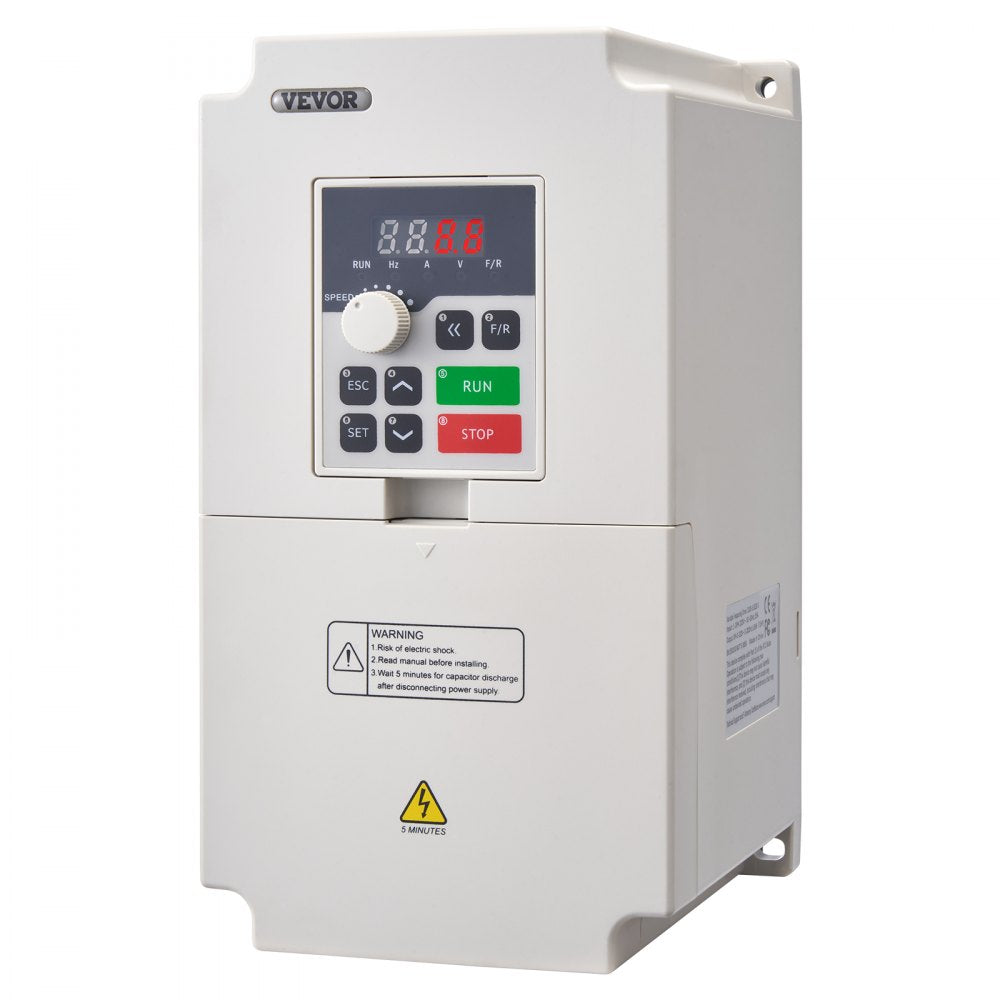

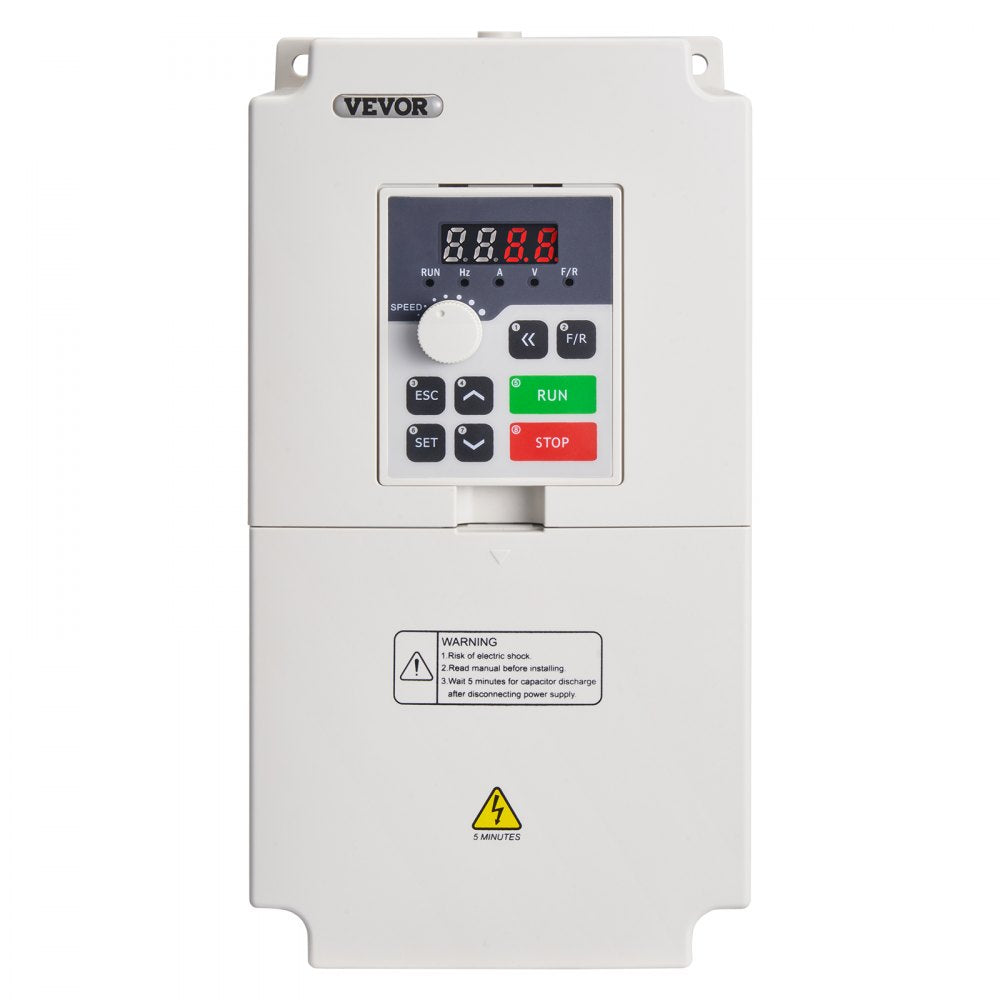

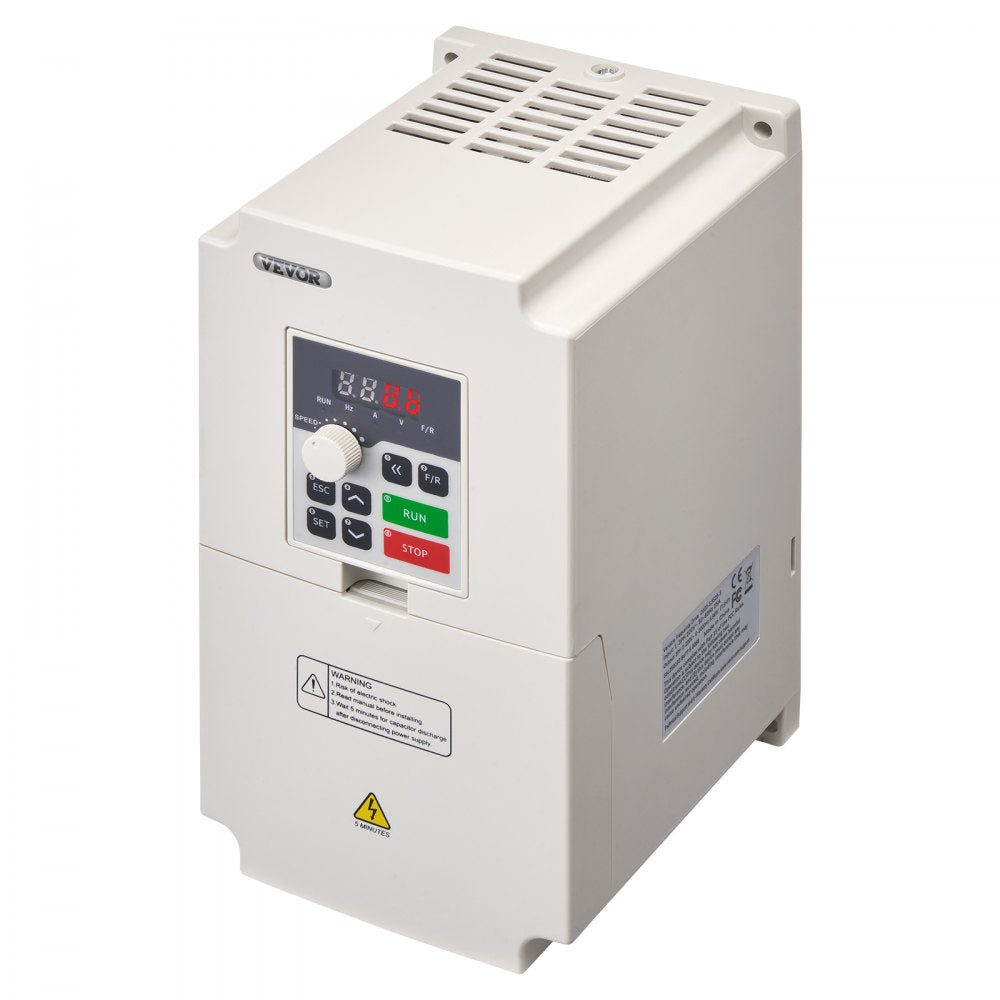

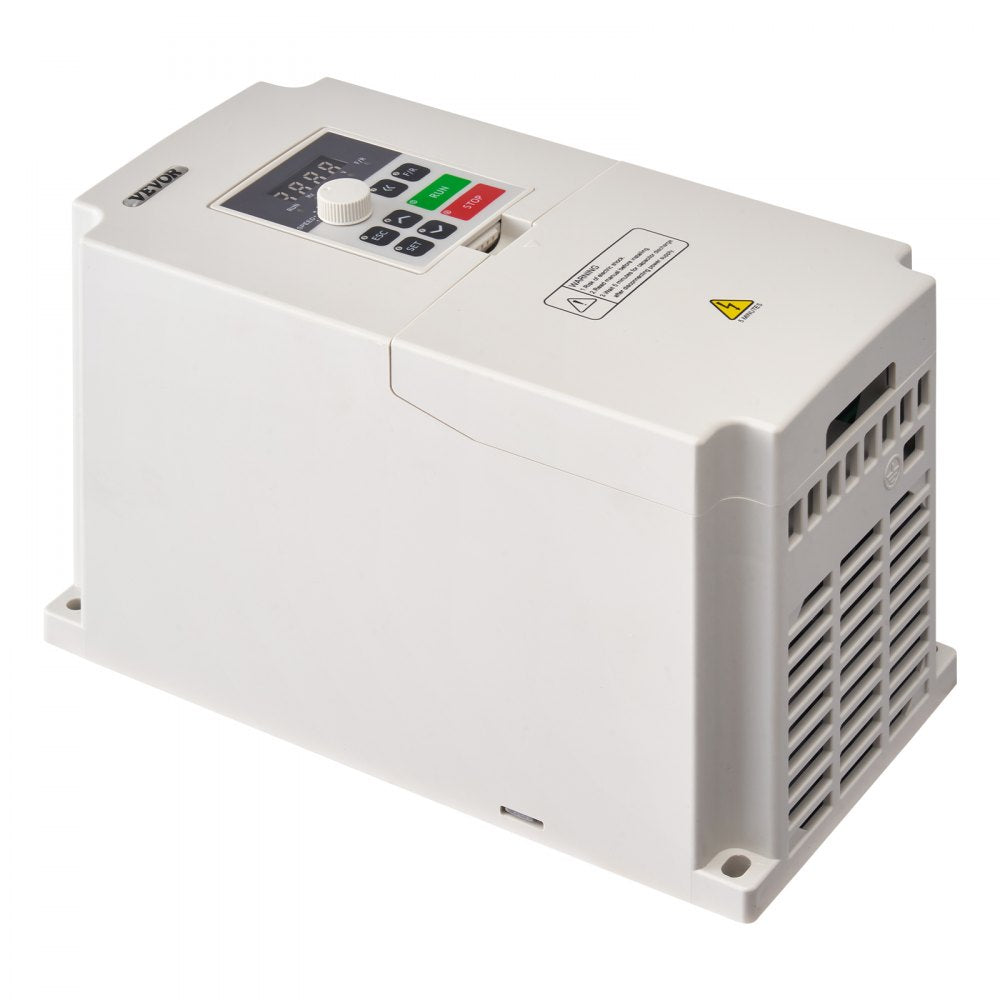

The Vevor variable frequency drive is designed for motor speed control with 1 or 3 phase 220V input and 3 phase output. It supports both V/F control and vector control for flexible performance across CNC and industrial applications. A smart digital display and detachable keypad make operation straightforward and convenient. Its low-noise design, porous heat dissipation shell, and multiple built-in protections help support stable, reliable operation. This drive is suited for equipment such as spindle motors, milling machines, pumps, compressors, conveyors, and other compatible machinery.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

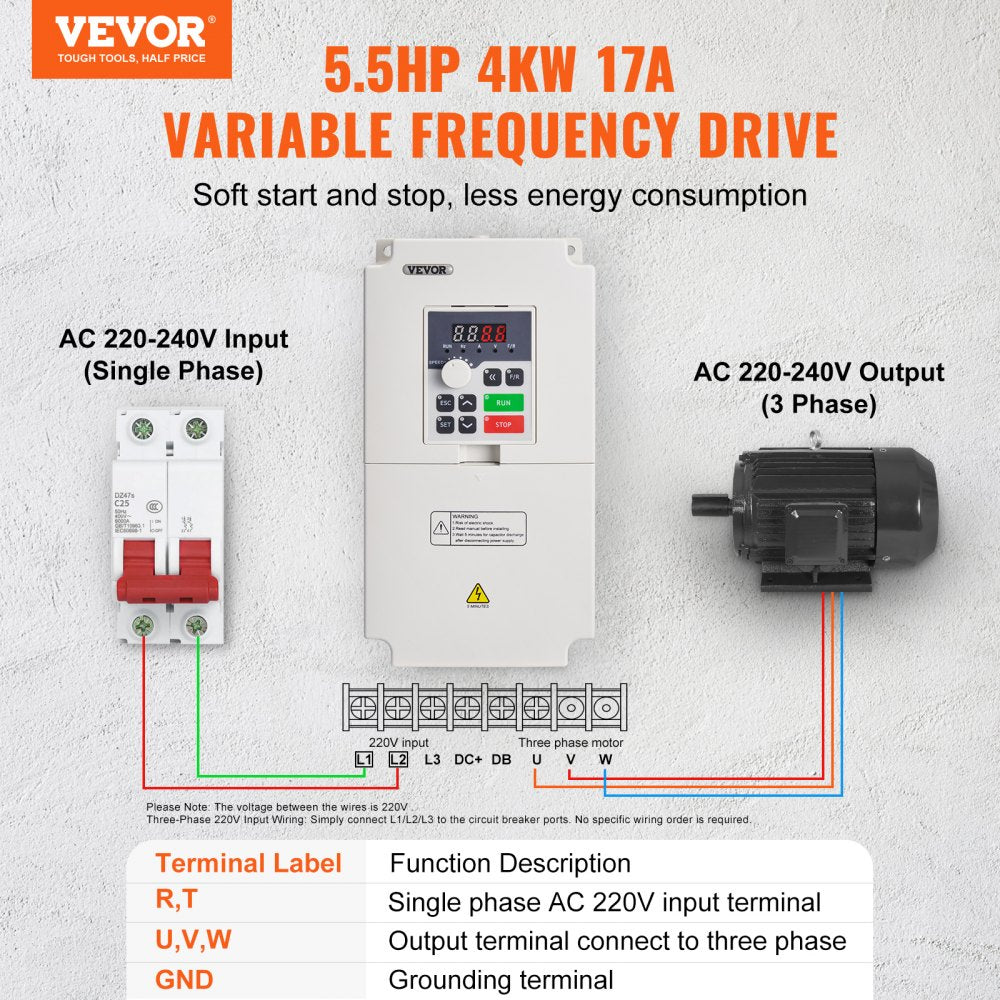

- Powerful Function: This variable frequency drive has a 1 or 3 phase input and 3 phase output. Control mode: V/F control and vector control. Frequency setting mode: digital setting, analog setting, serial communication setting, PID setting (advanced calculus PID closed-loop arithmetic, quick responding speed, and high suitability), etc. Various control techniques by both synchronization and non-synchronization dynamically realize fast starting without changing brakes. Heavy load high torque, 1Hz up to full torque.

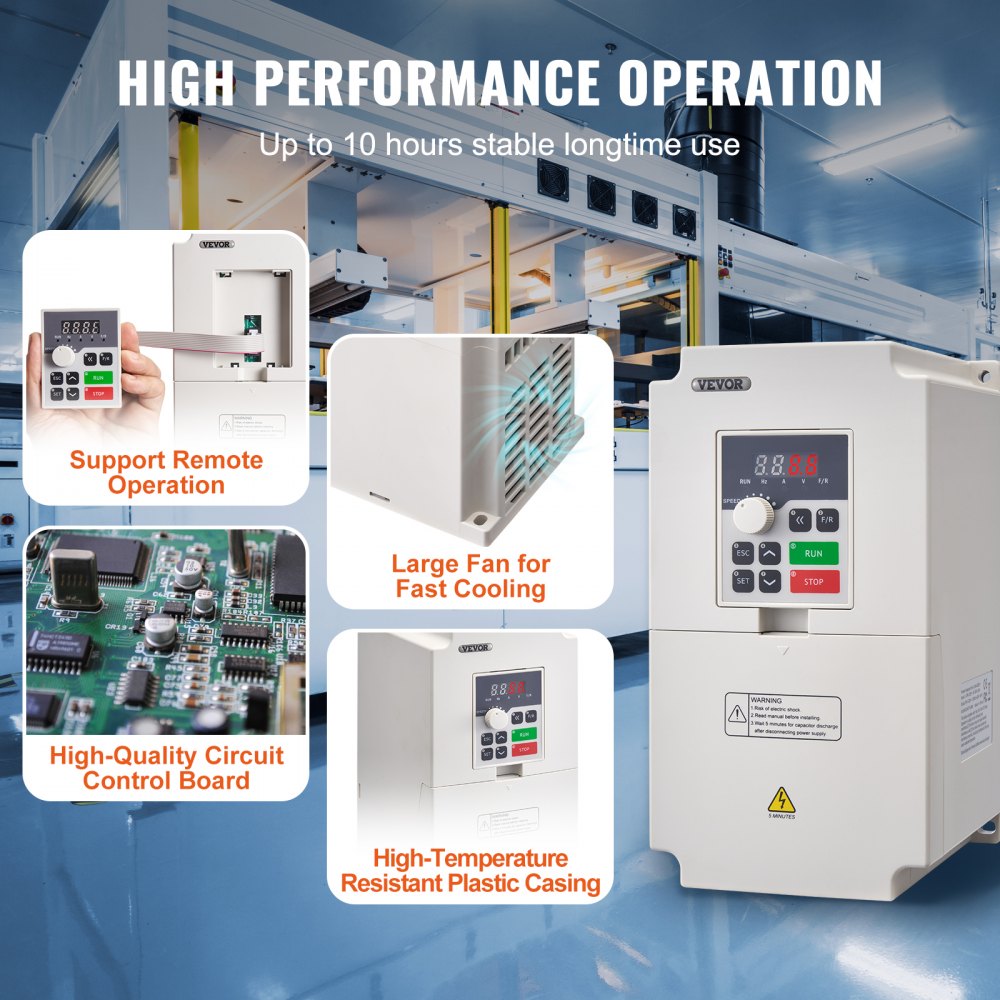

- Low-Noise Operation: The phase converter features low noise and low electromagnetic interference through the optimization of PWM control technology and electromagnetic compatibility of the overall design. There is enough space for heat dissipation between electronic components, and the shell adopts porous heat dissipation, which has a longer service life.

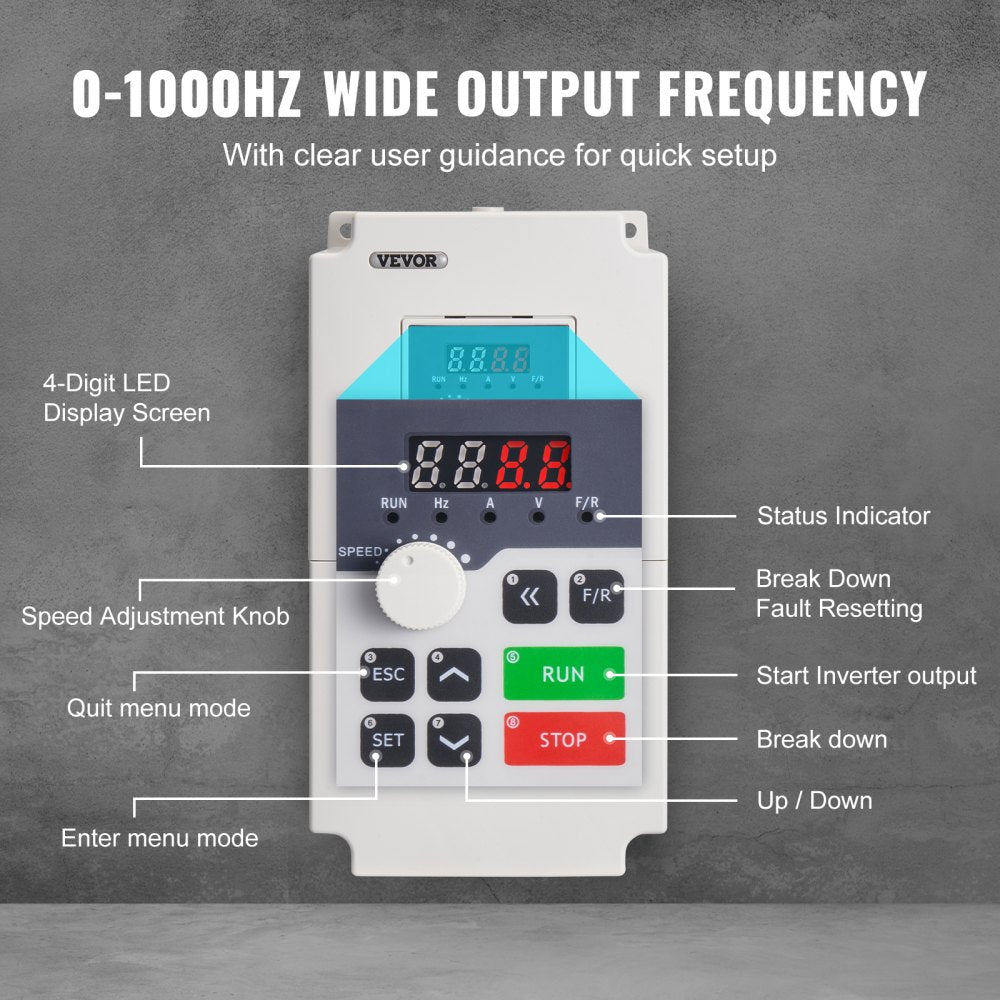

- Smart Digital Display: The VFD adopts a user-friendly keyboard design & reasonable layout, easy to operate; digital display, intuitive and clear. The detachable design is convenient for remote control.

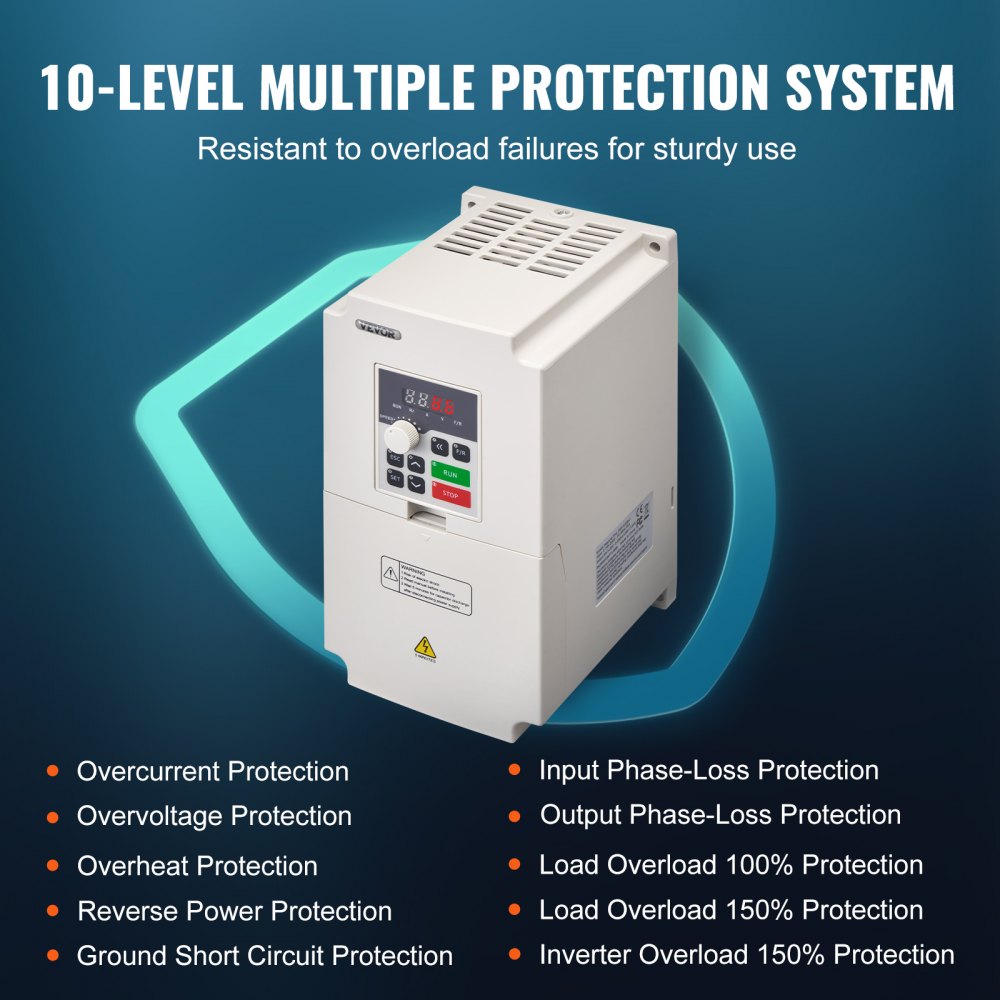

- Multiple Protection: We adopt various protection ways to ensure the stable and reliable operation of the CNC variable frequency drive inverter. Such as overload protection, fuse protection, over-voltage (DC voltage>400V), or under-voltage (DC voltage<200V) protection, restart protection, stall protection, short-circuit protection, and over-heat protection.

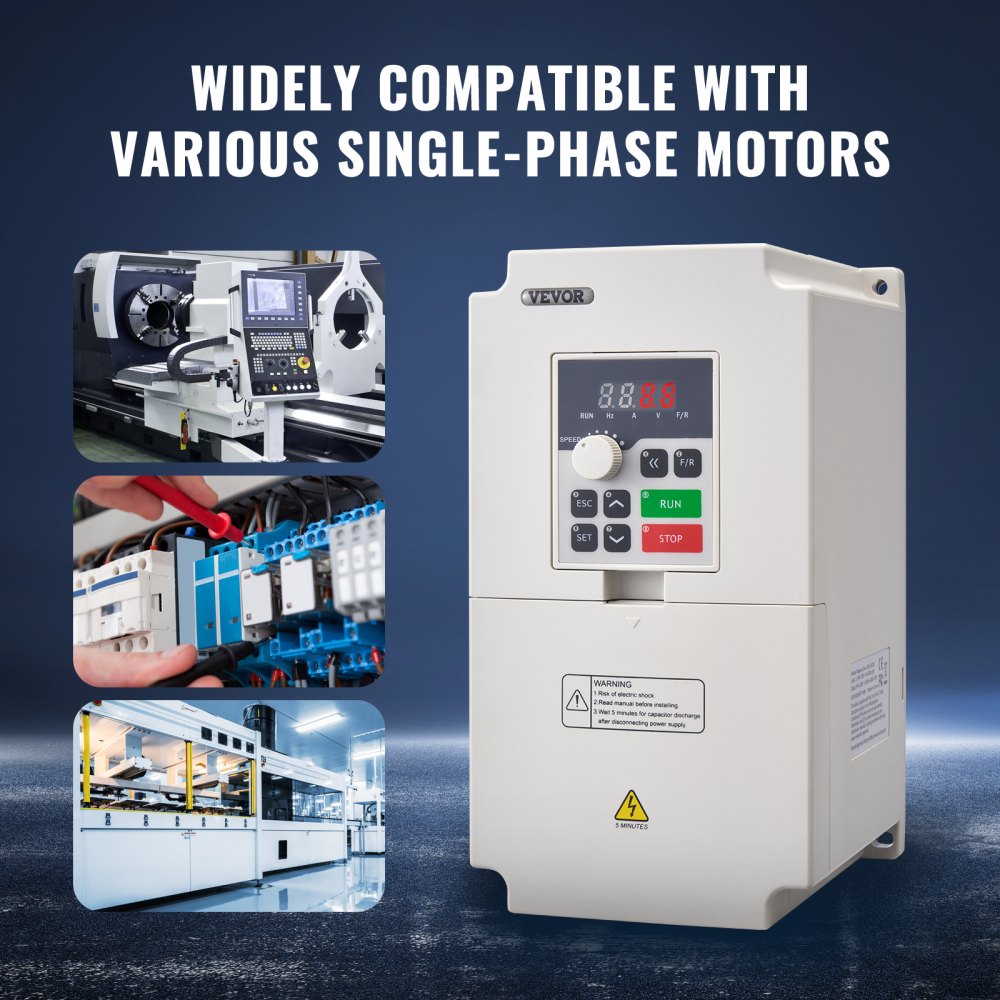

- Versatile Use: The main application area involves a spindle motor, CNC engraving machine, CNC milling machine, CNC machine tool, milling machine, drilling machine, trimming machine, mixer, extruder, slitting machine, rewinder, compressor, ventilator, pump, grinder, conveyor. Speed regulators such as elevators (cannot be used for passenger elevators), centrifuges, etc.

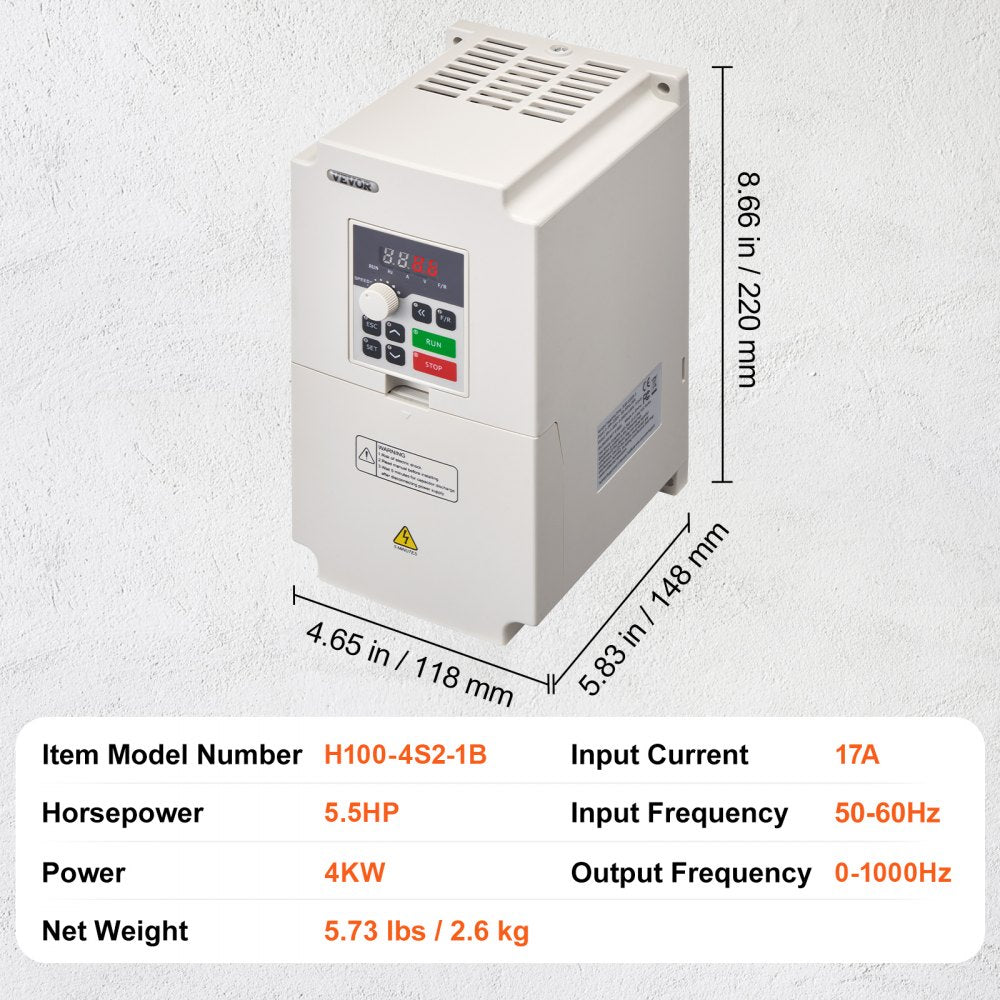

Specifications
| Model | H100-4S2-1B |
| Power | 4 kW |
| Input Voltage | 220V |
| Output Voltage | 0-220V |
| Input Current | 0-17A |
| Output Current | 0-17A |
| Input Phase | 1 or 3 Phase |
| Output Phase | 3 Phase |
| Input Frequency | 50/60 Hz |
| Output Frequency | 0-1000 Hz |
| Horsepower | 5.5 HP |
| Working Temperature | 23-104°F / -5 to 40°C |
| Humidity | 0-90% relative humidity without dew |
| Vibration | Below 0.5 G |
| Net Weight | 5.73 lbs |
| Dimensions | 8.7 x 4.6 x 5.8" |
Warranty
This item comes with a 1 year factory warranty.
